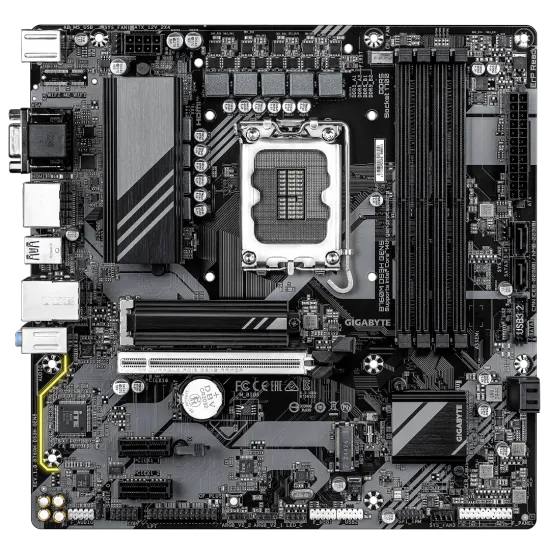

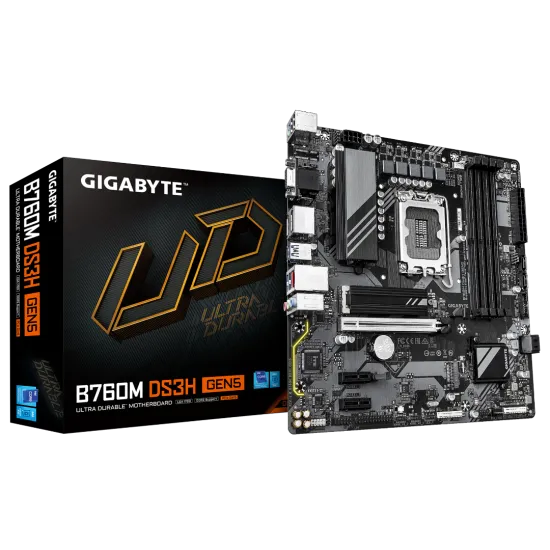

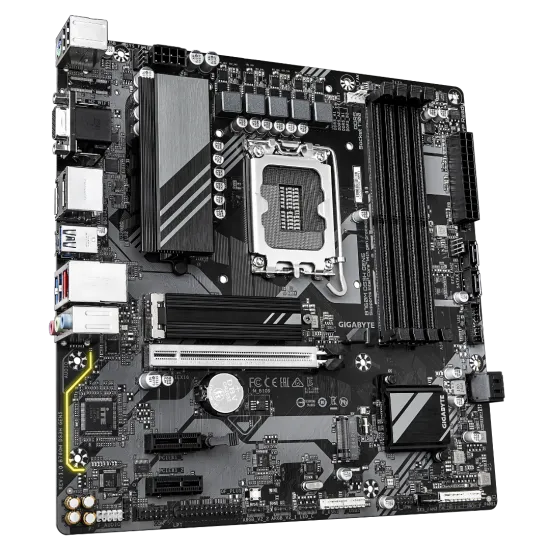

Name: Gigabyte B760M DS3H GEN5 DDR5 LGA1700 M-ATX Motherboard Black
Brand: GIGABYTE
SKU: GB-MB-B760M-DS3H-GN5-D5
Price: 6900.00 EGP
Availability: InStock

Gigabyte B760M DS3H GEN5 DDR5 LGA1700 M-ATX Motherboard Black

EGP6,900

Price including Taxes

Stock: Builds Only
SKU: GB-MB-B760M-DS3H-GN5-D5

GIGABYTE

Builds Only

Add to Wish List

Secure Payment Methods

Cash on delivery and various payment options and installment plans.

Fast and Secure Shipping

Receive your order within 2 to 5 business days.

Customer Service

Technical support from 10 am to 12 pm.

Warranty Coverage

Enjoy a 6-month to 3-year warranty through us with distributors.

Specifications

General
Brand	Gigabyte
Series	B760M
Model	DS3H GEN5
Color	Black
Warranty Years	3 Years
Product URL	https://www.gigabyte.com/Motherboard/B760M-DS3H-GEN5
Motherboard
Form Factor	M-ATX
Chipset	B760
Socket Type	LGA 1700
Maximum Recommended CPU	14600K
Power Phases	6+2+1
Memory Slot Type	DDR5
Number of Memory Slots	4 Slot
Maximum Memory Supported	256GB
ECC Supported	Yes
SATA	4 x SATA
Number of M.2	2 x M.2
PCI Express 5.0 x16	1 x Slot
PCI Express 4.0 x16	0 x Slot
PCI Express 3.0 x16	2 x Slot
PCI Slots	3 x Slot
Max LAN Speed	2.5Gbps
WIFI Support	No
Bluetooth Support	No

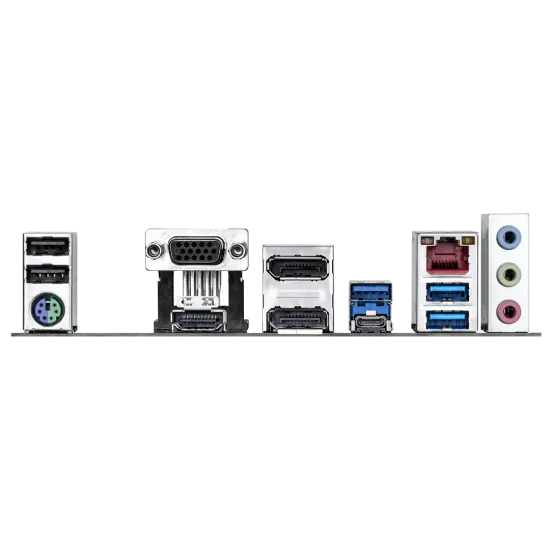

Back I/O Ports	2 x USB 2.0/1.1 ports 1 x PS/2 keyboard/mouse port 1 x D-Sub port (Note) 1 x HDMI port (Note) 2 x DisplayPorts (Note) 3 x USB 3.2 Gen 1 ports 1 x USB Type-C® port, with USB 3.2 Gen 2 support 1 x RJ-45 port 3 x audio jacks
Onboard USB	Chipset: - 1 x USB Type-C® port on the back panel, with USB 3.2 Gen 2 support - 5 x USB 3.2 Gen 1 ports (3 ports on the back panel, 2 ports available through the internal USB header) - 2 x USB 2.0/1.1 ports on the back panel Chipset+USB 2.0 Hub: - 4 x USB 2.0/1.1 ports available through the internal USB headers
Other Onboard Connectors	1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 3 x system fan headers 2 x addressable RGB Gen2 LED strip headers 1 x RGB LED strip header 2 x M.2 Socket 3 connectors 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only) 1 x serial port header 1 x parallel port header 1 x S/PDIF Out header 1 x Q-Flash Plus button 1 x reset jumper 1 x Clear CMOS jumper
Windows 11	Supported

Gigabyte B760M DS3H GEN5 DDR5 LGA1700 M-ATX Motherboard Black
