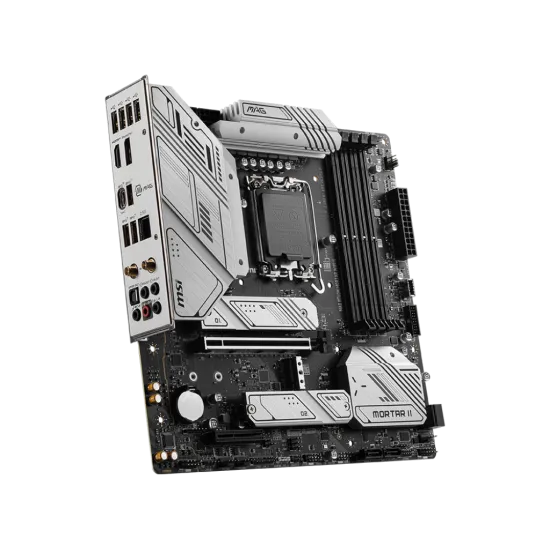

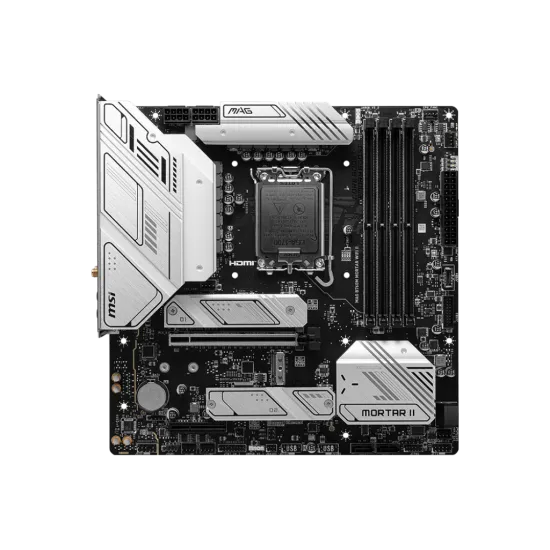

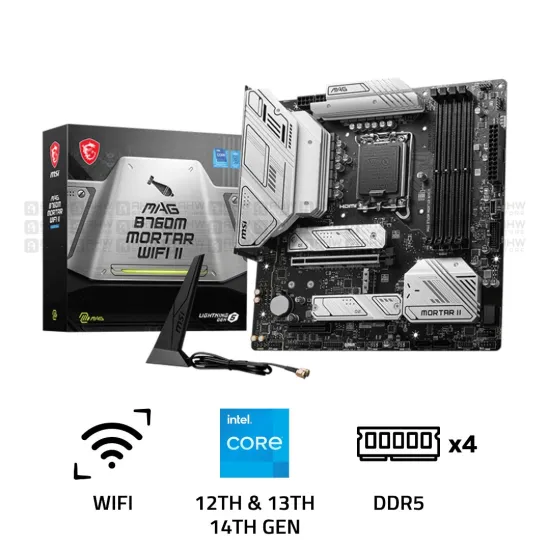

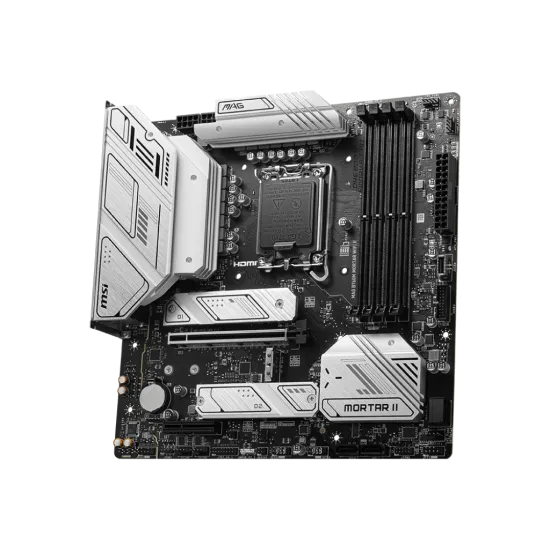

Name: MSI MAG B760M MORTAR WIFI II DDR5 LGA1700 M-ATX Motherboard Black
Brand: MSI
SKU: MSI-MB-B760M-MOR-WI5
Price: 10400.00 EGP
Availability: InStock

MSI MAG B760M MORTAR WIFI II DDR5 LGA1700 M-ATX Motherboard Black

EGP10,400

Price including Taxes

Stock: Builds Only
SKU: MSI-MB-B760M-MOR-WI5

MSI

Builds Only

Add to Wish List

Secure Payment Methods

Cash on delivery and various payment options and installment plans.

Fast and Secure Shipping

Receive your order within 2 to 5 business days.

Customer Service

Technical support from 10 am to 12 pm.

Warranty Coverage

Enjoy a 6-month to 3-year warranty through us with distributors.

Specifications

General
Brand	MSI
Series	MAG
Model	MAG B760M MORTAR WIFI II
Color	Black, White
Warranty Years	3 Years
Product URL	https://www.msi.com/Motherboard/MAG-B760M-MORTAR-WIFI-II
Motherboard
Form Factor	M-ATX
Chipset	B760
Socket Type	LGA 1700
Maximum Recommended CPU	13700K / 14600K
Power Phases	12+1+1 Up To 75A
Memory Slot Type	DDR5
Number of Memory Slots	4 Slot
Maximum Memory Supported	256GB
ECC Supported	No
SATA	4 x SATA
Number of M.2	3 x M.2
PCI Express 5.0 x16	1 x Slot
PCI Express 3.0 x16	1 x Slot
PCI Slots	2 x Slot
Max LAN Speed	2.5Gbps
WIFI Support	Yes
Bluetooth Support	Yes

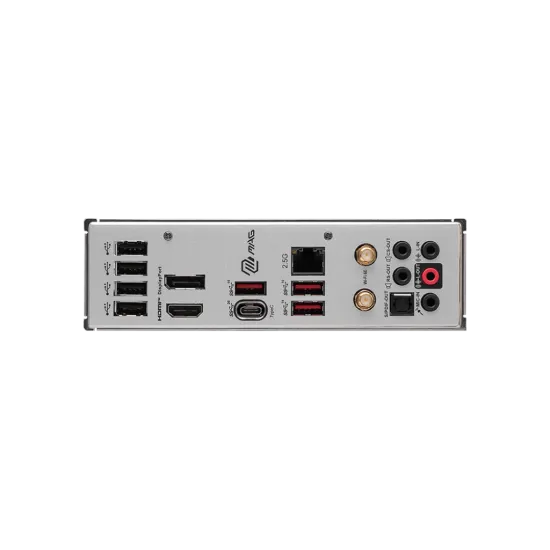

Back I/O Ports	DisplayPort 1.4 USB 3.2 Gen 2 10Gbps Type-A 2.5G LAN Port Wi-Fi / Bluetooth HD Audio Connectors USB 2.0 HDMI™ 2.1 Port USB 3.2 Gen 2x2 20Gbps Type-C USB 3.2 Gen 2 10Gbps Type-A
Onboard USB	4x USB 2.0 (Rear) 4x USB 2.0 (Front) 2x USB 5Gbps Type A (Front) 3x USB 10Gbps Type A (Rear) 1x USB 10Gbps Type C (Front) 1x USB 20Gbps Type C (Rear)
Other Onboard Connectors	1x Power Connector(ATX_PWR) 2x Power Connector(CPU_PWR) 1x CPU Fan 1x Pump Fan 4x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Tuning Controller connector(JDASH) 2x Addressable V2 RGB LED connector (JARGB_V2) 1x RGB LED connector(JRGB) 1x TPM pin header(Support TPM 2.0) 1x USB4 card connector (JTBT_U4_1, supports RTD3) 4x USB 2.0 ports 2x USB 5Gbps Type A ports 1x USB 10Gbps Type C ports
Windows 11	Supported
