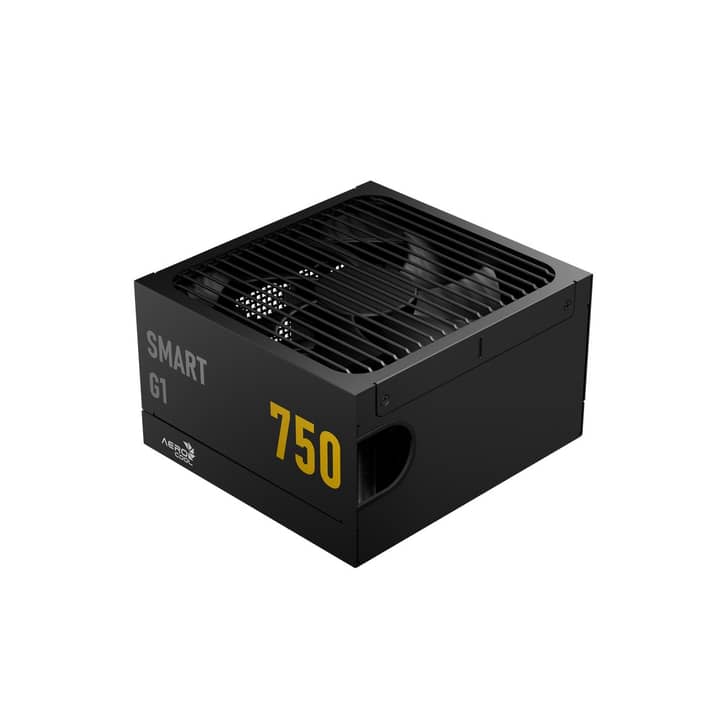

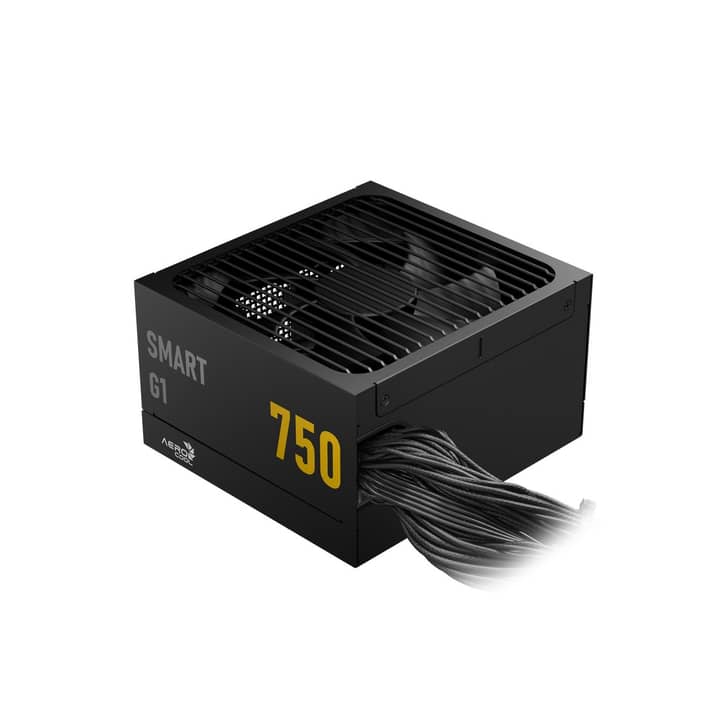

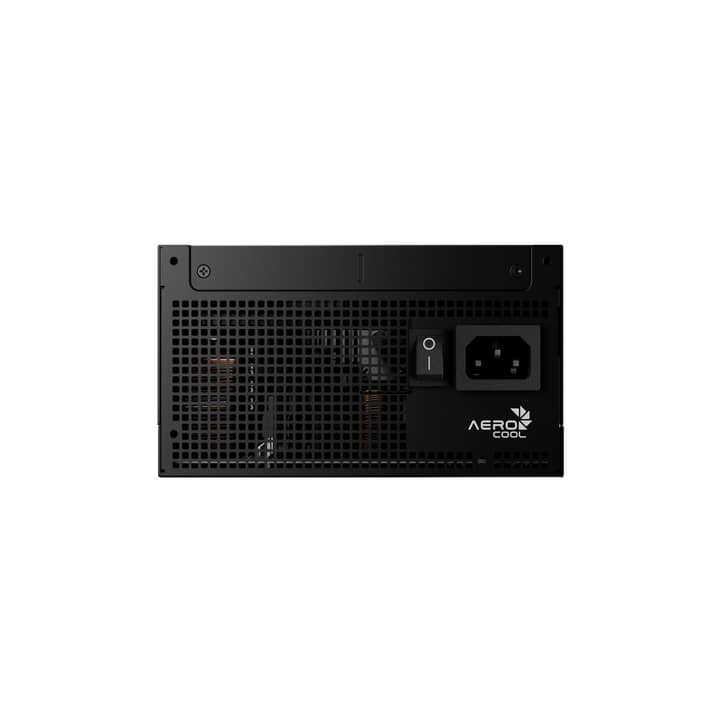

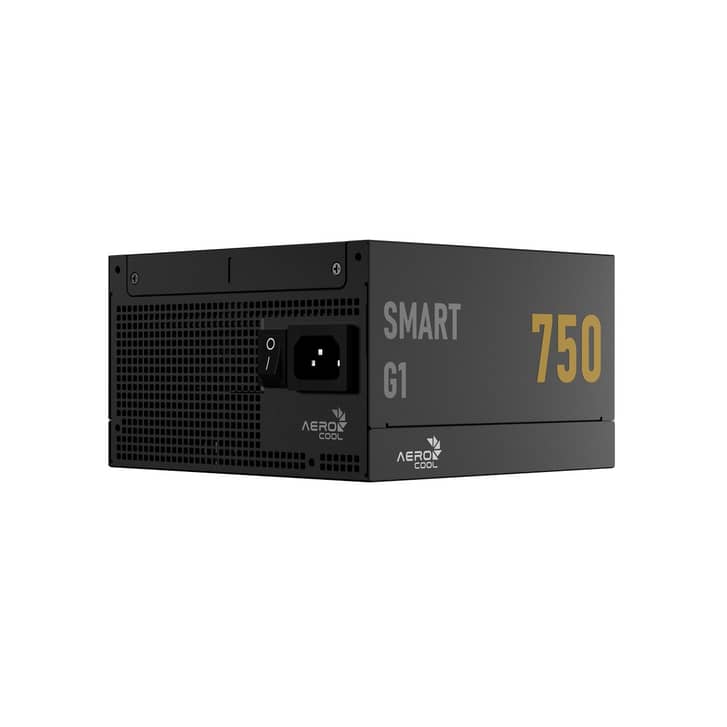

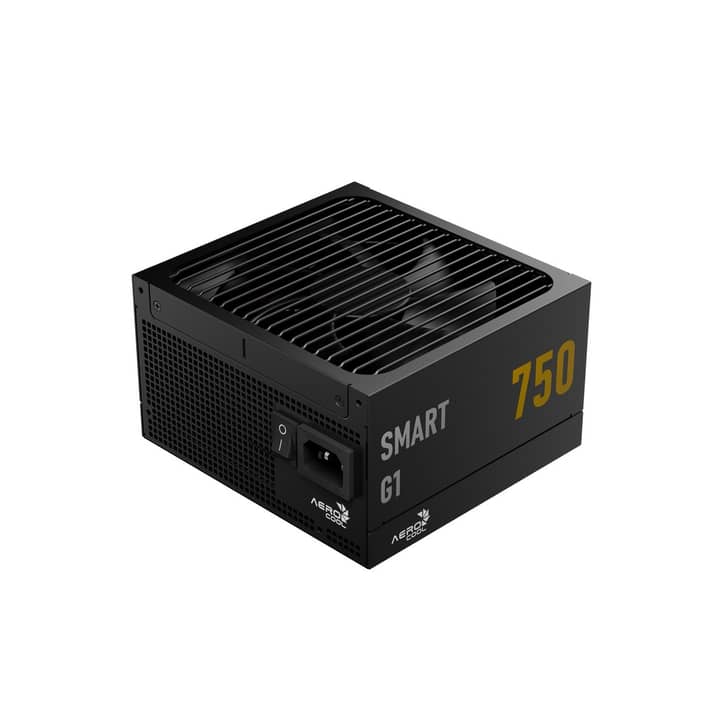

Aerocool SMART G1 750W 80+ Gold ATX 3.1 Gen 5.1 Non Modular Power Supply
The Aerocool SMART G1 750W Gold delivers high-efficiency ATX 3.1 power at unprecedented value. Featuring official 80 PLUS® Gold certification, native 12V-2x6 PCIe 5.1 power delivery for next-gen graphics cards, an advanced LLC resonant topology with DC-to-DC converters, and a silent 120mm hydraulic bearing fan, it is ready for high-performance modern gaming.
Next-Gen PCIe 5.1 & RTX 4070 / 4070 Ti Gaming
Equipped with a native 12V-2x6 cable delivering up to 450W directly to next-gen graphics cards, easily withstanding transient excursions without tripping OCP protections during high-fps 1440p gaming.
High Efficiency Daily Workstations & Rendering
Certified with 80 PLUS® Gold, this power supply keeps electrical conversion waste under 10%, generating very little heat and keeping system thermals cool during heavy multithreaded rendering.
Power Architecture & Thermal Highlights
Intel ATX 3.1 Ready with Native 12V-2x6 PCIe 5.1 Cable
Built to Intel ATX 3.1 guidelines with a dedicated 12V-2x6 cable that supplies up to 450W directly to modern graphics cards, eliminating the need for bulky adapter cables.
80 PLUS® Gold Certified for Superior Power Conversion
Certified 80 PLUS® Gold, achieving greater than 90% power conversion efficiency under typical loads to save electricity, minimize waste heat, and reduce thermal stress.
LLC Resonant Topology with Precision DC-to-DC Converters
An advanced LLC resonant circuit coupled with DC-to-DC step-down converters delivers ultra-clean DC voltage with minimal ripple noise, protecting sensitive silicon against degradation.

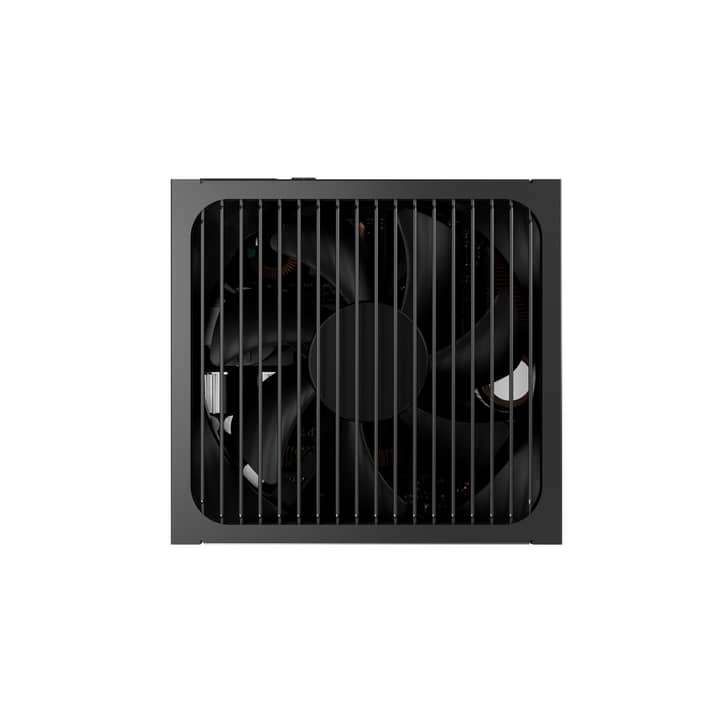

120mm Silent Hydraulic Bearing Fan with Thermal Control
A 120mm hydraulic bearing cooling fan operates smoothly and quietly, automatically increasing its RPM during heavy gaming and settling to whisper-quiet acoustics during desktop tasks.
Recommended Component Synergy
Processors (CPUs)
Continuous clean power delivery for multi-threaded CPUs under maximum boost.
Graphics Cards (GPUs)
Native 12V-2x6 single-cable feeding RTX 40 & 50 series graphics cards.
Motherboards
Dual EPS 8-pin connectors to feed reinforced VRM power stages.
PC Cases
Compact chassis length ensuring generous cable management clearance.
Build Your Dream Custom PC with Certified AHW Engineers
Select 100% compatible components and let our engineers assemble, cable-manage, and stress-test your rig.
Comprehensive Hardware Specifications
| Continuous Output Power | 750 Watts (62.5A Dedicated +12V Rail) |
| Efficiency Certification | 80 PLUS® Gold Certified (Up to 90%+ Efficiency) |
| Standard & Compliance | Intel ATX 3.1 & PCIe 5.1 (ATX 12V v3.1) |
| PCIe 5.1 12V-2x6 Cable | 1x Native 16-Pin 12V-2x6 Cable (Up to 450W Direct GPU) |
| PCIe 6+2 Pin Connectors | 2x Standard PCIe 6+2 Pin Headers for Graphics Cards |
| CPU EPS Connectors | 2x 8(4+4)-Pin EPS Headers for Gaming Motherboards |
| Motherboard Connector | 1x 24(20+4)-Pin Main ATX Header |
| SATA & Peripheral Ports | 5x SATA Connectors + 3x 4-Pin Molex |
| Circuit Architecture | Active PFC + LLC Resonant + DC-to-DC Conversion |
| Cooling Fan & Bearing | 120mm Silent Hydraulic Bearing Fan |
| Protections | OVP, UVP, OPP, SCP, OCP, OTP (Full Suite) |
| Dimensions (L x W x H) | 140 mm x 150 mm x 86 mm (Compact ATX) |
