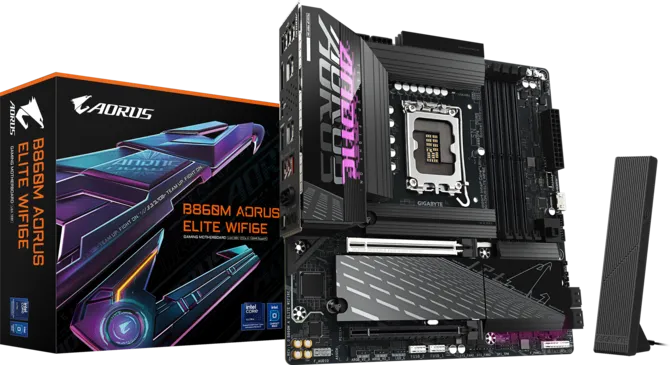

AORUS B860M AORUS ELITE WIFI6E DDR5 LGA 1851 Motherboard Black
Couldn't load pickup availability
Secure Payment Methods
Cash on delivery and various payment options and installment plans.
Fast and Secure Shipping
Receive your order within 2 to 5 business days.
Customer Service
Technical support from 10 am to 12 pm.
Warranty Coverage
Enjoy a 6-month to 3-year warranty through us with distributors.
AORUS B860M AORUS ELITE WIFI6E — Intel Core Ultra 200 ready with PCIe 5.0 and Wi-Fi 6E

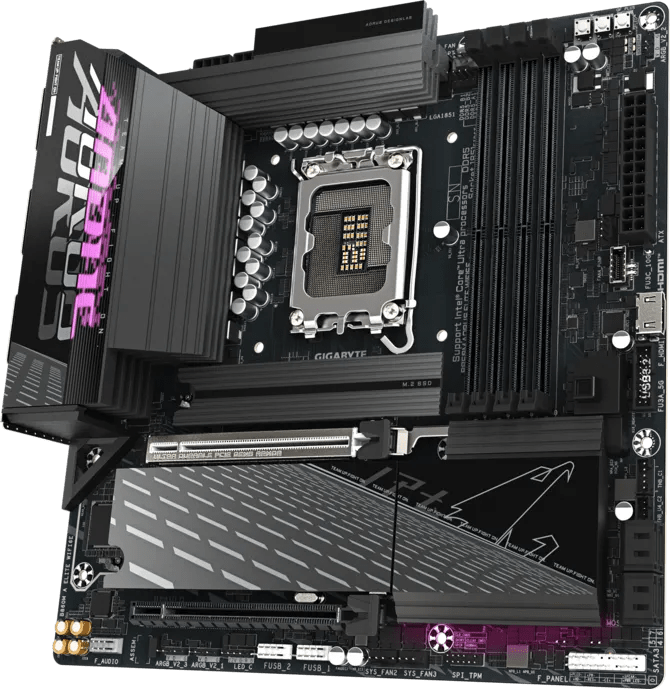

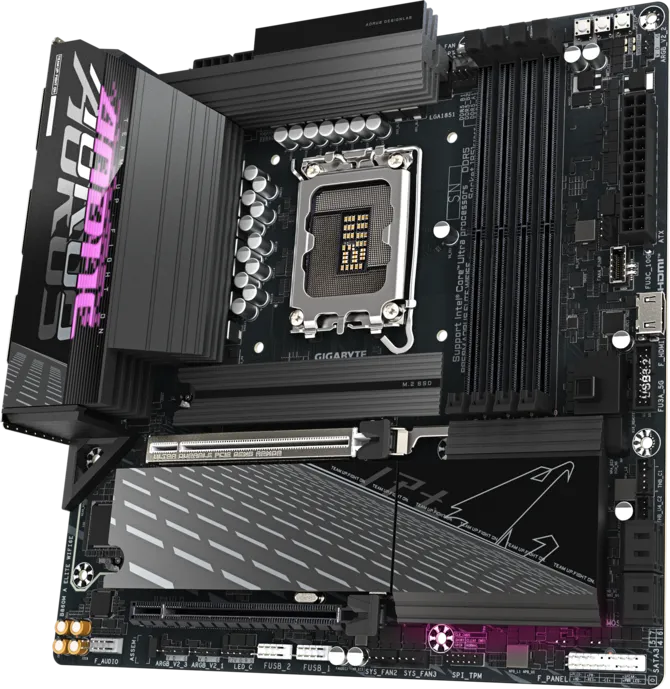

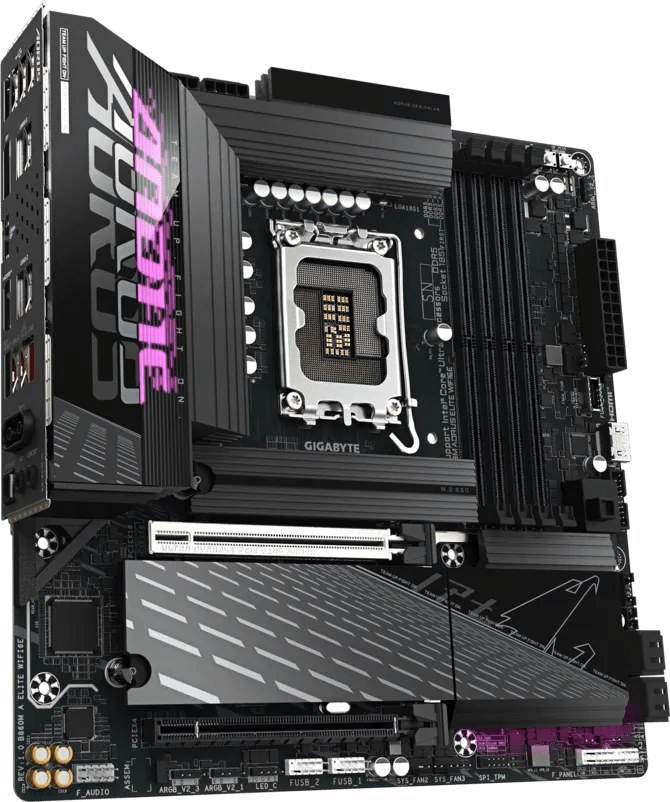

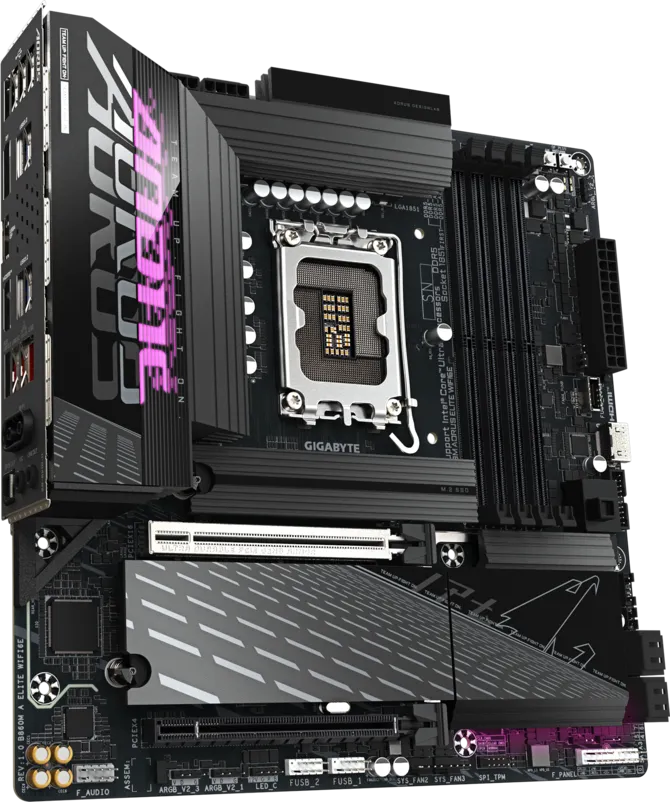

An enthusiast Micro-ATX motherboard on the Intel B860 chipset engineered for Intel Core Ultra Processors (Series 2) on Socket LGA 1851. Armed with a Digital Twin 12+1+1 Phases VRM, PCIe 5.0 x16 UD Slot PG with EZ-Latch, dual PCIe 4.0 M.2 sockets with full Thermal Guard armor, and high-gain Wi-Fi 6E plus 2.5GbE LAN.

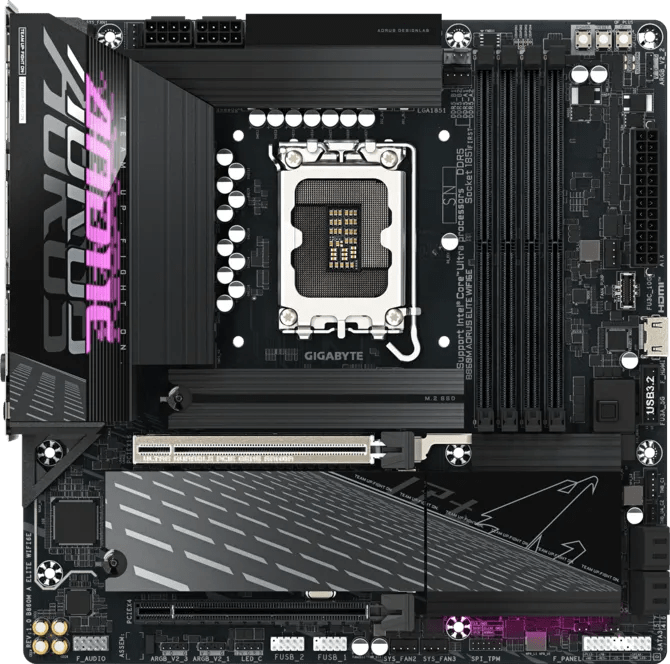

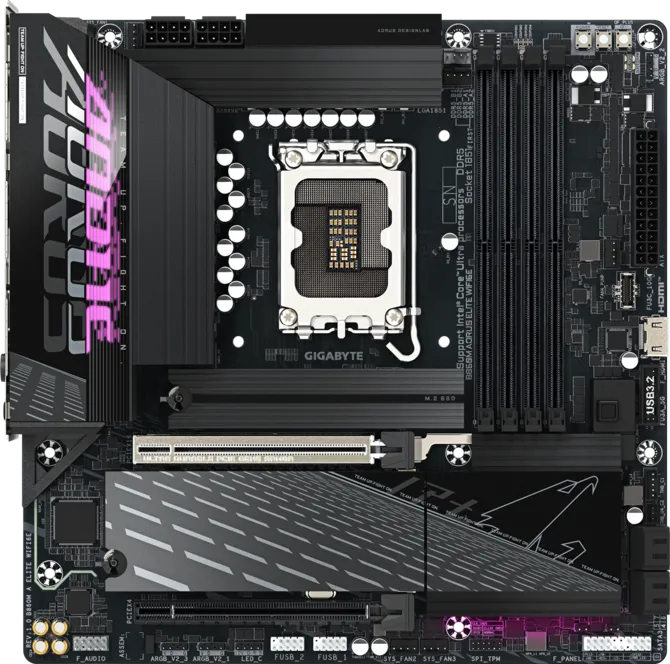

Board Map
Every connector, located before you unbox
Intel Socket LGA 1851 — Centre
Designed for Intel Core Ultra Processors (Series 2 / Arrow Lake-S) with dedicated NPU support and advanced power efficiency.
Digital Twin 12+1+1 Phase VRM Heatsinks — Top & Left
Full coverage heatsinks with RGB AORUS illuminated shroud dissipate heat from high-current power stages during intense gaming.
4 × DDR5 DIMM Slots with D5 Bionic Corsa — Right
Supports dual-channel DDR5 up to 256 GB and extreme overclocking speeds reaching 8800+ MT/s (O.C.).
PCIe 5.0 x16 UD Slot PG with EZ-Latch Click — Centre
Heavy-duty PCIe slot with zinc alloy shielding and effortless tool-free GPU installation latch.
2 × M.2 NVMe Sockets with Thermal Guard Armor — Across PCB
Dual high-speed PCIe 4.0 x4 M.2 sockets encased under full-coverage aluminum Thermal Guard heatsinks.
4 × SATA 6Gb/s Ports — Lower Right
Standard SATA connectors for mass storage drives.
Power Delivery & Thermals
What feeds the socket, and what keeps it steadyDigital Twin 12+1+1 VRM Architecture
Precision digital PWM controller and high-current power stages deliver clean power delivery to Intel Core Ultra processors under full load.
Full M.2 Thermal Guard Armor
Complete extruded heatsink covers both M.2 slots to ensure continuous maximum throughput on Gen4 NVMe SSDs without thermal drops.
PCIe EZ-Latch Click Design
Tool-free and screw-less quick release latch allows you to detach and install high-end graphics cards in seconds.

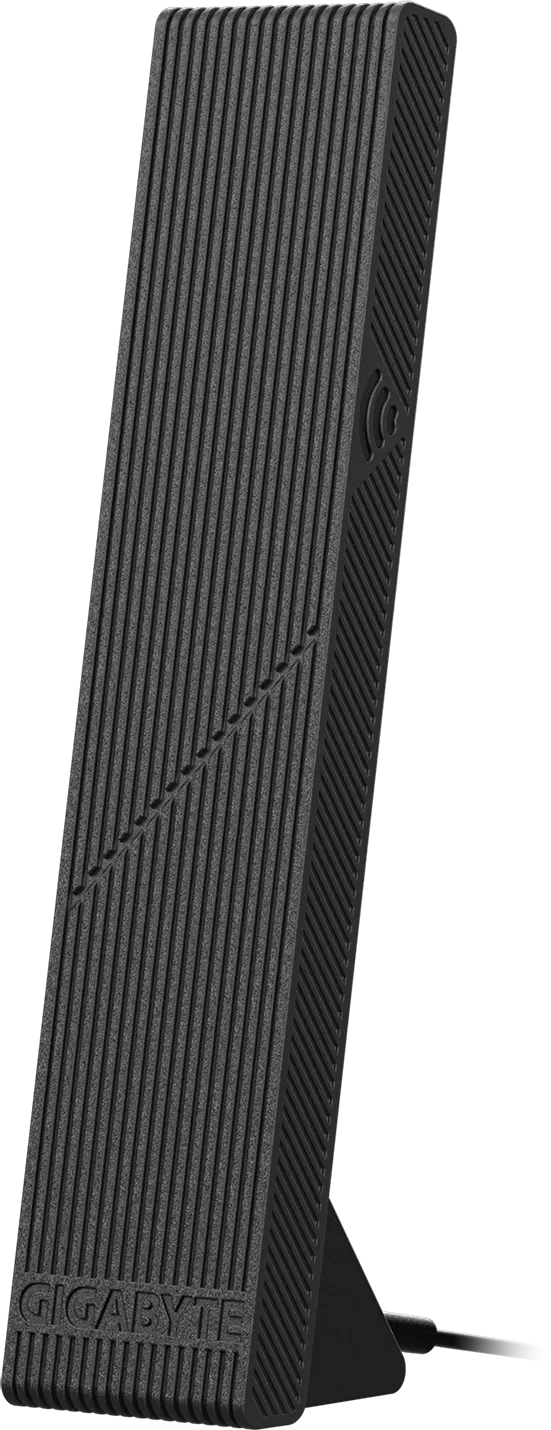

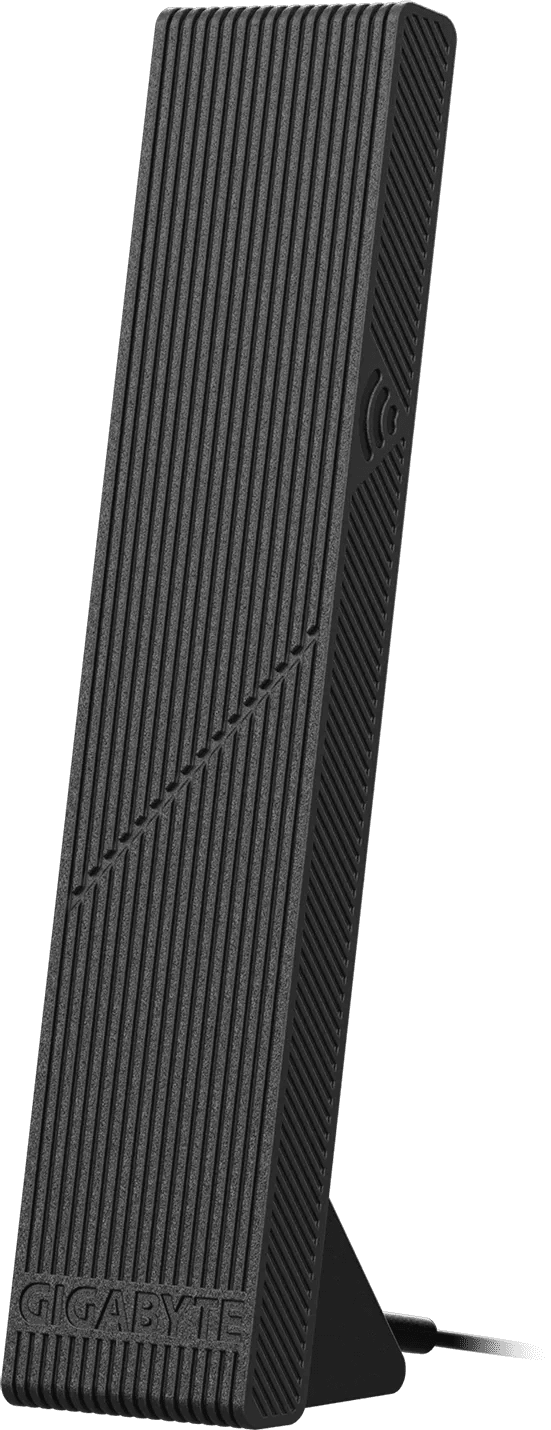

High-Gain Directional Wi-Fi 6E Aerial
Included specialized antenna provides superior reception across the clean 6 GHz band for ultra-low ping gaming.
Lane Map
Interface speed rating & capability relative to modern motherboard standardsRear I/O Bay
High-speed USB, video and wireless connectionsWill It Fit Your Build?
Check these before you add to cartProcessor
Requires Intel Core Ultra Processors (Series 2 / Arrow Lake-S) on Socket LGA 1851.
Memory
DDR5 only — 4 DIMM slots supporting up to 256 GB and speeds up to 8800+ MT/s (O.C.).
Graphics
PCIe 5.0 x16 slot with UD Slot PG protection for modern high-performance GPUs.
Storage
2 × M.2 PCIe 4.0 NVMe sockets (both covered by full Thermal Guard armor) plus 4 SATA ports.
Networking
Integrated Intel Wi-Fi 6E AX211 wireless and Realtek 2.5 GbE wired Ethernet.
Case
Micro-ATX form factor (24.4 cm x 24.4 cm) — fits standard Micro-ATX and ATX cases.
Full Specification Sheet
AORUS B860M AORUS ELITE WIFI6E| CPU Socket | Intel Socket LGA 1851 |
| CPU Support | Intel Core Ultra Processors (Series 2) |
| Chipset | Intel B860 Express |
| Form Factor | Micro-ATX (24.4 cm x 24.4 cm) |
| Power Design | Digital Twin 12+1+1 phase VRM with full heatsinks |
| Memory Slots | 4 × DDR5 DIMM, dual channel |
| Max Memory | 256 GB (up to DDR5-8800+ MT/s OC with XMP) |
| Primary Graphics Slot | 1 × PCIe 5.0 x16 (UD Slot PG, EZ-Latch Click) |
| Secondary PCIe Slot | 1 × PCIe 4.0 x16 (x4 mode) |
| M.2 Storage Sockets | 2 × M.2 PCIe 4.0 x4 (both with full M.2 Thermal Guard armor) |
| SATA Ports | 4 × SATA 6 Gb/s |
| Wireless Networking | Intel Wi-Fi 6E AX211 + Bluetooth 5.3 |
| Ethernet LAN | Realtek 2.5GbE LAN (2.5 Gbps / 1 Gbps) |
| Audio | Realtek High Definition Audio, 7.1-channel support |
