APNX

APNX V2 Panoramic Mid Tower Case with Four 140 mm Fans and Back-Connect Support — Black

A dual-chamber showcase case with three removable glass panels and an 86.5% viewing area, four 140 mm FP3-140 fans on a 10-port ARGB PWM hub, support for reverse-connector motherboards and room behind the tray for a second radiator.

Mid Tower, ATX4 × 140 mm FP3-140Back-Connect ReadyGPU up to 445 mmCPU Cooler up to 183 mm
Highlights

What It Does Well

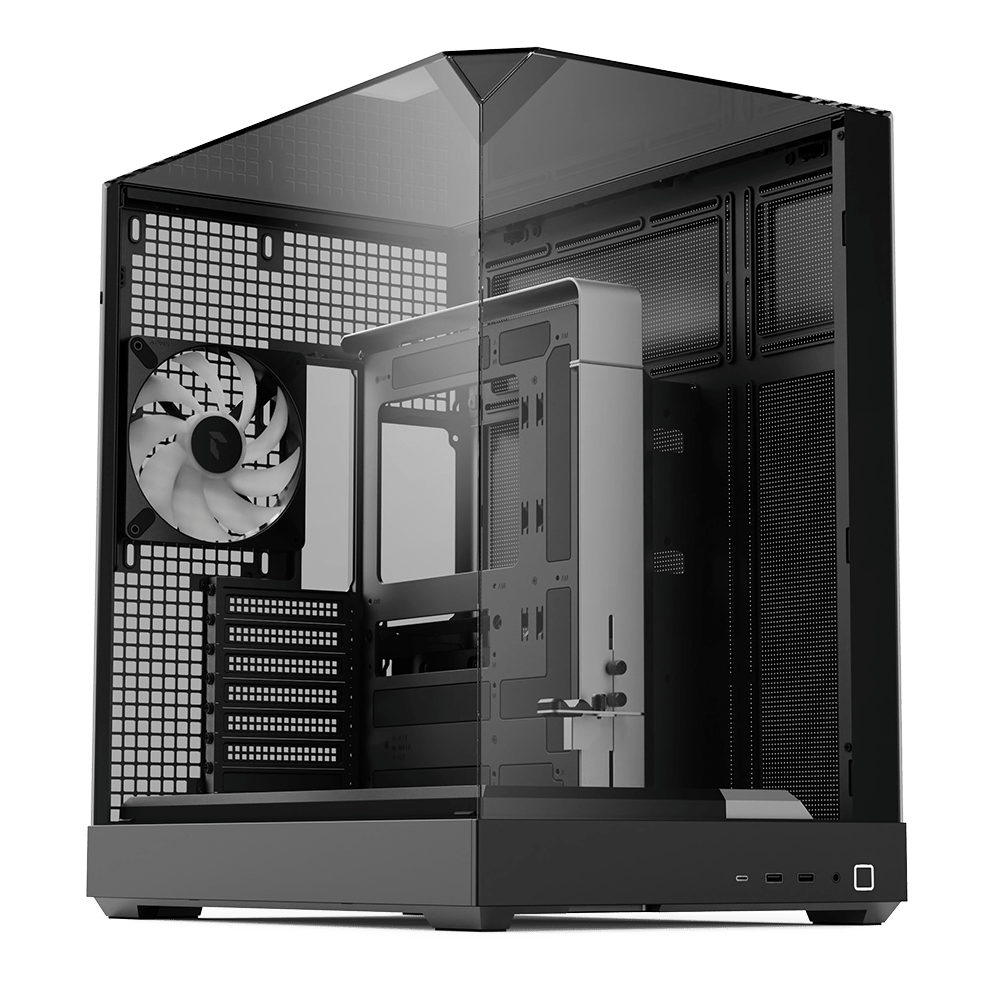

APNX V2 black with its panoramic glass and rear fan

Three Glass Panels, 86.5% View

Front, side and top tempered-glass panels come off and leave an 86.5% viewing area, which APNX says is the largest among three-panel glass cases.

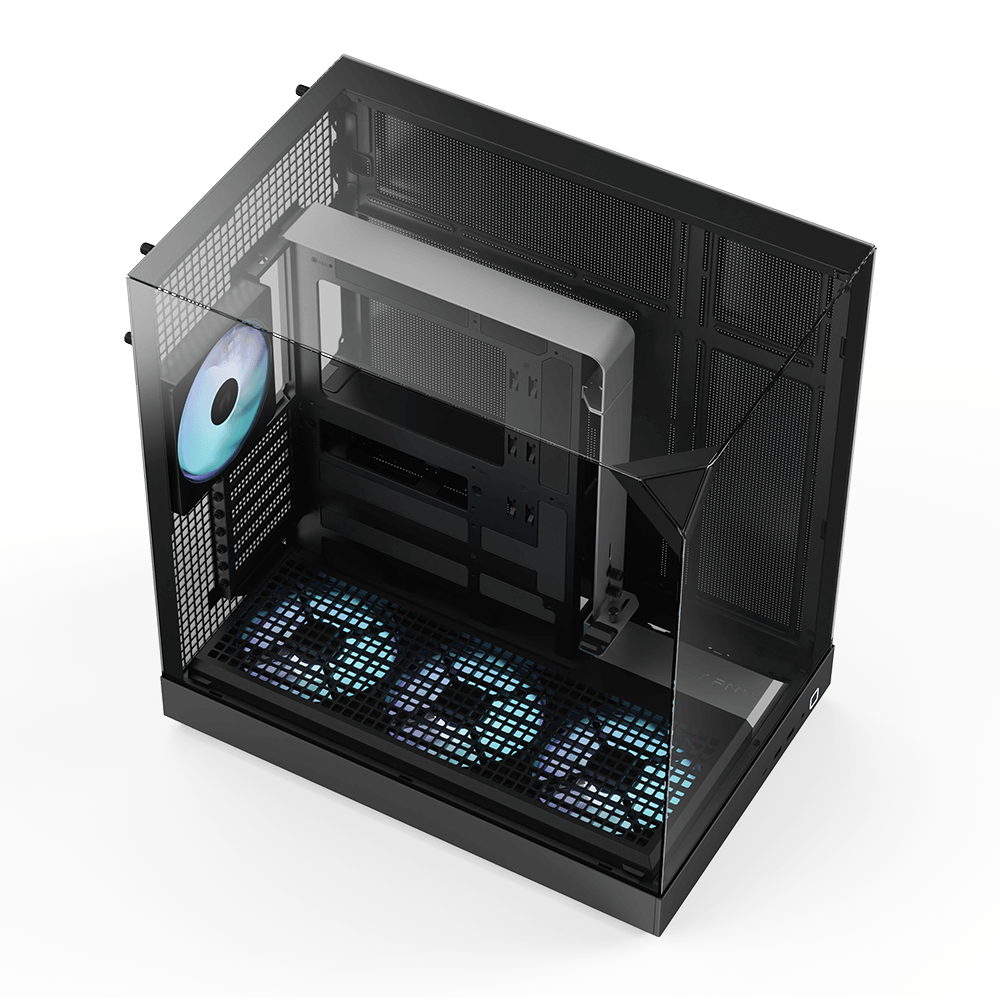

Three lit bottom fans of the APNX V2 under the graphics card

Three Fans Under the Graphics Card

Three 140 mm FP3-140 fans in the bottom blow up into the graphics card through a removable filter, and a fourth exhausts at the rear. All four run from the included APNX ARGB PWM Fan Hub 1.

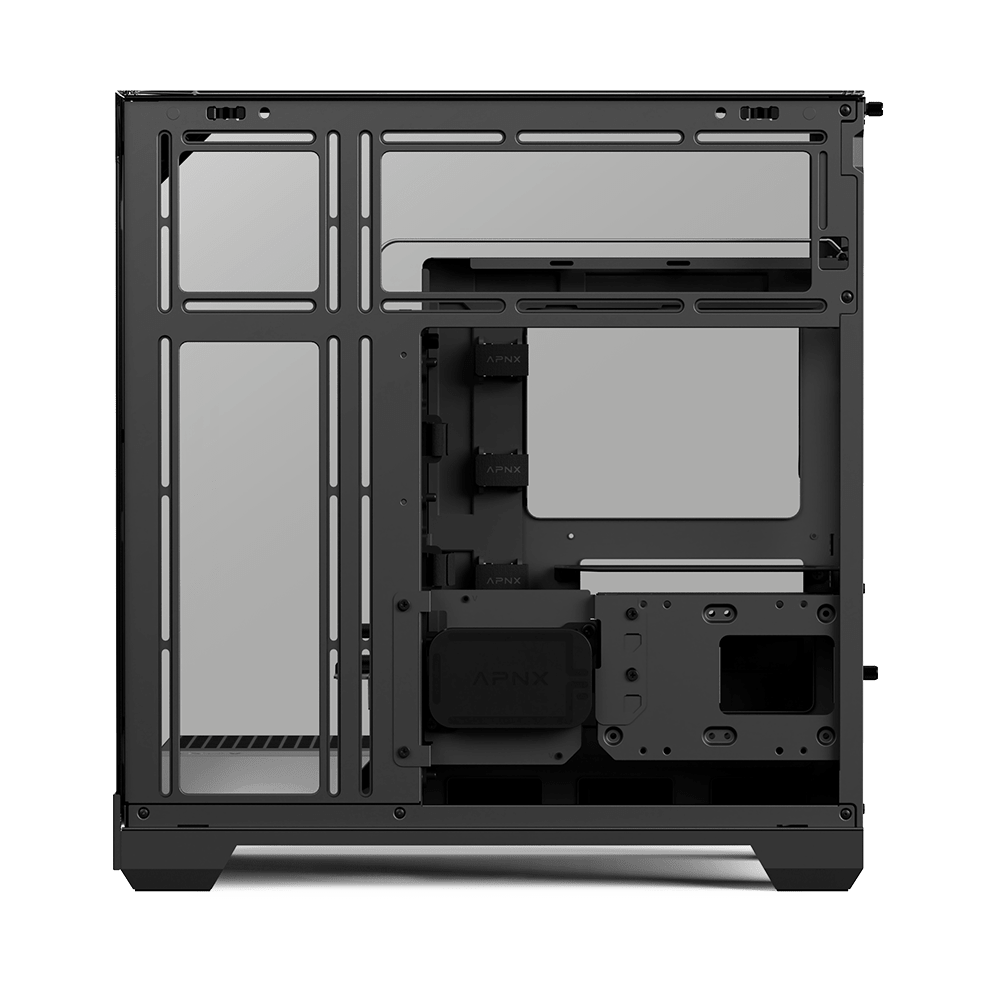

Rear chamber of the APNX V2 with the PSU and drive trays

X-Pand Flow Rear Chamber

The space behind the tray takes a second radiator (360 + 240 mm in total), and the PSU and drive trays swap positions to suit the build.

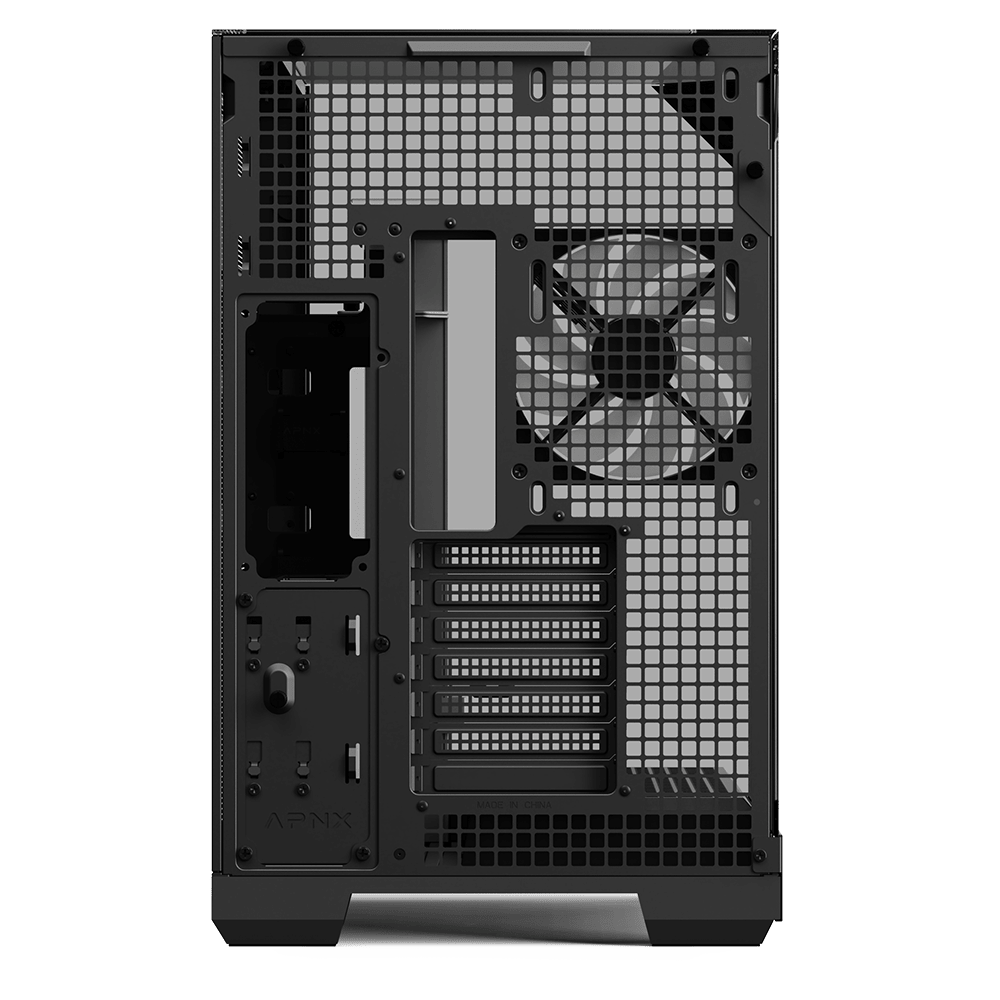

Rear of the APNX V2 with the 140 mm rear fan and slot covers

Rear Fan and Power Supply Bracket

The rear FP3-140 fan exhausts above the slot covers, and the power supply mounts through the bracket beside them. The rear position also takes two 120 mm fans instead.

Technical Datasheet

Verified Specifications

Brand APNX
Model V2 (APX-V2-BK-FRB)
Form Factor Mid tower, dual chamber
Dimensions (D × W × H) 466 × 309 × 500 mm
Capacity 71 L
Material SGCC steel, 0.8 mm
Weight 11.8 kg net
Motherboard Support ATX, Micro-ATX, Mini-ITX; reverse-connector (ASUS BTF, MSI Project Zero, Gigabyte Project Stealth)
Front I/O 1 × USB 3.2 Gen 2x2 Type-C, 2 × USB 3.2 Gen 1 Type-A, HD audio and mic
Included Fans Bottom 3 × FP3-140 · Rear 1 × FP3-140
Fan Hub APNX ARGB PWM Fan Hub 1 (10 ports), pre-installed
Fan Support Right-front 3 × 120 / 140 mm · Right-top 3 × 120 mm · Bottom 3 × 120 / 140 or 2 × 160 mm · Rear 2 × 120 or 1 × 140 mm
Radiator Support Right-front up to 360 mm · Right-top up to 360 mm · Bottom up to 360 mm · Rear 120 mm
Max GPU Length 445 mm (without a right-front radiator)
Max CPU Cooler Height 183 mm
Power Supply ATX, up to 270 mm including cables
Drive Bays 1 × 3.5" + 2 × 2.5", or 4 × 2.5"
Cable Management Depth 99 mm
Complete Your Setup

Pair It With

FAQ

Product Questions & Store Policies

Which fans come with it?
Four 140 mm APNX FP3-140 fans, three in the bottom and one at the rear, pre-wired to the included 10-port APNX ARGB PWM Fan Hub 1.
Does it take back-connect motherboards?
Yes. APNX lists ASUS BTF, MSI Project Zero and Gigabyte Project Stealth boards; standard ATX and mATX boards fit too.
How long a graphics card fits?
Up to 445 mm without a radiator in the right-front position, and a built-in bracket stops sag. Pick the parts in our PC Builder ↗: it checks graphics card length and cooler height against this case for you.
Can I run two radiators?
Yes. The X-Pand Flow space behind the tray allows two radiators, up to 360 mm + 240 mm.
How tall can an air cooler be?
Up to 183 mm.
