ASUS ROG MAXIMUS Z890 HERO — 22+1+2+2 110A VRM, Dual Thunderbolt 4 & 6x M.2 Slots
The definitive flagship Intel Z890 motherboard for Intel Core Ultra 200S Series processors on LGA 1851. Armed with a staggering 22+1+2+2 Phase 110A VRM, NitroPath DRAM technology (DDR5-8800+ MT/s), six M.2 slots (3x PCIe 5.0), Dual Thunderbolt 4 (40Gbps), Dual LAN (5G + 2.5G), and Wi-Fi 7.
Board Map
Every connector, located before you unbox
Intel LGA 1851 CPU Socket — Centre
Supports Intel Core Ultra 200S Series processors with unlocked extreme overclocking capabilities.
22+1+2+2 110A Power Stages — Top & Left
Massive interconnected aluminum VRM heatsinks with Polymo Lighting II keep power delivery ice cold.
4 × DDR5 NitroPath DIMM Slots — Right
Patented NitroPath slot design reduces noise, enabling extreme memory overclocking beyond 8800+ MT/s (O.C.) up to 192GB.
PCIe 5.0 x16 SafeSlot with Q-Release Slim — Centre
Full 128 GB/s bandwidth graphics slot with tool-free tilt release.
6 × M.2 NVMe Sockets — Across PCB
Six high-speed M.2 slots (including three PCIe 5.0 x4 slots) covered by heavy 3D heatsinks and backplates.
Dual Front-Panel USB 20Gbps Connectors — Right
Includes Quick Charge 4+ up to 60W and real-time USB Wattage Watcher.

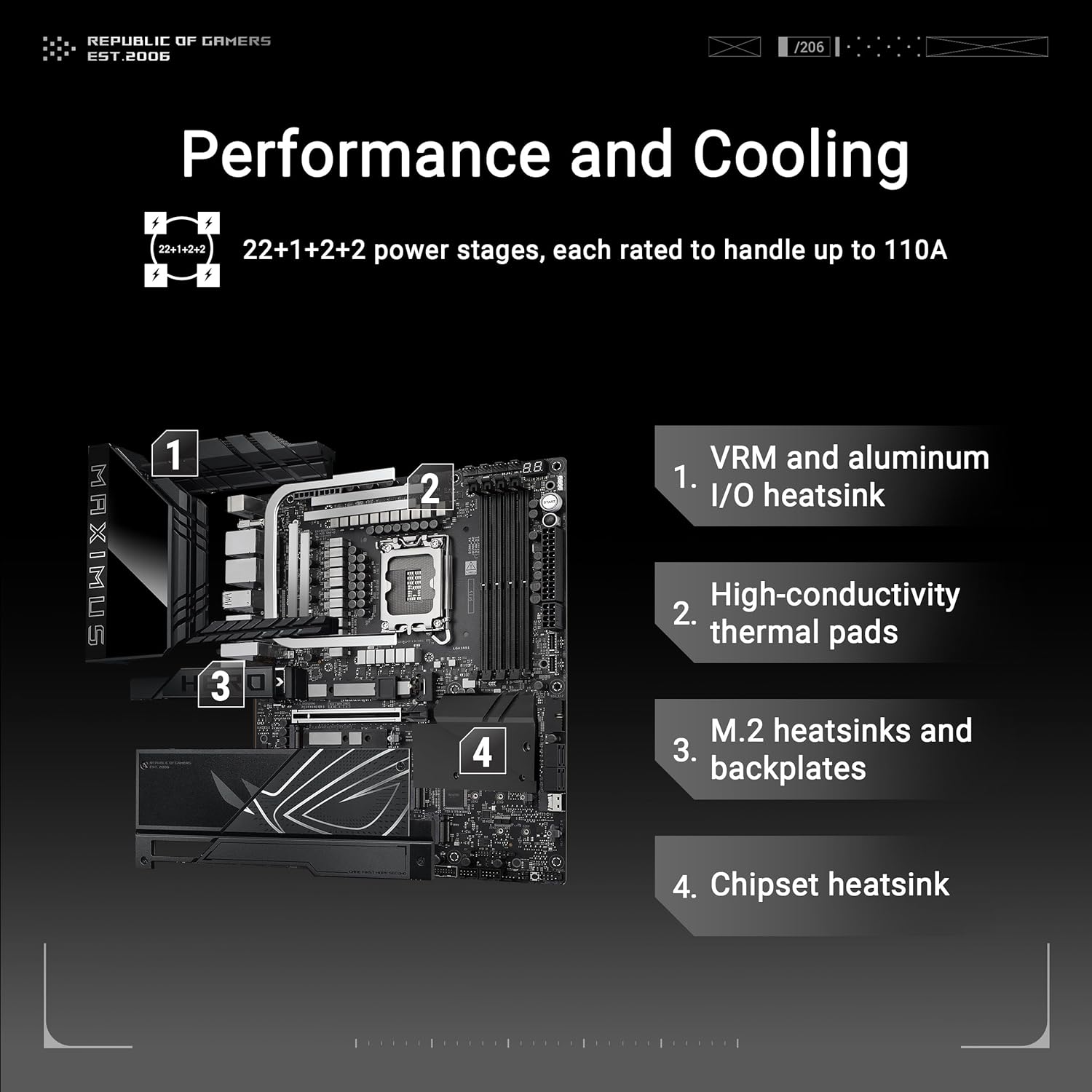

Power Delivery & Thermals
What feeds the socket, and what keeps it steady22+1+2+2 Phase 110A Power Solution
Extreme power delivery engineered to effortlessly supply sustained power to flagship Intel Core Ultra 9 processors.
Dual Thunderbolt 4 Type-C (40Gbps)
Two native rear Thunderbolt 4 ports deliver 40 Gbps bi-directional transfers, dual 4K / single 8K display output.
Dual Wired Ethernet (5G + 2.5G)
Features both a Realtek 5 Gbps gaming Ethernet port and an Intel 2.5 Gbps port alongside Wi-Fi 7 wireless.
ROG SupremeFX ALC4082 + ESS ES9219 DAC
Audiophile-grade 32-bit / 384 kHz playback delivering pristine soundstage clarity.
Lane Map
Interface speed rating & capability relative to modern motherboard standardsRear I/O Bay
Port inventory: Everything on the panel, countedWill It Fit Your Build?
Check these before you add to cartProcessor
Supports Intel Core Ultra 200S Series processors on socket LGA 1851 with extreme overclocking.
Memory
DDR5 only — 4 NitroPath DIMM slots supporting up to 192 GB and speeds exceeding 8800+ MT/s.
Power Stages
22+1+2+2 110A VRM engineered for extreme Intel Core Ultra 9 overclocks.
Storage
6 × M.2 NVMe sockets (3x PCIe 5.0 + 3x PCIe 4.0) plus 4 SATA ports.
Thunderbolt
Dual Thunderbolt 4 (40Gbps each) built-in on rear I/O.
Case
Standard ATX form factor (30.5 cm x 24.4 cm) — fits standard ATX chassis.
Full Specification Sheet
ASUS ROG MAXIMUS Z890 HERO| CPU Socket | Intel LGA 1851 |
| CPU Support | Intel Core Ultra Processors (Series 2) |
| Chipset | Intel Z890 Express |
| Form Factor | ATX (30.5 cm x 24.4 cm) |
| Power Design | 22+1+2+2 phase with 110A Power Stages |
| Memory Slots | 4 × DDR5 NitroPath DIMM, dual channel |
| Max Memory | 192 GB (up to DDR5-8800+ MT/s OC) |
| Primary Graphics Slot | 1 × PCIe 5.0 x16 SafeSlot (Q-Release Slim) |
| Secondary PCIe Slot | 1 × PCIe 4.0 x16 (x4 mode) |
| M.2 Storage Sockets | 6 × M.2 (3x PCIe 5.0 x4 + 3x PCIe 4.0 x4 with 3D heatsinks) |
| SATA Ports | 4 × SATA 6 Gb/s |
| Thunderbolt | 2 × Thunderbolt 4 Type-C (40Gbps) with DP & PD |
| Wireless Networking | Wi-Fi 7 (802.11be, 320MHz) + Bluetooth 5.4 |
| Ethernet LAN | Realtek 5 Gbps + Intel 2.5 Gbps Dual LAN |
| Audio | ROG SupremeFX ALC4082 + ESS ES9219 Quad DAC (32-bit/384kHz) |
