ASUS ROG Strix Z890-E Gaming WiFi โ 18+1+2+2 110A VRM, Dual Thunderbolt 4 & 5G LAN
An elite ATX gaming motherboard built on Intel Z890 for Intel Core Ultra 200S Series processors on LGA 1851. Engineered with an 18+1+2+2 Phase 110A VRM, NitroPath DRAM technology (DDR5-8800+ MT/s), five M.2 sockets (3x PCIe 5.0), Dual Thunderbolt 4 (40Gbps), Realtek 5G LAN, and Wi-Fi 7.
Board Map
Every connector, located before you unbox
Intel LGA 1851 CPU Socket โ Centre
Supports Intel Core Ultra 200S Series processors with unlocked turbo overclocking.
18+1+2+2 110A Power Stages โ Top & Left
Heavy aluminum VRM heatsinks connected via heatpipe with illuminated ROG RGB cover.
4 ร DDR5 NitroPath DIMM Slots โ Right
Patented NitroPath slot design enabling extreme memory overclocking beyond 8800+ MT/s (O.C.) up to 192GB.
PCIe 5.0 x16 SafeSlot with Q-Release Slim โ Centre
Full 128 GB/s graphics slot with tilt-to-release convenience.
5 ร M.2 NVMe Sockets with M.2 Combo-Sink โ Across PCB
Five M.2 slots (including three PCIe 5.0 x4 slots) cooled by heavy M.2 Combo-Sink heatsinks and backplates.
Front-Panel USB 10Gbps Type-C with 30W PD 3.0 โ Right
Fast front-panel charging supporting Power Delivery 3.0 up to 30W.

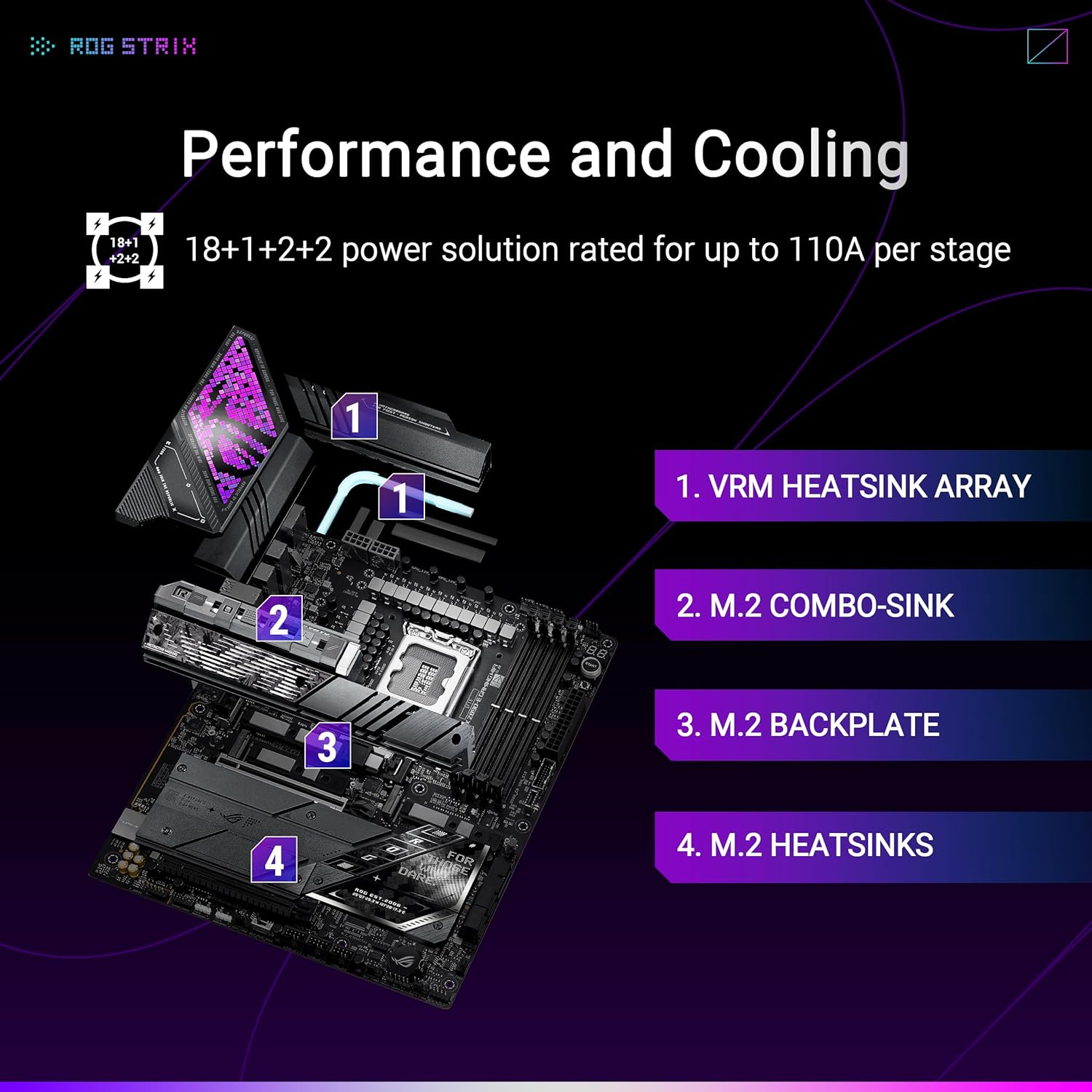

Power Delivery & Thermals
What feeds the socket, and what keeps it steady18+1+2+2 Phase 110A Power Solution
High-current power stages deliver effortless electrical delivery to Intel Core Ultra processors under full load.
Dual Thunderbolt 4 Type-C (40Gbps)
Two native rear Thunderbolt 4 ports deliver 40 Gbps bi-directional bandwidth and 8K display output.
Realtek 5 Gbps Gaming Ethernet & Wi-Fi 7
Next-generation 5G wired network interface combined with tri-band Wi-Fi 7 for ultra-low latency.
ROG SupremeFX ALC4080 Audio
High-fidelity 7.1 surround sound audio with Savitech SV3H712 amplifier.
Lane Map
Interface speed rating & capability relative to modern motherboard standardsRear I/O Bay
Port inventory: Everything on the panel, countedWill It Fit Your Build?
Check these before you add to cartProcessor
Supports Intel Core Ultra 200S Series processors on socket LGA 1851.
Memory
DDR5 only โ 4 NitroPath DIMM slots supporting up to 192 GB and speeds exceeding 8800+ MT/s.
Power Stages
18+1+2+2 110A VRM designed for heavy Intel Core Ultra workloads.
Storage
5 ร M.2 NVMe sockets (3x PCIe 5.0 + 2x PCIe 4.0) plus 4 SATA ports.
Thunderbolt
Dual Thunderbolt 4 (40Gbps each) built-in on rear I/O.
Case
Standard ATX form factor (30.5 cm x 24.4 cm) โ fits standard ATX chassis.
Full Specification Sheet
ASUS ROG Strix Z890-E Gaming WiFi| CPU Socket | Intel LGA 1851 |
| CPU Support | Intel Core Ultra Processors (Series 2) |
| Chipset | Intel Z890 Express |
| Form Factor | ATX (30.5 cm x 24.4 cm) |
| Power Design | 18+1+2+2 phase with 110A Power Stages |
| Memory Slots | 4 ร DDR5 NitroPath DIMM, dual channel |
| Max Memory | 192 GB (up to DDR5-8800+ MT/s OC) |
| Primary Graphics Slot | 1 ร PCIe 5.0 x16 SafeSlot (Q-Release Slim) |
| Secondary PCIe Slot | 1 ร PCIe 4.0 x16 (x4 mode) |
| M.2 Storage Sockets | 5 ร M.2 (3x PCIe 5.0 x4 + 2x PCIe 4.0 x4 with Combo-Sink) |
| SATA Ports | 4 ร SATA 6 Gb/s |
| Thunderbolt | 2 ร Thunderbolt 4 Type-C (40Gbps) with DP & PD |
| Wireless Networking | Wi-Fi 7 (802.11be, 320MHz) + Bluetooth 5.4 |
| Ethernet LAN | Realtek 5 Gbps Gaming LAN |
| Audio | ROG SupremeFX ALC4080 with Savitech SV3H712 amplifier |
