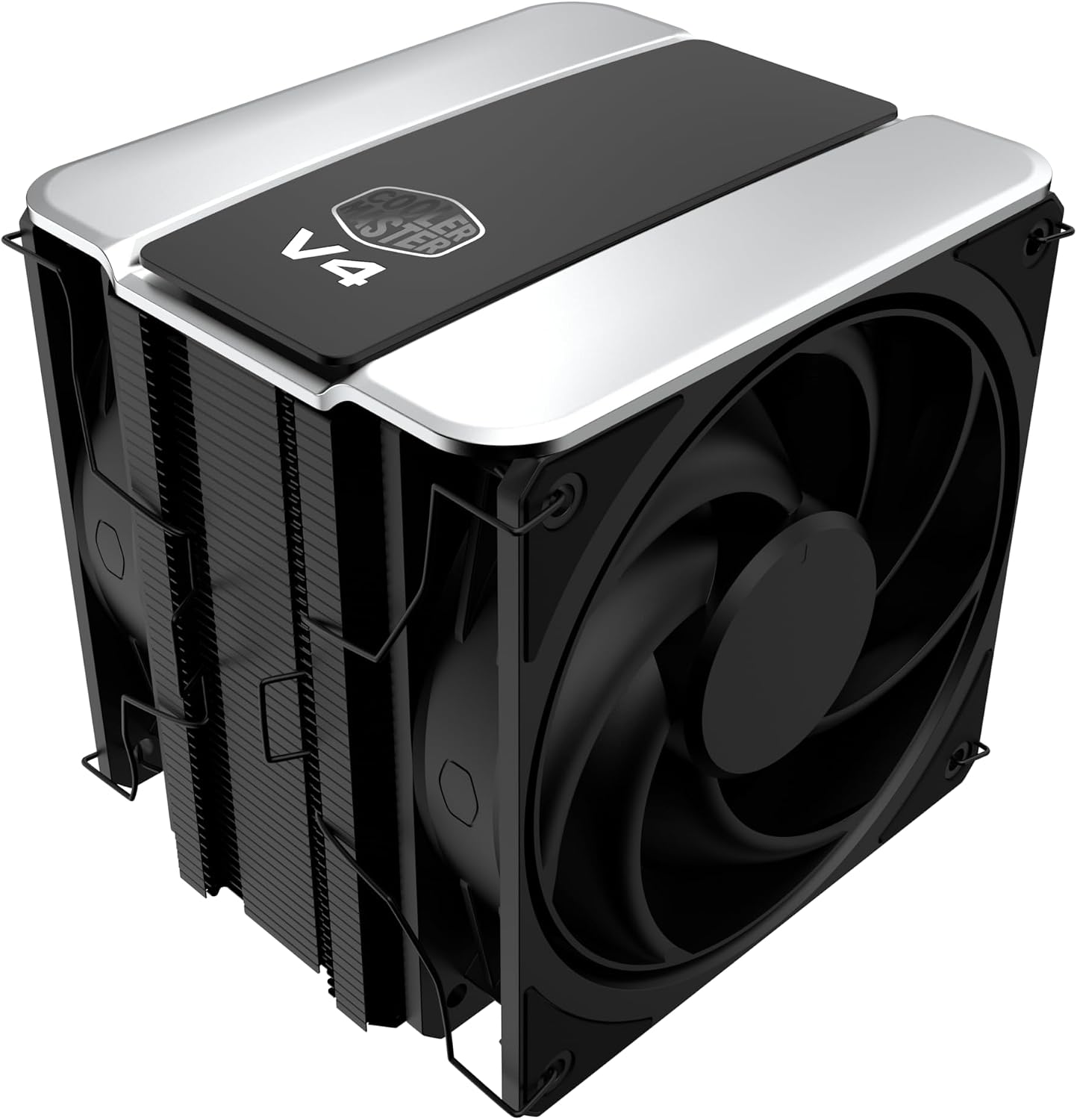

Cooler Master V4 Alpha 3DHP CPU Cooler Black
Engineered with Cooler Master's breakthrough 3DHP (3D Heat Pipe) technology, the V4 Alpha introduces a 3D branching heat pipe architecture that completely eliminates thermal dead zones. Inspired by high-performance automotive V-engines and equipped with dual 120mm PWM fans in push-pull formation, it delivers flagship 4-pipe cooling efficiency with optimized airflow acoustics on Intel LGA 1851/1700 and AMD AM5/AM4 platforms.
High-TDP Gaming & Demanding Workloads
Optimized for sustained boost clocks on modern 6-core and 8-core CPUs. The 3DHP architecture rapidly wicks concentrated heat away from dense silicon dies during intense gaming sessions and 4K video exports.
Acoustic Silence & Stealth Aesthetics
The dual PWM push-pull fans achieve superior static pressure at lower RPMs, providing hushed everyday operation housed under a brushed aluminum automotive V-engine top shield that elevates your PC build aesthetic.

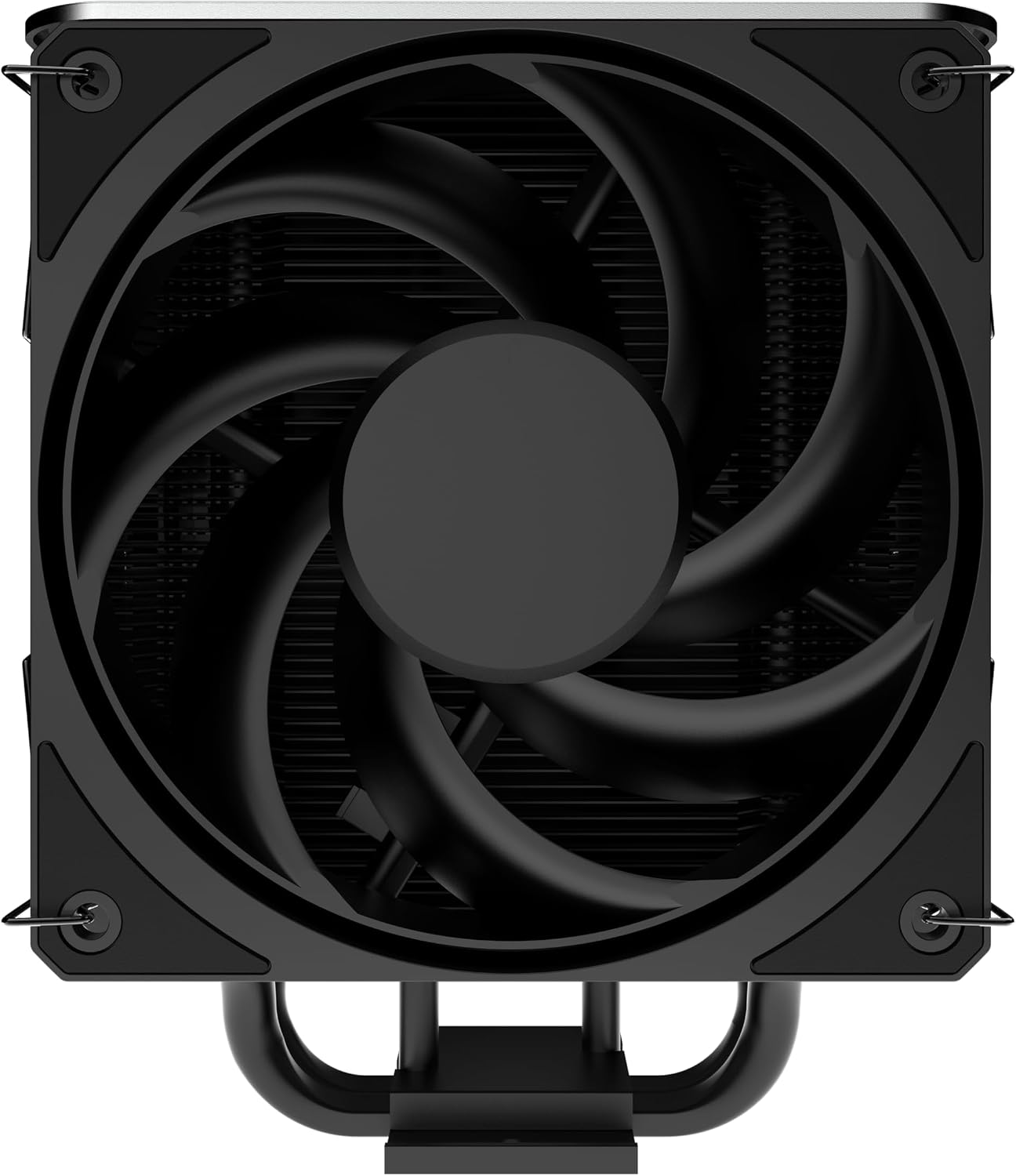

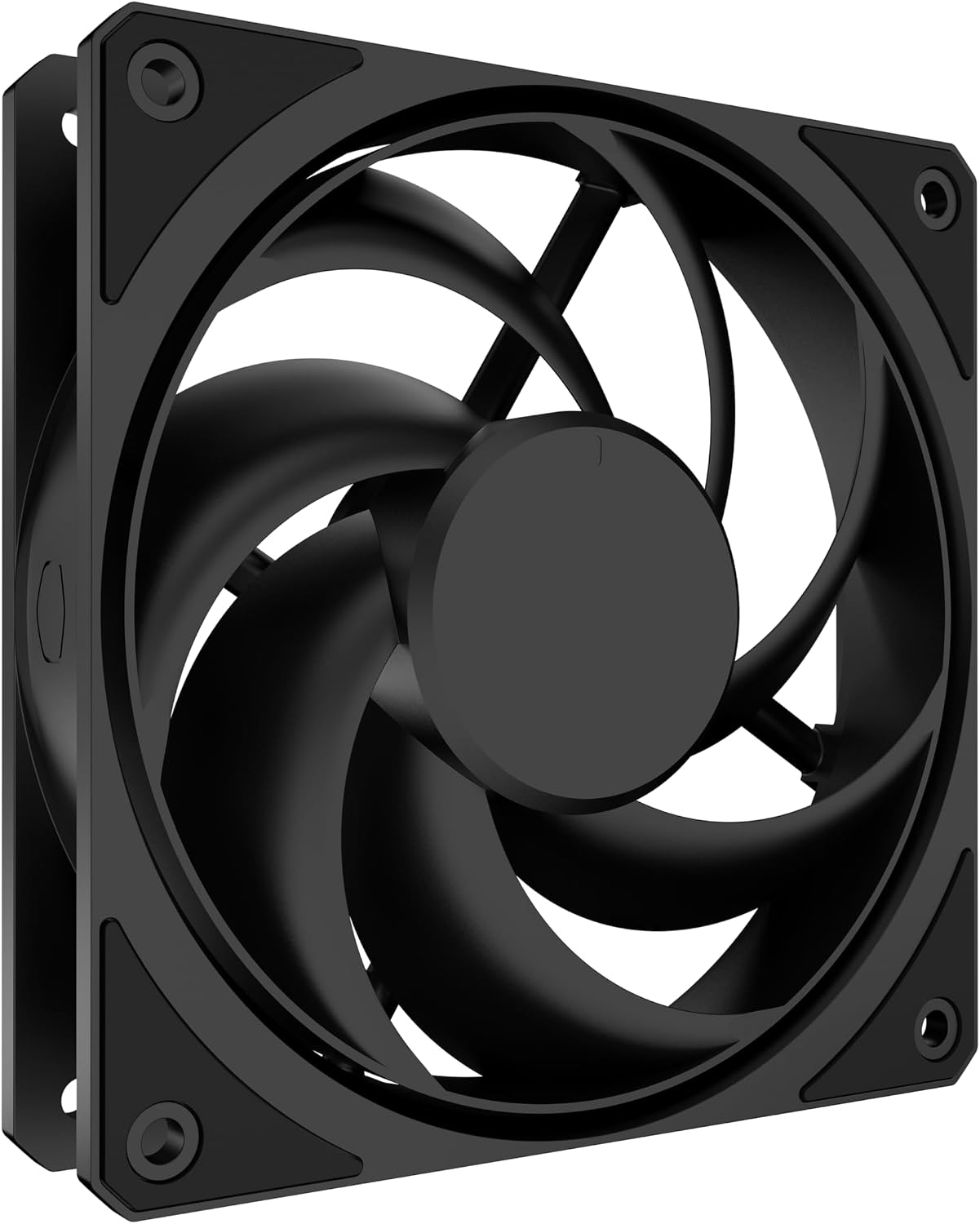

Dual 120mm PWM Push-Pull Aerodynamics
Equipped with dual matched 120mm PWM fans mounted in push-pull orientation to accelerate laminar airflow through the fin stack with zero backpressure resistance.

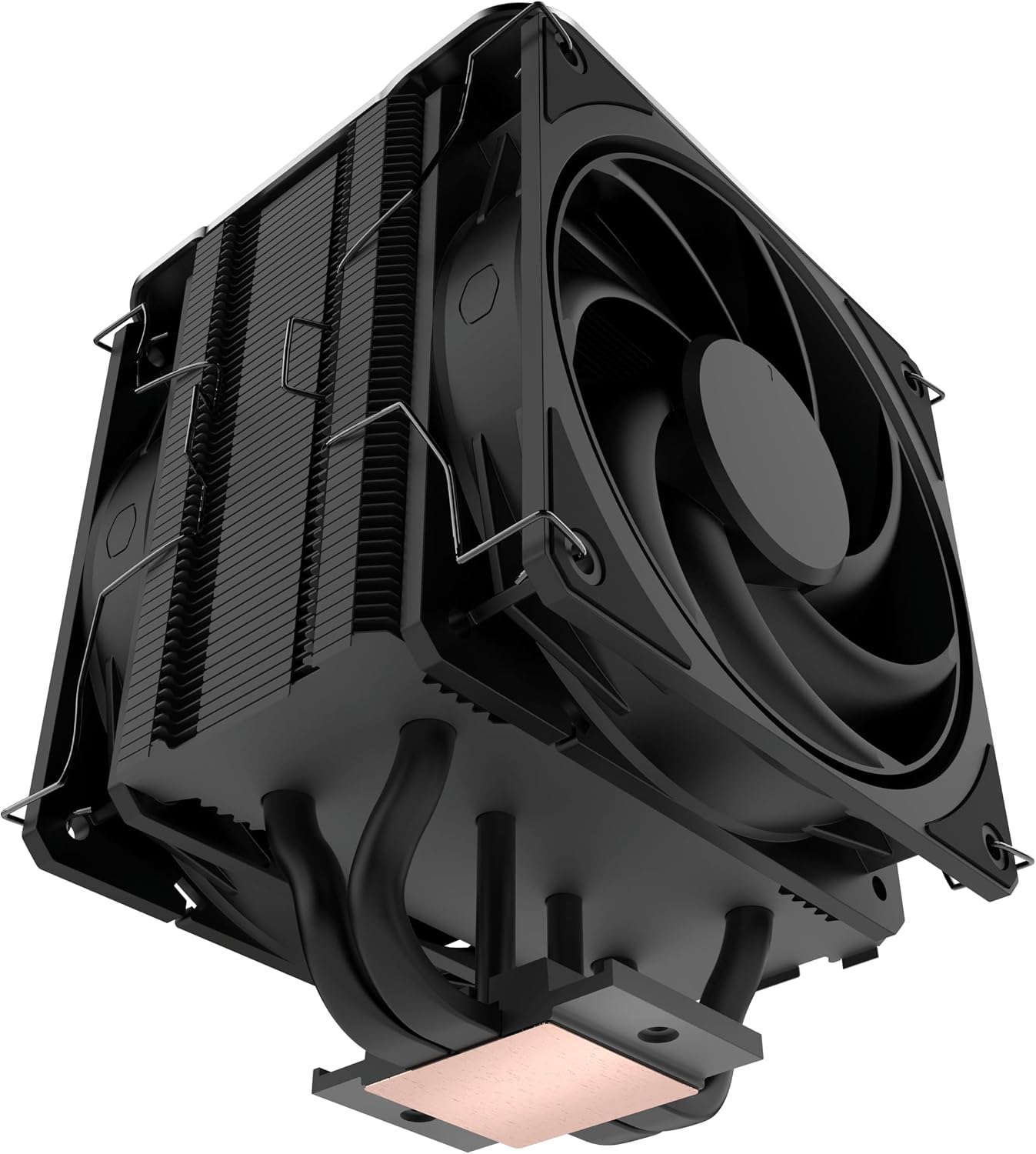

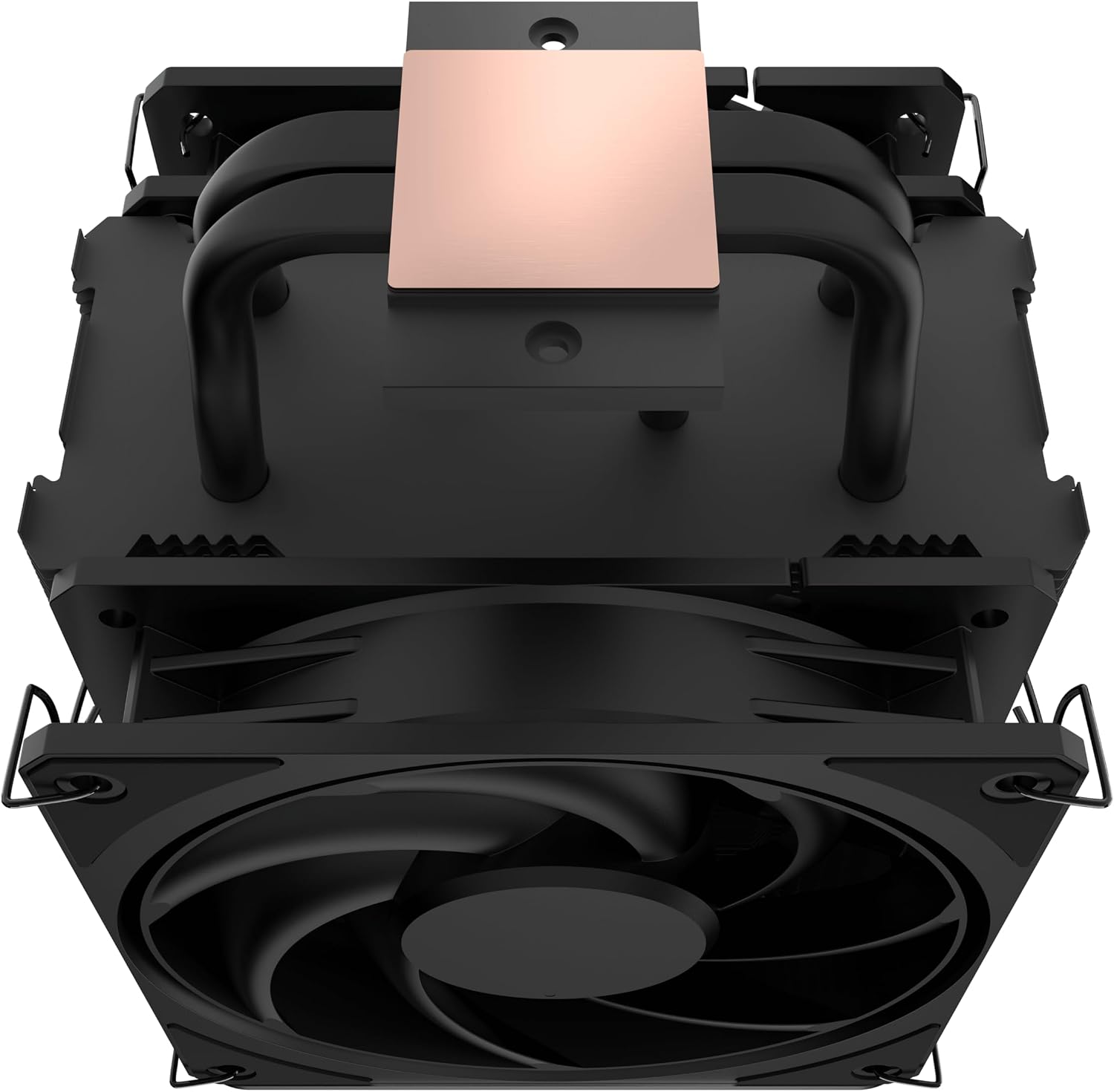

Precision Copper Base & 3D Heat Pipe Branching
Features an ultra-flat copper coldplate joined to Cooler Master's 3DHP pipes that branch out in three dimensions to eradicate heat dead spots directly above the CPU heat spreader.

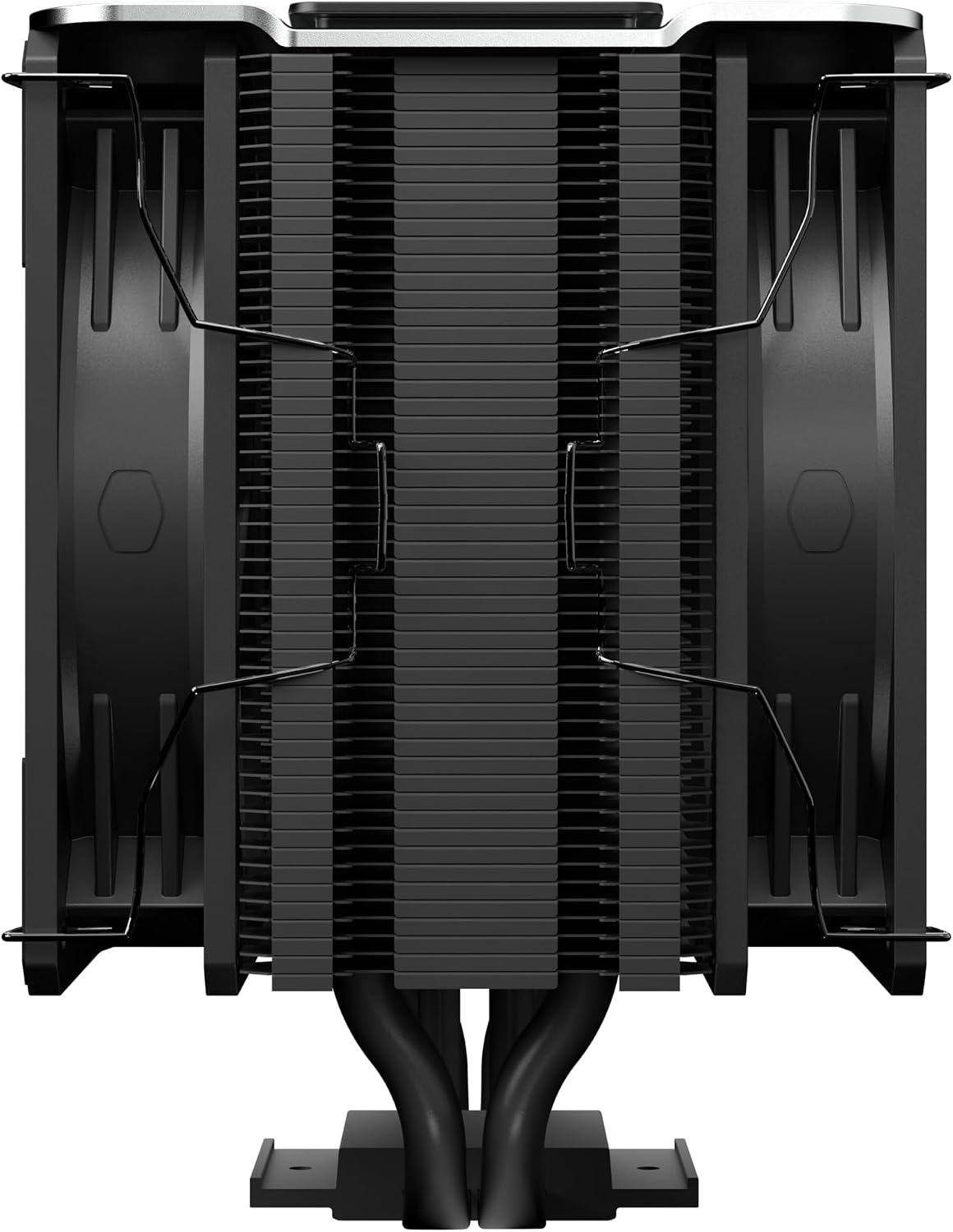

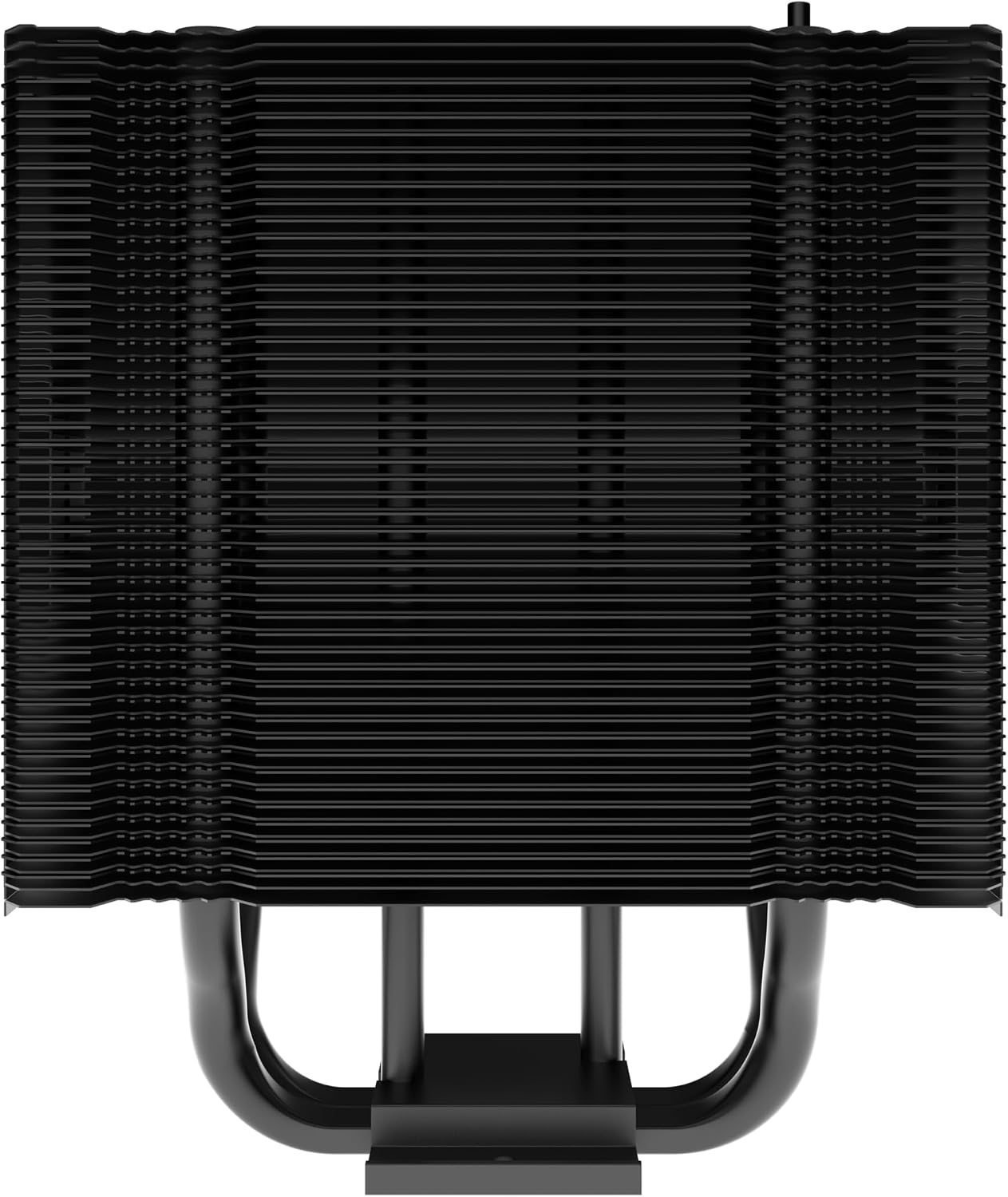

Optimized Black Coated Aluminum Fin Stack
Dense aerodynamic black aluminum fin matrix maximizes total surface heat radiation area while preventing oxidation and matching stealth black PC builds.

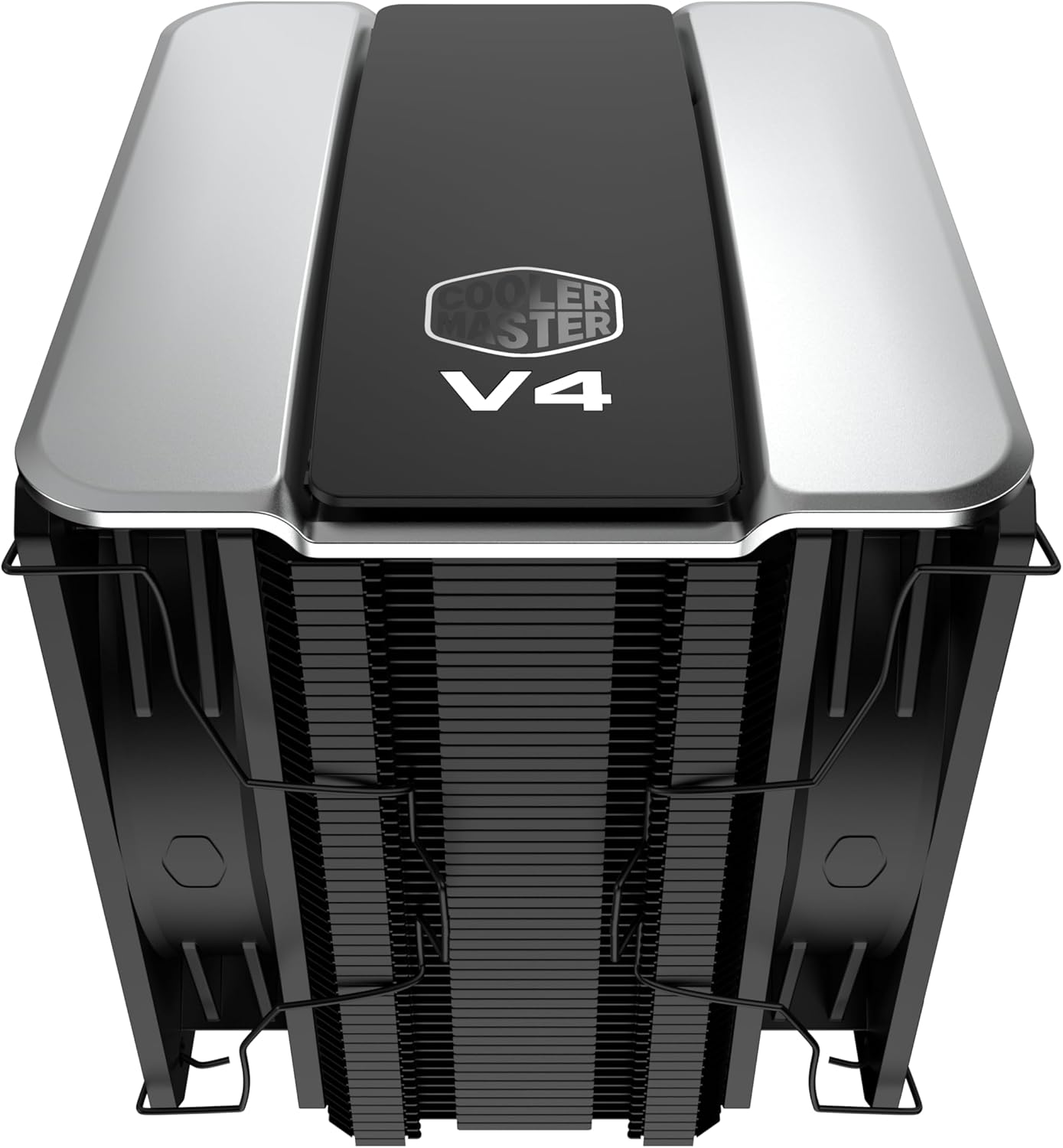

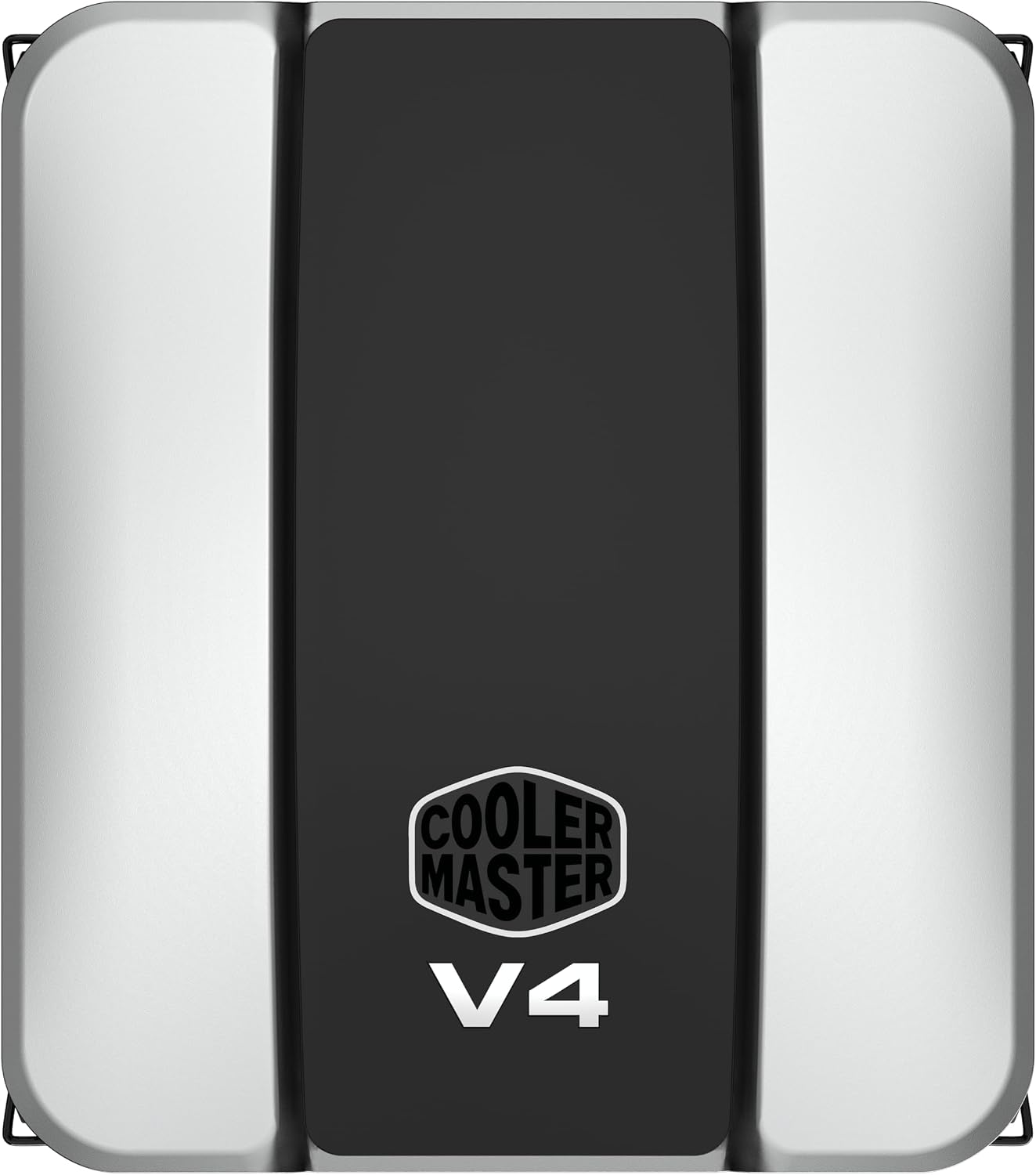

Brushed Metallic & Matte Top Cover
Automotive-inspired dual-tone top cover conceals heat pipe terminations and fan mounting brackets, providing a clean, premium silhouette through your chassis glass window.
Thermal Dissipation & Acoustic Benchmarks
Comparative thermal headroom and noise levels under heavy synthetic & gaming workloads
Detailed Hardware Specifications
| Product Name & Model | Cooler Master V4 Alpha 3DHP Black (MAZ-T2HP-217PK-R1) |
| Cooler Type | Tower CPU Air Cooler with Dual Push-Pull Fans |
| Heat Pipe Technology | Proprietary 3DHP (3D Heat Pipe) Branching Architecture |
| Fan Configuration | 2x 120mm High-Static Pressure PWM Fans |
| Fan Speed Range | 650 - 1,750 RPM ± 10% (PWM Controlled) |
| Fan Airflow & Pressure | Up to 71.93 CFM / 1.86 mmH2O |
| Fan Noise Level | Max 27.2 dBA (Ultra-Quiet Hydraulic Bearing) |
| Coldplate Material | Precision-Machined Pure Copper Base |
| Heatsink Material | Dense Aluminum Cooling Fins with Stealth Black Coating |
| Intel Socket Compatibility | LGA 1851, LGA 1700, LGA 1200, LGA 1151, LGA 1150, LGA 1155 |
| AMD Socket Compatibility | AM5, AM4 |
| Dimensions & Clearance | Approx. 124 x 103 x 158 mm (100% RAM Clearance Friendly) |
| Warranty Coverage | Official 2-Year Cooler Master Authorized Warranty in Egypt |
