Gigabyte B760 Gaming X LGA1700 DDR5 ATX Motherboard

Name: Gigabyte B760 Gaming X LGA1700 DDR5 ATX Motherboard
Brand: GIGABYTE
SKU: GB-MB-B760-GX-D5
Price: 8000.0 EGP
Availability: InStock

^EGP 8,000

~~^EGP 8,295~~

Hurry up! Only 1 item(s) items left in stock

💳

Secure Payment Methods

Cash on delivery and various payment options and installment plans.

🚚

Fast and Secure Shipping

Receive your order within 2 to 5 business days.

🎧

Customer Service

Technical support from 10 am to 12 pm.

🛡️

Warranty Coverage

Enjoy a 6-month to 3-year warranty through us with distributors.

Ask us on WhatsApp Share on WhatsApp

Description

GIGABYTE

Gigabyte B760 Gaming X DDR5 — Premium 8+1+1 phase power, triple M.2 NVMe and 2.5GbE gaming LAN

Engineered for enthusiast gaming and content creation, the Gigabyte B760 Gaming X DDR5 features robust 8+1+1 Twin Hybrid VRM power delivery with enlarged thermal heatsinks, four DDR5 DIMM slots supporting up to 7600+ MT/s (OC), triple high-speed PCIe 4.0 x4 M.2 slots, a reinforced PCIe 4.0 x16 GPU slot with EZ-Latch, and ultra-low latency 2.5GbE LAN.

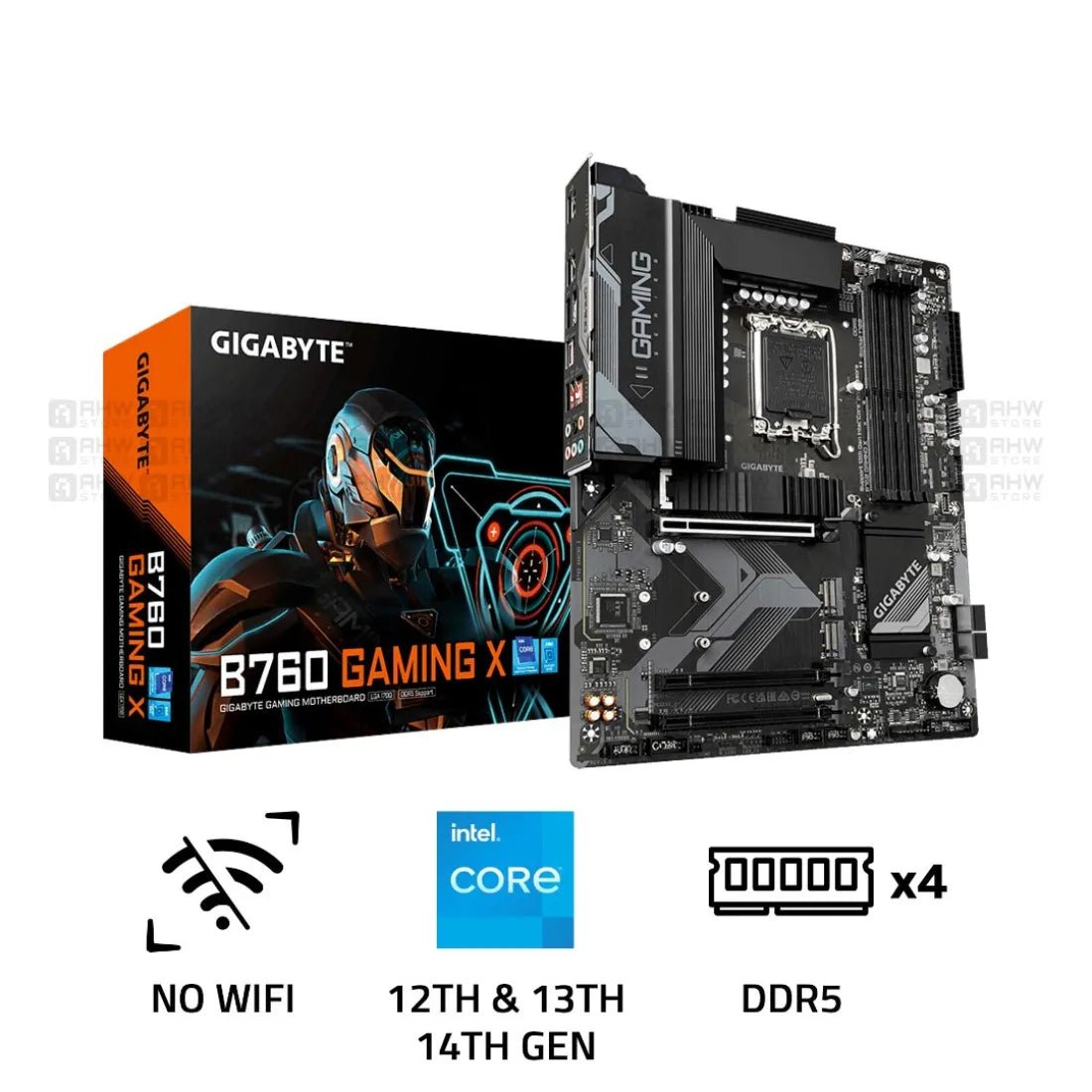

Gigabyte B760 Gaming X DDR5 ATX motherboard and retail packaging with GAMING X graphics

SocketLGA 1700

ChipsetIntel B760

MemoryDDR5 · 4 DIMM

Form FactorATX

LAN2.5GbE LAN

01

Board Map

Every connector, located before you unbox

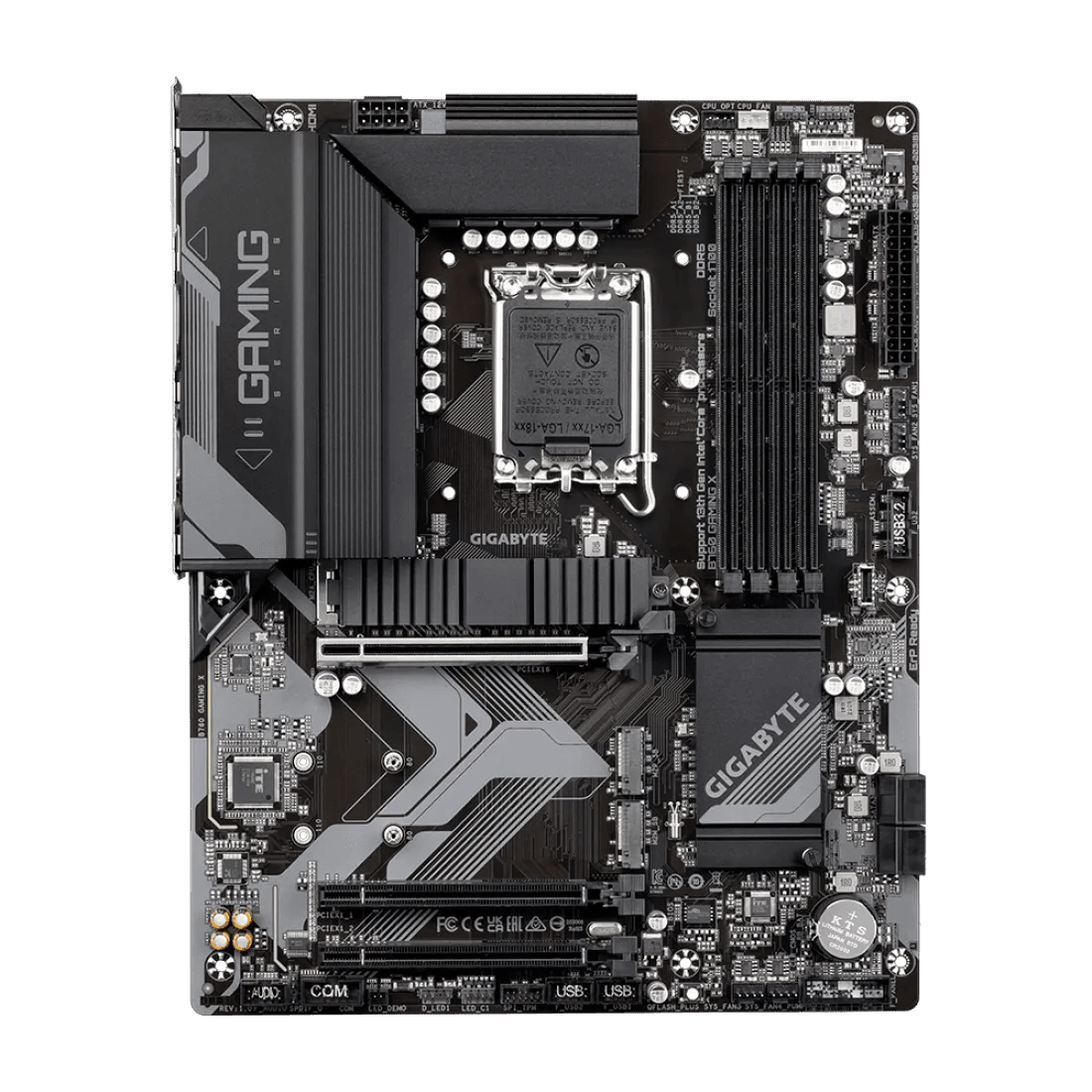

Gigabyte B760 Gaming X DDR5 top-down PCB view showing LGA 1700 socket, 4 DDR5 slots, VRM heatsinks and 3 M.2 slots

1

LGA 1700 Socket — Centre

Compatible with 14th, 13th, and 12th Gen Intel Core desktop processors with high-density pin layout.

2

8+1+1 Hybrid Digital VRM — Top & Left

Advanced power phases under heavy extruded aluminium heatsinks ensure cool, stable boost clocks.

3

4 × DDR5 DIMM Slots — Right

Quad-channel DIMM layout supporting up to 192 GB high-speed DDR5 memory with Intel XMP 3.0 profiles.

4

PCIe 4.0 x16 Graphics Slot — Centre

Full x16 bandwidth graphics slot protected by PCIe EZ-Latch for effortless, tool-free GPU swapping.

5

3 × PCIe 4.0 x4 M.2 Slots — Storage Bay

Triple NVMe slots; primary slot equipped with an integrated M.2 Thermal Guard heatsink to eliminate thermal throttling.

6

4 × SATA 6Gb/s Ports — Lower Right

Connect standard SATA hard drives and 2.5-inch SSDs with RAID 0, 1, 5, 10 support.

02

Power Delivery & Thermals

What feeds the socket, and what keeps it steady

8+1+1 VRMTwin hybrid digital phases

Enlarged HeatsinksFull coverage thermal armor

M.2 Thermal GuardPrevents NVMe throttling

2.5GbE LANUltra-low gaming ping

8+1+1 Phase Digital VRM

Provides rock-solid current regulation for sustained multi-core Turbo Boost clock rates during gaming and rendering.

Full-Coverage MOSFET Heatsinks

Massive surface area dissipation keeps VRM components running cool even under prolonged 100% CPU loads.

M.2 Thermal Guard Heatsink

Cools high-speed Gen4 NVMe drives directly, preventing thermal throttling during intensive file transfers and gaming loads.

Q-Flash Plus BIOS Button

Update the motherboard BIOS without installing CPU, RAM, or graphics card via rear I/O button.

03

Lane Map

Interface speed rating & capability relative to modern motherboard standards

PCIe 4.0 x16 Primary SlotDiscrete GPU bandwidth

~64 GB/s

3 × M.2 PCIe 4.0 x4 SlotsTriple NVMe storage array

~64 Gb/s each

USB 3.2 Gen 2 Type-A (Red)10Gbps high-speed port

10 Gb/s

USB 3.2 Gen 1 Type-CFront and rear Type-C connectivity

5 Gb/s

Realtek 2.5GbE LANHigh-bandwidth gaming Ethernet

2.5 Gb/s

SATA 6 Gb/s × 4Storage drives & RAID

6 Gb/s each

04

Rear I/O Bay

Exactly what appears on the back of your case

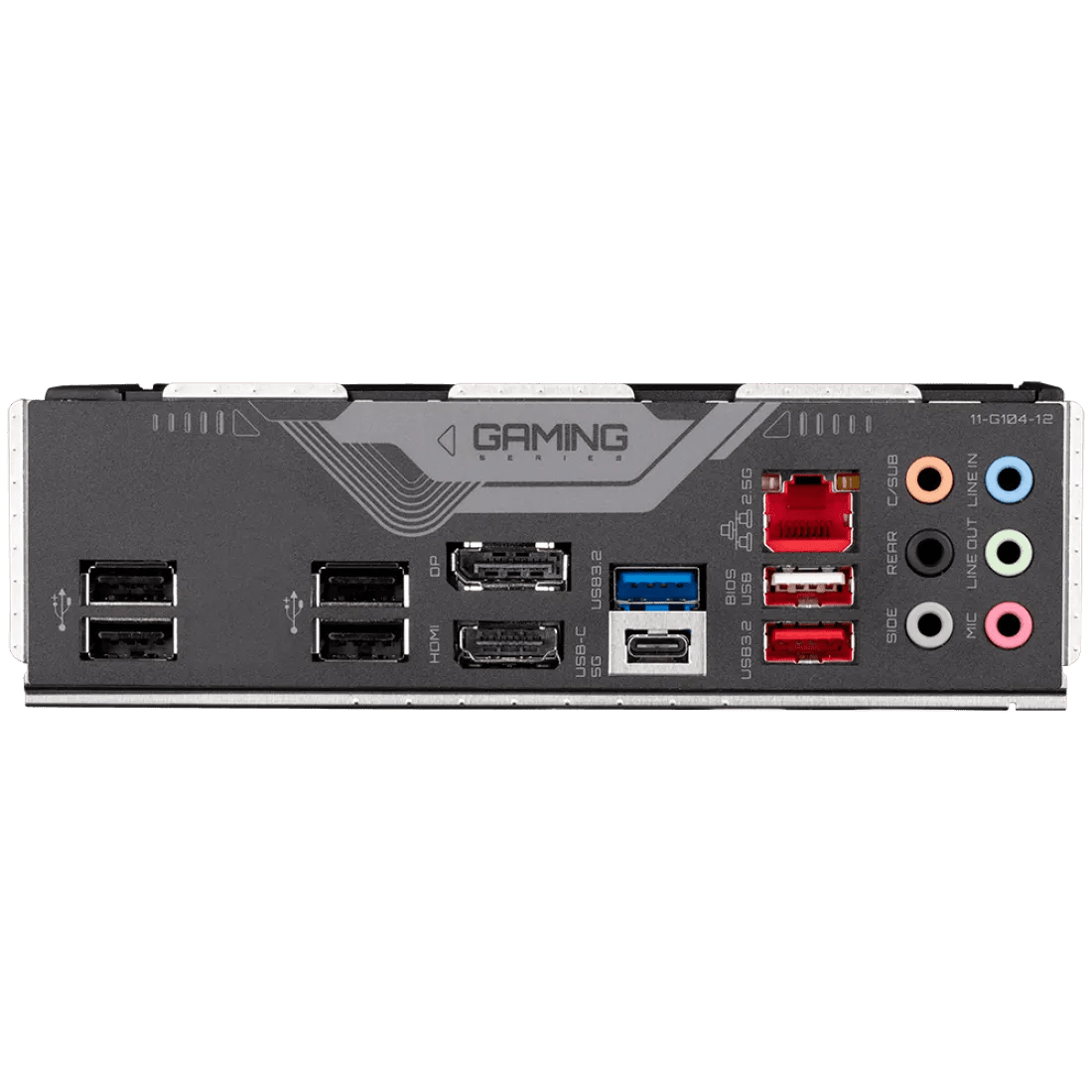

Gigabyte B760 Gaming X DDR5 rear I/O cluster: DisplayPort, HDMI, USB-C, USB 3.2 Gen 2, 2.5GbE LAN, Q-Flash Plus and audio jacks

Port inventoryEverything on the panel, counted — not in physical order

4×USB 2.0 / 1.1 PortsDedicated inputs for gaming mouse, keyboard, and USB peripherals

1×DisplayPort 1.2Digital monitor output supporting up to 4096x2304@60Hz with HDCP 2.3

1×HDMI 2.0 PortDigital monitor output supporting up to 4096x2160@60Hz

1×USB Type-C (USB 3.2 Gen 1)Versatile reversible Type-C port delivering 5 Gbps transfer speeds

1×USB 3.2 Gen 2 Type-A (Red)Ultra-fast 10 Gbps port for external NVMe enclosures and high-speed drives

1×USB 3.2 Gen 1 Type-A (Blue)5 Gbps USB-A port for flash drives and accessories

1×2.5GbE RJ-45 LAN PortRealtek 2.5 Gbps Ethernet port for low-jitter esports networking

1×Q-Flash Plus ButtonDirect BIOS flashing button with dedicated indicator LED

6×Audio Jacks (3.5mm)Gold-plated Realtek high-definition 7.1-channel surround audio connections

05

Will It Fit Your Build?

Check these before you add to cart

✓

Processor

Supports 14th, 13th, and 12th Gen Intel Core desktop processors on socket LGA 1700.

✓

Memory

DDR5 RAM only — 4 DIMM slots supporting up to 192 GB and overclocking up to 7600+ MT/s.

✓

Graphics

PCIe 4.0 x16 slot with metal reinforcement and EZ-Latch for large triple-fan GPUs.

✓

Storage

3 × M.2 PCIe 4.0 x4 NVMe slots with M.2 Thermal Guard on the primary slot.

✓

Networking

Ultra-fast Realtek 2.5GbE LAN port built-in. (Wi-Fi requires PCIe expansion card or USB dongle).

✓

Case

Standard ATX form factor (30.5 cm x 24.4 cm) fitting all standard Mid-Tower and Full-Tower ATX cases.

06

Complete Specifications

Official factory parameters from manufacturer datasheet

Brand & Model	Gigabyte B760 Gaming X DDR5 (rev. 1.0)
CPU Socket	LGA 1700 (Intel 14th / 13th / 12th Gen Core, Pentium Gold, Celeron)
Chipset	Intel B760 Express Chipset
Memory Support	4 × DDR5 DIMM, Max 192 GB, Up to DDR5 7600(OC) / 7400(OC) / 7200(OC) / 6000(OC) / 5600 / 4800 MT/s, XMP 3.0
Expansion Slots	1 × PCIe 4.0 x16 (from CPU, x16 mode), 2 × PCIe 3.0 x16 (from Chipset, running at x1 mode)
Storage Interfaces	3 × M.2 PCIe 4.0 x4 (type 22110/2280), 4 × SATA 6Gb/s, RAID 0/1/5/10 support for SATA
Display Outputs	1 × DisplayPort 1.2 (4096x2304@60Hz), 1 × HDMI 2.0 (4096x2160@60Hz)
Ethernet LAN	Realtek 2.5GbE LAN chip (2.5 Gbps / 1 Gbps / 100 Mbps)
Audio System	Realtek Audio CODEC, High Definition Audio, 2/4/5.1/7.1-channel, Audio Noise Guard
USB Ports (Rear)	1 × USB 3.2 Gen 2 Type-A (Red), 1 × USB Type-C (USB 3.2 Gen 1), 1 × USB 3.2 Gen 1 Type-A, 4 × USB 2.0/1.1
USB Ports (Internal)	1 × USB Type-C header (USB 3.2 Gen 2), 1 × USB 3.2 Gen 1 header, 2 × USB 2.0 headers
Cooling & BIOS Features	Smart Fan 6, 6 Fan/Water Pump headers, Q-Flash Plus BIOS update button
Power Connectors	1 × 24-pin ATX main power connector, 1 × 8-pin ATX 12V power connector
Form Factor & Dimensions	ATX Form Factor: 30.5 cm × 24.4 cm (12.0 in. × 9.6 in.)

07

Frequently Asked Questions

Direct answers to essential technical and compatibility questions

Does the Gigabyte B760 Gaming X support DDR4 RAM?+

No. The Gigabyte B760 Gaming X DDR5 is engineered exclusively for DDR5 memory modules. It does not support DDR4.

How many M.2 NVMe SSDs can I install simultaneously?+

You can install up to three M.2 NVMe SSDs, all running at high-speed PCIe 4.0 x4 bandwidth simultaneously without lane compromise.

Can I update the BIOS without having a CPU or RAM installed?+

Yes. The onboard Q-Flash Plus feature allows you to update the BIOS using just a USB flash drive and the power supply connected, with no CPU, memory, or graphics card required.

What is the benefit of the onboard 2.5GbE LAN?+

The Realtek 2.5 Gigabit Ethernet port provides up to 2.5 times higher transfer speeds than standard Gigabit LAN, resulting in lower gaming latency and lightning-fast local network file transfers.

What warranty coverage and support are provided by AHW Store?+

All motherboards purchased from AHW Store include official manufacturer warranty coverage with dedicated local customer support and fast doorstep delivery across Egypt.

Does AHW Store update the BIOS before shipping?+

Every motherboard ships sealed in its original retail packaging with the factory BIOS. Our engineers can flash the latest vendor BIOS free of charge on request when you order a CPU with the board, which guarantees first-boot compatibility with the newest supported CPU generation.

What warranty coverage is included?+

All motherboards sold at AHW Store carry the official authorized distributor warranty with local technical support and replacement. Full terms in our Warranty Policy ↗.

What payment and installment plans are available in Egypt?+

Cash on delivery, credit and debit cards, and flexible installment plans through ValU, Sympl, Forsa and bank credit cards. See our Payment & Installments Guide ↗.

How fast is shipping across Egypt?+

Orders are delivered within 2 to 7 business days across all Egyptian governorates, packed in anti-static shielding with shock-protected outer packaging (with pickup available from our 6th of October headquarters). See our Shipping Policy ↗.

Can AHW Store build the complete PC around this motherboard?+

Yes. Our certified engineers assemble, cable-manage, flash BIOS, stress-test and tune the finished system before it ships. Start with our Custom PC Builder ↗.
