Gigabyte B760M DS3H GEN5 — a Micro-ATX B760 board that drives four displays and runs PCIe 5.0 graphics
An Ultra Durable Micro-ATX board on the Intel B760 chipset for 12th, 13th and 14th Gen Intel Core processors. It pairs a PCIe 5.0 x16 graphics slot with four DDR5 slots, two PCIe 4.0 M.2 sockets under heatsinks, and 2.5 Gigabit Ethernet. The rear panel is unusually generous for a Micro-ATX board: D-Sub, HDMI and two DisplayPorts drive up to four screens at once.

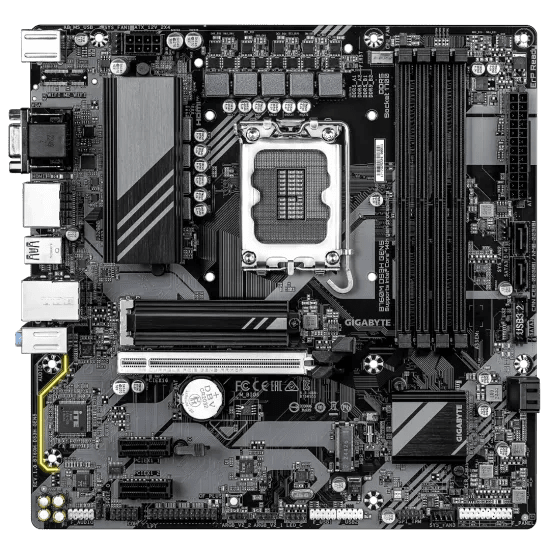

Board Map
Every connector, located before you unbox
LGA 1700 CPU socket — dead centre
Takes 12th, 13th and 14th Gen Intel Core, Pentium Gold and Celeron processors. The board's own silkscreen next to the socket reads "Supports Intel Core 14th", so 14th Gen support is printed on the PCB itself.
VRM heatsinks — top and left of the socket
Two finned Ultra Durable heatsink blocks wrap the power stage on the top and left edges, fed by the CPU power connector at the top-left corner. Unlike entry H610 boards, the power stage here is actively cooled by metal rather than left bare.
4 × DDR5 DIMM slots — right edge
Four-slot dual-channel DDR5 running at up to 5600 MT/s. Four slots on a Micro-ATX board means you can start with two sticks and fill in later instead of replacing the kit.
PCIe 5.0 x16 with UD Slot — middle of the board
The long white slot is Gigabyte's PCIe UD Slot: a metal-shielded, extra-anchored PCIe 5.0 x16 socket built to hold a heavy modern graphics card without sagging.
2 × PCIe 3.0 x1 slots — lower left
Two short slots sit below the graphics slot, silkscreened PCIEX1_1 and PCIEX1_2. They stay clear of a triple-slot GPU's cooler, so a capture card or sound card still fits.
2 × M.2 sockets under heatsinks — above the x16 slot and lower right
Two PCIe 4.0 M.2 sockets, each covered by its own heatsink — the long finned bar above the graphics slot and the branded plate on the lower right. Both carry NVMe drives at full Gen4 speed.
4 × SATA 6 Gb/s — right edge
Four right-angled SATA ports with RAID 0, 1, 5 and 10 support, positioned on the board edge so cables exit cleanly behind the drive cage.
Front headers and ARGB — bottom edge
The bottom edge carries front-panel audio, USB, the system panel block, a system fan header and two addressable RGB headers (ARGB_V2_1 and ARGB_V2_2) for case lighting.

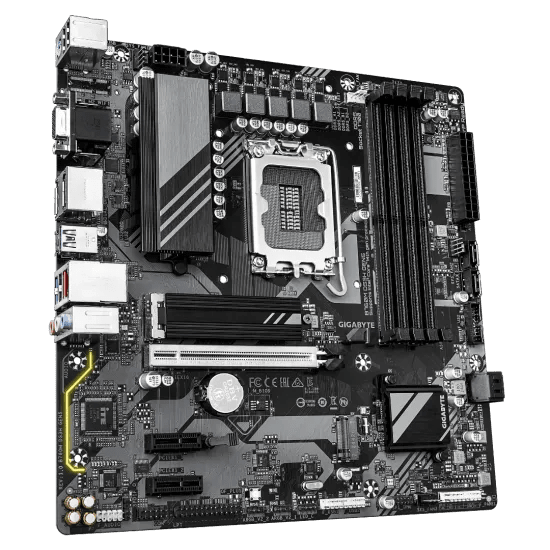

Closer Look
A detail shot from the board's other working side
Power Delivery & Thermals
What feeds the socket, and what keeps it steadyMetal VRM heatsinks
Two finned Ultra Durable blocks cover the power stage on the top and left edges of the socket. On a board built for locked 13th and 14th Gen chips, that metal is what keeps sustained all-core workloads from throttling on VRM temperature.
Ultra Durable build
Gigabyte's Ultra Durable programme covers the PCB, the solid capacitors and the reinforced slots. The PCIe UD Slot is the visible part: a metal-shielded x16 socket anchored for heavy cards.
Two heatsinked M.2 sockets
Both PCIe 4.0 M.2 drives sit under their own metal covers. Gen4 NVMe drives throttle when they cook, so the heatsinks matter more here than on a Gen3 board.
High-end audio capacitor
The onboard 8-channel HD audio stage uses high-end audio capacitors, and the audio circuit is separated from the rest of the PCB by the illuminated divider line visible along the left edge.
Lane Map

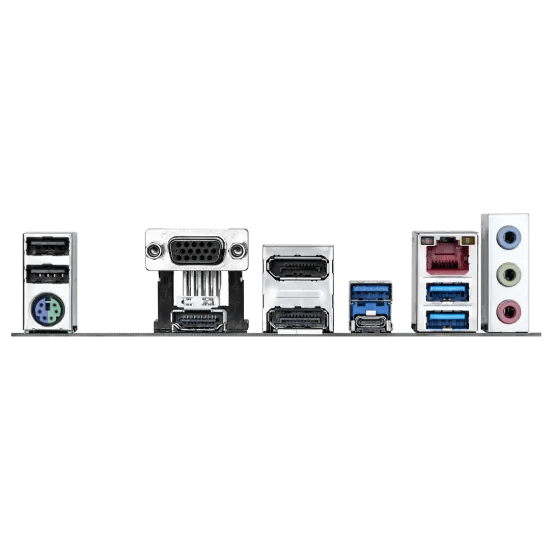

Interface speed rating & capability relative to modern motherboard standardsRear I/O Bay
Exactly what appears on the back of your case
Will It Fit Your Build?
Check these before you add to cartProcessor
Any 12th, 13th or 14th Gen Intel Core, Pentium Gold or Celeron on LGA 1700.
Memory
DDR5 only — 4 slots, dual channel, up to 5600 MT/s. DDR4 will not physically fit this board.
Graphics card
PCIe 5.0 x16 UD Slot, metal-shielded and anchored for heavy cards. Check card length against your case, not the board.
Storage
2 × M.2 PCIe 4.0 (both heatsinked) plus 4 × SATA 6 Gb/s with RAID 0/1/5/10.
Multi-monitor
Four display outputs — D-Sub, HDMI and two DisplayPorts — driving up to four screens from Intel integrated graphics.
Case
Micro-ATX board — drops into any Micro-ATX, Mid-Tower or Full-Tower ATX chassis.
No onboard Wi-Fi or Bluetooth
Wired 2.5 GbE only — faster than the usual gigabit port, but you will need a PCIe or USB Wi-Fi adapter if the machine cannot reach a cable. Both PCIe x1 slots are free for that.
No CPU overclocking
The B760 chipset does not support CPU multiplier overclocking. Memory can still run its rated XMP profile.
Full Specification Sheet
Gigabyte B760M DS3H GEN5 DDR5| CPU Socket | Intel LGA 1700 |
| CPU Support | 12th, 13th and 14th Gen Intel Core · Pentium Gold · Celeron |
| Chipset | Intel B760 |
| Form Factor | Micro-ATX |
| Memory Slots | 4 × DDR5 DIMM, dual channel |
| Memory Speed | Up to 5600 MT/s |
| Graphics Slot | 1 × PCIe 5.0 x16 with PCIe UD Slot |
| Expansion Slots | 2 × PCIe 3.0 x1 |
| M.2 Storage | 2 × M.2 PCIe 4.0, both under heatsinks |
| SATA Ports | 4 × SATA 6 Gb/s · RAID 0 / 1 / 5 / 10 |
| Rear Video Out | 1 × D-Sub · 1 × HDMI (4096×2160 @ 60 Hz) · 2 × DisplayPort (4096×2304 @ 60 Hz) |
| Multi-Display | Up to 4 simultaneous displays |
| Networking | 2.5 Gigabit Ethernet (no Wi-Fi / Bluetooth) |
| Rear USB | 1 × USB 3.2 Gen 2 Type-C · 3 × USB 3.2 Gen 1 Type-A · 2 × USB 2.0 Type-A |
| Audio | 8-channel HD audio with high-end audio capacitors |
| Lighting | 2 × addressable RGB headers (ARGB_V2) |
| Legacy | 1 × PS/2 combo port |
| Warranty | Official local warranty |
