GIGABYTE

Gigabyte B850M FORCE WF6E DDR5 AM5 M-ATX Motherboard Black

EGP 8,499

Installment Calculator

Monthly installment:

Final terms are confirmed at checkout.
GIGABYTE

Gigabyte B850M FORCE WF6E — Compact AM5 Power with PCIe 5.0, Wi-Fi 6E & 2.5GbE LAN

A punchy Micro-ATX motherboard powered by AMD B850 engineered for compact gaming builds on Socket AM5 with AMD Ryzen 9000, 8000, and 7000 Series processors. Features a PCIe 5.0 x16 reinforced graphics slot with EZ-Latch, PCIe 5.0 M.2 NVMe storage with Thermal Guard, integrated Wi-Fi 6E, Realtek 2.5GbE LAN, and dual DDR5 slots optimized for extreme memory overclocking up to 8000+ MT/s.

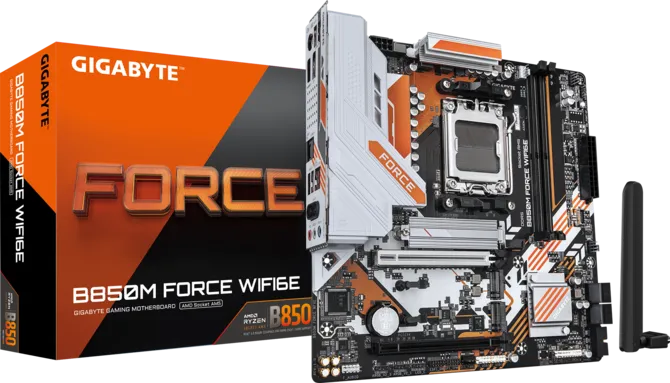

Gigabyte B850M FORCE WF6E retail box and Micro-ATX gaming motherboard with Wi-Fi 6E and AM5 socket badges
SocketAMD AM5
ChipsetAMD B850
MemoryDDR5 · 2 DIMM
Form FactorMicro-ATX
WirelessWi-Fi 6E
LAN2.5 Gbps
01

Board Architecture Map

Key component locations and compact Micro-ATX layout

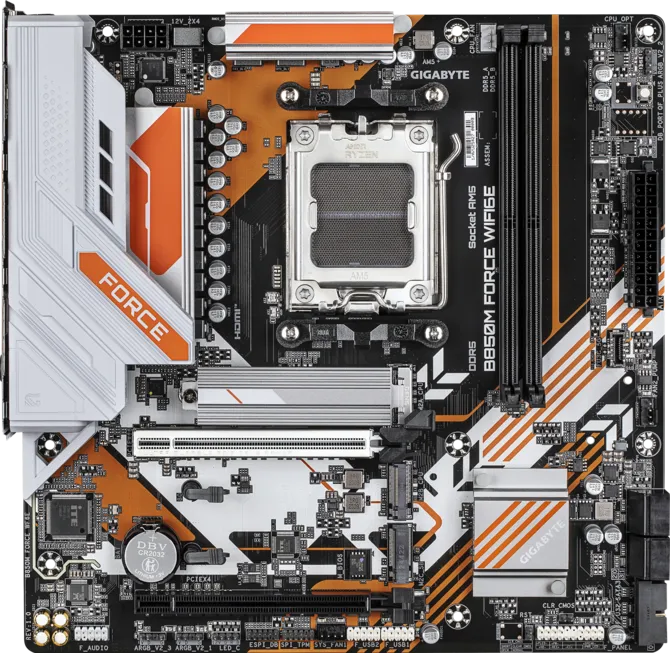

Gigabyte B850M FORCE WF6E top-down layout showing AM5 socket, two DDR5 slots, PCIe 5.0 slot and FORCE thermal heatsinks
1

AMD Socket AM5 (LGA 1718) — Centre

Natively supports AMD Ryzen 9000, 8000, and 7000 Series processors with direct PCIe 5.0 CPU lanes.

2

Digital VRM with FORCE White Heatsinks — Top & Left

Substantial grooved aluminum heatsinks finished in crisp white with racing orange accents for cool, stable voltage delivery.

3

2 × DDR5 DIMM Slots (1 DPC Topology) — Right

Direct 1 DIMM Per Channel trace layout engineered for maximum DDR5 signal integrity and high-frequency overclocking up to 8000+ MT/s.

4

PCIe 5.0 x16 Graphics Slot with EZ-Latch — Centre

Reinforced Ultra Durable metal armor protecting against GPU sag, with an extended latch for easy card removal.

5

2 × M.2 NVMe Sockets (1× PCIe 5.0) — Across PCB

Primary PCIe 5.0 x4 M.2 slot shielded by Thermal Guard heatsink, plus secondary PCIe 4.0 x4 slot for expanded high-speed storage.

6

High-Speed Networking Hub — Top Left

Realtek 2.5GbE LAN controller paired with integrated tri-band Wi-Fi 6E wireless module.

02

Power Delivery & Thermals

Reliable power regulation and efficient heat dissipation in a compact footprint
8+2+1 PhasesDigital VRM Design
Solid 8-PinCPU 12V Power Feed
Thermal GuardM.2 SSD Heat Shield
Smart Fan 6Multiple Fan Headers

Digital Power Architecture

Equipped with high-grade MOSFETs and solid chokes delivering stable and clean current to AMD Ryzen 9000 and 7000 processors.

FORCE Custom White Heatsinks

Stylish dual heatsinks provide ample surface area to cool power delivery components during long gaming sessions.

M.2 Thermal Guard Cooling

Keeps next-generation PCIe 5.0 NVMe SSDs operating at peak transfer speeds without thermal throttling.

Ultra Durable Metal Shielding

Reinforced PCIe steel slot prevents physical strain and slot damage from heavy multi-fan modern graphics cards.

03

Bandwidth & Lane Hierarchy

Interface speed rating & capability relative to modern motherboard standards
PCIe 5.0 x16 Graphics SlotFull-bandwidth GPU slot · EZ-Latch
~128 GB/s
M.2 PCIe 5.0 x4 SocketGen5 NVMe SSD with Thermal Guard
~128 Gb/s
M.2 PCIe 4.0 x4 SocketSecondary Gen4 NVMe slot
~64 Gb/s
Realtek 2.5GbE LANHigh-speed wired gaming Ethernet
2.5 Gb/s
Wi-Fi 6E WirelessTri-band 6GHz wireless networking
Up to 2.4 Gb/s
USB-C 5Gbps PortRear high-speed reversible connection
5 Gb/s
04

Rear I/O Bay

Port inventory: Everything on the panel, counted

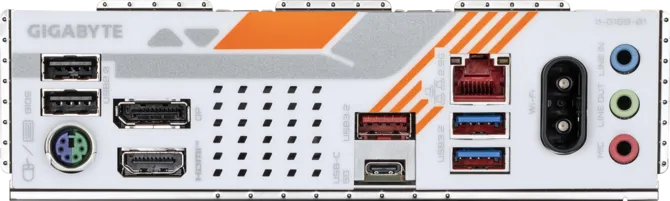

Gigabyte B850M FORCE WF6E rear I/O panel with USB-C, DisplayPort, HDMI, 2.5GbE LAN, Wi-Fi 6E and audio jacks
Port inventoryEverything on the panel, counted — not in physical order
1×DisplayPort 1.4Up to 4K 60Hz display output
1×HDMI 2.1 PortHigh-resolution display output with HDR
1×USB-C 5Gbps PortReversible connection for modern devices
1×USB 3.2 Gen 2 Type-A (Red)10 Gbps high-speed data transfer port
2×USB 3.2 Gen 1 Type-A (Blue)5 Gbps ports for gaming peripherals and external storage
2×USB 2.0 PortsLow-latency connections for mouse and keyboard (one marked BIOS)
1×PS/2 Keyboard/Mouse PortLegacy peripheral connection for zero-latency input
1×Realtek 2.5GbE LAN Port2.5 Gigabit Ethernet port for lag-free online gaming
2×Wi-Fi 6E Antenna ConnectorsTri-band Wi-Fi 6E and Bluetooth 5.3 antenna terminals
3×HD Audio JacksLine-in, line-out, and microphone jacks with audio shielding
05

Will It Fit Your Build?

Check these before you add to cart
✓

Processor

Supports AMD Ryzen 9000, 8000, and 7000 Series desktop CPUs on Socket AM5.

✓

Memory

DDR5 only — 2 DIMM slots supporting up to 128 GB and speeds up to 8000+ MT/s with AMD EXPO.

✓

Graphics

PCIe 5.0 x16 slot with reinforced Ultra Durable steel armor and EZ-Latch.

✓

Storage

2 × M.2 sockets (1x PCIe 5.0 + 1x PCIe 4.0) with Thermal Guard heatsink.

✓

Case Clearance

Compact Micro-ATX form factor (24.4 cm x 24.4 cm) — fits Mini-Tower and Mid-Tower cases.

✓

Power Supply

Requires standard 24-pin ATX power and a single 8-pin CPU 12V connector.

06

Full Specification Sheet

Gigabyte B850M FORCE WF6E
Model Gigabyte B850M FORCE WF6E Gaming Motherboard
CPU Socket AMD Socket AM5 (LGA 1718)
Supported Processors AMD Ryzen 9000 / 8000 / 7000 Series Processors
Chipset AMD B850 Chipset
Form Factor Micro-ATX (24.4 cm x 24.4 cm)
Power Architecture 8+2+1 Phase Digital VRM with Custom Heatsinks
Memory Architecture 2 × DDR5 DIMM, Dual Channel, up to 128 GB, AMD EXPO / Intel XMP
Memory Frequency Up to 8000+ MT/s (O.C.) (1 DPC Topology)
Primary PCIe Slot 1 × PCIe 5.0 x16 with Ultra Durable PCIe Armor & EZ-Latch
Secondary PCIe Slot 1 × PCIe 4.0 x4 slot
M.2 NVMe Sockets 2 × M.2 Sockets (1× PCIe 5.0 x4 with Thermal Guard + 1× PCIe 4.0 x4)
SATA Storage 4 × SATA 6 Gb/s connectors with RAID 0/1 support
High-Speed Connectivity 1 × USB-C 5Gbps + 1 × USB 3.2 Gen 2 Type-A (Red)
Wireless Connectivity Wi-Fi 6E (802.11ax) Tri-Band + Bluetooth 5.3
Wired Ethernet Realtek 2.5GbE LAN (2.5 Gbps / 1 Gbps)
Audio Codec Realtek HD Audio + High-End Audio Capacitors + Noise Guard
Design Styling FORCE Edition: Crisp white heatsinks with vibrant racing orange accents
07

Technical & Policy Q&A

Common questions about this motherboard
What are the benefits of having 2 DDR5 DIMM slots instead of 4?+
With a 1 DIMM Per Channel (1 DPC) configuration, memory electrical signal trace distance is reduced and reflections are eliminated, allowing for higher DDR5 memory overclocking speeds up to 8000+ MT/s.
Does the primary M.2 slot support PCIe 5.0 NVMe SSDs?+
Yes. The top M.2 socket connects directly to the CPU with PCIe 5.0 x4 bandwidth and is equipped with a dedicated aluminum Thermal Guard heatsink.
Can this board fit into standard Micro-ATX cases?+
Yes, it complies with the standard 24.4 x 24.4 cm Micro-ATX form factor, making it compatible with virtually all Micro-ATX and Mid-Tower PC cases.
What is the difference between Wi-Fi 6 and Wi-Fi 6E on this motherboard?+
Wi-Fi 6E adds access to the dedicated, less congested 6 GHz wireless frequency band, delivering lower latency and less interference for competitive gaming.
Does it support AMD EXPO memory overclocking profiles?+
Yes. You can enable AMD EXPO in the BIOS with one click to run certified high-speed DDR5 memory kits at their rated speeds and timings.
Does AHW Store update the BIOS before shipping?+
Every motherboard ships sealed in its original retail packaging with the factory BIOS. Our engineers can flash the latest vendor BIOS free of charge on request when you order a CPU with the board, which guarantees first-boot compatibility with the newest supported CPU generation.
What warranty coverage is included?+
All motherboards sold at AHW Store carry the official authorized distributor warranty with local technical support and replacement. Full terms in our Warranty Policy ↗.
What payment and installment plans are available in Egypt?+
Cash on delivery, credit and debit cards, and flexible installment plans through ValU, Sympl, Forsa and bank credit cards. See our Payment & Installments Guide ↗.
How fast is shipping across Egypt?+
Orders are delivered within 2 to 7 business days across all Egyptian governorates, packed in anti-static shielding with shock-protected outer packaging (with pickup available from our 6th of October headquarters). See our Shipping Policy ↗.
Can AHW Store build the complete PC around this motherboard?+
Yes. Our certified engineers assemble, cable-manage, flash BIOS, stress-test and tune the finished system before it ships. Start with our Custom PC Builder ↗.
