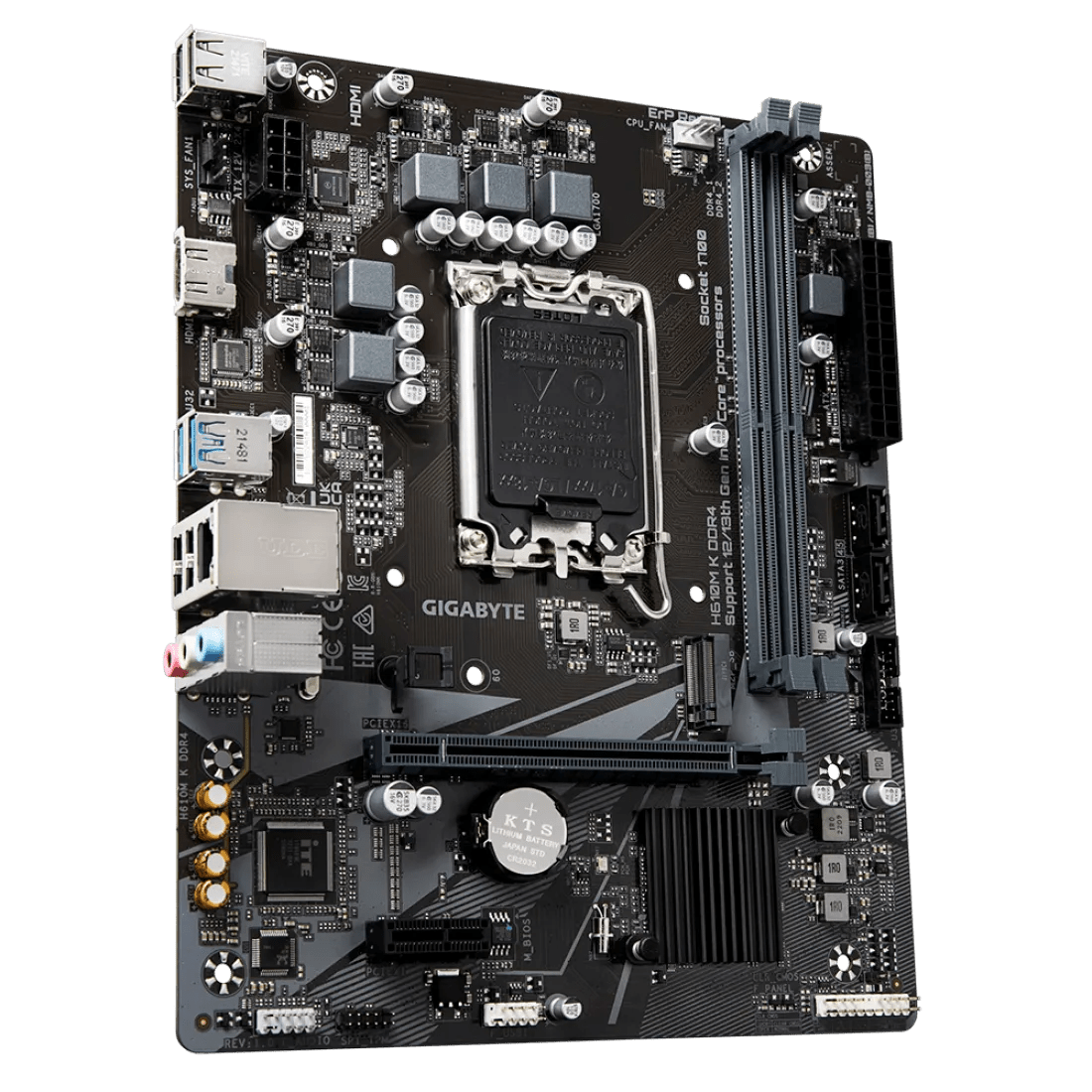

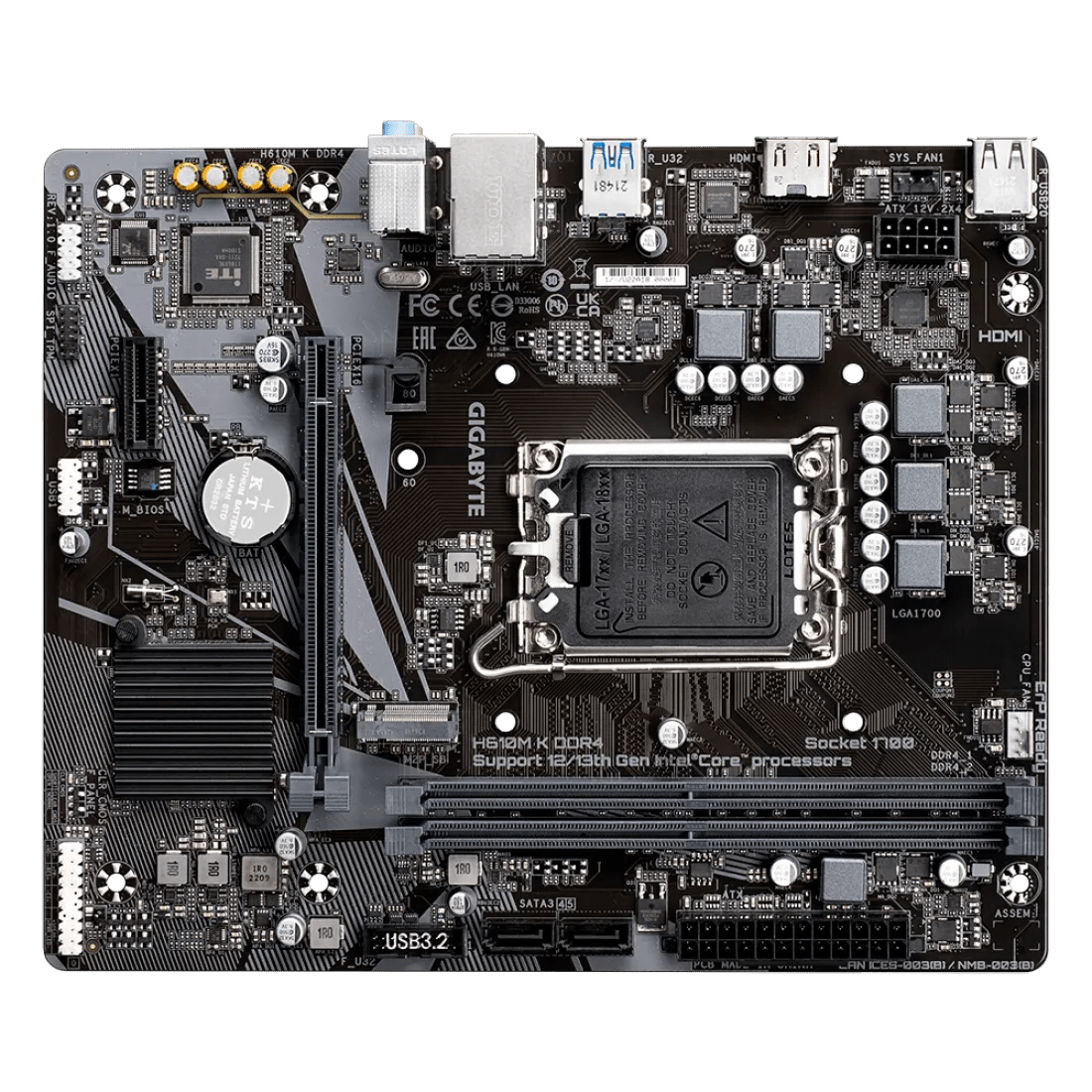

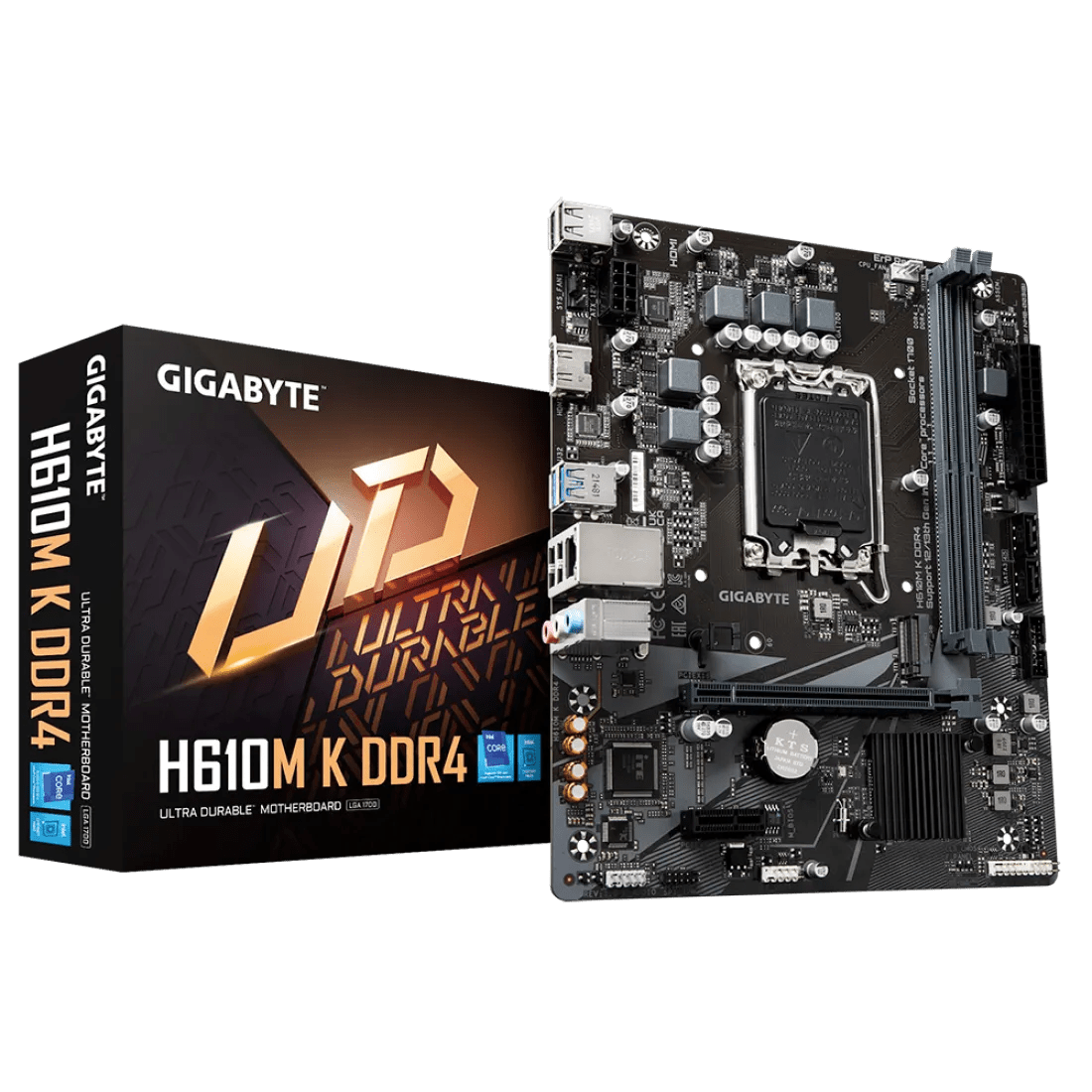

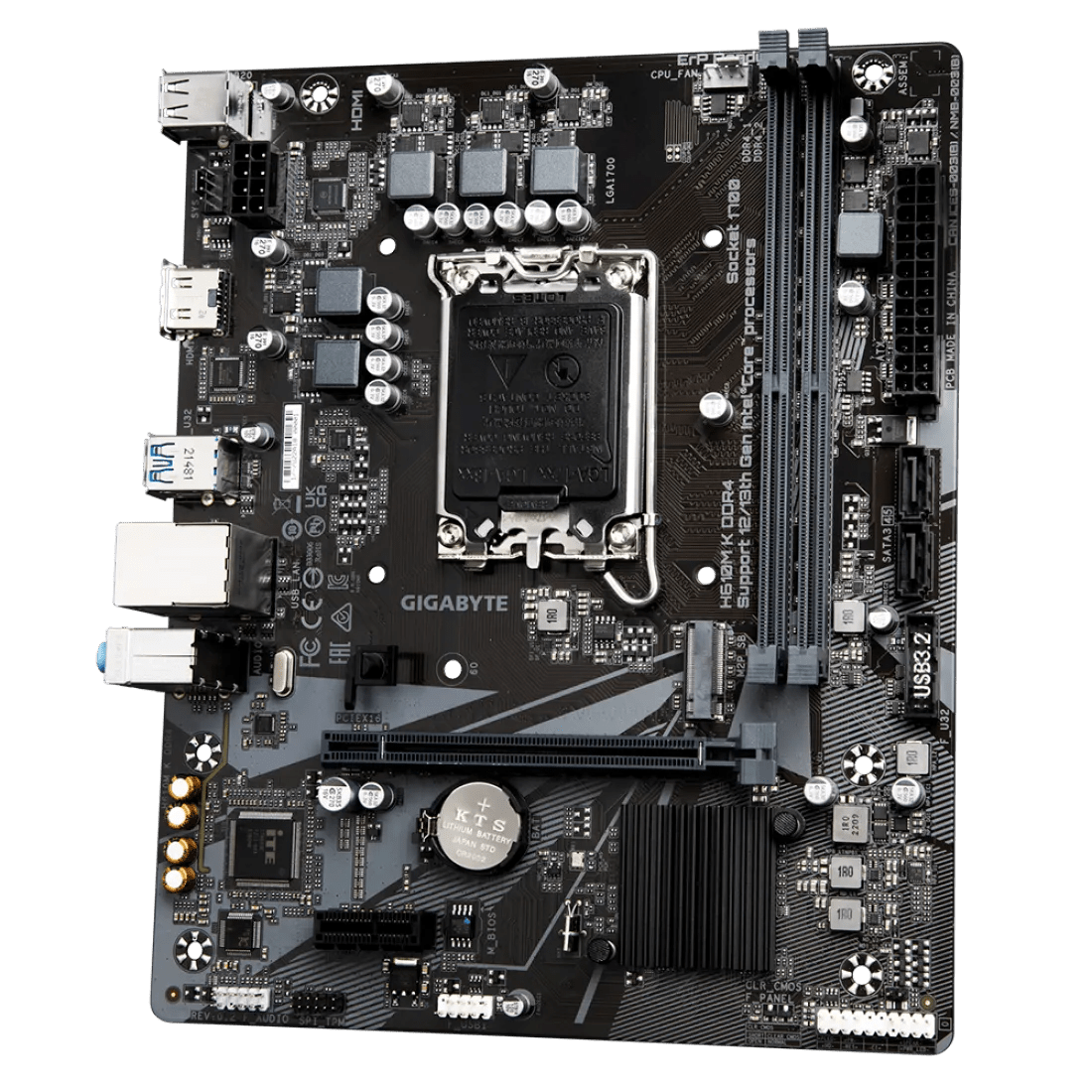

Gigabyte H610M-K DDR4 LGA1700 M-ATX Motherboard
Hurry up! Only 1 item(s) items left in stock
Installment Calculator
Final terms are confirmed at checkout.
Couldn't load pickup availability
Gigabyte H610M K DDR4 β Reliable LGA 1700 computing with PCIe 4.0 graphics and NVMe M.2
An accessible, dependable Micro-ATX motherboard powered by the Intel H610 chipset for 14th, 13th, and 12th Gen Intel Core processors. Features dual DDR4 memory channels up to 3200 MT/s, a reinforced PCIe 4.0 x16 discrete graphics slot, high-speed M.2 NVMe storage, and Realtek Gigabit LAN.

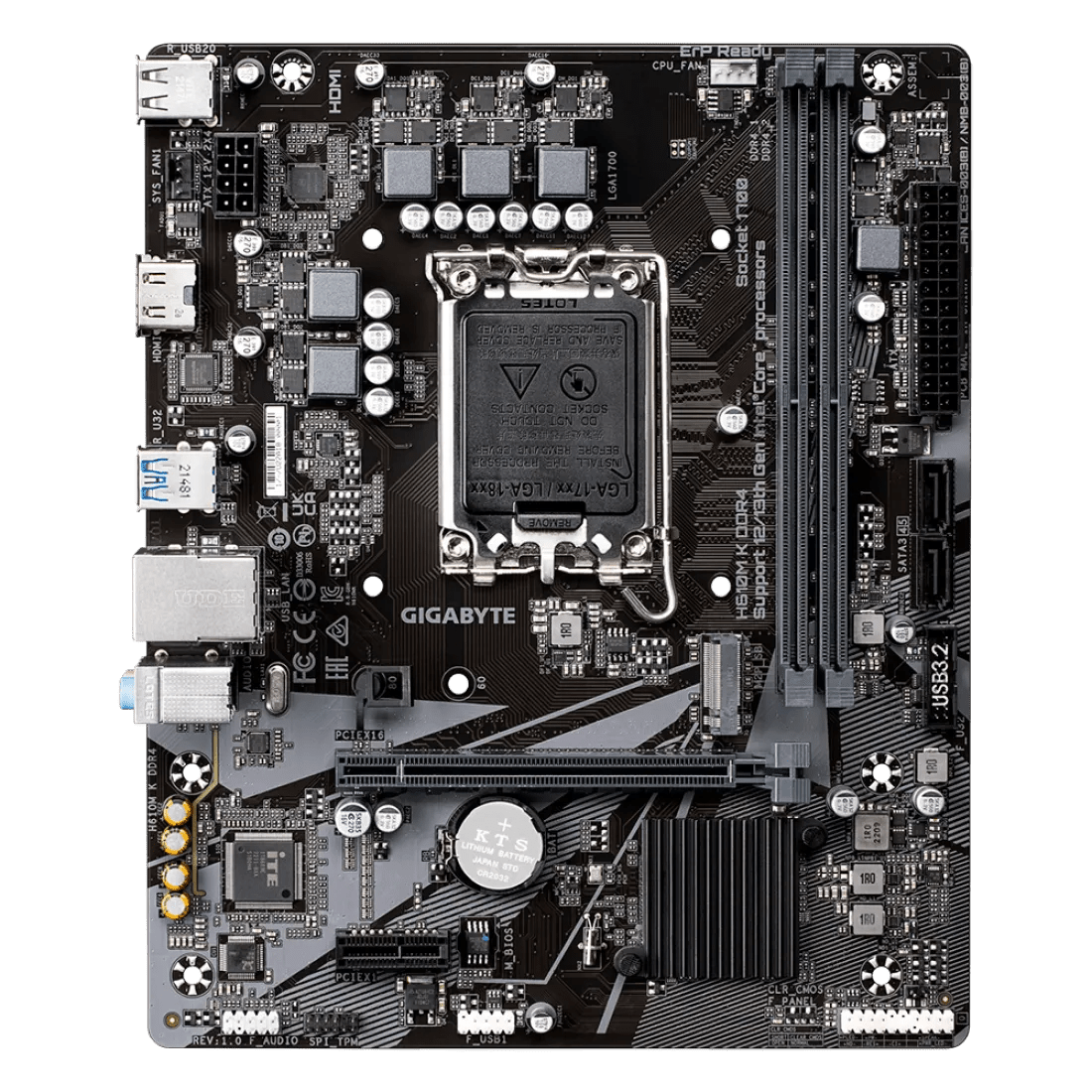

Board Map
Every connector, located before you unbox
LGA 1700 CPU Socket β Centre
Supports 14th, 13th, and 12th Gen Intel Core desktop processors with stable digital voltage regulation.
Hybrid Digital VRM β Top & Left
Delivers clean, consistent power delivery to multi-core Intel processors with solid 8-pin EPS input.
2 Γ DDR4 DIMM Slots β Right
Dual-channel architecture supporting up to 64 GB DDR4 unbuffered memory up to 3200 MT/s.
PCIe 4.0 x16 Graphics Slot β Centre
High-speed graphics card slot providing full PCIe 4.0 bandwidth directly from the processor.
1 Γ PCIe 3.0 x4 M.2 Slot β Below Socket
High-speed NVMe storage slot delivering up to 32 Gb/s throughput for fast system boots and games.
4 Γ SATA 6Gb/s Ports β Lower Right
Connect standard SATA hard drives and 2.5-inch SSDs for massive storage flexibility.
Power Delivery & Thermals
What feeds the socket, and what keeps it steadyHybrid Digital Power Delivery
Engineered to drive Intel Core i3, i5, and mainstream i7 processors reliably with low electrical ripple.
Smart Fan 6 Technology
Multiple internal temperature sensors and hybrid fan headers with FAN STOP capability for whisper-quiet idle operation.
Audio Noise Guard
Physical PCB trace isolation separates sensitive analog audio components from high-frequency board noise.
High-End Audio Capacitors
Delivers high-fidelity audio resolution and realistic soundstage immersion for gaming and media.
Lane Map

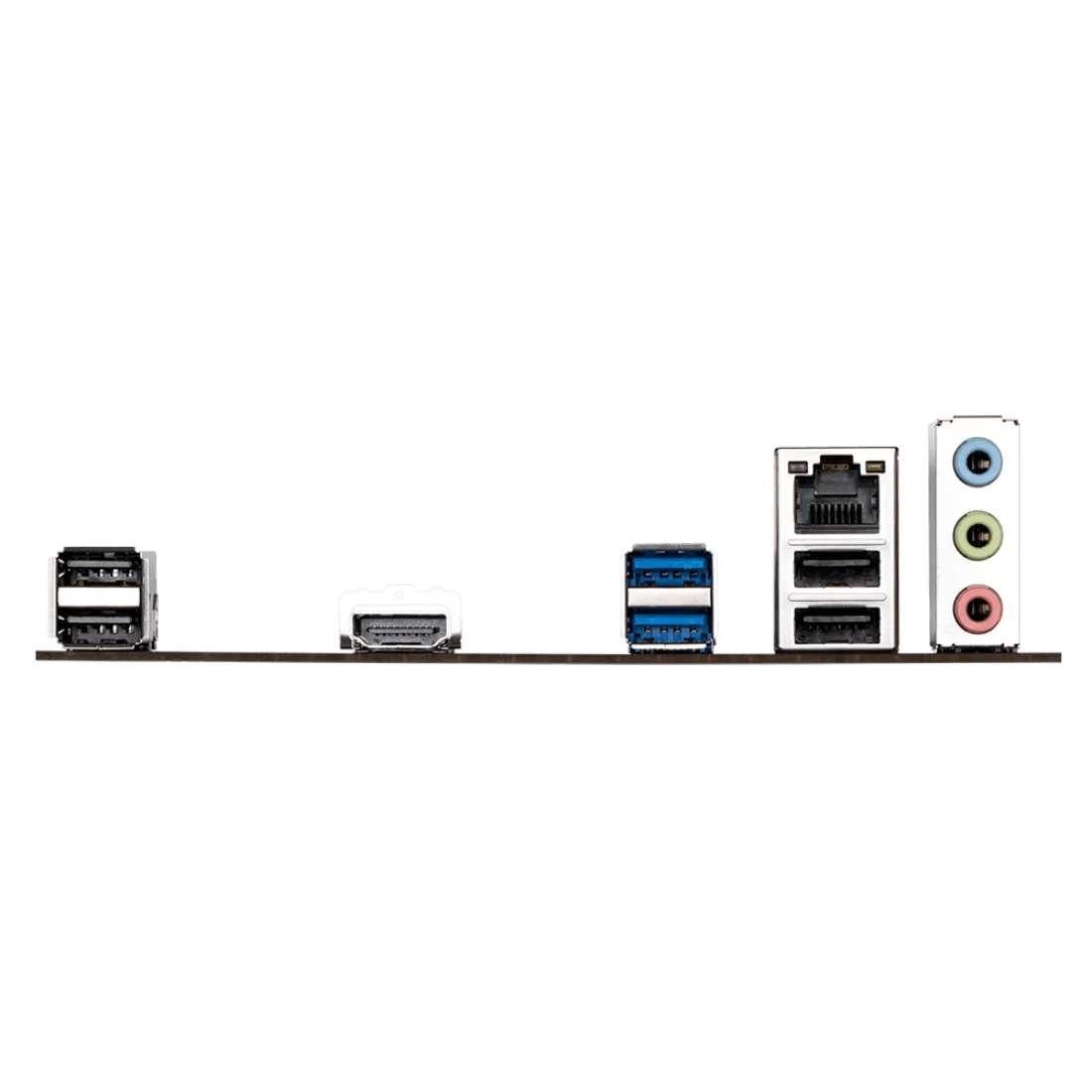

Interface speed rating & capability relative to modern motherboard standardsRear I/O Bay
Exactly what appears on the back of your case
Will It Fit Your Build?
Check these before you add to cartProcessor
Supports 14th, 13th, and 12th Gen Intel Core desktop processors on socket LGA 1700.
Memory
DDR4 memory only β 2 DIMM slots supporting up to 64 GB and speeds up to 3200 MT/s.
Graphics
PCIe 4.0 x16 slot compatible with modern NVIDIA GeForce RTX and AMD Radeon graphics cards.
Storage
1 Γ M.2 PCIe 3.0 x4 NVMe slot plus 4 SATA 6Gb/s ports for traditional hard drives.
Networking
Wired Realtek Gigabit LAN port built-in. (No onboard Wi-Fi; Wi-Fi dongle or PCIe card required for wireless).
Case
Compact Micro-ATX form factor (22.6 cm x 18.5 cm) fitting all Micro-ATX, ATX, and Mid-Tower cases.
Complete Specifications
Official factory parameters from manufacturer datasheet| Brand & Model | Gigabyte H610M K DDR4 (rev. 1.0) |
| CPU Socket | LGA 1700 (Intel 14th / 13th / 12th Gen Core, Pentium Gold, Celeron) |
| Chipset | Intel H610 Express Chipset |
| Memory Support | 2 Γ DDR4 DIMM, Max 64 GB, DDR4 3200 / 3000 / 2933 / 2666 / 2400 / 2133 MT/s, Dual-Channel, XMP |
| Expansion Slots | 1 Γ PCIe 4.0 x16 (from CPU), 1 Γ PCIe 3.0 x1 (from Chipset) |
| Storage Interfaces | 1 Γ M.2 connector (Socket 3, M key, type 2280/2260 PCIe 3.0 x4/x2 SSD support), 4 Γ SATA 6Gb/s |
| Display Outputs | 1 Γ HDMI 2.0 port (Max resolution 4096x2160@60 Hz with HDCP 2.3) |
| Ethernet LAN | Realtek GbE LAN chip (1 Gbps / 100 Mbps / 10 Mbps) |
| Wireless & Bluetooth | None (expansion via USB or PCIe card available) |
| Audio System | Realtek Audio CODEC, High Definition Audio, 2/4/5.1/7.1-channel, Audio Noise Guard |
| USB Ports (Rear) | 2 Γ USB 3.2 Gen 1 Type-A, 4 Γ USB 2.0/1.1 ports |
| USB Ports (Internal) | 1 Γ USB 3.2 Gen 1 header (supports 2 ports), 1 Γ USB 2.0 header (supports 2 ports) |
| Power Connectors | 1 Γ 24-pin ATX main power connector, 1 Γ 8-pin ATX 12V power connector |
| Form Factor & Dimensions | Micro-ATX Form Factor: 22.6 cm Γ 18.5 cm (8.9 in. Γ 7.3 in.) |
Frequently Asked Questions
Direct answers to essential technical and compatibility questionsDoes Gigabyte H610M K DDR4 support Intel 14th Gen processors out of the box?+
Can I install DDR5 RAM on this motherboard?+
Does this board include built-in Wi-Fi or Bluetooth?+
What M.2 SSD speed does the onboard slot deliver?+
What warranty coverage and support are provided by AHW Store?+
Does AHW Store update the BIOS before shipping?+
What warranty coverage is included?+
What payment and installment plans are available in Egypt?+
How fast is shipping across Egypt?+
Can AHW Store build the complete PC around this motherboard?+
