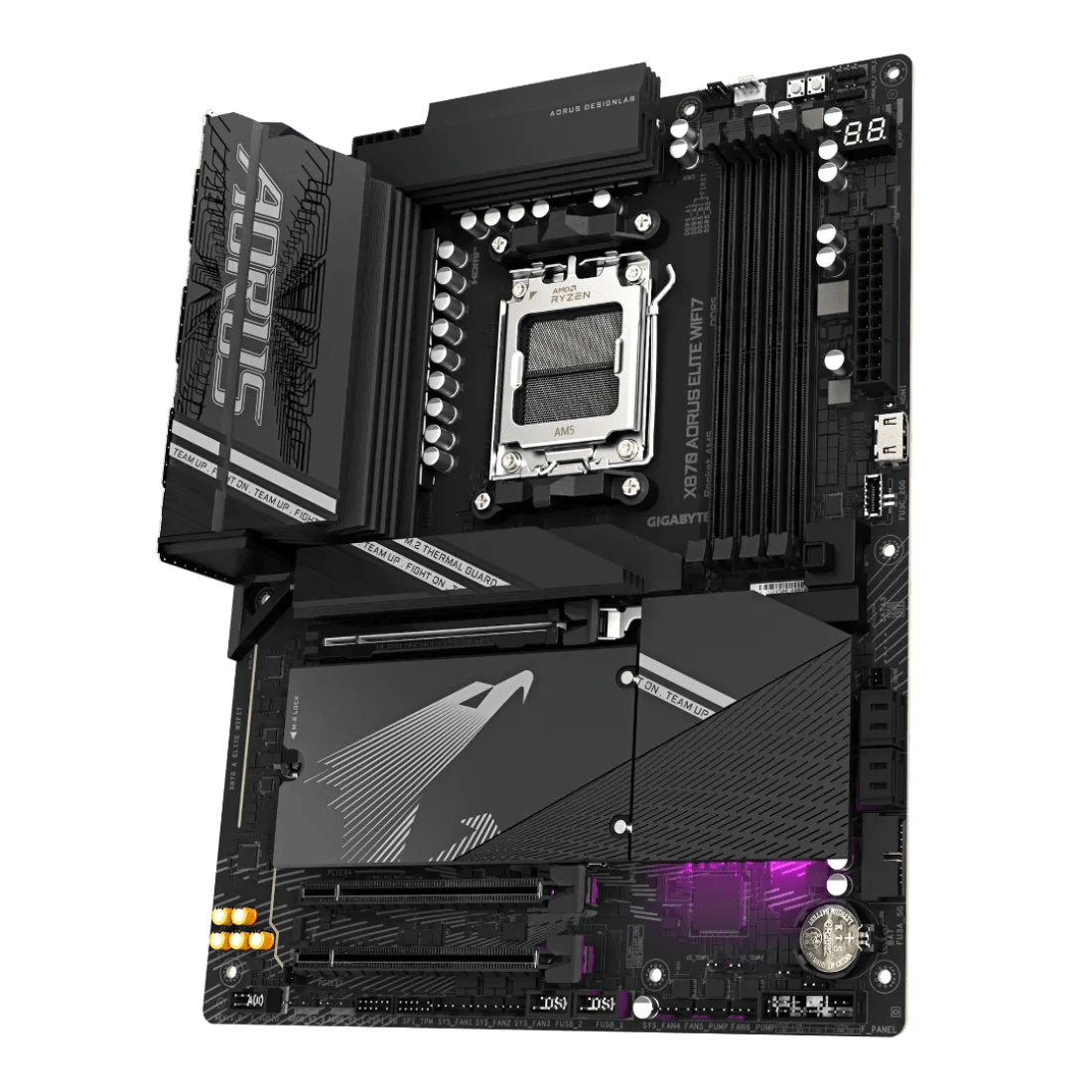

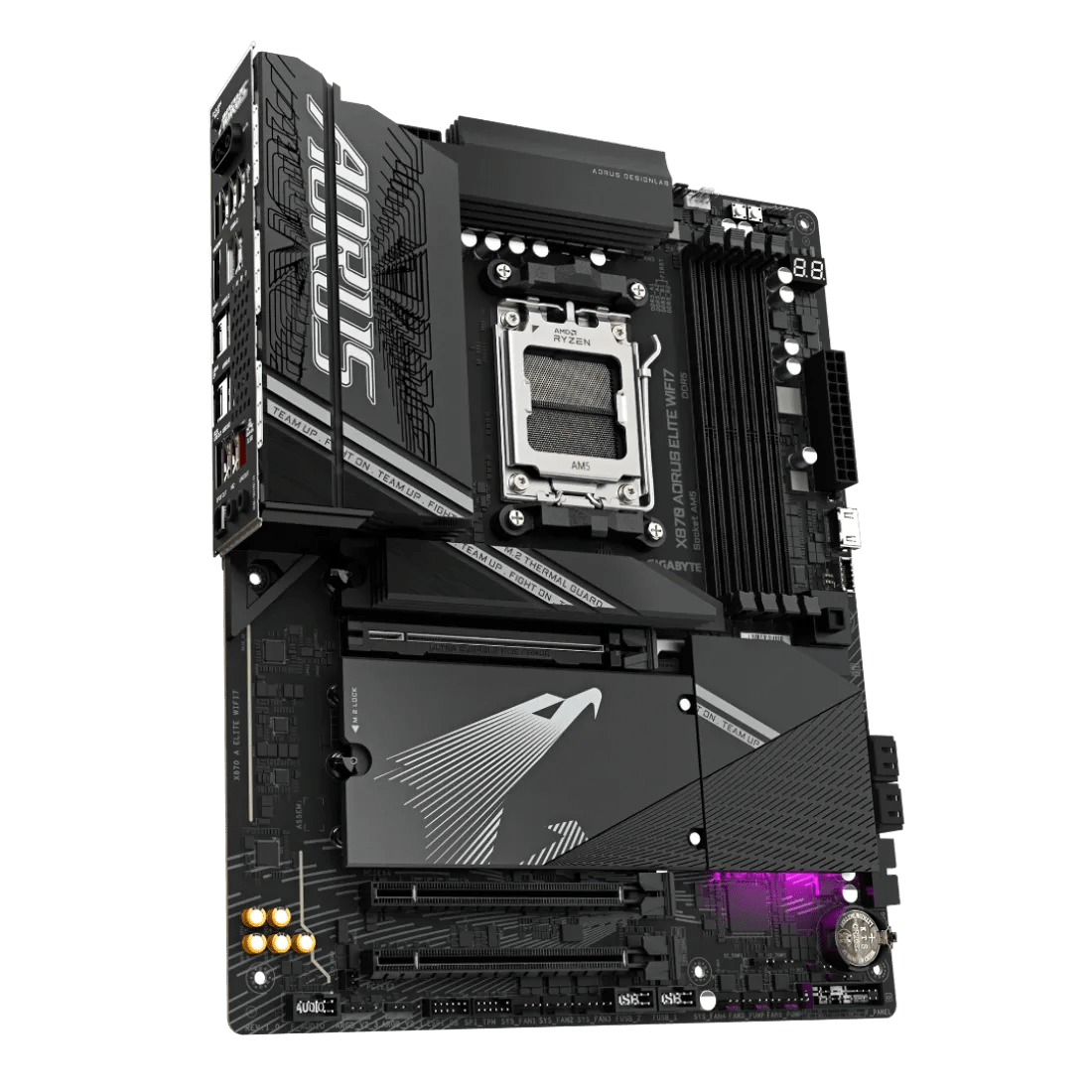

Gigabyte X870 AORUS ELITE WIFI7 — Stealth Black, Dual USB4 40Gbps & Triple Gen5 M.2
A formidable stealth black ATX motherboard on AMD X870 engineered for Ryzen 9000, 8000, and 7000 Series desktop processors. Packed with a Twin 16+2+2 Phase Digital VRM, Dual 40Gbps USB4 Type-C ports, four M.2 sockets (3x PCIe 5.0), PCIe 5.0 x16 slot with EZ-Latch Click, and Wi-Fi 7 with EZ-Plug antenna.

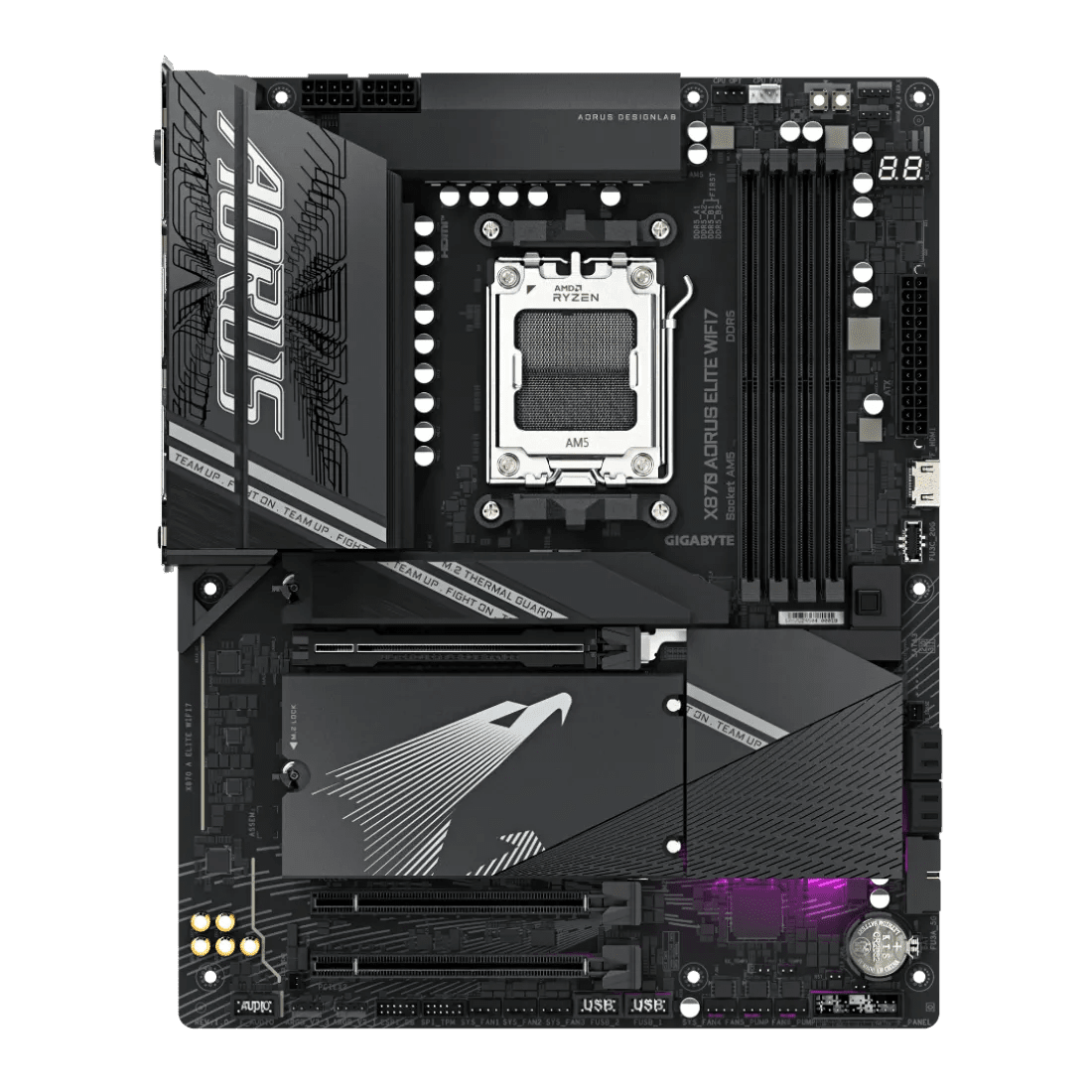

Board Map
Every connector, located before you unbox
AMD Socket AM5 (LGA 1718) — Centre
Supports AMD Ryzen 9000, 8000, and 7000 Series processors with long-term platform durability.
Twin 16+2+2 Phase Digital VRM — Top & Left
Heavy metallic black heatsinks keep power stages cool during extreme Ryzen 9 boost clocks.
4 × DDR5 DIMM Slots — Right
Dual-channel DDR5 supporting up to 256 GB and extreme overclocking speeds up to 8000+ MT/s (O.C.) with AMD EXPO.
PCIe 5.0 x16 UD Slot with EZ-Latch Click — Centre
Reinforced PCIe 5.0 graphics card slot with tool-free click release mechanism.
4 × M.2 NVMe Sockets under Thermal Guard — Across PCB
Four high-speed M.2 slots (3x PCIe 5.0 x4 + 1x PCIe 4.0 x4) covered by stealth black Thermal Guard heatsinks.
4 × SATA 6Gb/s Ports — Lower Right
Right-angled storage connections for SATA drives.
Power Delivery & Thermals
What feeds the socket, and what keeps it steadyTwin 16+2+2 Phase Digital VRM
Provides rock-solid electrical delivery for high-TDP AMD Ryzen 9 9950X processors under heavy gaming and rendering.
Dual 40Gbps USB4 Type-C Ports
Two native USB4 Type-C ports supporting 40 Gbps transfer speeds and DisplayPort video output.
Wi-Fi 7 & Realtek 2.5GbE LAN

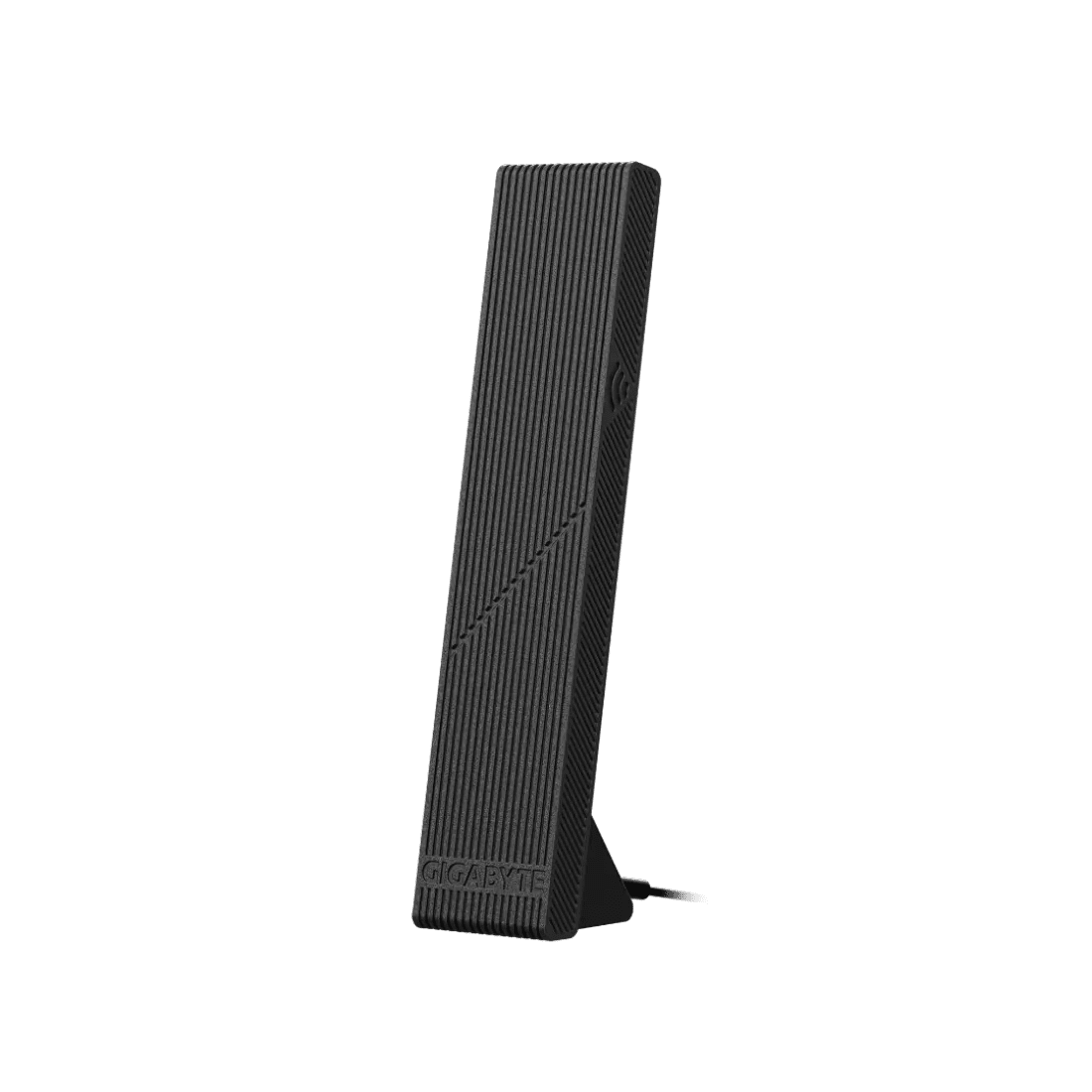

Tri-band Wi-Fi 7 with quick EZ-Plug antenna connector paired with 2.5 Gbps Ethernet.
Stealth Black Aesthetic
Sleek matte black PCB with metallic dark brushed heatsinks and RGB Fusion accents.
Lane Map

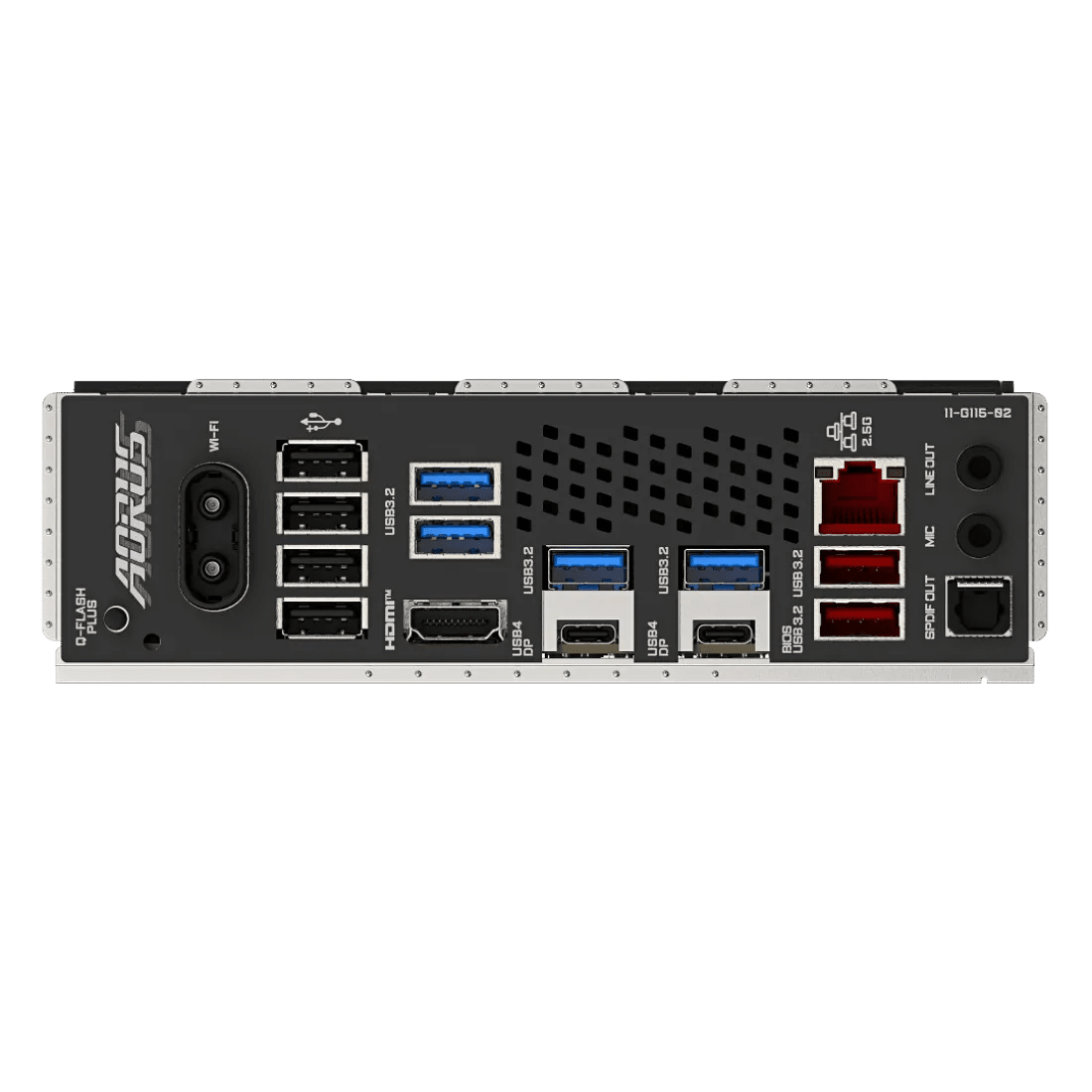

Interface speed rating & capability relative to modern motherboard standardsRear I/O Bay
Exactly what appears on the back of your case
Will It Fit Your Build?
Check these before you add to cartProcessor
Supports AMD Ryzen 9000, 8000, and 7000 Series desktop processors on socket AM5.
Memory
DDR5 only — 4 DIMM slots supporting up to 256 GB and speeds up to 8000+ MT/s with AMD EXPO.
USB4
Dual 40Gbps USB4 Type-C ports built into the rear panel.
Storage
4 × M.2 sockets (3x PCIe 5.0 + 1x PCIe 4.0) all protected by Thermal Guard heatsinks.
Aesthetic
Stealth Matte Black PCB and brushed aluminum heatsinks.
Case
Standard ATX form factor (30.5 cm x 24.4 cm) — fits standard ATX chassis.
Full Specification Sheet
Gigabyte X870 AORUS ELITE WIFI7| CPU Socket | AMD Socket AM5 (LGA 1718) |
| CPU Support | AMD Ryzen 9000 / 8000 / 7000 Series Desktop Processors |
| Chipset | AMD X870 Chipset |
| Form Factor | ATX (30.48 cm x 24.38 cm) — Stealth Black |
| Power Design | Twin 16+2+2 phase Digital VRM |
| Memory Slots | 4 × DDR5 DIMM, dual channel |
| Max Memory | 256 GB (up to DDR5-8000+ MT/s OC with AMD EXPO) |
| Primary Graphics Slot | 1 × PCIe 5.0 x16 with EZ-Latch Click |
| Secondary PCIe Slots | 1 × PCIe 4.0 x16 (x4 mode), 1 × PCIe 3.0 x16 (x1 mode) |
| M.2 Storage Sockets | 4 × M.2 (3x PCIe 5.0 x4 + 1x PCIe 4.0 x4 with Thermal Guard) |
| SATA Ports | 4 × SATA 6 Gb/s |
| USB4 Ports | 2 × USB4 Type-C (40Gbps) with DP Alt Mode |
| Wireless Networking | Wi-Fi 7 (802.11be, 320MHz) + Bluetooth 5.4 |
| Ethernet LAN | Realtek 2.5 GbE LAN |
| Audio | Realtek High Definition Audio + Optical S/PDIF |
