Gigabyte X870 GAMING X WIFI7 — Dual USB4 40Gbps, PCIe 5.0 & Wi-Fi 7 on AM5
A formidable ATX gaming motherboard on AMD X870 engineered for high-performance Ryzen 9000, 8000, and 7000 Series desktop processors. Featuring a Twin 16+2+2 Phase Digital VRM, Dual 40Gbps USB4 Type-C ports with DP-Alt, PCIe 5.0 x16 graphics slot with EZ-Latch, PCIe 5.0 M.2 storage, and Wi-Fi 7 with EZ-Plug antenna.

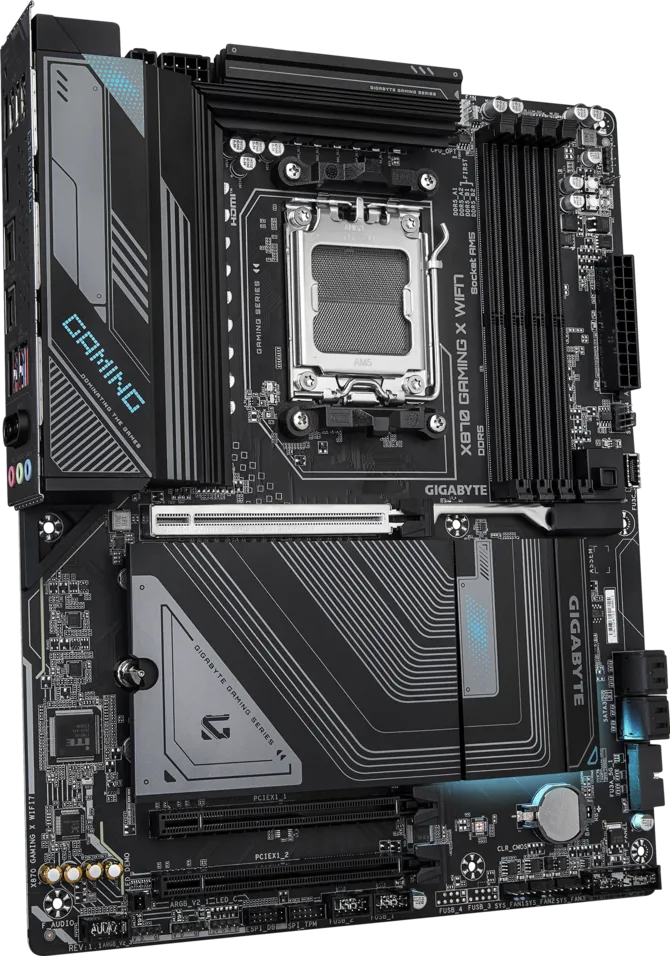

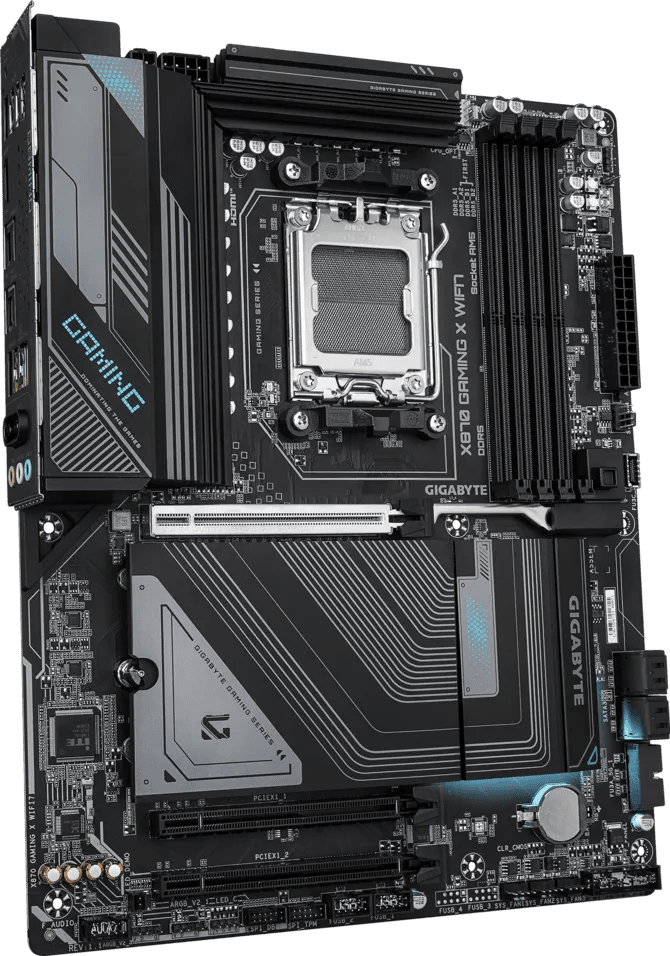

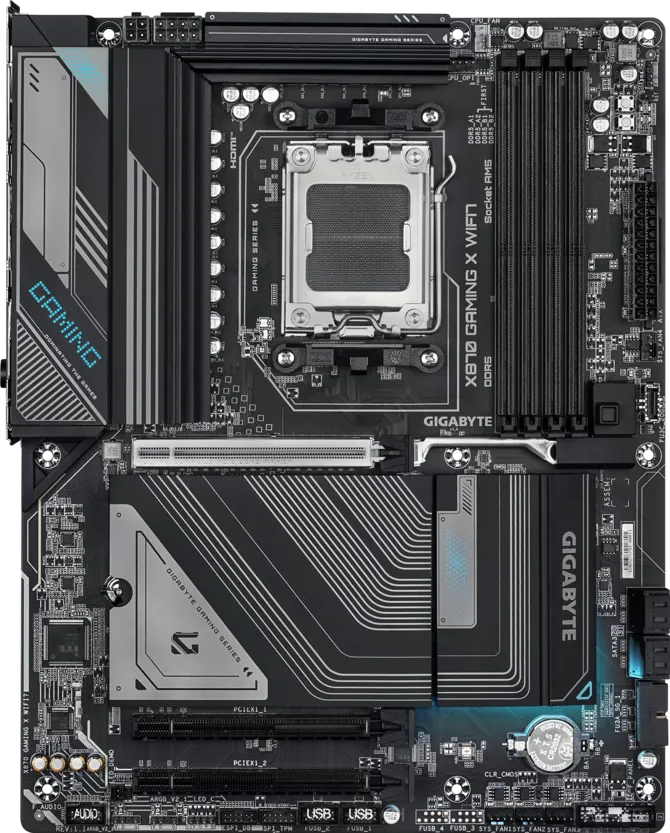

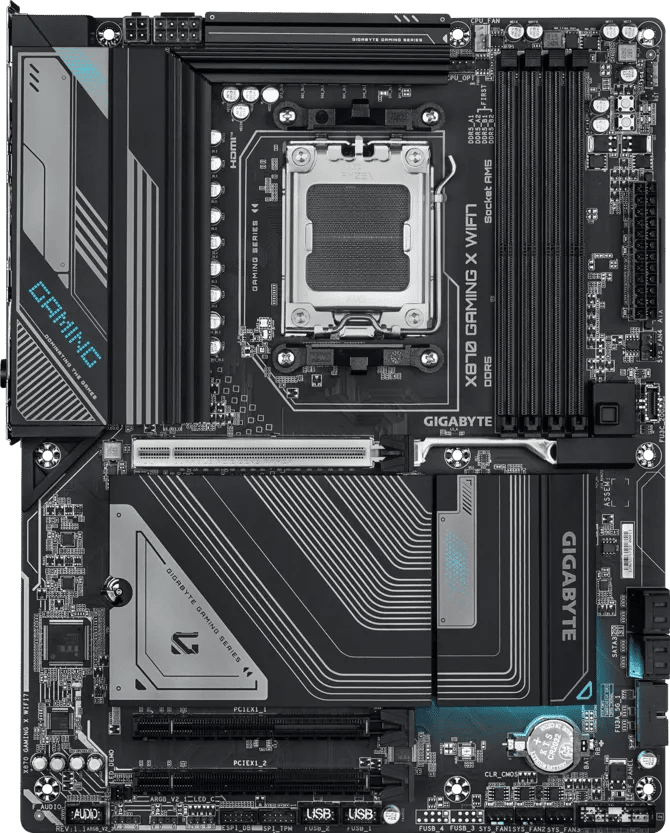

Board Map
Every connector, located before you unbox
AMD Socket AM5 (LGA 1718) — Centre
Supports AMD Ryzen 9000, 8000, and 7000 Series processors with long-term platform compatibility.
Twin 16+2+2 Phase Digital VRM — Top & Left
Heavy metallic heatsinks keep power stages cool during heavy Ryzen 9 gaming and compute workloads.
4 × DDR5 DIMM Slots — Right
Dual-channel DDR5 supporting up to 256 GB and extreme overclocking speeds up to 8000+ MT/s (O.C.) with AMD EXPO.
PCIe 5.0 x16 Slot with EZ-Latch — Centre
Reinforced PCIe 5.0 graphics card slot with tool-free EZ-Latch release.
3 × M.2 NVMe Sockets with Thermal Guard — Across PCB
One PCIe 5.0 x4 primary M.2 slot plus two PCIe 4.0 x4 slots protected by Thermal Guard heatsinks.
4 × SATA 6Gb/s Ports — Lower Right
Right-angled storage connections for SATA drives.
Power Delivery & Thermals
What feeds the socket, and what keeps it steadyTwin 16+2+2 Phase Digital VRM
Provides pristine current delivery for unlocked AMD Ryzen 9 9950X processors under heavy sustained loads.
Dual 40Gbps USB4 Type-C Ports
Two native USB4 Type-C ports supporting 40 Gbps transfer speeds and DisplayPort video output.
Wi-Fi 7 & Realtek 2.5GbE LAN
Tri-band Wi-Fi 7 with quick EZ-Plug antenna connector paired with 2.5 Gbps Ethernet.
PCIe 5.0 Graphics & Storage
Next-gen 128 GB/s GPU bandwidth and blazing PCIe 5.0 NVMe SSD speeds.
Lane Map

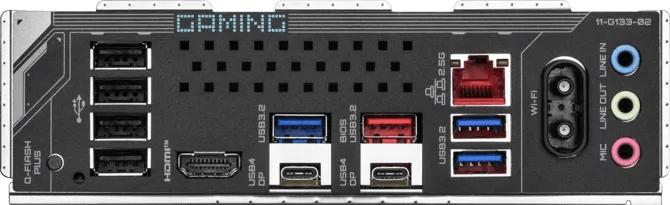

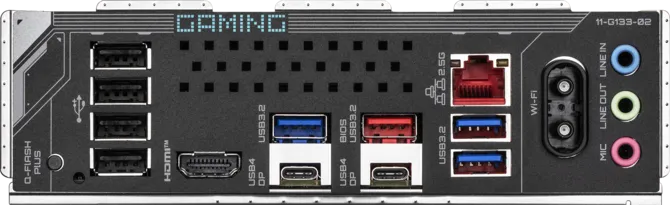

Interface speed rating & capability relative to modern motherboard standardsRear I/O Bay
Exactly what appears on the back of your case
Will It Fit Your Build?
Check these before you add to cartProcessor
Supports AMD Ryzen 9000, 8000, and 7000 Series desktop processors on socket AM5.
Memory
DDR5 only — 4 DIMM slots supporting up to 256 GB and speeds up to 8000+ MT/s with AMD EXPO.
USB4
Dual 40Gbps USB4 Type-C ports built into the rear panel.
Storage
3 × M.2 sockets (1x PCIe 5.0 + 2x PCIe 4.0) protected by Thermal Guard heatsinks.
Networking
Integrated Wi-Fi 7 wireless and 2.5 GbE LAN wired Ethernet.
Case
Standard ATX form factor (30.5 cm x 24.4 cm) — fits standard ATX chassis.
Full Specification Sheet
Gigabyte X870 GAMING X WIFI7| CPU Socket | AMD Socket AM5 (LGA 1718) |
| CPU Support | AMD Ryzen 9000 / 8000 / 7000 Series Desktop Processors |
| Chipset | AMD X870 Chipset |
| Form Factor | ATX (30.48 cm x 24.38 cm) |
| Power Design | Twin 16+2+2 phase Digital VRM |
| Memory Slots | 4 × DDR5 DIMM, dual channel |
| Max Memory | 256 GB (up to DDR5-8000+ MT/s OC with AMD EXPO) |
| Primary Graphics Slot | 1 × PCIe 5.0 x16 with EZ-Latch |
| Secondary PCIe Slots | 2 × PCIe 3.0 x1 |
| M.2 Storage Sockets | 1 × M.2 PCIe 5.0 x4 + 2 × M.2 PCIe 4.0 x4 (with Thermal Guard) |
| SATA Ports | 4 × SATA 6 Gb/s |
| USB4 Ports | 2 × USB4 Type-C (40Gbps) with DP Alt Mode |
| Wireless Networking | Wi-Fi 7 (802.11be, 320MHz) + Bluetooth 5.4 |
| Ethernet LAN | Realtek 2.5 GbE LAN |
| Audio | Realtek High Definition Audio, 7.1-channel |
