Aorus X870E PRO X3D — Flagship 18+2+2 VRM, Dual USB4 & Wi-Fi 7 Engineered for X3D Gaming
A master-class gaming motherboard built on AMD X870E and tuned specifically for AMD Ryzen 9000, 8000, and 7000 Series processors with 3D V-Cache. Features an immense digital 18+2+2 phase VRM with 110A SPS, dual USB4 40Gbps Type-C ports with DisplayPort output, Wi-Fi 7 with EZ-Plug, Realtek 5GbE LAN, and four M.2 sockets (three PCIe 5.0) with screwless EZ-Latch Click thermal armor.

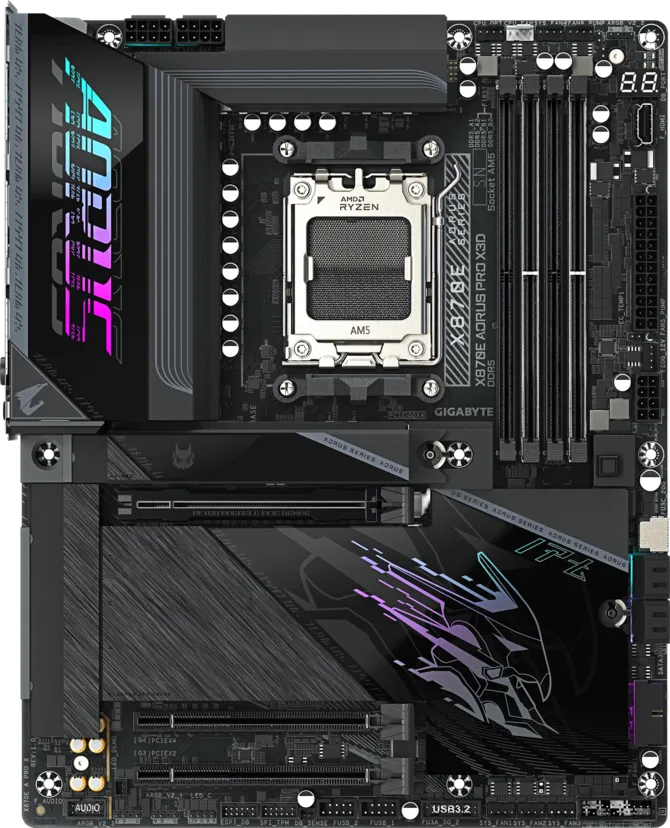

Board Architecture Map
Detailed motherboard component locations and tool-free quick release zones
AMD AM5 LGA1718 Socket — Centre
Optimized for AMD Ryzen 9000, 8000, and 7000 Series CPUs, featuring specialized voltage curves and memory tuning for Ryzen 7 9800X3D and 7800X3D processors.
Twin 18+2+2 Phase VRM under AORUS Thermal Armor — Top & Left
Eighteen doubled phases powered by 110A Smart Power Stages with direct-touch heatpipe and finned aluminum heatsinks carrying RGB AORUS illumination.
4 × DDR5 DIMM Slots with Memory Routing Shield — Right
Four slots supporting up to 256 GB dual-channel memory and extreme frequencies up to 8200+ MT/s (O.C.) with AMD EXPO.
PCIe 5.0 x16 Slot with PCIe EZ-Latch Plus — Centre
Ultra Durable PCIe Armor with zinc-diecast reinforcement and a dedicated release button that pops the GPU latch with a single touch.
4 × M.2 NVMe Sockets (3× PCIe 5.0) with EZ-Latch Click — Mid & Lower
Three PCIe 5.0 x4 slots plus one PCIe 4.0 x4 slot cooled by full-coverage Thermal Guard XL plates that open and latch tool-free.
Debug LED Display & Overclocking Buttons — Top Right & Bottom
Onboard two-digit alphanumeric POST code readout, Power and Reset micro-switches, and front-panel Type-C 20G header.
High-End Audio Isolation Zone — Lower Left
Realtek ALC1220 7.1 HD Audio codec paired with audiophile-grade WIMA capacitors and PCB trace isolation for crystal-clear esports audio.
Power Delivery & Thermals
Maximum current headroom engineered for sustained 3D V-Cache boost clocksMassive 18+2+2 Phase Power Architecture
Eighteen dedicated CPU phases with 110A SPS deliver flawless power stability, allowing Ryzen 9 and X3D processors to hold peak boost clocks without thermal or voltage drops.
AORUS Direct-Touch Heatpipe Cooling
An 8mm copper heatpipe directly bridges the primary and secondary VRM heatsinks, balancing heat distribution across the finned arrays for cooler silent operation.
M.2 Thermal Guard XL Array
Multi-layer aluminum heatsinks cover all four M.2 slots, ensuring blazingly fast PCIe 5.0 NVMe drives maintain sustained 14 GB/s transfer rates without thermal throttling.
Complete Screwless EZ-Latch Ecosystem
Features PCIe EZ-Latch Plus for quick GPU release, EZ-Latch Click for screwdriver-free M.2 heatsinks, and tool-free Wi-Fi EZ-Plug antenna connection.
Bandwidth & Lane Hierarchy

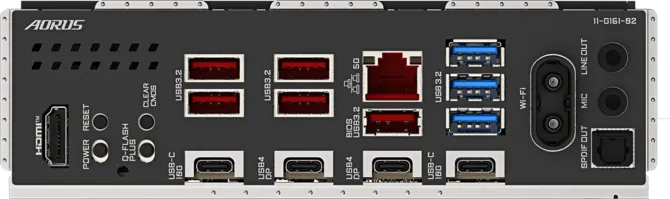

Interface speed rating & capability relative to modern motherboard standardsRear I/O Bay
Port inventory: Everything on the panel, counted
Will It Fit Your Build?
Check these before you add to cartProcessor
Supports AMD Ryzen 9000, 8000, and 7000 Series desktop CPUs on Socket AM5.
Memory
DDR5 only — 4 DIMM slots supporting up to 256 GB and speeds up to 8200+ MT/s with AMD EXPO.
Graphics
PCIe 5.0 x16 slot with reinforced PCIe Armor and one-touch EZ-Latch Plus.
Storage
4 × M.2 sockets (3x PCIe 5.0 + 1x PCIe 4.0) protected by Thermal Guard XL heatsinks.
Case Clearance
Standard ATX form factor (30.5 cm x 24.4 cm) — fits Mid-Tower and Full-Tower cases.
Power Supply
Requires standard 24-pin ATX power and dual 8-pin CPU EPS 12V connectors for full power delivery.
Full Specification Sheet
Aorus X870E PRO X3D| Model | Aorus X870E PRO X3D Gaming Motherboard |
| CPU Socket | AMD Socket AM5 (LGA 1718) |
| Supported Processors | AMD Ryzen 9000 / 8000 / 7000 Series Processors (Tuned for X3D) |
| Chipset | AMD X870E Dual Chipset |
| Form Factor | ATX (30.5 cm x 24.4 cm) |
| Power Architecture | Digital Twin 18+2+2 Phase VRM with 110A SPS |
| Memory Architecture | 4 × DDR5 DIMM, Dual Channel, up to 256 GB, AMD EXPO / Intel XMP |
| Memory Frequency | Up to 8200+ MT/s (O.C.) |
| Primary PCIe Slot | 1 × PCIe 5.0 x16 with Ultra Durable PCIe Armor & EZ-Latch Plus |
| Secondary PCIe Slots | 2 × PCIe 4.0 x16 slots (operating at x4 and x2) |
| M.2 NVMe Sockets | 4 × M.2 Sockets (3× PCIe 5.0 x4 + 1× PCIe 4.0 x4) with EZ-Latch Click |
| SATA Storage | 4 × SATA 6 Gb/s connectors with RAID 0/1/10 support |
| High-Speed Connectivity | 2 × USB4 40Gbps Type-C (DP-Alt) + 2 × USB-C 10Gbps |

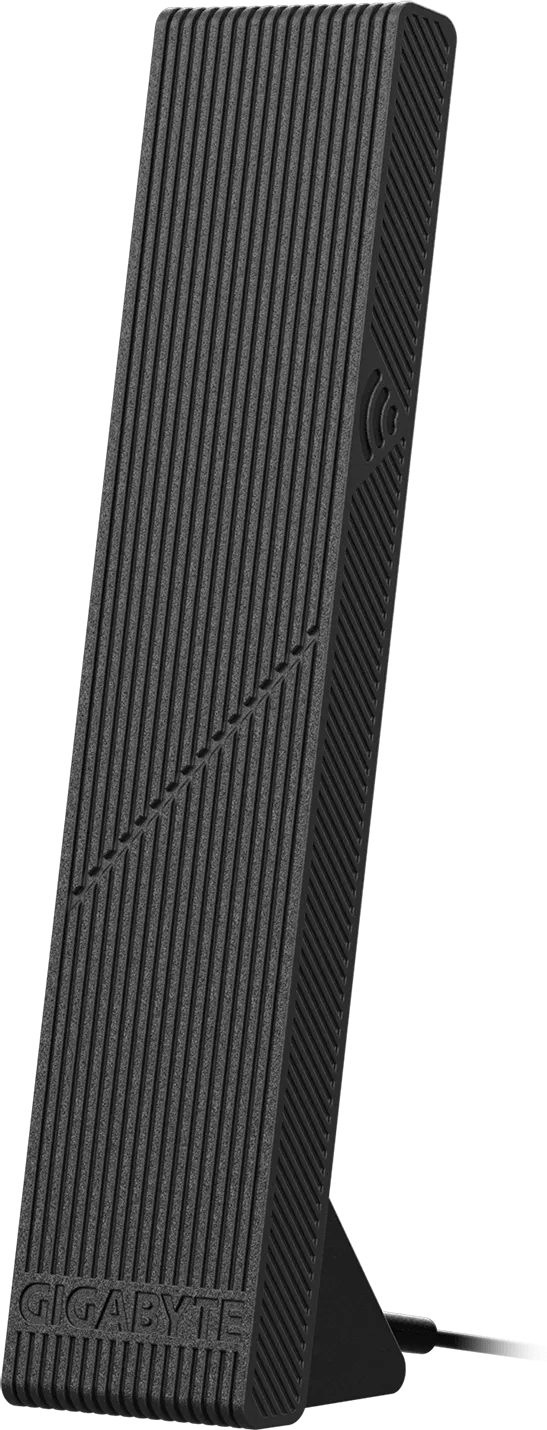

| Wireless Connectivity | Wi-Fi 7 (802.11be) 320MHz + Bluetooth 5.4 with AORUS EZ-Plug Antenna |
| Wired Ethernet | Realtek 5GbE LAN (5 Gbps / 2.5 Gbps / 1 Gbps) |
| Audio Codec | Realtek ALC1220 7.1 HD Audio + WIMA Capacitors + Optical S/PDIF Out |
| Lighting & Aesthetics | AORUS Falcon RGB Fusion Lighting + Addressable ARGB Gen2 Headers |
