Gigabyte X870E AERO X3D Light Wood DDR5 AM5 M-ATX Motherboard

Name: Gigabyte X870E AERO X3D Light Wood DDR5 AM5 M-ATX Motherboard
Brand: GIGABYTE
SKU: GB-MB-X870E-A-X3D-LW
Price: 24499.0 EGP
Availability: OutOfStock

^EGP 24,499

Installment Calculator

Monthly installment:

Interest-free with participating bank credit cards. Final terms confirmed at checkout.

💳

Secure Payment Methods

Cash on delivery and various payment options and installment plans.

🚚

Fast and Secure Shipping

Receive your order within 2 to 5 business days.

🎧

Customer Service

Technical support from 10 am to 12 am.

🛡️

Warranty Coverage

Enjoy a 6-month to 3-year warranty through us with distributors.

Ask us on WhatsApp Share on WhatsApp

Description

GIGABYTE

Gigabyte X870E AERO X3D Wood — Dual USB4, Wi-Fi 7 & Natural Wood Craftsmanship on AM5

An elite creator and gaming motherboard powered by the AMD X870E chipset for Ryzen 9000, 8000, and 7000 Series processors on Socket AM5. Combines a digital twin 16+2+2 phase VRM with authentic natural wood accents, dual USB4 40Gbps Type-C ports with DisplayPort output, Wi-Fi 7 with EZ-Plug, 5GbE high-speed LAN, and four M.2 sockets (three PCIe 5.0) with screwless EZ-Latch Click heatsinks.

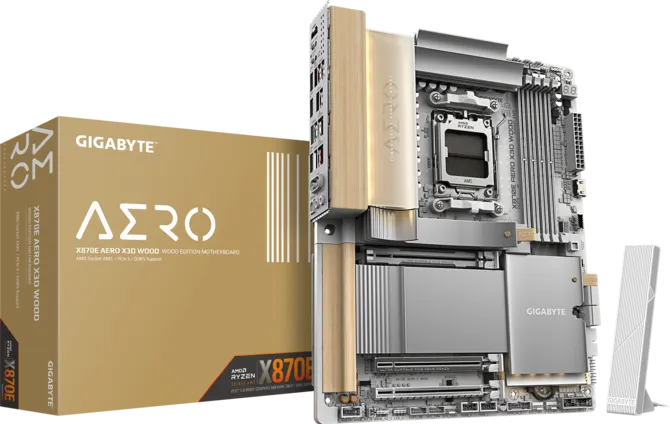

Gigabyte X870E AERO X3D Wood retail box and motherboard featuring light wood aesthetic trim and Wi-Fi 7 directional antenna

SocketAMD AM5

ChipsetAMD X870E

MemoryDDR5 · 4 DIMM

Form FactorATX

WirelessWi-Fi 7

LAN5 Gbps

01

Board Architecture Map

Key hardware layout, trace paths, and tool-free mechanics

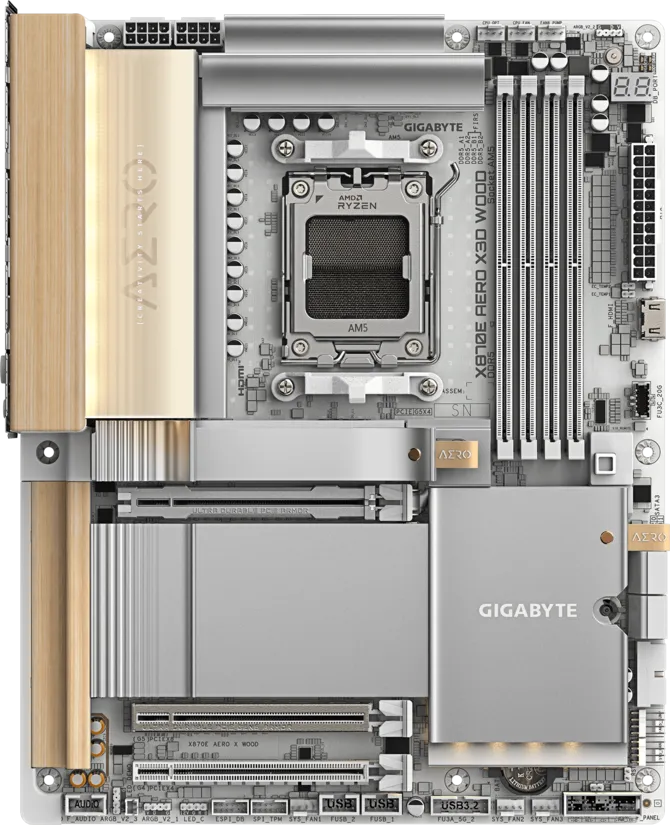

Gigabyte X870E AERO X3D Wood top-down view showing AM5 socket, four DDR5 slots, PCIe 5.0 x16 slot and full M.2 heatsink coverage

1

AMD AM5 LGA1718 Socket — Centre

Engineered for AMD Ryzen 9000, 8000, and 7000 Series processors, with dedicated silicon optimization for AMD 3D V-Cache architecture.

2

Twin 16+2+2 Phase VRM with Natural Wood Armor — Top & Left

Equipped with 110A Smart Power Stages and genuine light wood decorative heatsink covers for sustained thermal dissipation under heavy creative workloads.

3

4 × DDR5 DIMM Slots with Memory D/C Shield — Right

Dual-channel architecture supporting up to 256 GB with speeds up to 8200+ MT/s (O.C.) via AMD EXPO and Intel XMP profiles.

4

PCIe 5.0 x16 Slot with PCIe EZ-Latch Plus — Centre

Reinforced Ultra Durable PCIe Armor handling 128 GB/s bandwidth with a quick-release catch that releases graphics cards with a single push.

5

4 × M.2 NVMe Sockets (3× PCIe 5.0) with EZ-Latch Click — Mid & Lower

Three PCIe 5.0 x4 M.2 slots plus one PCIe 4.0 x4 slot shielded by full-coverage Thermal Guard heatsinks that pop open without a screwdriver.

6

Diagnostic Display & Quick Controls — Top Right & Bottom

Two-digit debug code LED display, onboard Power Reset button, Q-Flash Plus button, and Clear CMOS switch for instant bench testing.

7

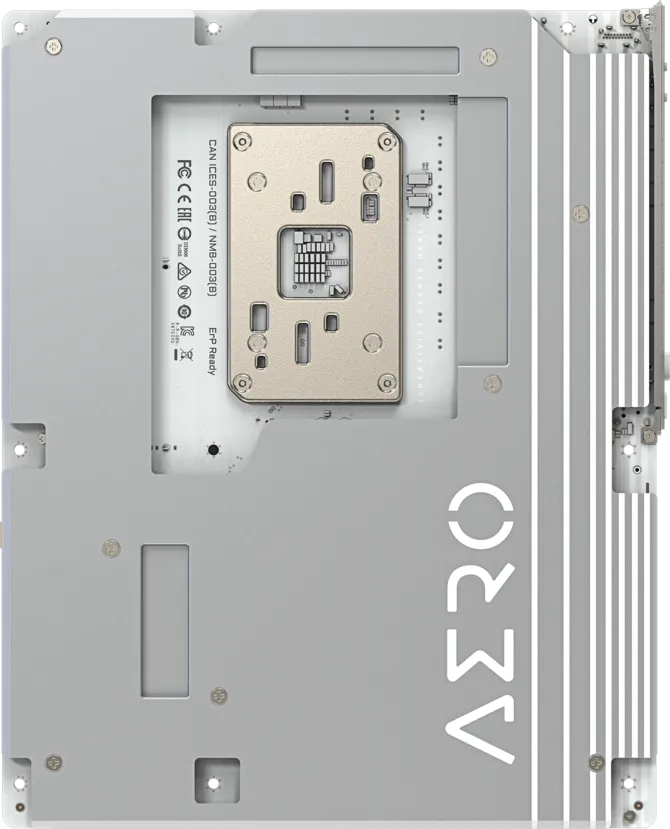

Full-Coverage Aluminum Backplate — Underside

Reinforced metal backplate featuring precision laser-cut AERO ventilation channels for structural rigidity and passive rear-PCB cooling.

02

Power Delivery & Architecture

Engineered for maximum multi-core boost and sustained creative productivity

Twin 16+2+2Digital VRM Design

110A SPSSmart Power Stages

Dual 8-PinSolid CPU Power

Q-Flash PlusDirect BIOS Flash

Twin 16+2+2 Digital Power Stages

Sixteen doubled phases for VCORE powered by 110A Smart Power Stages provide steady, clean voltage delivery even under 16-core rendering loads.

Wood Edition Aesthetic Thermal Shrouds

Massive finned aluminum heatsinks paired with authentic natural light wood veneers, blending high-performance thermal heat transfer with warm organic styling.

Triple PCIe 5.0 M.2 Thermal Guard XL

Advanced thermal covers prevent thermal throttling on blistering 14,000 MB/s Gen5 SSDs, ensuring sustained maximum write speeds during 8K video exports.

Full-Board EZ-Latch Tool-Free Ecosystem

EZ-Latch Click allows driverless installation of all M.2 SSDs and heatsinks, while PCIe EZ-Latch Plus frees heavy modern graphics cards effortlessly.

03

Bandwidth & Lane Hierarchy

Interface speed rating & capability relative to modern motherboard standards

PCIe 5.0 x16 Primary SlotFull-length GPU · EZ-Latch Plus

~128 GB/s

M.2 PCIe 5.0 x4 (×3 Slots)Three Gen5 NVMe sockets

~128 Gb/s each

Dual USB4 40Gbps Type-C40 Gbps with DP-Alt Mode

40 Gb/s each

USB-C 20Gbps PortRear USB 3.2 Gen 2x2

20 Gb/s

Realtek 5GbE LANHigh-speed wired network

5 Gb/s

Wi-Fi 7 Wireless320MHz ultra-wide channels

Up to 5.8 Gb/s

04

Rear I/O Bay

Port inventory: Everything on the panel, counted

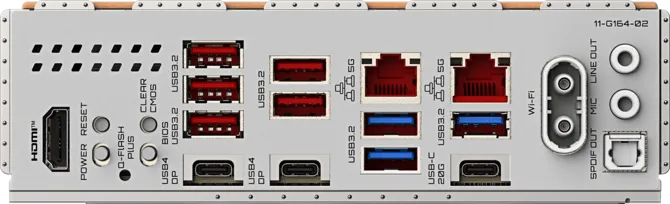

Gigabyte X870E AERO X3D Wood rear I/O panel showing dual USB4 Type-C, USB-C 20G, 5GbE LAN, Wi-Fi 7 EZ-Plug and optical S/PDIF

Port inventoryEverything on the panel, counted — not in physical order

2×USB4 40Gbps Type-CSupports 40 Gbps data transfer, DisplayPort video output, and USB-PD

1×USB 3.2 Gen 2x2 Type-CUltra-high-speed 20 Gbps data port for fast portable SSDs

5×USB 3.2 Gen 2 Type-A (Red)10 Gbps high-speed peripheral connections (one marked BIOS)

3×USB 3.2 Gen 1 Type-A (Blue)5 Gbps connections for streaming gear and external drives

1×Realtek 5GbE LAN PortMulti-Gigabit wired networking for ultra-low latency transfers

2×Wi-Fi 7 EZ-Plug ConnectorsTool-free click-in antenna connectors for Wi-Fi 7 & Bluetooth 5.4

1×HDMI 2.1 PortSupports up to 4K 60Hz resolution display output

3×Direct Hardware ButtonsDedicated Q-Flash Plus, Clear CMOS, and Power Reset buttons on I/O shield

1×Optical S/PDIF OutLossless digital audio connection for soundbars and AV receivers

2×Gold-Plated Audio JacksLine-out and microphone jacks powered by Realtek ALC1220 codec

05

Will It Fit Your Build?

Check these before you add to cart

✓

Processor

Supports AMD Ryzen 9000, 8000, and 7000 Series desktop processors on Socket AM5.

✓

Memory

DDR5 only — 4 DIMM slots supporting up to 256 GB and speeds up to 8200+ MT/s with AMD EXPO.

✓

Graphics

PCIe 5.0 x16 slot with ultra-strong PCIe Armor and EZ-Latch Plus.

✓

Storage

4 × M.2 sockets (3x PCIe 5.0 + 1x PCIe 4.0) protected by Thermal Guard XL heatsinks.

✓

Case Clearance

Standard ATX form factor (30.5 cm x 24.4 cm) — fits Mid-Tower and Full-Tower cases.

✓

Power Supply

Requires standard 24-pin ATX power and dual 8-pin CPU EPS 12V connectors for full power delivery.

06

Full Specification Sheet

Gigabyte X870E AERO X3D Wood

Model	Gigabyte X870E AERO X3D Wood (Wood Edition)
CPU Socket	AMD Socket AM5 (LGA 1718)
Supported Processors	AMD Ryzen 9000 / 8000 / 7000 Series Processors
Chipset	AMD X870E Dual Chipset
Form Factor	ATX (30.5 cm x 24.4 cm)
Power Architecture	Digital Twin 16+2+2 Phase VRM with 110A SPS
Memory Architecture	4 × DDR5 DIMM, Dual Channel, up to 256 GB, AMD EXPO / Intel XMP
Memory Frequency	Up to 8200+ MT/s (O.C.)
Primary PCIe Slot	1 × PCIe 5.0 x16 with Ultra Durable PCIe Armor & EZ-Latch Plus
Secondary PCIe Slots	2 × PCIe 4.0 x16 slots (operating at x4 and x2)
M.2 NVMe Sockets	4 × M.2 Sockets (3× PCIe 5.0 x4 + 1× PCIe 4.0 x4) with EZ-Latch Click
SATA Storage	4 × SATA 6 Gb/s connectors with RAID 0/1/10 support
High-Speed Connectivity	2 × USB4 40Gbps Type-C (DisplayPort Alternate Mode) + 1 × USB-C 20Gbps
Wireless Connectivity	Wi-Fi 7 (802.11be) 320MHz + Bluetooth 5.4 with EZ-Plug Antenna
Wired Ethernet	Realtek 5GbE LAN (5 Gbps / 2.5 Gbps / 1 Gbps)
Audio Codec	Realtek ALC1220 7.1 HD Audio + High-End Capacitors + Optical S/PDIF
Design Theme	Wood Edition: Authentic natural light wood veneer accents + white/silver armor

07

Technical & Policy Q&A

Common questions about this motherboard

Does the Gigabyte X870E AERO X3D Wood support AMD Ryzen 9000 series processors out of the box?+

Yes. The X870E chipset natively supports AMD Ryzen 9000 Series processors as well as 8000 and 7000 Series chips on Socket AM5 without requiring a prior BIOS update.

What makes the Wood Edition unique compared to standard motherboards?+

The AERO X3D Wood features authentic natural light wood veneers integrated into the VRM heatsinks and audio shrouds, combined with a clean silver-white PCB and full aluminum backplate.

Can I connect external displays through the rear USB4 Type-C ports?+

Yes. Both rear USB4 Type-C ports support DisplayPort Alternate Mode, allowing you to drive high-resolution monitors, drawing tablets, or VR displays directly at up to 40 Gbps.

How many PCIe 5.0 M.2 NVMe SSDs can this motherboard run simultaneously?+

It features three PCIe 5.0 x4 M.2 slots directly connected, allowing you to run three next-generation Gen5 SSDs simultaneously at speeds up to 14,000 MB/s each.

What is the advantage of the screwless EZ-Latch Click system?+

EZ-Latch Click allows you to install and remove M.2 SSDs and their substantial heatsinks completely tool-free with zero tiny screws, eliminating the risk of losing screws on the PCB.

Does AHW Store update the BIOS before shipping?+

Every motherboard ships sealed in its original retail packaging with the factory BIOS. Our engineers can flash the latest vendor BIOS free of charge on request when you order a CPU with the board, which guarantees first-boot compatibility with the newest supported CPU generation.

What warranty coverage is included?+

All motherboards sold at AHW Store carry the official authorized distributor warranty with local technical support and replacement. Full terms in our Warranty Policy ↗.

What payment and installment plans are available in Egypt?+

Cash on delivery, credit and debit cards, and flexible installment plans through ValU, Sympl, Forsa and bank credit cards. See our Payment & Installments Guide ↗.

How fast is shipping across Egypt?+

Orders are delivered within 2 to 7 business days across all Egyptian governorates, packed in anti-static shielding with shock-protected outer packaging (with pickup available from our 6th of October headquarters). See our Shipping Policy ↗.

Can AHW Store build the complete PC around this motherboard?+

Yes. Our certified engineers assemble, cable-manage, flash BIOS, stress-test and tune the finished system before it ships. Start with our Custom PC Builder ↗.
