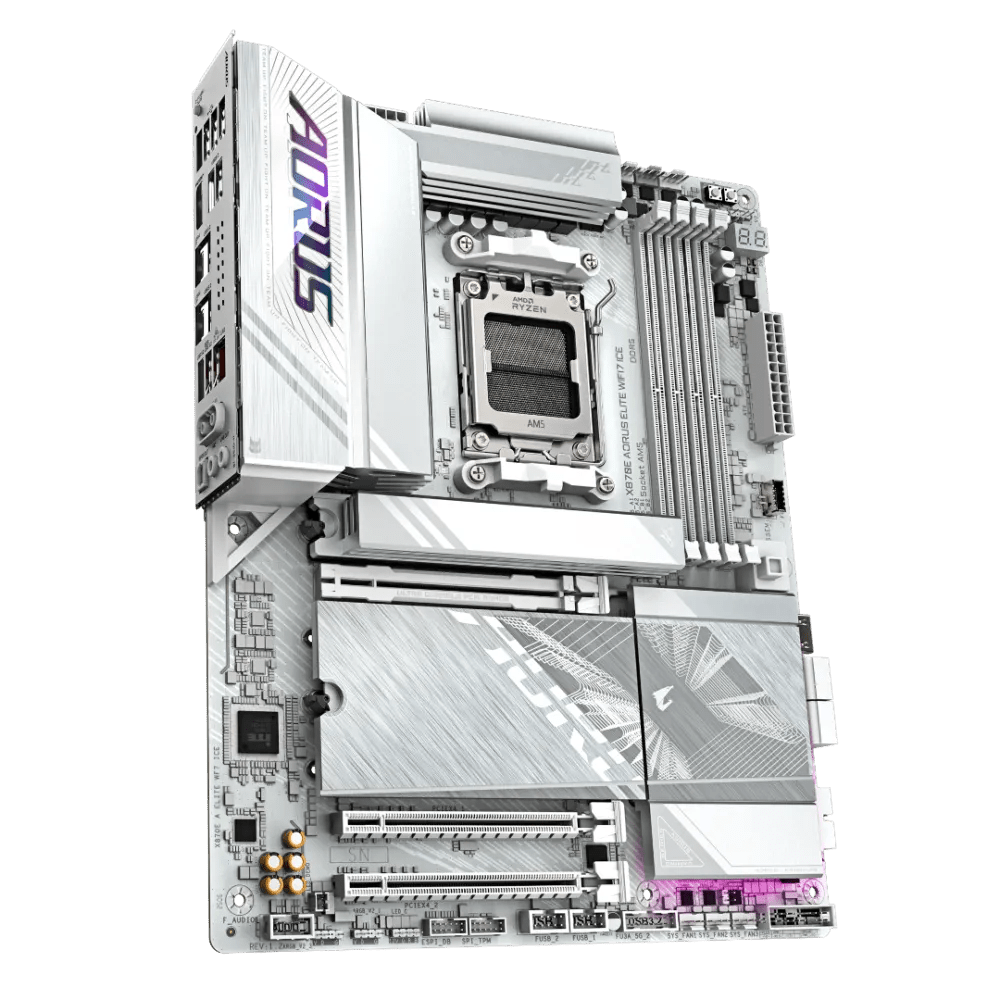

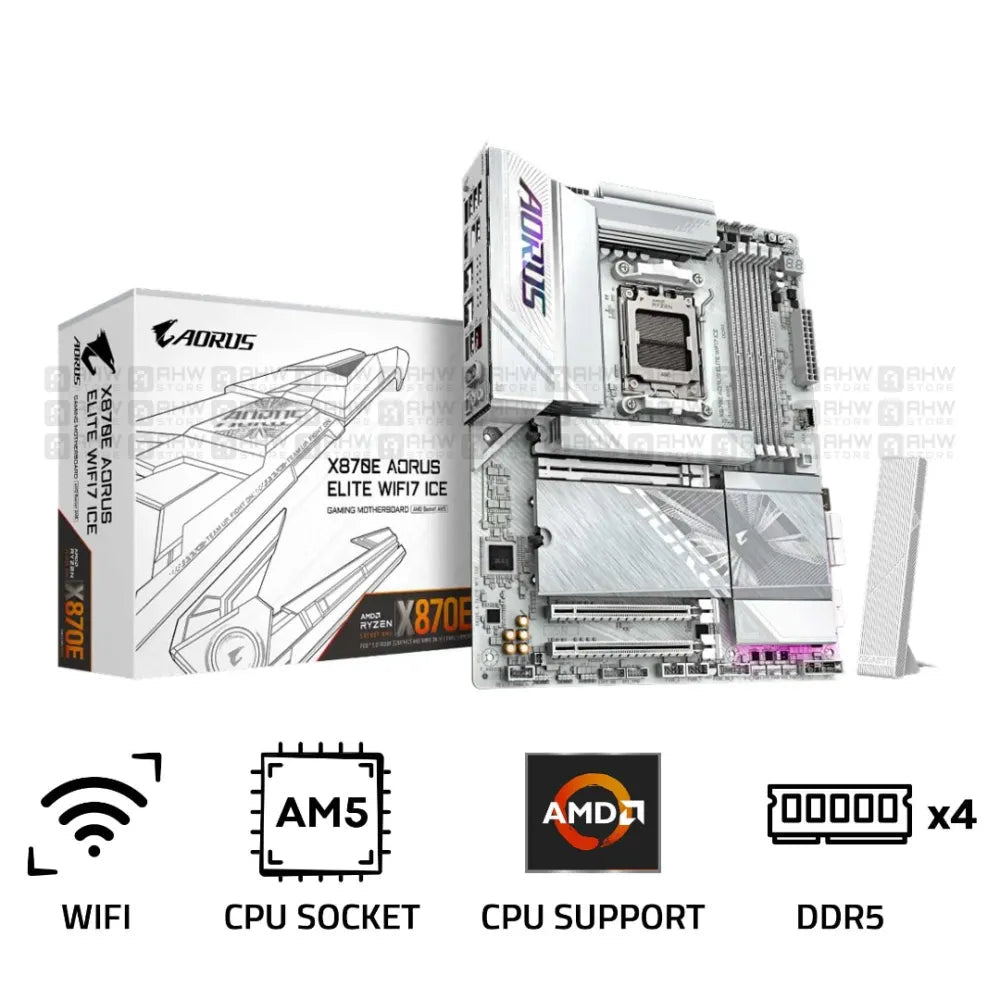

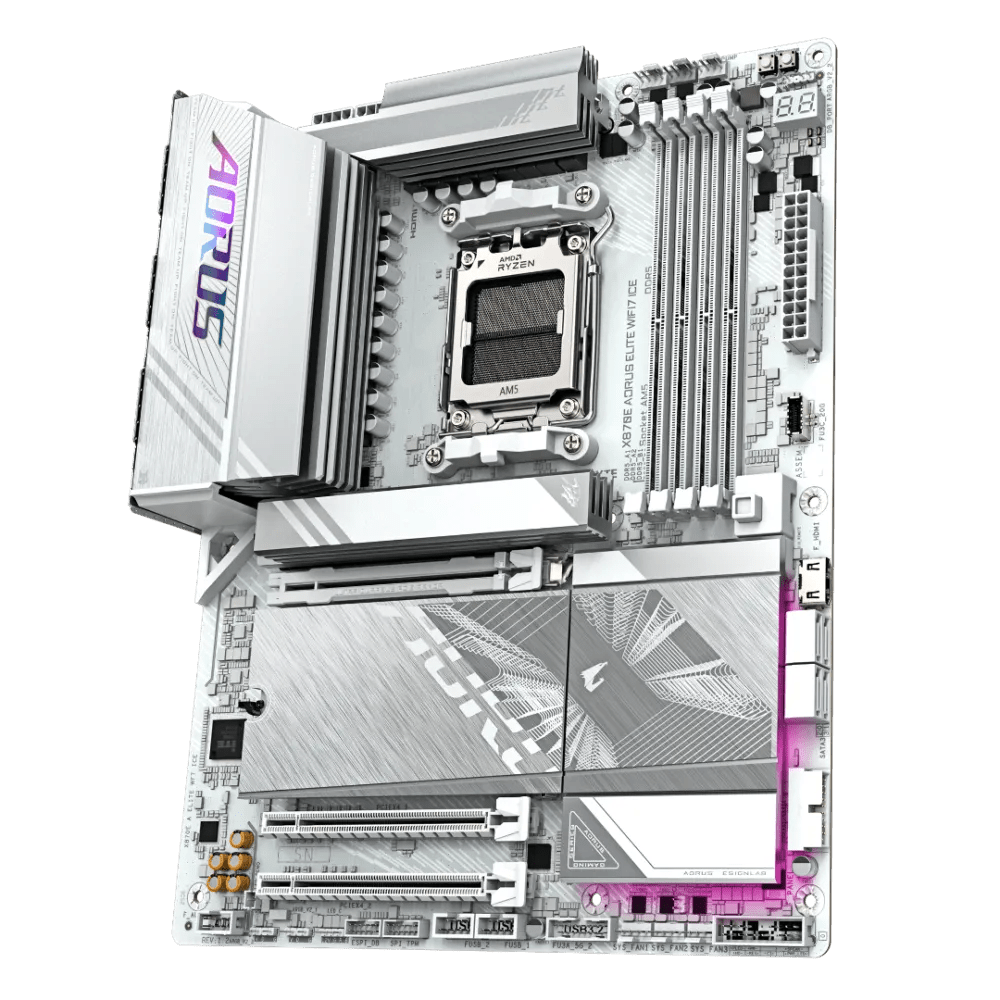

Gigabyte X870E AORUS ELITE WIFI7 ICE DDR5 AM5 ATX Motherboard White
Hurry up! Only 1 item(s) items left in stock
Couldn't load pickup availability
Secure Payment Methods
Cash on delivery and various payment options and installment plans.
Fast and Secure Shipping
Receive your order within 2 to 5 business days.
Customer Service
Technical support from 10 am to 12 pm.
Warranty Coverage
Enjoy a 6-month to 3-year warranty through us with distributors.
Gigabyte X870E AORUS ELITE WIFI7 ICE — Dual Chipset X870E, Dual USB4 40Gbps & Pure White ICE
The flagship dual-chipset white ATX motherboard on AMD X870E engineered for maximum bandwidth on Ryzen 9000, 8000, and 7000 Series desktop processors. Featuring a Twin 16+2+2 Phase Digital VRM, Dual 40Gbps USB4 Type-C ports with DP-Alt, four M.2 sockets (3x PCIe 5.0), PCIe 5.0 x16 slot with EZ-Latch Click, and Wi-Fi 7 with EZ-Plug antenna.

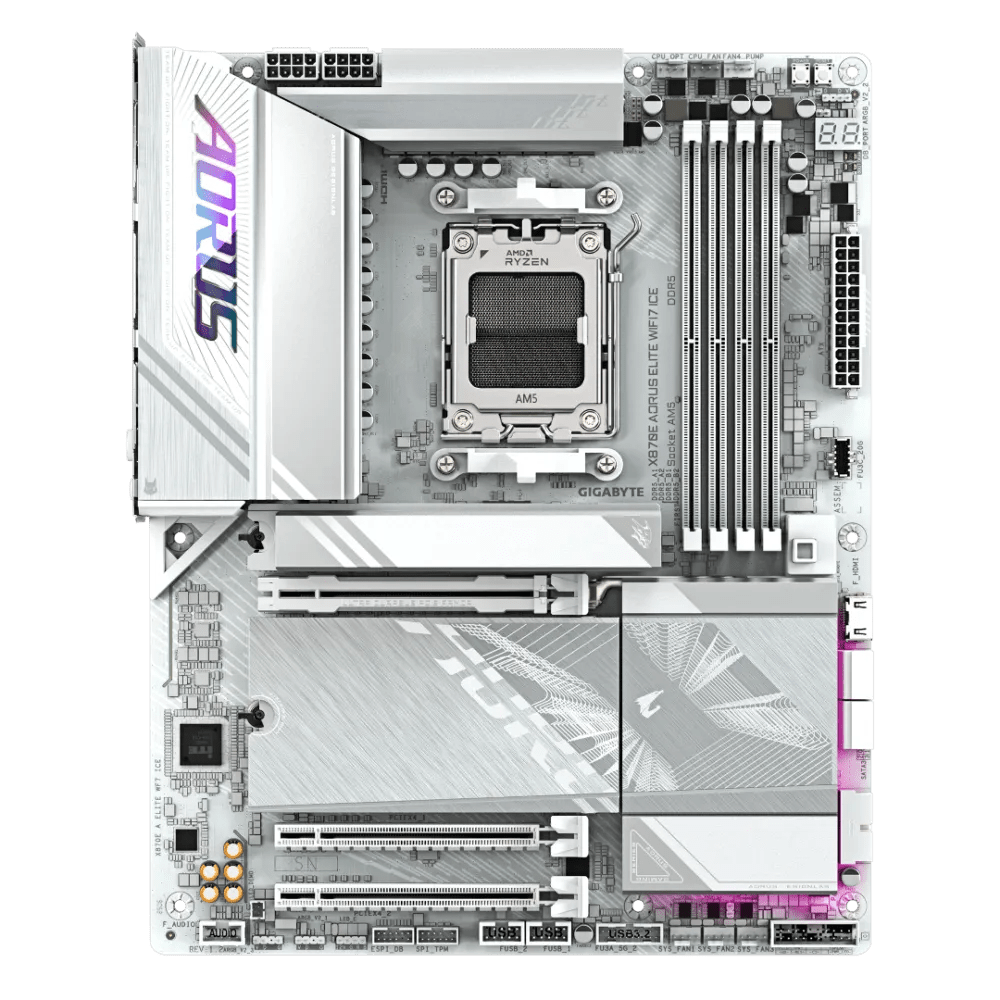

Board Map
Every connector, located before you unbox
AMD Socket AM5 (LGA 1718) — Centre
Supports AMD Ryzen 9000, 8000, and 7000 Series processors with long-term platform support.
Twin 16+2+2 Phase Digital VRM — Top & Left
Heavy metallic white aluminum heatsinks with 7W/mK pads keep power delivery ice cool under continuous heavy Ryzen 9 workloads.
4 × DDR5 DIMM Slots (White) — Right
Dual-channel DDR5 supporting up to 256 GB and extreme overclocking speeds up to 8000+ MT/s (O.C.) with AMD EXPO.
PCIe 5.0 x16 UD Slot with EZ-Latch Click — Centre
Reinforced PCIe 5.0 graphics card slot with tool-free click release mechanism.
4 × M.2 NVMe Sockets under Thermal Guard XL — Across PCB
Four high-speed M.2 slots (3x PCIe 5.0 x4 + 1x PCIe 4.0 x4) covered by white Thermal Guard XL heatsinks.
4 × SATA 6Gb/s Ports — Lower Right
Right-angled storage connections for SATA drives.
Power Delivery & Thermals
What feeds the socket, and what keeps it steadyTwin 16+2+2 Phase Digital VRM
Provides pristine current delivery for unlocked AMD Ryzen 9 9950X processors under extreme sustained loads.
Dual X870E Chipset Architecture
Provides maximized PCIe lane bandwidth across multiple PCIe 5.0 M.2 SSDs and high-speed expansion slots.
Dual 40Gbps USB4 Type-C Ports
Two native USB4 Type-C ports supporting 40 Gbps transfer speeds and DisplayPort video output.
Pure ICE White Design
Pristine white PCB, white heatsinks, white connectors, and an included white directional Wi-Fi 7 antenna.
Lane Map

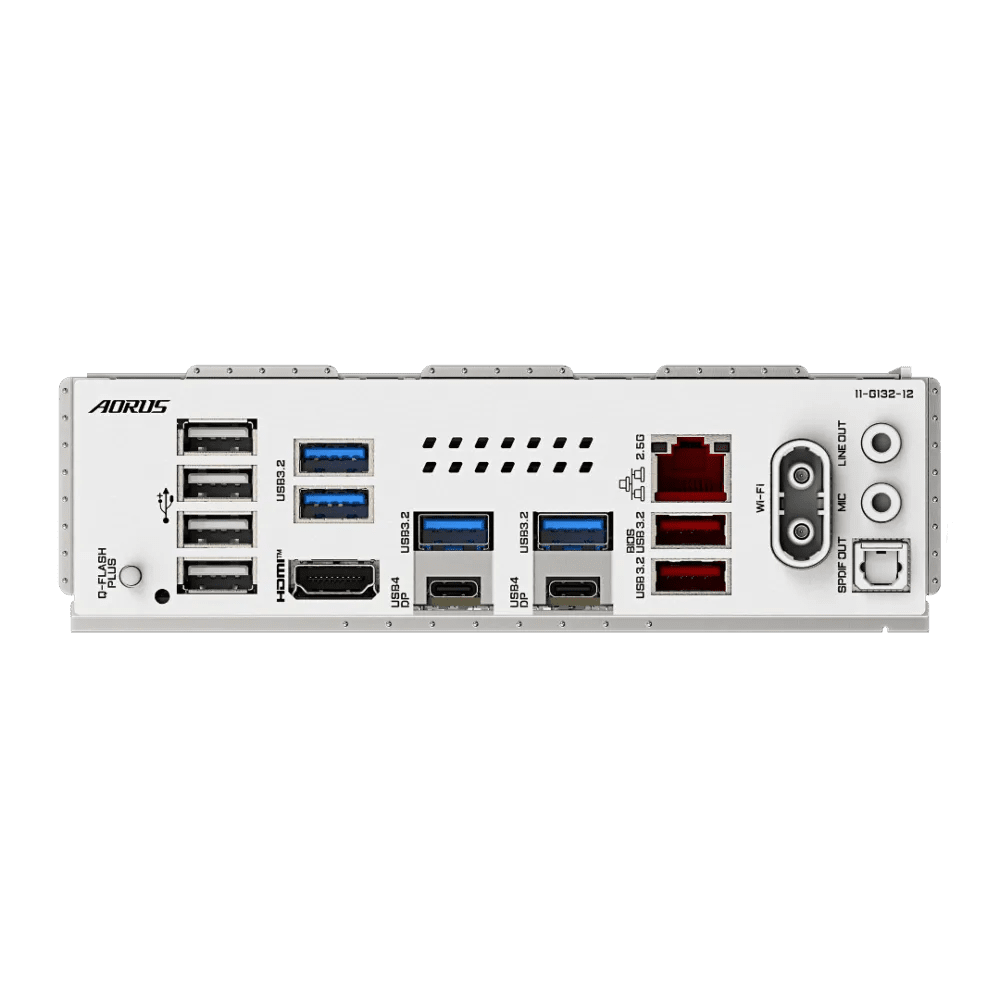

Interface speed rating & capability relative to modern motherboard standardsRear I/O Bay
Exactly what appears on the back of your case
Will It Fit Your Build?
Check these before you add to cartProcessor
Supports AMD Ryzen 9000, 8000, and 7000 Series desktop processors on socket AM5.
Memory
DDR5 only — 4 DIMM slots supporting up to 256 GB and speeds up to 8000+ MT/s with AMD EXPO.
Chipset
Dual X870E chipsets providing maximum bandwidth across all PCIe and M.2 slots.
USB4
Dual 40Gbps USB4 Type-C ports built into the rear panel.
Storage
4 × M.2 sockets (3x PCIe 5.0 + 1x PCIe 4.0) all protected by Thermal Guard XL heatsinks.
Aesthetic
Pure ICE White PCB and heatsinks perfect for white-themed builds.
Full Specification Sheet
Gigabyte X870E AORUS ELITE WIFI7 ICE| CPU Socket | AMD Socket AM5 (LGA 1718) |
| CPU Support | AMD Ryzen 9000 / 8000 / 7000 Series Desktop Processors |
| Chipset | AMD X870E Dual Chipsets |
| Form Factor | ATX (30.48 cm x 24.38 cm) — Pure White ICE |
| Power Design | Twin 16+2+2 phase Digital VRM |
| Memory Slots | 4 × DDR5 DIMM, dual channel (White) |
| Max Memory | 256 GB (up to DDR5-8000+ MT/s OC with AMD EXPO) |
| Primary Graphics Slot | 1 × PCIe 5.0 x16 with EZ-Latch Click |
| Secondary PCIe Slots | 1 × PCIe 4.0 x16 (x4 mode), 1 × PCIe 3.0 x16 (x1 mode) |
| M.2 Storage Sockets | 4 × M.2 (3x PCIe 5.0 x4 + 1x PCIe 4.0 x4 with Thermal Guard XL) |
| SATA Ports | 4 × SATA 6 Gb/s |
| USB4 Ports | 2 × USB4 Type-C (40Gbps) with DP Alt Mode |
| Wireless Networking | Wi-Fi 7 (802.11be, 320MHz) + Bluetooth 5.4 |
| Ethernet LAN | Realtek 2.5 GbE LAN |
| Audio | Realtek High Definition Audio + Optical S/PDIF |
