HYTE X50 Air Mid Tower ATX Case with Micro-Mesh Intake and Cold-Floor Cooling — Pitch Black

The X50 Air is the airflow version of HYTE's rounded mid tower, with closed sides: full-coverage micro-mesh, louvered exhaust vents, a cold floor for three thick 120 mm fans and room for graphics cards up to 430 mm.

Mid Tower, E-ATXMicro-Mesh IntakeCold Floor 3 × 120 mmGPU up to 430 mmUSB 3.2 Gen 2x2 Type-C
Highlights

What It Does Well

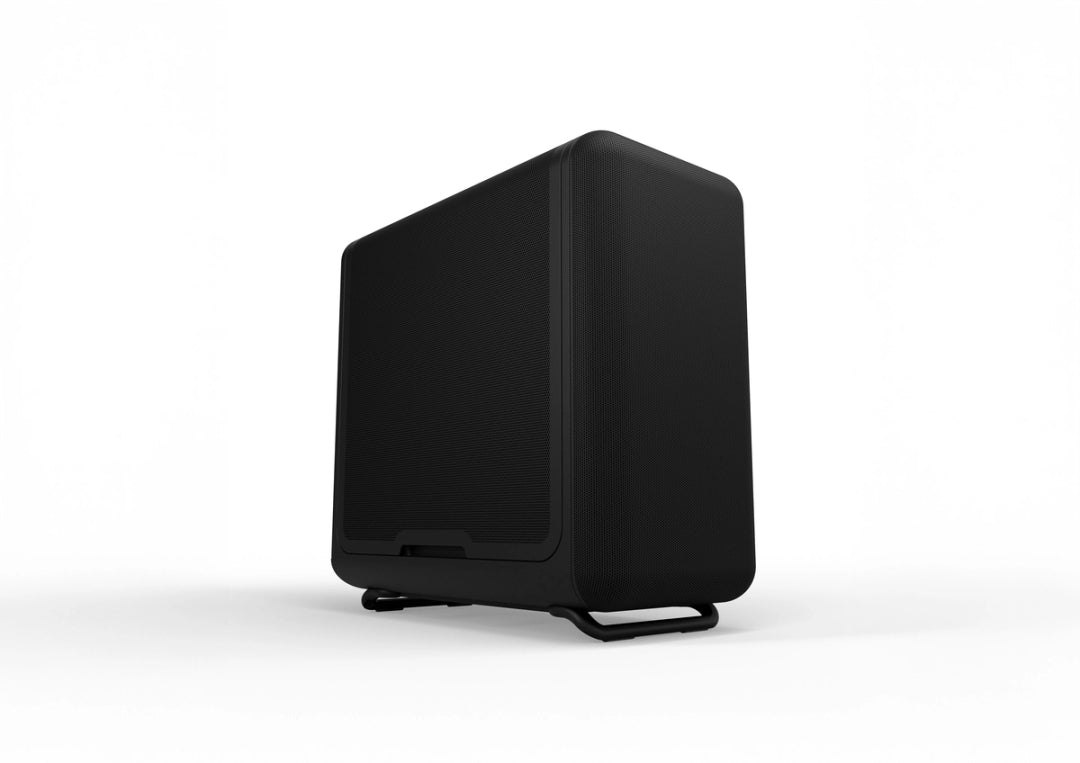

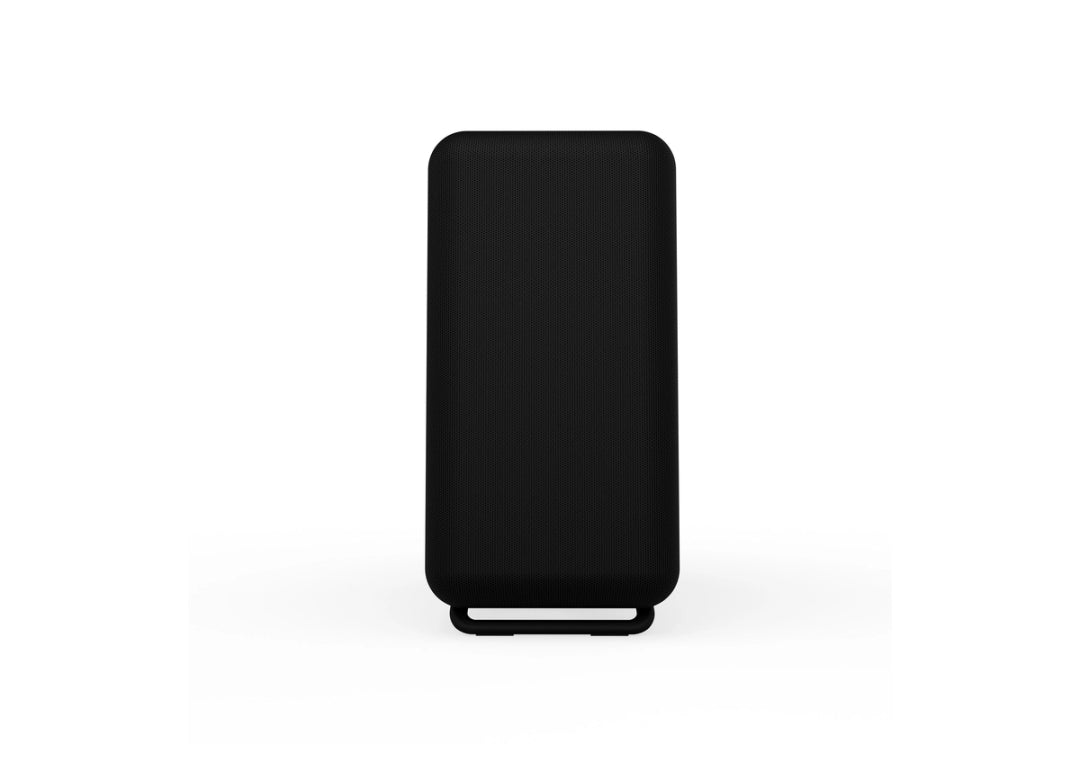

HYTE X50 Air Pitch Black front view

Rounded Body, Micro-Mesh Intake

The rounded 1 mm steel and ABS body is closed on the sides, and full-coverage micro-mesh feeds the intake with low resistance for cooler, quieter running. The case stands on contemporary bar feet.

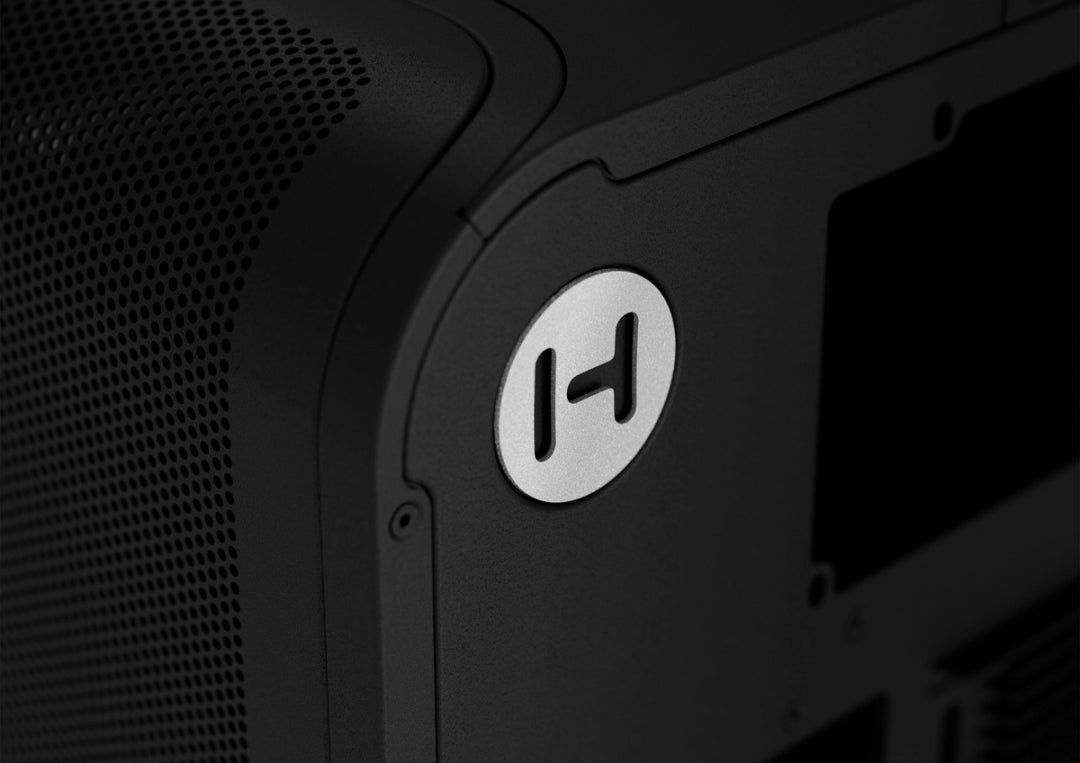

Close-up of the micro-mesh and H badge on the HYTE X50 Air Pitch Black

Full-Coverage Micro-Mesh

Fine micro-mesh covers the intake as a low-pressure, low-resistance path for air, and the front takes three 120/140 mm fans or a radiator up to 360 mm long and 105 mm thick. HYTE's H badge sits on the corner.

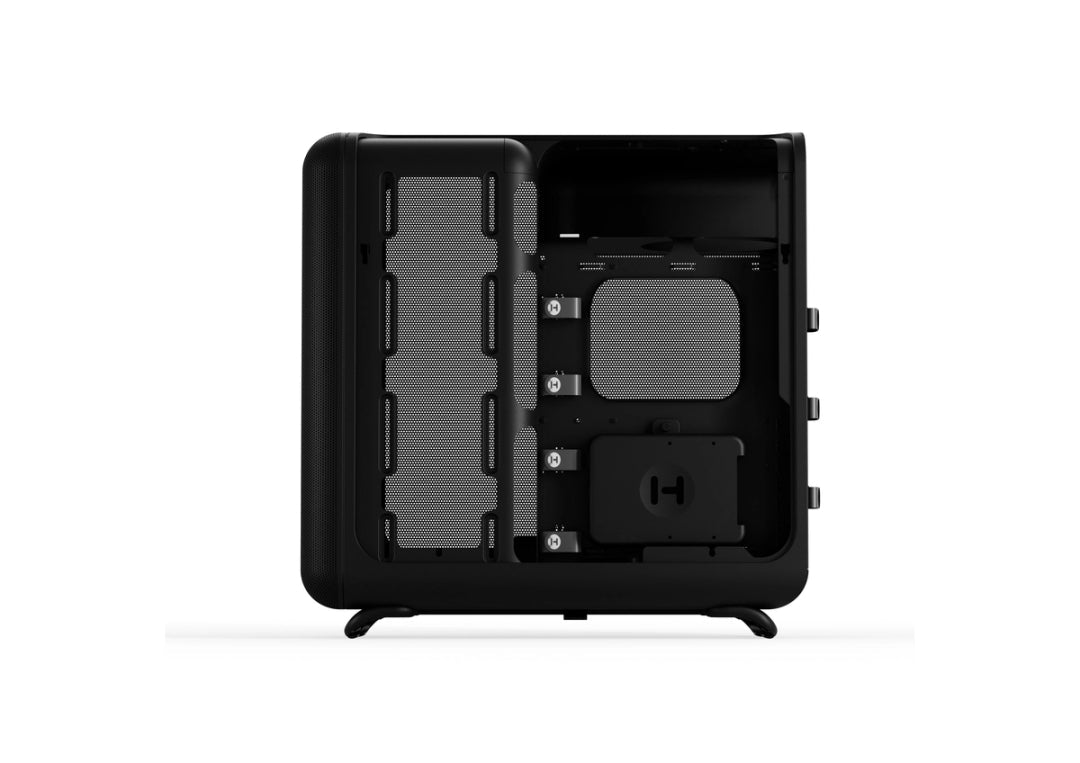

HYTE X50 Air Pitch Black with the side panel removed

Side Fan Bracket and Cable Room

With the panel off you see the vertical bracket for three 120 mm side fans or a radiator up to 360 mm long and 70 mm thick, next to the back of the motherboard tray where the cables run.

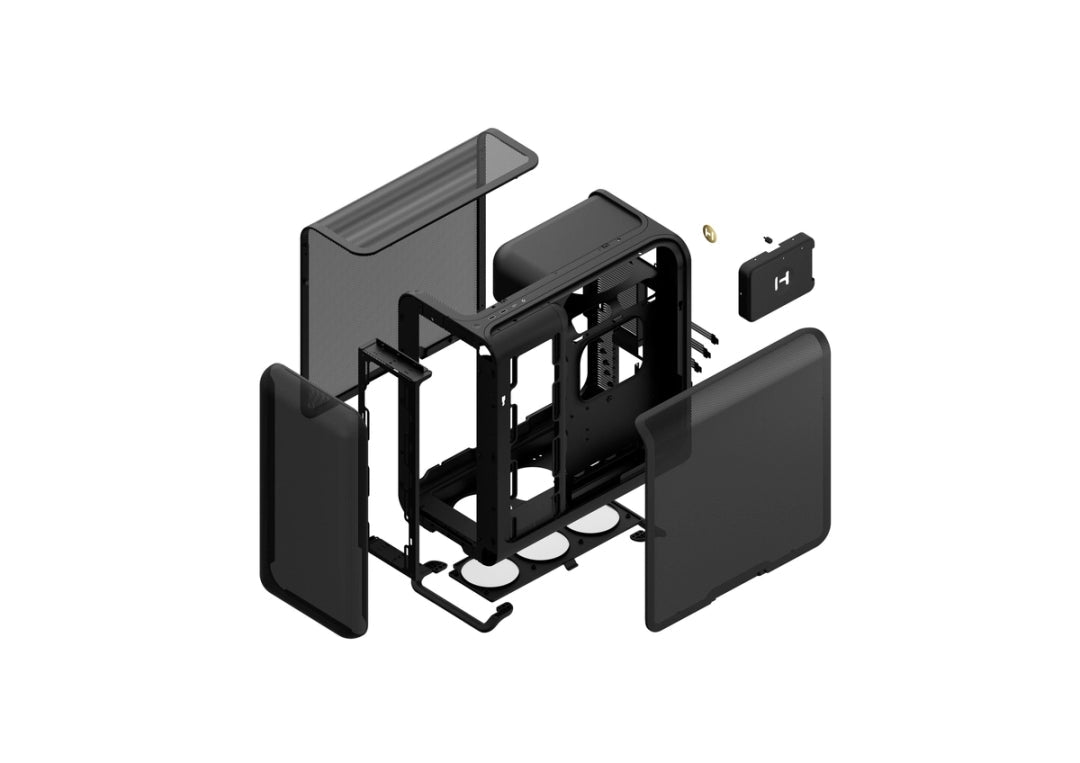

Exploded view of the HYTE X50 Air Pitch Black

Panels Off, Structural PSU Canopy

Every panel comes off for building. Inside, the structural power supply canopy carries tie-down points, and Velcro straps are included for cable runs inside and outside the chassis.

Technical Datasheet

Verified Specifications

Brand HYTE
Model X50 Air (CS-HYTE-X50A-BB)
Colour Pitch Black
Form Factor ATX mid tower, 63 L
Dimensions (H × L × W) 485 × 510 × 255 mm
Materials 1 mm steel, ABS
Motherboard Support Mini-ITX, Micro-ATX, ATX, E-ATX (up to 10.6")
Expansion Slots 7 horizontal, full-size
Front I/O 1 × USB 3.2 Gen 2x2 Type-C, 2 × USB 3.2 Gen 1 Type-A, 3.5 mm combo jack, mechanical power switch with LED
Fans Not included
Fan Support Front 3 × 120 / 140 mm · Side 3 × 120 mm · Bottom 3 × 120 mm (≤ 32 mm thick) · Rear 1 × 120 mm
Radiator Support Front 240 / 280 / 360 mm up to 105 mm thick · Side up to 360 mm, 70 mm thick · Rear 120 mm
Max GPU Size 430 mm long, 160 mm tall
Max CPU Cooler Height 170 mm
Max PSU Length 223 mm
Storage 2 × 2.5" + 1 × 3.5"
Dust Filter Bottom, magnetic
Feet Contemporary feet
Manufacturer Warranty 4 years
Complete Your Setup

Pair It With

FAQ

Product Questions & Store Policies

Does the X50 Air come with fans?
No fans are listed as included, so plan your own: up to three in front, three on the side, three in the floor and one at the rear.
How big a graphics card fits?
Up to 430 mm long and 160 mm tall, mounted horizontally in seven full-size slots. Pick the parts in our PC Builder ↗: it checks graphics card length and cooler height against this case for you.
Where can a radiator go?
Up to 360 mm in front (105 mm thick) or on the side (70 mm thick), plus 120 mm at the rear.
How tall can an air cooler be?
Up to 170 mm.
What is on the front I/O?
A USB 3.2 Gen 2x2 Type-C port, two USB 3.2 Gen 1 Type-A ports, a 3.5 mm combo jack and a mechanical power switch with an LED.
