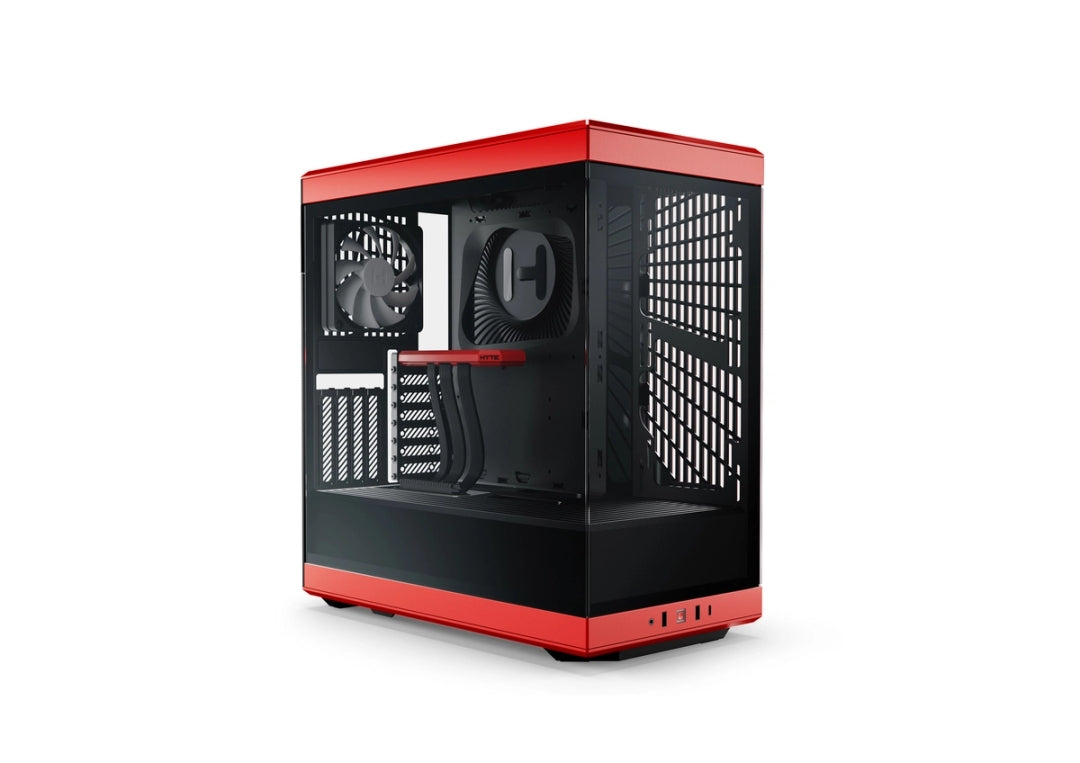

HYTE Y40 Mid Tower ATX Case with Panoramic Glass, PCIe 4.0 Riser and 2 Fans — Red & Black

HYTE's compact panoramic mid tower: bevelled two-piece glass, a 4-slot vertical graphics mount with the PCIe 4.0 x16 riser in the box, two 120 mm fans included and room for air coolers up to 183 mm.

Mid Tower, ATXPCIe 4.0 x16 Riser Included2 × 120 mm FansVertical GPU up to 422 mmCooler up to 183 mm
Highlights

What It Does Well

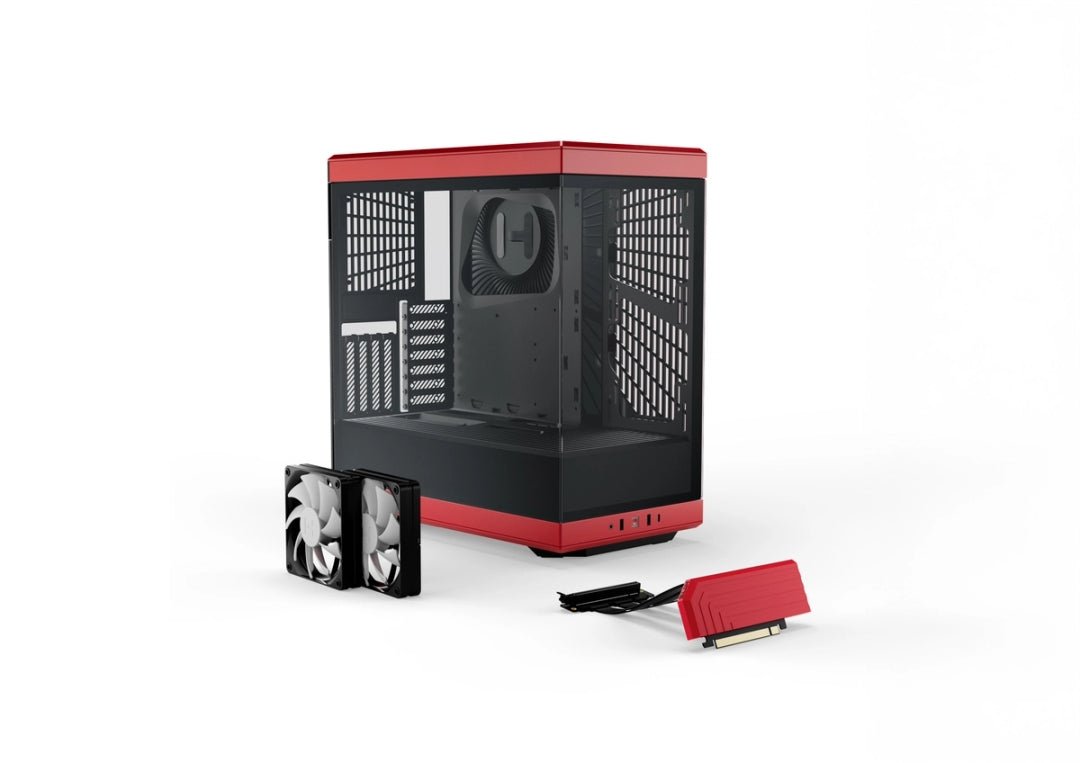

HYTE Y40 Red & Black with its two included fans and PCIe 4.0 riser

Two Fans and a Riser in the Box

Y40 comes with two 120 mm fans (1300 rpm), one under the floor and one at the rear, and a PCIe 4.0 x16 riser cable with its protective canopy.

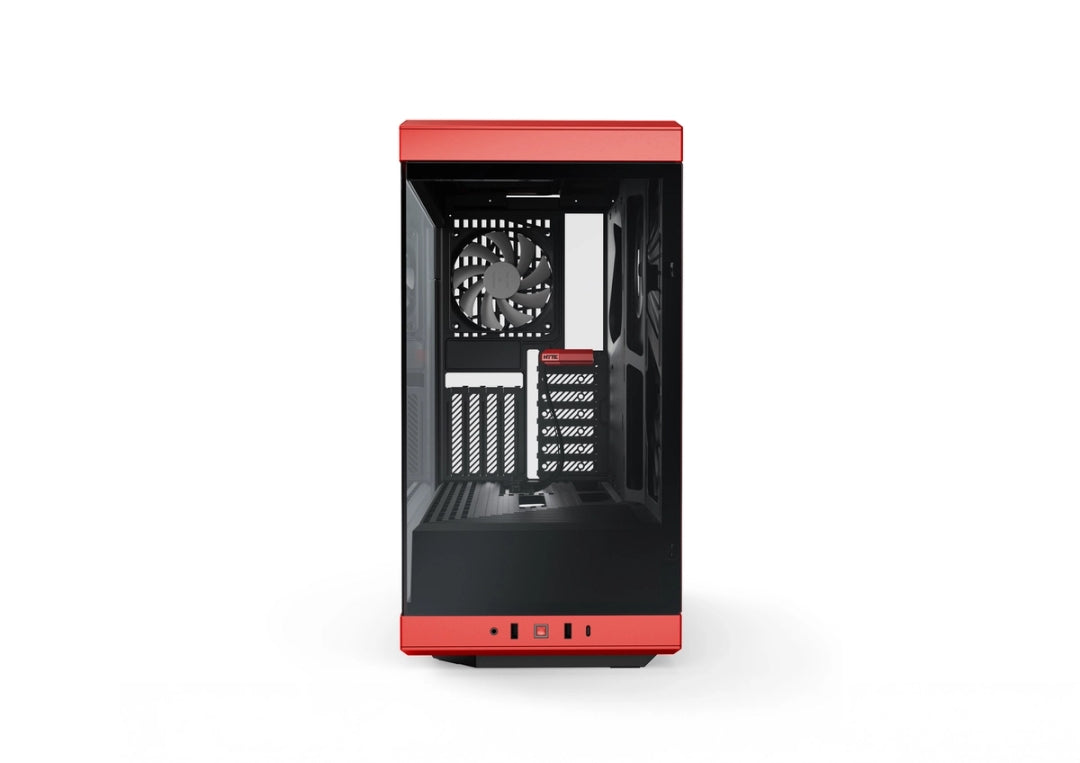

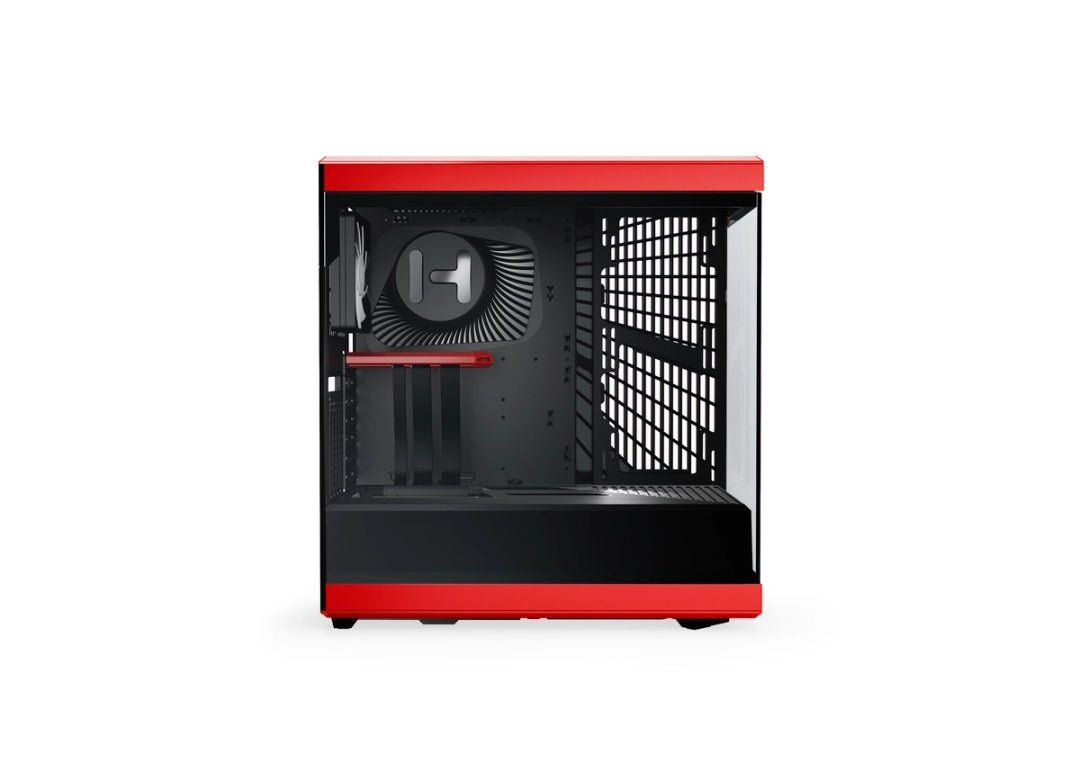

HYTE Y40 Red & Black seen straight through the glass

Four-Slot Vertical GPU, Fan Under the Shroud

The two-piece panoramic glass shows a vertical graphics card up to 422 mm long and 94 mm thick (80 mm or less recommended), with air space to the glass. The included intake fan below the power supply shroud blows fresh air up into it.

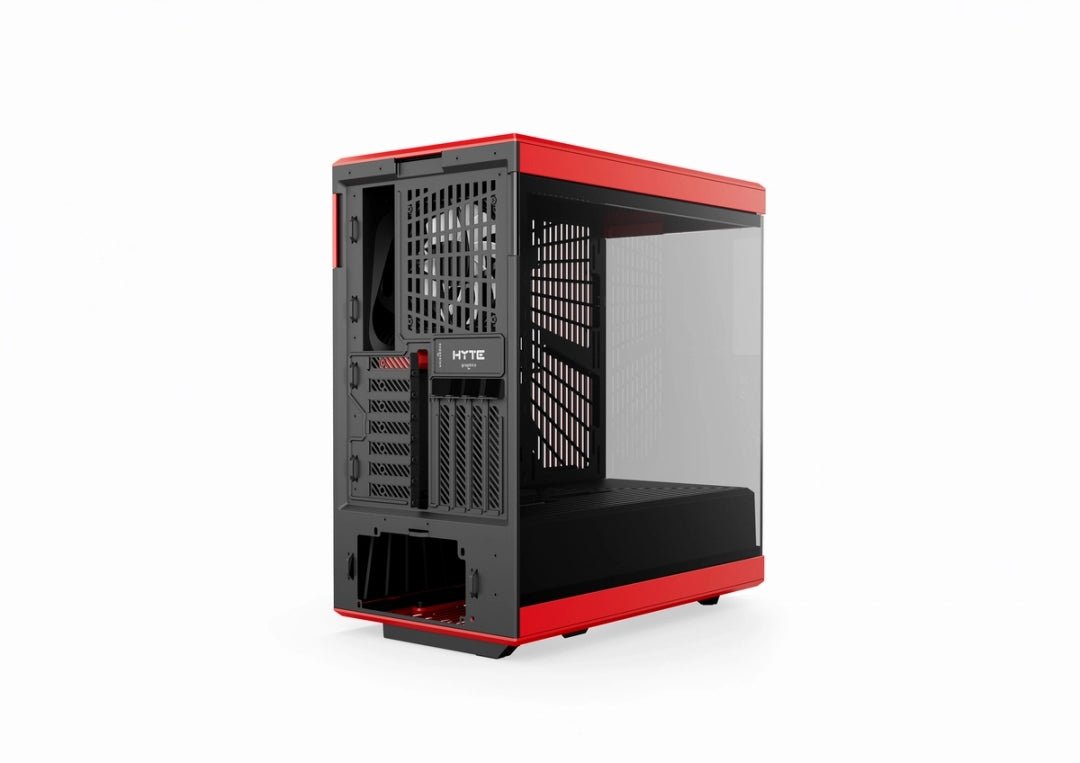

Rear of the HYTE Y40 Red & Black

Rear Fan, 4 + 6 Slots, ATX PSU

The rear has the included 120 mm exhaust fan, four full-height slots for the vertical card plus six half-height slots, and the bay for an ATX power supply up to 224 mm long.

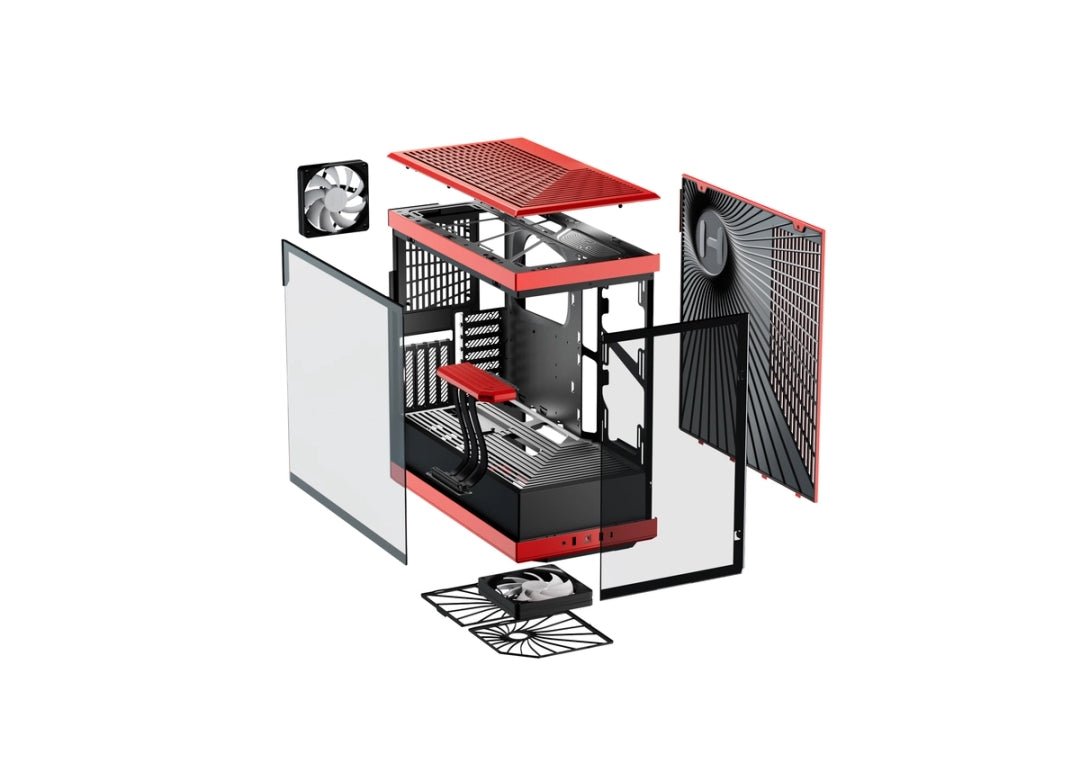

Exploded view of the HYTE Y40 Red & Black panels

Every Panel Comes Off

The glass, top panel, perforated side panel and dust filters come apart for building and cleaning. The side mount takes a 280 mm radiator with a combined thickness up to 120 mm, and the top a 360 mm radiator.

Technical Datasheet

Verified Specifications

Brand HYTE
Model Y40 (CS-HYTE-Y40-BR)
Colour Red & Black
Form Factor Mid tower, 50 L
Dimensions 439 × 240 × 472 mm
Motherboard Support Mini-ITX, Micro-ATX, ATX
Expansion Slots 4 full-height + 6 half-height
Riser Cable PCIe 4.0 x16, included
Front I/O 2 × USB 3.0, 1 × USB 3.2 Type-C, 1 × audio/mic jack
Included Fans 2 × 120 mm, 1300 rpm (1 bottom, 1 rear)
Fan Support Side 2 × 120 / 140 mm · Top 3 × 120 mm · Bottom 1 × 120 / 140 mm · Rear 1 × 120 mm
Radiator Support Side 120–280 mm, combined thickness up to 120 mm · Top 120 / 240 / 360 mm · Rear 120 mm
Max GPU Size 422 mm long, 94 mm thick (80 mm or less recommended)
Max CPU Cooler Height 183 mm
Max PSU Length 224 mm (ATX)
Storage 1 × 3.5" HDD or 2 × 2.5" SSD
Dust Filters Top, side, bottom (2)
RGB Lighting None
Complete Your Setup

Pair It With

FAQ

Product Questions & Store Policies

Which fans come with it?
Two 120 mm fans at 1300 rpm: one below the power supply shroud blowing up at the graphics card and one rear exhaust. They have no RGB lighting.
Is the riser cable included?
Yes, a PCIe 4.0 x16 riser with a protective canopy, and half-height PCIe cards can sit behind the vertical card.
How big a graphics card fits?
Up to 422 mm long and 94 mm thick; HYTE recommends 80 mm or thinner for the best cooling. Pick the parts in our PC Builder ↗: it checks graphics card length and cooler height against this case for you.
Does it fit E-ATX boards?
No. The Y40 takes Mini-ITX, Micro-ATX and ATX motherboards.
How tall can an air cooler be?
Up to 183 mm, which fits almost every tower cooler.
