HYTE Y70 Dual Chamber Mid Tower ATX Case with Panoramic Glass and PCIe 4.0 Riser — Black Cherry (Red & Black)

HYTE's upgraded dual-chamber mid tower: three-piece panoramic glass, a 4-slot vertical graphics mount with the PCIe 4.0 x16 riser in the box, a 360 mm side radiator up to 125 mm thick and room for 10 fans.

Dual Chamber, E-ATXPCIe 4.0 x16 Riser Included4-Slot Vertical GPU, 422 mm2 × 360 mm RadiatorsUp to 10 Fans
Highlights

What It Does Well

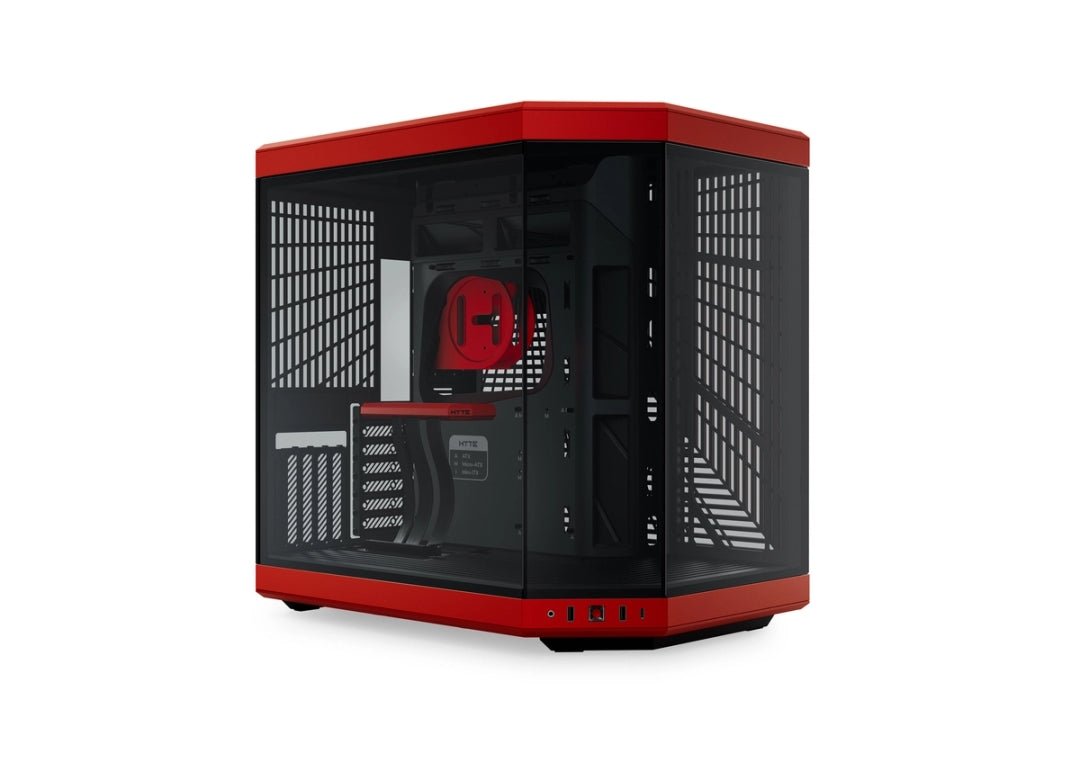

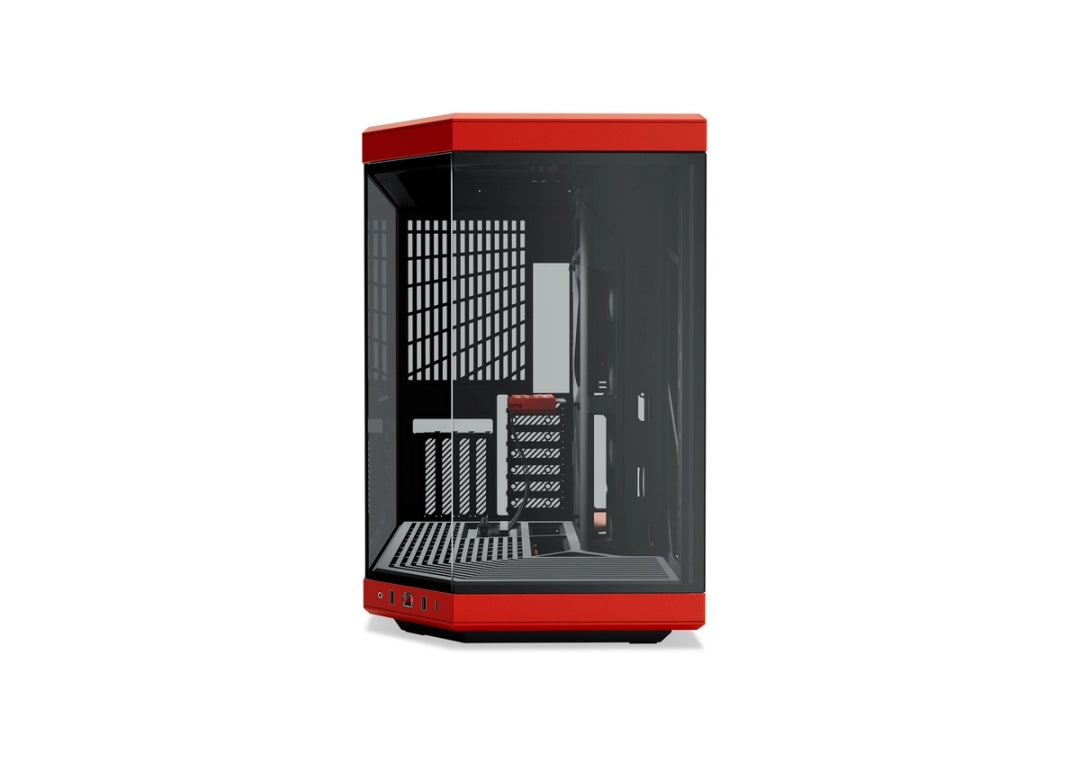

HYTE Y70 Black Cherry (Red & Black) with its panoramic glass and riser canopy

Three-Piece Panoramic Glass

Three glass panels wrap the front and left side with no corner pillar, and the colour-matched canopy over the included PCIe 4.0 x16 riser sits in the middle of the view. The front I/O on the base has USB-C 3.2 Gen 2, two USB-A 3.2 Gen 1 and an audio jack.

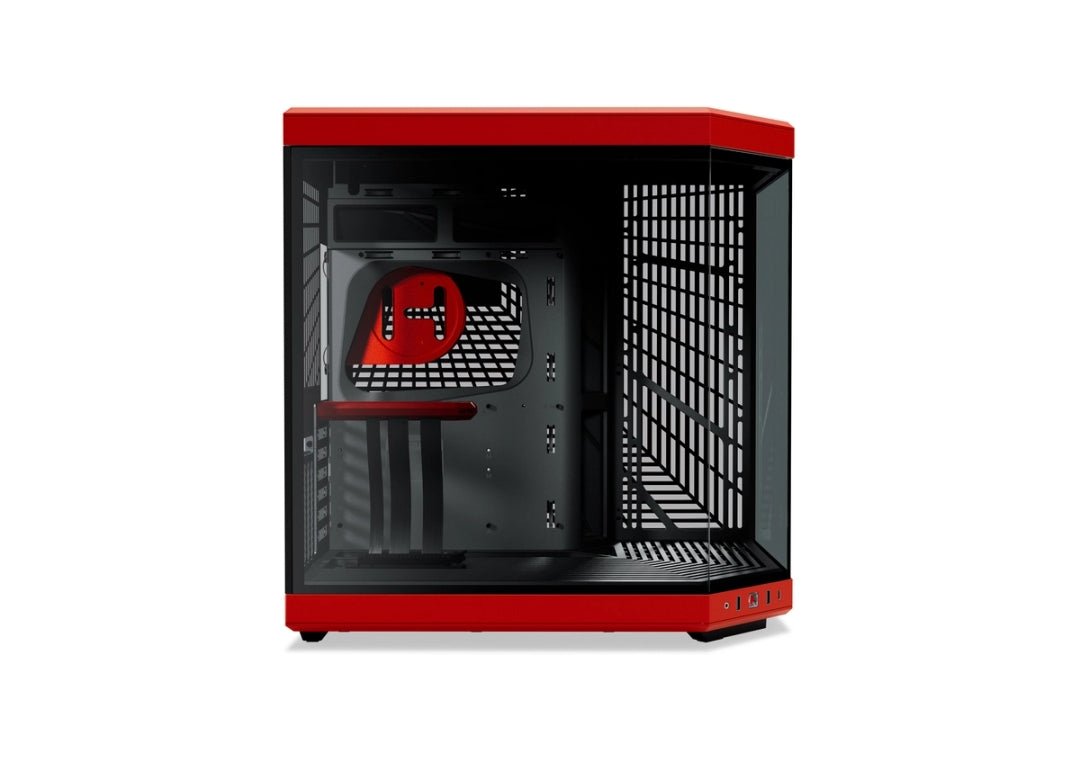

Main chamber of the HYTE Y70 Black Cherry (Red & Black) seen through the glass

Four-Slot Vertical GPU, Cold Floor

Graphics cards mount vertically, up to 4 slots (105 mm) thick and 422 mm long, with air space between the card and the glass. Below, the cold floor takes three 120 mm or two 140 mm fans up to 32 mm thick, blowing fresh air straight into the GPU.

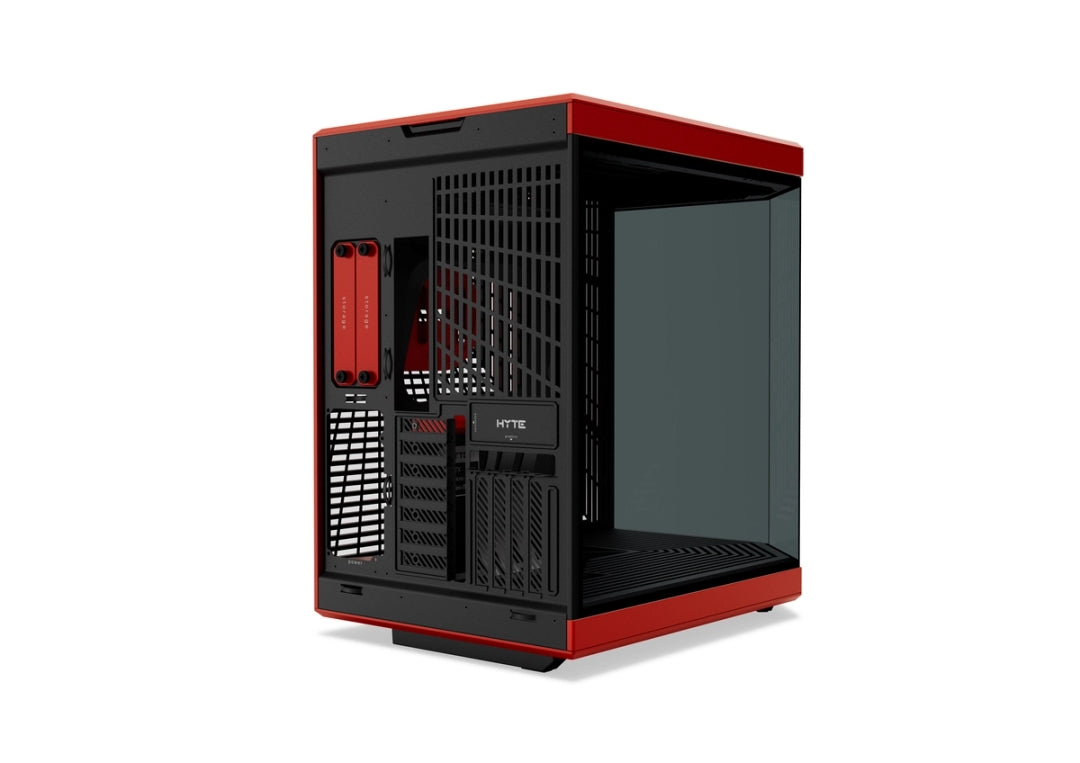

Rear of the HYTE Y70 Black Cherry (Red & Black)

7 + 4 Slots and a Long-PSU Chamber

The rear has a 120/140 mm fan mount, seven half-height slots plus four full-height slots for the vertical card, and a power supply chamber for ATX units up to 235 mm. The storage sleds slide out from the back: two 3.5" HDDs or four 2.5" SSDs.

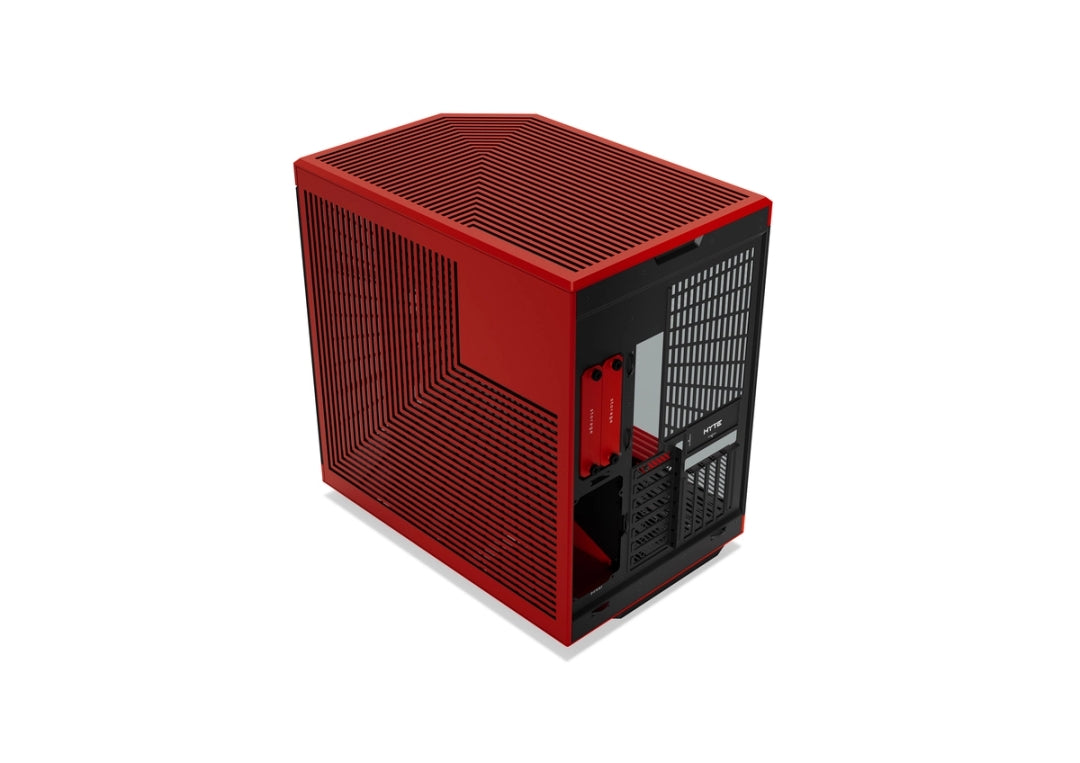

Ventilated top of the HYTE Y70 Black Cherry (Red & Black)

Vented Top with a 360 mm Radiator Bracket

The perforated top hides an adjustable bracket for a 360 mm radiator up to 68 mm thick, or three 120 mm / two 140 mm fans. Dust filters cover the top, side and bottom, and the top and side panels come off without tools.

Technical Datasheet

Verified Specifications

Brand HYTE
Model Y70 (CS-HYTE-Y70-BR)
Colour Black Cherry (Red & Black)
Form Factor Dual-chamber mid tower
Dimensions 470 × 320 × 470 mm (70.7 L)
Motherboard Support Mini-ITX, Micro-ATX, ATX, E-ATX
Expansion Slots 7 half-height + 4 full-height (vertical GPU)
Riser Cable PCIe 4.0 x16, included
Front I/O 1 × USB-C 3.2 Gen 2, 2 × USB-A 3.2 Gen 1, 1 × 3.5 mm audio/mic combo
Fans Not included; up to 10 supported
Fan Support Top 3 × 120 / 2 × 140 mm · Side 3 × 120 / 2 × 140 mm · Bottom 3 × 120 / 2 × 140 mm (≤ 32 mm thick) · Rear 1 × 120 / 140 mm
Radiator Support Side 120–360 / 140–280 mm up to 125 mm thick · Top 120–360 / 140–280 mm up to 68 mm thick · Rear 120 / 140 mm
Max GPU Size 422 mm long, 105 mm thick (4 slots)
Max CPU Cooler Height 180 mm
Max PSU Length 235 mm
Storage 2 × 3.5" HDD or 4 × 2.5" SSD
Dust Filters Top, side, bottom
Manufacturer Warranty 4 years
Complete Your Setup

Pair It With

FAQ

Product Questions & Store Policies

Does the Y70 come with fans?
No. HYTE lists fan mounts only, so plan your own: up to three in the floor, three on the side, three on top and one at the rear.
Is the riser cable included?
Yes. A PCIe 4.0 x16 riser with a colour-matched canopy comes in the box, and half-height PCIe cards can sit behind the vertical card.
How big a graphics card fits?
Up to 422 mm long and 4 slots (105 mm) thick, mounted vertically. Pick the parts in our PC Builder ↗: it checks graphics card length and cooler height against this case for you.
Can I run two 360 mm radiators?
Yes: one on the side up to 125 mm thick (with fans) and one on the adjustable top bracket up to 68 mm thick.
How tall can an air cooler be?
Up to 180 mm.
