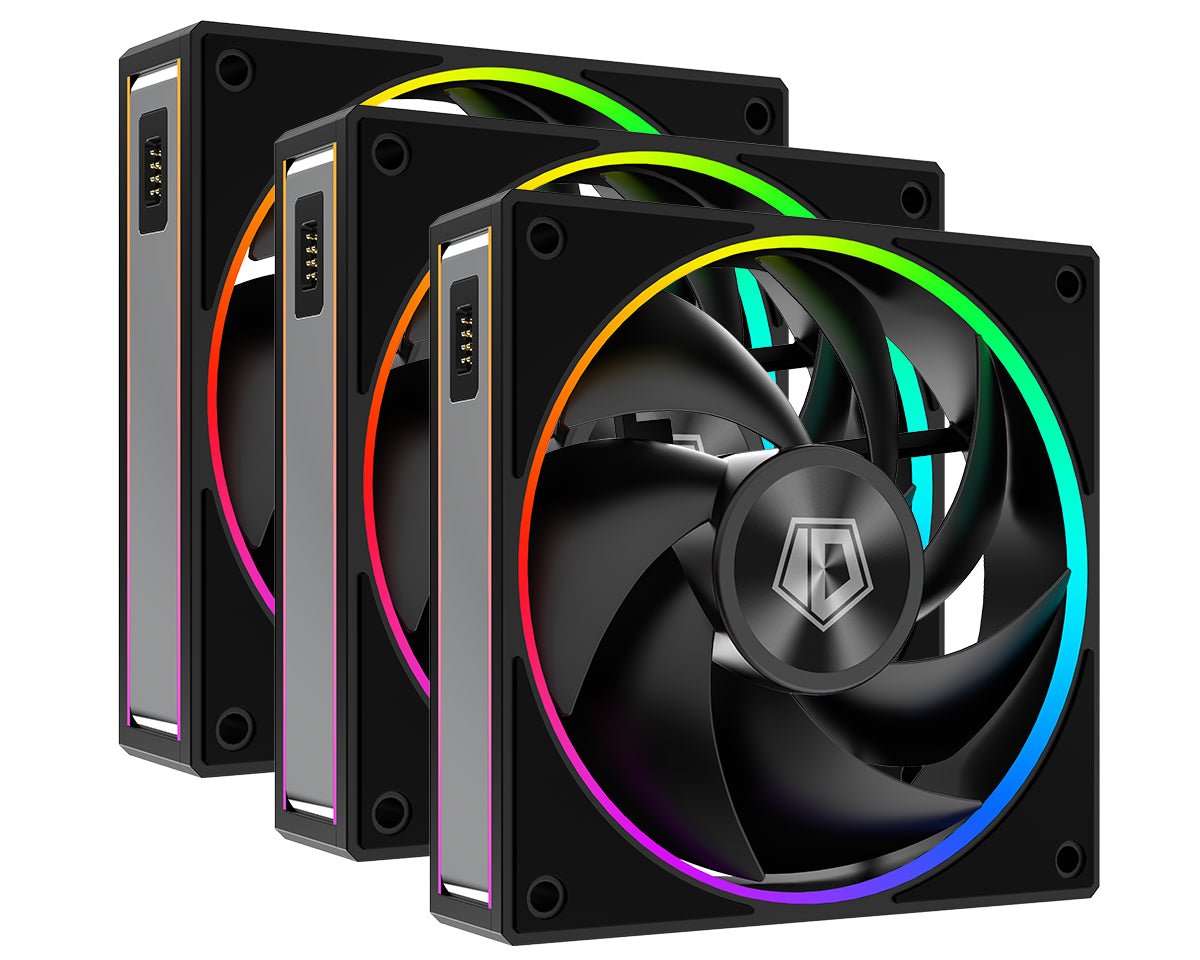

ID-COOLING MF-1230-ARGB-K TRIO ARGB PWM Dual Ball Bearing Magnetic Connection 30mm Thickened Frame 7 Blade 3 Fans

Name: ID-COOLING MF-1230-ARGB-K TRIO ARGB PWM Dual Ball Bearing Magnetic Connection 30mm Thickened Frame 7 Blade 3 Fans
Brand: ID-COOLING
SKU: ID-FAN-MF-1230
Price: 2400.0 EGP
Availability: InStock

^EGP 2,400

~~^EGP 3,100~~

Installment Calculator

Monthly installment:

Final terms are confirmed at checkout.

Ask us on WhatsApp Share on WhatsApp

Description

ID-COOLING 30MM THICKENED FRAME • PIN-TO-PIN MAGNETIC LINK • DUAL BALL BEARING • 3-FAN PACK

High-Pressure 30mm Thickened ARGB Fans with Cableless Magnetic Interlocking

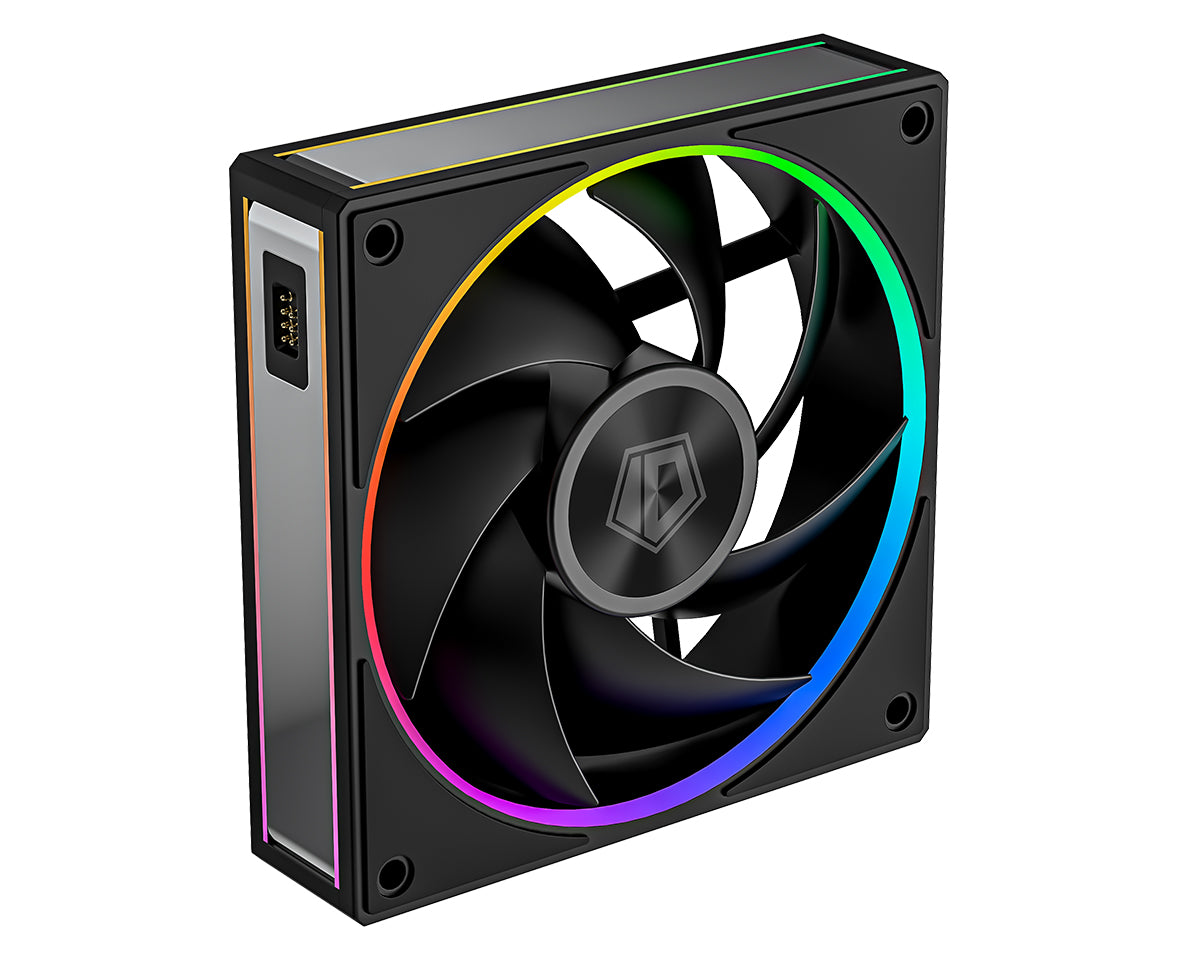

Engineered for extreme radiator and chassis airflow penetration, the ID-COOLING MF-1230 features an expanded 30mm frame (20% thicker than standard 25mm fans) producing massive static pressure and airflow. With revolutionary modular magnetic pin-to-pin contact interlocking, you can snap three fans together effortlessly without intermediate cables.

Frame Profile30mm Heavy-Duty Thickness

InterlockingModular Magnetic Daisy-Chain

BearingsDual Ball Bearing (100,000h MTTF)

Speed Range500 - 2000 RPM (PWM Controlled)

Max Airflow82.5 CFM High Throughput

IlluminationAddressable 5V 3-Pin ARGB

🎮 Extreme Overclocking & Radiator Push

Superior Static Pressure for Thick Liquid Radiators

The 30mm frame depth and 7 aggressive high-angle sickle blades overcome dense fin resistance on 360mm/420mm liquid cooling radiators, driving icy fresh airflow through the most restrictive high-end custom loops.

💼 Ultra-Clean Panoramic Showcase Builds

Zero Cable Clutter with Seamless Snap-On Magnetic Modularity

Eliminates unsightly wire rat nests in panoramic glass builds. Connect all 3 fans into a single rigid aesthetic unit powered through a single master harness, with vibrant perimeter ring ARGB illumination.

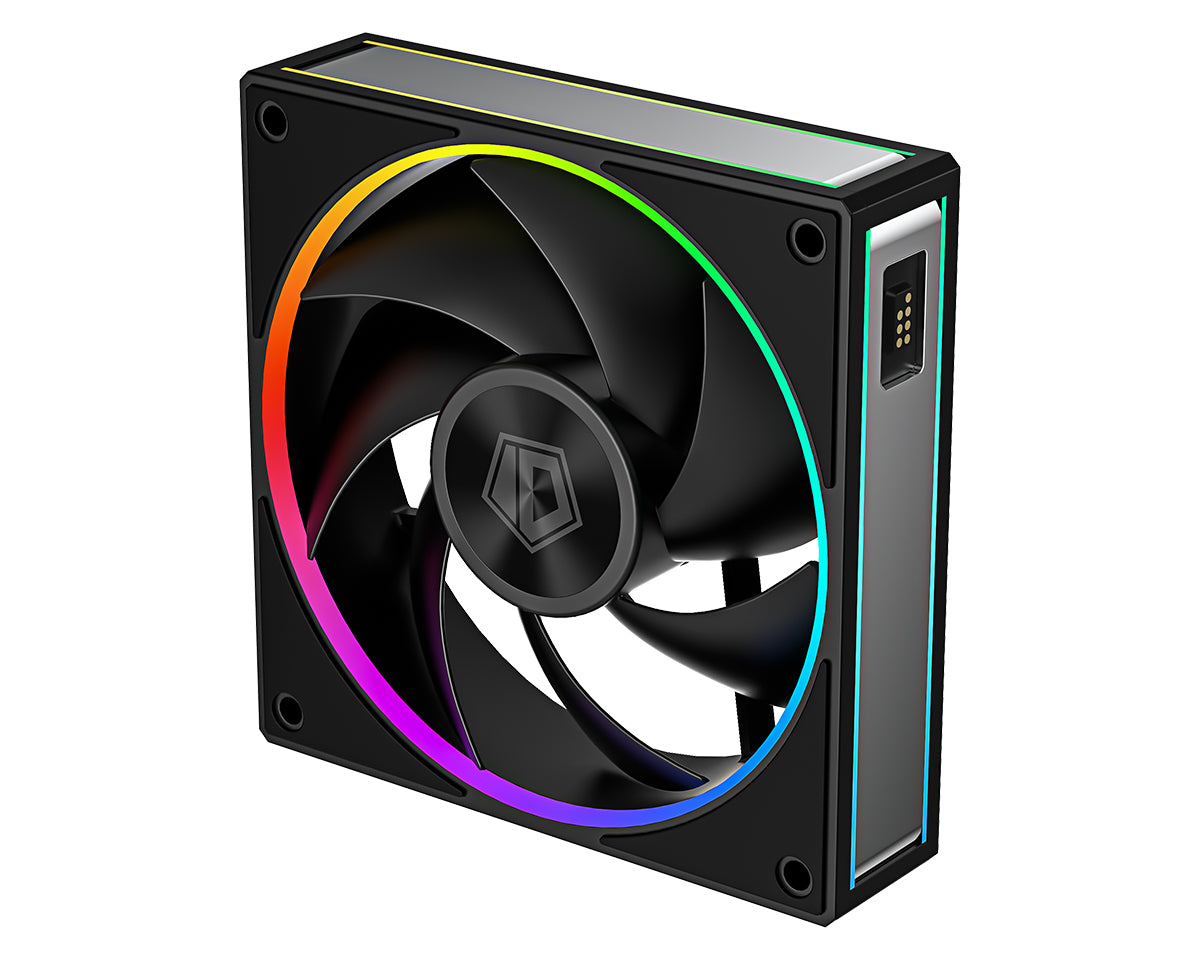

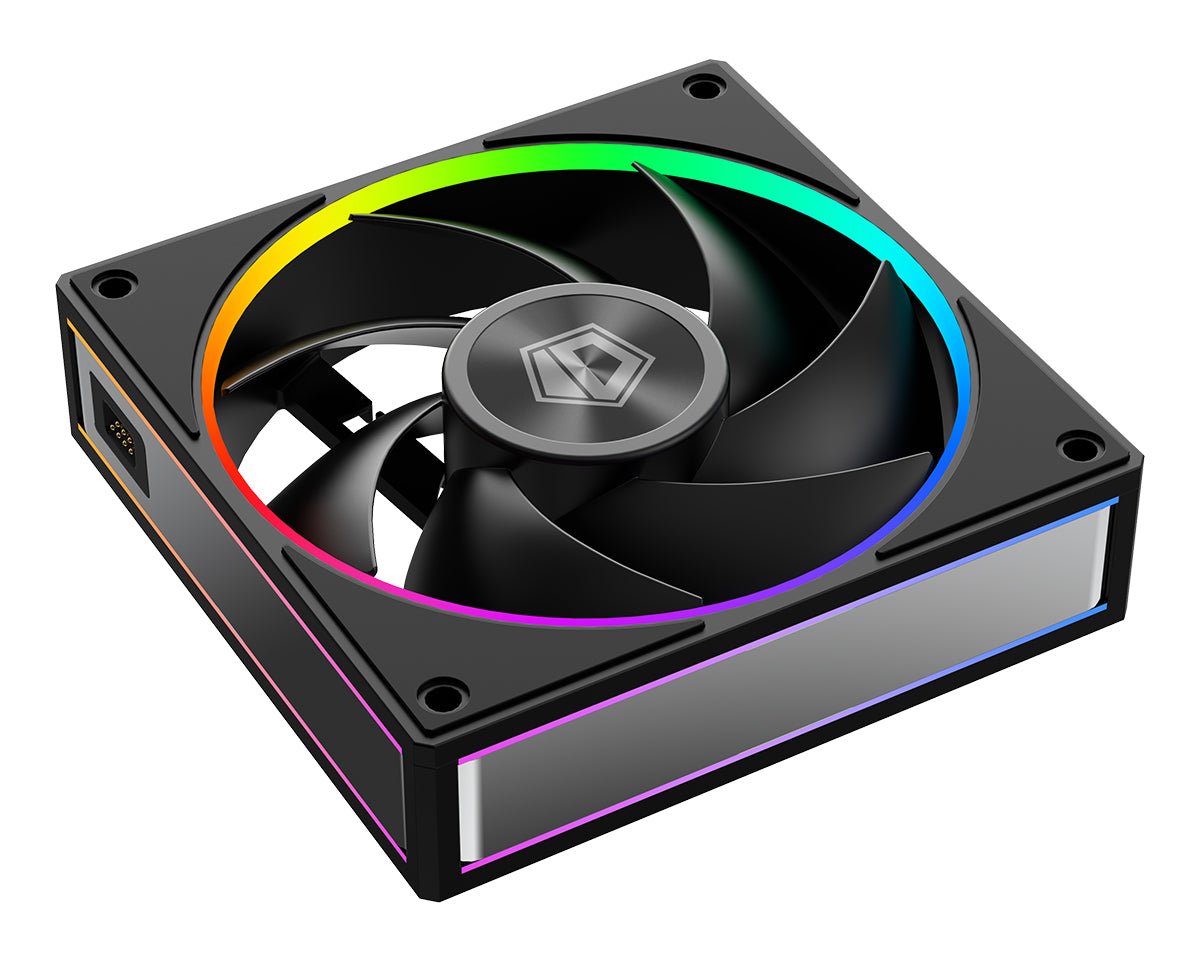

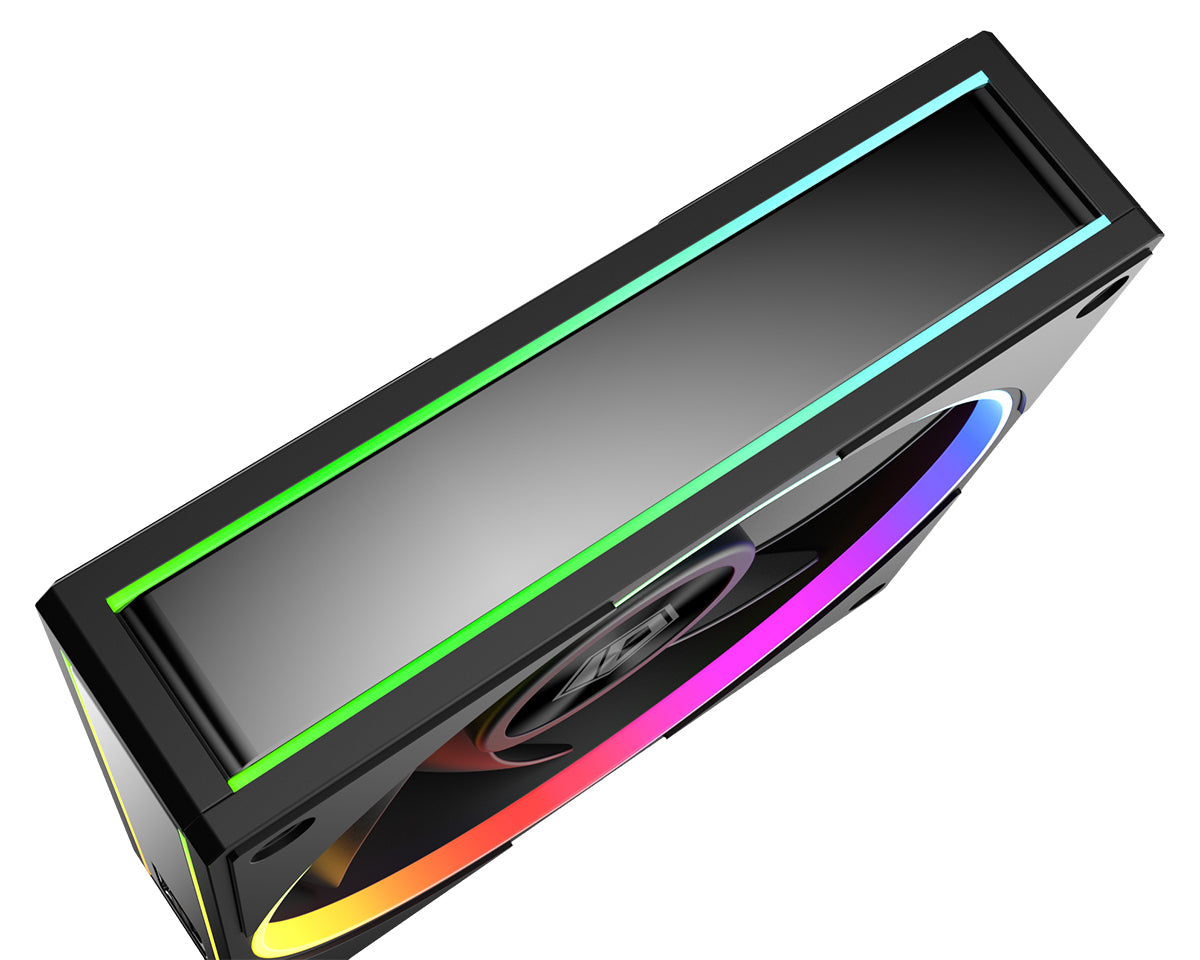

30MM REINFORCED FRAME

Expanded 30mm Frame Depth for 25% Greater Static Pressure

Moving beyond standard 25mm dimensions, the 30mm housing accommodates deeper blade surface area and steeper pitch angles to generate superior 3.42 mmH2O static pressure.

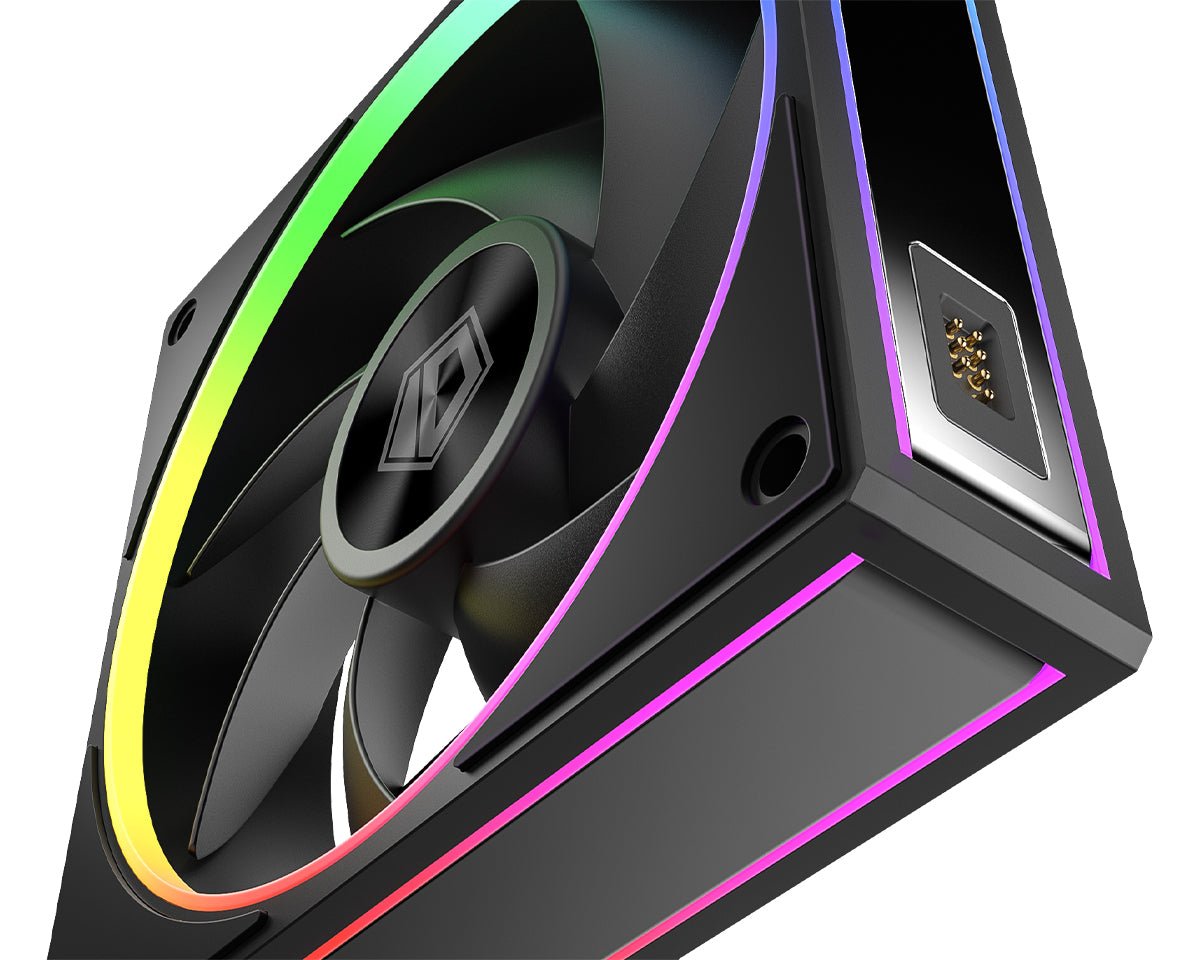

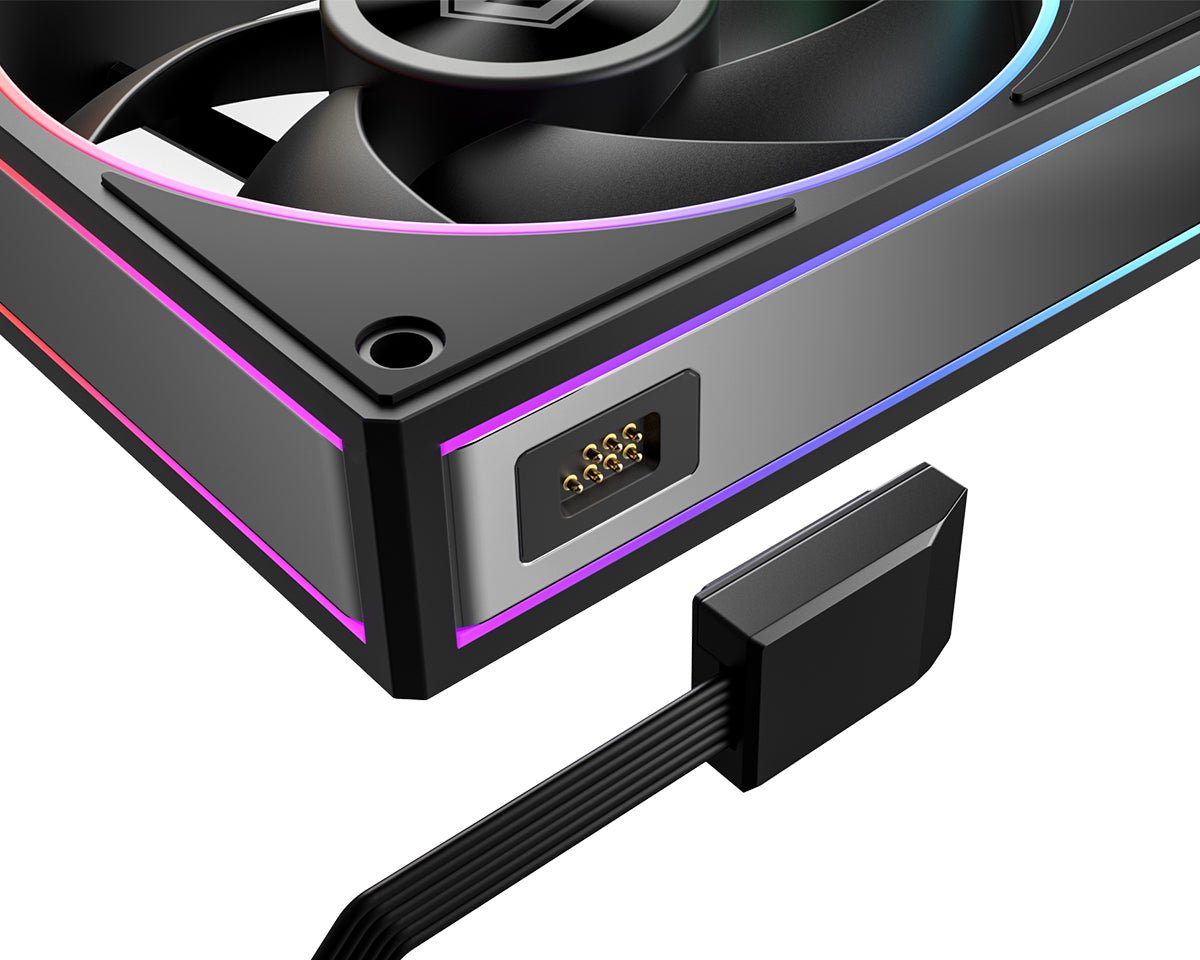

MAGNETIC CONTACT MODULARITY

Pin-to-Pin Magnetic Quick-Snap Daisy Chaining

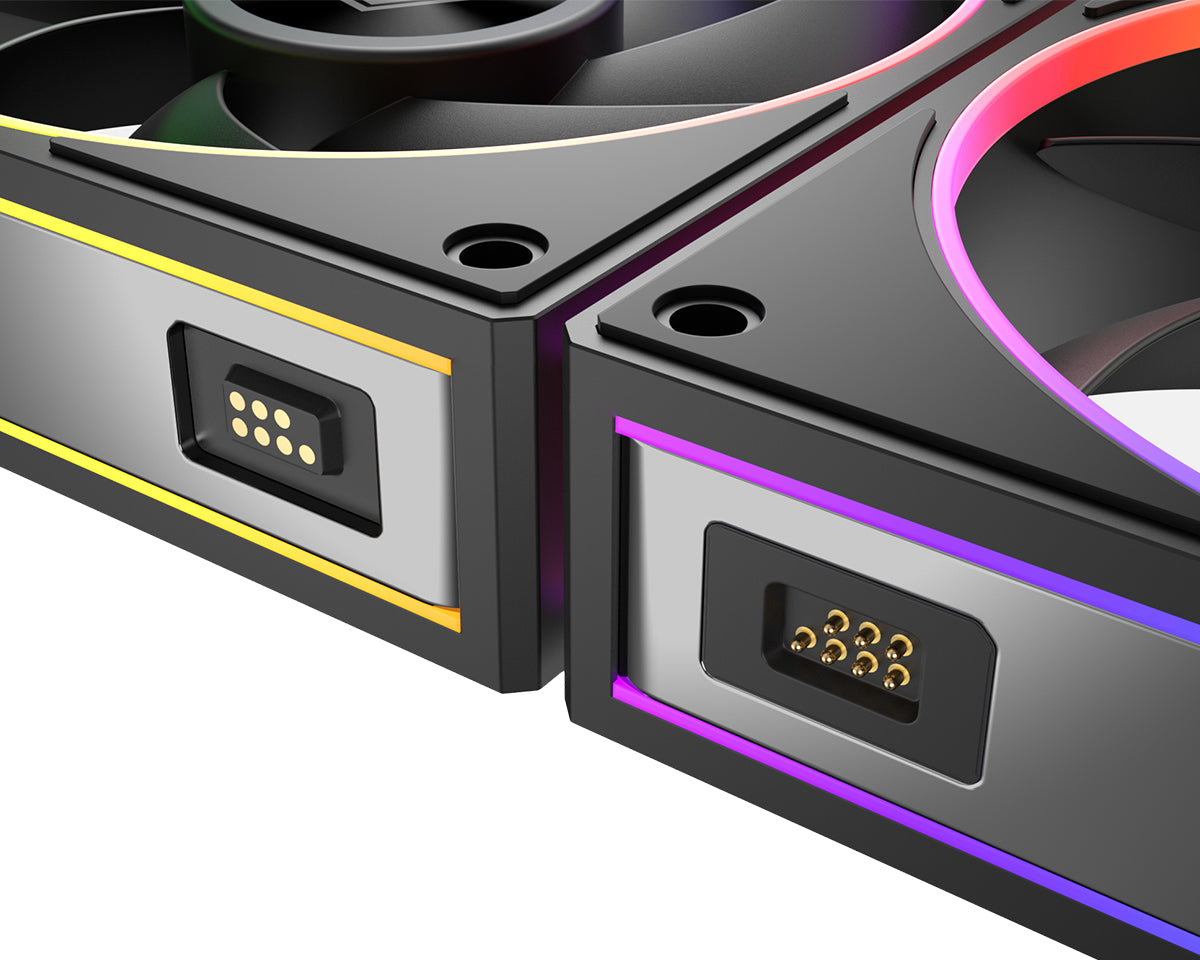

Integrated neodymium magnets align the fans instantly while gold-plated pogo pins transmit PWM power and ARGB telemetry across the trio without intermediate wiring.

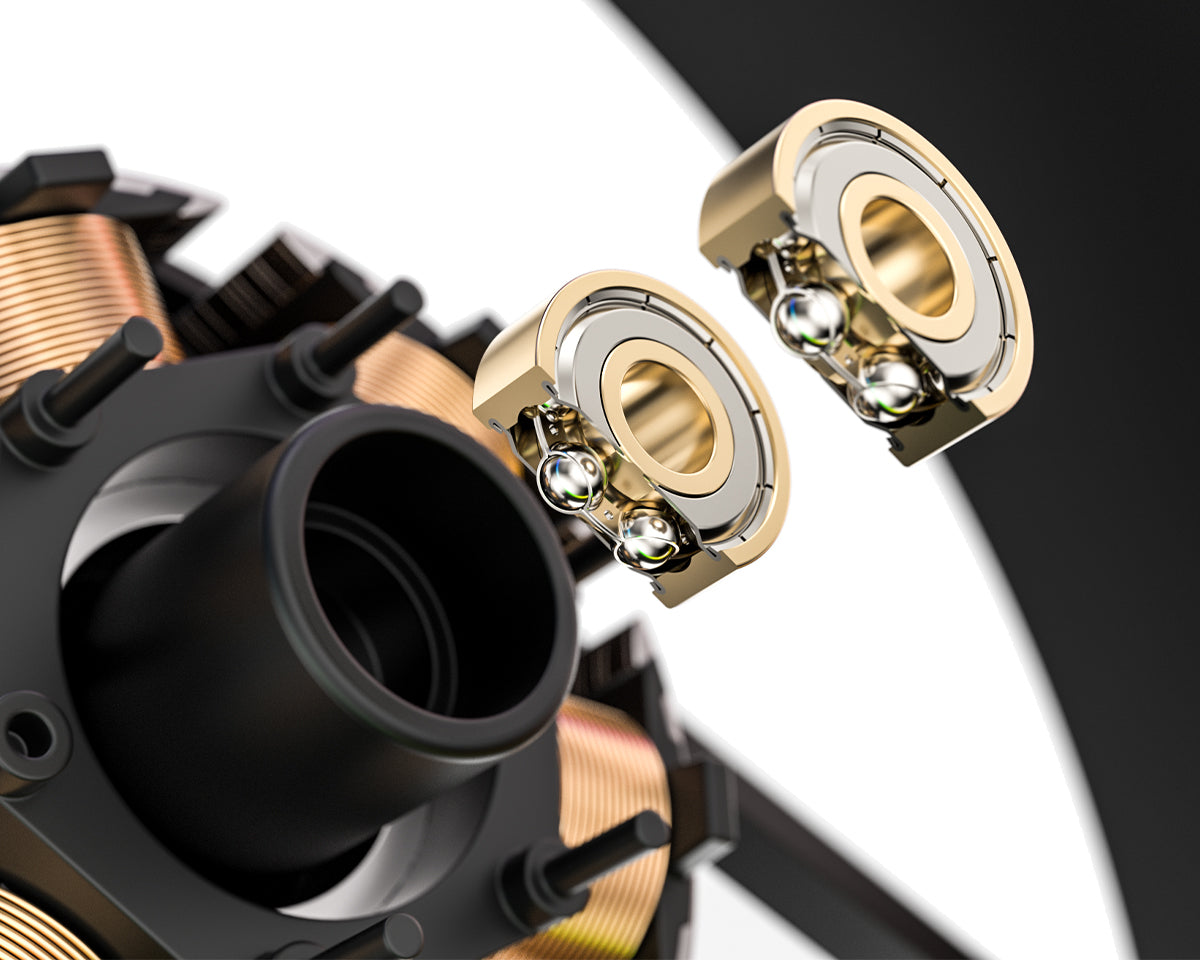

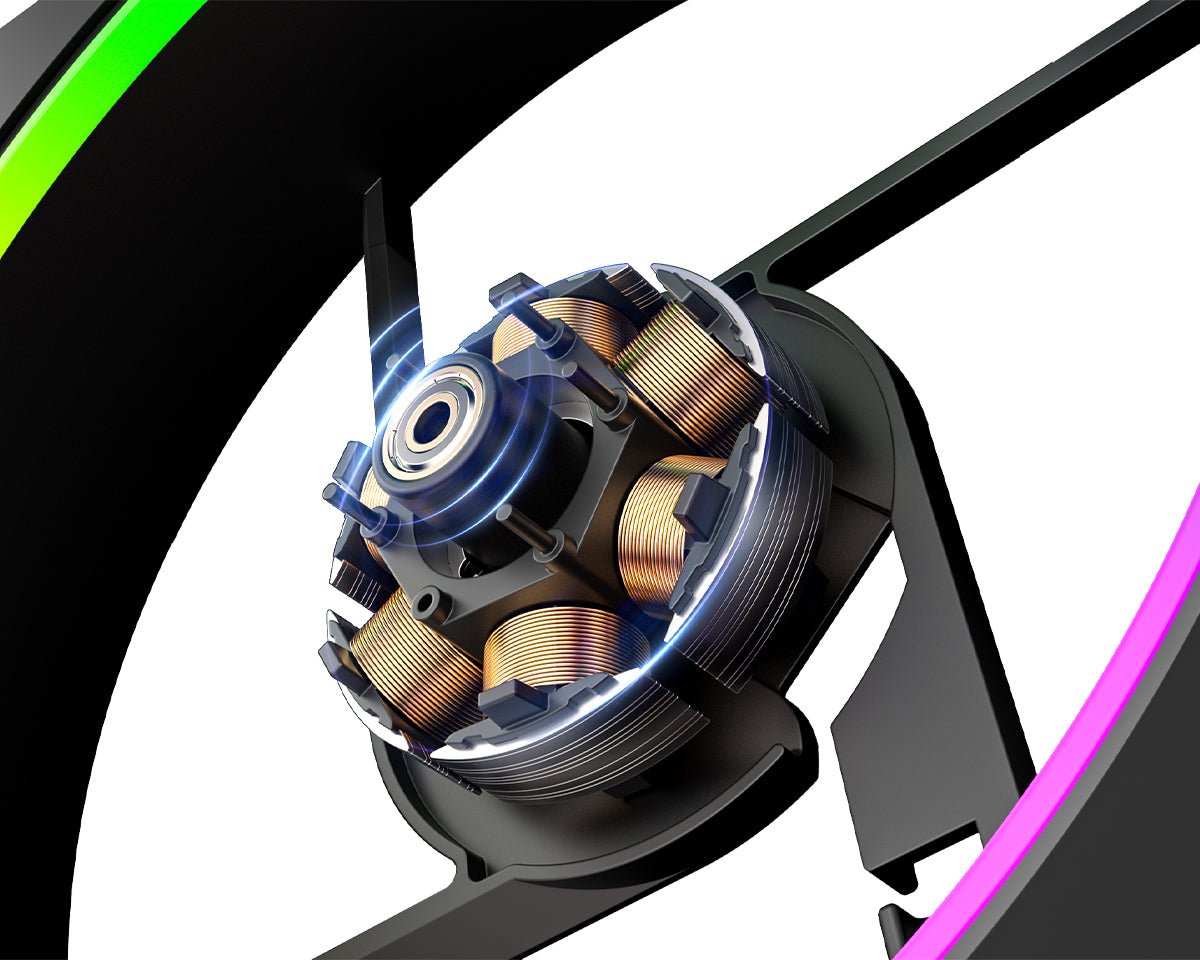

INDUSTRIAL DUAL BALL BEARINGS

Heavy-Duty Dual Ball Bearings with 100,000-Hour Longevity

Engineered for harsh thermal environments and horizontal orientation without lubricant breakdown or degradation, ensuring ultra-reliable operation across years of intensive gaming.

VIBRATION-FREE STABILITY

Thick Silicone Corner Isolation Dampeners & Complete Accessory Kit

Supplied with extra-long 35mm radiator screws, chassis mounting hardware, and thick pre-applied silicone corner pads to prevent case acoustic resonance.

Complete Your High-Performance Rig

Pair these cooling fans with high-airflow cases, AIO liquid coolers, and hardware from AHW Store

Processors (CPUs)

Intel Core Ultra & AMD Ryzen 9000 flagship silicon.

View CPUs ↗

CPU Coolers

360mm / 420mm Liquid AIOs & High-TDP dual tower coolers.

View Coolers ↗

Power Supplies (PSUs)

ATX 3.1 & PCIe 5.1 Gold/Platinum high-efficiency power.

View PSUs ↗

Graphics Cards

GeForce RTX 50 & 40 Series triple-fan GPUs.

View GPUs ↗

Verified Technical Specifications Official Engineering Datasheet

Fan Model	ID-COOLING MF-1230-ARGB-K TRIO (3-Pack)
Dimensions	120 x 120 x 30 mm (per fan)
Bearing Type	Industrial Dual Ball Bearing
Rotational Speed	500 - 2000 RPM ±10% (PWM Controlled)
Airflow Volume	82.5 CFM (Max)
Static Pressure	3.42 mmH2O (Max)
Acoustic Noise Level	16.0 - 32.5 dBA
Frame Thickness	30 mm (Deep Performance Profile)
Interconnection	Magnetic Pin-to-Pin Snap Link
Rated Voltage / Current	12V DC / 0.25A (Fan) \| 5V DC / 0.45A (LED)
Lighting Connector	Standard 3-Pin 5V Addressable RGB

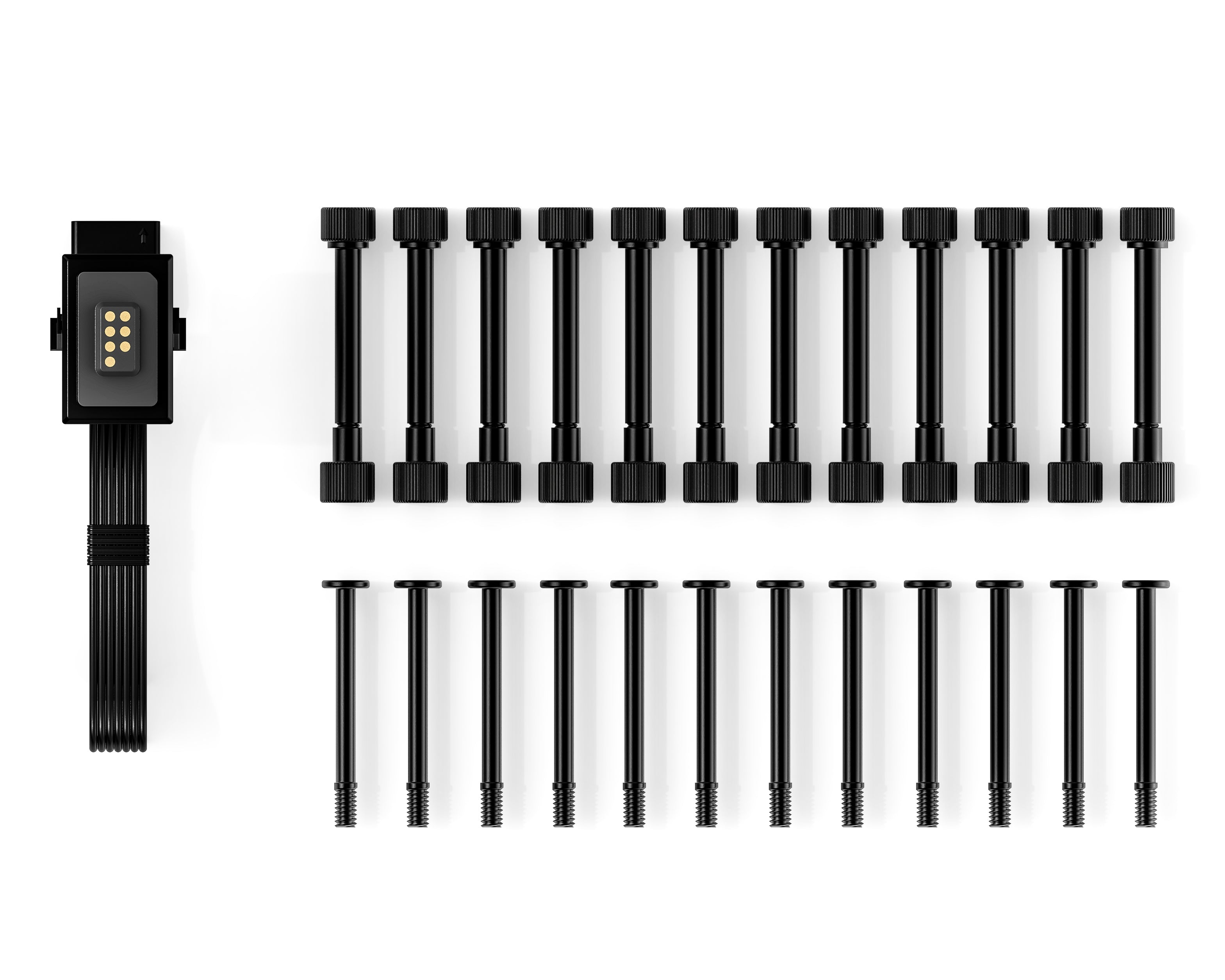

Box Contents	3x MF-1230 Fans, Modular Master Cable, 35mm Radiator Screws, Case Screws

Frequently Asked Questions & Store Policies

What makes the 30mm thickness superior to standard 25mm fans?

The extra 5mm frame depth allows longer blade surface area and steeper aerodynamic angles. This generates roughly 25-30% more static pressure, driving air through dense radiator fins and dust filters far more effectively.

How does the magnetic interlocking system work?

Strong internal magnets pull adjacent fans into perfect alignment, while spring-loaded gold contact pins transmit both PWM motor control and 5V ARGB lighting signals. You only connect a single master cable from the end of the cluster to your motherboard.

Are special screws included for 30mm radiator mounting?

Yes! The package includes extended 35mm length radiator screws designed specifically to pass through the 30mm frame and thread securely into standard AIO radiators.

Are these cooling fans compatible with standard PC cases and AIO radiators?

Yes, these fans follow industry-standard 120mm/140mm mounting screw hole spacing, making them fully compatible with all standard PC case fan brackets, liquid cooling AIO radiators, and custom water cooling loops.

How do I control the PWM speeds and ARGB illumination?

The standard 4-pin PWM header connects to your motherboard CPU/SYS_FAN headers for dynamic thermal control, while the standard 3-pin 5V ARGB header synchronizes with motherboard software (ASUS Aura, MSI Mystic Light, Gigabyte RGB Fusion, Razer Chroma) or an included controller hub.

What warranty coverage is included with these cooling fans?

All cooling fans and accessories purchased at AHW Store include official authorized manufacturer warranty with direct local technical support and replacement. Details in our Warranty Policy ↗.

What payment and installment plans are available in Egypt?

We offer cash on delivery, credit cards, and flexible 0% interest installment plans through ValU, Sympl, Forsa, and bank credit cards. See our Payment & Installments Guide ↗.

How fast is shipping and delivery across Egypt?

Orders are delivered within 2 to 7 business days across all Egyptian governorates in reinforced protective armored packaging. See Shipping Policy ↗.

Can AHW Store install and wire these fans in my custom PC build?

Yes! Our certified hardware engineers can install cooling fans, daisy-chain ARGB headers, and calibrate custom thermal RPM fan curves in your build. Explore our Custom PC Builder ↗.
