Intel® Core™ i5-12400F Tray | 6 Performance-Cores · 12 Threads · Up to 4.4 GHz
The i5-12400F is Intel's 12th-gen Alder Lake six-core for LGA 1700: 6 Performance-cores and no Efficient-cores, so all 12 threads run on the same core type, boosting to 4.4 GHz from a 2.5 GHz base with 18 MB Intel Smart Cache and 7.5 MB of L2. It draws 65 W base / 117 W maximum turbo, works with DDR4-3200 or DDR5-4800 boards, and provides PCIe 5.0 and 4.0 lanes (20 total). The F suffix means no integrated graphics, and Tray means the bare processor with no Intel box cooler.
Six Identical Fast Cores
With only Performance-cores there is no P-core / E-core scheduling to manage, and 4.4 GHz single-core boost keeps esports titles and mainstream AAA games responsive when paired with a discrete graphics card.
12 Threads at 65 W
Hyper-Threading gives 12 threads for browser-heavy work, photo editing and light video exports, while the 65 W base power keeps a budget tower quiet on a single tower air cooler.
Silicon Architecture & Visual Engineering
Verified packaging, cache hierarchy, and microarchitecture breakdown

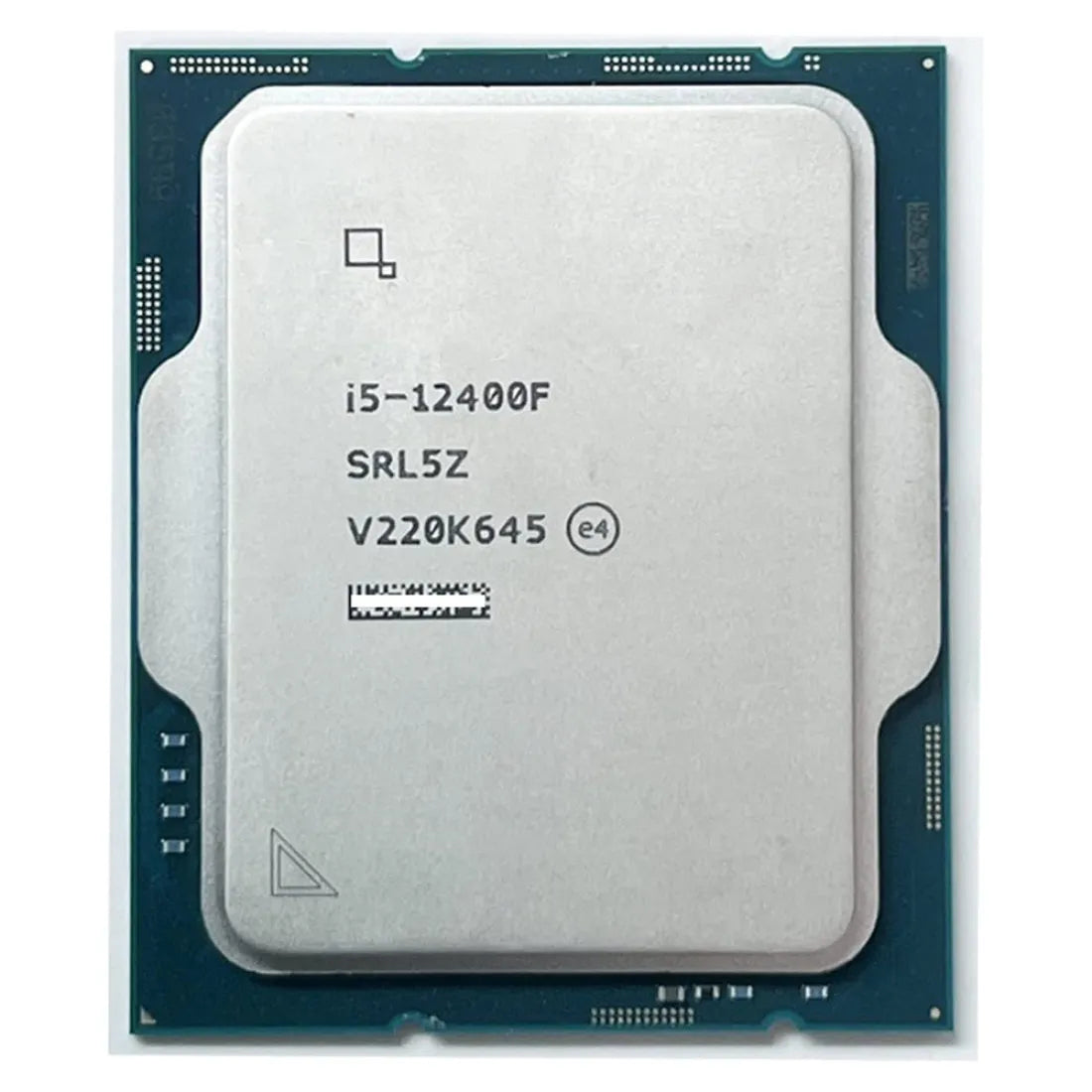

Genuine i5-12400F Silicon — SRL5Z Marking
The store's photo of the processor itself: the heat spreader is laser-marked i5-12400F with Intel spec code SRL5Z, and the LGA 1700 package is the elongated rectangle that fits every 600- and 700-series Intel board. Tray units ship as the bare CPU — budget a cooler.
LGA 1700 Spec Comparison (Intel ARK)
Bar length = thread count. Every figure from Intel's official product specifications.
Hardware Synergy & System Pairing Guide
Recommended motherboard, cooling, RAM sweet spot, and power requirements
Technical Specifications Matrix
Verified hardware specifications directly from manufacturer datasheets
| Processor | Intel® Core™ i5-12400F (Tray) |
|---|---|
| Code Name / Lithography | Alder Lake · Intel 7 |
| Launch | Q1'22 |
| Socket | FCLGA1700 |
| Cores / Threads | 6 (6 P-cores, 0 E-cores) / 12 |
| P-core Base / Max Turbo | 2.5 GHz / 4.4 GHz |
| Intel Smart Cache (L3) | 18 MB |
| Total L2 Cache | 7.5 MB |
| Processor Base Power | 65 W |
| Maximum Turbo Power | 117 W |
| Memory Types | Up to DDR5-4800 / DDR4-3200, 2 channels |
| Max Memory / Bandwidth | 128 GB / 76.8 GB/s |
| PCI Express | PCIe 5.0 and 4.0, up to 1×16+4 or 2×8+4 (20 lanes) |
| Chipset Link | DMI 4.0 x8 |
| Integrated Graphics | None — discrete graphics card required |
| Box Contents | Tray: processor only, no cooler |
| Max Operating Temperature | 100 °C |
