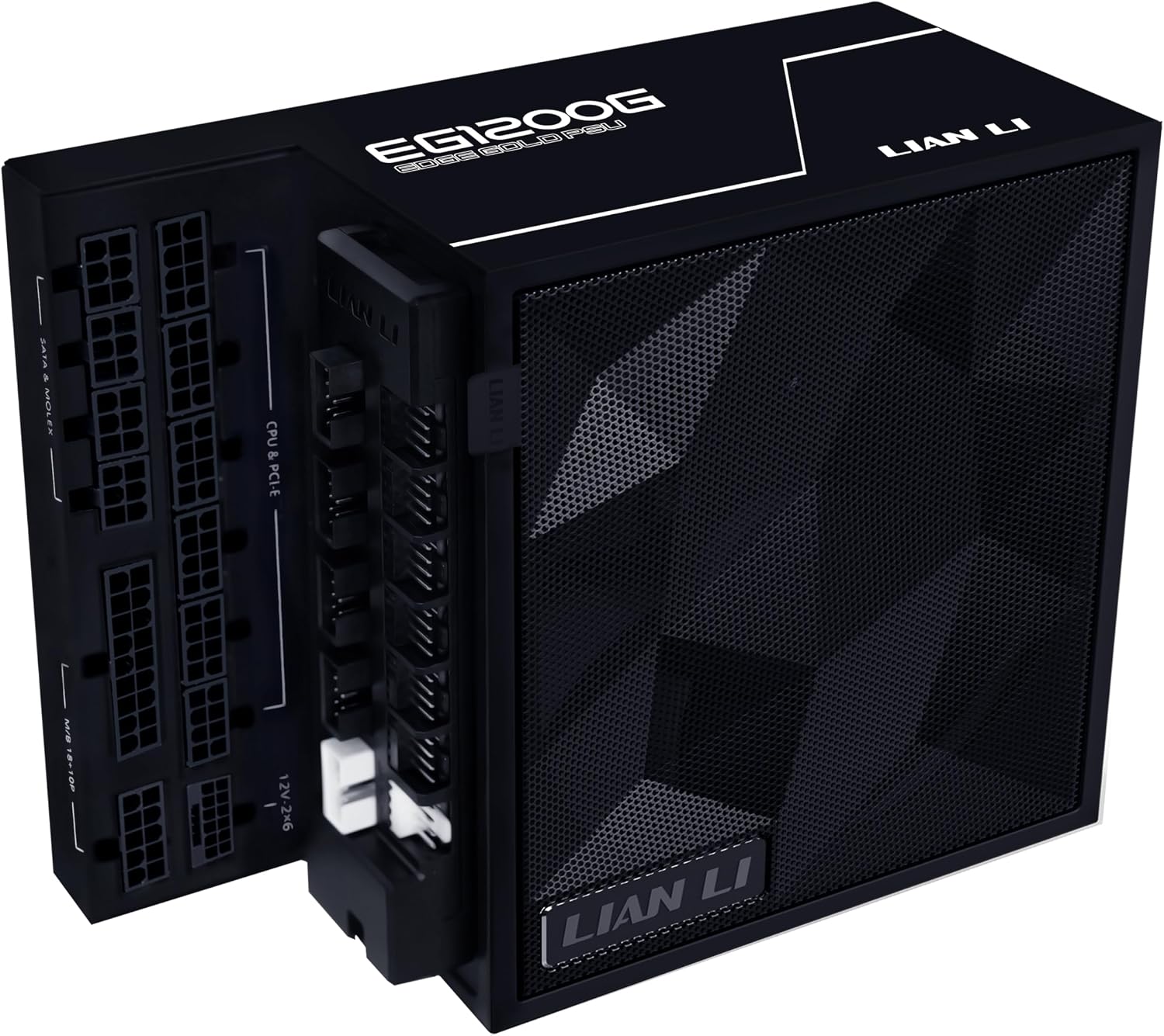

Lian Li Edge Gold EG1200G 1200W 80 Plus Gold PCIe 5.1 ATX 3.1 Full Modular Power Supply
Hurry up! Only 1 item(s) items left in stock
Couldn't load pickup availability
Secure Payment Methods
Cash on delivery and various payment options and installment plans.
Fast and Secure Shipping
Receive your order within 2 to 5 business days.
Customer Service
Technical support from 10 am to 12 pm.
Warranty Coverage
Enjoy a 6-month to 3-year warranty through us with distributors.
Lian Li Edge Gold 1200W 80 Plus Gold PCIe 5.1 ATX 3.1 Full Modular Power Supply
The Lian Li Edge Gold 1200W is a breakthrough power supply purpose-built for dual-chamber and modern panoramic chassis. Featuring an innovative L-shaped outward connector array, an integrated 4-port USB 2.0 expansion hub for AIO coolers and RGB controllers, and native 600W 12V-2x6 PCIe 5.1 connectivity, it delivers rock-solid electrical delivery with unprecedented installation ergonomics.
Next-Gen Gaming & High-Power GPU Demands
Built to effortlessly handle modern gaming silicon. The heavy-duty 100A single +12V rail delivers full continuous capacity, easily soaking up 200% power spikes without triggering false OCP shutoffs during intense gaming sessions with high-demand graphics cards.
Dual-Chamber Clean Cable Routing & Workstation Hub
Engineered for cases like the Lian Li O11 Dynamic series. The outward L-shaped connector bay turns cables 90 degrees toward the cable management chamber, eliminating bends against the side panel. The built-in 4-port USB header hub powers AIO displays and RGB controllers without daisy-chain clutter.
Power Architecture & Thermal Highlights
Revolutionary L-Shape Outward Connector Architecture
Traditional power supplies force thick cables to bend tightly against the chassis side panel in dual-chamber cases. Lian Li's patented L-shaped profile positions modular headers outwardly into the cable channel, making plugging and swapping cables completely effortless even with the PSU fully secured.
Integrated 4-Port Internal USB 2.0 Header Hub
Modern builds demand multiple internal 9-pin USB headers for liquid coolers, LCD displays, UNI FAN hubs, and Strimer Plus cables. The Lian Li Edge integrates an active 4-port USB hub directly on the power supply casing, eliminating external splitters and routing spaghetti.
100% German EPCOS Capacitors & LLC Resonant Topology
Engineered with top-tier industrial EPCOS capacitors from Germany rated for operation at up to 105°C, ensuring rock-solid DC voltage regulation with negligible ripple noise under heavy continuous 1200W workloads.
120mm FDB Fan with Zero RPM Intelligent Silent Mode
A precision fluid dynamic bearing (FDB) 120mm fan draws cool air through an open mesh grille. When operating under low to medium load thresholds, the fan stops completely to ensure total 0dB acoustic silence in your room.
Recommended Component Synergy
Processors (CPUs)
Continuous clean power delivery for multi-threaded CPUs under maximum boost.
Graphics Cards (GPUs)
Native 12V-2x6 single-cable feeding RTX 40 & 50 series graphics cards.
Motherboards
Dual EPS 8-pin connectors to feed reinforced VRM power stages.
PC Cases
Compact chassis length ensuring generous cable management clearance.
Build Your Dream Custom PC with Certified AHW Engineers
Select 100% compatible components and let our engineers assemble, cable-manage, and stress-test your rig.
Comprehensive Hardware Specifications
| Continuous Output Power | 1200 Watts (100A Dedicated +12V Rail) |
| Efficiency Certification | 80 PLUS® Gold Certified (Cybenetics Platinum Efficiency) |

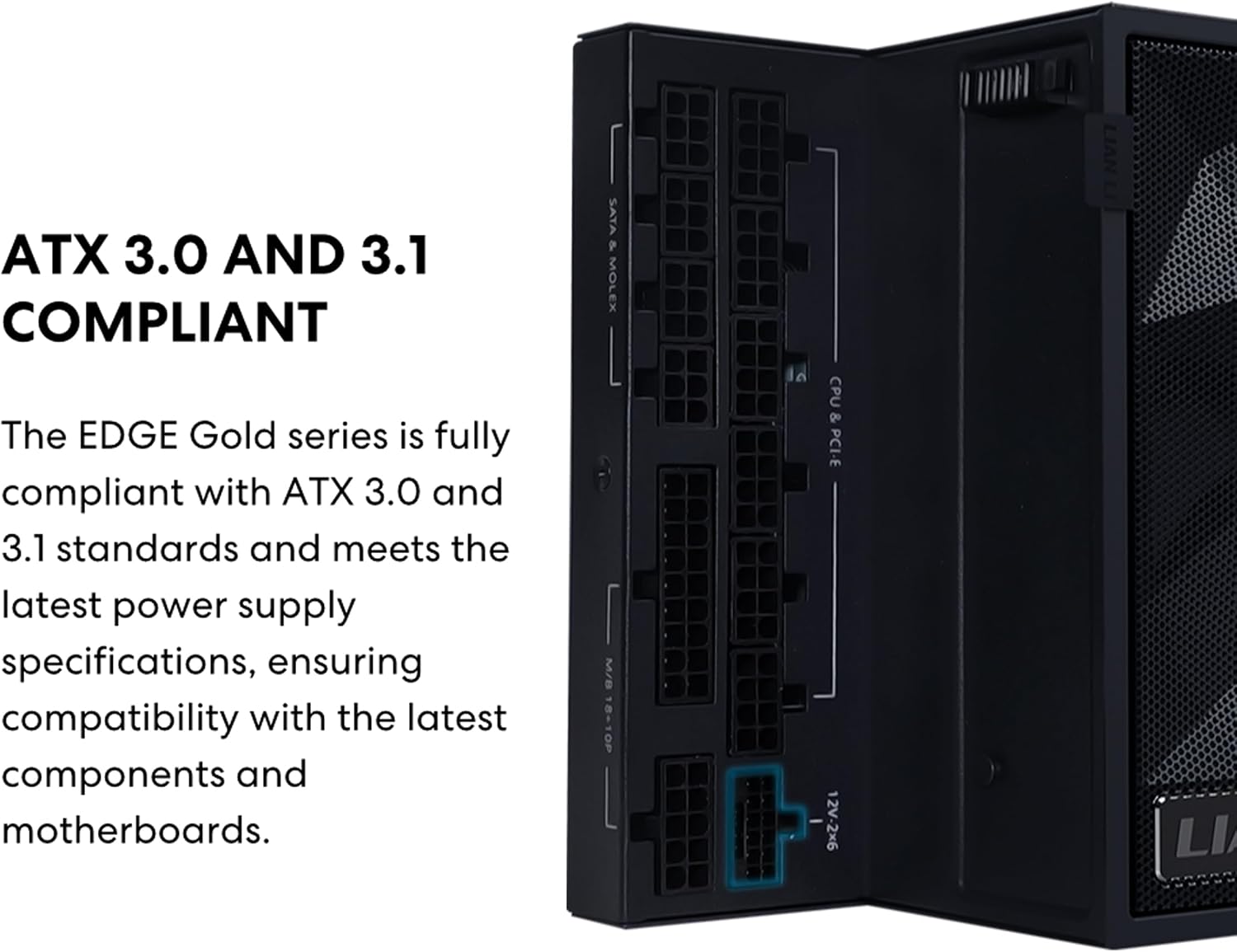

| Standard & Compliance | Intel ATX 3.1 & PCIe 5.1 (ATX 12V v3.1) |
| Special Form Factor | Patented L-Shaped Modular Connector Array for Dual-Chamber Cases |

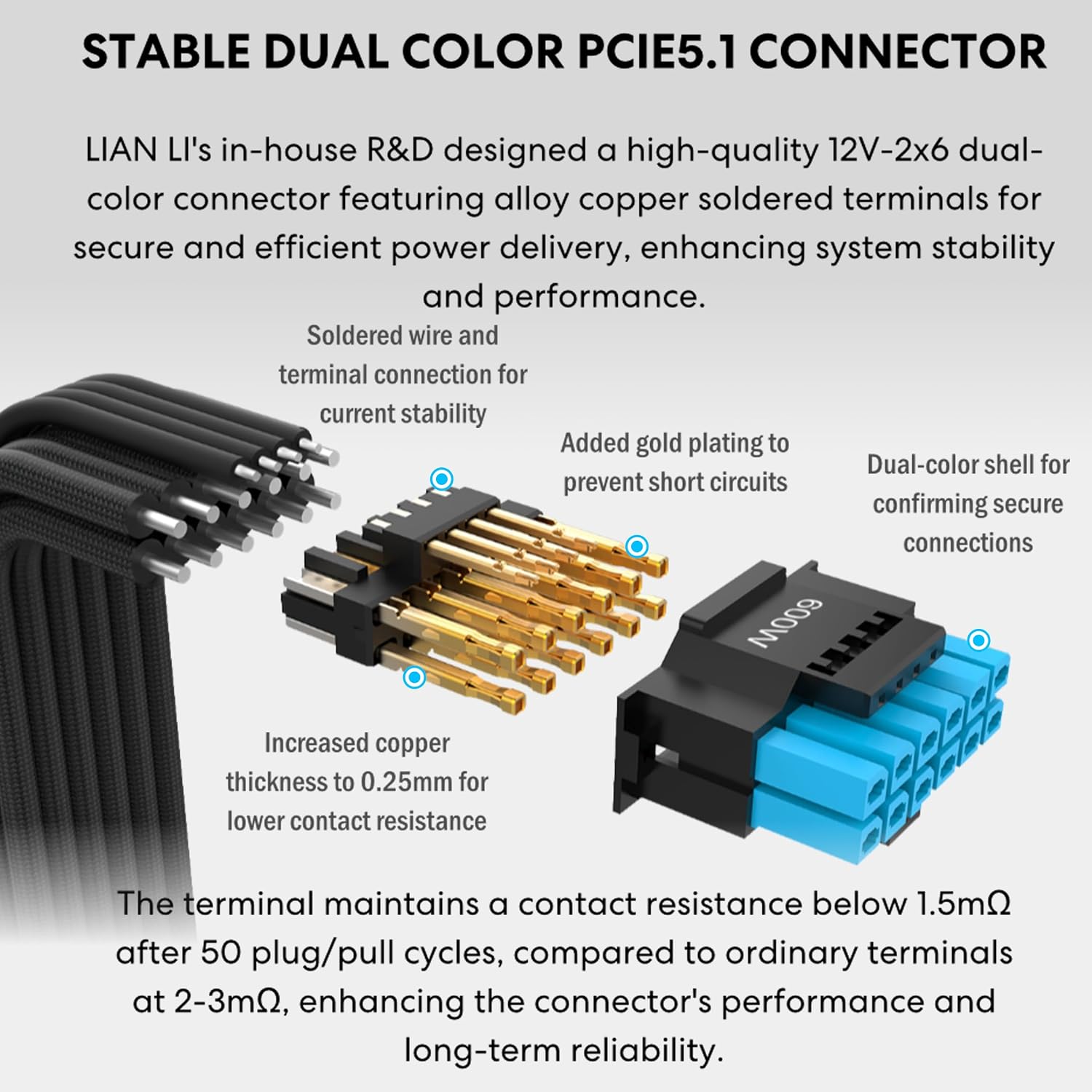

| PCIe 5.1 12V-2x6 Cable | 1x Native 16-Pin 12V-2x6 Dual-Color Cable (Up to 600W Direct GPU) |
| PCIe 6+2 Pin Connectors | 6x Independent PCIe 6+2 Pin Headers for Graphics Cards |
| CPU EPS Connectors | 2x 8(4+4)-Pin EPS Headers for Modern Motherboards |
| Motherboard Connector | 1x 24(20+4)-Pin Main ATX Header |
| Built-in USB Header Hub | 4x Internal USB 2.0 9-Pin Headers (Active Powered via PSU) |
| SATA & Peripheral Ports | 12x SATA Connectors + 4x 4-Pin Peripheral Molex |
| Internal Capacitors | 100% German EPCOS Industrial Grade Capacitors (Rated 105°C) |
| Cooling Fan & Bearing | 120mm Fluid Dynamic Bearing (FDB) Fan with Zero RPM Mode |
| Industrial Protections | OCP, OVP, UVP, SCP, OPP, OTP (Complete Suite) |
| Dimensions (L x W x H) | 182 mm x 150 mm x 86 mm (L-Shaped Chassis) |
