LIAN LI

Lian Li O11 Dynamic EVO XL Full Tower Case, White

The enlarged O11 EVO: glass front and side with a removable front pillar, room for three 420 mm radiators, a reversible layout and seven drive mounts. It ships without fans, so you choose your own.

Full Tower, E-ATX3 × 420 mm RadiatorsGPU up to 460 mmReversible LayoutFans Not Included
Highlights

What It Does Well

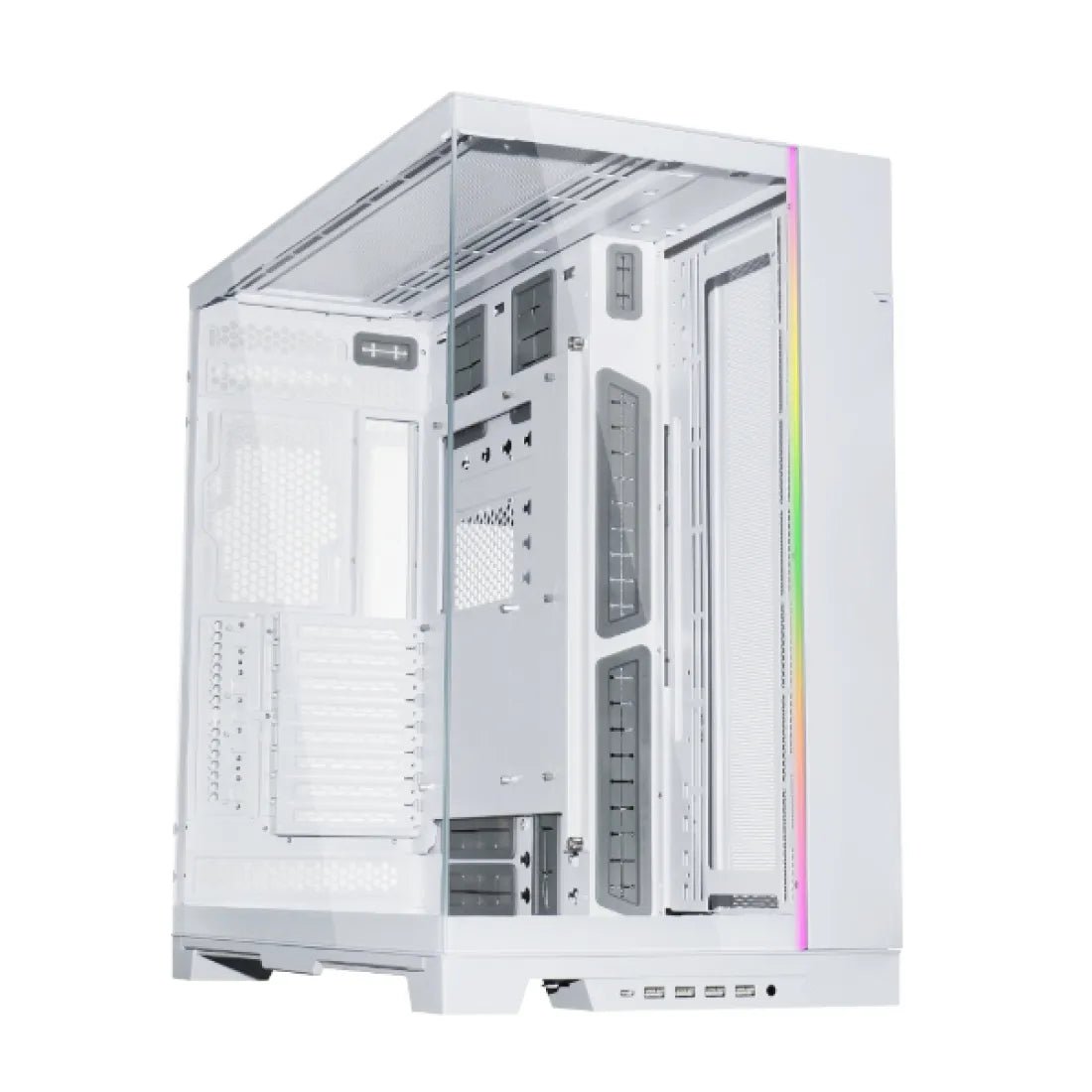

Lian Li O11 Dynamic EVO XL with glass front and side and the ARGB strip in the front pillar

Glass Front and Side, ARGB Strip

Tempered glass on the front and side meets at a pillar that can be removed for an uninterrupted view of the parts. The ARGB strip in that pillar has built-in effects or follows the motherboard.

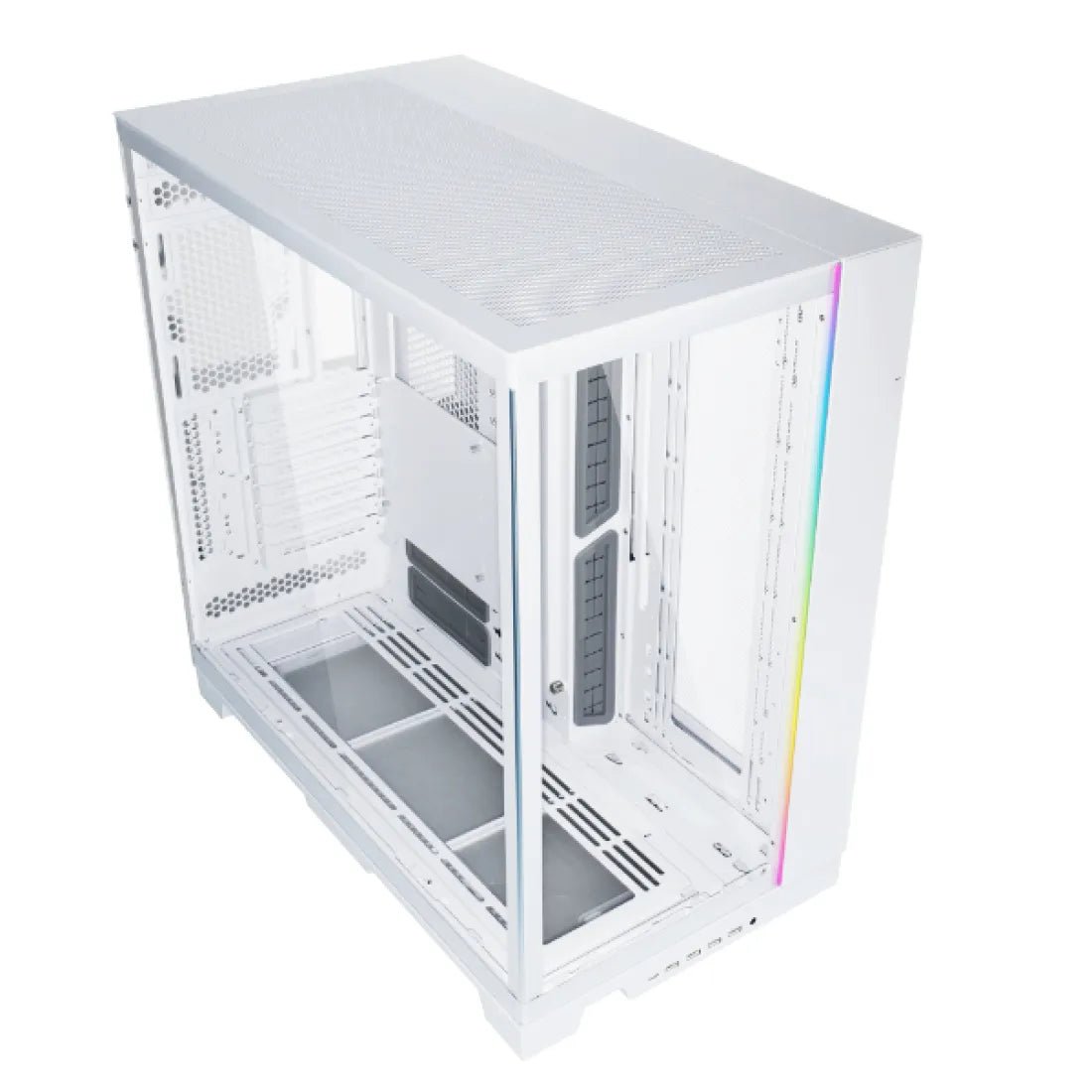

O11 Dynamic EVO XL seen from above, showing the open bottom fan mounts

Three 420 mm Radiator Mounts

Top, side and bottom each take up to a 420 mm radiator or three 140 mm fans. The bottom is fully open with a nylon filter tray; the top and side mesh panels have magnetic filters.

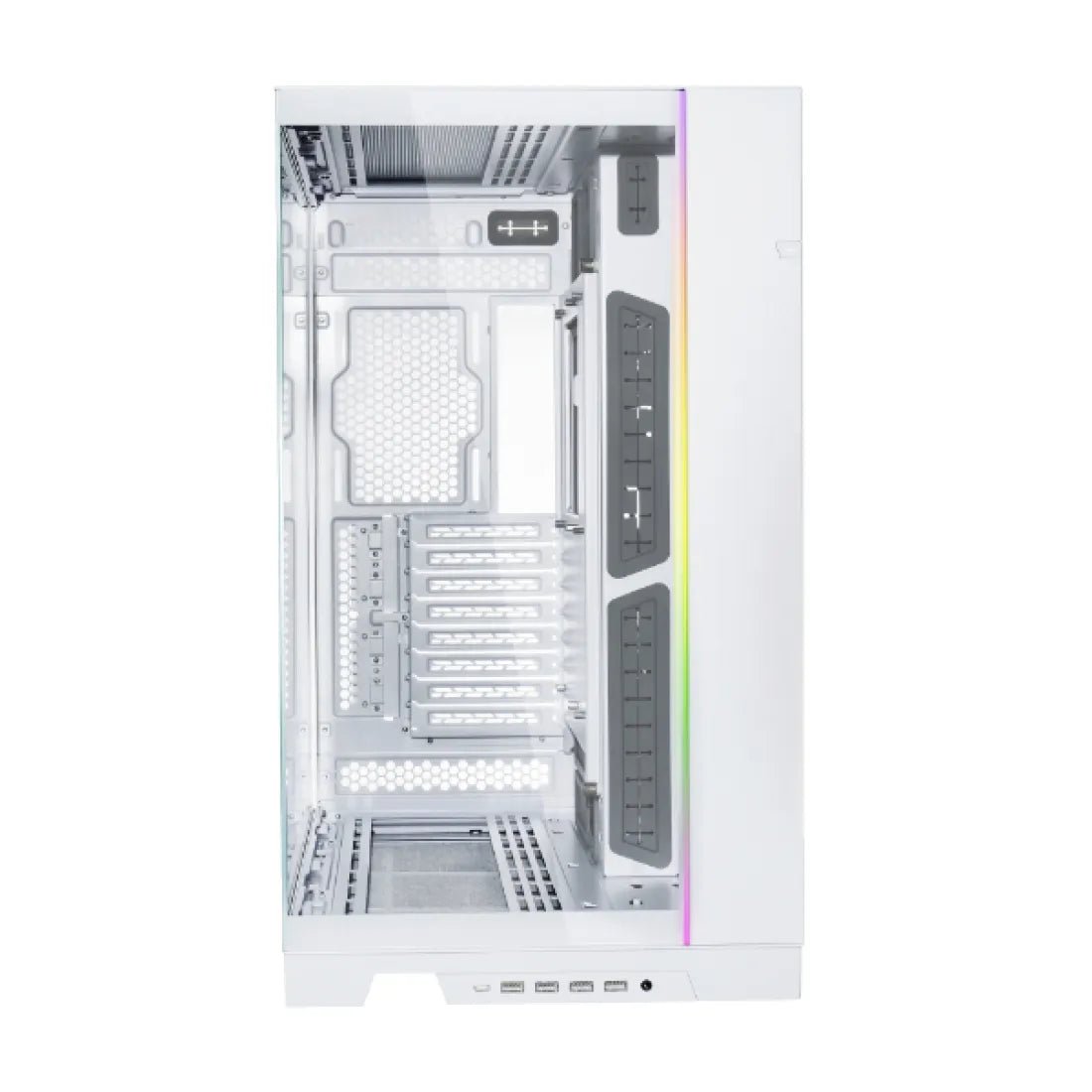

O11 Dynamic EVO XL with its I/O module at the base of the front

Relocatable I/O Module

The ports sit in a module at the base: USB Type-C, four USB 3.0, audio, and power, reset and LED buttons. It moves to three positions without tools. Behind the glass, the rear chamber holds the power supply, drives, cables and a hidden D5/DDC pump mount.

Technical Datasheet

Verified Specifications

Brand Lian Li
Model O11 Dynamic EVO XL (O11DEXL-W)
Colour White
Case Type Full tower, dual chamber
Dimensions (D × W × H) 522 × 304 × 531.9 mm
Materials Steel, aluminium, 4 mm tempered glass
Motherboard Support E-ATX (under 280 mm), ATX, Micro-ATX, Mini-ITX
Expansion Slots 8
Front I/O Power, Reset, 4 × USB 3.0, 1 × USB Type-C, audio, LED colour and mode buttons (relocatable module)
Fans Included None
Fan Support Top 3 × 120/140 mm · Side 3 × 120/140 mm · Bottom 3 × 120/140 mm · Rear up to 2 × 120 mm
Radiator Support Top, side and bottom: 240 / 280 / 360 / 420 mm each
Max GPU Length 460 mm
Max CPU Cooler Height 167 mm
PSU ATX, under 220 mm
Storage 3 × 2.5" behind the tray + 4 × 3.5"/2.5" in the cages
Lighting Front ARGB strip, motherboard sync
Dust Filters 1 bottom, 1 top, 2 side
Manufacturer Warranty 1 year
Complete Your Setup

Pair It With

FAQ

Product Questions & Store Policies

Does it come with fans?
No. The O11D EVO XL ships without fans. It takes up to 11: three each on top, side and bottom, and two at the rear.
How large a graphics card and CPU cooler fit?
Graphics cards up to 460 mm; air coolers up to 167 mm tall, so most builds in this case use liquid cooling. Pick the parts in our PC Builder ↗: it checks graphics card length and cooler height against this case for you.
Can I really fit three 420 mm radiators?
Yes. Lian Li lists 240 to 420 mm on the top, side and bottom mounts. The motherboard tray moves to three heights to make room for thick radiator and fan stacks.
What lighting does it have?
An ARGB strip in the front pillar with built-in effects, set with the case's LED buttons or synced to the motherboard.
What is reverse mode?
The case can be rebuilt as a mirror image so the window faces the other way. Lian Li notes that some units need a 400 mm audio extension cable for it.
