MSI GeForce RTX 5080 16G SHADOW 3X OC: Triple-Fan Blackwell for 4K and High-Refresh 1440p

The SHADOW 3X OC (G5080-16S3C) is MSI's performance-first RTX 5080: NVIDIA's Blackwell GPU with 10,752 CUDA cores and 1801 AI TOPS, 16 GB of GDDR7 at 30 Gbps on a 256-bit bus, and a 2640 MHz boost clock (2655 MHz in MSI Center's Extreme Performance mode). Three TORX FAN 5.0 fans sit over a nickel-plated copper baseplate and square Core Pipes, and at 303 mm it still qualifies as an SFF-Ready Enthusiast GeForce Card. It draws 360 W through one 16-pin connector, with an 850 W PSU recommended.

16GB GDDR7 · 256-bit10,752 CUDA Cores2640 MHz BoostPCIe 5.01× 16-pin · 850W PSU303 mm · SFF-Ready

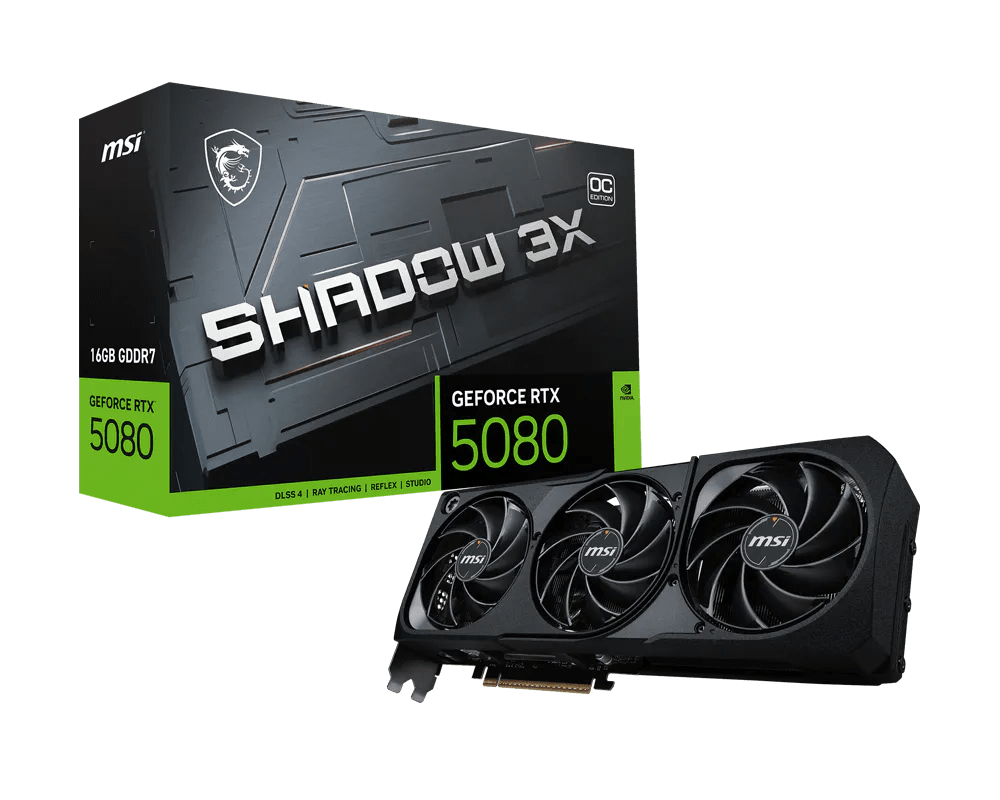

MSI GeForce RTX 5080 16G SHADOW 3X OC graphics card with its retail box

🎮 4K and High-Refresh 1440p Gaming

Fifth-gen Tensor cores run NVIDIA DLSS with Multi Frame Generation in supported games, fourth-gen RT cores handle ray and path tracing, and NVIDIA Reflex cuts system latency in competitive titles. 16 GB of 30 Gbps GDDR7 keeps 4K textures resident.

🧰 Creators, Streamers & Local AI

The ninth-gen NVIDIA Encoder speeds up exports and streams, NVIDIA Studio drivers keep creative apps stable, and 1801 AI TOPS accelerate local AI tools, NVIDIA Broadcast effects and RTX video enhancement.

Cooling & Build Quality

Four views of the card, each matched to what MSI engineered into it.

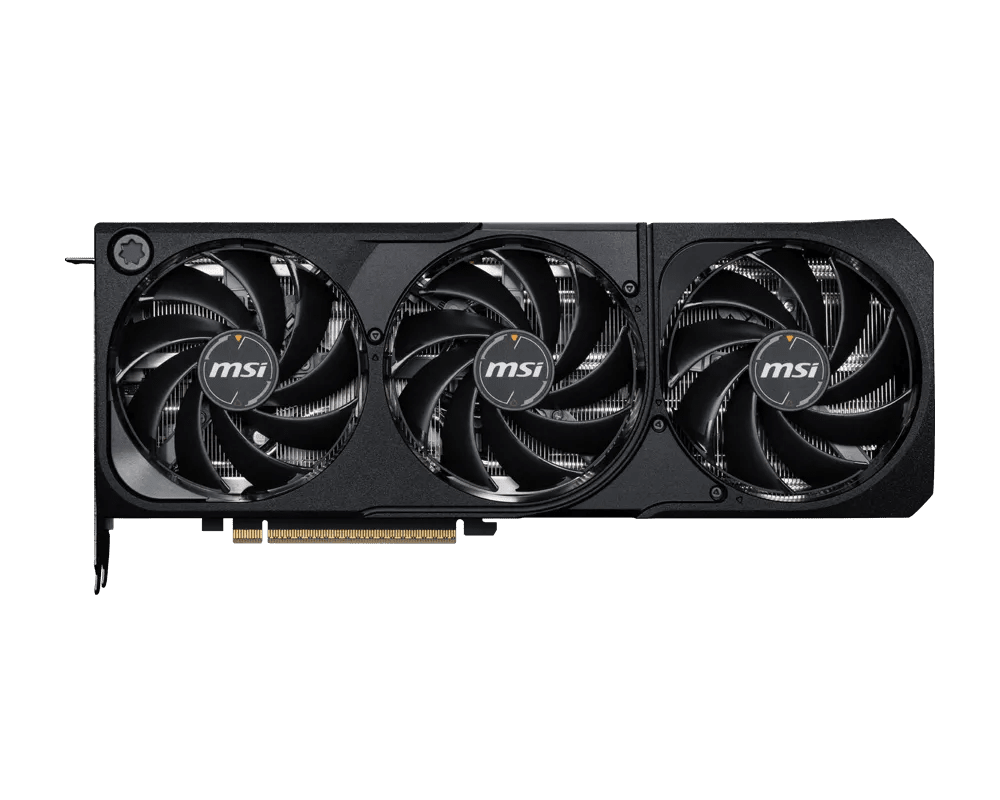

MSI RTX 5080 SHADOW 3X OC front view with three TORX FAN 5.0 fans
TORX FAN 5.0

Three TORX FAN 5.0 Fans

Ring arcs link each fan's 22-degree-tilted blades, which MSI rates at 23% more airflow than axial fans. With Zero Frozr the fans stop completely when temperatures are low and start again under gaming load.

MSI RTX 5080 SHADOW 3X OC top edge with heatsink fins, heat-pipes and 16-pin power socket
CORE PIPES

Copper Baseplate and Core Pipes

From the top edge you see the fin stack, the heat-pipes and the single 16-pin socket. A nickel-plated copper baseplate captures heat from the GPU and memory, and square Core Pipes maximise contact with it before spreading the heat across the heatsink.

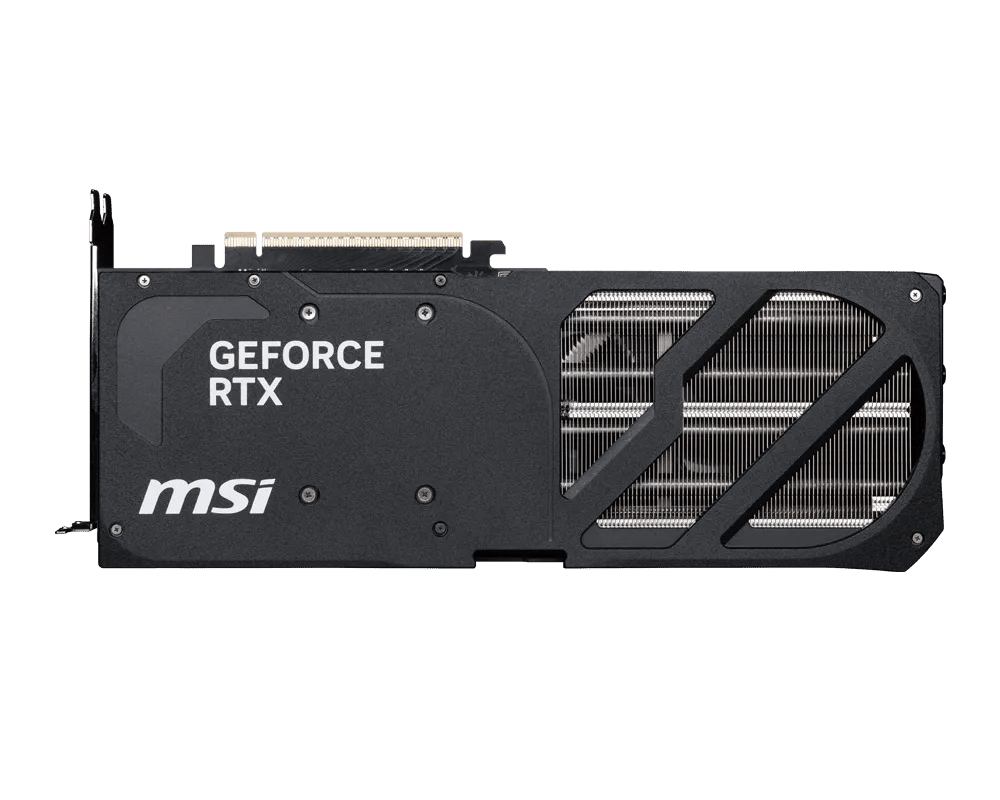

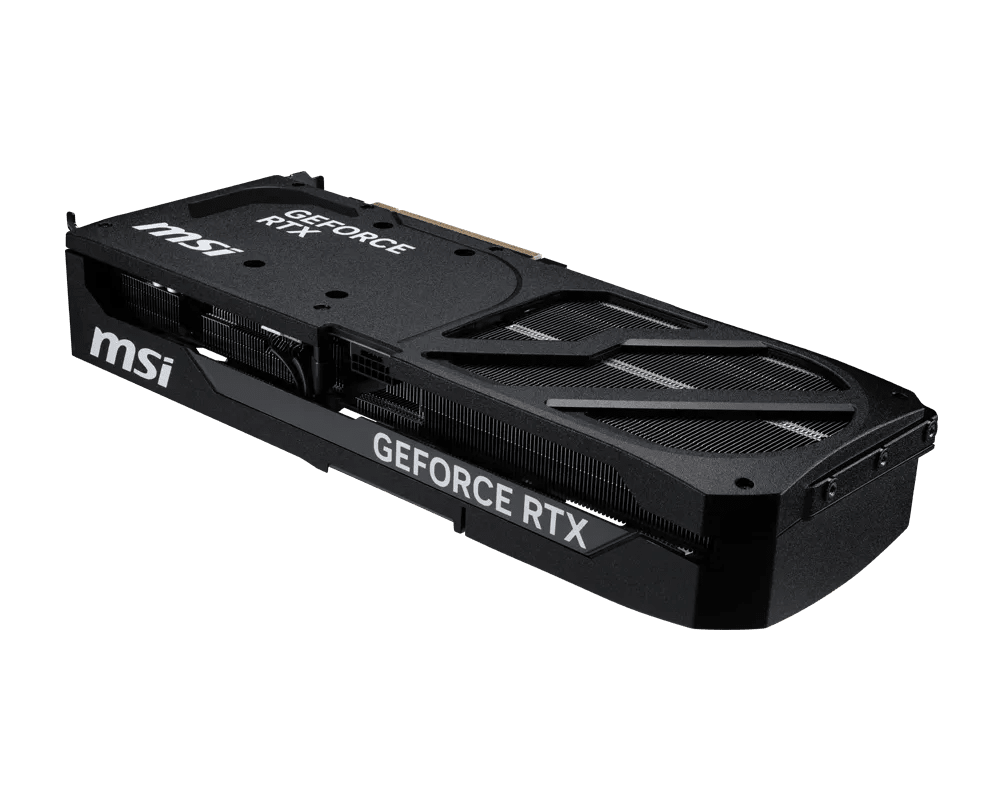

MSI RTX 5080 SHADOW 3X OC backplate with flow-through vent over the heatsink
REINFORCING BACKPLATE

Backplate with Flow-Through Vent

The reinforcing backplate stiffens the long card, and its large cut-out lets exhaust air from the third fan pass straight through the heatsink. Inside, an extra metal structure, a 2 oz copper PCB, extra fuses, DrMOS power stages and clay-based thermal pads add durability.

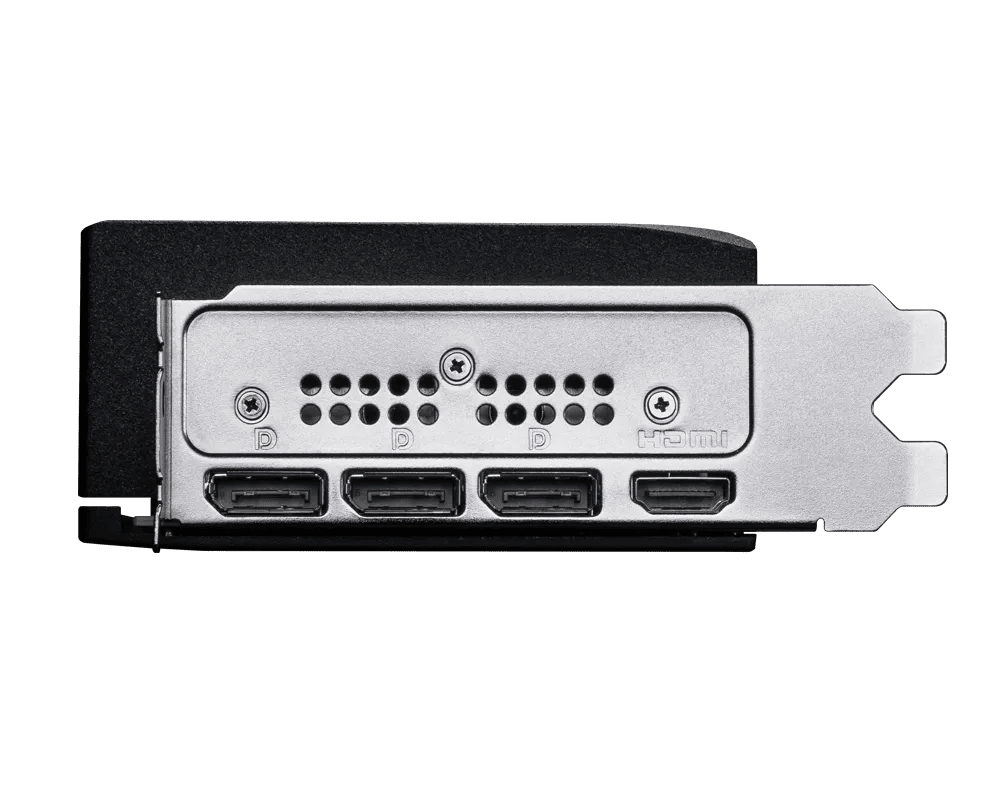

MSI RTX 5080 SHADOW 3X OC I/O bracket with three DisplayPort and one HDMI output
DP 2.1b · HDMI 2.1b

Four Display Outputs

The bracket carries three DisplayPort 2.1b outputs and one HDMI 2.1b (up to 4K 480 Hz or 8K 120 Hz with DSC), driving up to four displays at a digital maximum of 7680 × 4320, with G-SYNC support.

📊 AI Performance Index (AI TOPS)

AI TOPS measure the Tensor-core throughput behind DLSS and local AI features. Figures from NVIDIA's official specification pages.

Bar length = AI TOPS
MSI GeForce RTX 5080 16GB SHADOW 3X OC Graphics Card Black1801 AI TOPS
10,752 CUDA cores · 16 GB GDDR7 · 256-bit
21,760 CUDA cores · 32 GB GDDR7
8,960 CUDA cores · 16 GB GDDR7
6,144 CUDA cores · 12 GB GDDR7
Source: nvidia.com GeForce RTX 5090 (3352), RTX 5080 (1801) and RTX 5070 family (RTX 5070 Ti 1406, RTX 5070 988) specificationsThis index compares NVIDIA's AI TOPS ratings, not frame rate. No verified gaming benchmark for this exact card is published here.

Complete Build Pairing

Build around the RTX 5080 SHADOW 3X OC with parts available now at AHW Store:

⚡

Power Supplies

MSI recommends an 850 W power supply with a native 16-pin connector; an ATX 3.1 unit is recommended.

View PSUs ↗
🧠

Processors

A current eight-core or faster CPU keeps the RTX 5080 fed at high refresh rates.

View CPUs ↗
🖥️

Monitors

A 4K or high-refresh 1440p monitor is where this card's DLSS and ray tracing pay off most.

View Monitors ↗
🏗️

PC Cases

At 303 × 121 × 49 mm, check your case lists at least 303 mm of GPU clearance; a support stand ships in the box.

View PC Cases ↗

🛠️ Building a Complete PC?

Use AHW Store's PC Builder to check compatibility, and get professional assembly and stress-testing before delivery.

Launch PC Builder ➔

Verified Technical Datasheet

Official specifications from MSI's GeForce RTX 5080 16G SHADOW 3X OC specification page.

Model G5080-16S3C
Graphics Engine NVIDIA GeForce RTX 5080 (Blackwell)
AI Performance 1801 AI TOPS
Interface PCI Express Gen 5
Core Clocks Boost 2640 MHz · Extreme Performance 2655 MHz (MSI Center)
CUDA Cores 10,752
Memory 16 GB GDDR7
Memory Speed / Bus 30 Gbps / 256-bit
Outputs 3 × DisplayPort 2.1b · 1 × HDMI 2.1b (up to 4K 480 Hz or 8K 120 Hz with DSC)
Maximum Displays 4
Digital Max Resolution 7680 × 4320
Power Consumption 360 W
Power Connector 1 × 16-pin (ATX 3.1 PSU recommended)
Recommended PSU 850 W
Dimensions 303 × 121 × 49 mm
Weight (card / package) 1046 g / 1546 g
Cooling 3 × TORX FAN 5.0, nickel-plated copper baseplate, Core Pipes, Zero Frozr
APIs / Sync DirectX 12 Ultimate · OpenGL 4.6 · G-SYNC · HDCP

Frequently Asked Questions & Store Policies

Hardware guidance for this card and AHW Store purchase policies.

HardwareWhat power supply do I need?▾
MSI recommends an 850 W power supply. The card draws 360 W through a single 16-pin connector, and MSI recommends an ATX 3.1 PSU that provides one natively.
HardwareWill it fit my case?▾
It measures 303 × 121 × 49 mm. Check that your case lists at least 303 mm of GPU clearance. It is an SFF-Ready Enthusiast GeForce Card, so cases built for that standard take it.
HardwareDoes it come with a support bracket?▾
Yes. MSI bundles a support stand that attaches to the case and holds the card up. MSI notes it may not fit every case, so check the space under the card first.
HardwareWhy do the fans stop sometimes?▾
That is MSI Zero Frozr: when temperatures are low the fans stop completely to remove noise, and they spin up automatically when the GPU heats up in games.
HardwareCan I overclock or tune it?▾
Yes. MSI Center offers an Extreme Performance mode at 2655 MHz, and MSI Afterburner gives full control over clocks, fan curves and monitoring.
PolicyWhat warranty does AHW Store provide?▾
This card carries the official authorized warranty with local technical support. Full terms in our Warranty Policy ↗.
PolicyCan I pay in installments in Egypt?▾
Yes. Cash on delivery, Visa and Mastercard, Meeza and mobile wallets, 0% interest 6-month installments with our partner banks, and longer plans through ValU, Forsa, Halan, Seven, Klivvr and mylo. See our Payment & Installments Guide ↗.
PolicyHow fast is shipping and delivery across Egypt?▾
Orders are delivered within 2 to 7 business days across all Egyptian governorates in secure armored packaging (with pickup available from our 6th of October headquarters). See our Shipping Policy ↗.
PolicyCan AHW Store build a PC around this card?▾
Yes. Our engineers assemble, cable-manage and stress-test the complete system before shipping. Start with our PC Builder ↗.
PolicyWhat is the return policy?▾
Returns follow our published policy, including the condition and timeframe requirements. Read the Refund Policy ↗.
