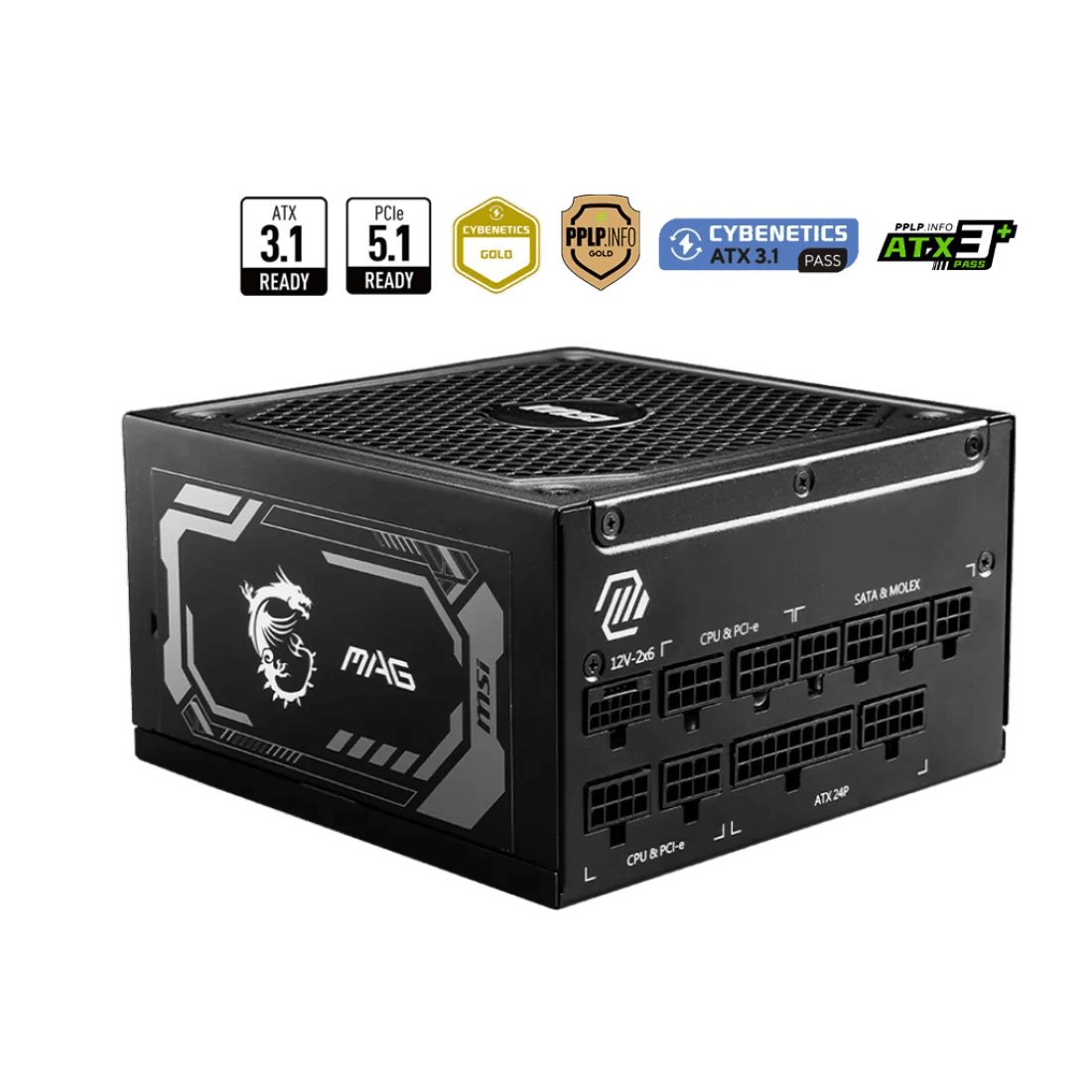

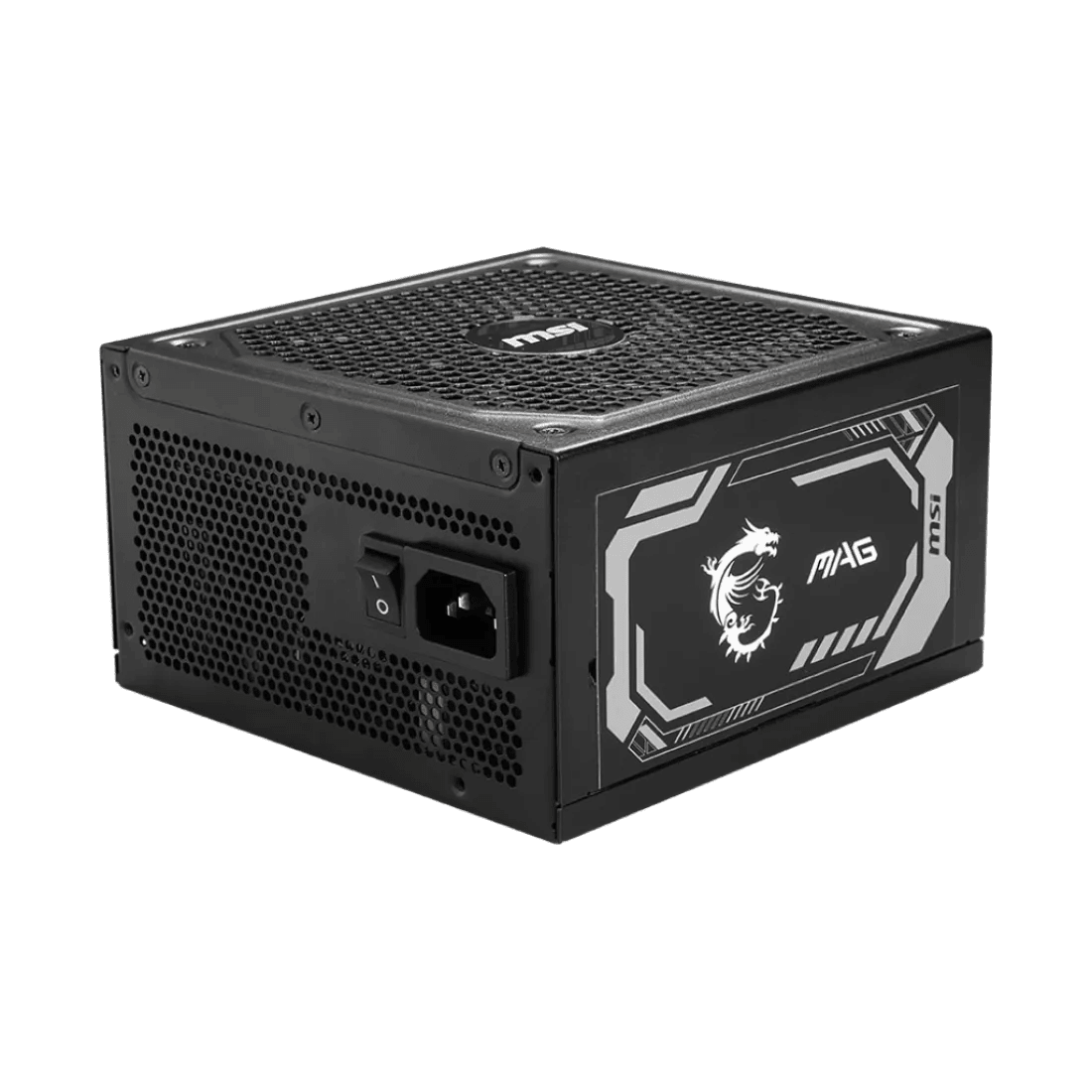

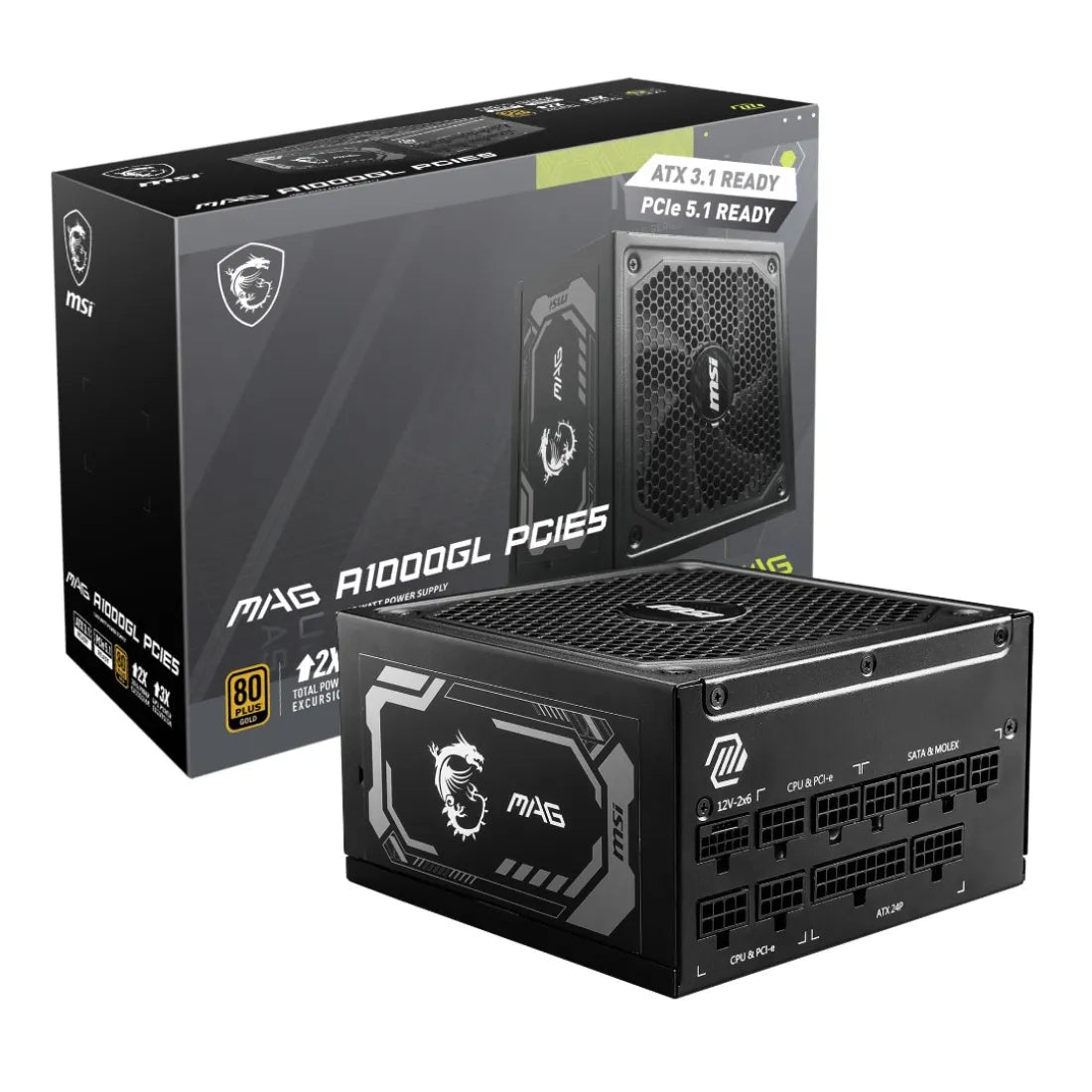

MSI MAG A1000GL PCIE5 1000 Watt 80+ Gold Fully Modular PCIe 5.1 ATX 3.1 Power Supply
Hurry up! Only 1 item(s) items left in stock
Couldn't load pickup availability
Secure Payment Methods
Cash on delivery and various payment options and installment plans.
Fast and Secure Shipping
Receive your order within 2 to 5 business days.
Customer Service
Technical support from 10 am to 12 pm.
Warranty Coverage
Enjoy a 6-month to 3-year warranty through us with distributors.
MSI MAG A1000GL PCIE5 1000W 80+ Gold ATX 3.1 Fully Modular Power Supply
Unleash unwavering electrical stability for demanding GeForce RTX 40 and 50 series flagship rigs with the MSI MAG A1000GL PCIE5. Engineered to full Intel ATX 3.1 and PCIe 5.1 standards, it features a native 12V-2x6 600W connector with an innovative dual-color yellow connector head for visual insertion safety, high-efficiency 80 PLUS® Gold certification, full-bridge LLC DC-to-DC topology, and a whisper-quiet 120mm Fluid Dynamic Bearing fan.
Flagship RTX 4090 / 5090 Tier Gaming
Delivers full compliance with 200% power excursion requirements under Intel ATX 3.1 guidelines. Direct 600W 12V-2x6 delivery ensures rock-solid voltage without messy adapter splitters or contact resistance.
Heavy 24/7 Rendering & AI Workstations
Full-bridge LLC topology with DC-to-DC conversion guarantees strict voltage ripple suppression and continuous 90%+ electrical efficiency, reducing ambient thermal exhaust and monthly power consumption.
Power Architecture & Thermal Highlights
Intel ATX 3.1 & Native PCIe 5.1 Architecture
Fully compliant with the official Intel ATX 3.1 power supply guide, providing reinforced power excursion tolerance and ultra-clean single +12V rail delivery for cutting-edge multi-core CPUs and heavy GPUs.

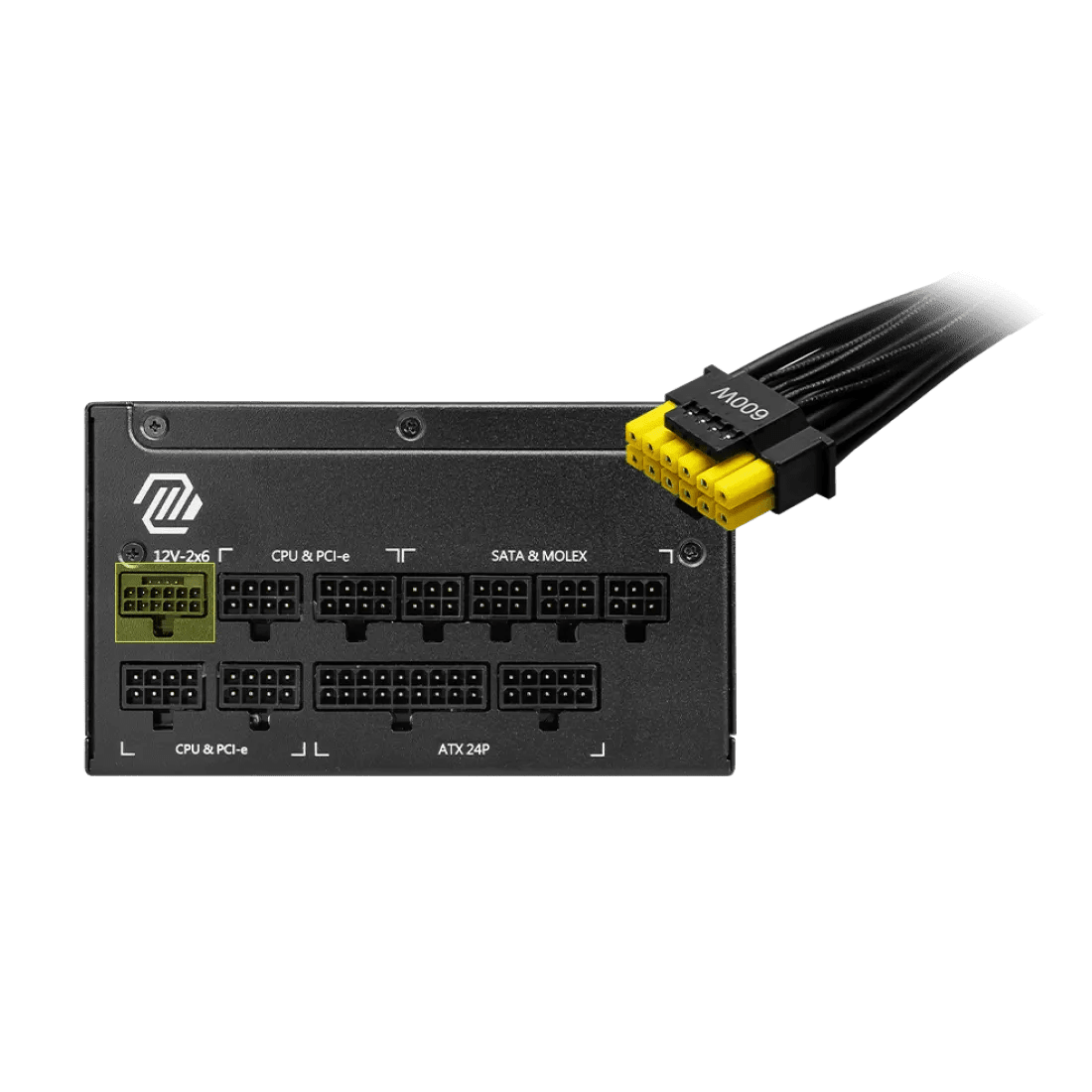

Dual-Color Foolproof 12V-2x6 (600W) Cable
Features MSI's proprietary dual-color yellow connector head. If you can still see any yellow exposed when plugging into your graphics card, the connector is not fully seated, eliminating dangerous contact resistance.

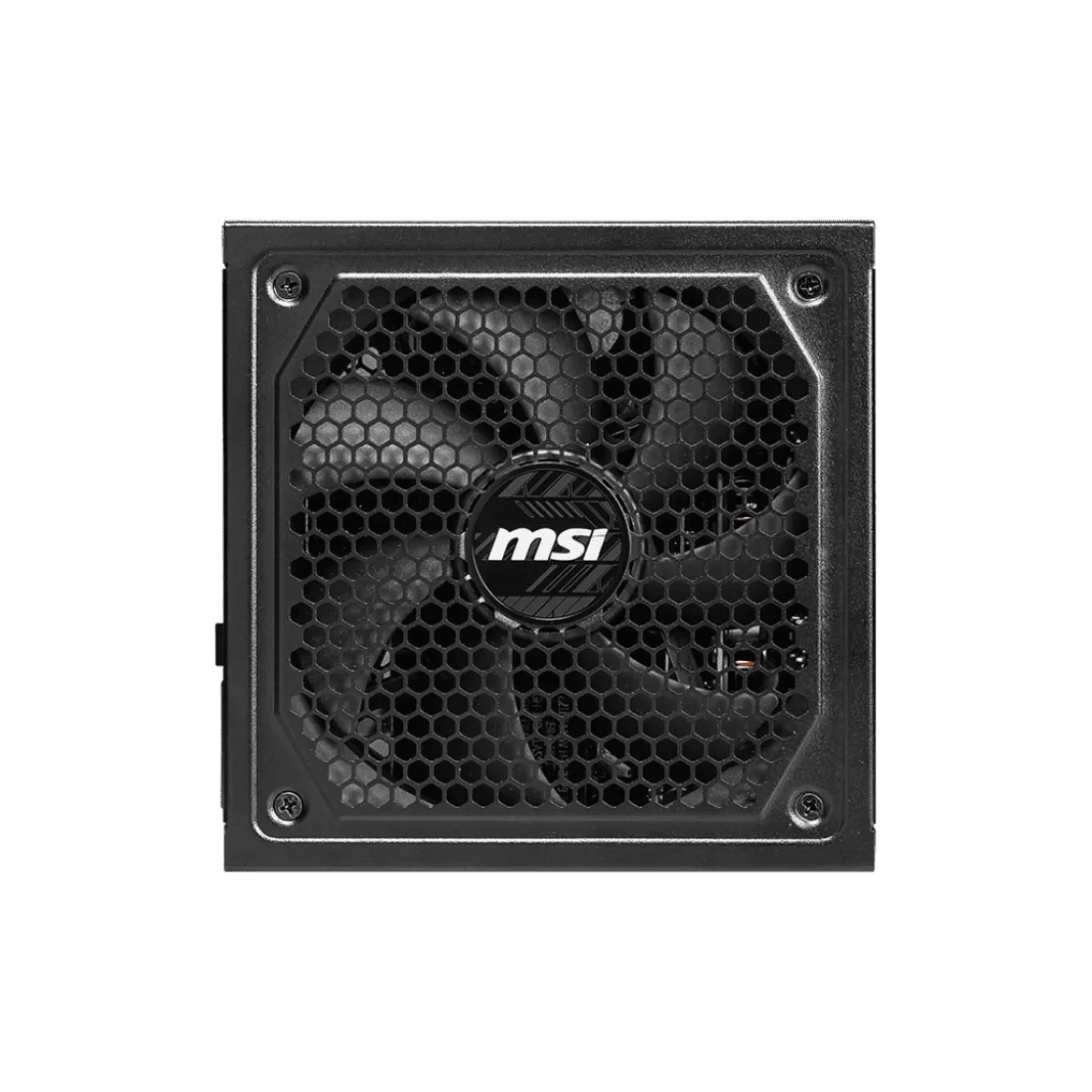

120mm Fluid Dynamic Bearing (FDB) Fan
Equipped with a long-life 120mm Fluid Dynamic Bearing fan that balances aggressive cooling airflow with near-silent acoustics, governed by an automatic thermal sensor curve.

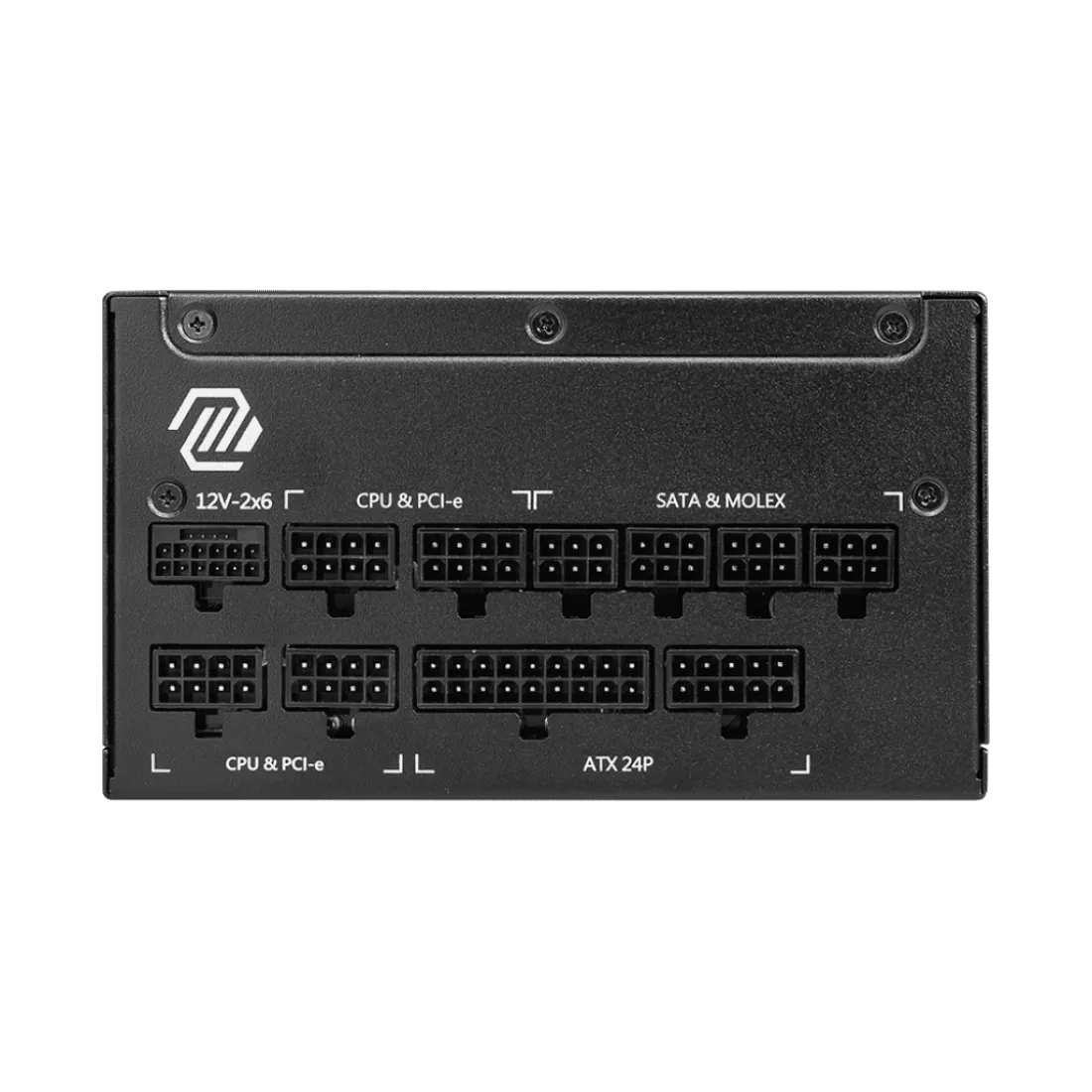

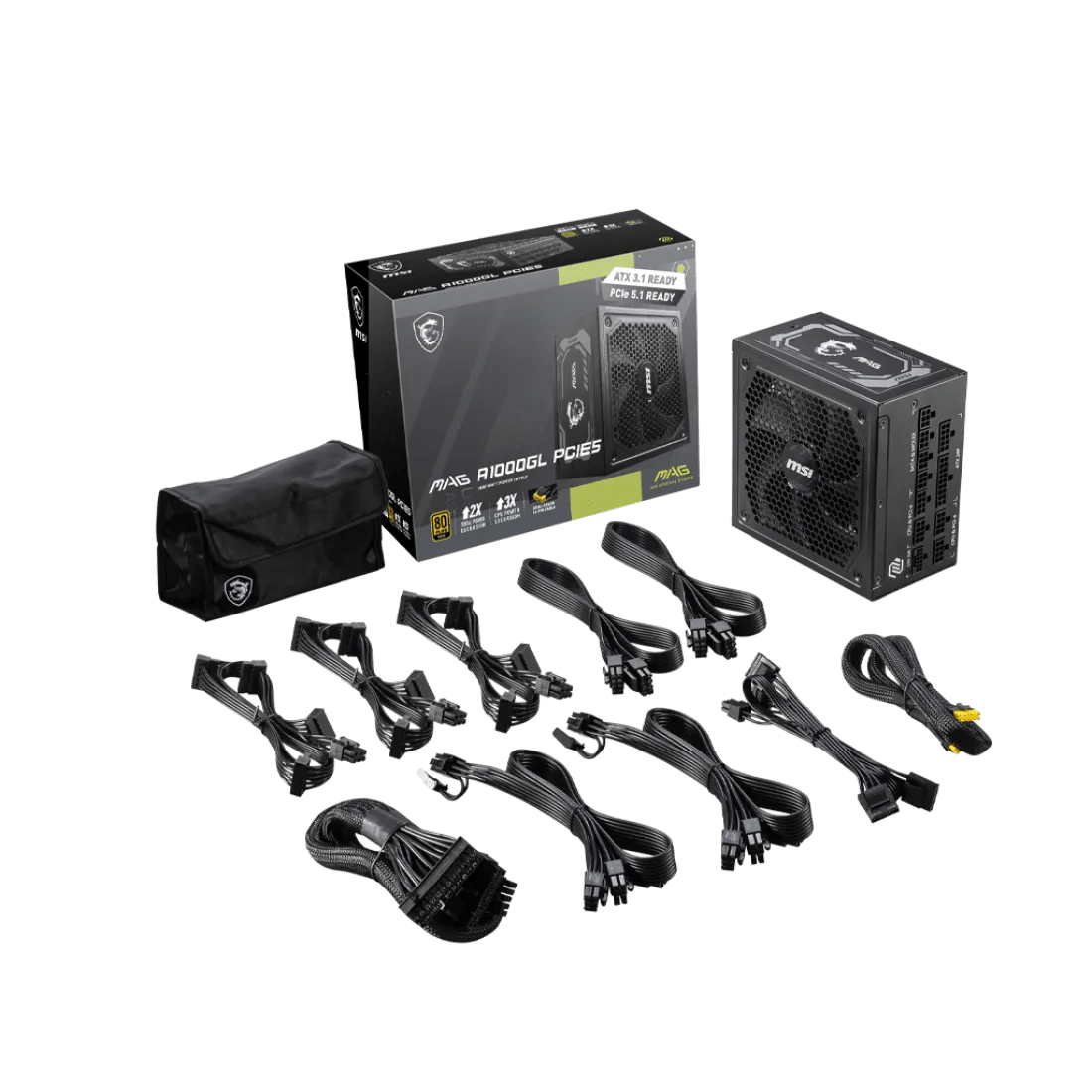

Fully Modular Flat Embossed Cable System
Connect only the cables required for your build to maximize internal airflow and achieve a clean, pristine aesthetic. Compact 140mm chassis depth fits effortlessly into standard and compact cases.
Recommended Component Synergy
Processors (CPUs)
Continuous clean power delivery for multi-threaded CPUs under maximum boost.
Graphics Cards (GPUs)
Native 12V-2x6 single-cable feeding RTX 40 & 50 series graphics cards.
Motherboards
Dual EPS 8-pin connectors to feed reinforced VRM power stages.
PC Cases
Compact chassis length ensuring generous cable management clearance.
Build Your Dream Custom PC with Certified AHW Engineers
Select 100% compatible components and let our engineers assemble, cable-manage, and stress-test your rig.
Comprehensive Hardware Specifications
| Model Name | MSI MAG A1000GL PCIE5 |
| Continuous Power Rating | 1000 Watts |
| Efficiency Certification | 80 PLUS® Gold (Up to 90% Efficiency @ 50% Load) |
| Form Factor Standard | Intel ATX 3.1 & PCIe 5.1 Compliant (ATX 12V v3.1) |
| PCIe 5.1 / 12V-2x6 Connectors | 1x Native 16-Pin 12V-2x6 Connector (Up to 600W Output) |
| PCIe 6+2 Pin Connectors | 4x PCIe 6+2 Pin Connectors |
| CPU EPS Connectors | 2x 8(4+4) Pin EPS Connectors |
| Main ATX Connector | 1x 24(20+4) Pin Motherboard Connector |
| SATA & Peripheral Connectors | 8x SATA Connectors + 4x 4-Pin Molex |
| Cooling Fan & Bearing | 120mm Fluid Dynamic Bearing (FDB) Silent Fan |
| +12V Rail Architecture | Single +12V Rail delivering up to 83.3A (1000W) |
| Internal Electrical Topology | Active PFC (0.99) with Full Bridge LLC Resonant & DC-to-DC Converter |
| Industrial Safety Suite | OCP, OVP, OPP, OTP, SCP, UVP |
| Physical Dimensions | 140 x 150 x 86 mm (Compact ATX) |
