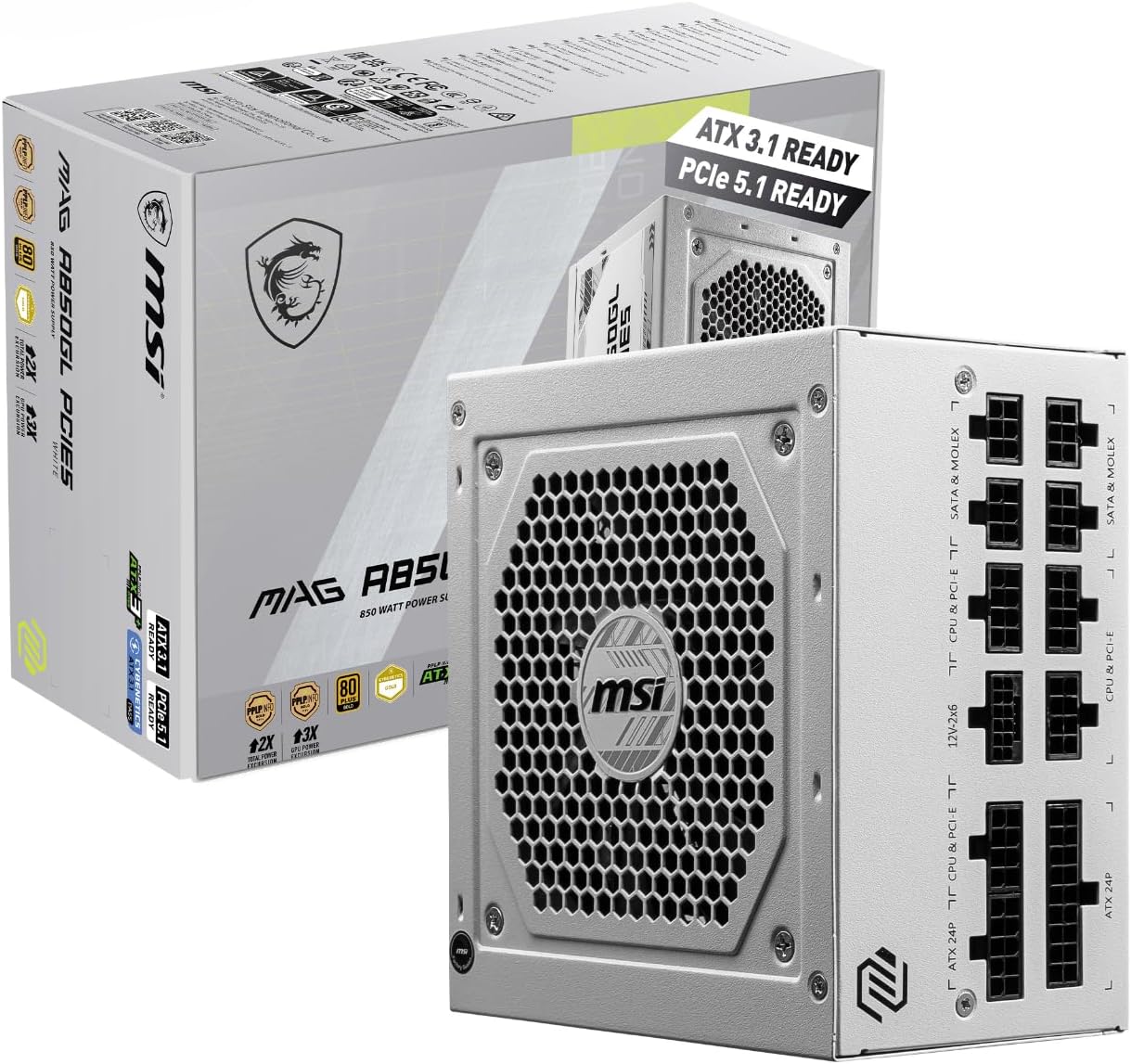

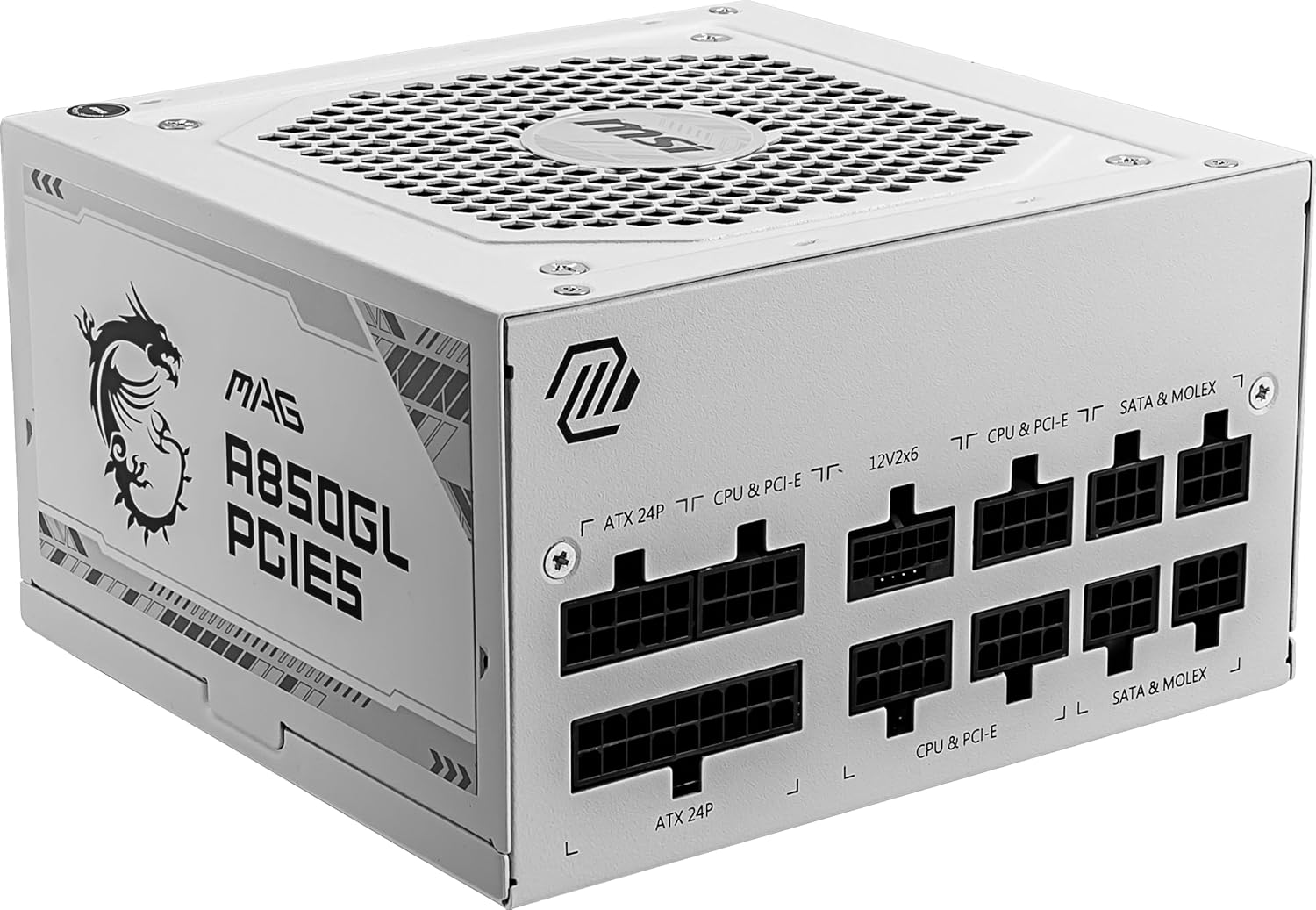

MSI 850W ATX Fully Modular Power Supply MAG A850GL PCIE5 White (Active PFC/80 PLUS Gold)
Power your high-performance white aesthetic gaming system with the MSI MAG A850GL PCIE5 White. Compliant with Intel ATX 3.1 and PCIe 5.1 standards, it features a native 12V-2x6 600W connector with dual-color yellow insertion feedback, high-efficiency 80 PLUS® Gold certification, full-modular white embossed flat cabling, and a long-life 120mm Fluid Dynamic Bearing fan.
Custom All-White PC Builds
Flawlessly matches all-white cases, motherboards, and graphics cards with factory pure white chassis paint and matching white ribbon modular cables.
GeForce RTX 4070 Ti & 4080 Super Gaming
Single-cable 12V-2x6 power delivery feeds up to 600W, easily absorbing heavy instantaneous transient surges under maximum AAA gaming workloads.
Power Architecture & Thermal Highlights

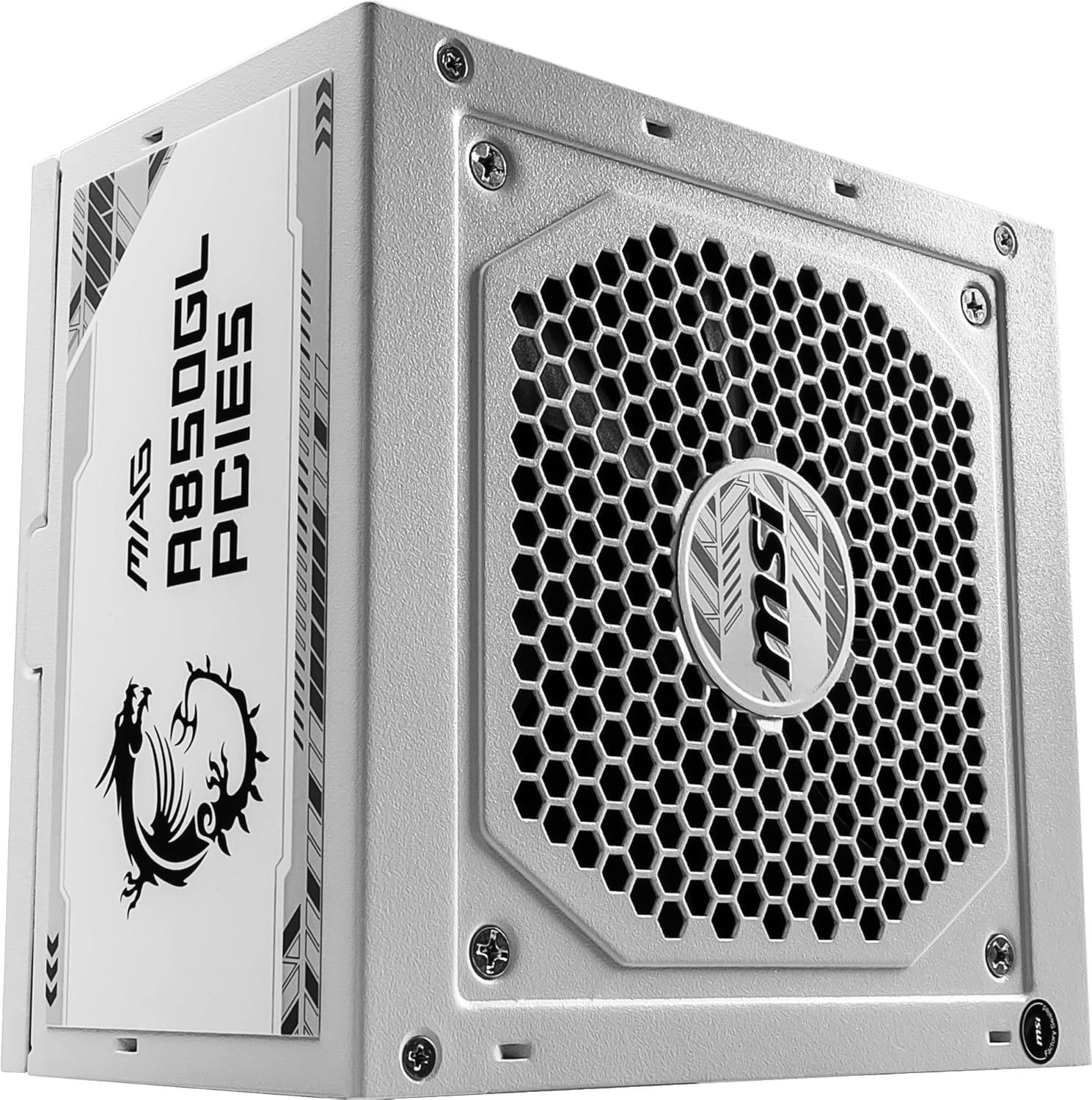

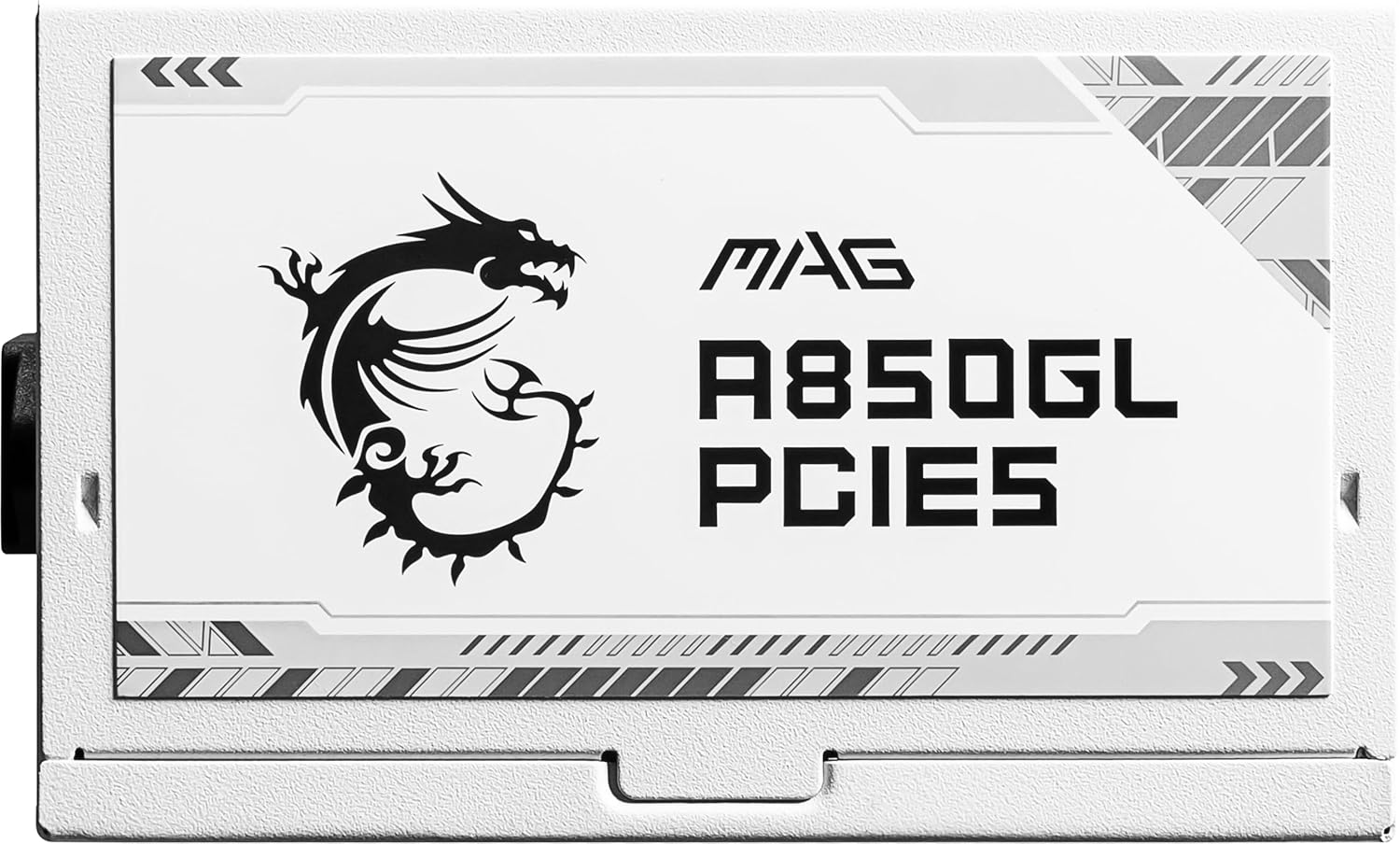

Pure All-White Architectural Aesthetic
Engineered for enthusiast white battlestations, boasting a pristine white chassis, white fan grill, and matching white modular connectors.

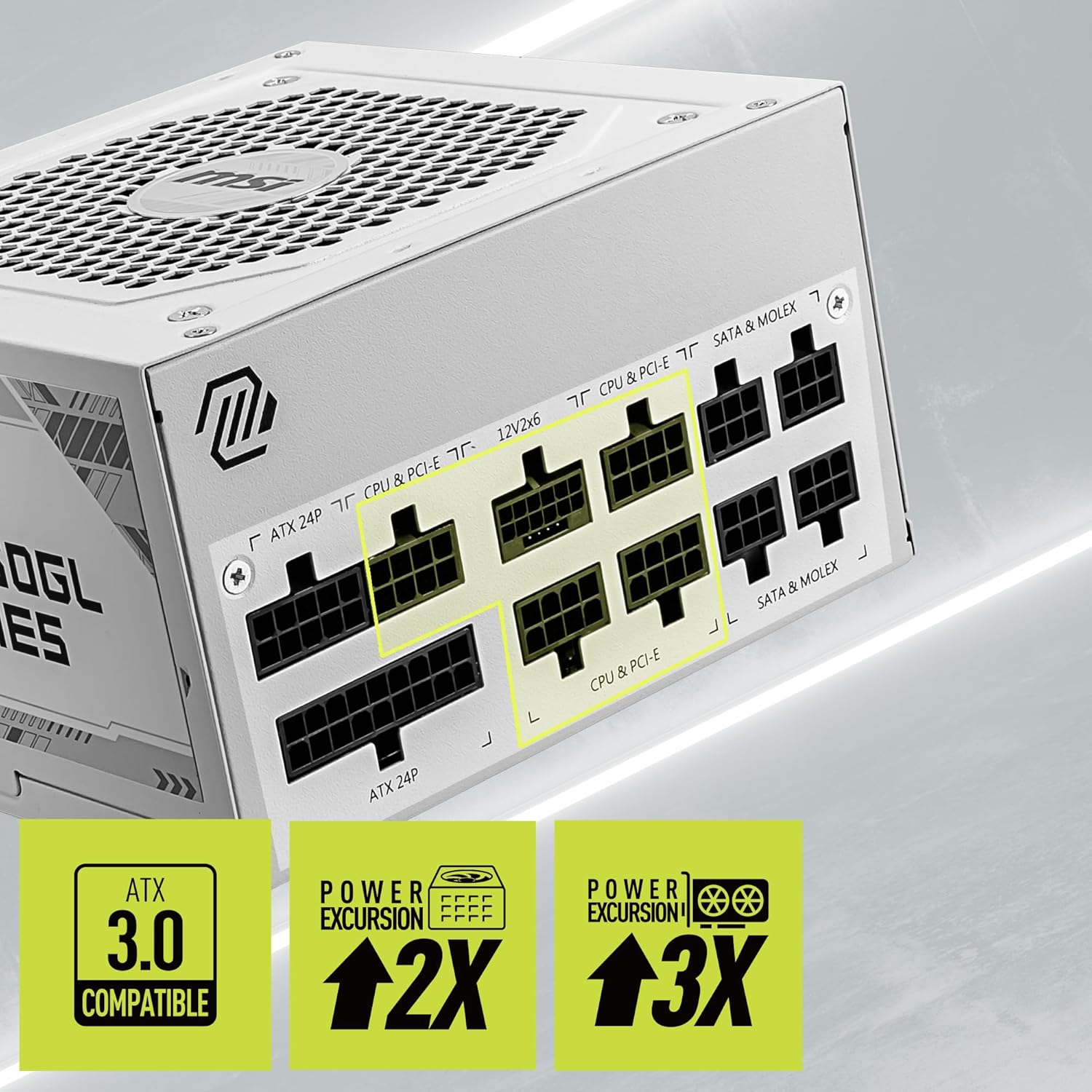

Dual-Color Foolproof 12V-2x6 (600W) Cable
Features MSI's yellow visual safety header. If any yellow is visible when connected to your GPU, push gently to ensure complete latching.

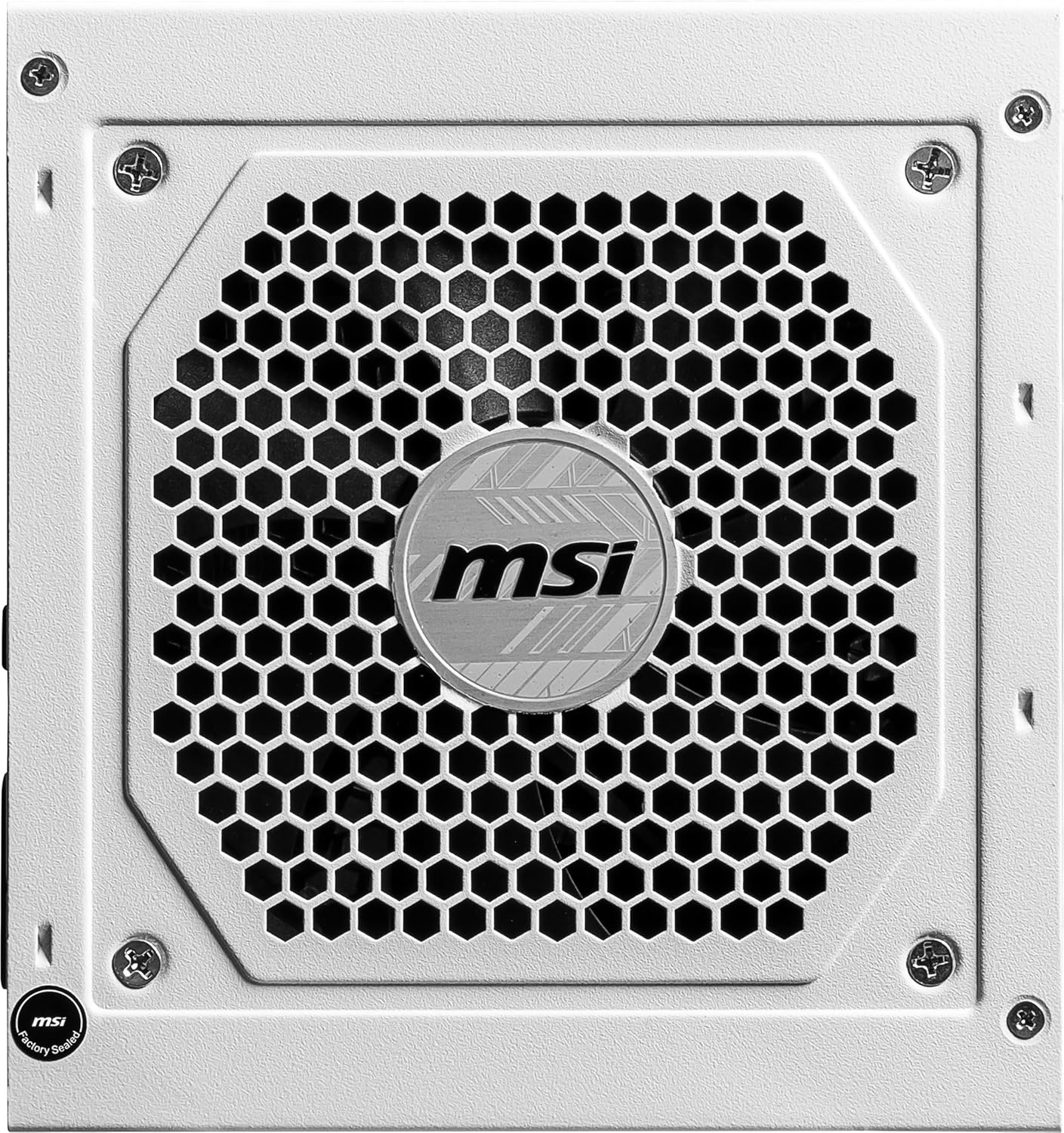

120mm Fluid Dynamic Bearing Fan
Reduces rotational friction to ensure whisper-quiet acoustic performance and prolonged durability under heavy PC rendering sessions.
Compact 140mm ATX Chassis Depth
Fits effortlessly into standard and compact cases, leaving generous clearance for effortless modular cable tucking and unblocked chassis intake airflow.
Recommended Component Synergy
Processors (CPUs)
Continuous clean power delivery for multi-threaded CPUs under maximum boost.
Graphics Cards (GPUs)
Native 12V-2x6 single-cable feeding RTX 40 & 50 series graphics cards.
Motherboards
Dual EPS 8-pin connectors to feed reinforced VRM power stages.
PC Cases
Compact chassis length ensuring generous cable management clearance.
Build Your Dream Custom PC with Certified AHW Engineers
Select 100% compatible components and let our engineers assemble, cable-manage, and stress-test your rig.
Comprehensive Hardware Specifications
| Model Name | MSI MAG A850GL PCIE5 White |
| Continuous Power Rating | 850 Watts |
| Chassis & Cable Color | All-White Edition |

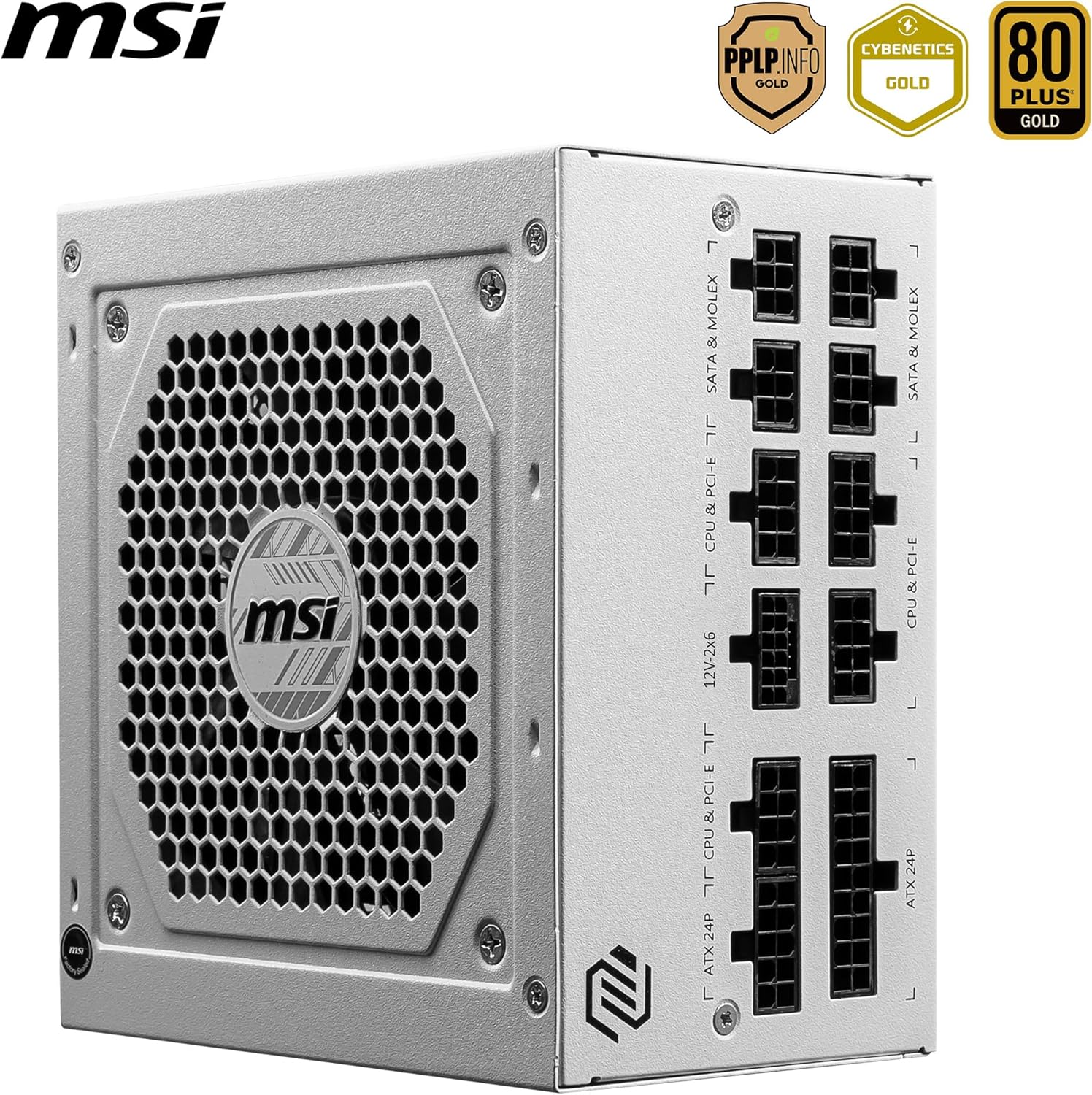

| Efficiency Certification | 80 PLUS® Gold (Up to 90% @ 50% Load) |

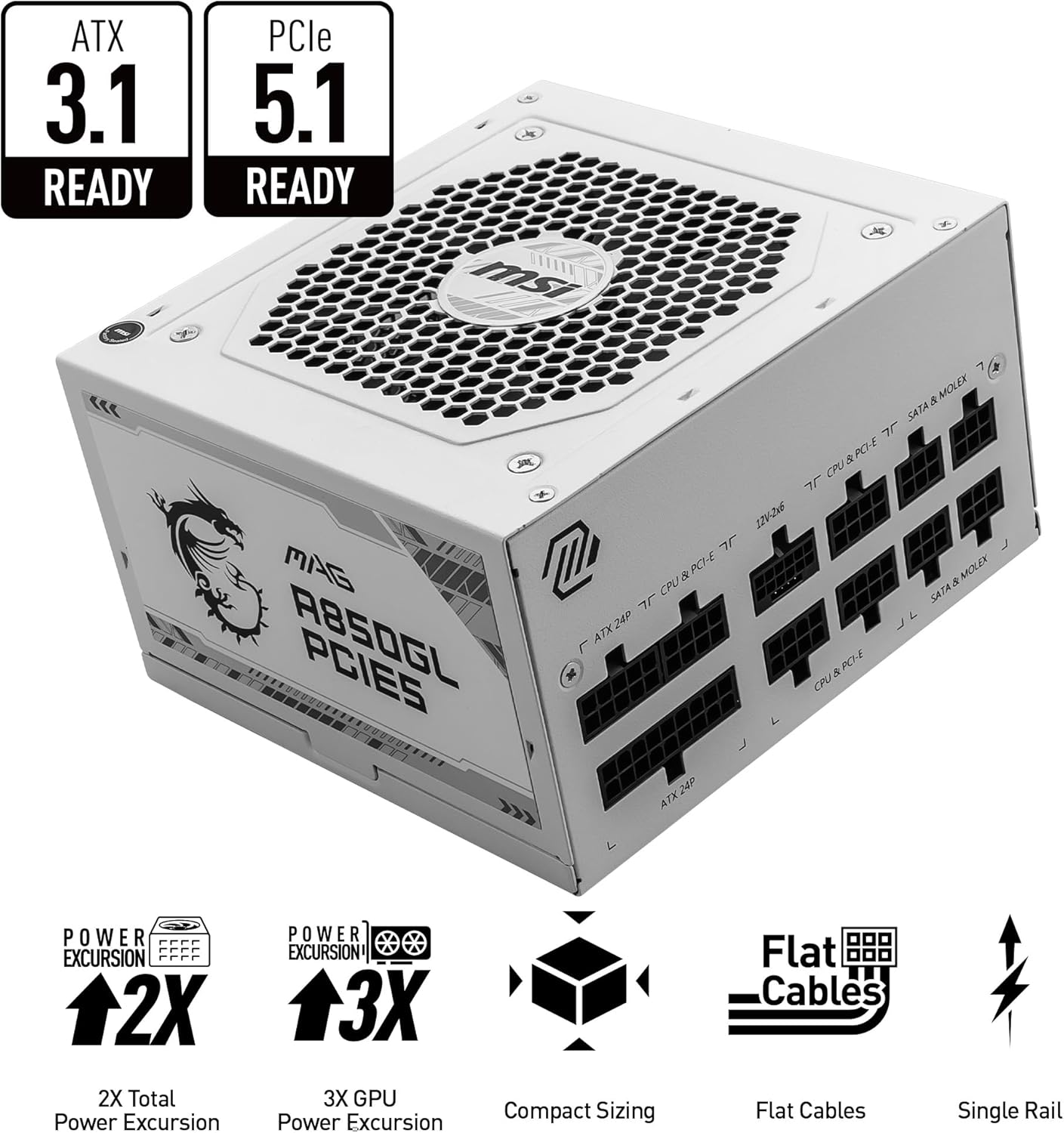

| Form Factor Standard | Intel ATX 3.1 & PCIe 5.1 (ATX 12V v3.1) |

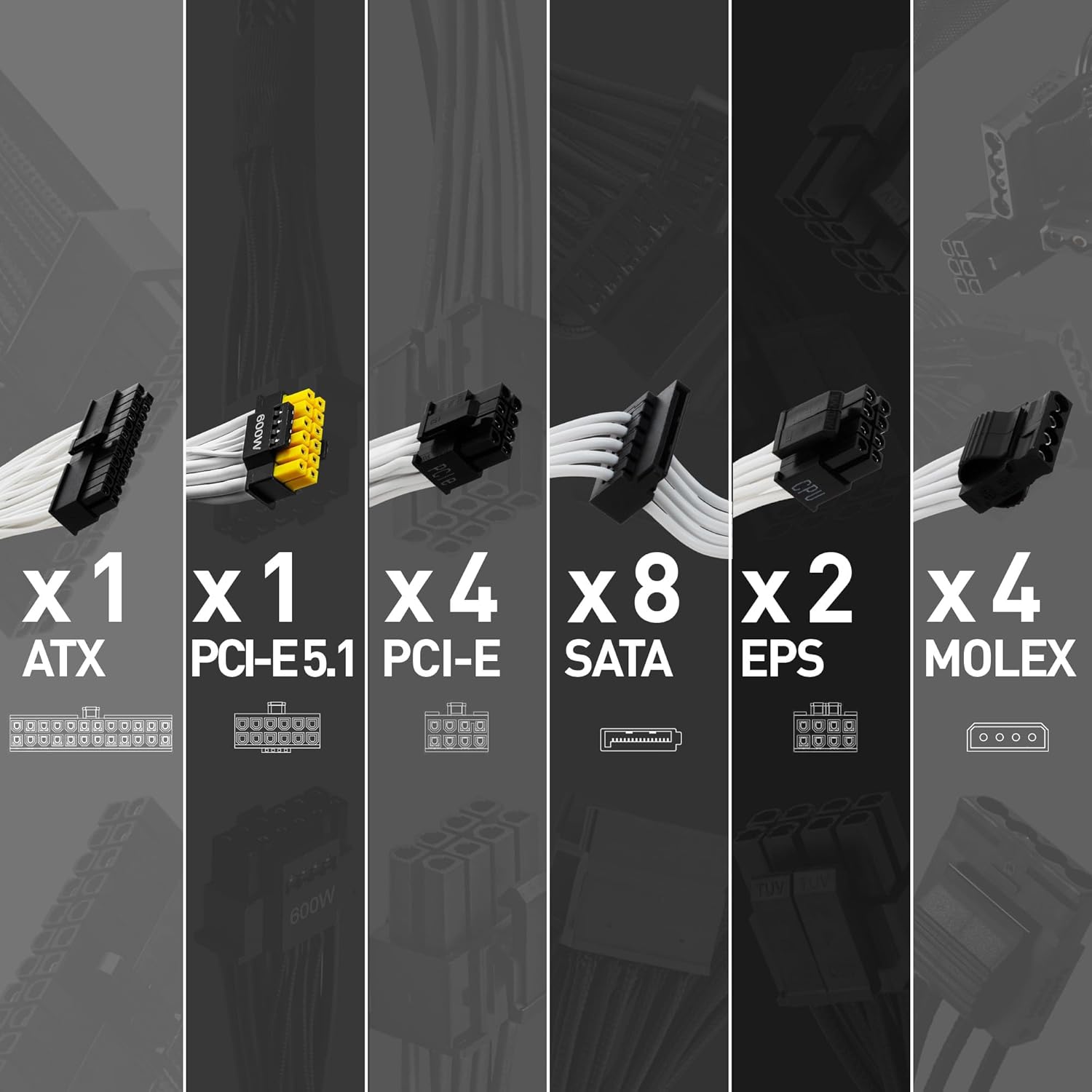

| PCIe 5.1 / 12V-2x6 Connectors | 1x Native 16-Pin 12V-2x6 Connector (Up to 600W Output) |
| PCIe 6+2 Pin Connectors | 4x PCIe 6+2 Pin Connectors |
| CPU EPS Connectors | 2x 8(4+4) Pin EPS Connectors |
| Main ATX Connector | 1x 24(20+4) Pin Motherboard Connector |
| SATA & Peripheral Connectors | 8x SATA Connectors + 4x 4-Pin Molex |
| Cooling Fan & Bearing | 120mm Fluid Dynamic Bearing (FDB) Silent Fan |

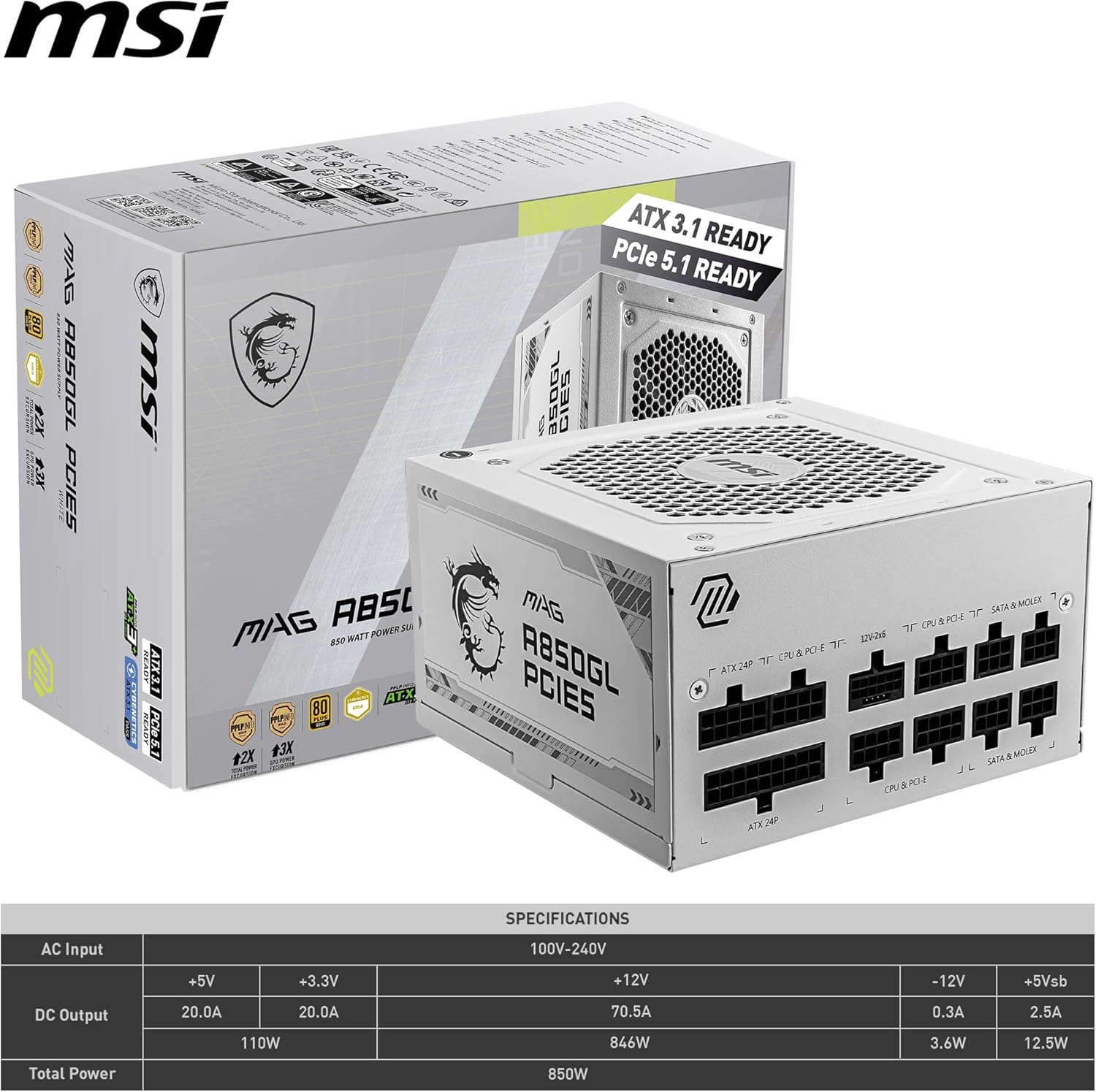

| +12V Rail Architecture | Single +12V Rail delivering up to 70.8A (850W) |
| Internal Electrical Topology | Active PFC with LLC Half Bridge Resonant & DC-to-DC Converter |
| Industrial Safety Suite | OCP, OVP, OPP, OTP, SCP, UVP |
| Physical Dimensions | 140 x 150 x 86 mm (Compact ATX) |
