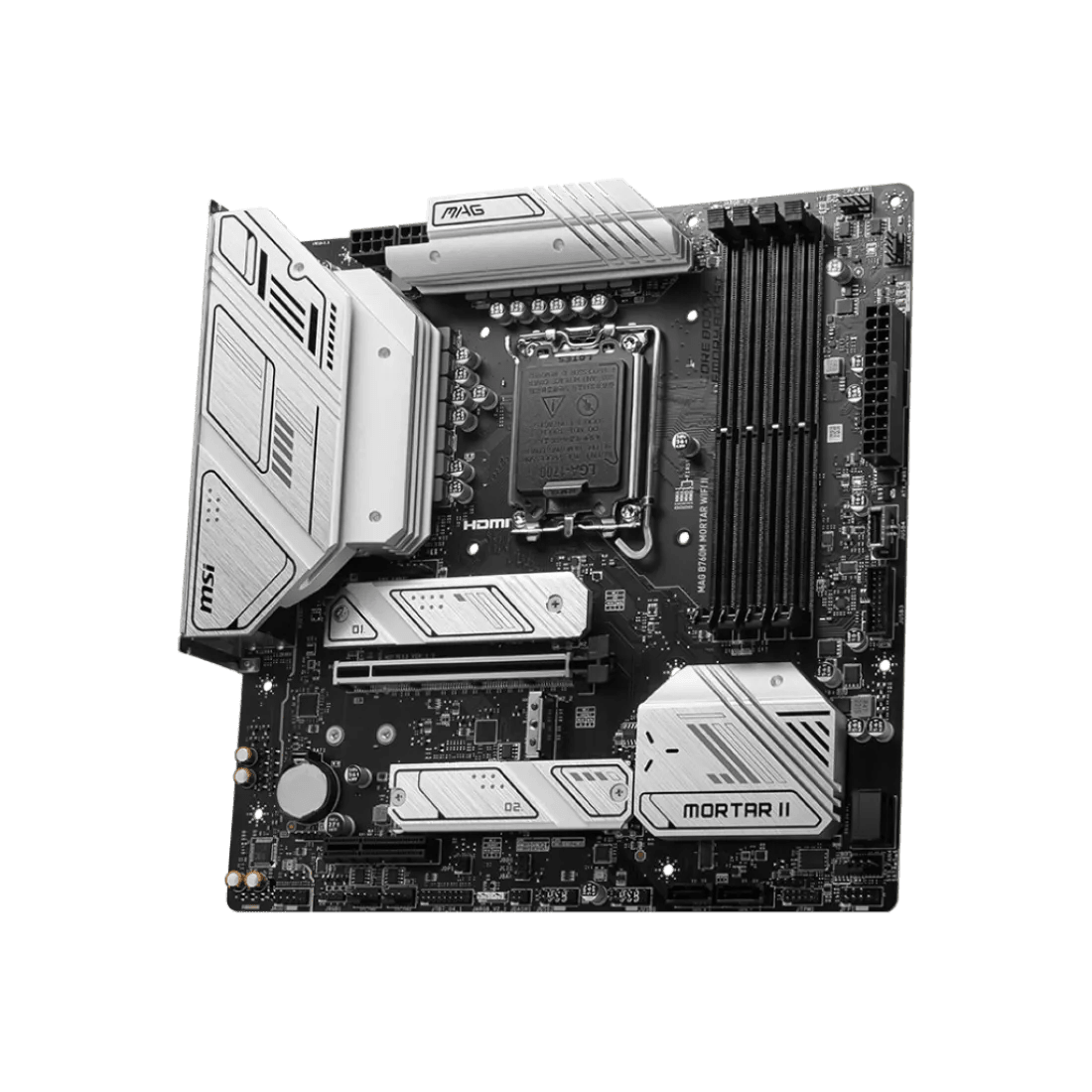

MSI MAG B760M MORTAR WIFI II DDR5 LGA1700 M-ATX Motherboard Black
Hurry up! Only 1 item(s) items left in stock
Couldn't load pickup availability
Secure Payment Methods
Cash on delivery and various payment options and installment plans.
Fast and Secure Shipping
Receive your order within 2 to 5 business days.
Customer Service
Technical support from 10 am to 12 pm.
Warranty Coverage
Enjoy a 6-month to 3-year warranty through us with distributors.
MSI MAG B760M MORTAR WIFI II — 75A DrMOS power, 3x M.2 Shield Frozr and 20Gbps Type-C
A heavy-duty Micro-ATX gaming motherboard on Intel B760 built with heavy silver aluminum heatsinks. Features a 12+1+1 phase 75A DrMOS VRM, PCIe 5.0 x16 Steel Armor, three M.2 Gen4 sockets under Shield Frozr, DDR5-7800+ MHz (O.C.) memory support, Wi-Fi 6E plus 2.5G LAN, and a blazing 20 Gbps USB Type-C port.

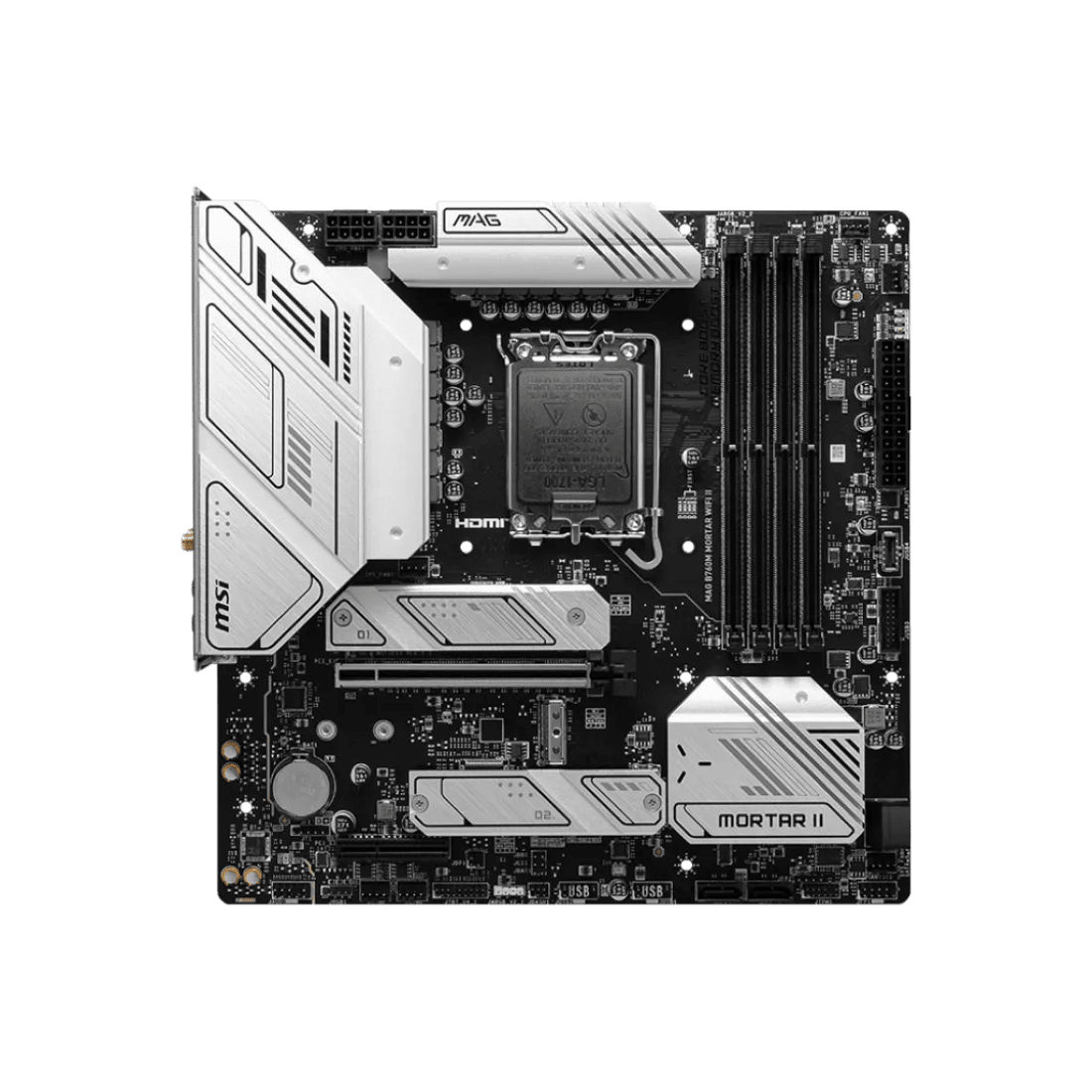

Board Map
Every connector, located before you unbox
LGA 1700 CPU Socket — Centre
Supports 14th, 13th, and 12th Gen Intel Core desktop processors with rock-solid multi-core power.
12+1+1 75A DrMOS Heatsinks — Top & Left
Heavy extended silver aluminum heatsinks with 7W/mK thermal pads dissipate heat effortlessly during intensive gaming.
4 × DDR5 DIMM Slots with Memory Boost — Right
Dual-channel DDR5 supporting up to 256 GB memory capacity and extreme frequencies exceeding 7800+ MT/s (O.C.).
PCIe 5.0 x16 Steel Armor Slot — Centre
Reinforced PCIe 5.0 graphics slot ready for heavy modern graphics cards.
3 × Lightning Gen4 M.2 Slots — Across PCB
Three high-speed PCIe 4.0 x4 NVMe slots completely covered by M.2 Shield Frozr heatsinks.
6 × SATA 6Gb/s Ports — Lower Right
Right-angled storage ports for large capacity SATA drives.
Power Delivery & Thermals
What feeds the socket, and what keeps it steady12+1+1 75A DrMOS Power Design
Delivers robust and clean power delivery to handle heavy Intel Core i7 and i9 turbo boost frequencies.
Triple M.2 Shield Frozr Heatsinks
Every M.2 NVMe slot is encased under solid aluminum cooling to eliminate SSD thermal throttling completely.
USB 3.2 Gen 2x2 Type-C (20Gbps)
Blazing fast 20 Gbps data transfers through the rear Type-C port for external NVMe drives.
Intel Wi-Fi 6E & 2.5G LAN
Tri-band wireless networking paired with a high-bandwidth 2.5 Gbps Ethernet port for esports latency.
Lane Map

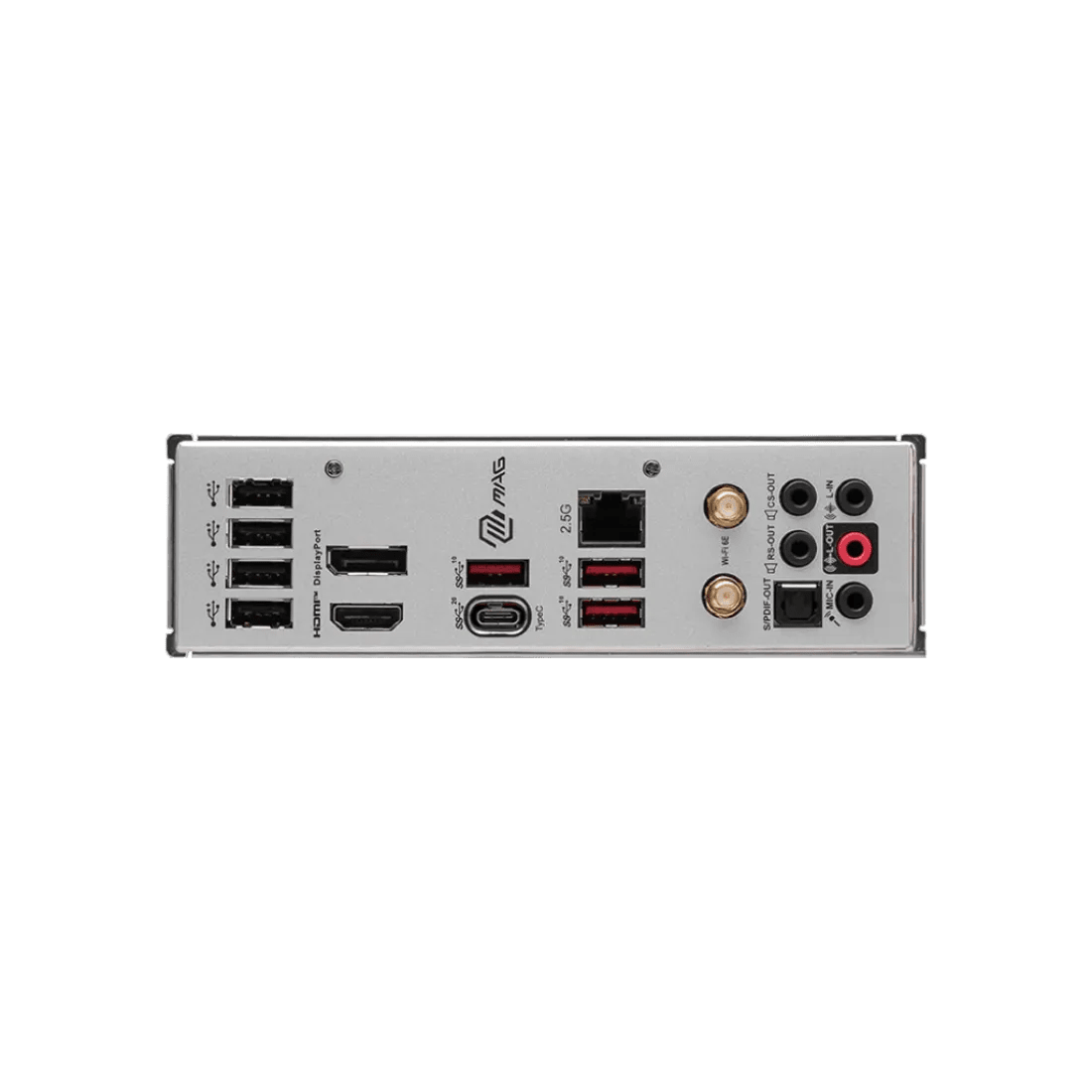

Interface speed rating & capability relative to modern motherboard standardsRear I/O Bay
Exactly what appears on the back of your case
Will It Fit Your Build?
Check these before you add to cartProcessor
Supports 12th, 13th and 14th Gen Intel Core desktop processors on LGA 1700.
Memory
DDR5 only — 4 DIMM slots supporting up to 256 GB and speeds exceeding 7800+ MHz (O.C.).
Graphics
PCIe 5.0 x16 slot with Steel Armor reinforcement.
Storage
3 × M.2 PCIe 4.0 NVMe sockets (all protected by Shield Frozr heatsinks) plus 6 SATA ports.
Networking
Integrated Intel Wi-Fi 6E wireless and 2.5G LAN wired Ethernet.
Case
Micro-ATX form factor (24.4 cm x 24.4 cm) — fits standard Micro-ATX and ATX cases.
Full Specification Sheet
MSI MAG B760M MORTAR WIFI II| CPU Socket | Intel LGA 1700 |
| CPU Support | 14th, 13th & 12th Gen Intel Core, Pentium Gold, Celeron |
| Chipset | Intel B760 Express |
| Form Factor | Micro-ATX (24.4 cm x 24.4 cm) |
| Power Design | 12+1+1 phase with 75A DrMOS power stages |
| Memory Slots | 4 × DDR5 DIMM, dual channel |
| Max Memory | 256 GB (up to DDR5-7800+ MHz OC) |
| Primary Graphics Slot | 1 × PCIe 5.0 x16 Steel Armor |
| Secondary PCIe Slot | 1 × PCIe 4.0 x16 (x4 mode) |
| M.2 Storage Sockets | 3 × M.2 PCIe 4.0 x4 (all with Shield Frozr heatsinks) |
| SATA Ports | 6 × SATA 6 Gb/s |
| Wireless Networking | Intel Wi-Fi 6E (802.11ax) + Bluetooth 5.3 |
| Ethernet LAN | Realtek 2.5 Gbps LAN |
| Audio | Realtek ALC897 7.1-Channel HD Audio + Optical S/PDIF |
| Rear USB Ports | 1x USB-C 20Gbps, 3x USB 3.2 10Gbps, 4x USB 2.0 |
