MSI MAG Z790 TOMAHAWK MAX WIFI — 16+1+1 90A SPS power, Wi-Fi 7 and full M.2 Shield Frozr
The flagship Intel Z790 gaming motherboard engineered for extreme 14th Gen Intel Core i9 overclocking. Equipped with a 16+1+1 phase 90A Smart Power Stage VRM, next-gen Wi-Fi 7, PCIe 5.0 x16 Steel Armor, four M.2 Gen4/Gen5 sockets completely encased in Shield Frozr heatsinks, and dual USB Type-C (20Gbps + 10Gbps).

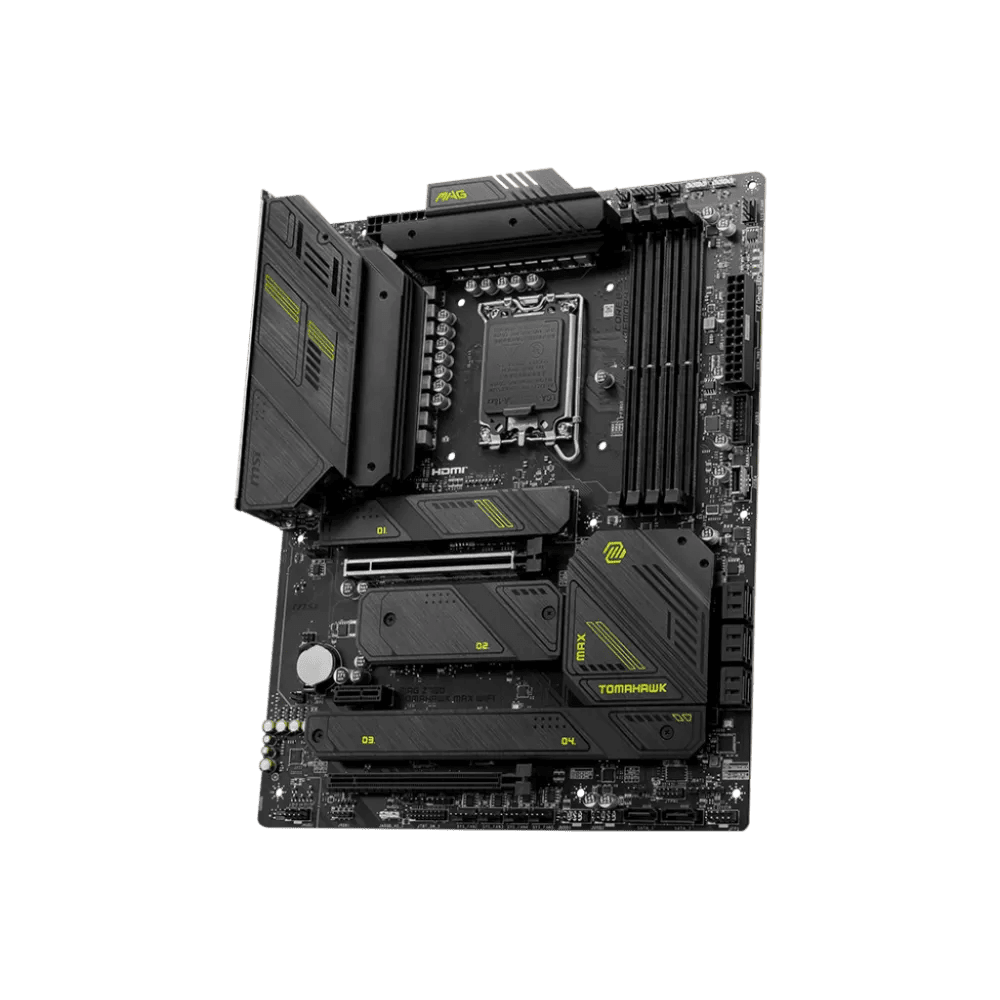

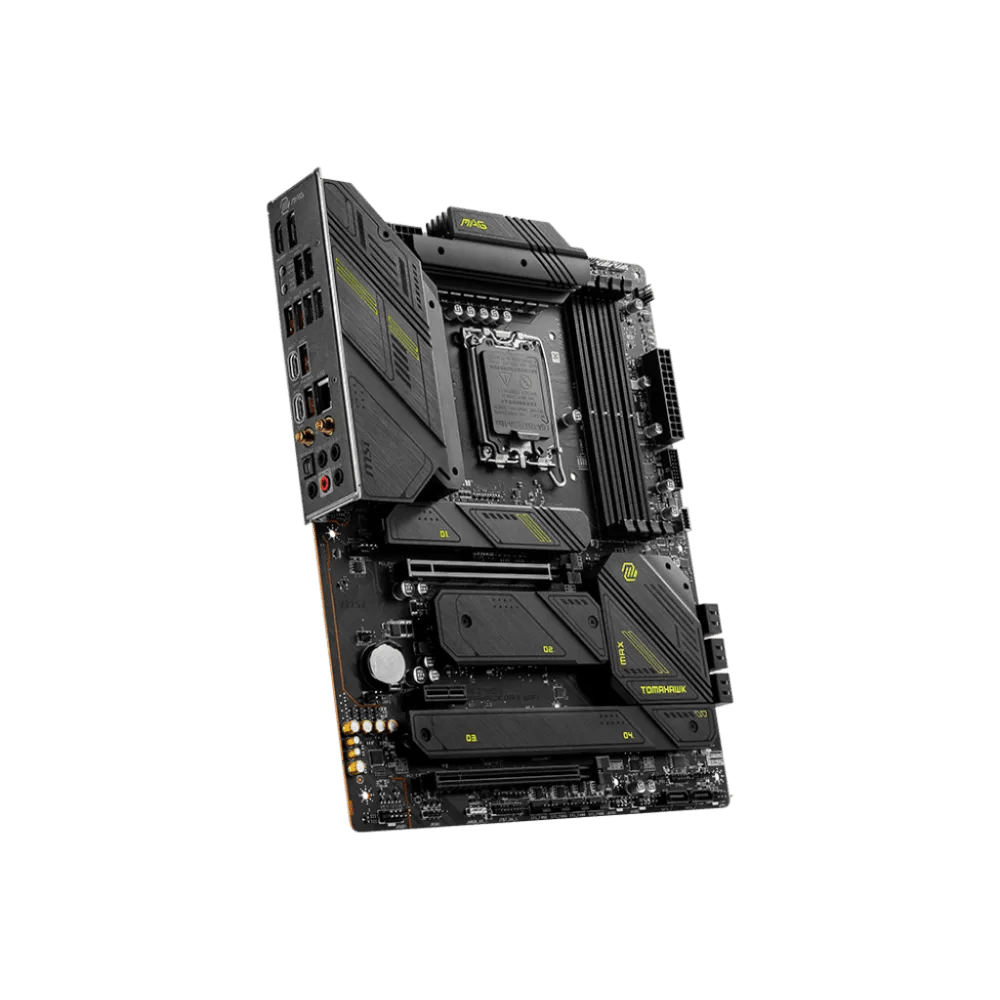

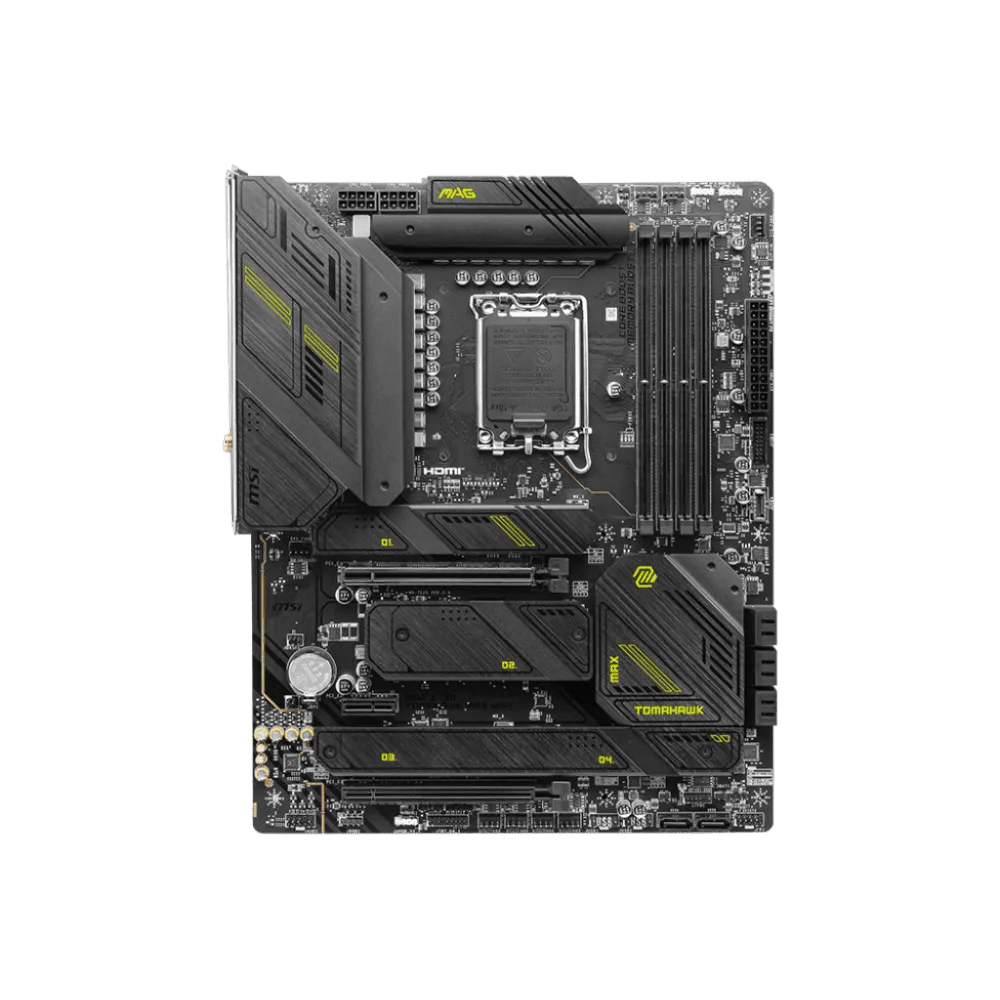

Board Map
Every connector, located before you unbox
LGA 1700 CPU Socket — Centre
Supports 14th, 13th, and 12th Gen Intel Core processors with unlocked extreme multiplier overclocking.
16+1+1 90A SPS VRM Heatsinks — Top & Left
Heavy extended heatsinks with direct heatpipe and 7W/mK thermal pads maintain ice-cold VRMs under 300W+ CPU power draw.
4 × DDR5 DIMM Slots with Memory Boost — Right
Supports dual-channel DDR5 up to 256 GB and extreme overclocking speeds exceeding 7800+ MT/s (O.C.).
PCIe 5.0 x16 Steel Armor Slot — Centre
Reinforced with extra solder points to anchor heavy flagship graphics cards with 128 GB/s bandwidth.
4 × M.2 Sockets under Full Shield Frozr — Across PCB
Four high-speed M.2 NVMe slots (including Gen5 ready) protected by double-sided M.2 Shield Frozr thermal armor.
8 × SATA 6Gb/s Ports — Lower Right
Expanded storage connectivity supporting mass RAID 0, 1, 5, 10 arrays.
Power Delivery & Thermals
What feeds the socket, and what keeps it steady16+1+1 90A SPS Power System
High-tier 90A Smart Power Stages deliver effortless current to Intel Core i9-14900K processors under maximum all-core synthetic workloads.
Next-Gen Wi-Fi 7 Wireless
Operates across 320 MHz channels on the 6 GHz band delivering up to 5.8 Gbps wireless speeds and ultra-low latency.
Full M.2 Shield Frozr Armor
Every single M.2 socket is covered with heavy aluminum heatsinks to keep Gen4 and Gen5 SSDs running at peak transfer speeds.
Dual USB Type-C (20Gbps + 10Gbps)
Features a 20 Gbps Lightning USB 3.2 Gen 2x2 Type-C port and an additional 10 Gbps Type-C port on the rear panel.
Lane Map

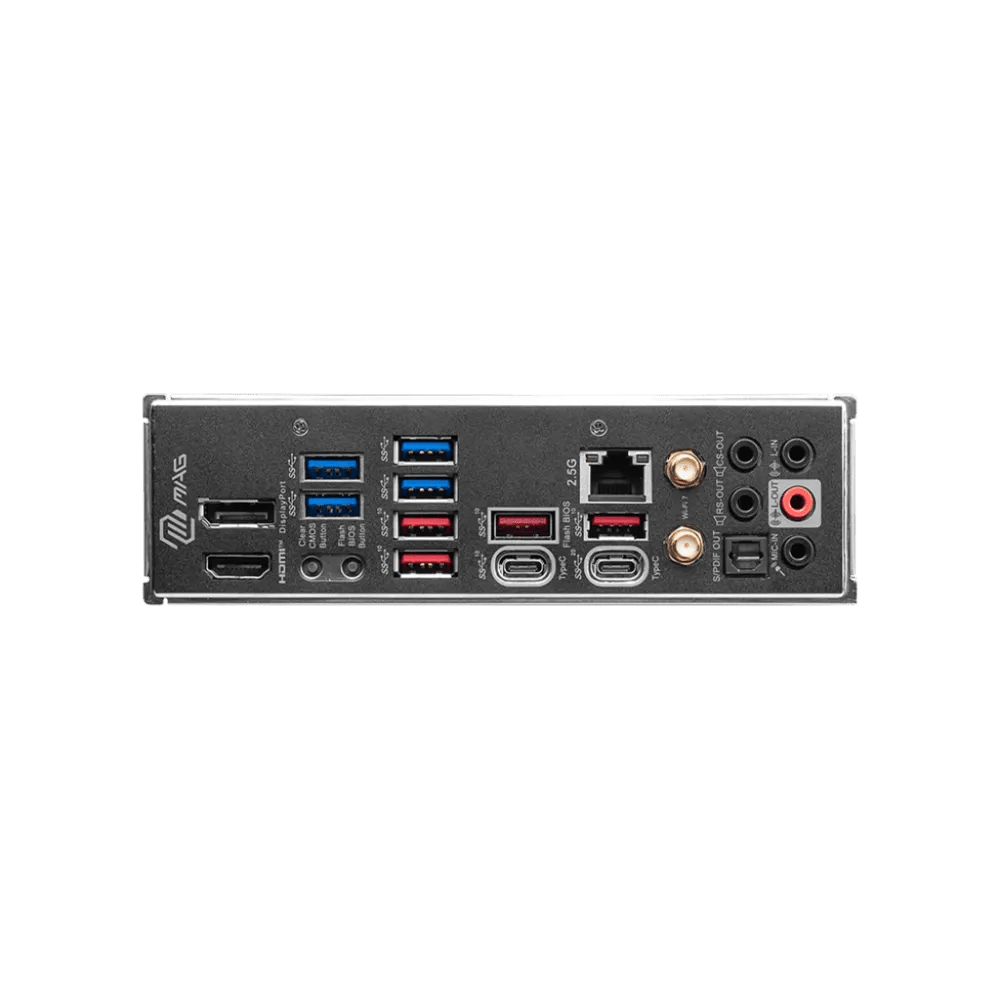

Interface speed rating & capability relative to modern motherboard standardsRear I/O Bay
Exactly what appears on the back of your case
Will It Fit Your Build?
Check these before you add to cartProcessor
Supports 12th, 13th and 14th Gen Intel Core desktop processors on LGA 1700 with unlocked K-series overclocking.
Memory
DDR5 only — 4 DIMM slots supporting up to 256 GB and speeds exceeding 7800+ MT/s (O.C.).
Power Stages
16+1+1 90A SPS VRM designed for heavy Intel Core i9 workloads.
Storage
4 × M.2 PCIe 4.0 NVMe sockets (all protected by Shield Frozr heatsinks) plus 8 SATA ports.
Wireless
Next-generation Wi-Fi 7 with ultra-low ping and Bluetooth 5.4.
Case
Full-size ATX form factor (30.5 cm x 24.4 cm) — requires standard ATX chassis.
Full Specification Sheet
MSI MAG Z790 TOMAHAWK MAX WIFI| CPU Socket | Intel LGA 1700 |
| CPU Support | 14th, 13th & 12th Gen Intel Core, Pentium Gold, Celeron |
| Chipset | Intel Z790 Express |
| Form Factor | ATX (30.48 cm x 24.38 cm) |
| Power Design | 16+1+1 phase with 90A Smart Power Stages |
| Memory Slots | 4 × DDR5 DIMM, dual channel |
| Max Memory | 256 GB (up to DDR5-7800+ MHz OC) |
| Primary Graphics Slot | 1 × PCIe 5.0 x16 Steel Armor |
| Secondary PCIe Slots | 1 × PCIe 4.0 x16 (x4 mode), 1 × PCIe 3.0 x1 |
| M.2 Storage Sockets | 4 × M.2 PCIe 4.0 x4 (all with Shield Frozr heatsinks) |
| SATA Ports | 8 × SATA 6 Gb/s |
| Wireless Networking | Wi-Fi 7 (802.11be) + Bluetooth 5.4 |
| Ethernet LAN | Intel 2.5 Gbps LAN |
| Audio | Realtek ALC4080 7.1-Channel USB Audio + Optical S/PDIF |
| Rear USB Ports | 1x USB-C 20Gbps, 1x USB-C 10Gbps, 4x USB 3.2 10Gbps, 4x USB 3.2 5Gbps |
