MSI MEG X870E GODLIKE WIFI DDR5 AM5 ATX Motherboard Black - AHW Store

MSI

MSI MEG X870E GODLIKE WIFI DDR5 AM5 ATX Motherboard Black

Name: MSI MEG X870E GODLIKE WIFI DDR5 AM5 ATX Motherboard Black
Brand: MSI
SKU: MSI-MB-X870-E-GODLIKE-WI
Price: 54999.0 EGP
Availability: InStock

^EGP 54,999

Hurry up! Only 1 item(s) items left in stock

💳

Secure Payment Methods

Cash on delivery and various payment options and installment plans.

🚚

Fast and Secure Shipping

Receive your order within 2 to 5 business days.

🎧

Customer Service

Technical support from 10 am to 12 pm.

🛡️

Warranty Coverage

Enjoy a 6-month to 3-year warranty through us with distributors.

Ask us on WhatsApp Share on WhatsApp

Description

MSI

MSI MEG X870E GODLIKE — The Pinnacle of AM5 with OLED Dashboard, 10G LAN & 24-Phase VRM

The definitive apex motherboard for AMD Socket AM5 and Ryzen 9000 Series flagship processors. Armed with an unprecedented 24+2+1 Direct Power Phase (110A SPS), Dynamic Dashboard III 3.99-inch color OLED display, Dual 10G Super LAN + 5G LAN, Dual USB4 40Gbps, Wi-Fi 7, and support for up to 7x M.2 NVMe SSDs via the bundled M.2 XPANDER-Z SLIDER Gen5 card.

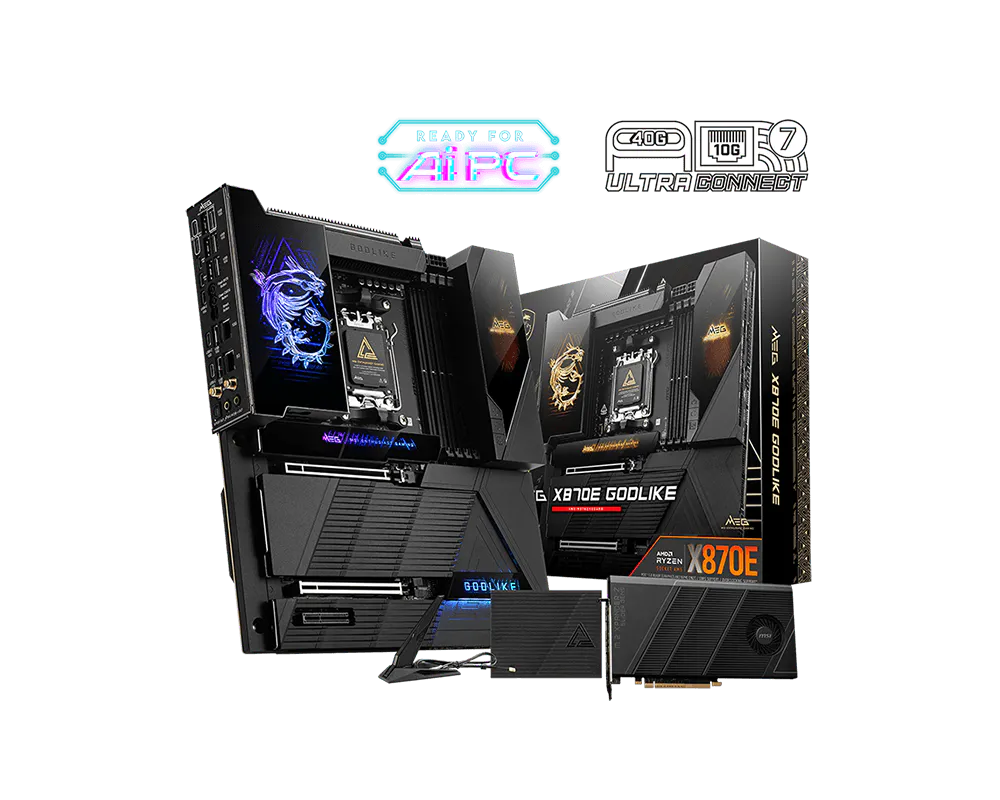

MSI MEG X870E GODLIKE retail box and ultra-flagship motherboard with Dynamic Dashboard III display

SocketAMD AM5

ChipsetAMD X870E

MemoryDDR5 · 4 DIMM

Form FactorE-ATX

WirelessWi-Fi 7

01

Board Map

Every connector, located before you unbox

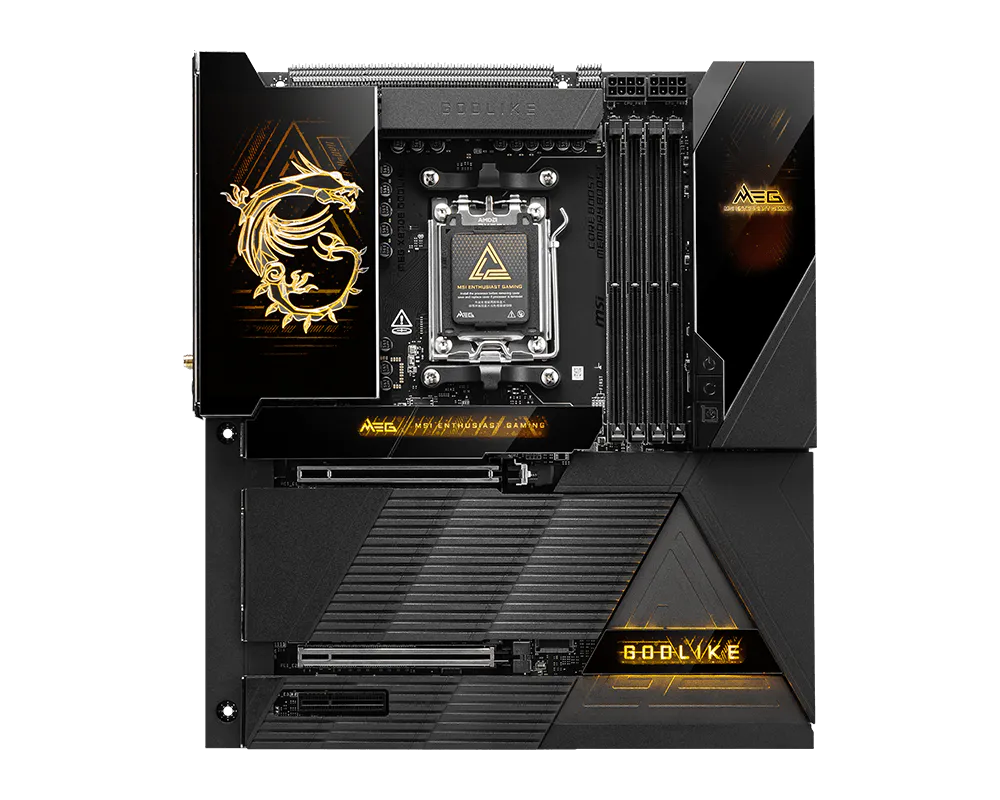

MSI MEG X870E GODLIKE top-down layout showing AM5 socket, 24+2+1 VRM, OLED display and dual PCIe 5.0 slots

1

AMD Socket AM5 (LGA 1718) — Centre

Engineered for maximum power delivery to AMD Ryzen 9000, 8000, and 7000 Series desktop processors.

2

24+2+1 Direct Phase VRM (110A SPS) — Top & Left

Monumental direct power delivery with 110A Smart Power Stages, waved heatsink fins, cross-heatpipes, and 9W/mK thermal pads.

3

Dynamic Dashboard III 3.99" Color OLED — Top Right

Full-color LCD display for real-time hardware monitoring, error code diagnostics, GIF animations, and live BIOS flashing status.

4

Dual PCIe 5.0 x16 Slots with EZ PCIe Release — Centre

Two reinforced PCIe 5.0 slots supporting x16/x0 or x8/x8 bandwidth for multi-GPU compute and extreme storage arrays.

5

5 × Onboard M.2 Sockets with EZ Magnetic Shield — Across PCB

Two PCIe 5.0 x4 slots plus three PCIe 4.0 x4 slots with magnetic tool-free heatsinks and double-sided thermal pads.

6

M.2 XPANDER-Z SLIDER Gen5 Expansion Card — Included

Dual-slot PCIe card adding 2 additional PCIe 5.0 x4 M.2 SSDs with side-sliding quick-install drive trays.

02

Power Delivery & Thermals

What feeds the socket, and what keeps it steady

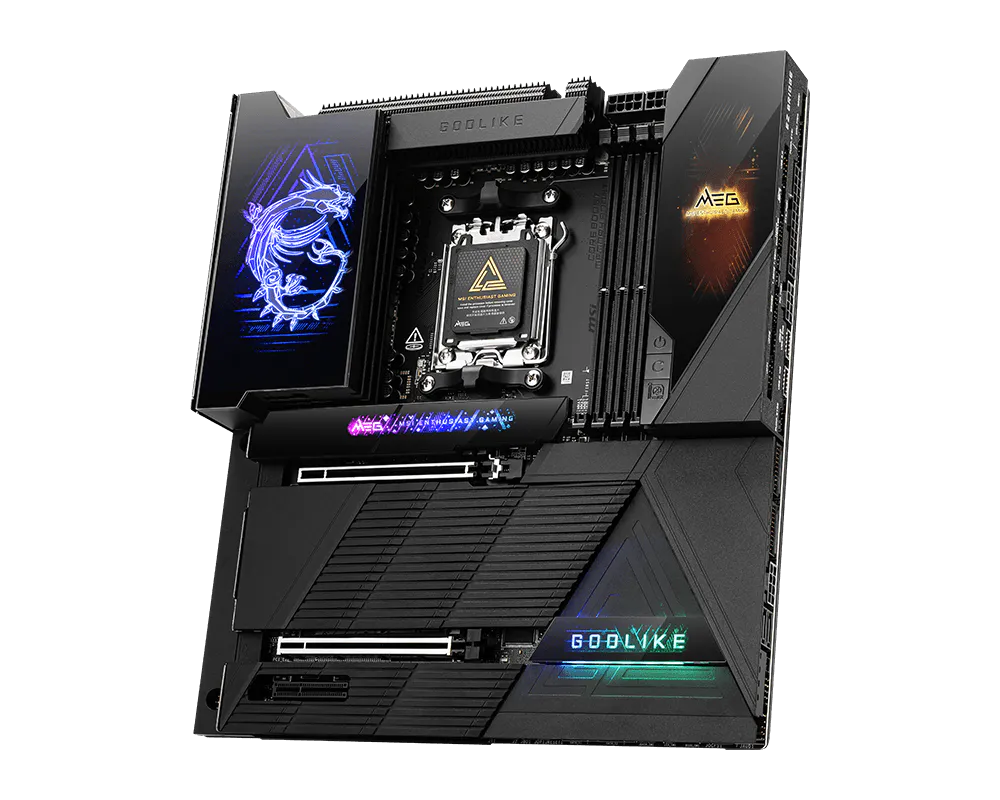

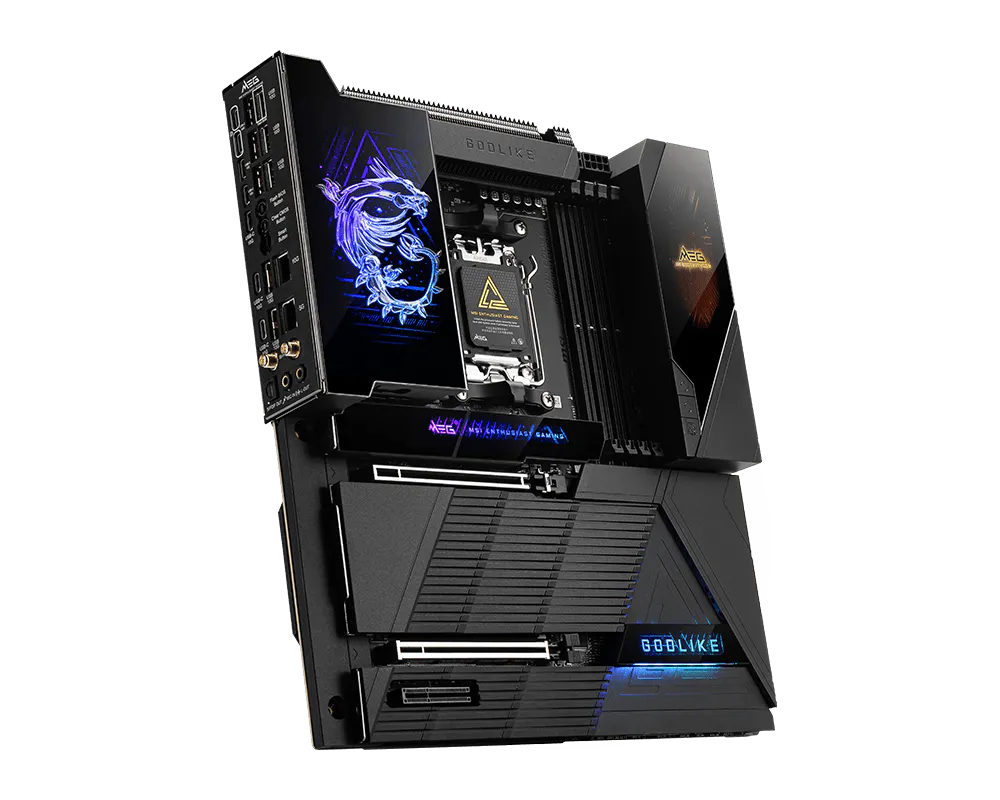

MSI MEG X870E GODLIKE perspective view showing Dynamic Dashboard III full-color OLED screen and waved heatsinks

24+2+1110A Direct Phase SPS

Dual 8-pinSolid CPU power inputs

Dynamic Dashboard III3.99-inch OLED display

10G + 5GDual extreme Ethernet

24+2+1 Direct Power Phase with 110A SPS

Uncompromising direct digital VRM delivering monstrous, clean current capable of sustaining extreme LN2 and custom loop overclocking.

Waved Fin Heatsink with Cross Heatpipes

Industrial-grade waved fin architecture increases surface area by over 50% for peak passive and active heat dissipation.

EZ Magnetic M.2 Shield Frozr II

Patented magnetic latching system eliminates screws entirely; simply lift and snap heatsinks back in place.

Dual USB4 40Gbps & 10G Super LAN

Next-generation Marvell 10Gbps Ethernet plus Realtek 5G LAN alongside dual 40Gbps USB4 ports for extreme bandwidth.

03

Lane Map

Interface speed rating & capability relative to modern motherboard standards

Dual PCIe 5.0 x16 SlotsPrimary & secondary PCIe 5.0 slots

~128 GB/s each

Dual USB4 40Gbps Type-CRear USB4 ultra-speed ports

40 Gb/s each

M.2 PCIe 5.0 x4 × 4 (Onboard + XPANDER)Four Gen5 NVMe SSDs

~128 Gb/s each

M.2 PCIe 4.0 x4 × 3 (Onboard)Three Gen4 NVMe SSDs

~64 Gb/s each

Marvell 10G Super LANExtreme 10Gbps wired network

10.0 Gb/s

Realtek 5G LANSecondary 5Gbps wired network

5.0 Gb/s

SATA 6 Gb/s × 4Storage drives & arrays

6 Gb/s each

04

Rear I/O Bay

Exactly what appears on the back of your case

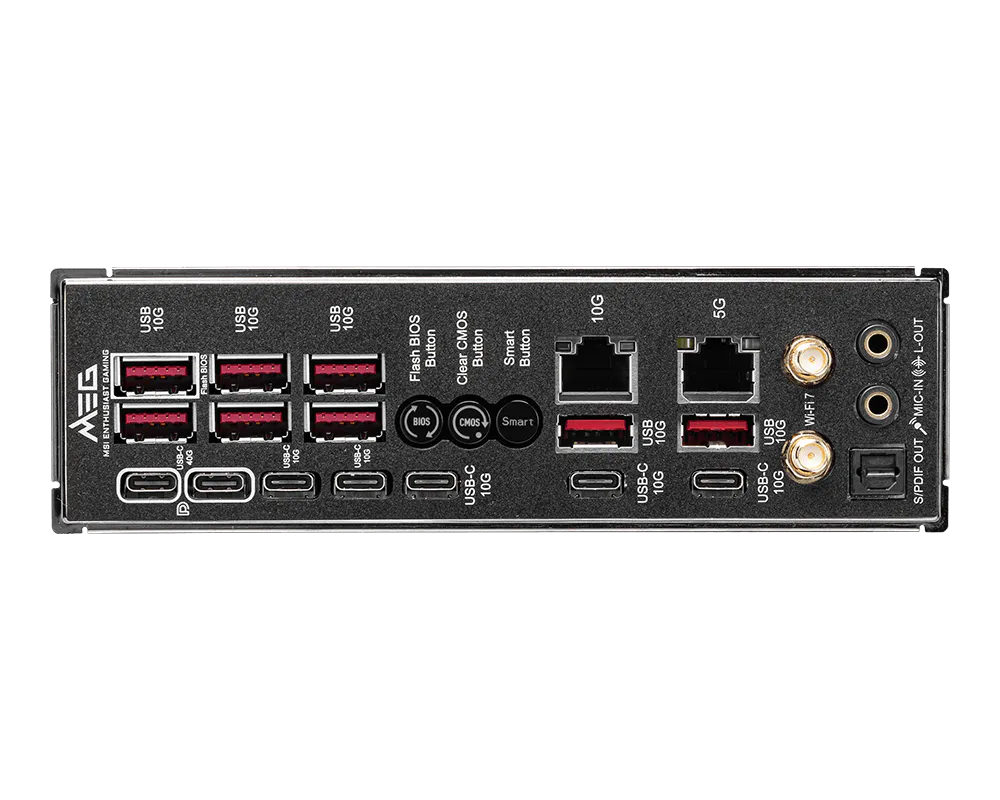

MSI MEG X870E GODLIKE rear I/O: 10G LAN, 5G LAN, Dual USB4 40Gbps, Wi-Fi 7, Smart Button, Clear CMOS and Flash BIOS

Port inventoryEverything on the panel, counted — not in physical order

1×Smart ButtonCustomizable multifunction physical button

1×Clear CMOS ButtonInstant BIOS settings reset button

1×Flash BIOS ButtonQuick BIOS flashing without CPU installed

2×USB4 40Gbps Type-CUltra-speed 40Gbps data & DP 1.4 video output

1×10G Super LAN PortMarvell AQtion 10Gbps Ethernet RJ-45

1×5G LAN PortRealtek 5Gbps high-speed Ethernet RJ-45

5×USB 10Gbps Type-CHigh-speed reversible Type-C ports

8×USB 10Gbps Type-AHigh-speed peripheral ports

2×Wi-Fi 7 EZ Antenna ConnectorsQuick-connect EZ Antenna for Wi-Fi 7 and Bluetooth 5.4

2×Audio Jacks + Optical S/PDIFRealtek ALC4080 with ESS SABRE Hi-Fi DAC

05

Will It Fit Your Build?

Check these before you add to cart

✓

Processor

Supports AMD Ryzen 9000, 8000, and 7000 Series desktop processors on socket AM5.

✓

Case Clearance

E-ATX form factor (30.5 cm x 27.7 cm) — requires a chassis with E-ATX motherboard support.

✓

Extreme Memory

DDR5 only — 4 DIMM slots supporting up to 256 GB and speeds up to 9200+ MT/s with AMD EXPO.

✓

Dual 10G & 5G Networking

Features both 10G Super LAN and 5G LAN wired ports plus integrated Wi-Fi 7.

✓

Unrivaled Storage

Supports up to 7x M.2 NVMe SSDs using the 5 onboard slots and included XPANDER-Z SLIDER card.

✓

OLED Dashboard

Equipped with Dynamic Dashboard III 3.99-inch color OLED display for real-time monitoring.

06

Full Specification Sheet

MSI MEG X870E GODLIKE WIFI

CPU Socket	AMD Socket AM5 (LGA 1718)
CPU Support	AMD Ryzen 9000 / 8000 / 7000 Series Desktop Processors
Chipset	AMD X870E Chipset
Form Factor	E-ATX (30.48 cm x 27.7 cm)
Power Design	24+2+1 Direct Phase (110A SPS) with Waved Fin Heatsinks
Hardware Screen	Dynamic Dashboard III (3.99-inch full-color OLED display)
Memory Slots	4 × DDR5 DIMM, dual channel (up to DDR5-9200+ MT/s OC)
Max Memory	256 GB with AMD EXPO
PCIe 5.0 Slots	2 × PCIe 5.0 x16 slots (x16/x0 or x8/x8)
Total M.2 Capacity	Up to 7 × M.2 (5 onboard + 2 via bundled M.2 XPANDER-Z SLIDER)
SATA Ports	4 × SATA 6 Gb/s
USB4 Connectivity	2 × USB4 40Gbps Type-C with DisplayPort output
Wired Networking	Marvell 10G Super LAN + Realtek 5G LAN
Wireless Networking	Wi-Fi 7 (802.11be, 320MHz) + Bluetooth 5.4
Audio Architecture	Realtek ALC4080 + ESS SABRE ES9219Q DAC with S/PDIF

07

Technical & Policy Q&A

Common questions about this motherboard

What is the Dynamic Dashboard III display?+

Dynamic Dashboard III is a built-in 3.99-inch full-color OLED screen that displays real-time hardware status (CPU temperatures, voltages, clock speeds), POST error codes, BIOS flashing progress, and custom animated GIFs.

How does the M.2 XPANDER-Z SLIDER Gen5 expansion card work?+

The included PCIe add-in card connects to the secondary PCIe slot and provides two additional PCIe 5.0 x4 M.2 slots with innovative slide-out drive trays, enabling tool-free SSD swapping without removing the card.

What case form factor is required for the MEG X870E GODLIKE?+

The GODLIKE is built on an Extended ATX (E-ATX) form factor measuring 30.5 cm x 27.7 cm, requiring a mid-tower or full-tower chassis with dedicated E-ATX motherboard tray clearance.

What dual-network wired capabilities are included?+

It includes both a Marvell AQtion 10Gbps Super LAN port for ultra-fast NAS and local network transfers, alongside a Realtek 5Gbps gaming LAN port and next-generation Wi-Fi 7.

How extreme is the 24+2+1 phase VRM?+

The VRM utilizes 24 direct VCORE phases rated at 110A Smart Power Stages (SPS), delivering unprecedented current delivery capable of handling extreme continuous multithreading and competitive sub-zero overclocking.

Does AHW Store update the BIOS before shipping?+

Every motherboard ships sealed in its original retail packaging with the factory BIOS. Our engineers can flash the latest vendor BIOS free of charge on request when you order a CPU with the board, which guarantees first-boot compatibility with the newest supported CPU generation.

What warranty coverage is included?+

All motherboards sold at AHW Store carry the official authorized distributor warranty with local technical support and replacement. Full terms in our Warranty Policy ↗.

What payment and installment plans are available in Egypt?+

Cash on delivery, credit and debit cards, and flexible installment plans through ValU, Sympl, Forsa and bank credit cards. See our Payment & Installments Guide ↗.

How fast is shipping across Egypt?+

Orders are delivered within 2 to 7 business days across all Egyptian governorates, packed in anti-static shielding with shock-protected outer packaging (with pickup available from our 6th of October headquarters). See our Shipping Policy ↗.

Can AHW Store build the complete PC around this motherboard?+

Yes. Our certified engineers assemble, cable-manage, flash BIOS, stress-test and tune the finished system before it ships. Start with our Custom PC Builder ↗.
