MSI MPG X870E EDGE TI WIFI DDR5 AM5 ATX Motherboard Black - AHW Store

MSI

MSI MPG X870E EDGE TI WIFI DDR5 AM5 ATX Motherboard Black

Name: MSI MPG X870E EDGE TI WIFI DDR5 AM5 ATX Motherboard Black
Brand: MSI
SKU: MSI-MB-X870-E-EDGE-TI-WI
Price: 21300.0 EGP
Availability: InStock

^EGP 21,300

Hurry up! Only 1 item(s) items left in stock

💳

Secure Payment Methods

Cash on delivery and various payment options and installment plans.

🚚

Fast and Secure Shipping

Receive your order within 2 to 5 business days.

🎧

Customer Service

Technical support from 10 am to 12 pm.

🛡️

Warranty Coverage

Enjoy a 6-month to 3-year warranty through us with distributors.

Ask us on WhatsApp Share on WhatsApp

Description

MSI

MSI MPG X870E EDGE TI WIFI — Silver-White Elegance, Dual USB4 40G, 5G LAN & Wi-Fi 7

A breathtaking silver-white ATX flagship motherboard on AMD X870E designed for Ryzen 9000, 8000, and 7000 Series desktop processors. Features an immaculate white/silver aesthetic, 14+2+1 Duet Rail Power System (80A SPS), dual USB4 40Gbps Type-C ports, PCIe 5.0 x16 slot with EZ PCIe Release, four M.2 sockets (Gen5 + Gen4), Wi-Fi 7, and Realtek 5G LAN.

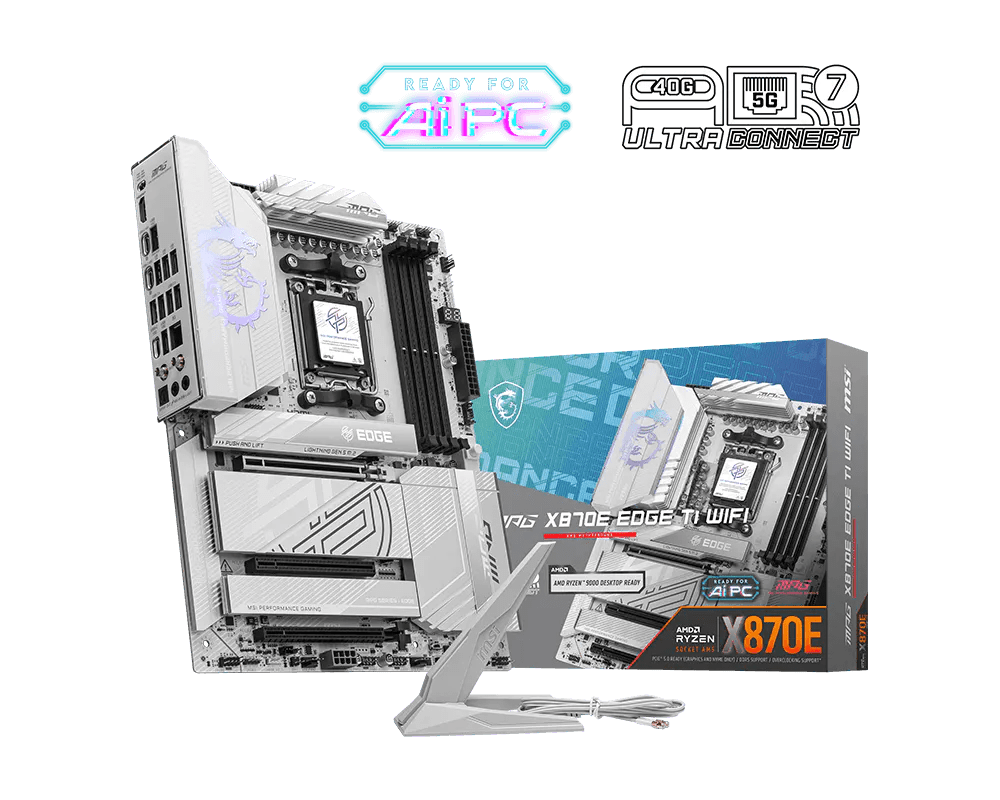

MSI MPG X870E EDGE TI WIFI retail box and silver-white ATX motherboard with Wi-Fi 7 and USB4 badges

SocketAMD AM5

ChipsetAMD X870E

MemoryDDR5 · 4 DIMM

Form FactorATX

WirelessWi-Fi 7

01

Board Map

Every connector, located before you unbox

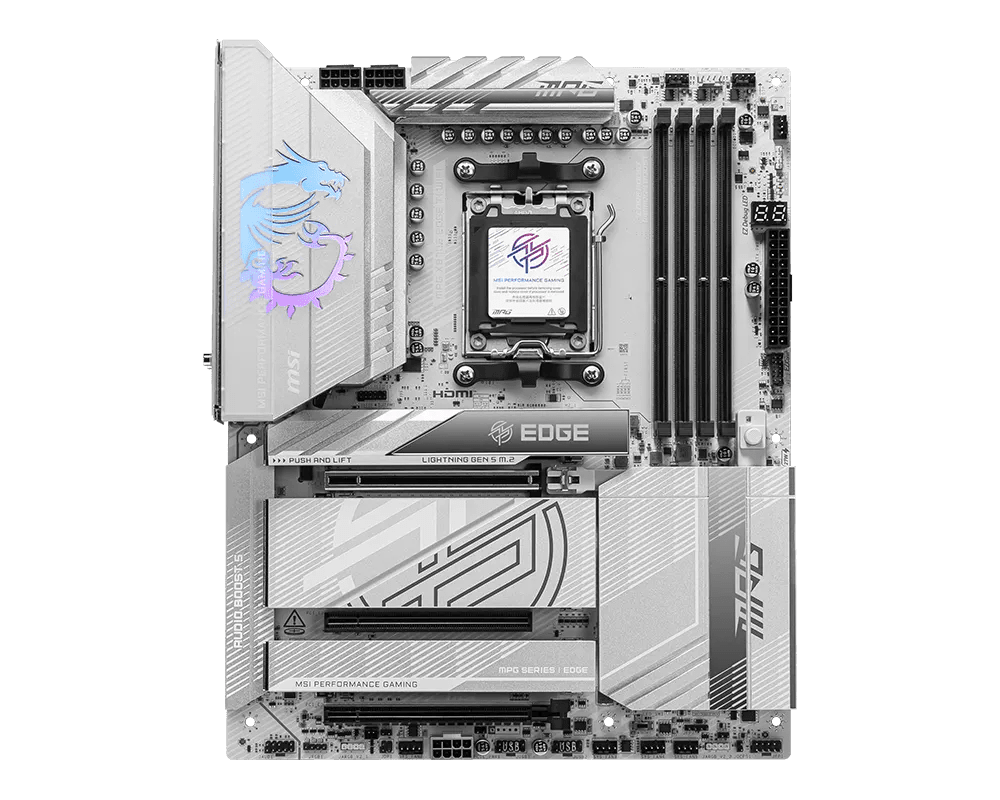

MSI MPG X870E EDGE TI WIFI top-down layout showing AM5 socket, silver 14+2+1 VRM and 4x M.2 slots

1

AMD Socket AM5 (LGA 1718) — Centre

Supports AMD Ryzen 9000, 8000, and 7000 Series processors with long-term platform support and precision boost overclocking.

2

14+2+1 Duet Rail VRM in Silver Armor — Top & Left

Heavy silver-white aluminum heatsinks with 7W/mK MOSFET thermal pads keep 80A power stages cool under high-load continuous compute.

3

4 × DDR5 DIMM Slots with Memory Boost — Right

Dual-channel DDR5 supporting up to 256 GB and extreme overclocking speeds up to 8400+ MT/s (O.C.) with AMD EXPO.

4

PCIe 5.0 x16 Slot with EZ PCIe Release — Centre

Reinforced PCIe 5.0 graphics card slot with mechanical EZ PCIe Release push-button for effortless GPU removal.

5

4 × M.2 NVMe Sockets with Shield Frozr II — Across PCB

Dual PCIe 5.0 x4 M.2 slots plus dual PCIe 4.0 x4 slots, all equipped with tool-less silver EZ M.2 Shield Frozr II heatsinks.

6

4 × SATA 6Gb/s Ports — Lower Right

Right-angled storage connections supporting RAID 0, 1, and 10 arrays.

02

Power Delivery & Thermals

What feeds the socket, and what keeps it steady

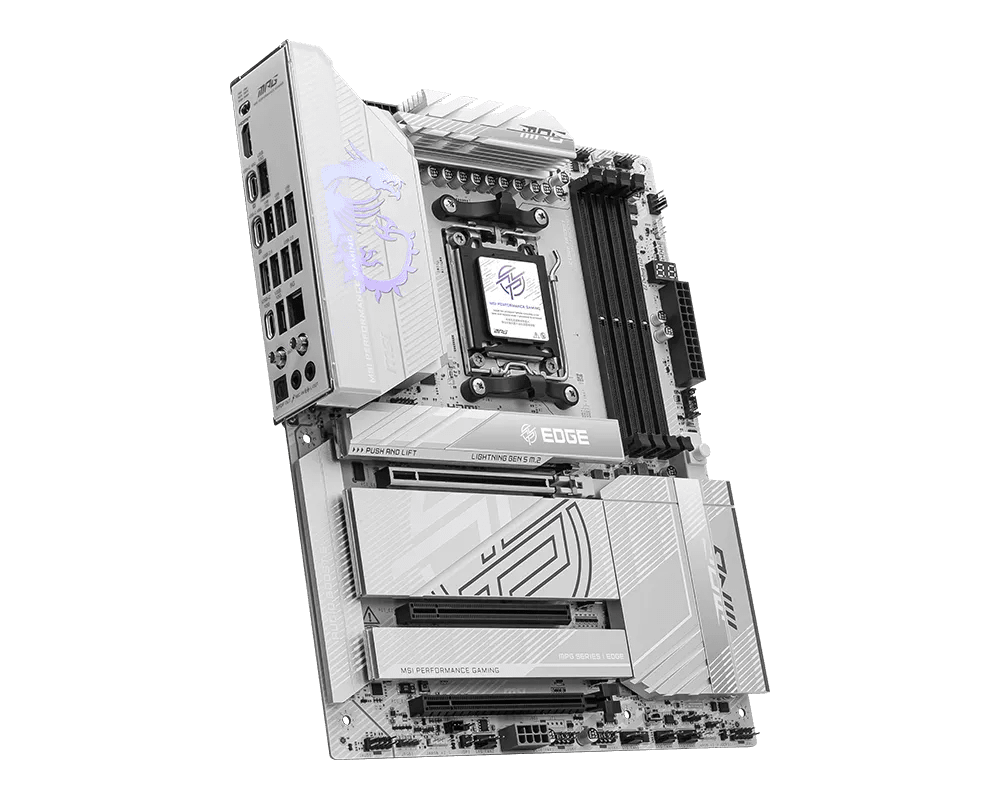

MSI MPG X870E EDGE TI WIFI perspective view showing silver-white extended heatsinks and EZ PCIe Release

14+2+180A Smart Power Stages

Dual 8-pinSolid CPU power inputs

EZ Shield Frozr IISilver tool-less M.2 armor

Wi-Fi 7EZ Antenna connectors

14+2+1 Duet Rail 80A SPS Power

Premium 80A Smart Power Stages paired with dual 8-pin connectors deliver pristine, efficient current to Ryzen 9 processors.

Silver-White Frozr Thermal Design

Heavy silver aluminum heatsinks look stunning in white and silver themed PC builds while providing outstanding thermal dissipation.

EZ PCIe Release Button

Mechanical push button placed conveniently on the board allows one-click release of even the thickest RTX 40/50 series GPUs.

Dual USB4 40Gbps Type-C

Two rear USB4 ports deliver up to 40 Gbps data bandwidth and DisplayPort 1.4 video output.

03

Lane Map

Interface speed rating & capability relative to modern motherboard standards

PCIe 5.0 x16 Slot (Steel Armor)Primary PCIe 5.0 GPU slot

~128 GB/s

Dual USB4 40Gbps Type-CRear USB4 external ports

40 Gb/s each

M.2 PCIe 5.0 x4 × 2 (Shield Frozr)Dual primary Gen5 NVMe SSDs

~128 Gb/s each

M.2 PCIe 4.0 x4 × 2 (Shield Frozr)Secondary Gen4 NVMe SSDs

~64 Gb/s each

PCIe 4.0 x16 (x4 mode)Secondary high-speed expansion

~64 Gb/s

SATA 6 Gb/s × 4Storage drives & arrays

6 Gb/s each

Realtek 5G LANUltra-high speed wired network

5.0 Gb/s

04

Rear I/O Bay

Exactly what appears on the back of your case

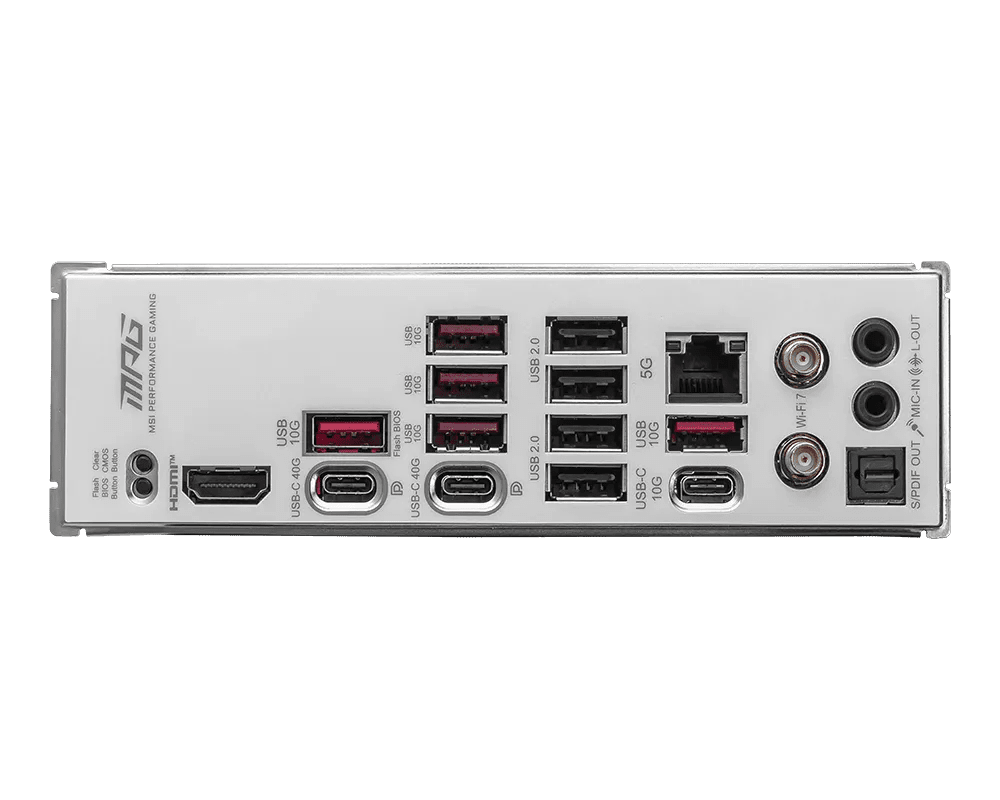

MSI MPG X870E EDGE TI WIFI rear I/O: Dual USB4 40Gbps, 5G LAN, Wi-Fi 7, HDMI 2.1, Clear CMOS and Flash BIOS

Port inventoryEverything on the panel, counted — not in physical order

1×Clear CMOS ButtonInstant BIOS settings reset button

1×Flash BIOS ButtonQuick BIOS flashing without CPU or RAM installed

2×USB4 40Gbps Type-CUltra-fast 40Gbps data & DP 1.4 video output

1×HDMI 2.1 Port4K 120Hz display output from integrated GPU

1×5G LAN PortRealtek 5Gbps high-speed Ethernet RJ-45

2×USB 10Gbps Type-A (Red)10 Gbps ultra-fast peripheral ports

1×USB 10Gbps Type-C10 Gbps front/rear connection

7×USB 5Gbps Type-A (Blue)5 Gbps high-speed USB ports for peripherals

2×Wi-Fi 7 EZ Antenna ConnectorsQuick-connect EZ Antenna for Wi-Fi 7 and Bluetooth 5.4

2×Audio Jacks + Optical S/PDIFRealtek ALC4080 Audio Boost 5 with digital optical out

05

Will It Fit Your Build?

Check these before you add to cart

✓

Processor

Supports AMD Ryzen 9000, 8000, and 7000 Series desktop processors on socket AM5.

✓

Aesthetics

Silver and white heatsink design ideal for white and silver themed gaming rigs.

✓

Memory

DDR5 only — 4 DIMM slots supporting up to 256 GB and speeds up to 8400+ MT/s with AMD EXPO.

✓

Graphics & Storage

PCIe 5.0 x16 slot with EZ PCIe Release and dual PCIe 5.0 M.2 sockets.

✓

High-Speed I/O

Dual USB4 40Gbps Type-C ports supporting high-speed docks and external SSDs.

✓

Case

Standard ATX form factor (30.5 cm x 24.4 cm) — fits standard Mid-Tower and Full-Tower cases.

06

Full Specification Sheet

MSI MPG X870E EDGE TI WIFI

CPU Socket	AMD Socket AM5 (LGA 1718)
CPU Support	AMD Ryzen 9000 / 8000 / 7000 Series Desktop Processors
Chipset	AMD X870E Chipset
Form Factor	ATX (30.48 cm x 24.38 cm)
Power Design	14+2+1 Duet Rail Power System (80A SPS) with silver heatsinks
Memory Slots	4 × DDR5 DIMM, dual channel
Max Memory	256 GB (up to DDR5-8400+ MT/s OC with AMD EXPO)
Primary Graphics Slot	1 × PCIe 5.0 x16 (Steel Armor, EZ PCIe Release)
Secondary PCIe Slots	1 × PCIe 4.0 x16 (x4 mode)
M.2 Storage Sockets	4 × M.2 (2x PCIe 5.0 x4 + 2x PCIe 4.0 x4 with Shield Frozr II)
SATA Ports	4 × SATA 6 Gb/s
USB4 Connectivity	2 × USB4 40Gbps Type-C with DisplayPort output
Wireless Networking	Wi-Fi 7 (802.11be, 320MHz) + Bluetooth 5.4
Ethernet LAN	Realtek 5 Gbps Gaming LAN
Audio	Realtek ALC4080 7.1-Channel USB High Performance Audio with S/PDIF

07

Technical & Policy Q&A

Common questions about this motherboard

What makes the MPG X870E EDGE TI ideal for white PC builds?+

The EDGE TI features immaculate silver-white heatsinks, an matching aesthetic rear I/O shield, and silver M.2 Shield Frozr covers designed specifically for high-end white themed gaming rigs.

What is the EZ PCIe Release feature?+

EZ PCIe Release is a mechanical button located near the edge of the board that unlocks the primary graphics card latch instantly with a single push, removing the struggle of reaching under thick GPU heatsinks.

How fast are the rear USB4 ports?+

Both rear USB4 Type-C ports deliver full 40 Gbps transfer speeds, support DisplayPort 1.4 HBR3 video output, and are compatible with high-speed external NVMe enclosures and professional audio/video docks.

Does this motherboard feature Wi-Fi 7 and 5G LAN?+

Yes, it integrates the latest Wi-Fi 7 (802.11be) wireless standard with 320MHz ultra-wide channels and Bluetooth 5.4, alongside a Realtek 5Gbps high-speed wired Ethernet port.

How many M.2 NVMe SSDs can be installed?+

You can install up to four M.2 NVMe SSDs simultaneously (two at ultra-fast PCIe 5.0 x4 and two at PCIe 4.0 x4), all protected by tool-less silver EZ M.2 Shield Frozr II heatsinks.

Does AHW Store update the BIOS before shipping?+

Every motherboard ships sealed in its original retail packaging with the factory BIOS. Our engineers can flash the latest vendor BIOS free of charge on request when you order a CPU with the board, which guarantees first-boot compatibility with the newest supported CPU generation.

What warranty coverage is included?+

All motherboards sold at AHW Store carry the official authorized distributor warranty with local technical support and replacement. Full terms in our Warranty Policy ↗.

What payment and installment plans are available in Egypt?+

Cash on delivery, credit and debit cards, and flexible installment plans through ValU, Sympl, Forsa and bank credit cards. See our Payment & Installments Guide ↗.

How fast is shipping across Egypt?+

Orders are delivered within 2 to 7 business days across all Egyptian governorates, packed in anti-static shielding with shock-protected outer packaging (with pickup available from our 6th of October headquarters). See our Shipping Policy ↗.

Can AHW Store build the complete PC around this motherboard?+

Yes. Our certified engineers assemble, cable-manage, flash BIOS, stress-test and tune the finished system before it ships. Start with our Custom PC Builder ↗.
