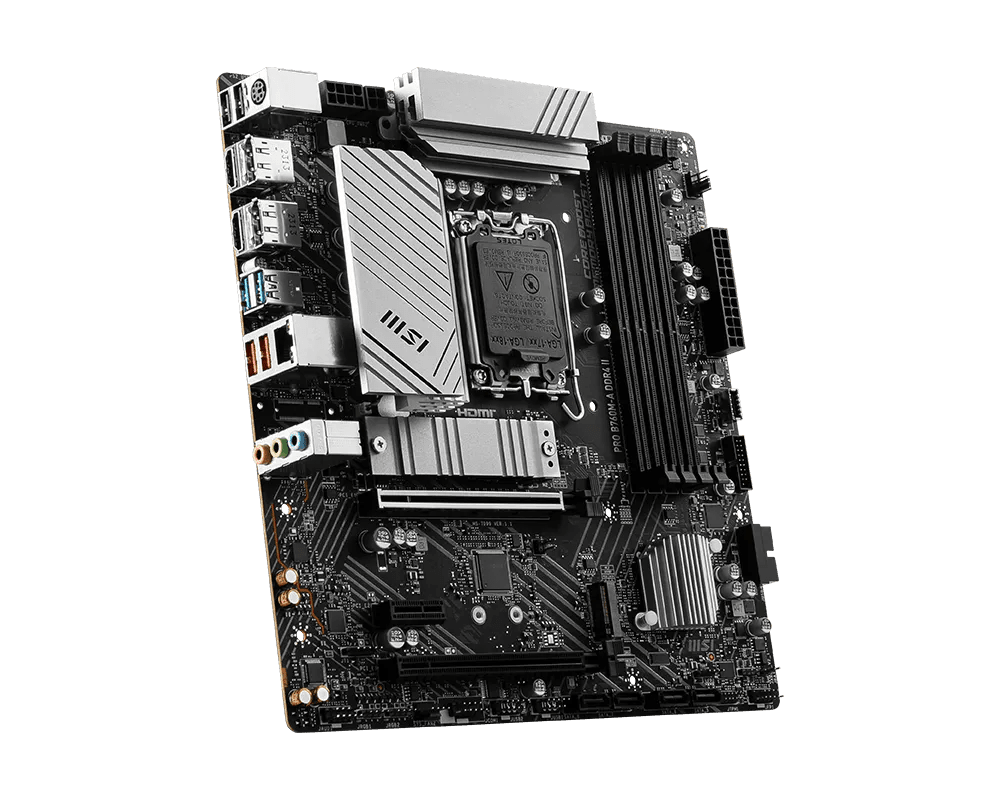

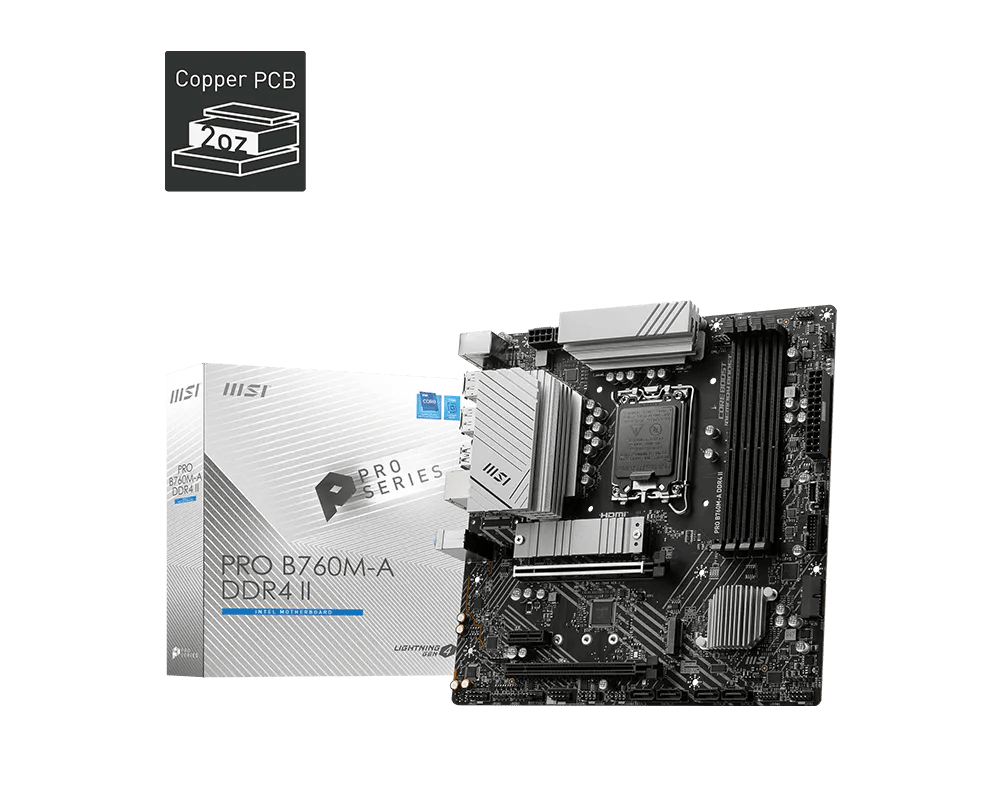

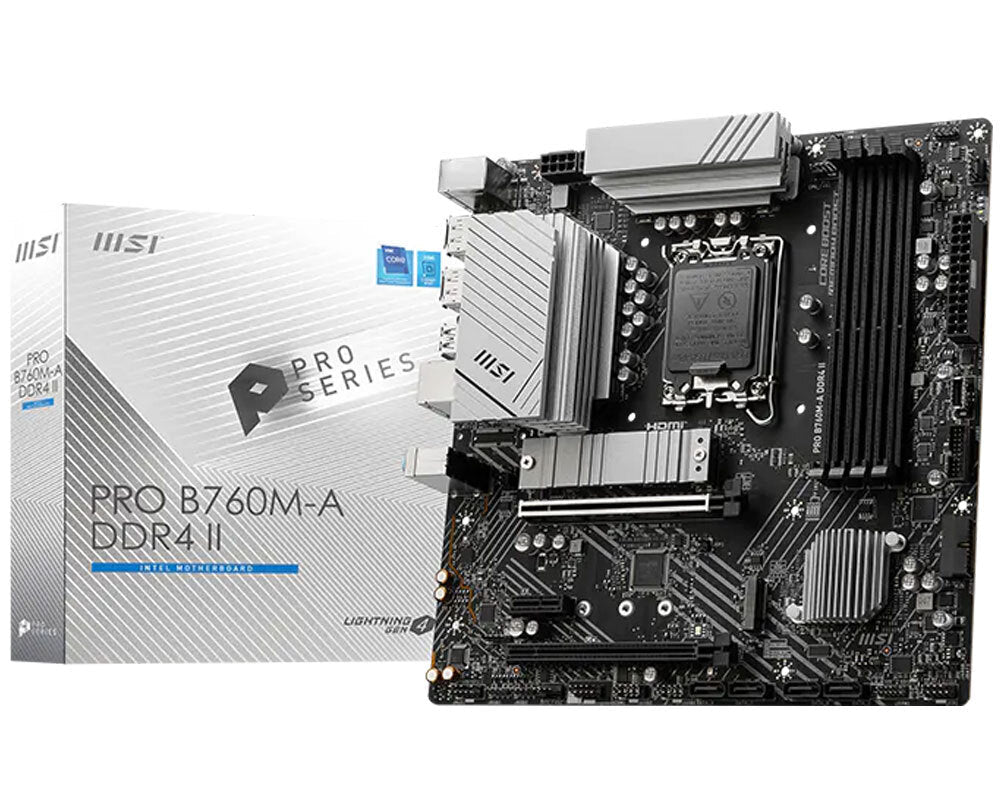

MSI PRO B760M-A DDR4 II β Quad display outputs, 2.5G LAN and dual M.2 Gen4 with Shield Frozr
A feature-packed Micro-ATX commercial and gaming motherboard on Intel B760 for 14th, 13th, and 12th Gen Intel Core desktop processors. Featuring a 12+1+1 Duet Rail VRM in silver aluminum heatsinks, four DDR4 DIMMs reaching up to 5333+ MHz (O.C.), dual M.2 PCIe 4.0 sockets with Shield Frozr, quad video outputs (2x HDMI + 2x DP), and Realtek 2.5G LAN.

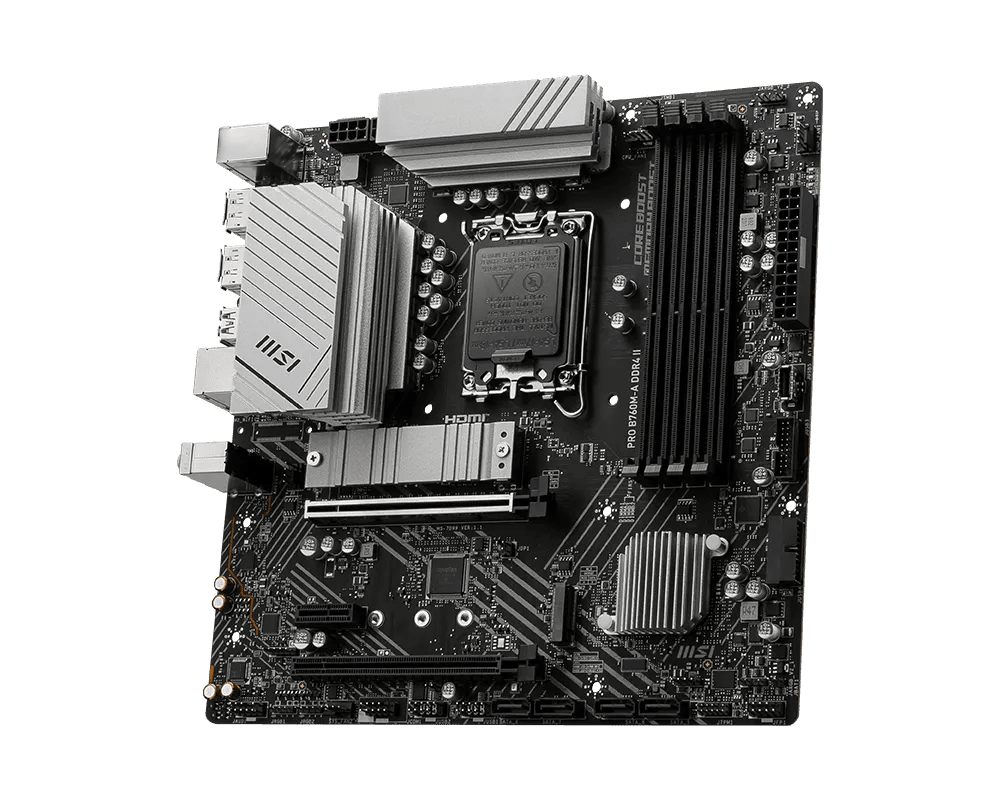

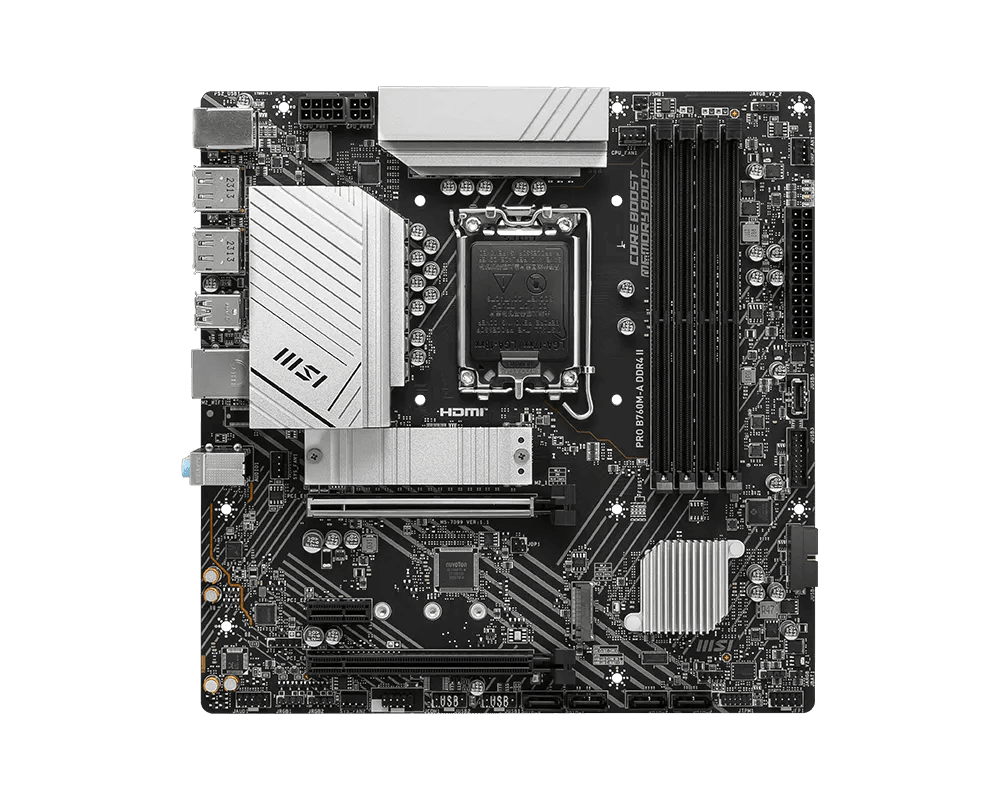

Board Map
Every connector, located before you unbox
Intel LGA 1700 CPU Socket β Centre
Supports 14th, 13th, and 12th Gen Intel Core desktop processors with multi-core stability.
12+1+1 Duet Rail VRM Heatsinks β Top & Left
Heavy silver aluminum heatsinks keep power stages cool during heavy compute.
4 Γ DDR4 DIMM Slots with Memory Boost β Right
Dual-channel DDR4 supporting up to 128 GB memory capacity and frequencies up to 5333+ MT/s (O.C.).
PCIe 4.0 x16 Steel Armor Slot β Centre
Reinforced PCIe 4.0 graphics card slot designed to anchor heavy GPUs.
2 Γ Lightning Gen4 M.2 Sockets β Across PCB
Dual high-speed PCIe 4.0 x4 NVMe slots (primary slot includes M.2 Shield Frozr heatsink).
4 Γ SATA 6Gb/s Ports β Lower Right
Connect standard SATA hard drives and 2.5-inch SSDs.
Power Delivery & Thermals
What feeds the socket, and what keeps it steady12+1+1 Duet Rail Power System
Digital PWM controller delivers smooth voltage to Intel Core processors during intense workloads.
Quad Video Output Support
Equipped with dual HDMI 2.1 ports and dual DisplayPort 1.4 ports to drive up to four 4K displays simultaneously from integrated graphics.
Realtek 2.5G Gaming Ethernet
High-bandwidth 2.5 Gbps wired networking for fast file transfers and low multiplayer latency.
Extended Heatsink Design
MSI extended PWM heatsink ensures high-end processors run at full speed reliably.
Lane Map

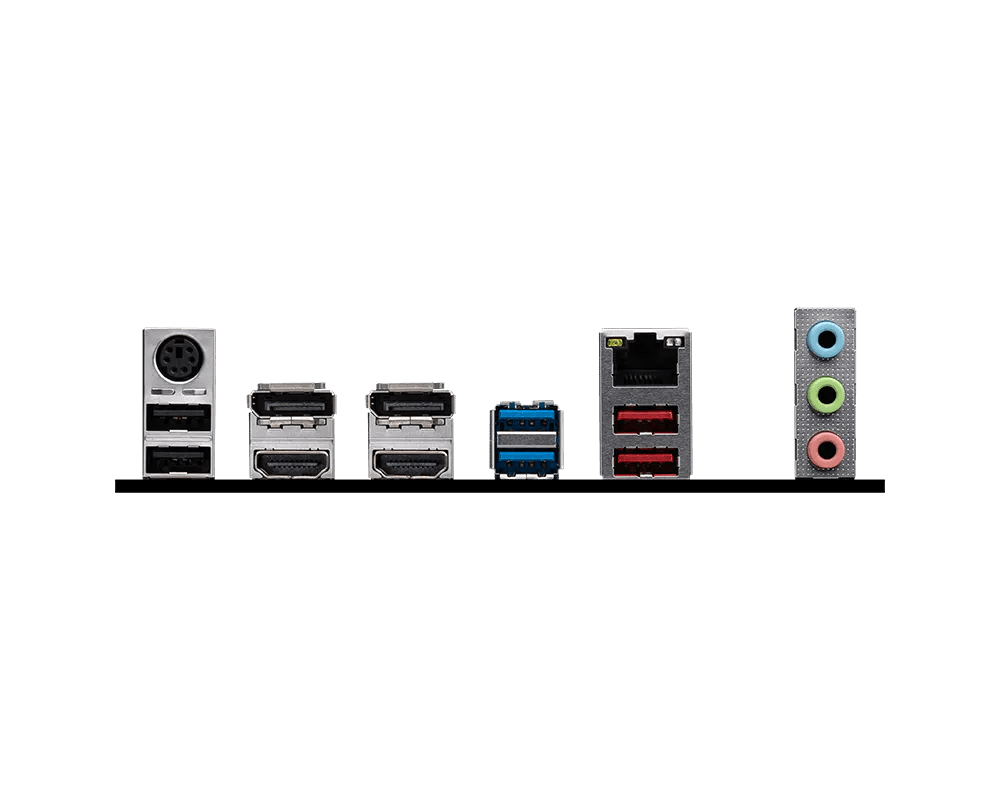

Interface speed rating & capability relative to modern motherboard standardsRear I/O Bay
Exactly what appears on the back of your case
Will It Fit Your Build?
Check these before you add to cartProcessor
Supports 12th, 13th and 14th Gen Intel Core desktop processors on LGA 1700.
Memory
DDR4 only β 4 DIMM slots supporting up to 128 GB and speeds up to 5333+ MHz (O.C.).
Graphics
PCIe 4.0 x16 slot with Steel Armor protection.
Storage
2 Γ M.2 PCIe 4.0 NVMe sockets (primary with Shield Frozr heatsink) plus 4 SATA ports.
Displays
4 video outputs (2x HDMI + 2x DP) for multi-monitor productivity setups.
Case
Standard Micro-ATX form factor (24.4 cm x 24.4 cm) β fits Micro-ATX and ATX cases.
Full Specification Sheet
MSI PRO B760M-A DDR4 II| CPU Socket | Intel LGA 1700 |
| CPU Support | 14th, 13th & 12th Gen Intel Core, Pentium Gold, Celeron |
| Chipset | Intel B760 Express |
| Form Factor | Micro-ATX (24.4 cm x 24.4 cm) |
| Power Design | 12+1+1 phase digital VRM with silver heatsinks |
| Memory Slots | 4 Γ DDR4 DIMM, dual channel |
| Max Memory | 128 GB (up to DDR4-5333+ MHz OC) |
| Primary Graphics Slot | 1 Γ PCIe 4.0 x16 Steel Armor |
| Secondary PCIe Slots | 1 Γ PCIe 4.0 x16 (x4 mode), 1 Γ PCIe 3.0 x1 |
| M.2 Storage Sockets | 2 Γ M.2 PCIe 4.0 x4 (M.2_1 with Shield Frozr) |
| SATA Ports | 4 Γ SATA 6 Gb/s |
| Ethernet LAN | Realtek 2.5 Gbps LAN |
| Audio | Realtek ALC897 7.1-Channel HD Audio with Audio Boost |
| Display Outputs | 2x HDMI 2.1, 2x DisplayPort 1.4 |
| Rear USB Ports | 2x USB 3.2 Gen 2 (10Gbps), 2x USB 3.2 Gen 1 (5Gbps), 2x USB 2.0 |
