MSI PRO B760M-E DDR5 — accessible next-gen memory, PCIe 4.0 and Gen4 M.2 storage
An efficient and cost-effective Micro-ATX motherboard on Intel B760 built for everyday productivity and gaming. Featuring dual DDR5 DIMM slots reaching up to 6400+ MHz (O.C.), a reinforced PCIe 4.0 x16 Steel Armor graphics slot, Lightning Gen4 M.2 NVMe storage, and Core Boost power delivery.

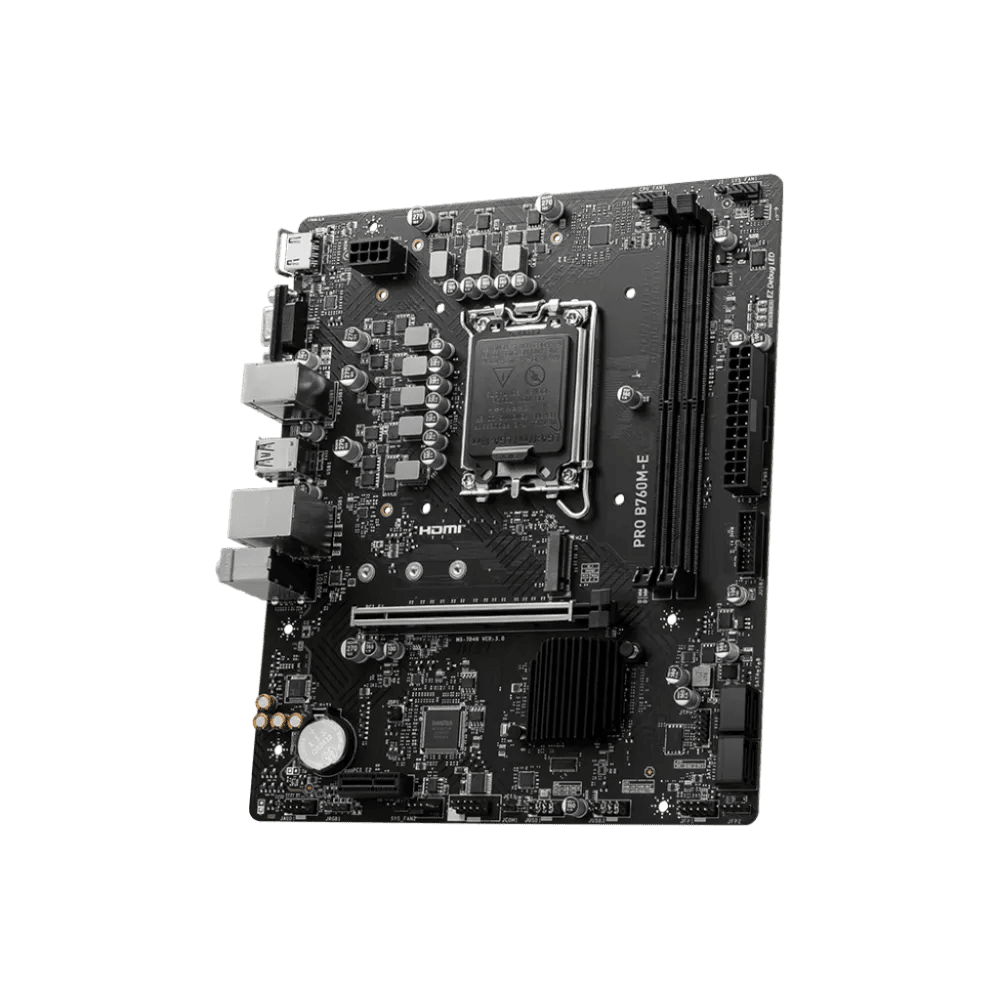

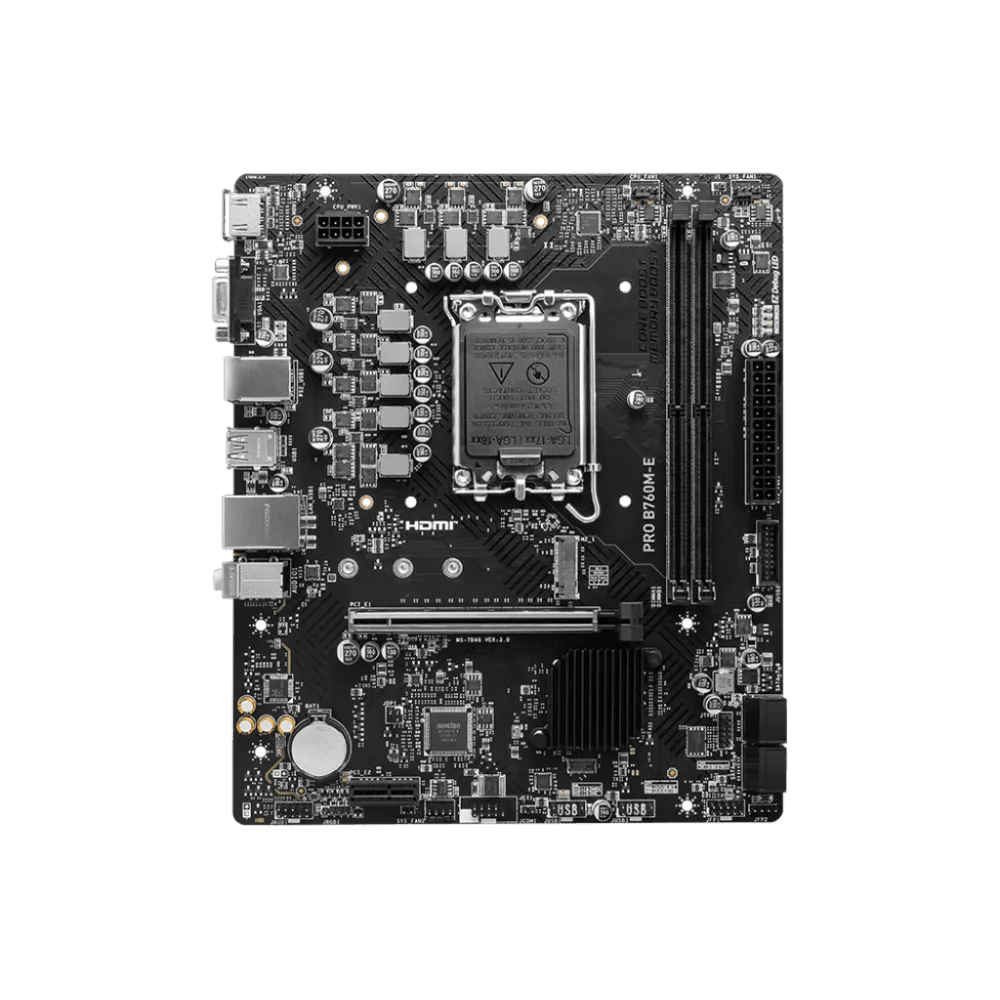

Board Map
Every connector, located before you unbox
LGA 1700 CPU Socket — Centre
Supports 14th, 13th, and 12th Gen Intel Core desktop processors with reliable daily operation.
Core Boost Power Section — Top & Left
Optimized power traces and digital PWM controller ensure consistent electrical power to Intel processors.
2 × DDR5 DIMM Slots with Memory Boost — Right
Dual-channel DDR5 supporting up to 128 GB system RAM and frequencies exceeding 6400+ MT/s (O.C.).
PCIe 4.0 x16 Steel Armor Slot — Centre
Reinforced with steel armor to shield graphics card signals from electromagnetic interference and physical strain.
1 × Lightning Gen4 M.2 Slot — Below Socket
Dedicated PCIe 4.0 x4 NVMe storage slot delivering up to 64 Gbps read speeds.
4 × SATA 6Gb/s Ports — Lower Right
Connect standard SATA hard drives and 2.5-inch SSDs.
Power Delivery & Thermals
What feeds the socket, and what keeps it steadyCore Boost Power Delivery
Core Boost technology combines premium power layout and digital design to deliver faster, undistorted current to the CPU.
Memory Boost Isolated Circuitry
Fully-isolated DDR5 memory circuits deliver pure data signals for the best gaming performance and stability.
Steel Armor Reinforced Slot
MSI Steel Armor protects the PCIe slot against bending and EMI interference from heavy modern graphics cards.
Lightning Gen4 NVMe Storage
Delivers up to 64 Gbps transfer speeds for rapid game loading and instant system responsiveness.
Lane Map

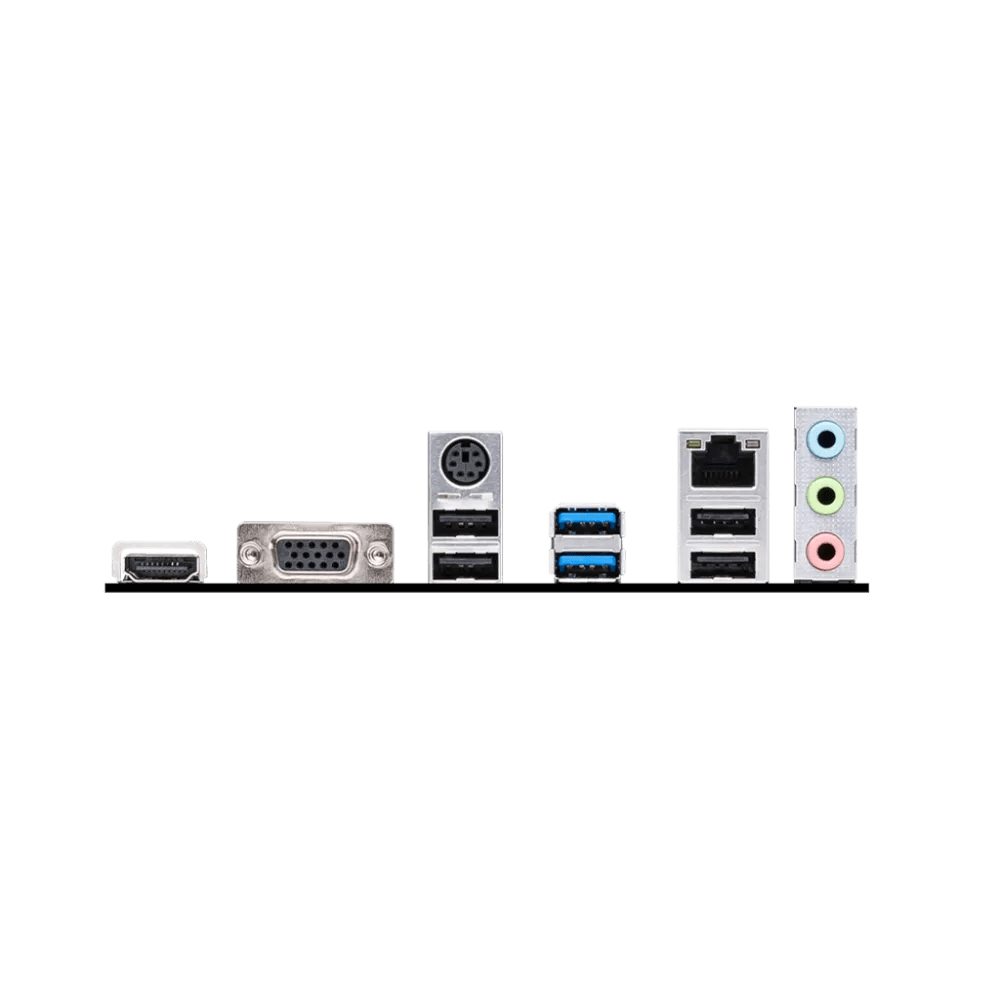

Interface speed rating & capability relative to modern motherboard standardsRear I/O Bay
Exactly what appears on the back of your case
Will It Fit Your Build?
Check these before you add to cartProcessor
Supports 14th, 13th, and 12th Gen Intel Core desktop processors on socket LGA 1700.
Memory
DDR5 only — 2 DIMM slots supporting up to 128 GB and speeds up to 6400+ MHz (O.C.).
Graphics
PCIe 4.0 x16 slot with Steel Armor reinforcement.
Storage
1 × M.2 PCIe 4.0 NVMe slot plus 4 SATA ports.
Networking
Wired Gigabit Ethernet LAN port built-in. (No onboard Wi-Fi).
Case
Compact Micro-ATX form factor (23.6 cm x 20.0 cm) fitting standard and mini cases.
Full Specification Sheet
MSI PRO B760M-E DDR5| CPU Socket | Intel LGA 1700 |
| CPU Support | 14th, 13th & 12th Gen Intel Core, Pentium Gold, Celeron |
| Chipset | Intel B760 Express |
| Form Factor | Micro-ATX (23.6 cm x 20.0 cm) |
| Power Design | Core Boost digital PWM design |
| Memory Slots | 2 × DDR5 DIMM, dual channel |
| Max Memory | 128 GB (up to DDR5-6400+ MHz OC) |
| Primary Graphics Slot | 1 × PCIe 4.0 x16 Steel Armor |
| Secondary PCIe Slot | 1 × PCIe 3.0 x1 |
| M.2 Storage Sockets | 1 × M.2 PCIe 4.0 x4 |
| SATA Ports | 4 × SATA 6 Gb/s |
| Ethernet LAN | Realtek RTL8111H 1Gbps LAN |
| Audio | Realtek ALC897 7.1-Channel HD Audio with Audio Boost |
| Rear USB Ports | 2x USB 3.2 Gen 1, 4x USB 2.0 |
| Display Outputs | 1x HDMI, 1x VGA |
