MSI PRO B760M-P DDR4 — four DDR4 slots, two M.2 sockets and three display outputs on B760
A PRO-series Micro-ATX board on the Intel B760 chipset for 12th, 13th and 14th Gen Intel Core processors. It is the rare budget board with four DDR4 slots rather than two, so an existing DDR4 kit carries over and still leaves room to grow to 128 GB. Add two PCIe 4.0 M.2 sockets, a reinforced PCIe 4.0 x16 slot, and VGA, DisplayPort and HDMI together on the back panel.

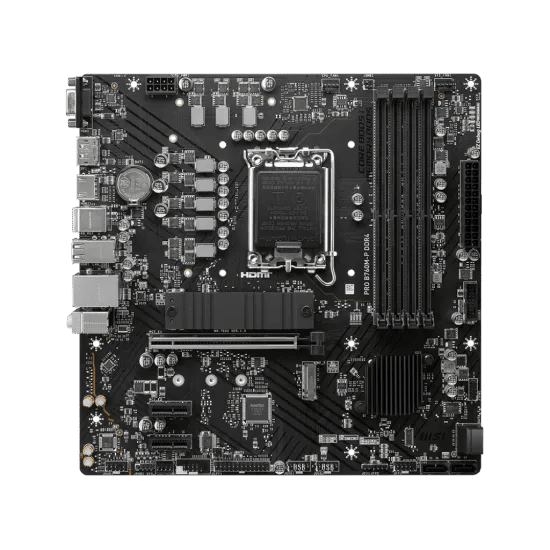

Board Map
Every connector, located before you unbox
LGA 1700 CPU socket — dead centre
The silkscreen beside it reads PRO B760M-P DDR4 · MS-7E02 VER:1.0. It accepts 12th, 13th and 14th Gen Intel Core, Pentium Gold and Celeron processors, and every standard LGA 1700 cooler mount fits without an adapter.
4 × DDR4 DIMM slots — right edge
Silkscreened DIMMA1, DIMMA2, DIMMB1 and DIMMB2. Four DDR4 slots on a budget Micro-ATX board is unusual — most drop to two. Dual-channel up to 128 GB, so an old 2-stick kit slots in with room left to double it later.
M2_1 under the heatsink — above the graphics slot
The first M.2 socket runs from the CPU and comes with its heatsink already fitted. The silkscreen beside it marks PCIE | SATA, so it takes an NVMe drive or an older M.2 SATA stick.
M2_2 beside the chipset — lower right of centre
The second M.2 socket is fed from the chipset and ships bare, without a heatsink. Also marked PCIE | SATA. Two M.2 sockets on this tier means a fast boot drive and a second NVMe without touching a SATA port.
PCI_E1 — the reinforced x16 graphics slot
The long metal-shielded slot carries the graphics card. The shielding adds solder anchor points so a heavy triple-fan card does not lever the slot out of the board.
PCI_E2 and PCI_E3 — two short x1 slots, lower left
Two spare expansion slots sit clear of the graphics card's cooler, so a capture card, sound card or Wi-Fi card still fits alongside a thick GPU.
Chipset heatsink and SATA — right side
A passive black block cools the B760 chipset, with the SATA ports on the board edge beside it. No chipset fan means one less moving part in a machine that runs all day.
Business headers — bottom edge
Along the bottom: JTPM1 for Windows 11 security, JRGB1 for 12 V RGB lighting, JLPT1 — an actual parallel-port header — plus JCOM1 serial, two USB 2.0 headers, front-panel audio and the system panel block.
Closer Look
A detail shot from the board's I/O side
Power Delivery & Thermals
What feeds the socket, and what keeps it steadyCore Boost power layout
MSI routes CPU current through a premium trace layout and digital power design, delivering it to the socket with less distortion under sustained multi-core load.
Extended VRM heatsink
Unlike the entry H610 boards in the same family, the power stage here sits under a metal heatsink. That matters for a locked 13th or 14th Gen i5 or i7 running every core for long stretches.
Passive chipset cooling
The B760 chipset runs under its own black heatsink block. No chipset fan means nothing to fail or whine in an office machine left on all day.
Frozr AI Cooling
System fan duty follows live CPU and GPU temperature rather than a fixed curve, so the case stays quiet at idle and only ramps when the silicon actually heats up.
Lane Map

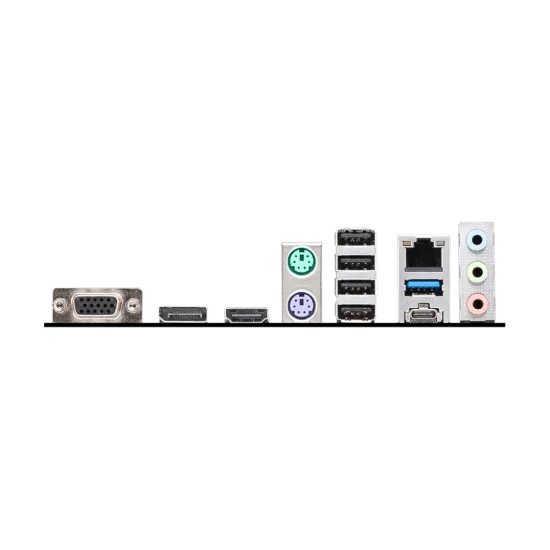

Interface speed rating & capability relative to modern motherboard standardsRear I/O Bay
Exactly what appears on the back of your case
Will It Fit Your Build?
Check these before you add to cartProcessor
Any 12th, 13th or 14th Gen Intel Core, Pentium Gold or Celeron on LGA 1700.
Memory
DDR4 only — but four slots, dual channel, up to 128 GB. Your existing DDR4 kit carries straight over; DDR5 will not fit.
Storage
2 × M.2 PCIe 4.0 (both also accept M.2 SATA) plus SATA ports for hard drives and 2.5-inch SSDs.
Graphics card
Reinforced PCIe 4.0 x16 slot. Two spare x1 slots stay clear of a thick GPU cooler.
Multi-monitor
VGA, DisplayPort and HDMI together — it drops into an office fleet with mixed old and new displays without adapters.
Case and OS
Micro-ATX fits any mATX or ATX chassis. JTPM1 header on board for Windows 11.
No onboard Wi-Fi
Wired Gigabit Ethernet only. Budget for a PCIe or USB Wi-Fi adapter if the machine cannot reach a cable — both x1 slots are free for that.
No CPU overclocking
The B760 chipset does not support CPU multiplier overclocking. Memory still runs its rated XMP profile.
Full Specification Sheet
MSI PRO B760M-P DDR4| CPU Socket | Intel LGA 1700 |
| CPU Support | 12th, 13th and 14th Gen Intel Core · Pentium Gold · Celeron |
| Chipset | Intel B760 |
| Form Factor | Micro-ATX |
| Memory Slots | 4 × DDR4 DIMM, dual channel |
| Max Memory | 128 GB |
| Graphics Slot | 1 × PCIe 4.0 x16, metal reinforced (PCI_E1) |
| Expansion Slots | 2 × PCIe x1 (PCI_E2, PCI_E3) |
| M.2 Storage | 2 × M.2 PCIe 4.0 x4 — M2_1 from CPU (heatsink fitted), M2_2 from chipset · both PCIe or SATA |
| SATA Ports | SATA 6 Gb/s on the board edge |
| Rear Video Out | 1 × VGA · 1 × DisplayPort · 1 × HDMI |
| Rear USB | 1 × Type-C · 1 × USB 3.2 Type-A · 4 × USB 2.0 Type-A |
| Internal USB | 2 × USB 2.0 headers (JUSB1, JUSB2) · USB 3.2 header (JUSB3) |
| Networking | Gigabit LAN (no Wi-Fi / Bluetooth) |
| Audio | High Definition Audio · 3 rear jacks · front-panel audio header |
| Legacy Headers | JLPT1 parallel port · JCOM1 serial port · 2 × PS/2 rear |
| Security | JTPM1 TPM header for Windows 11 |
| Lighting | 1 × JRGB1 12 V RGB header |
| Super I/O | Nuvoton NCT6687D-W |
| Board Revision | MS-7E02 VER:1.0 |
| Warranty | Official local warranty |
