MSI PRO B850M-G โ AM5 micro-ATX with PCIe 5.0, Gen5 M.2 and 5G LAN
An AMD B850 micro-ATX motherboard for Ryzen 9000, 8000 and 7000 Series processors. MSI gives it a Direct 7+2+1 phase VRM with P-PAK under an extended heatsink, a PCIe 5.0 x16 graphics slot with EZ PCIe Clip II, a PCIe 5.0 x4 M.2 slot under M.2 Shield Frozr, two DDR5 slots rated to 8200+ MT/s (OC) and 5G LAN. The silver-on-black finish suits both white and black builds. It is a wired-network board: there is no Wi-Fi on it.

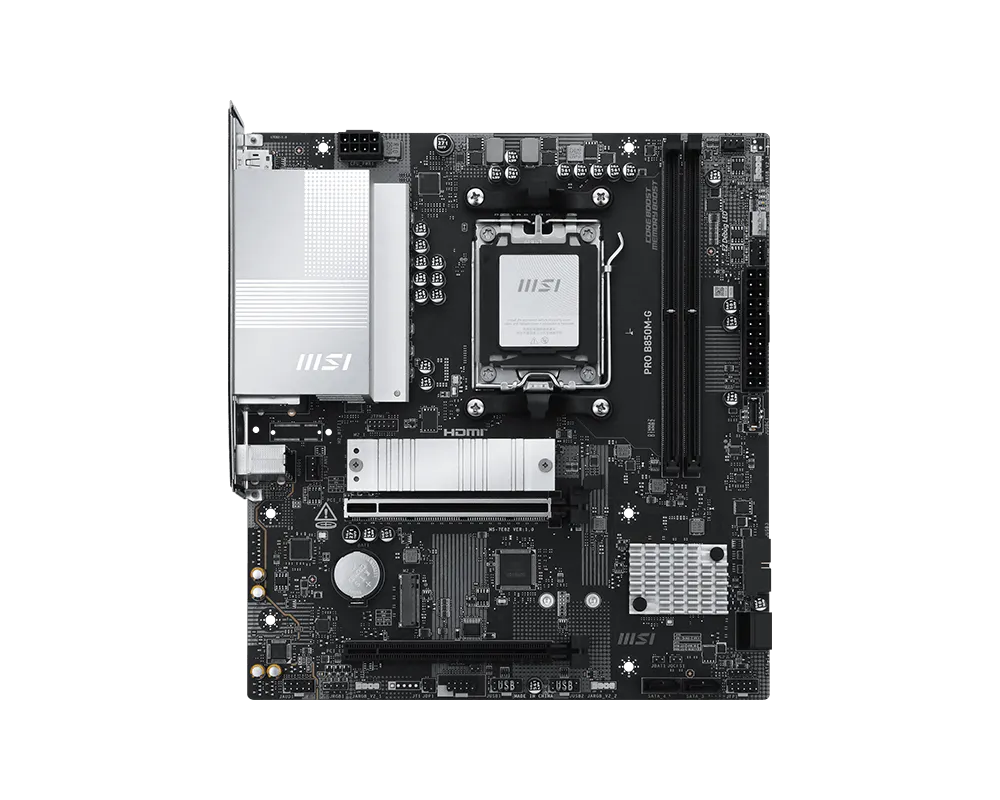

Board Map
What sits where on the PRO B850M-G
AMD Socket AM5 โ Centre
Takes AMD Ryzen 9000, 8000 and 7000 Series desktop processors, with Performance Preset, PBO thermal profiles (85 / 75 / 65 ยฐC) and Config TDP in Click BIOS X.
Direct 7+2+1 VRM under the silver heatsink โ Top & Left
Seven Vcore phases, two for SoC and one for MISC, fed by one solid-pin 8-pin CPU connector. 7W/mK MOSFET pads and extra choke pads sit under the extended heatsink.
2 ร DDR5 DIMM slots โ Right
Dual-channel DDR5, up to 128 GB, rated to 8200+ MT/s (OC) with one single-rank DIMM per channel. AMD EXPO and A-XMP profiles, single-sided latches.
PCIe 5.0 x16 slot with EZ PCIe Clip II โ Upper expansion
Wired to the CPU at PCIe 5.0 x16 on Ryzen 9000/7000, surface-mounted and reinforced with Steel Armor. The one-finger clip releases the graphics card.
2 ร M.2 NVMe from the CPU โ Mid board
M.2_1 at PCIe 5.0 x4 under the M.2 Shield Frozr and M.2_2 at PCIe 4.0 x4, both 2280/2260, with the tool-free EZ M.2 Clip II.
Chipset, SATA and headers โ Lower right
B850 chipset under its own heatsink, 4 ร SATA 6Gb/s, the second PCIe x16-length slot at PCIe 4.0 x4, a front USB-C 10Gbps header and 3 ARGB V2 headers.
Power Delivery & Cooling
What feeds the socket, and what keeps it cool
Direct 7+2+1 Phase VRM
Seven digital Vcore phases with P-PAK, plus two for SoC and one for MISC, with Core Boost, load-line calibration and overvoltage protection. One 8-pin CPU connector is all it needs.
Extended Heatsink

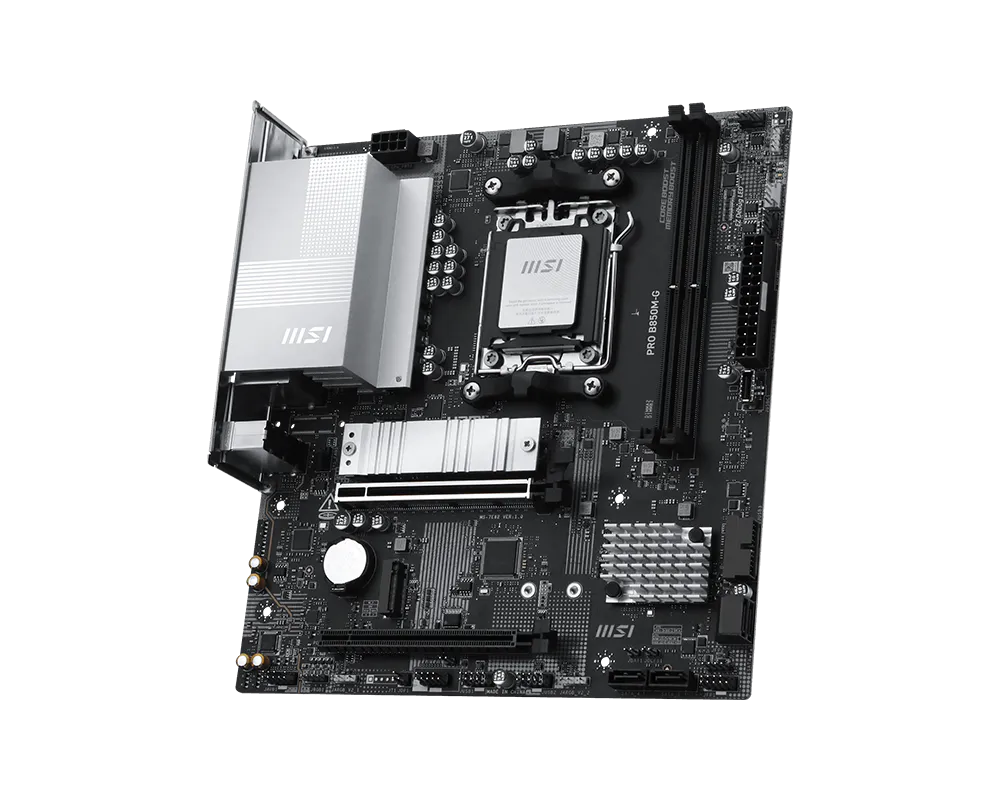

The large silver heatsink in this shot covers the VRM and sits on 7W/mK MOSFET thermal pads, with additional pads on the chokes for sustained all-core loads.
6-Layer Server-Grade PCB
Six layers with 2oz thickened copper carry the current and keep DDR5 and PCIe 5.0 signals clean.
Chipset Heatsink & Combo Fan Header
The finned chipset heatsink at the lower right, plus a combo header that auto-detects a pump or a PWM/DC fan, alongside the CPU fan and two system fan headers.
Lane Map

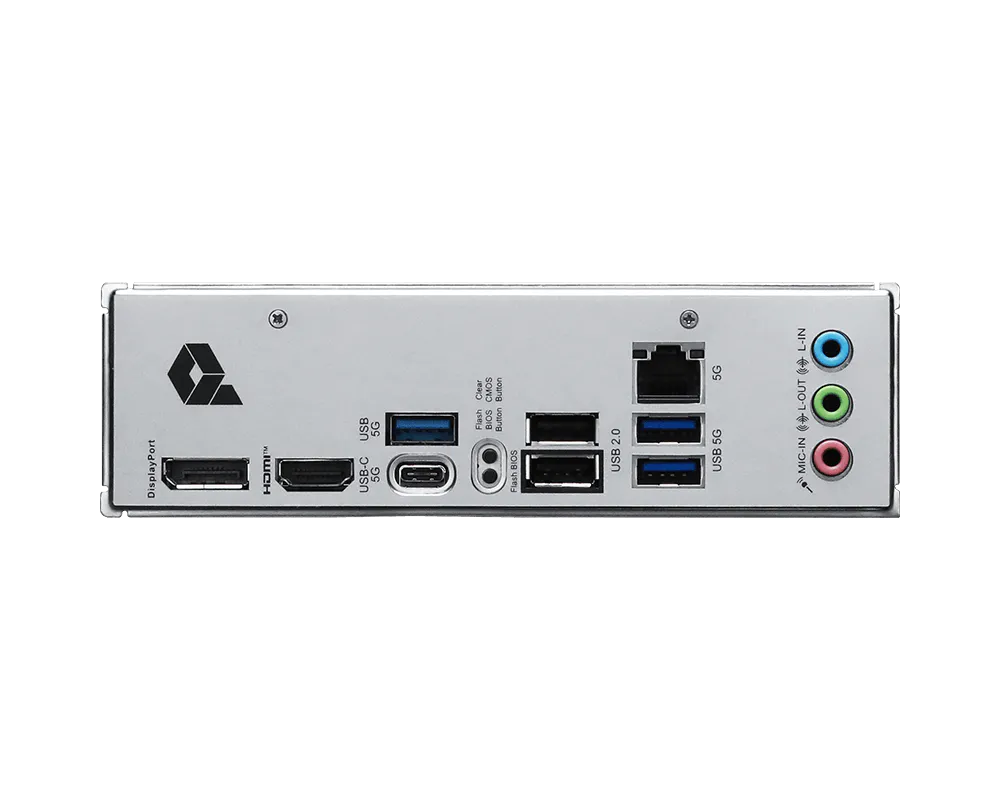

Interface speed rating & capability relative to modern motherboard standardsRear I/O Bay
Exactly what appears on the back of your case โ the I/O shield comes pre-installed
Will It Fit Your Build?
Check these before you add to cartMemory โ two slots only
This board has 2 DDR5 slots, up to 128 GB. Buy a matched two-stick kit (for example 2 ร 16 GB or 2 ร 32 GB); adding more memory later means replacing the kit, not adding sticks.
Networking โ no Wi-Fi
Networking is wired 5G LAN only. MSI lists no Wi-Fi or Bluetooth for this model, so plan a cable run or add a separate Wi-Fi adapter.
Processor
AMD Ryzen 9000, 8000 and 7000 Series on socket AM5. Ryzen 8000 chips run the x16 slot and M.2_1 at PCIe 4.0.
Graphics & Storage
One PCIe 5.0 x16 slot, one PCIe 4.0 x4 slot, one PCIe 5.0 x4 M.2, one PCIe 4.0 x4 M.2 and 4 ร SATA.
Case
Standard micro-ATX, 22.6 ร 24.4 cm, with front-panel headers for USB-C 10Gbps, USB 5Gbps and USB 2.0. Fits mATX and ATX cases.
Power Supply
Needs a 24-pin ATX cable and one 8-pin CPU (EPS) cable.
Full Specification Sheet
MSI PRO B850M-G| CPU Socket | AMD Socket AM5 |
| CPU Support | AMD Ryzen 9000 / 8000 / 7000 Series desktop processors |
| Chipset | AMD B850 |
| Form Factor | Micro-ATX, 22.6 ร 24.38 cm |
| Power Design | Direct 7+2+1 phases with P-PAK, 8-pin CPU power |
| Memory | 2 ร DDR5 UDIMM, dual channel, up to 128 GB, non-ECC |
| Memory Speed | 5600โ4800 MT/s JEDEC, up to 8200+ MT/s OC (1DPC 1R), 8000+ MT/s (1DPC 2R), AMD EXPO / A-XMP |
| Expansion Slots | PCI_E1 PCIe 5.0 x16 (CPU), PCI_E2 PCIe 4.0 x4 (chipset) |
| M.2 Storage | M.2_1 PCIe 5.0 x4, M.2_2 PCIe 4.0 x4 (both from CPU, 2280/2260), NVMe RAID 0/1 |
| SATA | 4 ร SATA 6Gb/s, RAID 0/1/10 |
| LAN | Realtek 8126VB 5G LAN |
| Wireless | Not included |
| Audio | Realtek ALC897, 7.1-channel HD Audio |
| Rear USB | 3 ร USB 5Gbps Type-A, 1 ร USB 5Gbps Type-C, 2 ร USB 2.0 |
| Front USB Headers | 1 ร USB 10Gbps Type-C, 2 ร USB 5Gbps Type-A, 4 ร USB 2.0 |
| Video Outputs | HDMI 2.1 and DisplayPort 1.4, each up to 4K 60Hz (integrated graphics) |
| Internal Headers | CPU fan, combo pump/fan, 2 ร system fan, 3 ร ARGB V2, 1 ร RGB, COM port, TPM 2.0, chassis intrusion |
| Diagnostics | 4 ร EZ Debug LED, EZ Memory Detection LED, Flash BIOS & Clear CMOS buttons |
| OS Support | Windows 11 64-bit |
