MSI Z790 GAMING PLUS WIFI — 14+1+1 power phases, quad M.2 slots and 20Gbps Type-C
A full-size ATX gaming motherboard on the Intel Z790 chipset engineered for unlocked CPU overclocking. Equipped with a 14+1+1 Duet Rail Power System, four DDR5 slots reaching 7200+ MHz (O.C.), PCIe 5.0 x16 Steel Armor, four M.2 Gen4 NVMe slots, and integrated Wi-Fi 6E plus 2.5G LAN.

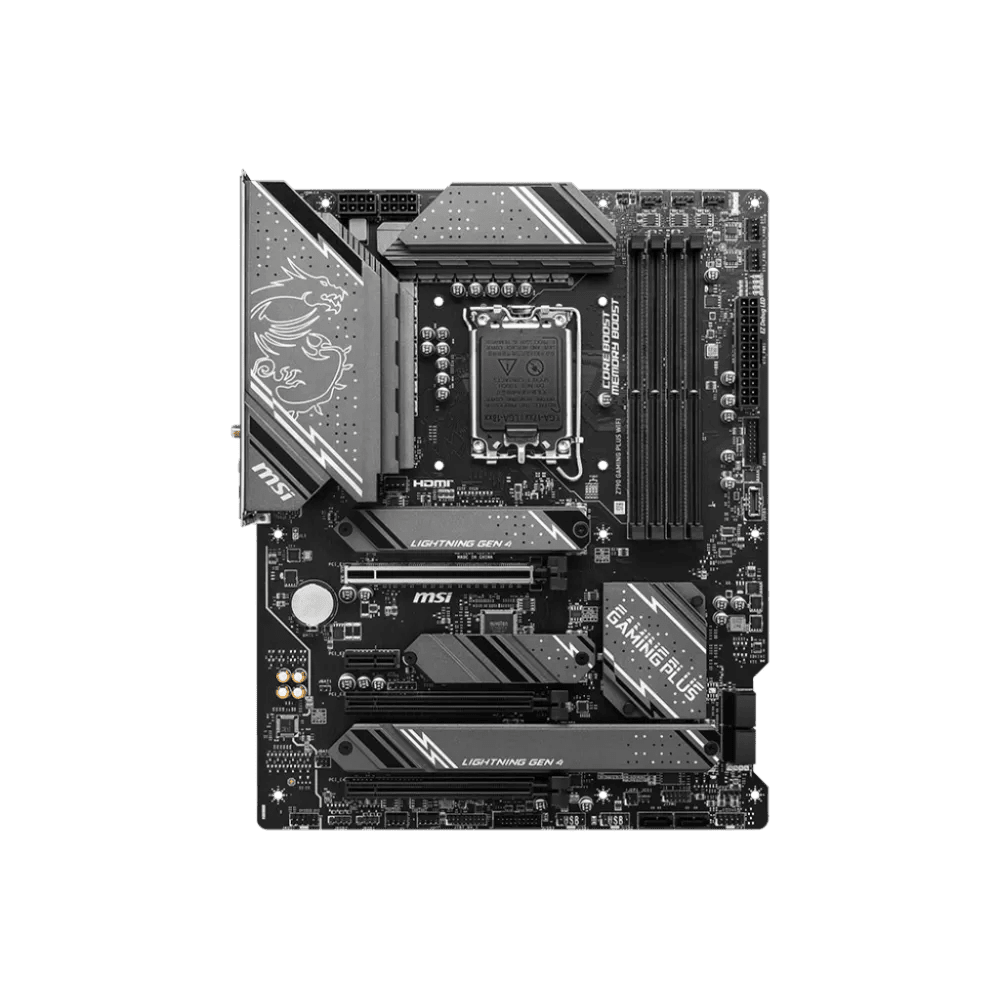

Board Map
Every connector, located before you unbox
LGA 1700 CPU Socket — Centre
Supports 14th, 13th, and 12th Gen Intel Core desktop processors with unlocked K-series multiplier control.
14+1+1 Duet Rail VRM Heatsinks — Top & Left
Heavy extended heatsinks with 7W/mK thermal pads cover the power stages for sustained turbo boost clock stability.
4 × DDR5 DIMM Slots with Memory Boost — Right
Isolated memory circuitry supporting dual-channel DDR5 up to 256 GB and high-speed XMP profiles exceeding 7200 MT/s.
PCIe 5.0 x16 Steel Armor Slot — Centre
Reinforced with extra solder points to support heavy modern graphics cards with full PCIe 5.0 bandwidth.
4 × Lightning Gen4 M.2 Slots — Across Board
Four high-speed M.2 sockets running at PCIe 4.0 x4 speed. The primary slot includes an M.2 Shield Frozr thermal heatsink.
6 × SATA 6Gb/s Ports — Lower Right
Right-angled storage ports for large capacity SATA drives and arrays.
Power Delivery & Thermals
What feeds the socket, and what keeps it steady14+1+1 Duet Rail Power System
A robust power delivery layout that keeps 14th Gen Intel Core i7 and i9 processors running at maximum boost frequencies without throttling.
Extended Heatsink & 7W/mK Pads
Substantial aluminum heatsinks maximize heat transfer away from the MOSFETs to ensure low component temperatures during prolonged gaming.
USB 3.2 Gen 2x2 Type-C (20Gbps)
Blazing 20 Gbps data transfers through the rear Type-C port for external NVMe drives and high-speed accessories.
Intel Wi-Fi 6E & 2.5G LAN
Tri-band wireless connectivity across 2.4, 5, and 6 GHz paired with a 2.5 Gbps Ethernet port for ultra-reliable low latency networking.

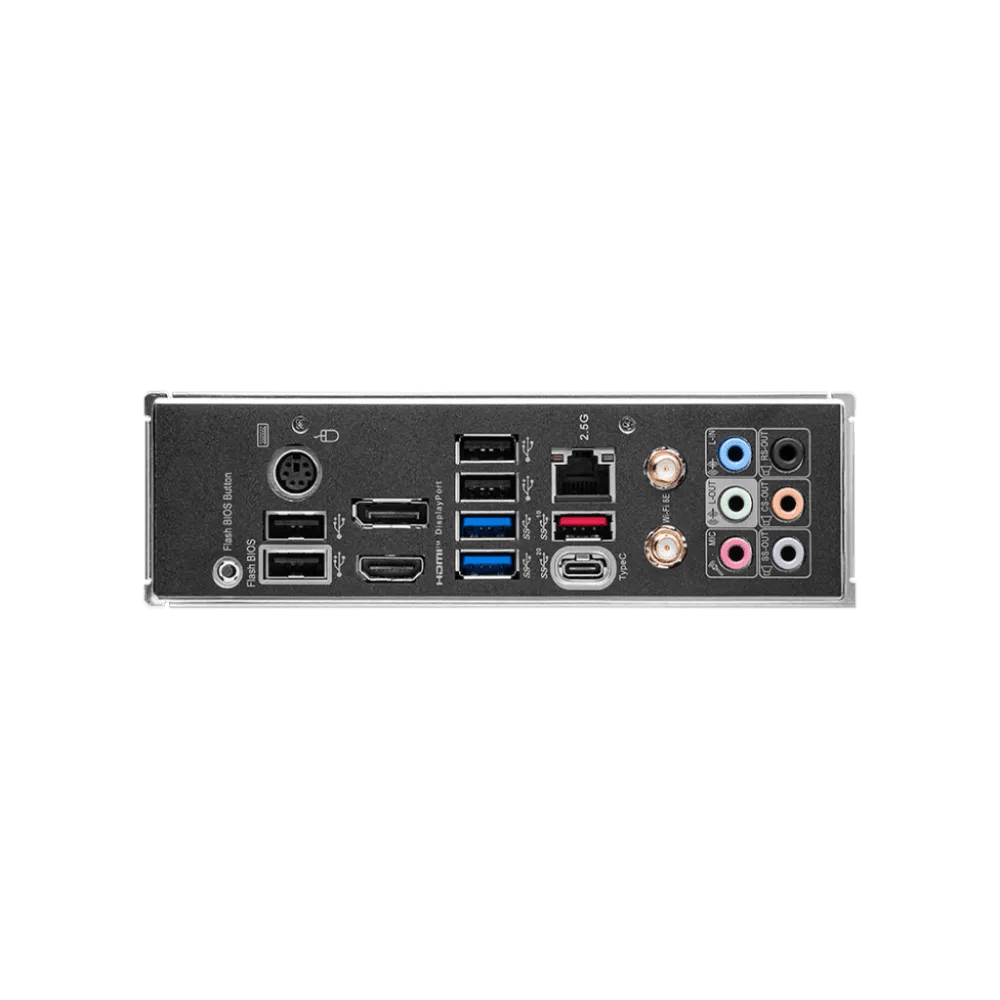

Lane Map
Interface speed rating & capability relative to modern motherboard standardsRear I/O Bay
Exactly what appears on the back of your case
Will It Fit Your Build?
Check these before you add to cartProcessor
Supports 12th, 13th and 14th Gen Intel Core desktop processors on LGA 1700 with unlocked overclocking.
Memory
DDR5 only — 4 DIMM slots supporting up to 256 GB and speeds exceeding 7200+ MHz (O.C.).
Overclocking
Intel Z790 chipset enables multiplier overclocking for all K-series processors.
Storage
4 × M.2 PCIe 4.0 NVMe sockets (top socket includes Shield Frozr heatsink) plus 6 SATA ports.
Networking
Integrated Intel Wi-Fi 6E wireless and 2.5G LAN wired Ethernet.
Case
Full-size ATX form factor (30.5 cm x 24.4 cm) — requires standard ATX chassis.
Full Specification Sheet
MSI Z790 GAMING PLUS WIFI DDR5| CPU Socket | Intel LGA 1700 |
| CPU Support | 14th, 13th and 12th Gen Intel Core, Pentium Gold, Celeron |
| Chipset | Intel Z790 Express |
| Form Factor | ATX (30.48 cm x 24.38 cm) |
| Power Design | 14+1+1 phase Duet Rail Power System with heatsinks |
| Memory Slots | 4 × DDR5 DIMM, dual channel |
| Max Memory | 256 GB (up to DDR5-7200+ O.C.) |
| Primary Graphics Slot | 1 × PCIe 5.0 x16 Steel Armor |
| Secondary PCIe Slots | 1 × PCIe 4.0 x16 (x4 mode), 2 × PCIe 3.0 x1 |
| M.2 Storage Sockets | 4 × M.2 PCIe 4.0 x4 (M.2_1 with Shield Frozr) |
| SATA Ports | 6 × SATA 6 Gb/s |
| Wireless Networking | Intel Wi-Fi 6E (802.11ax) + Bluetooth 5.3 |
| Ethernet LAN | Intel 2.5 Gbps LAN |
| Audio | Realtek ALC897 7.1-Channel HD Audio with Audio Boost |
| Rear USB Ports | 1x USB-C 20Gbps, 1x USB 3.2 10Gbps, 2x USB 3.2 5Gbps, 4x USB 2.0 |
