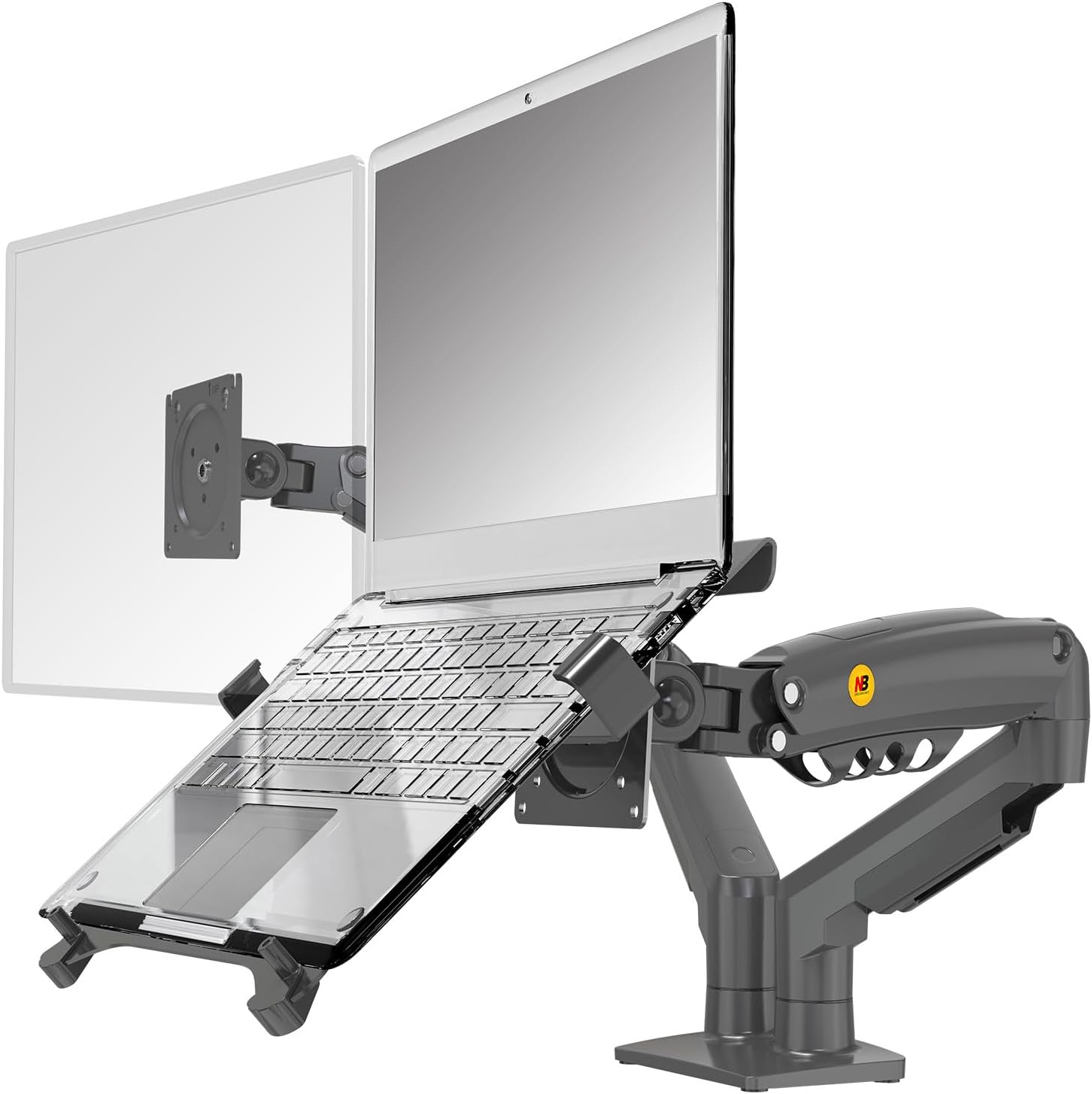

NB North Bayou F160-FP — Dual-Arm Mount for a 10-17" Laptop and a 17-30" Monitor
The F160-FP clamps to the desk and lifts two things at once: a laptop on a vented tray and a monitor on a VESA plate, each on its own gas-spring arm. Both screens float at eye level and the desk under them is left free.
What It Does Well
One Mount, Two Screens

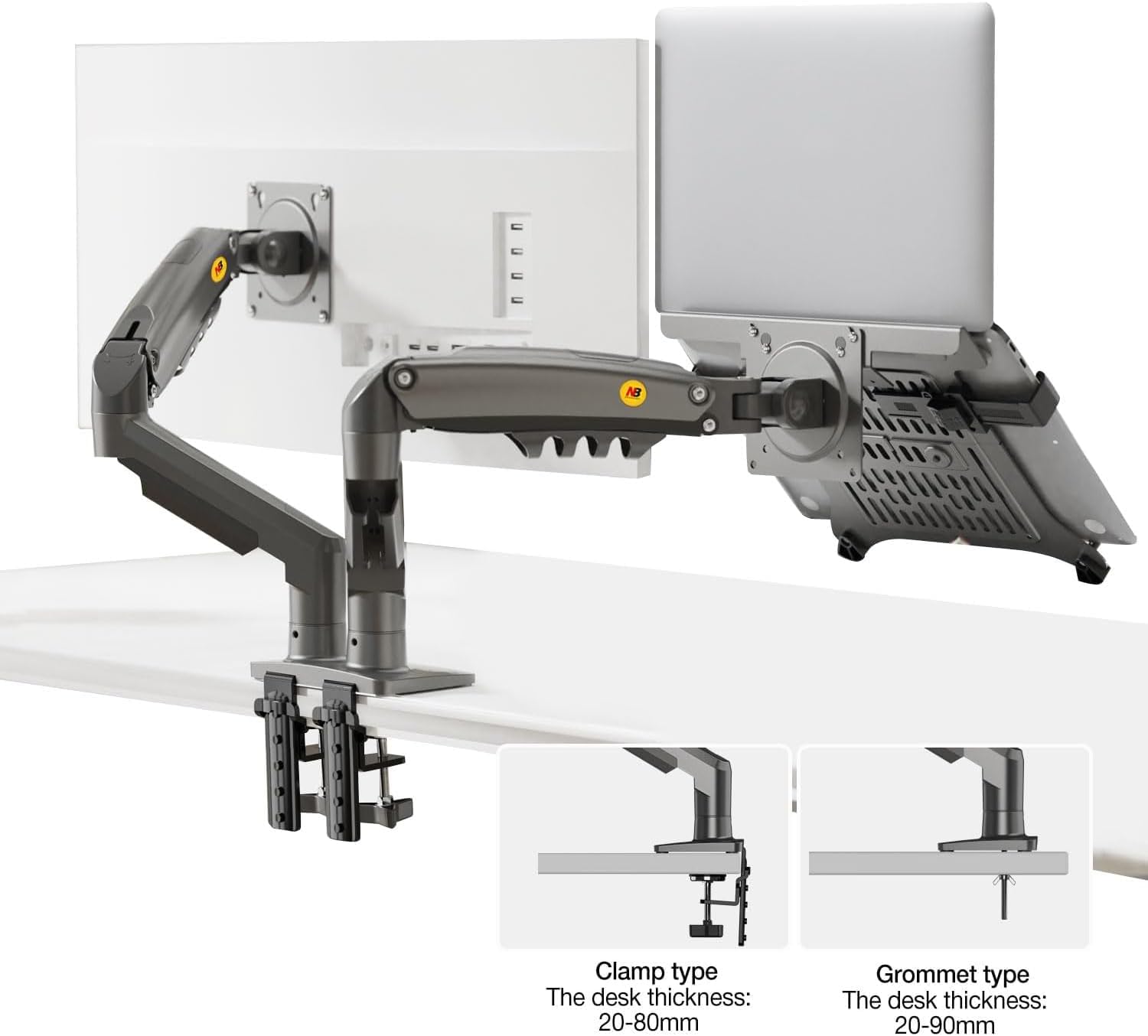

One arm carries a ventilated laptop tray with a safety lock, the other a quick-release VESA plate for a 75 x 75 or 100 x 100 mm monitor. The base fixes with a C-clamp on desks 20-80 mm thick or through a grommet hole on desks 20-90 mm thick.

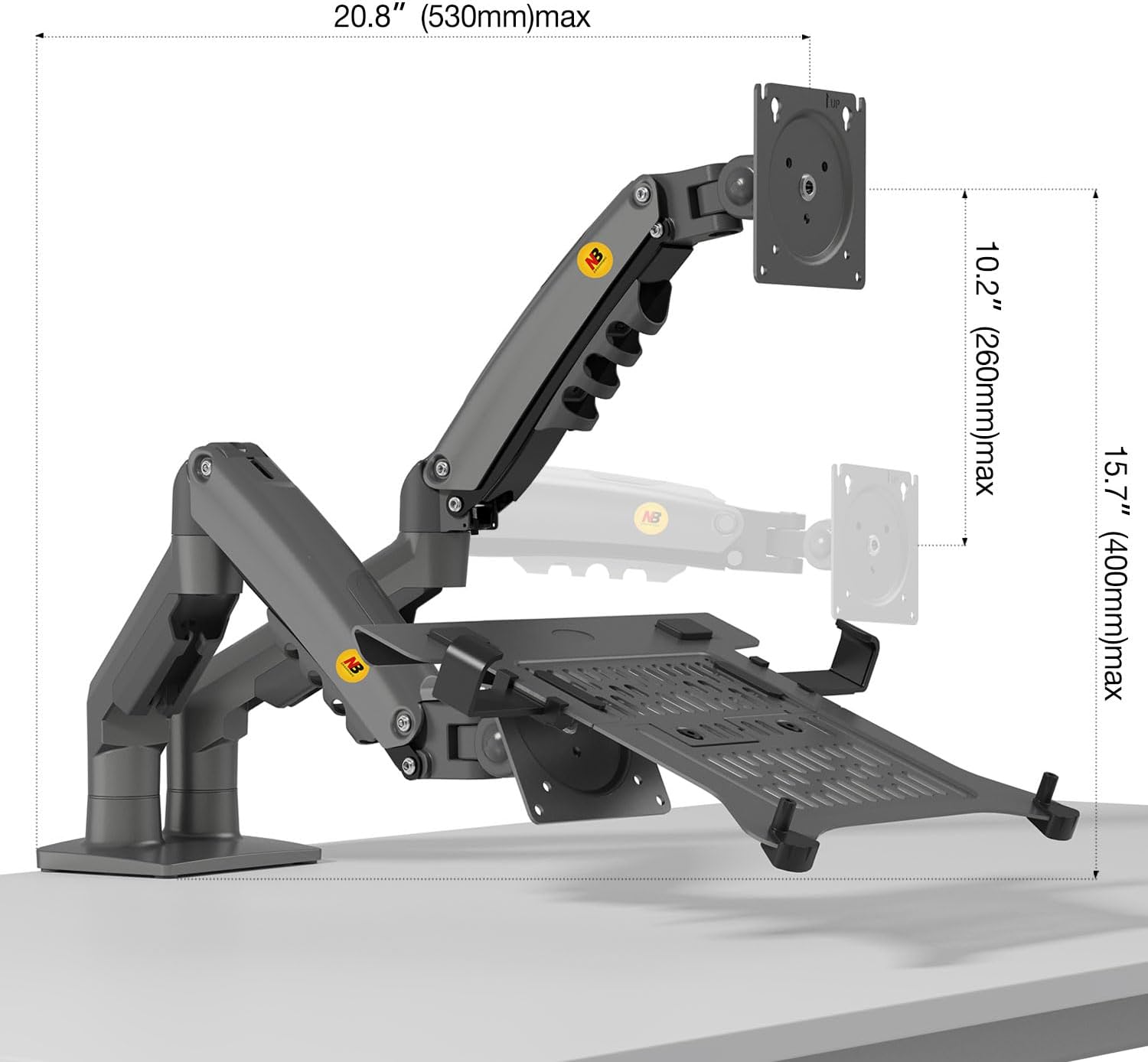

Reach and Height in Numbers
NB's drawing gives each arm up to 530 mm of reach and 260 mm of height travel, with the VESA centre rising to 400 mm above the desk. The gas spring holds the screen wherever you leave it.

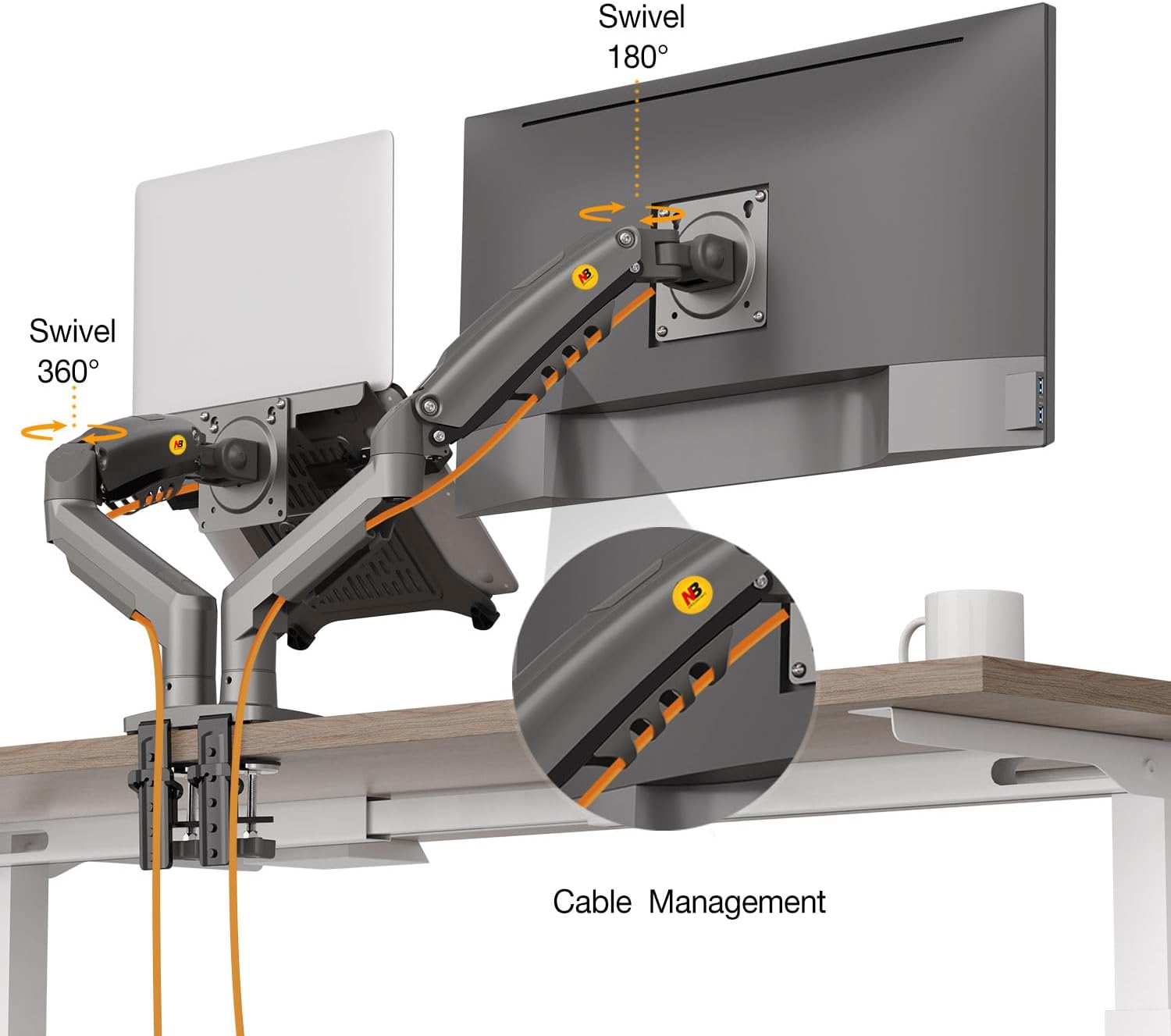

Swivel, Tilt and Tidy Cables
Each head swivels -90° to +90°, rotates 360° and tilts from -30° to +85°, and the arms turn around the centre pole. Clips on the arms and pole carry the power and video cables down to the clamp.

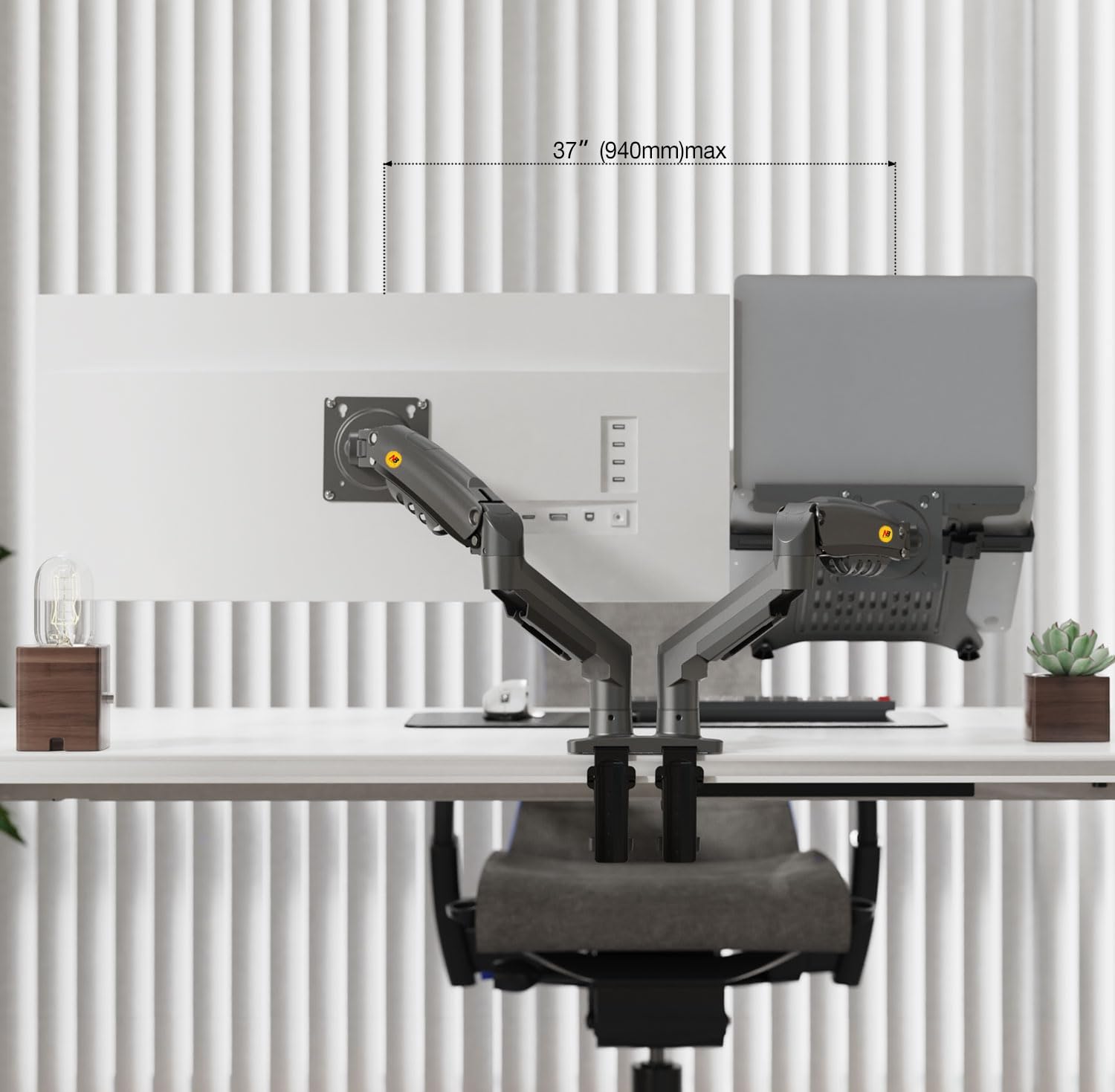

Up to 940 mm Between Screens
Pulled out to the sides, the two VESA centres can sit up to 940 mm (37 inches) apart, so a wide monitor and an open laptop sit side by side without overlapping.
Verified Specifications
| Brand | NB North Bayou |
| Model | F160-FP |
| Type | Dual-arm desk mount: laptop tray arm + VESA monitor arm |
| Laptop Size | 10-17 inch (on the tray) |
| Laptop Tray Width | 220-420 mm, ventilated, with safety lock |
| Monitor Size | 17-30 inch (without the tray) |
| VESA | 75 x 75 mm / 100 x 100 mm |
| Load | Up to 9 kg per arm |
| Mechanism | Gas spring, tension adjustable with the supplied tools |
| Movement | Swivel -90° to +90°, rotate 360°, tilt -30° to +85° |
| Max Height (VESA centre) | 400 mm |
| Reach / Height Travel | 530 mm / 260 mm (NB drawing) |
| Max Distance Between VESA Centres | 940 mm |
| Desk Mounting | C-clamp 20-80 mm or grommet 20-90 mm |
| Cable Management | Clips on the arms and centre pole |
| Material | Aluminium (per NB's listing) |
