Redragon UCAL K673 HE Rapid Trigger Magnetic Gaming Keyboard, 75% 81 Keys, 8000 Hz Wired

A 75% wired keyboard built around UltraMag magnetic (Hall effect) switches. Each key senses its position without metal contacts, so you set where it fires anywhere between 0.1 and 3.4 mm, and Rapid Trigger resets it the instant you lift. Add 8000 Hz polling, PRCS for opposite movement keys and a single knob for light and volume, and it is made for Valorant, CS2, Apex and osu! players.

UltraMag Magnetic SwitchesRapid Trigger 0.1-3.4 mm8000 Hz PollingPRCS, 4 Modes75%, 81 KeysControl Knob
Highlights

What It Does Well

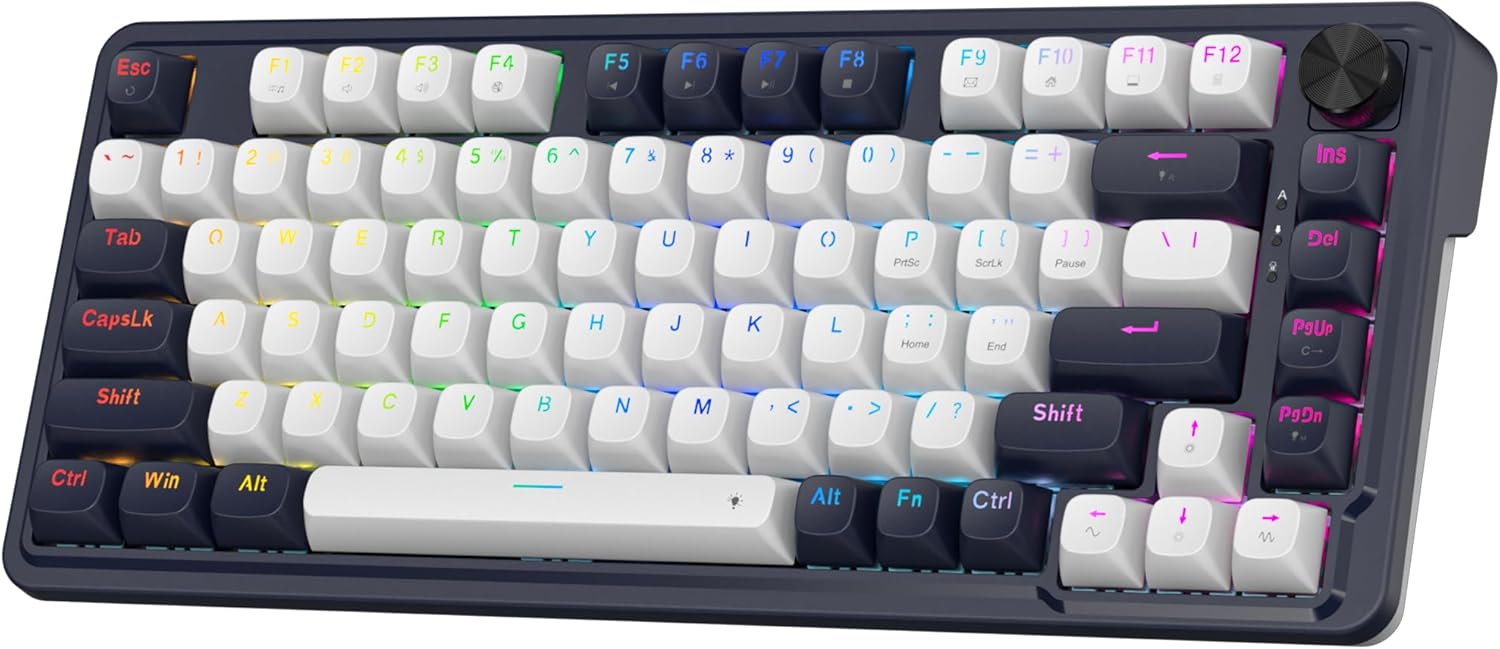

Redragon K673 HE 75% keyboard with white and dark keycaps, RGB backlight and a black control knob at the top right

Function Row Kept, Numpad Gone

The 81-key layout keeps the length of a 65% board but adds a full F1-F12 row, so common shortcuts need no Fn combination. Dropping the numpad leaves more room for wide mouse swipes. The dark case carries white and dark keycaps, with the knob and a short navigation column on the right.

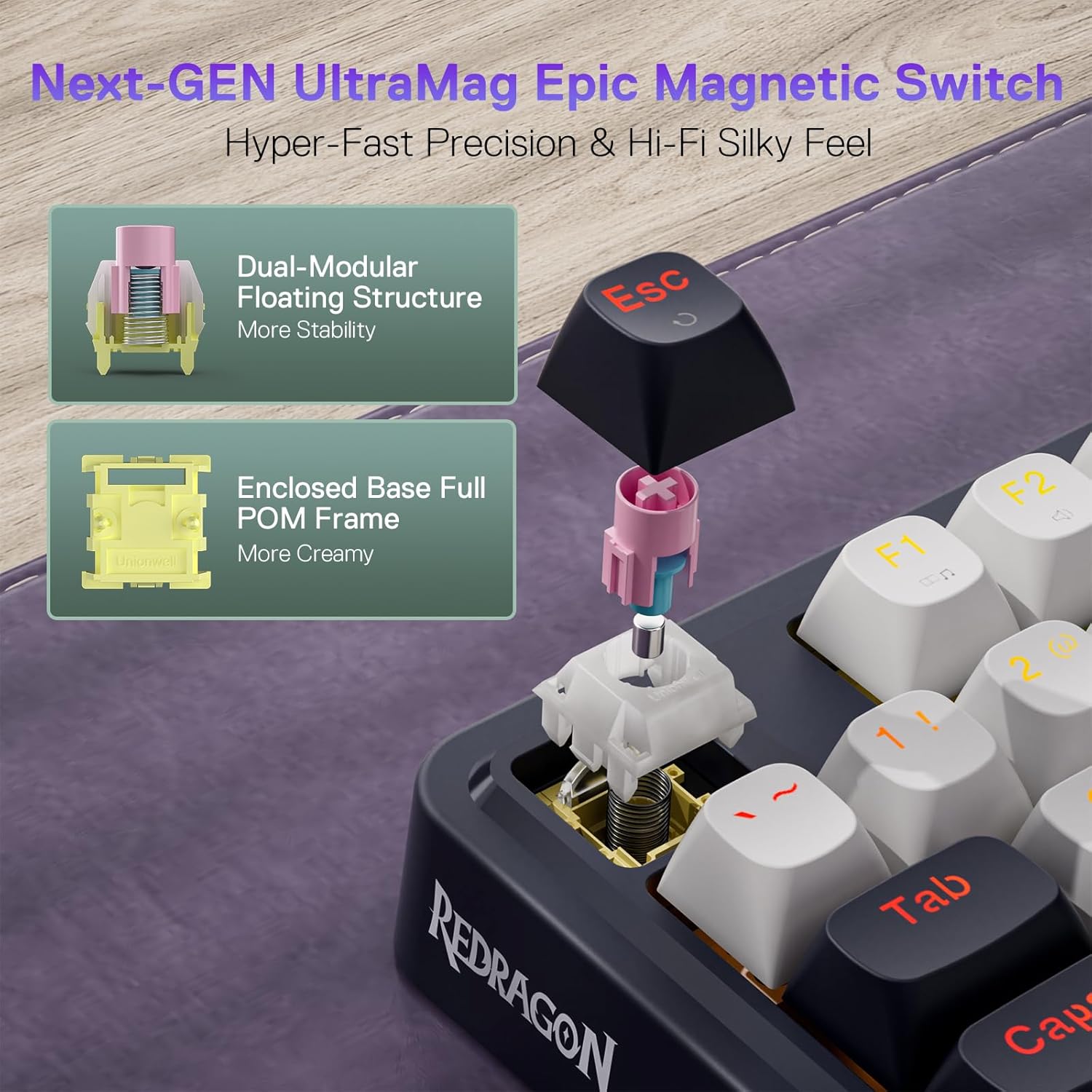

Exploded view of a Redragon UltraMag magnetic switch with pink stem and magnet lifted out of the K673 HE under the Esc keycap

UltraMag Magnetic Switch

Under the Esc keycap the switch is lifted out: a pink stem with a magnet at its base rides in a full POM housing with an enclosed bottom. A sensor reads the magnet's height, not a metal contact, so the actuation point is adjustable in 0.1 mm steps. Redragon's dual-module floating structure keeps the stem steady and stops key wobble.

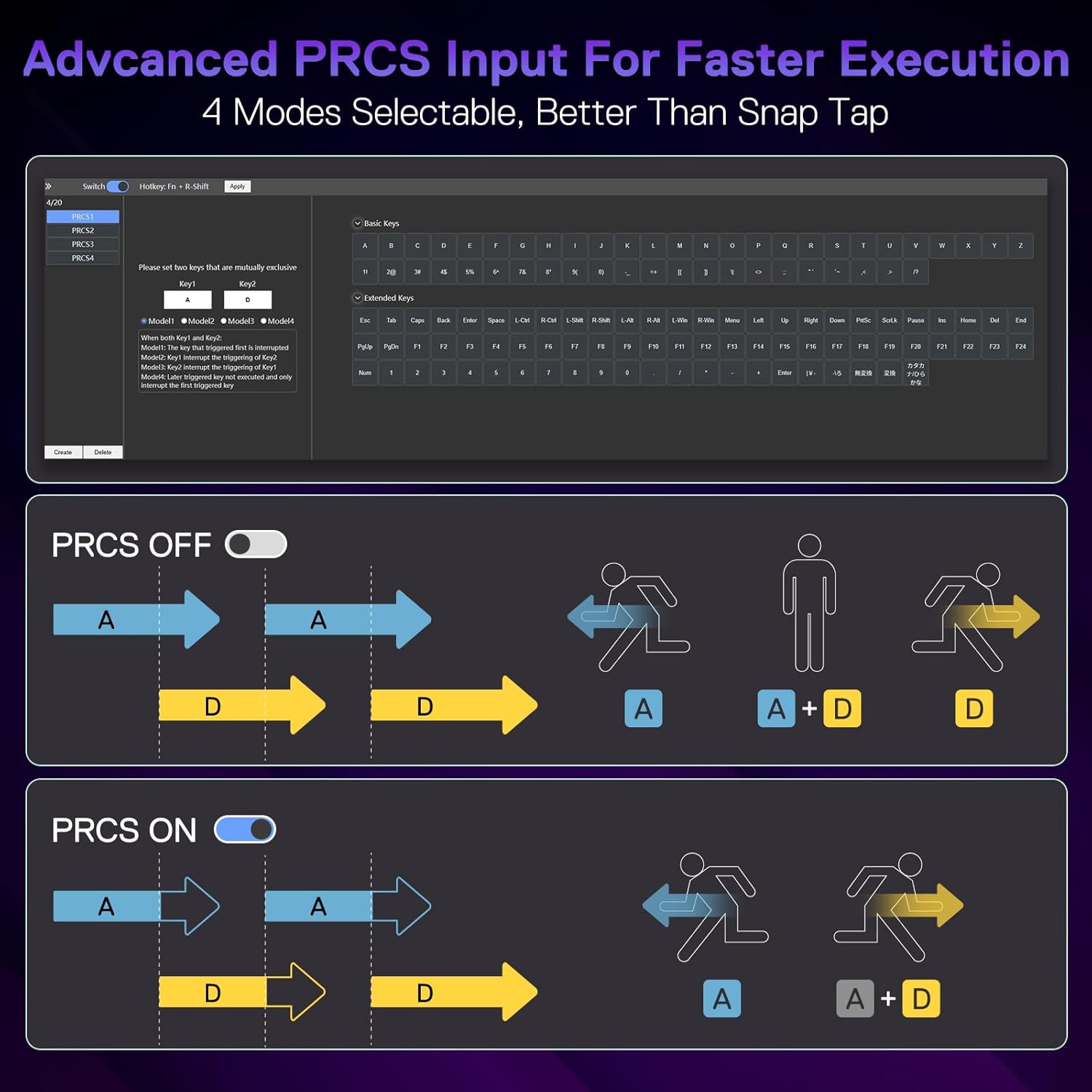

Redragon driver screen for PRCS with Key1 and Key2 set to A and D, above PRCS OFF and PRCS ON timing diagrams

PRCS for Clean Direction Changes

PRCS is Redragon's answer to Snap Tap and SOCD. Pick two opposite keys such as A and D in the driver and choose one of four rules for which key wins when both are held. With PRCS on, the newer key cuts the older one off, so strafing changes direction without a dead stop.

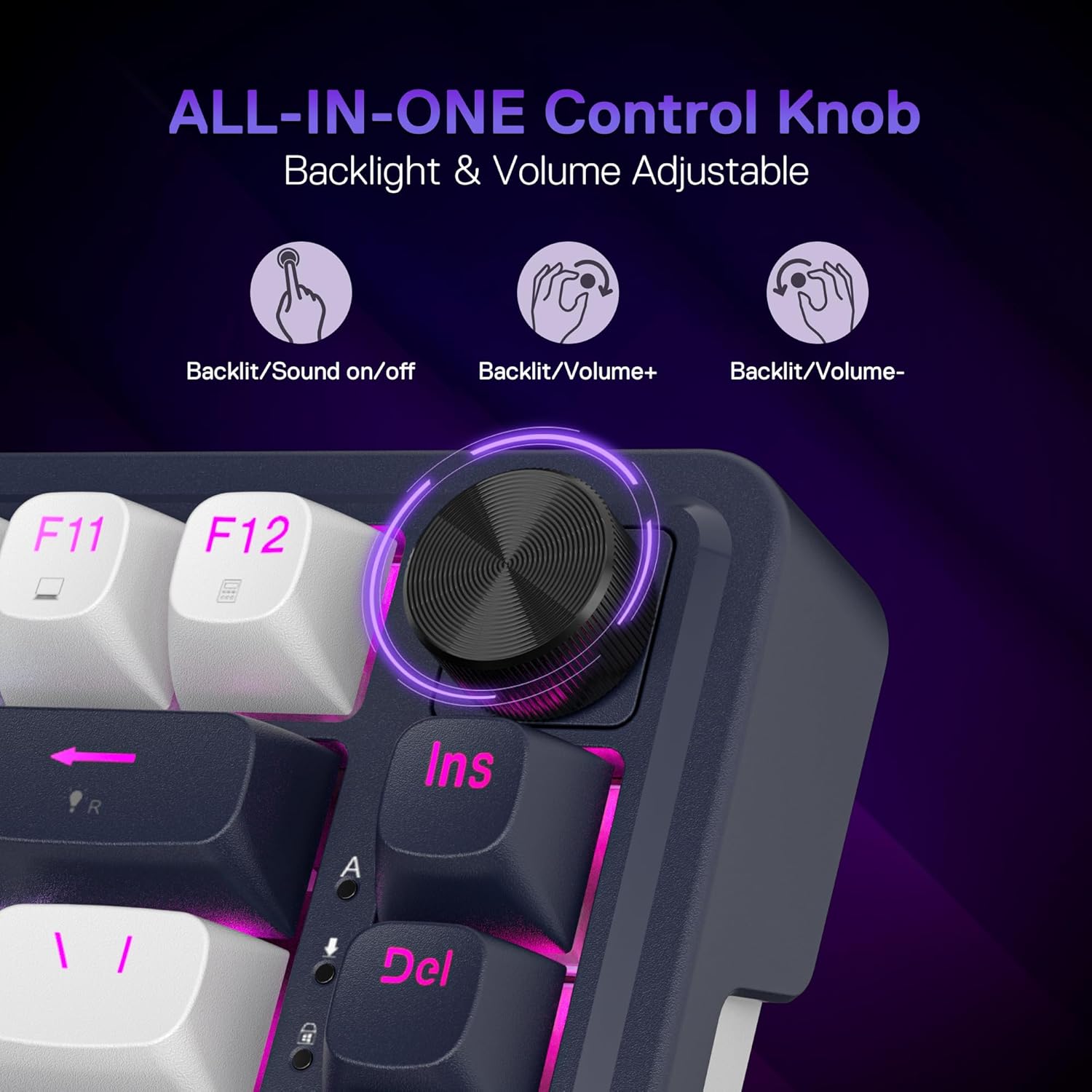

Close-up of the K673 HE black textured control knob at the top right, beside F11, F12, Ins and Del keys

One Knob for Light and Sound

The machined knob in the corner turns to raise or lower volume or backlight brightness and presses to mute or switch the light off, with play and pause on hand too. It saves you from remembering Fn combinations mid-match.

Technical Datasheet

Verified Specifications

Brand REDRAGON
Model UCAL K673 HE
Layout 75%, 81 keys, US QWERTY
Switches UltraMag POM magnetic (Hall effect), enclosed base, full POM frame
Key Structure Dual-module floating, anti-wobble

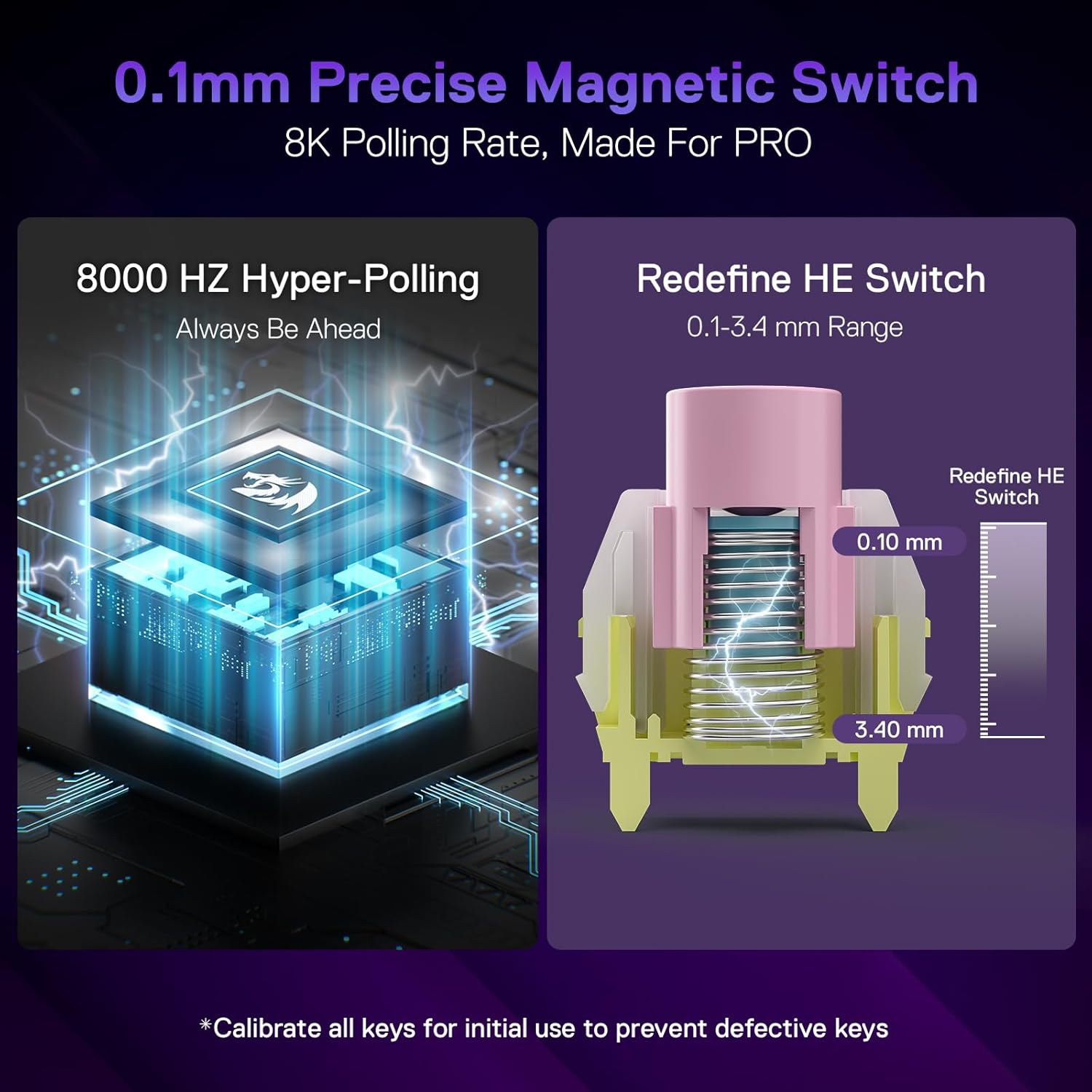

Actuation Adjustable 0.1-3.4 mm in 0.1 mm steps, Rapid Trigger with dynamic reset
Polling Rate 8,000 Hz, 0.125 ms
Input Priority PRCS, 4 selectable modes

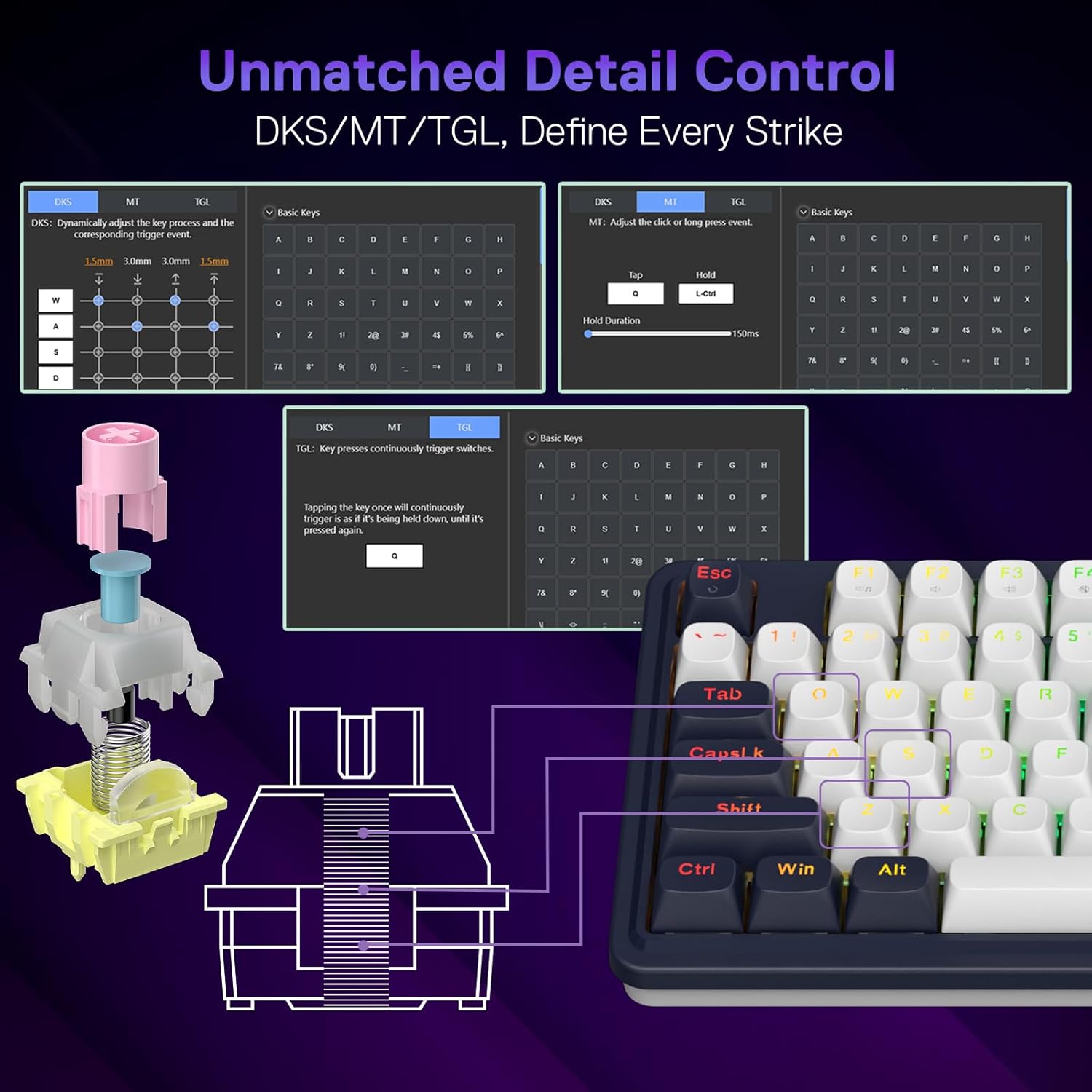

Advanced Key Modes DKS, MT and TGL in the driver
Control Knob Volume, play/pause and backlight brightness
Connection Wired, detachable USB-A to USB-C cable
Lighting RGB backlight
Driver Windows desktop app and web driver
Size 335 x 104 mm
Height Adjustable feet
In the Box Keyboard, detachable USB-C cable, keycap and switch puller, spare switches, user manual
Complete Your Setup

Pair It With

FAQ

Product Questions & Store Policies

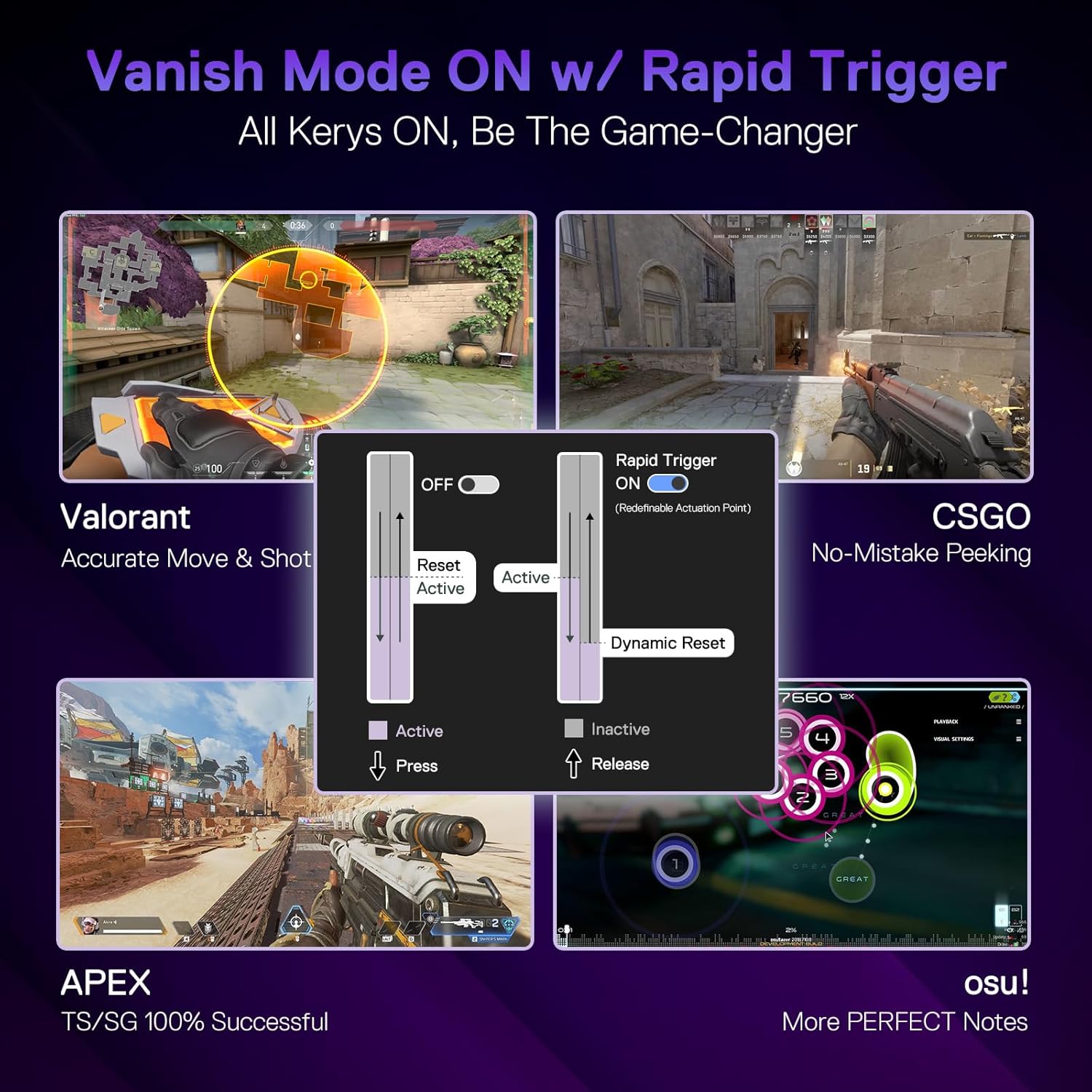

What does Rapid Trigger do in a game?
A normal key only resets after it rises past a fixed point. With Rapid Trigger the K673 HE resets as soon as the key starts rising and fires again as soon as it moves down, so stopping to shoot in Valorant or CS2, or tapping notes in osu!, follows your finger more closely.
How is PRCS different from Snap Tap?
Both decide what happens when two opposite keys are held. PRCS offers four modes in the driver: the newest key wins, Key 1 always wins, Key 2 always wins, or the later key cancels the first so neither acts. Pick the one that fits the game, and check the game's own rules on such features.
Do I need to set anything up first?
Redragon asks you to calibrate all keys in the driver before first use, so every magnetic switch reads its full travel. After that, set your actuation point and Rapid Trigger per key or for the whole board.
Can I use it on a Mac?
The desktop driver runs on Windows only, but Redragon's web driver works in a browser, so the settings can also be changed from other operating systems.
Can I fit ordinary mechanical switches?
No. The board reads magnets, so it needs magnetic switches such as the UltraMag type it ships with. The box includes spare switches and a keycap and switch puller from Redragon.
