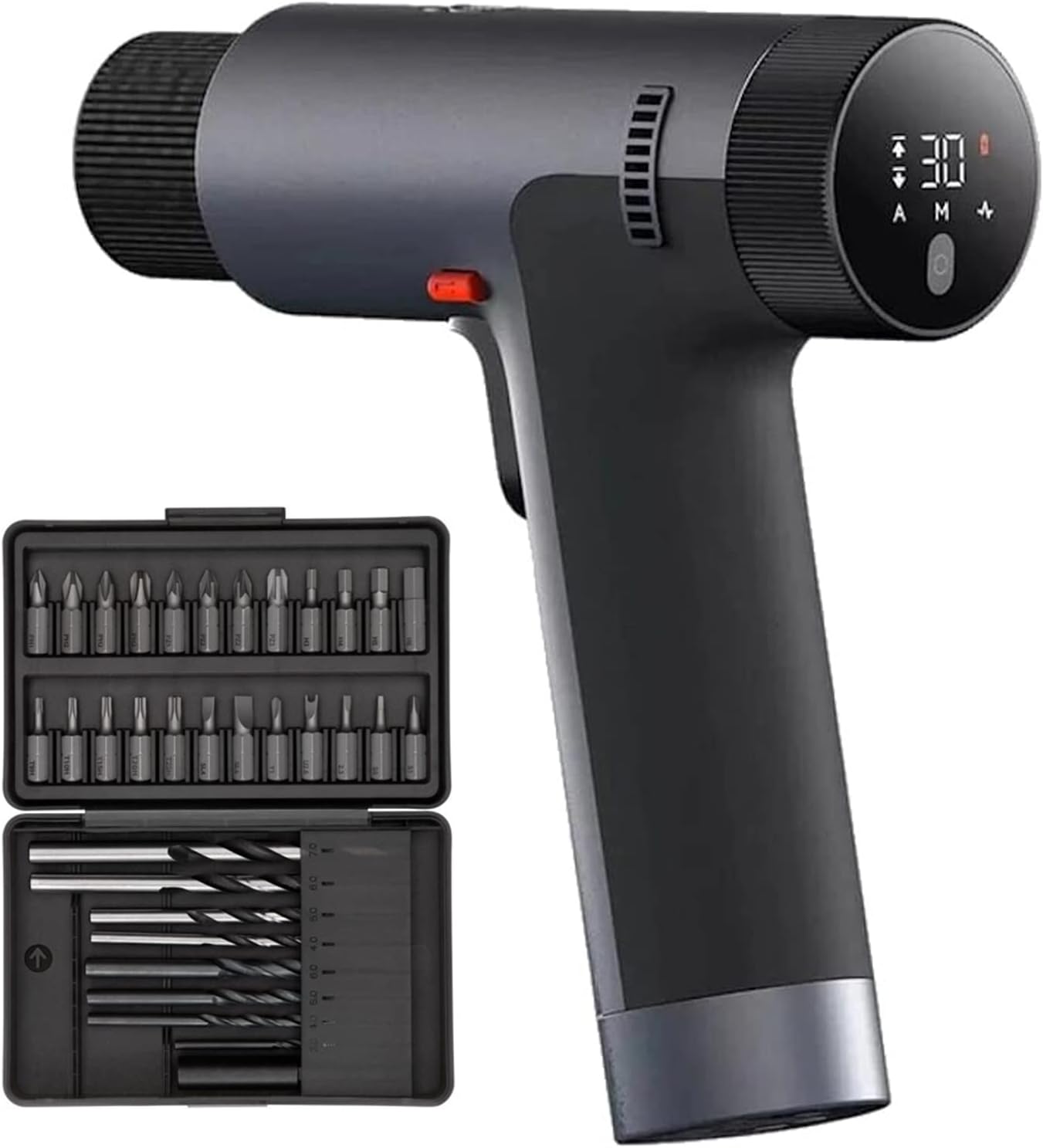

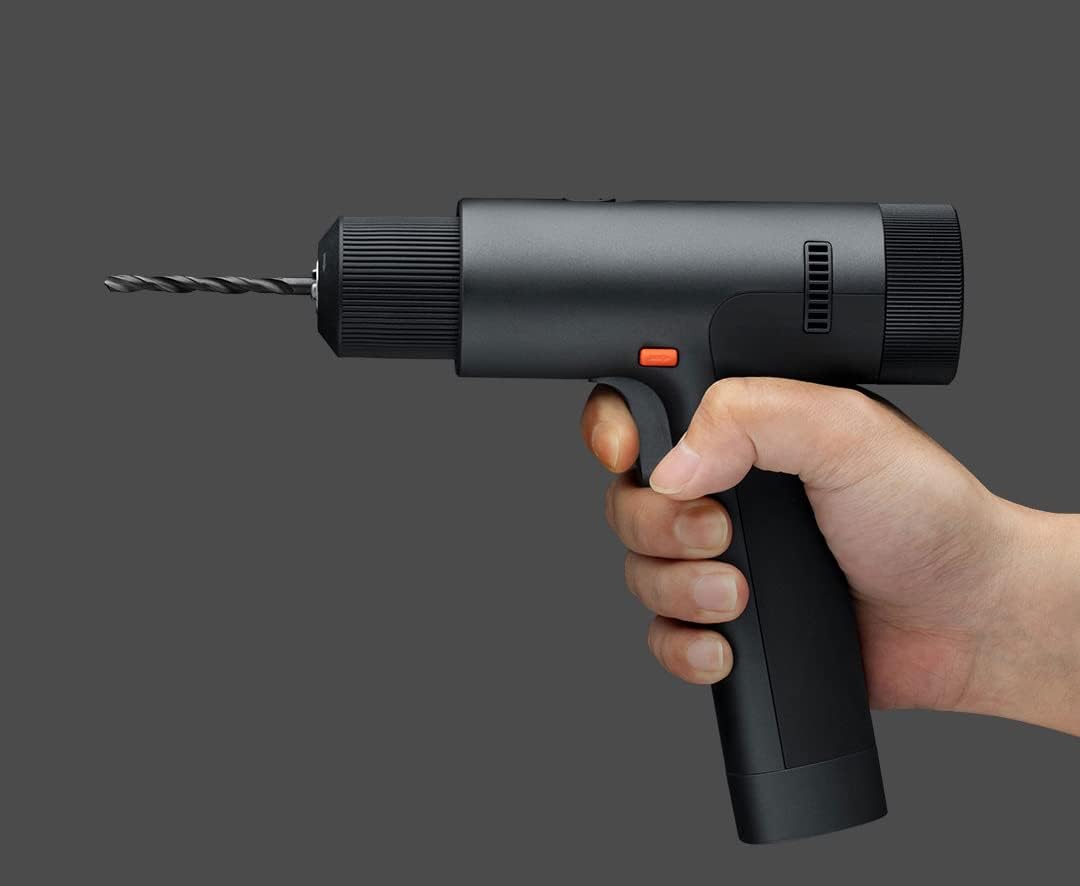

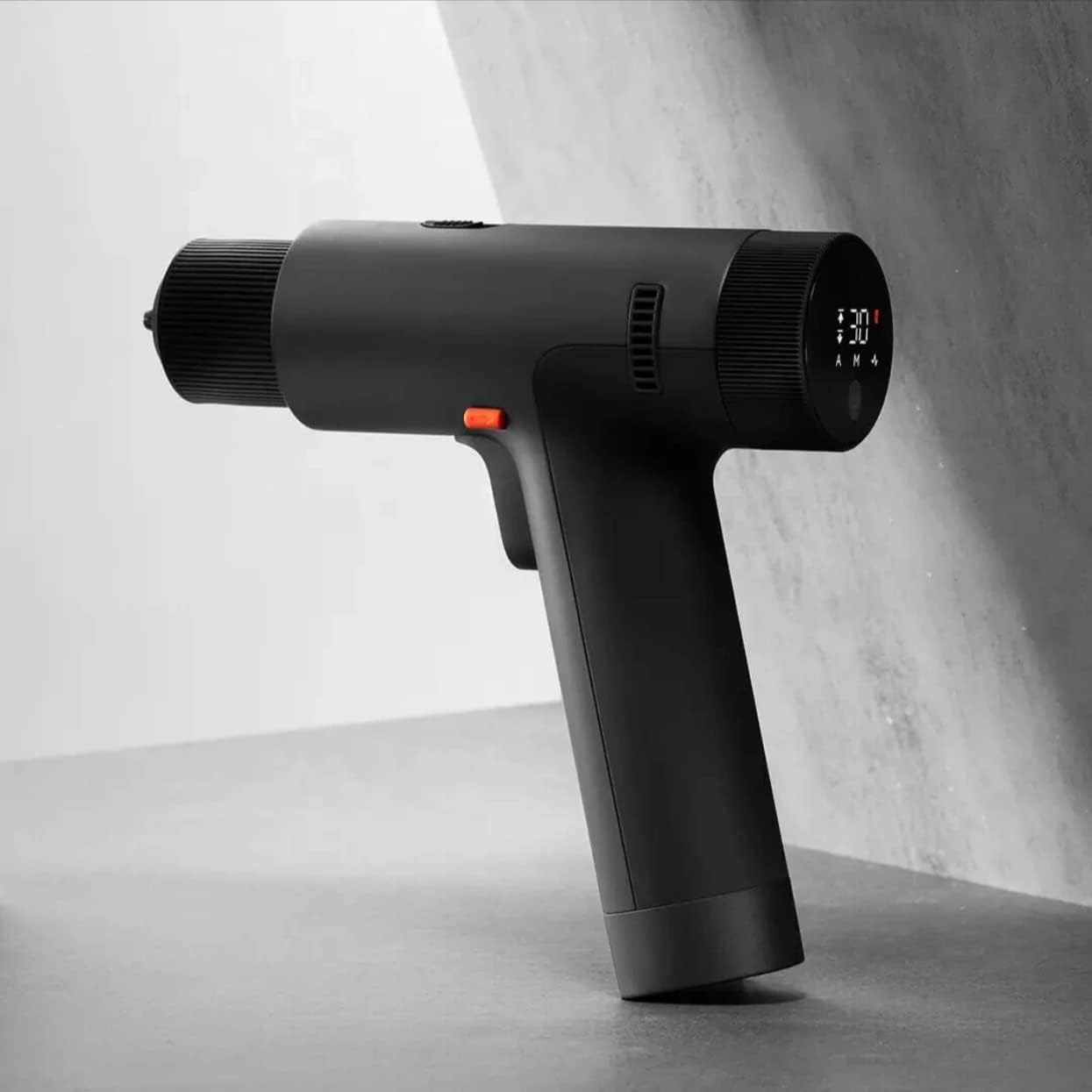

Xiaomi 12V Max Brushless Cordless Drill — 30N·m, 30-Stage Knob and Smart Display

Xiaomi's 12V drill-driver puts a brushless motor and an all-metal gearbox in a screwless matt-grey body. A 360° knob sets 30 stages of speed or torque, a small display shows the mode, and a built-in 2,000mAh battery charges over USB Type-C with the adaptor and cable in the box. It drills wood, metal and plastic up to 1,400 rpm and drives screws at up to 370 rpm, with 24 S2 bits, 8 drill bits and a water-repellent pouch.

Brushless Motor30N·m Max Torque0–1,400 rpm Drilling30 Stages, 3 Modes2,000mAh Built-In BatteryType-C Charging
Highlights

What It Does Well

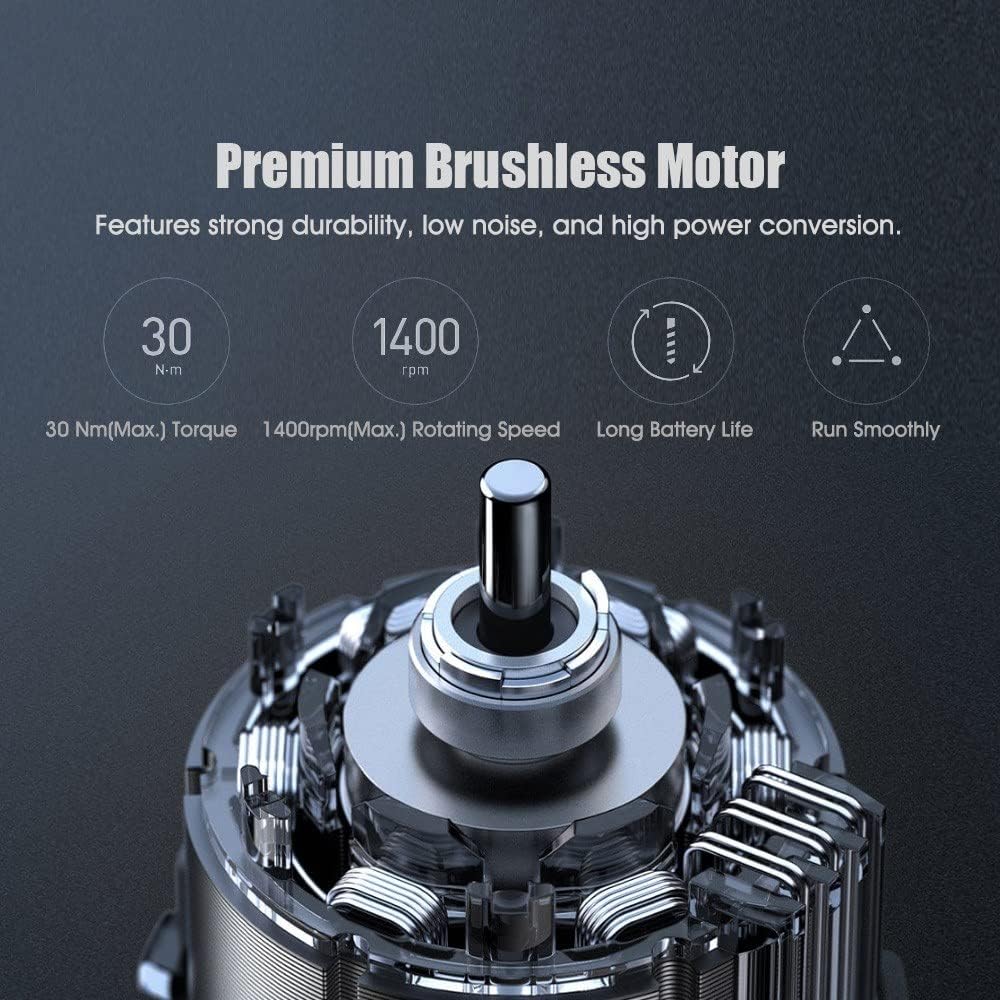

Xiaomi graphic of the brushless motor with icons for 30N·m maximum torque, 1,400 rpm maximum speed, long battery life and smooth running

Brushless Motor, 30N·m

Xiaomi's brushless motor has no carbon brushes to wear out or replace, runs quietly and converts more of the battery's power into work. It delivers up to 30N·m of torque and up to 1,400 rpm, and an all-metal gearbox switches between drilling and screwdriving speed with one push and twist.

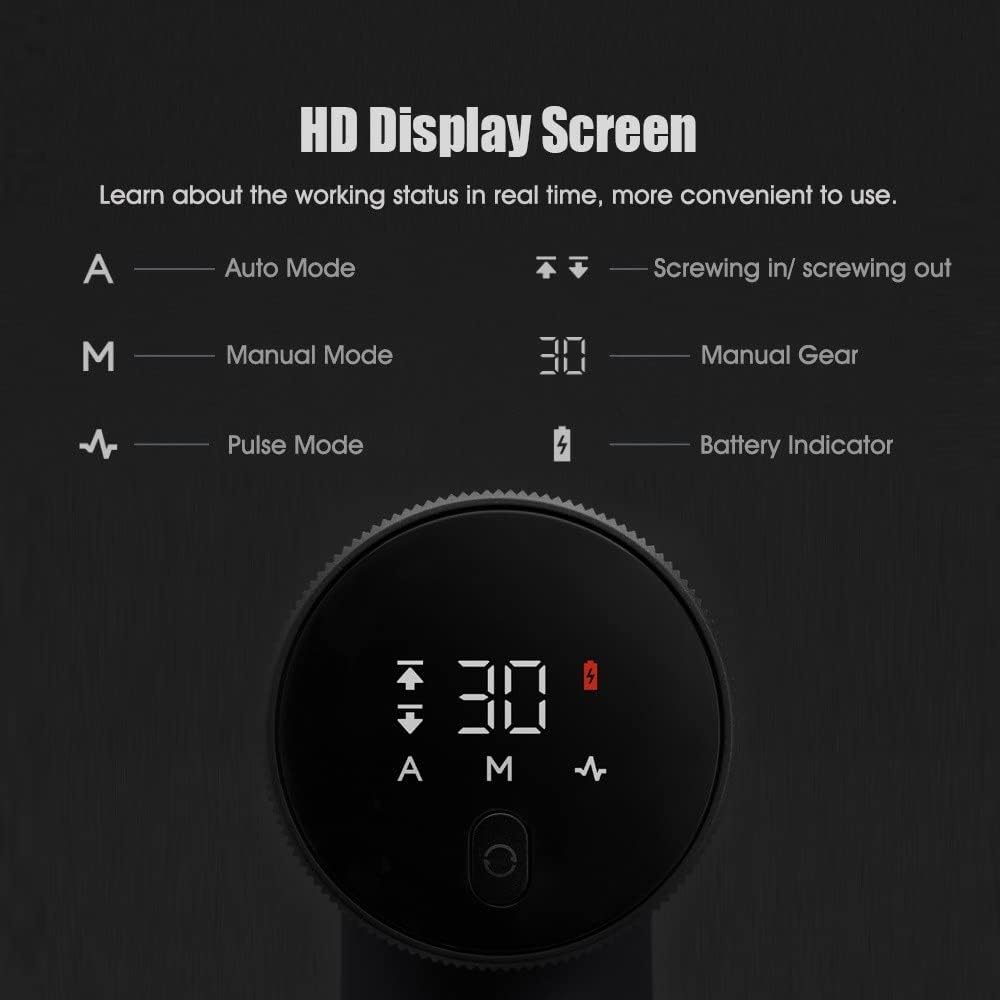

Xiaomi legend of the drill's round rear display showing level 30, the screw in and out arrows, the battery icon and the A, M and pulse mode symbols

Smart Display and Three Modes

The display on the back shows the mode, the stage and the battery. A (automatic) lets a smart chip pick the torque and stops once a screw is tight; M (manual) uses the 360° knob to set any of 30 stages — speed when drilling, torque when screwing; pulse mode starts and stops in short bursts for beginners and soft materials. The button under the display switches modes.

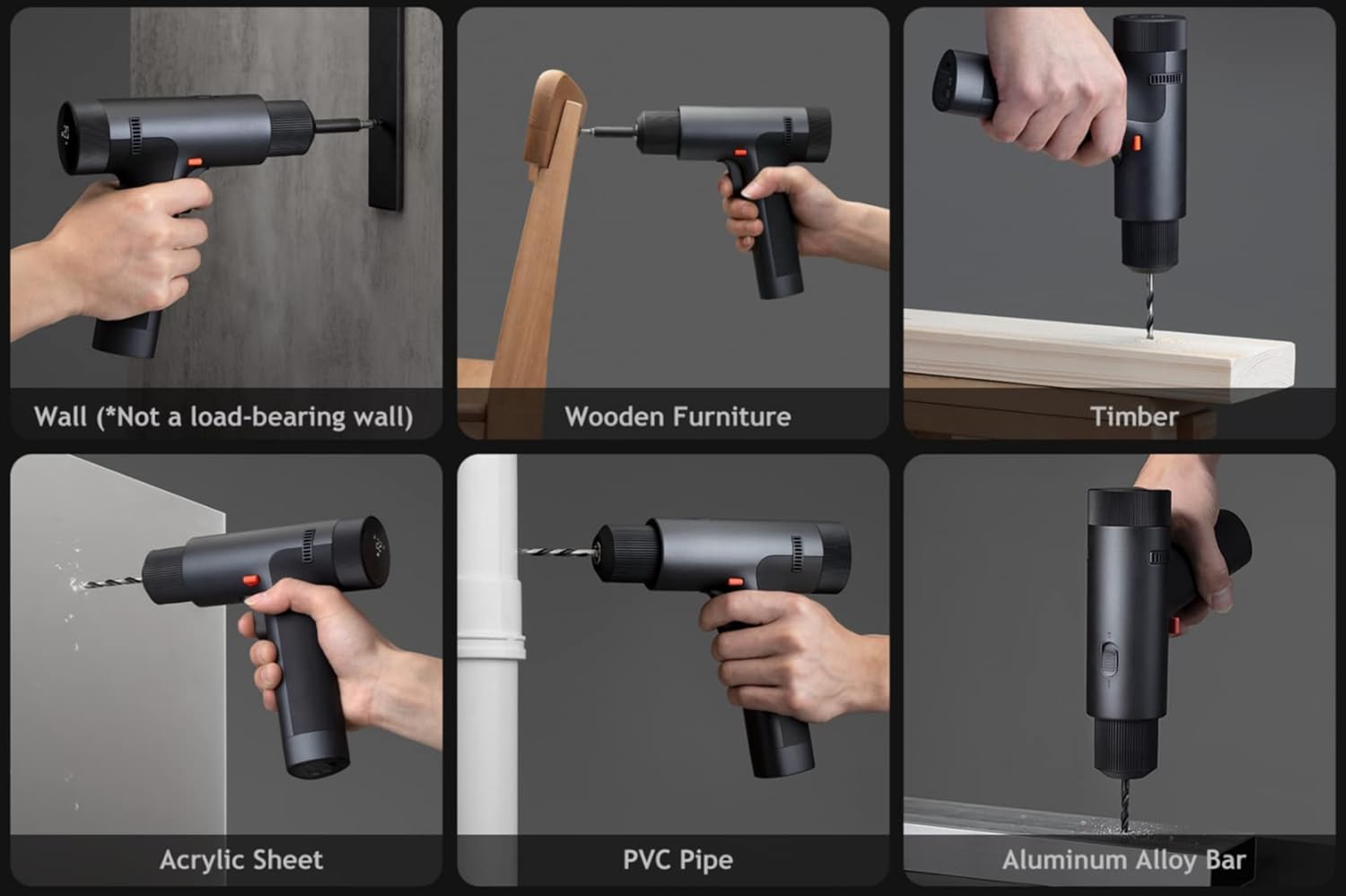

Six photos of the Xiaomi drill fixing a bracket to a wall, screwing a wooden chair, drilling timber, an acrylic sheet, a PVC pipe and an aluminium alloy bar

Wood, Metal and Plastic

Xiaomi shows it on non-load-bearing walls, wooden furniture, timber, acrylic sheet, PVC pipe and aluminium alloy bar. In Xiaomi's tests one charge drove 550+ M4 x 25mm self-tapping screws into pine, drilled 280+ holes 4cm deep in pine or 22+ holes through 6mm steel plate. Xiaomi states it is not suitable for concrete.

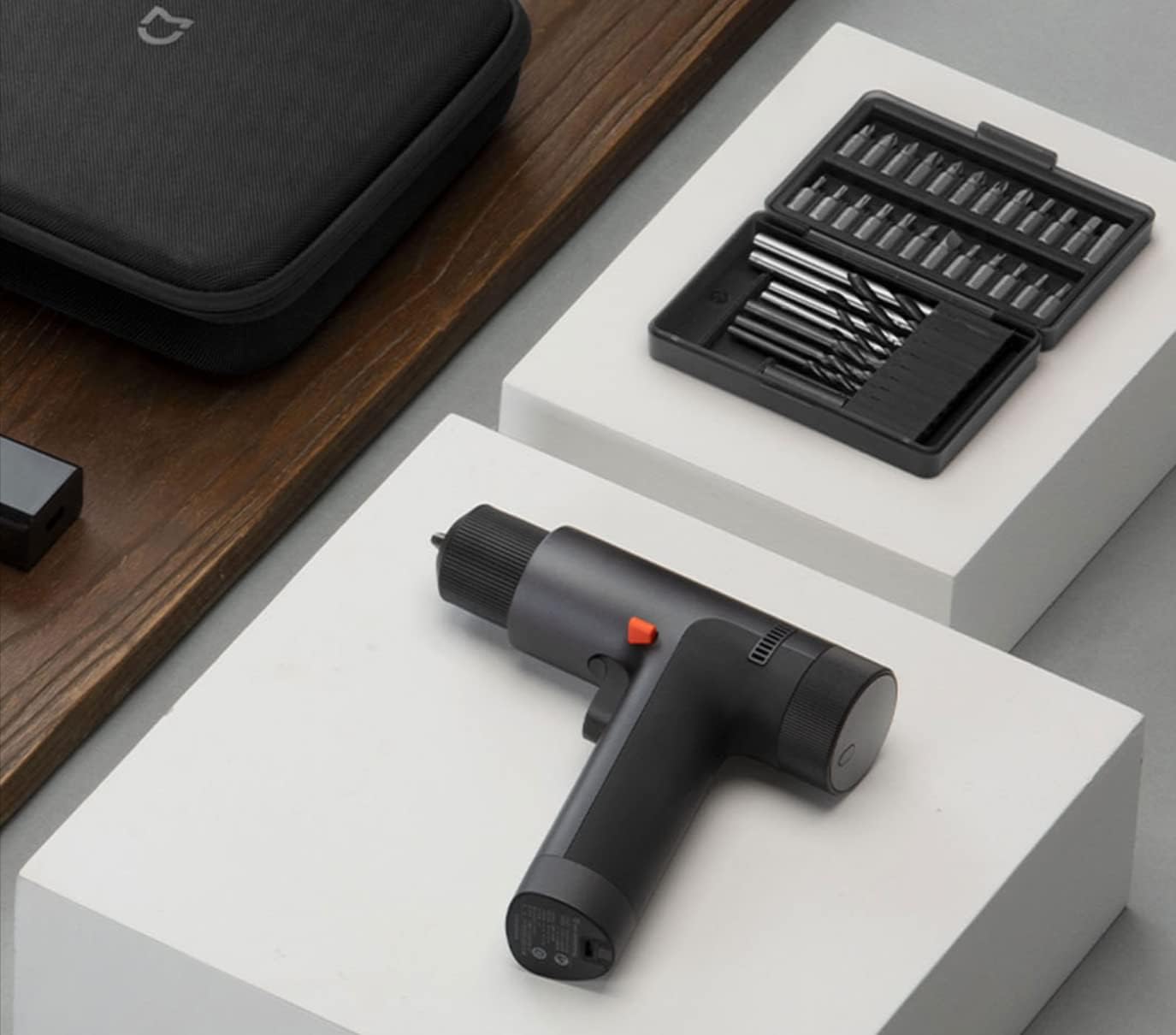

Xiaomi drill lying on a white block next to its bit box with screwdriver bits and drill bits, with the grey storage pouch and charging adaptor behind

Bits, Adaptor and Pouch Included

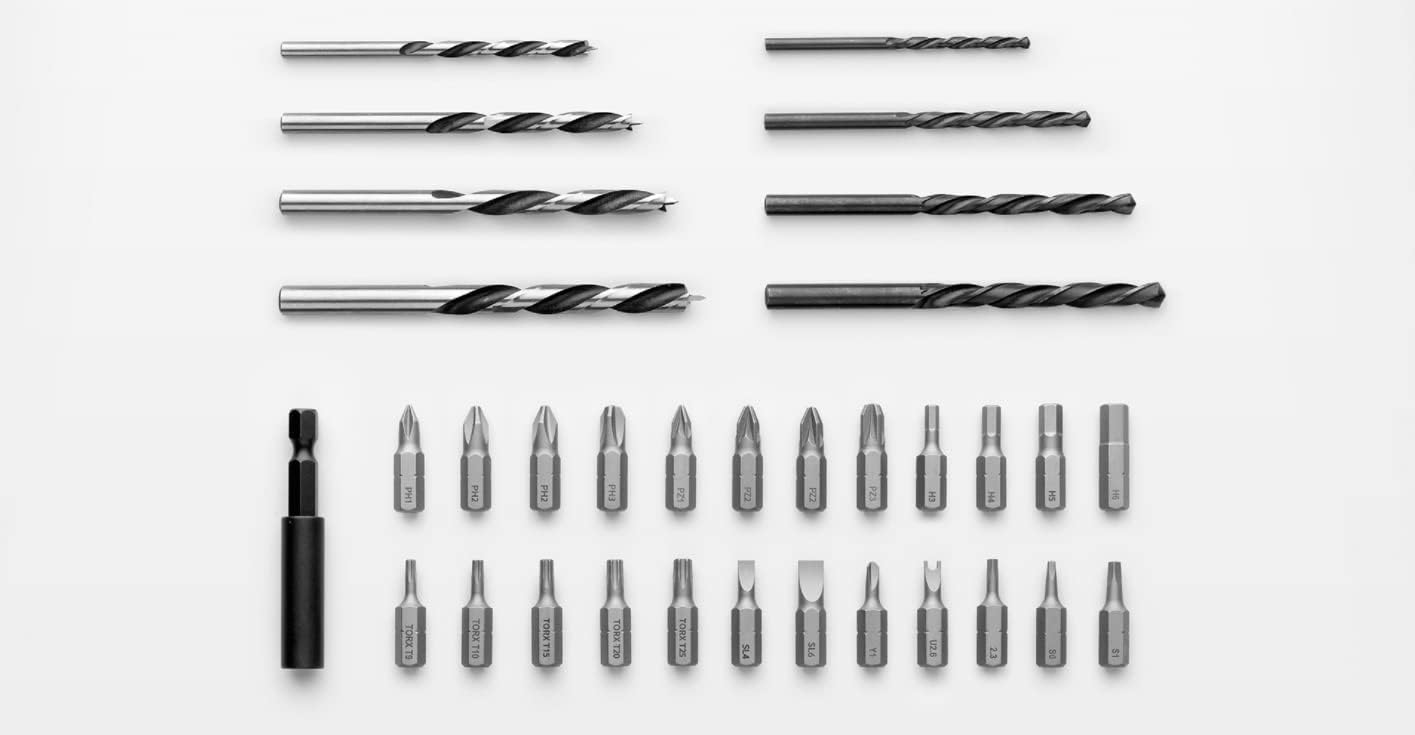

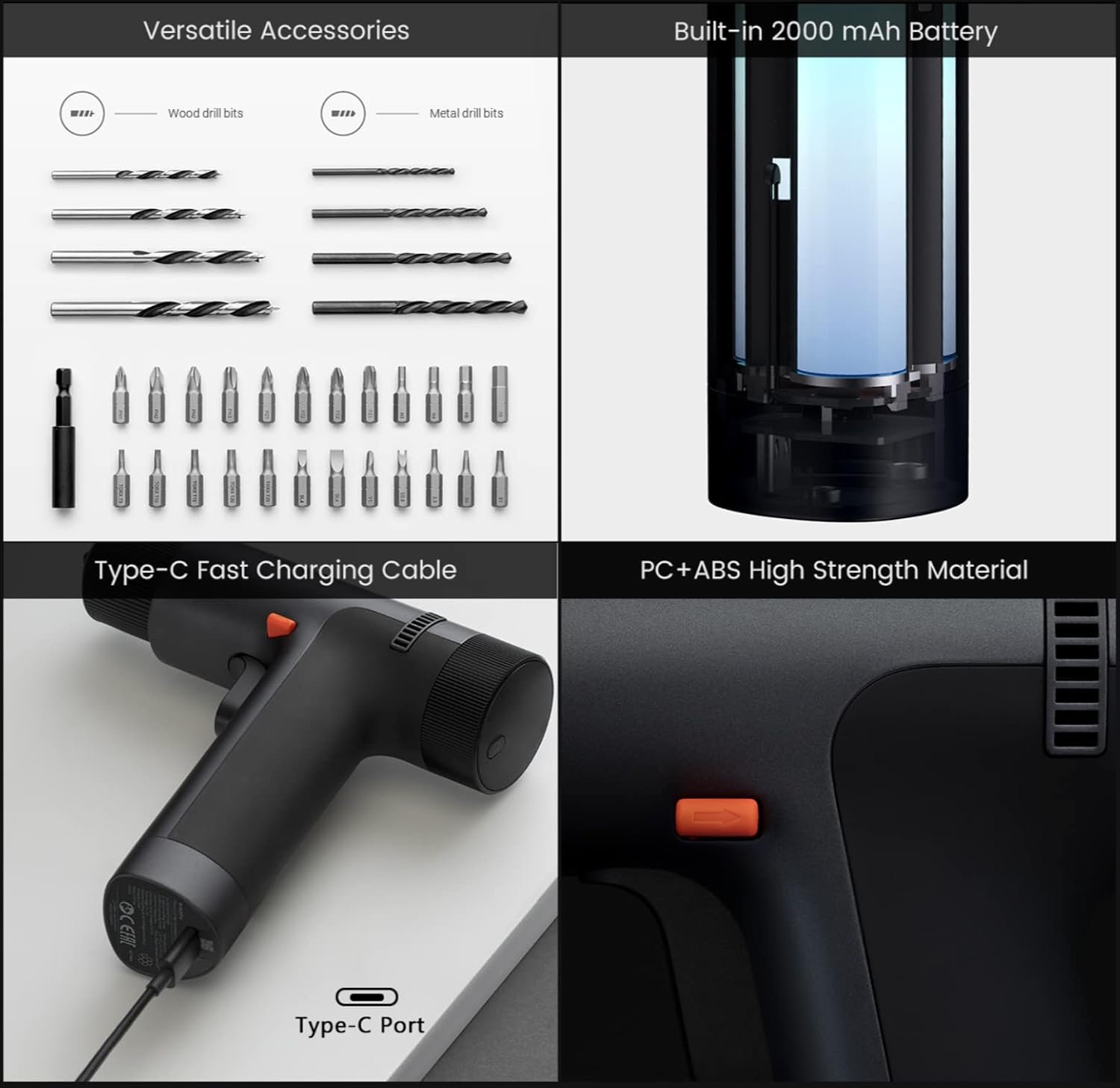

The kit is ready to use: 24 S2 steel screwdriver bits in 9 types, hardened to up to 60HRC, a 60mm magnetic extension rod, metal twist drills of 3, 4, 5 and 6mm and wood bits of 4, 5, 6 and 7mm in a bit box, plus the charging adaptor, a 1m Type-C cable and a water-repellent pouch that holds everything.

Technical Datasheet

Verified Specifications

Brand Xiaomi
Product Name Xiaomi 12V Max Brushless Cordless Drill
Model MJWSZNJYDZ001QW
Rated Voltage 12V
Motor Brushless, all-metal gearbox with drilling and screwdriving speeds
Max Torque 30N·m (Xiaomi: ±5N·m, measured at level 30 in screwing mode)
No-Load Speed 0–1,400 rpm drilling, 0–370 rpm screwing
Adjustment 30 stages on a 360° knob (speed when drilling, torque when screwing)
Modes Automatic (A), manual (M), pulse
Battery Built-in 2,000mAh lithium-ion
Charging USB Type-C, 5V⎓3A / 9V⎓1.5A, 120–180 min
Body PC+ABS with matt TPU grip
Dimensions 185.5 x 179 x 51.5mm
Drill Bits Metal twist 3 / 4 / 5 / 6mm, wood 4 / 5 / 6 / 7mm
Screwdriver Bits 24 S2 steel bits, 9 types, up to 60HRC; 60mm magnetic extension rod
In the Box Drill, storage pouch, adaptor, charging cable, bit box, 8 drill bits, 24 screwdriver bits, extension rod, user manual
Complete Your Setup

Pair It With

FAQ

Product Questions & Store Policies

Can it drill into concrete or brick walls?
No. Xiaomi states it is not suitable for concrete and shows it on non-load-bearing walls, wood, aluminium, acrylic and PVC. It has no hammer mode.
What do the 30 stages control?
In drilling mode the knob sets the maximum speed, in screwdriving mode it sets the torque. Choose a low stage for small screws and soft materials and raise it for larger screws.
Which mode should I use?
Automatic mode lets the drill pick the torque and stop when a screw is tight, which suits beginners. Manual mode gives you all 30 stages. Pulse mode turns in short bursts, useful for soft materials and starting a screw.
Is the charger included?
Yes. Xiaomi supplies a charging adaptor and a 1m Type-C cable. The drill charges at 5V 3A or 9V 1.5A in about 120–180 minutes, and the battery is built in, so there is no separate pack to swap.
