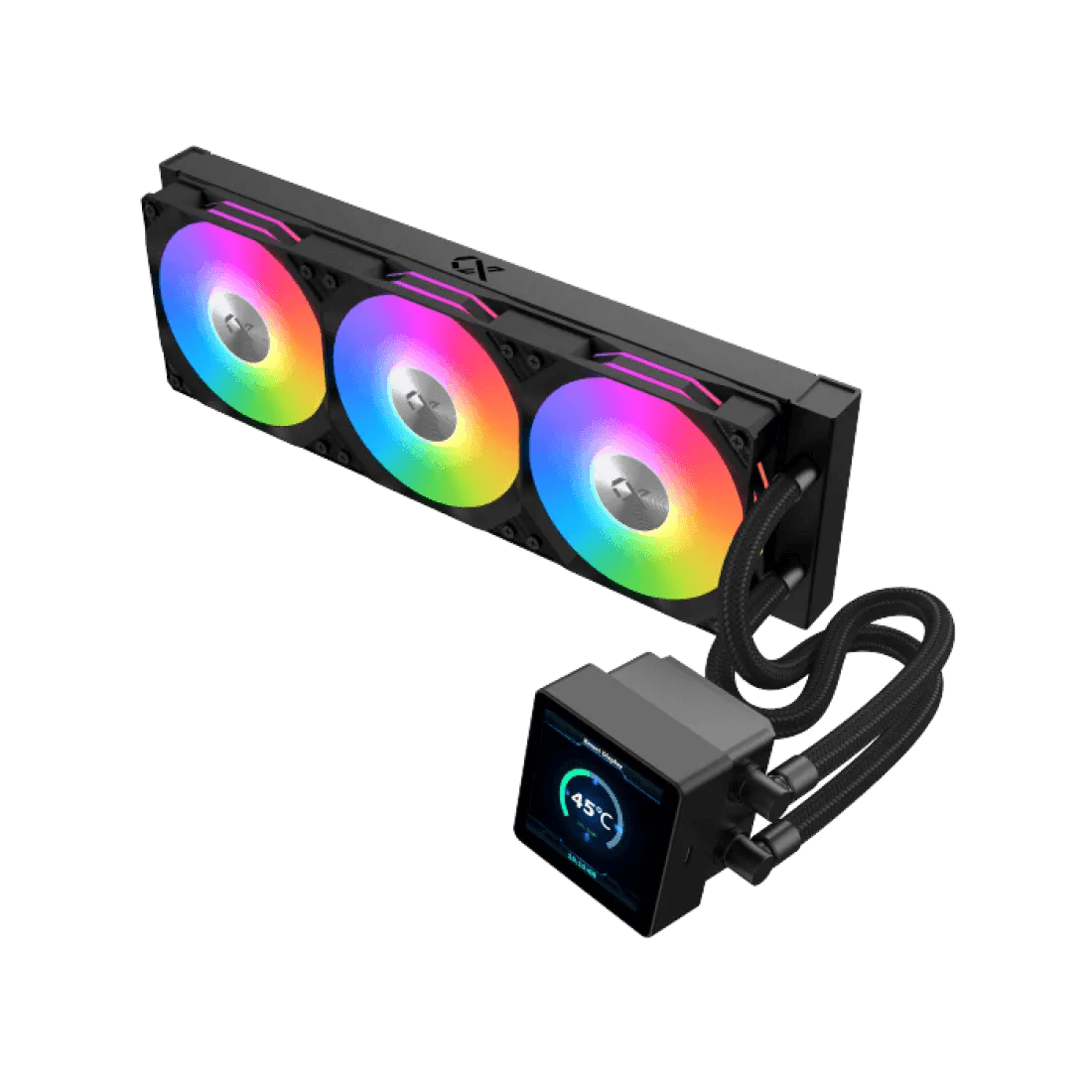

Xigmatek Connect 360 — 360 mm AIO with a Magnetic 3.4" Smart LCD
The Connect 360 puts a 3.4-inch smart LCD on its pump head: Xigmatek's display software shows real-time hardware monitoring, multiple themes and your own backgrounds, with adjustable brightness, and the magnetic LCD module rotates to four angles to suit how the pump is mounted. Underneath, a ceramic-bearing pump at 2700 rpm feeds a high-density 397 mm aluminium radiator through 450 mm sleeved tubes, cooled by three 120 mm ARGB PWM fans at 800–2100 rpm. Xigmatek rates it for 320 W TDP on Intel LGA1851 / 1700 / 1200 / 115x / 20xx and AMD AM5 / AM4.
Gaming Rigs with a System Dashboard
Real-time hardware monitoring on a 3.4-inch screen turns the pump into a live dashboard, while three 120 mm fans and a 320 W rating handle modern Core and Ryzen gaming CPUs.
Personalised Showcase Builds
Load your own background and pick a theme, rotate the magnetic screen to match a vertical or horizontal pump, and let the ARGB fans tie into the rest of the lighting.

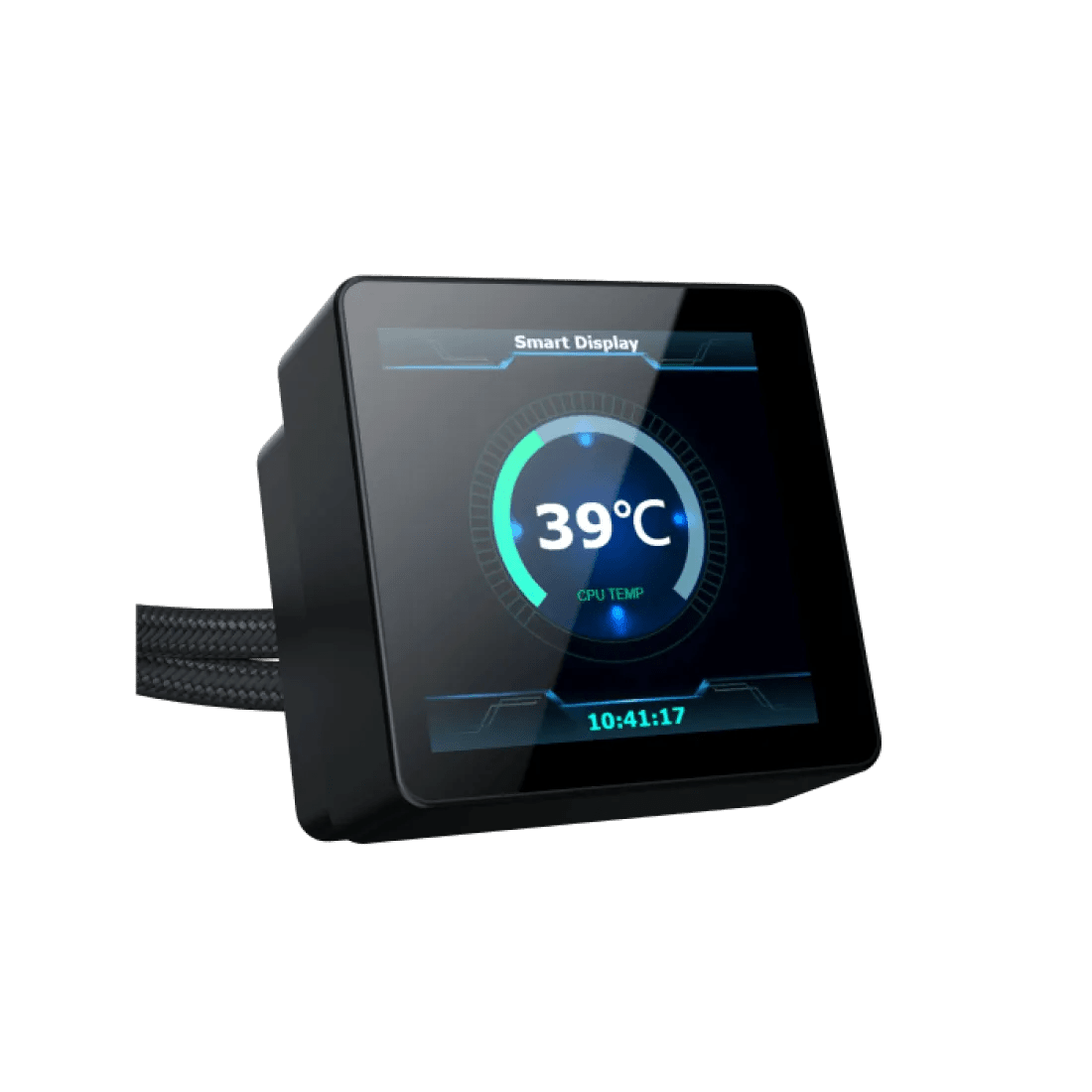

A 3.4-Inch Screen on the Pump Head
The square pump head is almost all screen. Here it shows the Smart Display theme with a 39 °C gauge and a clock; Xigmatek's software adds other themes, custom backgrounds and brightness control, and the magnetic module turns to four angles.

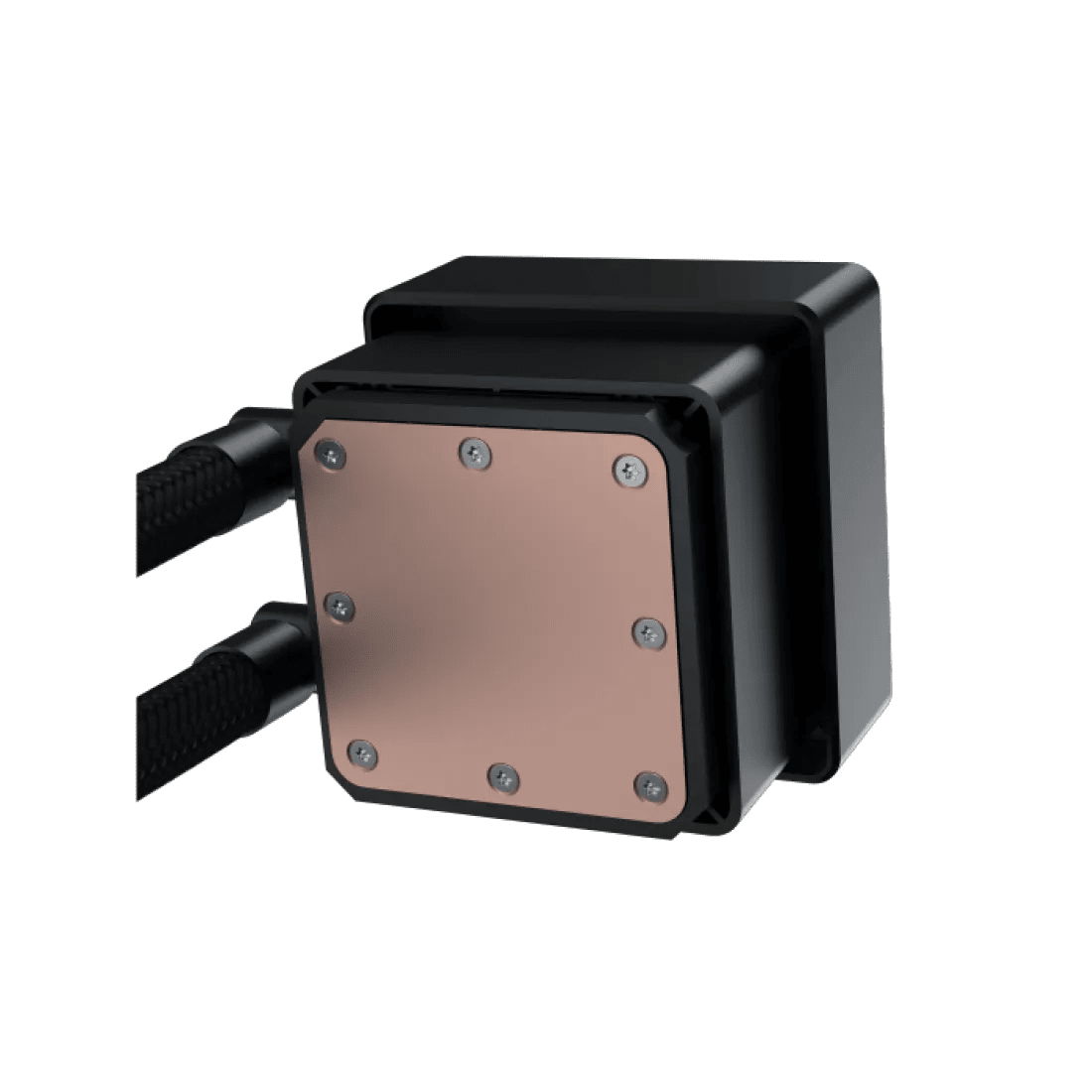

Top-Grade Copper Cold Plate
Under the 90 × 76 × 67 mm pump block, a screwed-down copper cold plate meets the CPU. The ceramic-bearing pump runs at 2700 rpm and is rated at 27 dBA or less.

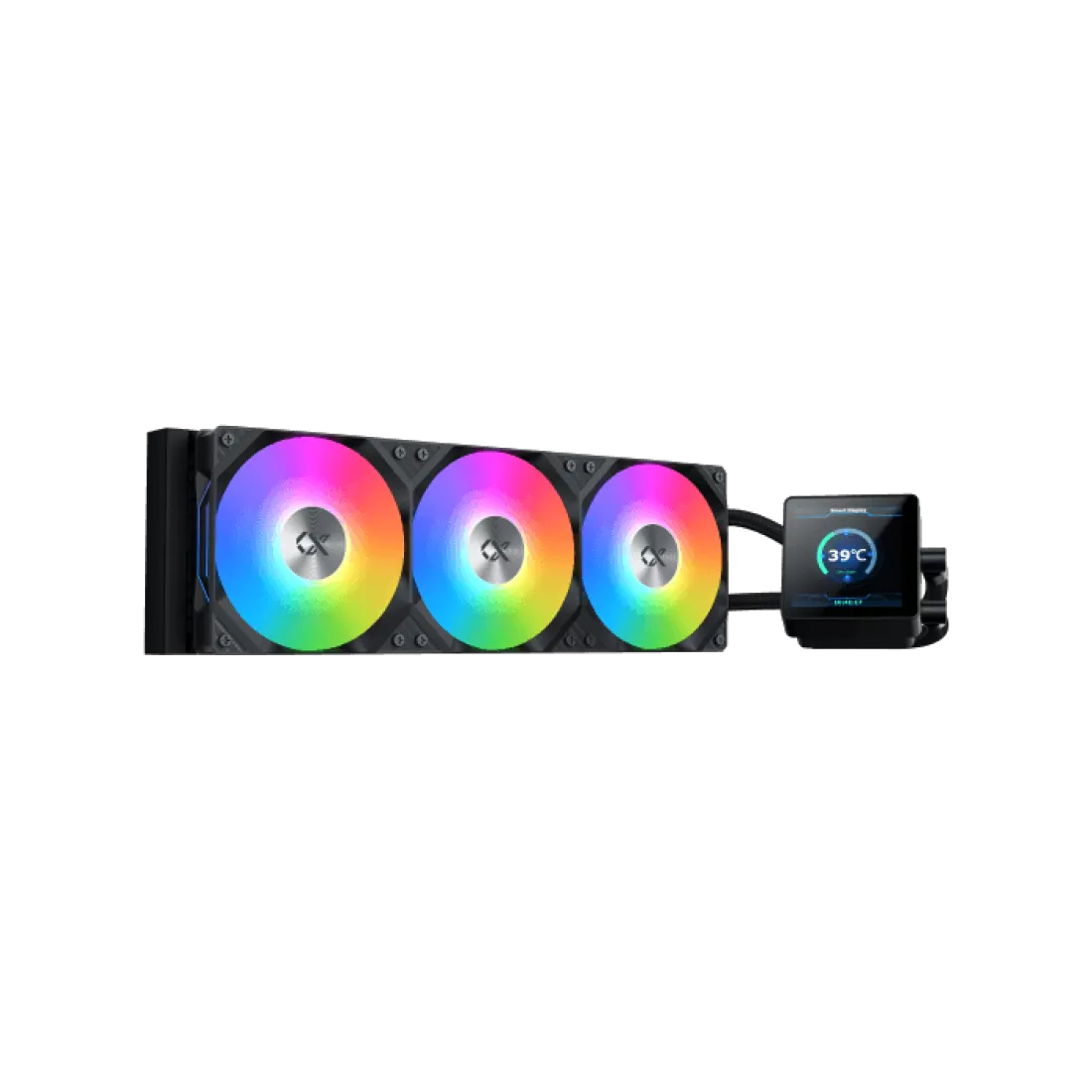

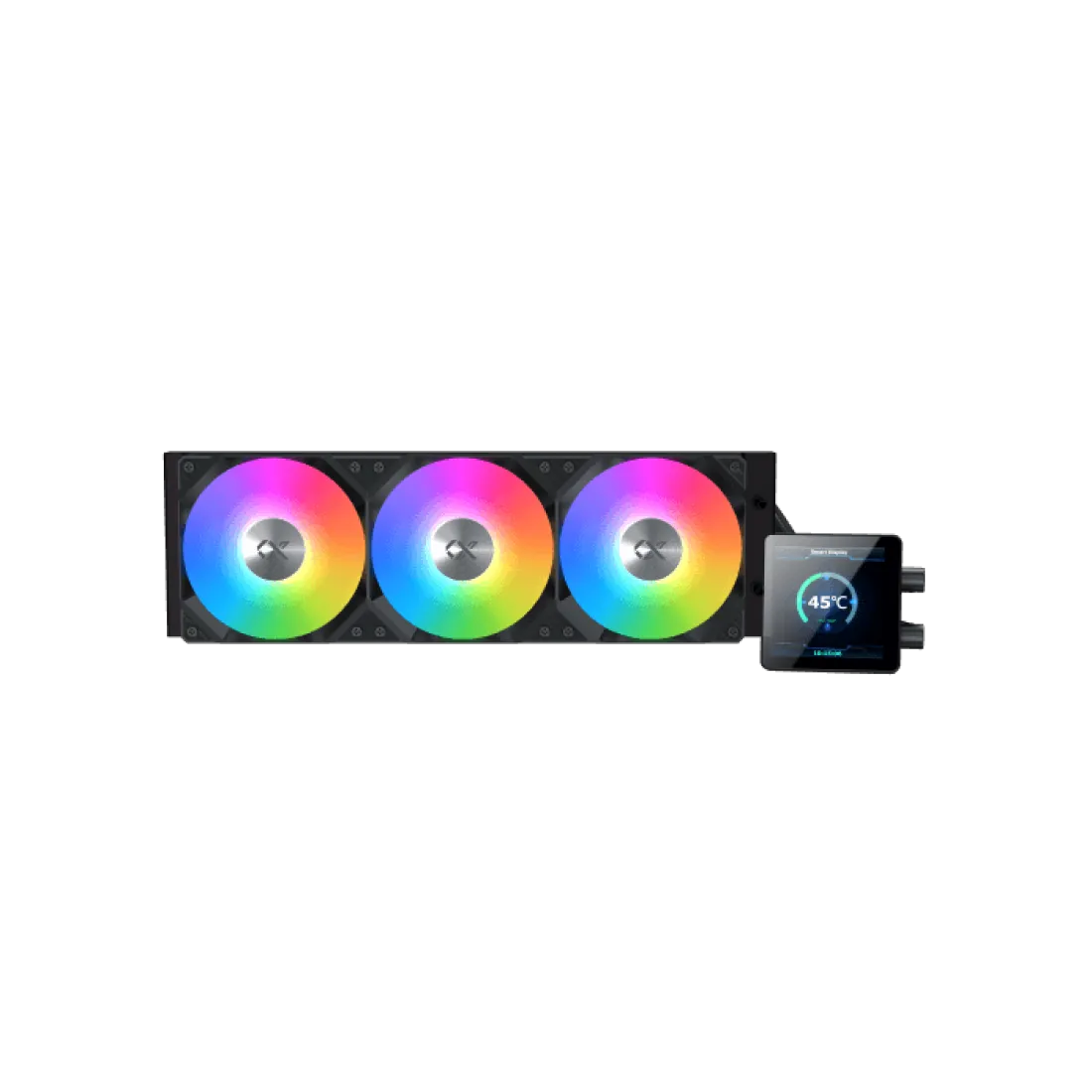

Three ARGB PWM Fans on One Loop
The full loop: three 120 × 28 mm ARGB fans with long-life hydro bearings spin 800–2100 rpm on PWM, moving 80 CFM each at 3.14 mmH2O, and the included mini ARGB controller runs the lighting on boards without a header.

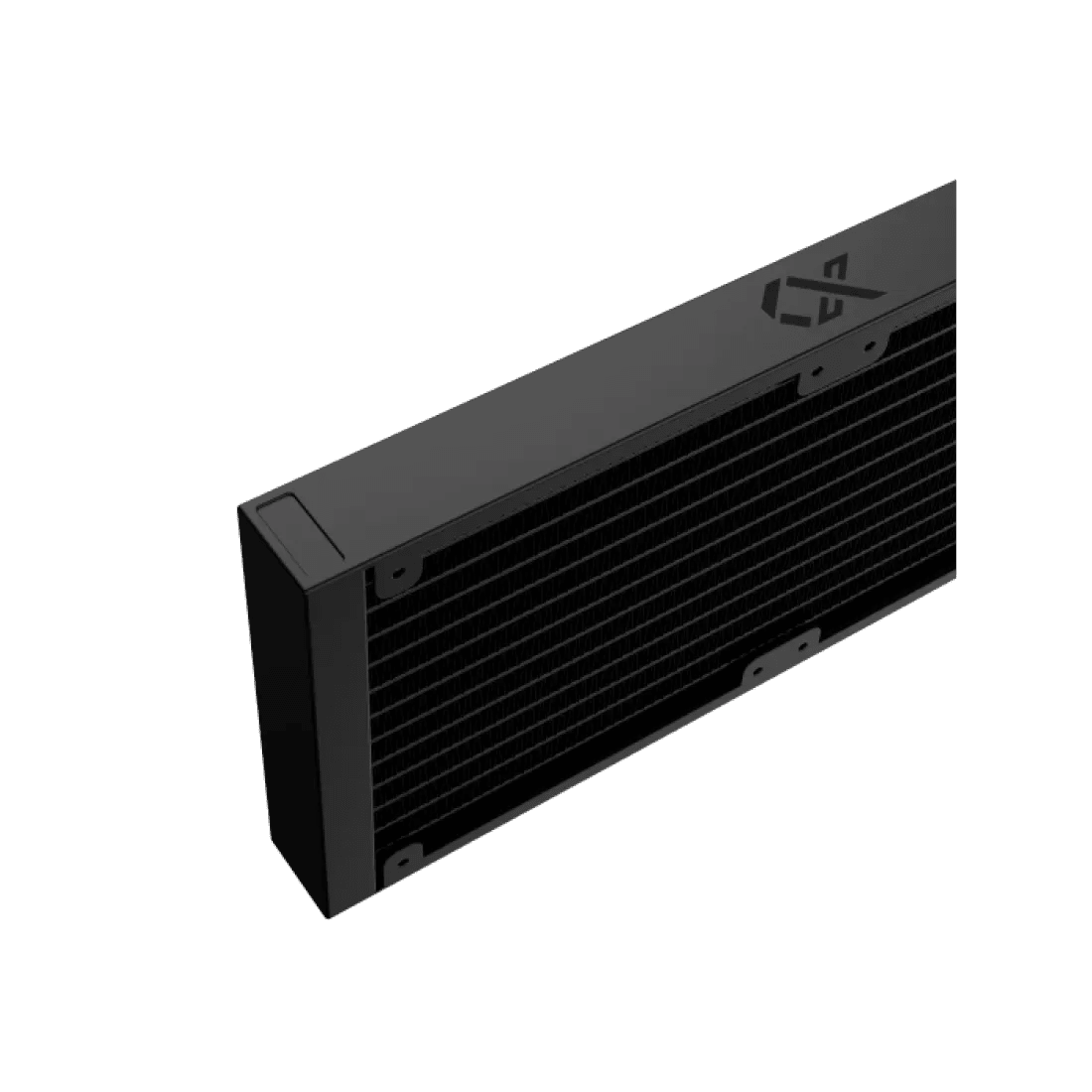

397 mm Aluminium Radiator
The 397 × 120 × 27 mm radiator uses a high-density aluminium fin array with the Xigmatek logo on the end cap. Plan for 360 mm radiator support, with the 28 mm fans adding to the total thickness.
Xigmatek 360 mm AIO Fan Static Pressure
Official Xigmatek maximum static pressure per fan — both coolers are rated for 320 W TDP
Detailed Hardware Specifications
| Model | Xigmatek Connect 360 (black) · EN45233 |
| Rated TDP | 320 W |
| Intel Sockets | LGA1851, 1700, 1200, 115X, 20XX |
| AMD Sockets | AM5, AM4 |
| Radiator | 397 × 120 × 27 mm, aluminium |

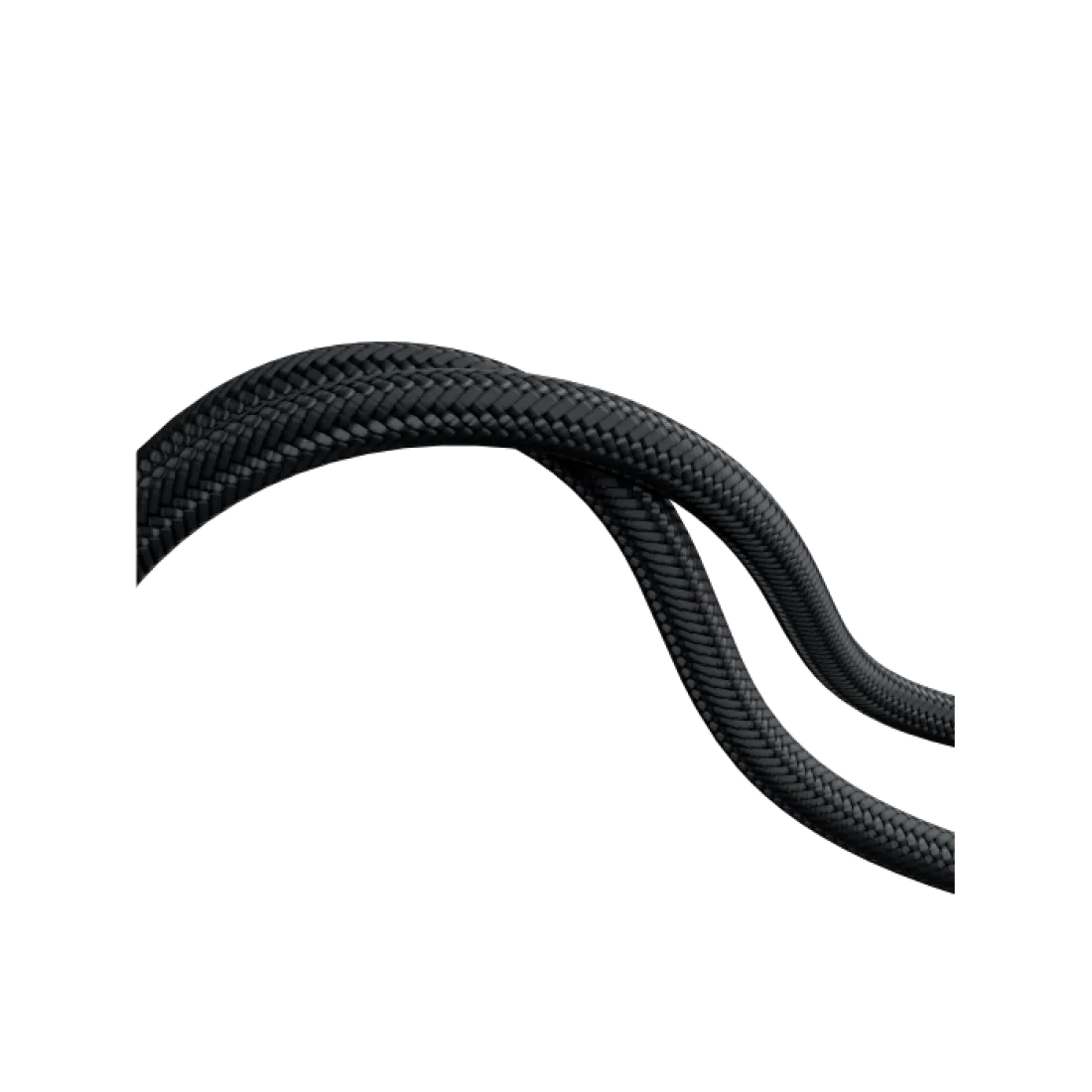

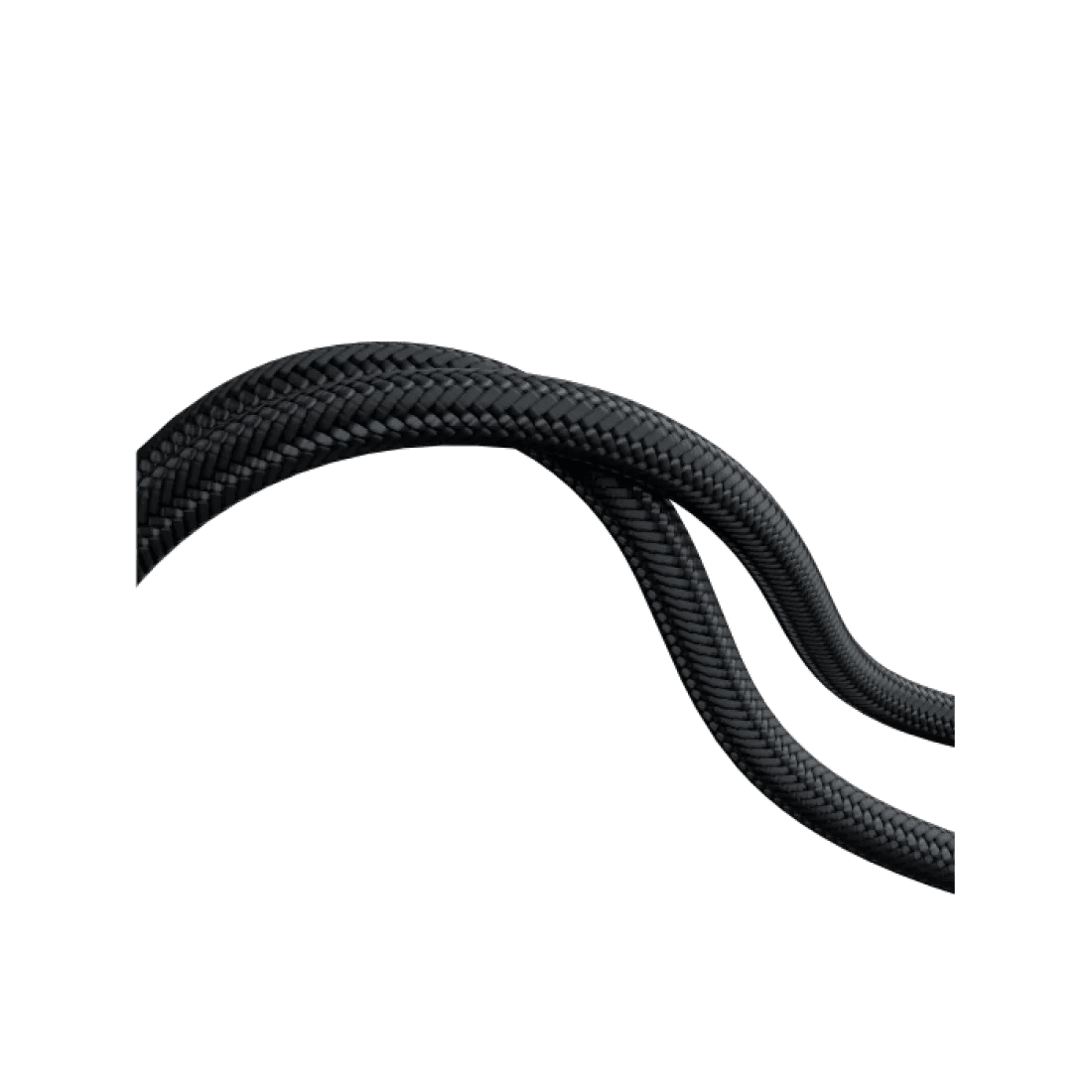

| Tubes | 450 mm sleeved |
| Pump | 90 × 76 × 67 mm, ceramic bearing, 3.4" LCD pump head |
| Pump Speed / Noise | 2700 rpm ±10% / ≤27 dBA |
| Pump Power | 12 VDC, 0.48 A, ≤5.76 W |
| Fans | 3 × 120 × 28 mm, addressable RGB, long-life hydro bearing |
| Fan Speed | 800–2100 rpm ±10% (PWM) |
| Fan Airflow / Pressure | 80 CFM × 3 / 3.14 mmH2O |
| Fan Noise | ≤29 dBA |
| Fan Power | 12 VDC, 0.65 A, ≤8 W |
| In the Box | Mounting kit, mini ARGB controller, thermal paste |
