Xigmatek Thor T750M V3 750W 80 PLUS Bronze · ATX 3.1 · Fully Modular
The Thor T750M V3 is XIGMATEK's fully modular 750W unit for ATX 3.1 builds: 80 PLUS Bronze (80% efficient at 50% load), a single +12V rail fed by DC-to-DC conversion with active PFC, a native 12V-2x6 connector rated up to 600W for PCIe 5.1 graphics cards, dual CPU connectors for current Intel and AMD boards, and black flat modular cables — all in a compact 140 mm body cooled by a 120 mm fan that stays under 1800 rpm at full load.
Mainstream Gaming with a 12V-2x6 Card
A native 12V-2x6 lead rated up to 600W powers current graphics cards without adapters, and the single +12V rail puts the whole 750W where the GPU and CPU need it.
Tidy Builds in Compact Cases
At 140 mm deep with fully modular flat cables, it leaves room for cable routing in smaller ATX cases, and you only connect the cables your build uses.
Power Architecture & Thermal Highlights

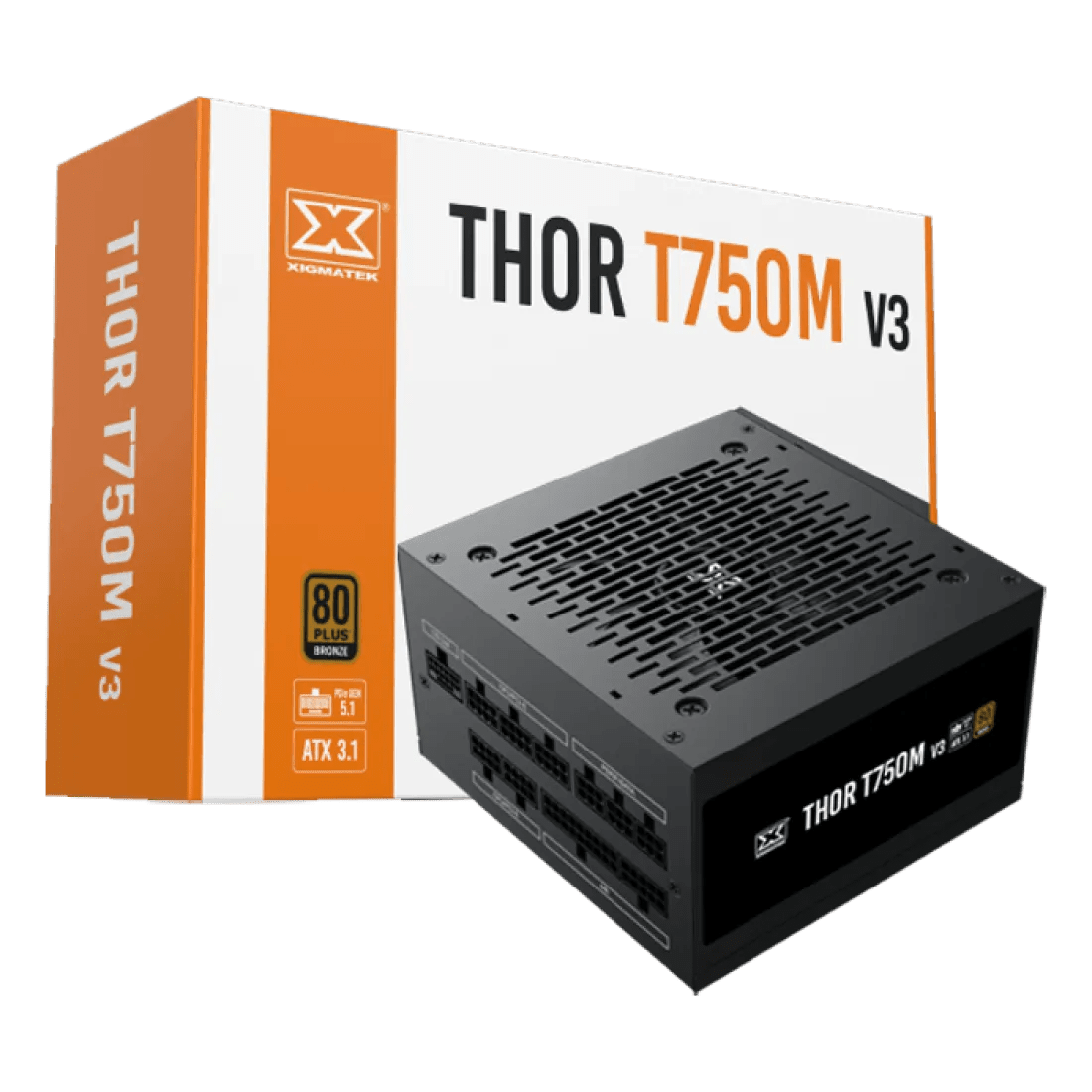

80 PLUS Bronze, ATX 3.1 Certified Packaging
The retail box and unit side by side: the carton carries the 80 PLUS Bronze and ATX 3.1 marks, and the unit wears the THOR T750M V3 side plate.

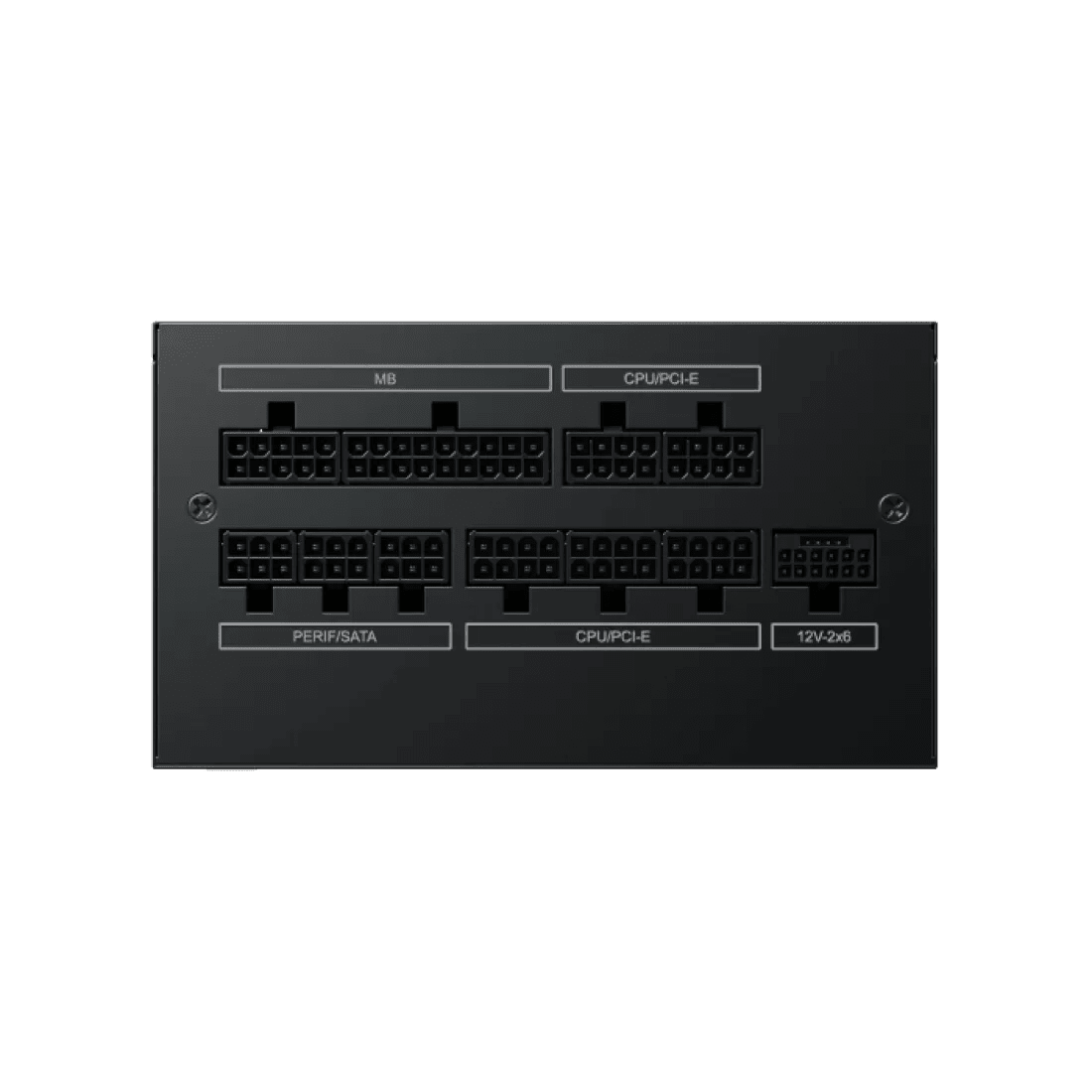

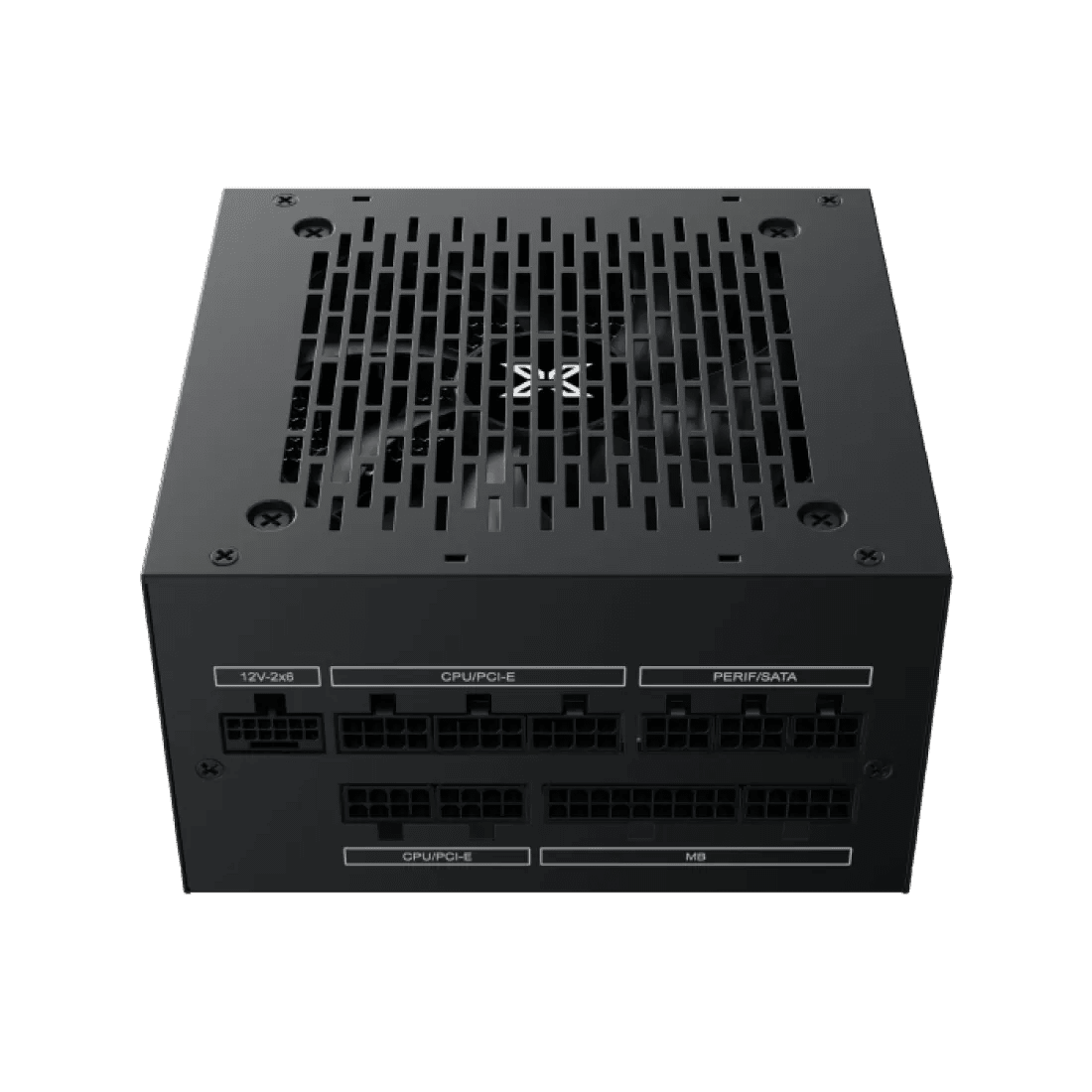

Fully Modular Connector Panel
The rear panel holds every modular socket, labelled for motherboard, CPU/PCIe, SATA/peripheral and the 12V-2x6 GPU lead, so only the cables you need go into the case.

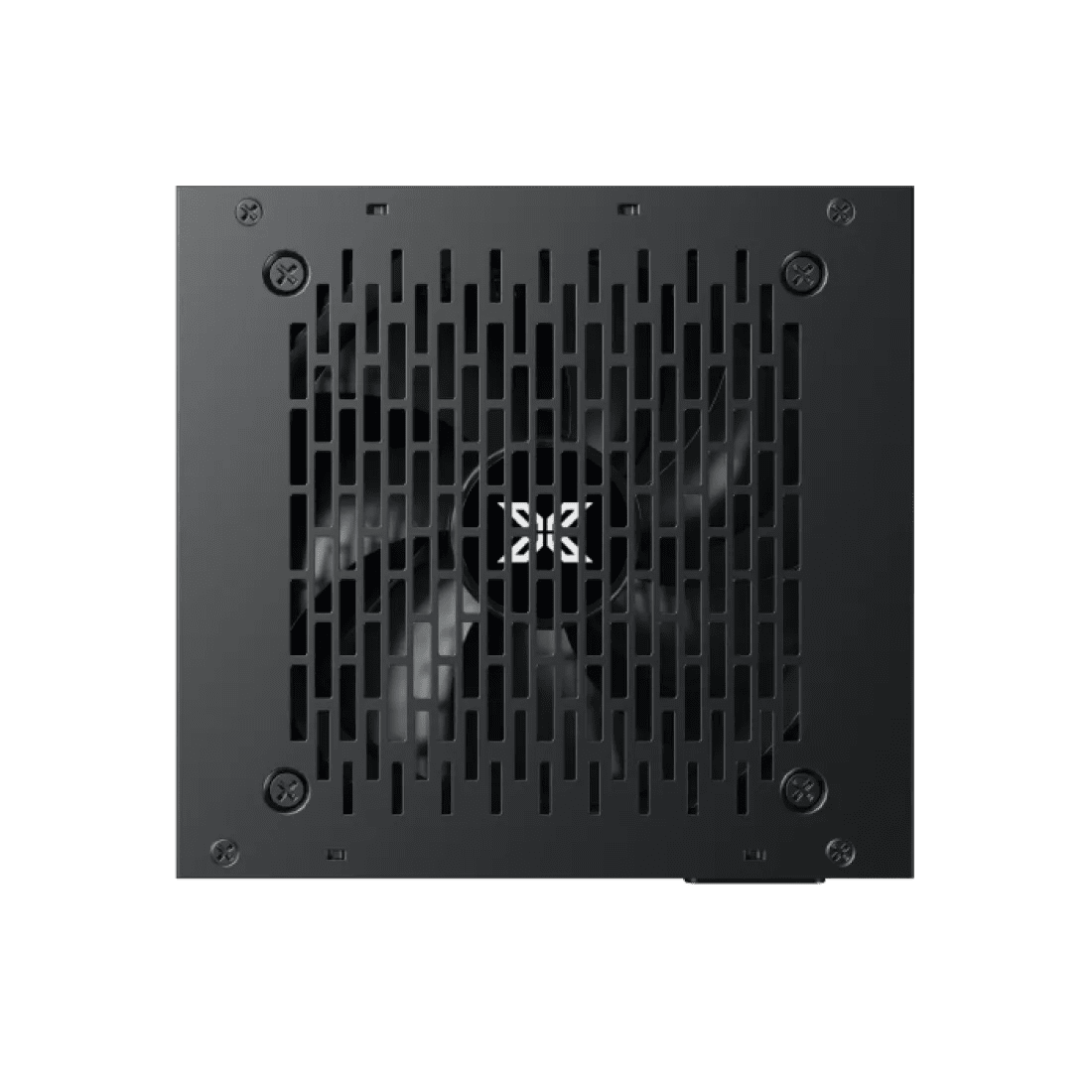

120 mm Ultra-Silent Fan
The slotted grille covers the 120 mm fan, which XIGMATEK rates at under 1800 rpm even at full load.
Compact 140 mm Chassis
The short 140 mm housing fits ATX cases with limited PSU space while keeping the modular panel easy to reach.
Recommended Component Synergy
Processors (CPUs)
Continuous clean power delivery for multi-threaded CPUs under maximum boost.
Graphics Cards (GPUs)
Native 12V-2x6 single-cable feeding RTX 40 & 50 series graphics cards.
Motherboards
Dual EPS 8-pin connectors to feed reinforced VRM power stages.
PC Cases
Compact chassis length ensuring generous cable management clearance.
Build Your Dream Custom PC with Certified AHW Engineers
Select 100% compatible components and let our engineers assemble, cable-manage, and stress-test your rig.
Comprehensive Hardware Specifications
| Model | XIGMATEK Thor T750M V3 |
| Output | 750W, single +12V rail |
| Certification | 80 PLUS Bronze (80% efficiency at 50% load) |
| Topology | DC-to-DC conversion, active PFC |
| Standard | ATX 3.1 · PCIe Gen 5.1 |
| GPU Connector | Native 12V-2x6, up to 600W |
| CPU Connectors | Dual CPU connectors |
| Cables | Fully modular, black flat cables |
| Fan | 120 mm, under 1800 rpm at full load |
| Protections | SCP / OPP / OVP / UVP |
| Input | 100–240 V full range |
| Length | 140 mm |
| Multi-GPU | Supported (per XIGMATEK) |
