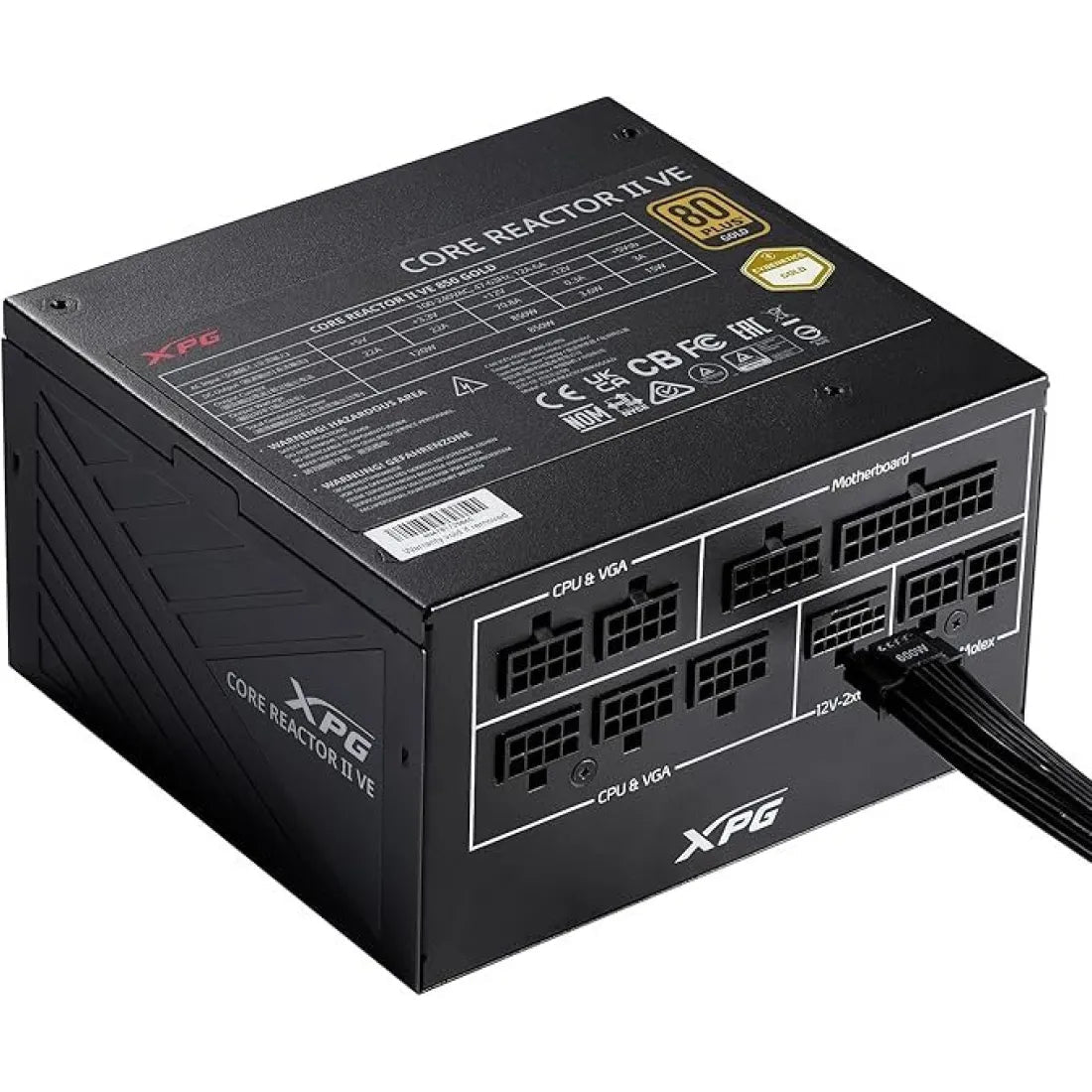

XPG Core Reactor II VE 750W 80 Plus Gold ATX 3.1 Fully Modular Power Supply
Installment Calculator
Final terms are confirmed at checkout.
Couldn't load pickup availability
XPG Core Reactor II VE 750W 80 Plus Gold ATX 3.1 Fully Modular Power Supply
The XPG Core Reactor II VE 750W is an elite compact ATX 3.1 powerhouse designed for modern gaming rigs. Featuring native 12V-2x6 PCIe 5.1 GPU power delivery, 100% Japanese primary capacitors rated for 105°C, Cybenetics Platinum-tier efficiency, and a compact 140mm depth, it delivers immense stability with effortless cable routing.
Competitive Esports & RTX 4070 / RX 7800 Gaming
Tailor-made for demanding mid-to-high-tier gaming PCs. The 62.5A single +12V rail effortlessly sustains modern GPUs and high-frequency CPUs, easily handling 200% power spikes (1500W peak) without system resets or voltage drops.
Compact 140mm Builds & 24/7 Content Creation
At only 140mm long, the Core Reactor II VE leaves maximum clearance for storage drives and tidy cable bends inside compact ATX and mATX chassis. Industrial protections and DC-to-DC regulation ensure rock-solid rendering performance.
Power Architecture & Thermal Highlights
Intel ATX 3.1 Compliant with Native 12V-2x6 GPU Delivery
Engineered around Intel's ATX 3.1 power supply design guide. Includes a dedicated 12V-2x6 16-pin cable capable of delivering up to 450W directly to modern GPUs with high-reliability terminals and safety margin.
DC-to-DC Converter Topology & 105°C Japanese Capacitors
Equipped with high-grade Japanese primary capacitors rated at 105°C and a DC-to-DC resonant architecture that delivers ultra-tight voltage regulation within 2% across all major rails, preventing component wear.

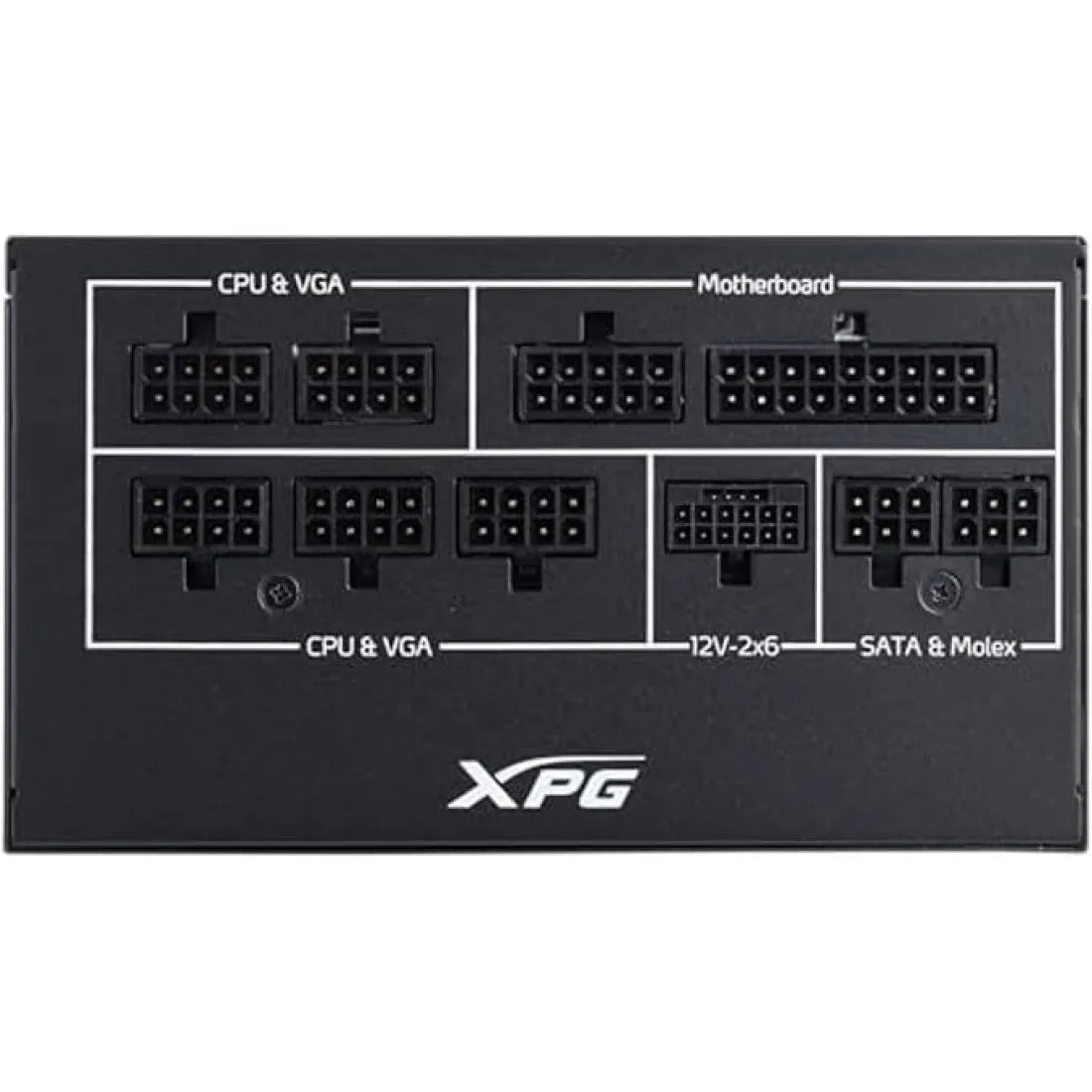

100% Fully Modular Flat Ribbon Layout for Clean Airflow
Connect only the cables required for your build. The ultra-flexible flat ribbon wires route easily through tight cable tie points and rear chassis channels, maximizing internal case airflow and aesthetics.

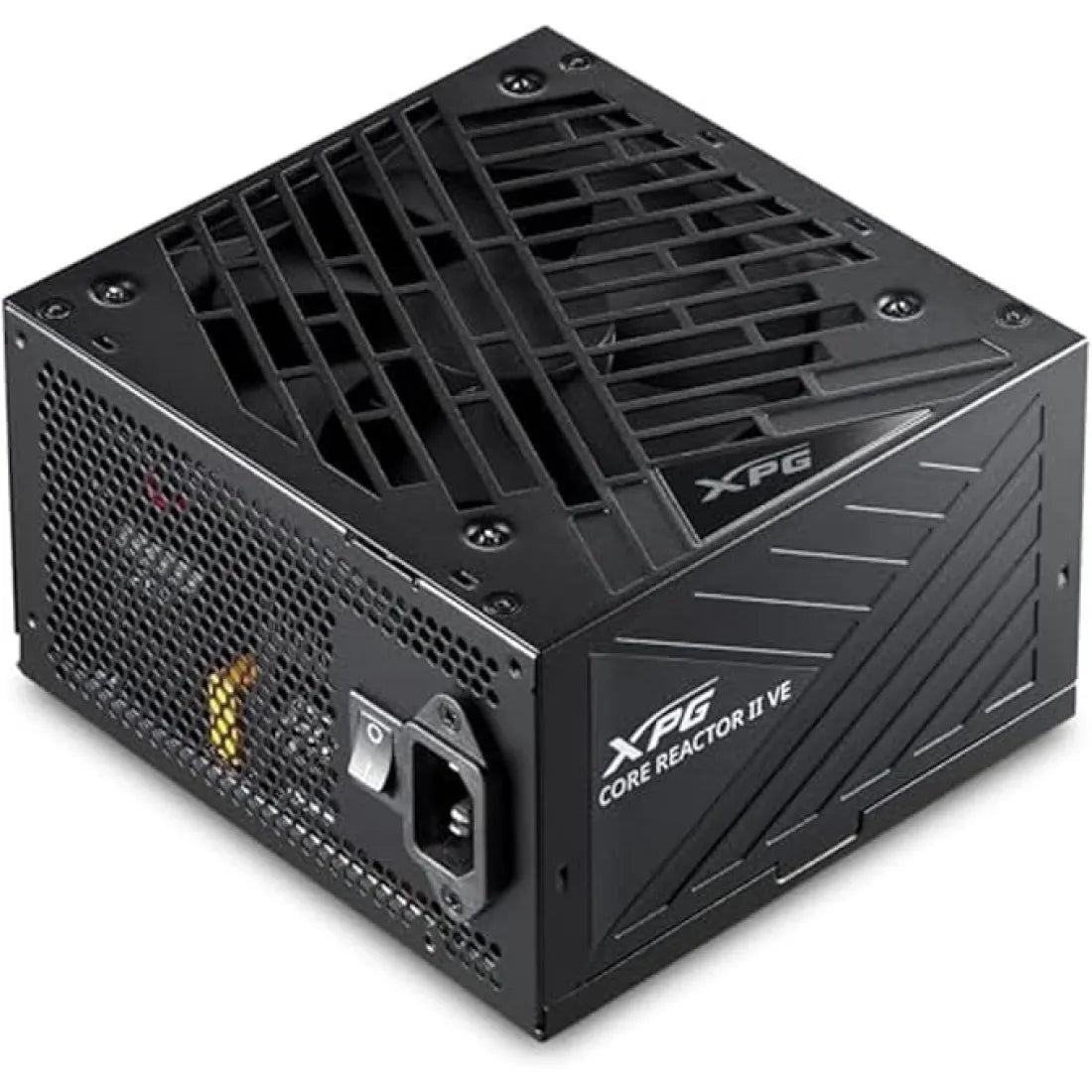

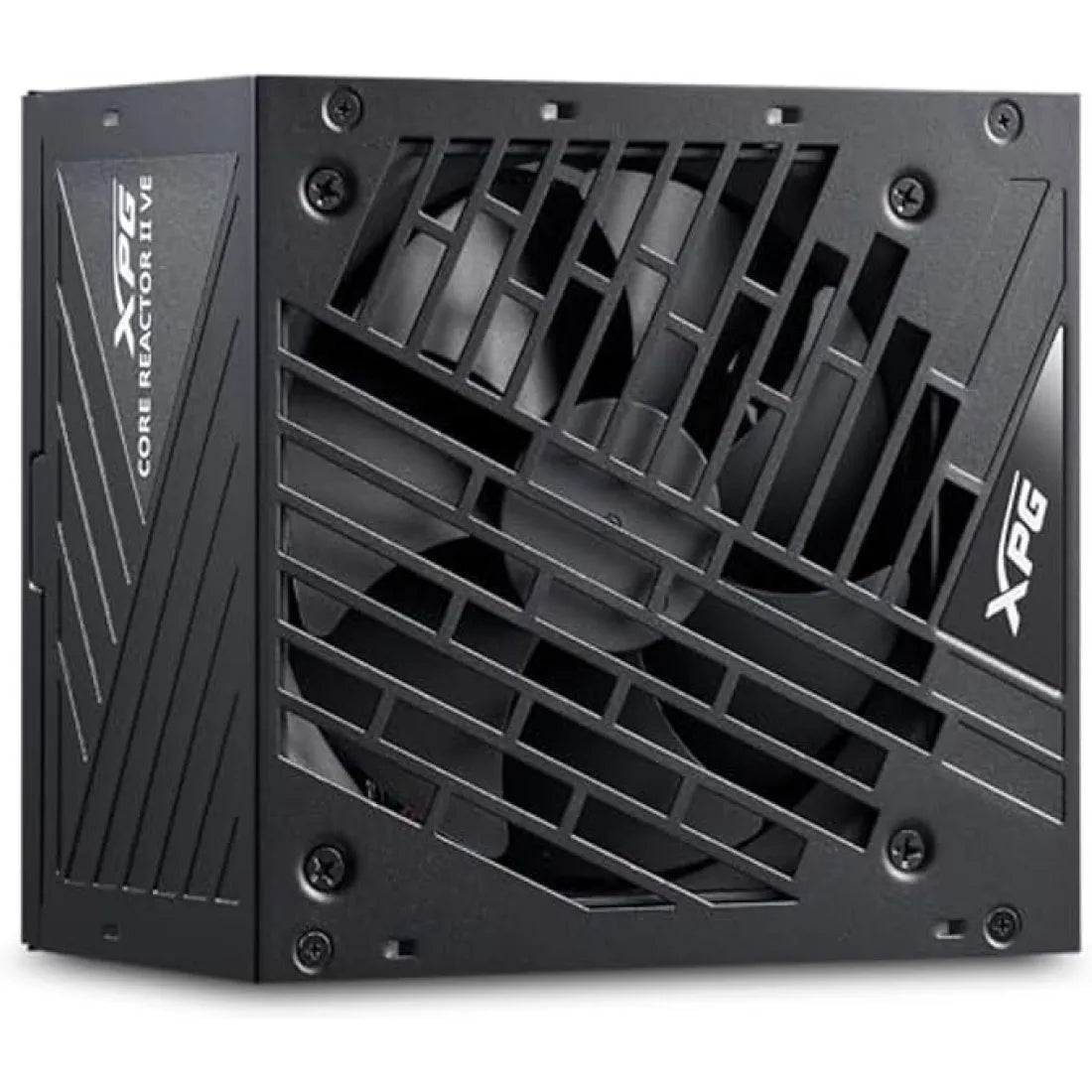

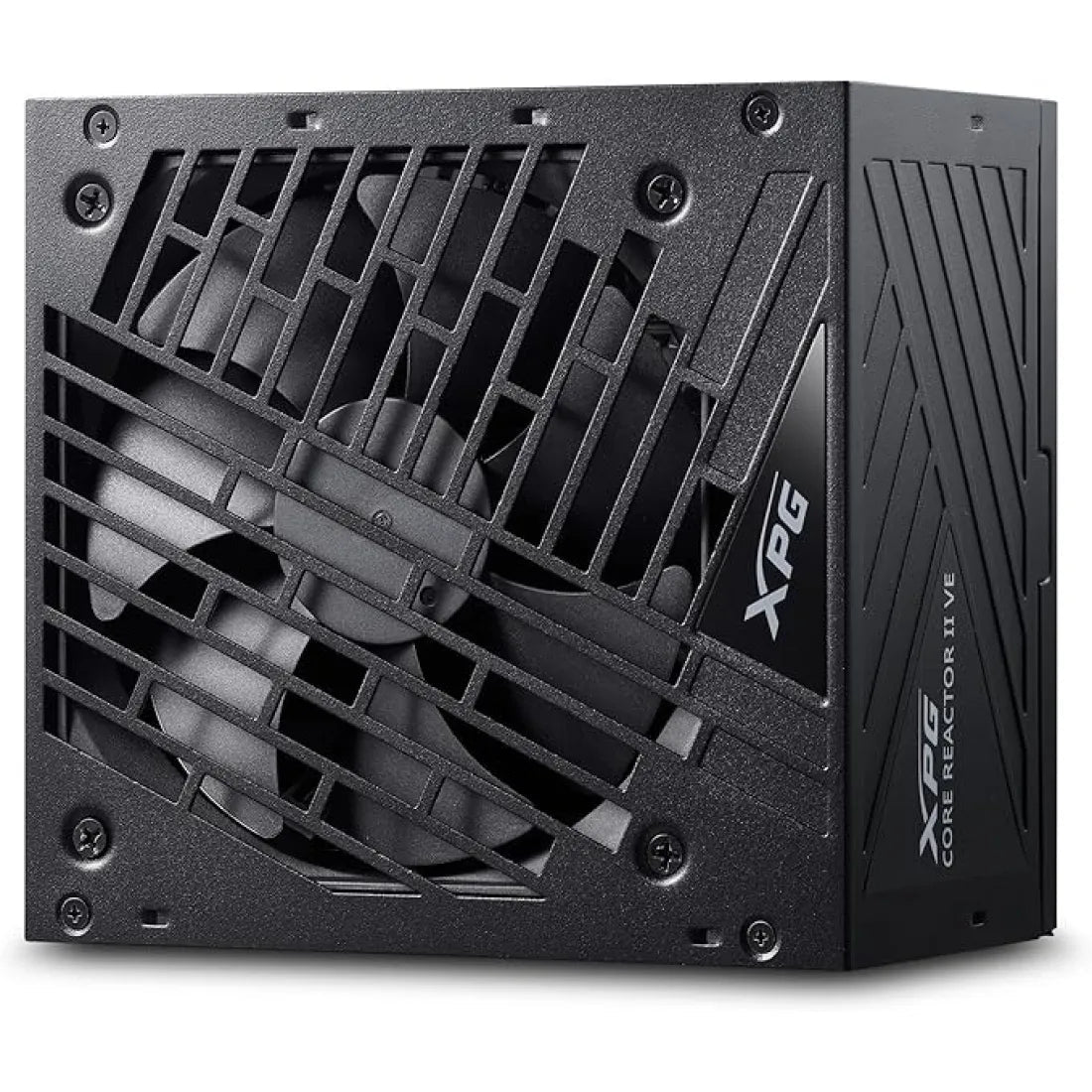

120mm FDB Fan with Smart Thermal Curve Tuning
A premium fluid dynamic bearing (FDB) 120mm fan operates on an intelligent thermal curve, remaining virtually whisper-quiet under low-to-moderate loads and providing rapid heat extraction when gaming.
Recommended Component Synergy
Processors (CPUs)
Continuous clean power delivery for multi-threaded CPUs under maximum boost.
Graphics Cards (GPUs)
Native 12V-2x6 single-cable feeding RTX 40 & 50 series graphics cards.
Motherboards
Dual EPS 8-pin connectors to feed reinforced VRM power stages.
PC Cases
Compact chassis length ensuring generous cable management clearance.
Build Your Dream Custom PC with Certified AHW Engineers
Select 100% compatible components and let our engineers assemble, cable-manage, and stress-test your rig.
Comprehensive Hardware Specifications
| Continuous Output Power | 750 Watts (62.5A Single +12V Rail) |
| Efficiency Certification | 80 PLUS® Gold Certified (Cybenetics Platinum Efficiency) |
| Standard Compliance | Intel ATX 3.1 & PCIe 5.1 (ATX 12V v3.1) |
| PCIe 5.1 12V-2x6 Cable | 1x Native 16-Pin 12V-2x6 Cable (Up to 450W Direct GPU) |
| PCIe 6+2 Pin Connectors | 4x Independent PCIe 6+2 Pin Headers for Graphics Cards |
| CPU EPS Connectors | 2x 8(4+4)-Pin EPS Headers for Gaming Motherboards |
| Motherboard Connector | 1x 24(20+4)-Pin Main ATX Header |
| SATA & Peripheral Ports | 6x SATA Connectors + 2x 4-Pin Molex |
| Capacitors | 100% Japanese 105°C Primary Capacitor |
| Cooling Fan & Bearing | 120mm Fluid Dynamic Bearing (FDB) Fan |
| Circuit Topology | Active PFC + Half-Bridge LLC Resonant + DC-to-DC |
| Industrial Protections | OCP, OVP, UVP, SCP, OPP, OTP, SIP, NLO (Full 8-Level Protection) |
| Dimensions (L x W x H) | 140 mm x 150 mm x 86 mm (Compact 140mm Profile) |
