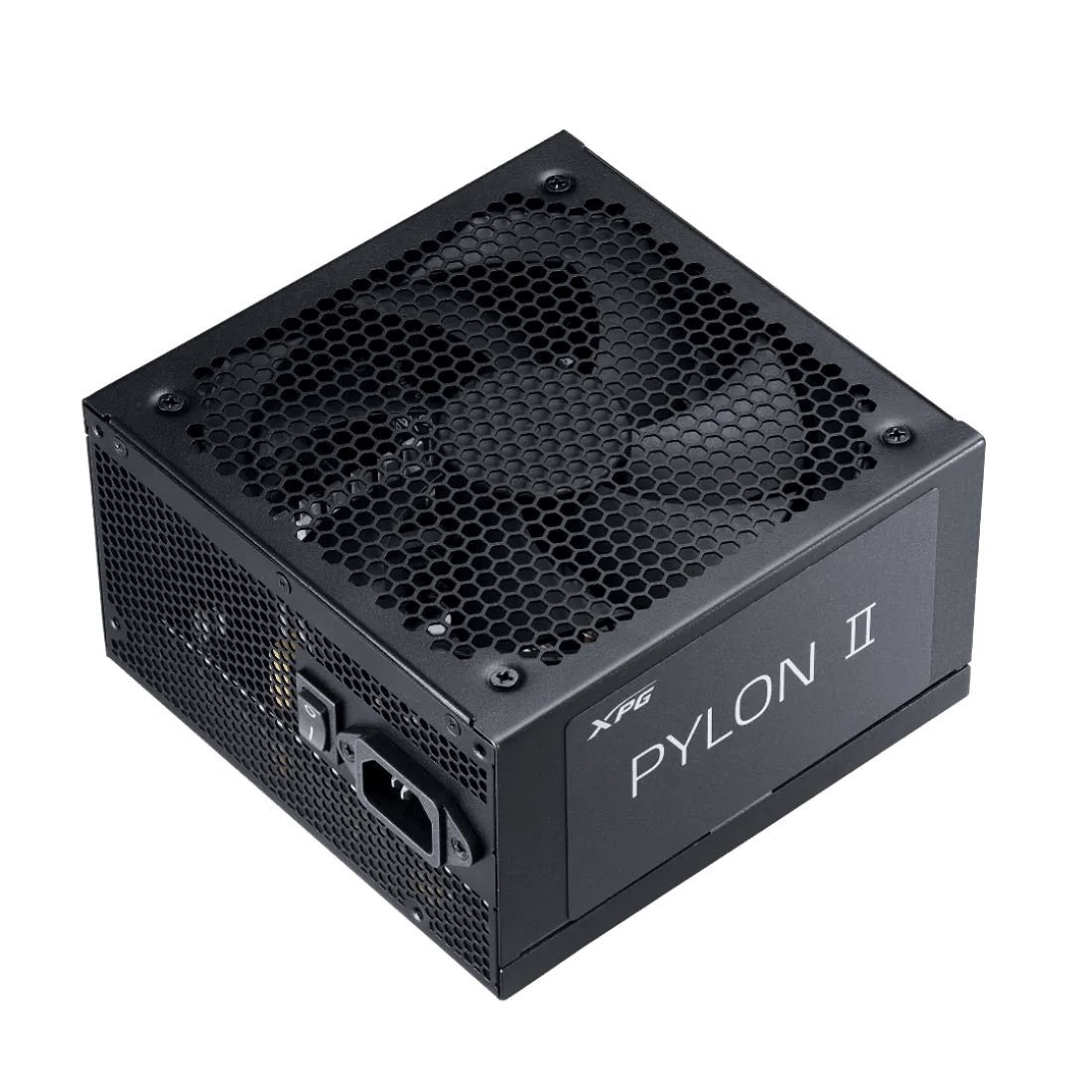

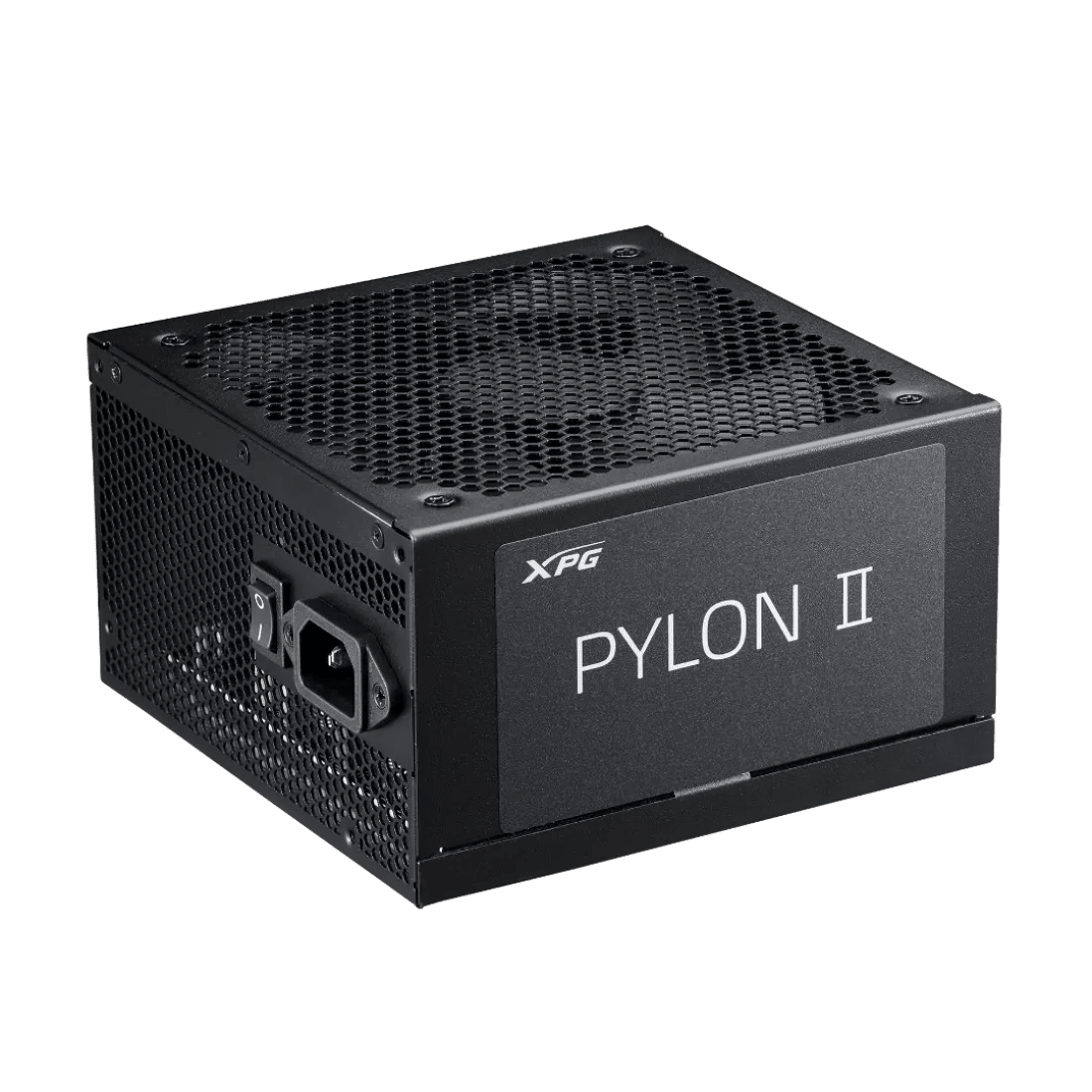

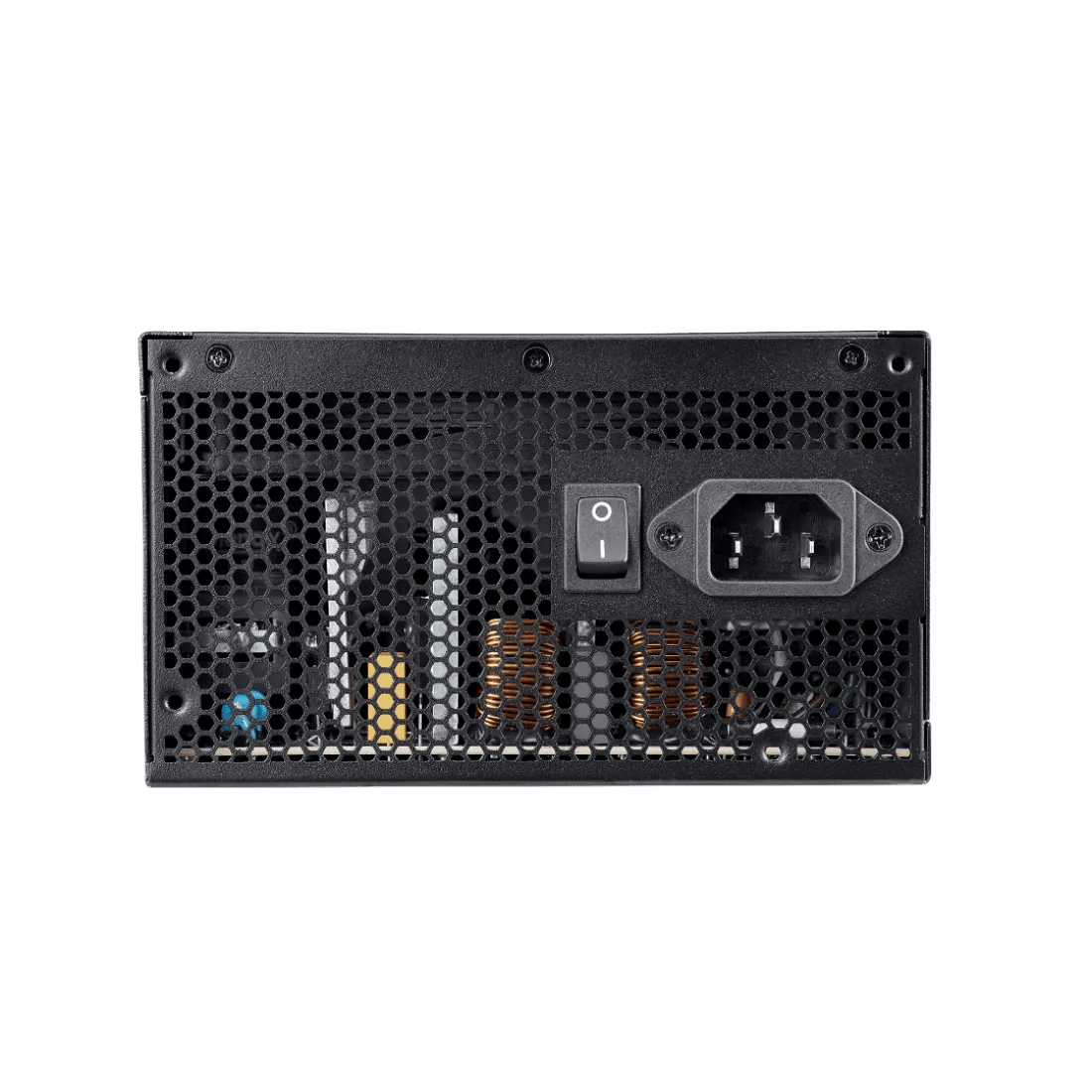

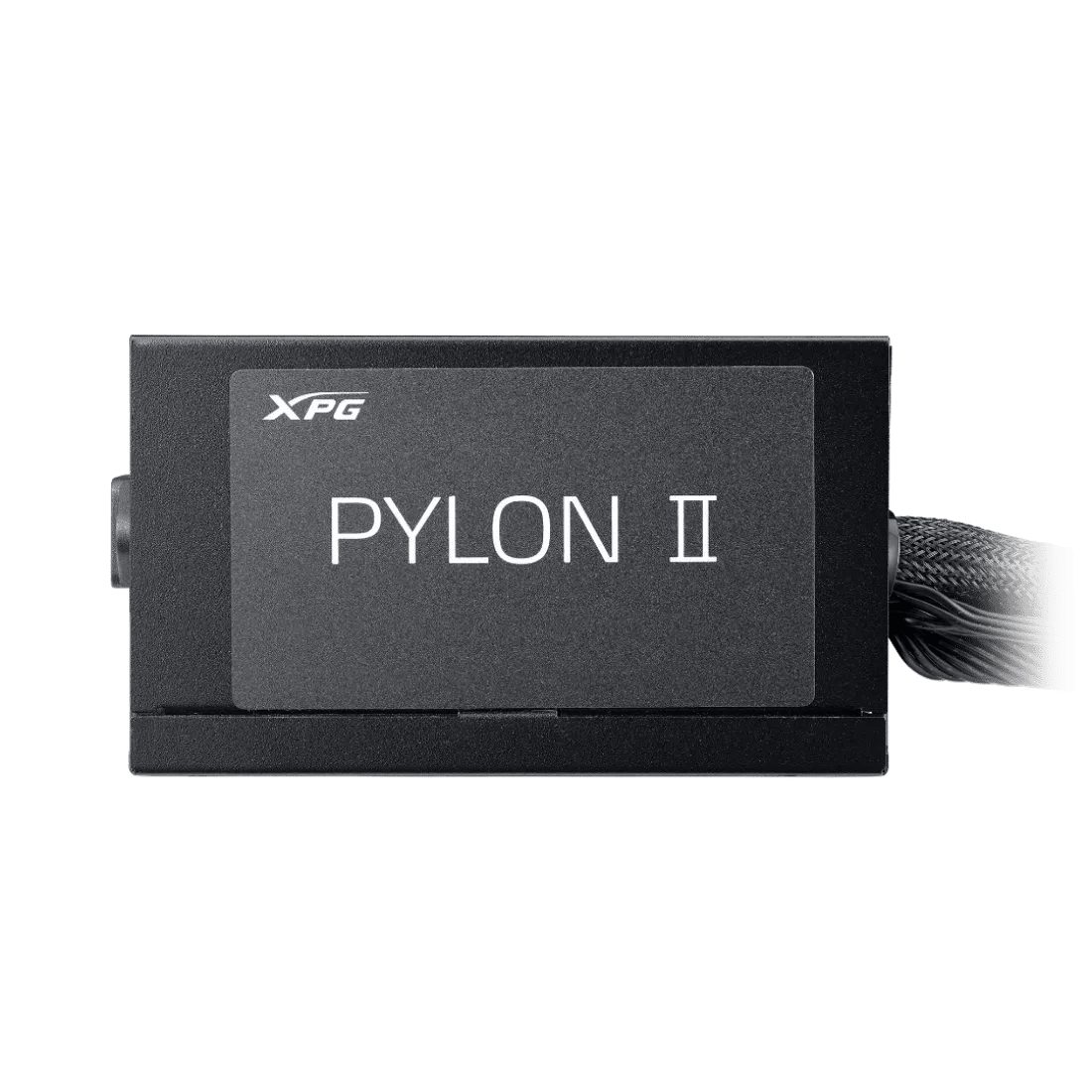

XPG Pylon II 650W 80 Plus Bronze ATX 3.1 Non Modular Power Supply
Hurry up! Only 2 item(s) items left in stock
Installment Calculator
Final terms are confirmed at checkout.
Couldn't load pickup availability
XPG Pylon II 650W 80 Plus Bronze ATX 3.1 Non Modular Power Supply
The XPG Pylon II 650W elevates entry-level gaming power supplies to modern Intel ATX 3.1 compliance. Engineered with a top-tier DC-to-DC converter topology, 100% Japanese 105°C main capacitor, Cybenetics Silver certified efficiency, and an ultra-quiet 120mm fluid dynamic bearing fan, it brings premium electrical stability to mainstream PC gaming.
Esports Rigs & 1080p/1440p Competitive Gaming
Built to reliably power competitive gaming PCs. The solid 54A +12V single rail cleanly feeds modern mid-range gaming GPUs, withstanding instantaneous transient load spikes without voltage collapse.
Daily Productivity & Home Office Computing
Features full industrial protection mechanisms and high electrical efficiency to keep running costs low and component safety guaranteed during extended work-from-home sessions.
Power Architecture & Thermal Highlights
Intel ATX 3.1 Ready with Enhanced Excursion Handling
Compliant with Intel ATX 3.1 specifications, ensuring the power supply safely handles transient power excursions and sudden load swings without triggering accidental system shutdowns.
DC-to-DC Converter Topology & 105°C Japanese Capacitor
Features an active DC-to-DC converter circuit that stabilizes the +3.3V and +5V rails independently, backed by a premium 105°C Japanese main capacitor for maximum ripple filtering.

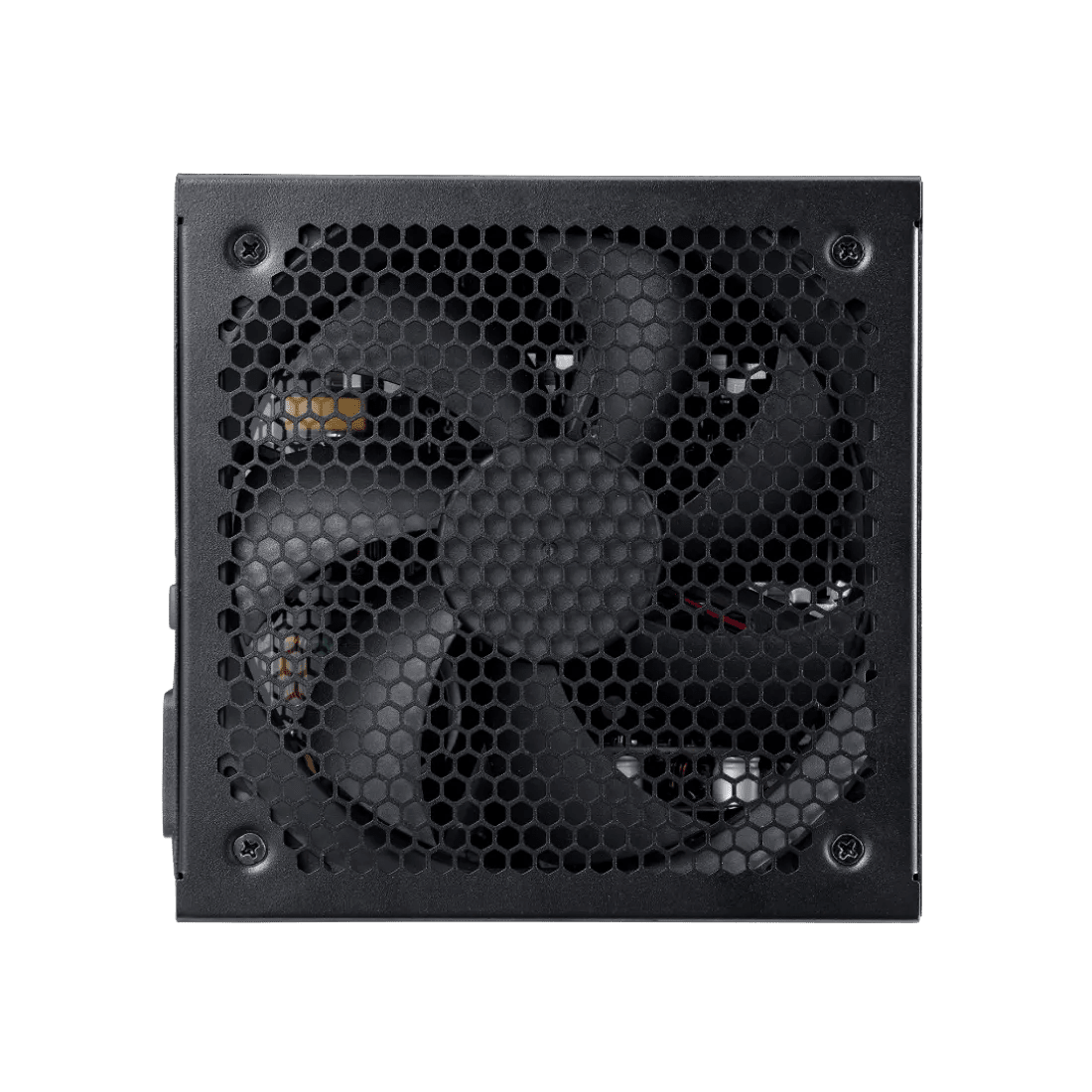

120mm Fluid Dynamic Bearing (FDB) Low-Noise Fan
A precision fluid dynamic bearing 120mm fan delivers whisper-quiet operation at light loads and accelerates smoothly when thermal sensors detect heavy gaming activity.
Flexible Flat Black Ribbon Cables for Clean Airflow
All output cables feature slim, flexible flat ribbon designs that stack compactly against the backplate, leaving the primary chamber unobstructed for clean case airflow.
Recommended Component Synergy
Processors (CPUs)
Continuous clean power delivery for multi-threaded CPUs under maximum boost.
Graphics Cards (GPUs)
Native 12V-2x6 single-cable feeding RTX 40 & 50 series graphics cards.
Motherboards
Dual EPS 8-pin connectors to feed reinforced VRM power stages.
PC Cases
Compact chassis length ensuring generous cable management clearance.
Build Your Dream Custom PC with Certified AHW Engineers
Select 100% compatible components and let our engineers assemble, cable-manage, and stress-test your rig.
Comprehensive Hardware Specifications
| Continuous Output Power | 650 Watts (54A Dedicated +12V Rail) |
| Efficiency Certification | 80 PLUS® Bronze Certified (Cybenetics Silver) |
| Standard & Compliance | Intel ATX 3.1 Ready |
| PCIe 6+2 Pin Connectors | 2x Independent PCIe 6+2 Pin Headers for Graphics Cards |
| CPU EPS Connectors | 2x 8(4+4)-Pin EPS Headers for Gaming Motherboards |
| Motherboard Connector | 1x 24(20+4)-Pin Main ATX Header |
| SATA & Peripheral Ports | 5x SATA Connectors + 2x 4-Pin Molex |
| Main Capacitor | 100% Japanese 105°C Primary Capacitor |
| Cooling Fan & Bearing | 120mm Fluid Dynamic Bearing (FDB) Fan |
| Circuit Architecture | Active PFC + DC-to-DC Conversion |
| Industrial Protections | OCP, OVP, UVP, SCP, OPP, OTP (Full Protection Suite) |
| Dimensions (L x W x H) | 140 mm x 150 mm x 86 mm (Compact ATX) |
