ZOTAC GAMING GeForce RTX 5060 Ti 16GB GDDR7 Twin Edge Graphics Card Black
Couldn't load pickup availability
Secure Payment Methods
Cash on delivery and various payment options and installment plans.
Fast and Secure Shipping
Receive your order within 2 to 5 business days.
Customer Service
Technical support from 10 am to 12 pm.
Warranty Coverage
Enjoy a 6-month to 3-year warranty through us with distributors.

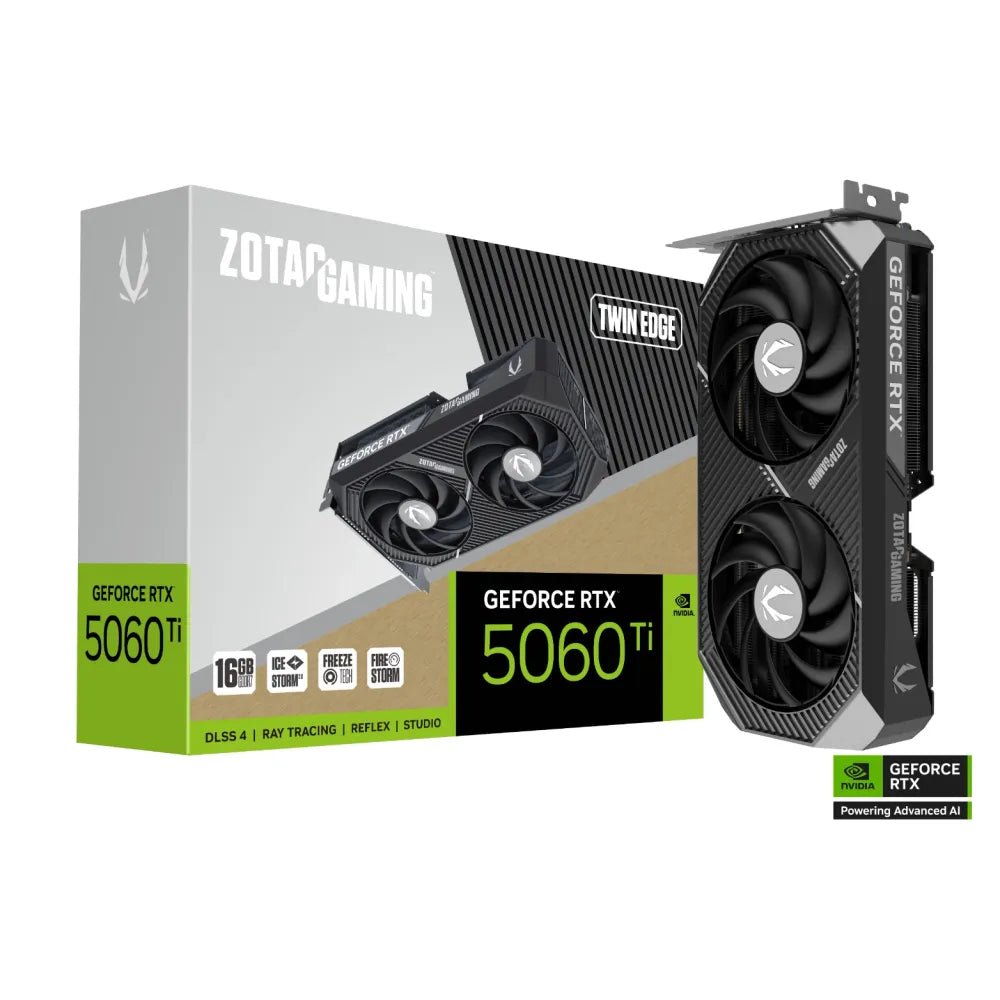

ZOTAC GeForce RTX 5060 Ti 16GB GDDR7 Twin Edge OC Edition
The esports benchmark card delivering ultra-high framerates in 1080p and 1440p competitive gaming. Built on NVIDIA Blackwell GB206 architecture with 4,608 CUDA cores, 16GB of high-speed 28 Gbps GDDR7 memory, and DLSS 4 Frame Generation.
🎮 1080p & 1440p High-FPS Esports Champion
Reach 240+ FPS in CS2, Valorant, Apex Legends, and Warzone with sub-15ms system latency via NVIDIA Reflex and DLSS 4 Multi-Frame Generation.
🎨 Content Creation & Live Streaming Hub
Broadcast in crystal-clear AV1 quality with 8th Gen NVENC encoder and eliminate background noise with NVIDIA Broadcast AI audio.
Aerodynamic High-Static Pressure Cooling Fans
Engineered curved fan blades direct airflow efficiently across cooling fin stacks while maintaining ultra-low acoustic levels.
Pure Copper Heatpipes & Direct Base
Composite copper heatpipes make direct contact with GPU silicon and GDDR7 memory to accelerate thermal dissipation.
Protective Vented Rigid Backplate
Reinforces PCB rigidity and features passthrough airflow vents for optimal chassis intake circulation.
DisplayPort 2.1a & HDMI 2.1a Connectivity
High-bandwidth outputs supporting multi-monitor competitive setups and high-refresh gaming displays.
⚡ Real-World Gaming Benchmark Index
Tested Game: Cyberpunk 2077: Phantom Liberty (1440p QHD • Ultra Ray Tracing Preset • DLSS Quality & Frame Generation ON)
550W / 650W Power Supply
Efficient power delivery with 8-pin or 16-pin connector compatibility.
Gaming Processors
Zero-bottleneck pairing with Ryzen 7 9800X3D or Core i7-14700K.
High-Refresh Monitors
1080p / 1440p 180Hz-280Hz Fast IPS gaming monitors.
Chassis & Airflow Cases
High-airflow cases supporting 242 mm GPU clearance & anti-sag support.
| Hardware Parameter | Technical Specification |
|---|---|
| Graphics Processing Unit (GPU) | NVIDIA GeForce GeForce RTX 5060 Ti 16GB (Blackwell Architecture) |
| CUDA Cores | 4,608 Cores |
| Core Boost Clock | 2580 MHz (Factory Overclocked) |
| Memory Size & Type | 16GB GDDR7 |
| Memory Bus Width & Speed | 128-Bit • 28 Gbps |
| Total Memory Bandwidth | 448 GB/s |
| Bus Interface Standard | PCI Express 5.0 x8 (in x16 slot) |
| Display Connectivity Outputs | 3x DisplayPort 2.1a • 1x HDMI 2.1a |
| Maximum Digital Resolution | 7680 x 4320 @ 120Hz (4 Displays) |
| Card Physical Dimensions | Length: 242 mm • Width: 112 mm • Height: 40 mm (2.0 Slot) |
| Power Connectors | 1x 8-Pin PCIe or 1x 16-Pin 12V-2x6 |
| Recommended System Power Supply | 550W / 650W |
| DirectX & API Support | DirectX 12 Ultimate • OpenGL 4.6 • Vulkan 1.3 |
