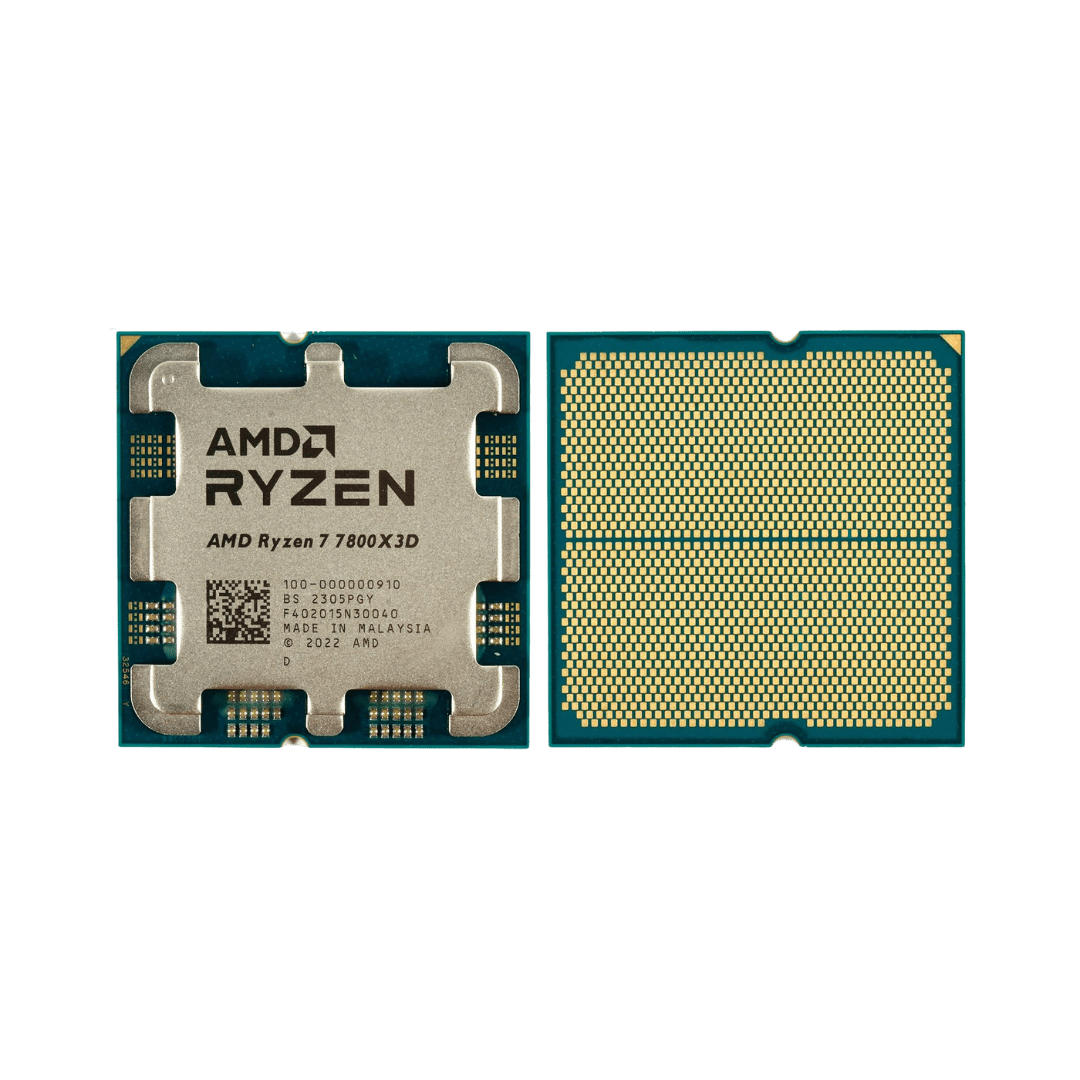

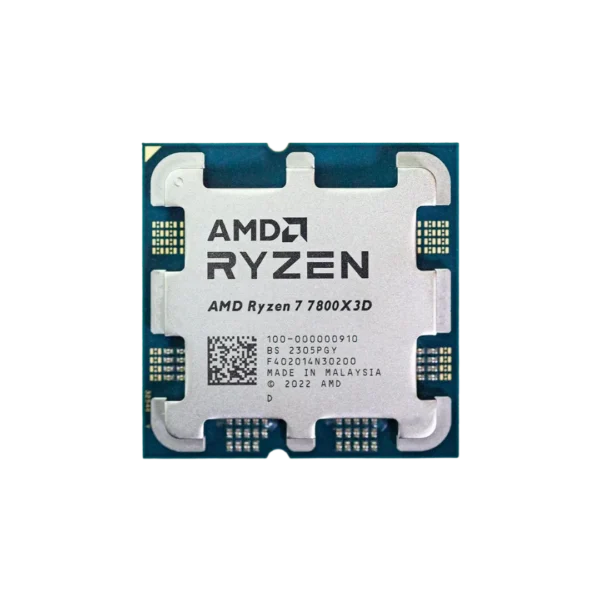

AMD Ryzen 7 7800X3D Processor 8 Cores 16 Threads 5.0 Ghz Max Boost AM5 Socket Radeon Graphics Tray
Couldn't load pickup availability
Secure Payment Methods
Cash on delivery and various payment options and installment plans.
Fast and Secure Shipping
Receive your order within 2 to 5 business days.
Customer Service
Technical support from 10 am to 12 pm.
Warranty Coverage
Enjoy a 6-month to 3-year warranty through us with distributors.
AMD Ryzen™ 7 7800X3D | Zen 4 3D V-Cache™ Legendary Desktop Gaming Processor
Acclaimed worldwide as the definitive gaming champion of its generation, the AMD Ryzen™ 7 7800X3D pairs 8 high-efficiency Zen 4 cores and 16 threads with a massive 96MB of L3 3D V-Cache™. Reaching up to 5.0 GHz Max Boost frequency on Socket AM5, it delivers unmatched frame rate consistency and ultra-low gaming latency at exceptional power efficiency.
Industry-Leading 1% Lows & Esports Smoothness
The massive 96MB L3 cache minimizes CPU cache misses in Counter-Strike 2, Warzone, and Cyberpunk 2077, delivering rock-solid frame pacing even during heavy multiplayer battles.
Efficient 8-Core Performance & AVX-512 Support
Handles video encoding, OBS streaming, and multi-threaded rendering efficiently while consuming far less power than competing high-end processors.
Silicon Architecture & Visual Engineering
Verified packaging, cache hierarchy, and microarchitecture breakdown
AMD 3D V-Cache™ Direct Die Stacking
Stacks 64MB of SRAM cache directly over the 8-core Zen 4 compute die, providing a colossal 96MB of ultra-low latency L3 cache to feed modern gaming engines.
Socket AM5 Contact Grid & Platform Longevity
Designed on the 1718-pin LGA Socket AM5 platform, delivering high-density power delivery, native PCIe 5.0 lanes, and long-term upgradeability across B650 and X670 motherboards.
Extreme Energy Efficiency in Real-World Gaming
Draws an average of only 50W–75W during actual gaming sessions, keeping your PC cool, quiet, and power-efficient.
Integrated AMD Radeon™ Display Graphics
Includes on-die AMD Radeon™ Graphics (2 CUs @ 2200 MHz) with HDMI 2.1 and DisplayPort 2.1 for seamless display troubleshooting.
Relative 1080p Esports & AAA Gaming Performance
Normalized gaming frame rate index across esports and AAA titles (Paired with RTX 4090)
Hardware Synergy & System Pairing Guide
Recommended motherboard, cooling, RAM sweet spot, and power requirements
Technical Specifications Matrix
Verified hardware specifications directly from manufacturer datasheets
| Processor Model | AMD Ryzen™ 7 7800X3D |
|---|---|
| CPU Architecture | Zen 4 (Raphael) with 3D V-Cache™ |
| Socket Compatibility | Socket AM5 (LGA 1718) |
| Core / Thread Count | 8 CPU Cores / 16 Threads |
| Base Clock Frequency | 4.2 GHz |
| Max Boost Clock Frequency | Up to 5.0 GHz |
| L1 Cache | 512 KB |
| L2 Cache | 8 MB (1MB per core) |
| L3 Cache | 96 MB (32MB On-Die + 64MB 3D V-Cache) |
| Total Cache (L2 + L3) | 104 MB |
| Manufacturing Process Node | TSMC 5nm FinFET (CCD) + 6nm (IOD) |
| Thermal Design Power (TDP) | 120W (PPT 162W Max) |
| Max Operating Temperature (TjMax) | 89°C |
| Memory Support | Dual-Channel DDR5 up to 5200 MT/s Native, 6000+ MT/s AMD EXPO |
| PCI Express Revision | PCIe 5.0 (28 Total Lanes / 24 Usable) |
| Integrated Graphics | AMD Radeon™ Graphics (2 CUs @ 2200 MHz) with HDMI 2.1 & DP 2.1 |
| Thermal Solution | Not Included (Tower Air Cooler or 240mm AIO Recommended) |
Hardware Q&A & AHW Store Policies
Technical configurations, cooler recommendations, warranty, installments, and shipping
