AMD Ryzen 5 7600 Processor 6 Cores 12 Threads 5.1 Ghz Max Boost AM5 Socket Radeon Graphics Tray
Hurry up! Only 1 item(s) items left in stock
Installment Calculator
Final terms are confirmed at checkout.
Couldn't load pickup availability
AMD Ryzen™ 5 7600 Tray | 6-Core Zen 4 up to 5.1 GHz for Socket AM5
The Ryzen 5 7600 brings AMD's Zen 4 architecture to Socket AM5 with 6 cores and 12 threads, a 3.8 GHz base and up to 5.1 GHz boost, 6 MB of L2 and 32 MB of L3 cache at a 65 W default TDP. It connects to DDR5 memory and PCIe 5.0, and carries AMD Radeon Graphics so a PC can run before a graphics card is installed. This is the tray version (100-000001015): the processor only, without AMD's boxed cooler.
5.1 GHz Boost on a Modern Platform
Six fast Zen 4 cores and 32 MB of L3 pair well with a mid-range graphics card, and AM5 keeps an upgrade path open to later Ryzen processors on the same socket.
12 Threads at 65 W
Twelve threads handle multitasking, photo editing and everyday video work, and the 65 W TDP keeps cooling and power-supply needs modest.
Silicon Architecture & Visual Engineering
Verified packaging, cache hierarchy, and microarchitecture breakdown

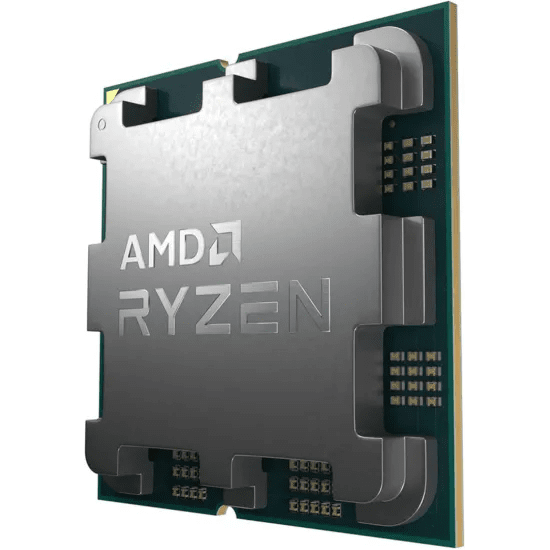

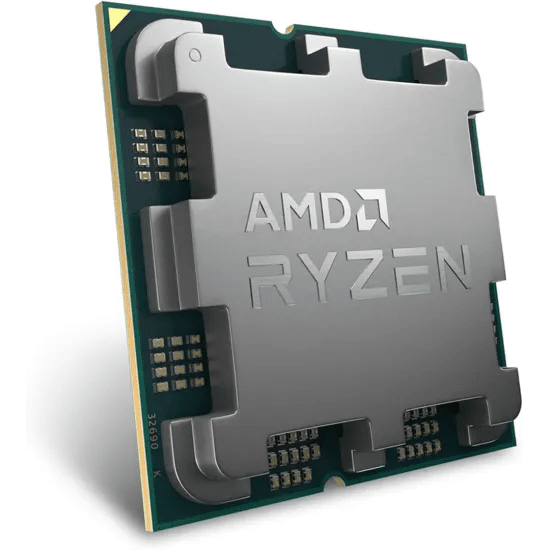

Zen 4 Under the AM5 Heat Spreader
AMD builds the 7600 from two dies — a 71 mm² 5nm CPU compute die and a 122 mm² 6nm I/O die — beneath the integrated heat spreader shown here.

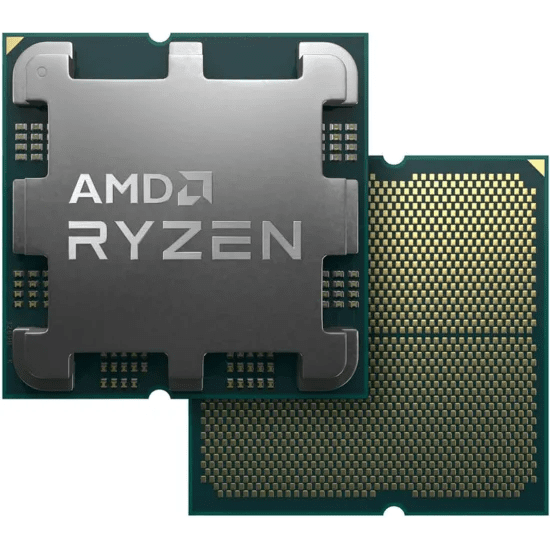

Land Grid Array for Socket AM5
The underside is a flat pad array: on AM5 the pins live in the motherboard socket, so the CPU itself has no pins to bend. It fits A620 through X870E boards.
Official Max Boost Clock Comparison
Manufacturer-rated maximum boost frequency of processors available at AHW Store
Hardware Synergy & System Pairing Guide
Recommended motherboard, cooling, RAM sweet spot, and power requirements
Technical Specifications Matrix
Verified hardware specifications directly from manufacturer datasheets
| Processor | AMD Ryzen™ 5 7600 (tray, 100-000001015) |
|---|---|
| Architecture / Codename | Zen 4 / Raphael |
| Cores / Threads | 6 / 12 |
| Base / Max Boost Clock | 3.8 GHz / up to 5.1 GHz |
| L1 / L2 / L3 Cache | 384 KB / 6 MB / 32 MB |
| Default TDP | 65 W |
| Process | TSMC 5nm FinFET (CPU die) + 6nm FinFET (I/O die) |
| Socket | AM5 |
| Supported Chipsets | A620, B650, B650E, X670, X670E, B840, B850, X870, X870E |
| PCI Express | PCIe 5.0 · 28 total / 24 usable lanes |
| Memory | DDR5 dual-channel, up to 128 GB; DDR5-5200 (2 modules); ECC with board support |
| Native USB | 4 × USB 3.2 Gen 2 (10 Gbps) + 1 × USB 2.0 |
| Integrated Graphics | AMD Radeon™ Graphics, 2 cores @ 2200 MHz |
| Overclocking | Unlocked · Precision Boost Overdrive · Curve Optimizer · AMD EXPO |
| Max Operating Temp (Tjmax) | 95 °C |
| Cooler | Not included (tray) |
