AMD Ryzen™ 7 7800X3D Tray | 8 Zen 4 Cores with 96 MB L3 for AM5 Gaming
The Ryzen 7 7800X3D pairs 8 Zen 4 cores and 16 threads — 4.2 GHz base, up to 5.0 GHz boost — with 96 MB of L3 cache from AMD 3D V-Cache technology, at a 120 W default TDP on Socket AM5. It supports DDR5 memory, PCIe 5.0, Precision Boost Overdrive and Curve Optimizer, and includes Radeon graphics. This is the tray package (100-000000910): no cooler, and AMD recommends liquid cooling.
96 MB of L3 for Cache-Hungry Games
3D V-Cache keeps more of a game's working data beside the eight cores, the reason this chip is a favourite for high-frame-rate 1080p and 1440p play.
16 Threads Alongside the Game
Sixteen threads leave headroom to stream, record or keep a browser and chat open while gaming, and handle photo and video work between sessions.
Silicon Architecture & Visual Engineering
Verified packaging, cache hierarchy, and microarchitecture breakdown

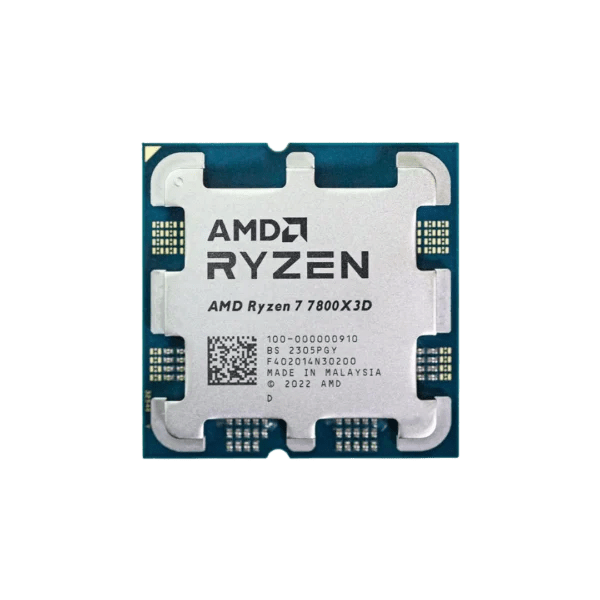

Tray Part Number on the Heat Spreader
The laser marking reads AMD Ryzen 7 7800X3D and 100-000000910 — AMD's tray product ID for this processor.

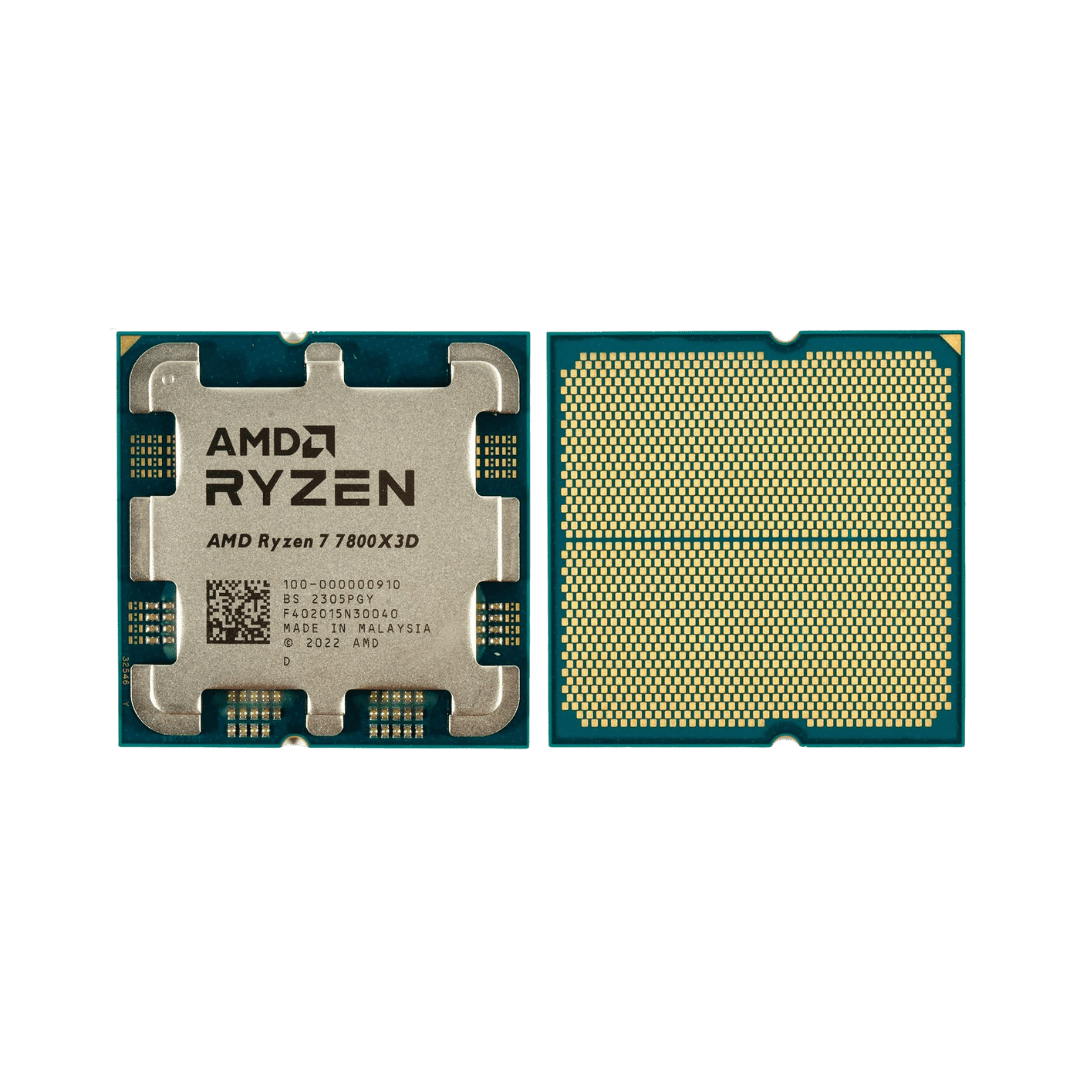

AM5 Land Grid Array
Top and underside side by side: on AM5 the contacts are flat pads and the pins sit in the motherboard socket, so the processor has no pins to bend.
L3 Cache Across AMD AM5 Processors
Official L3 cache of AMD processors available at AHW Store
Hardware Synergy & System Pairing Guide
Recommended motherboard, cooling, RAM sweet spot, and power requirements
Technical Specifications Matrix
Verified hardware specifications directly from manufacturer datasheets
| Processor | AMD Ryzen™ 7 7800X3D — tray · 100-000000910 |
|---|---|
| Architecture / Codename | Zen 4 / Raphael |
| Cores / Threads | 8 / 16 |
| Base / Max Boost Clock | 4.2 GHz / up to 5.0 GHz |
| L1 / L2 / L3 Cache | 512 KB / 8 MB / 96 MB |
| Default TDP | 120 W |
| Process | TSMC 5nm FinFET (CPU dies) + 6nm FinFET (I/O die) · 2 dies |
| Socket | AM5 |
| Supported Chipsets | A620, B650, B650E, X670, X670E, B840, B850, X870, X870E |
| PCI Express | PCIe 5.0 · 28 total / 24 usable lanes |
| Memory | DDR5 dual-channel, up to 128 GB; DDR5-5200 (2 modules); ECC with board support |
| Native USB | 4 × USB 3.2 Gen 2 (10 Gbps) + 1 × USB 2.0 |
| Integrated Graphics | AMD Radeon™ Graphics, 2 cores @ 2200 MHz |
| Overclocking | Precision Boost Overdrive · Curve Optimizer · AMD EXPO memory overclocking |
| Max Operating Temp (Tjmax) | 89 °C |
| Cooler | Not included — AMD recommends a liquid cooler |
