Gigabyte GeForce RTX 5070 GAMING OC 12G: Factory-Overclocked Blackwell for 1440p Gaming

Gigabyte's RTX 5070 GAMING OC (GV-N5070GAMING-OC-12GD) runs NVIDIA's RTX 5070, with 6,144 CUDA cores and 988 AI TOPS, at a 2625 MHz core clock against the reference card's 2512 MHz. Its 12 GB of GDDR7 runs at 28 Gbps on a 192-bit bus. The three-fan card measures 327 × 132 × 56 mm, takes one 16-pin (12V-2x6) connector with an adapter in the box, and Gigabyte recommends a 750 W power supply.

12GB GDDR7 · 192-bit6,144 CUDA Cores2625 MHz CorePCIe 5.016-pin · 750W PSU327 mm · Triple Fan

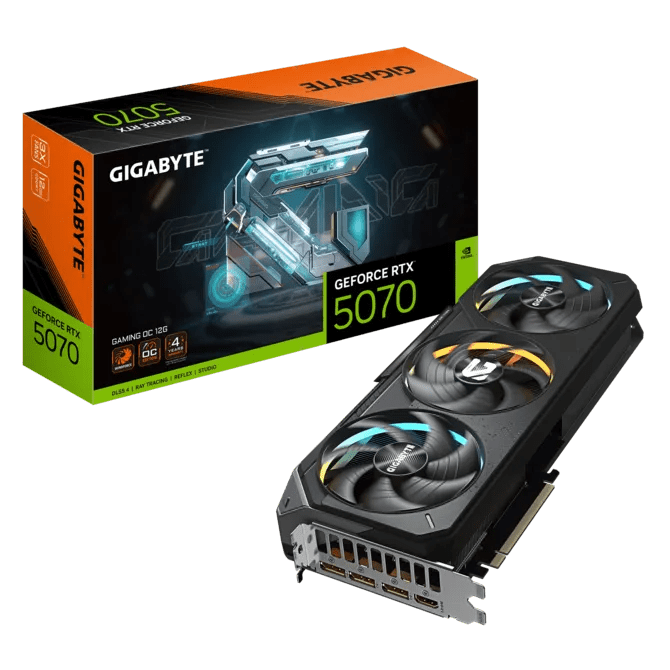

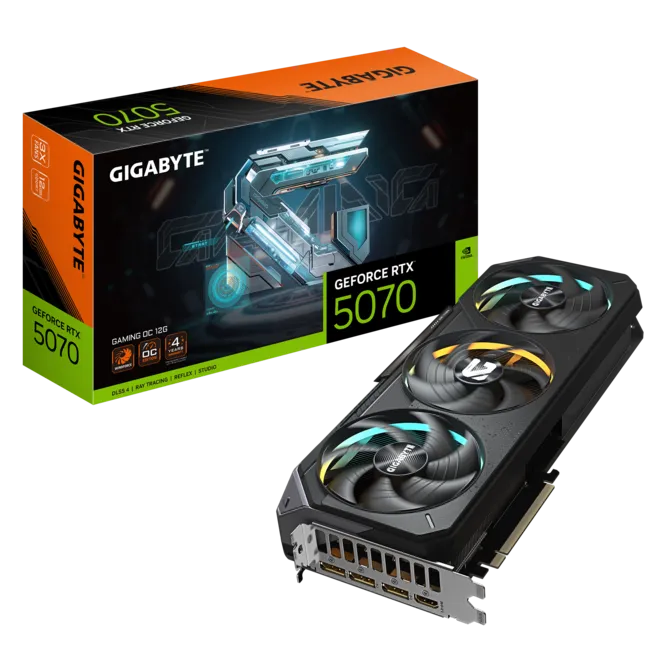

Gigabyte GeForce RTX 5070 GAMING OC 12G graphics card with its retail box

🎮 1440p Gaming with DLSS 4

Fifth-gen Tensor cores run DLSS 4 with Multi Frame Generation in supported games, fourth-gen RT cores handle ray tracing, and NVIDIA Reflex cuts latency in competitive titles.

🧰 Creators, Streamers & AI

The ninth-gen NVIDIA Encoder speeds up exports and streams, NVIDIA Studio drivers keep creative apps stable, and 988 AI TOPS accelerate local AI tools and NVIDIA Broadcast effects.

Cooling & Build

Four views of the card, each described from Gigabyte's own photos.

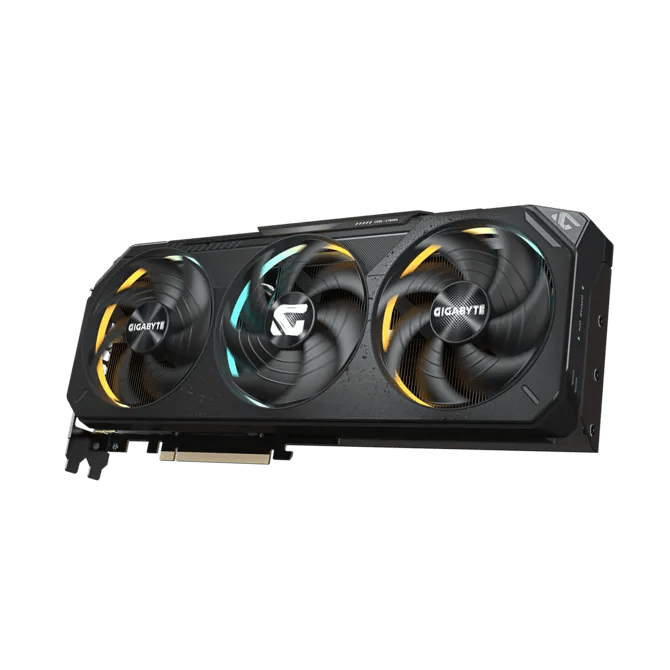

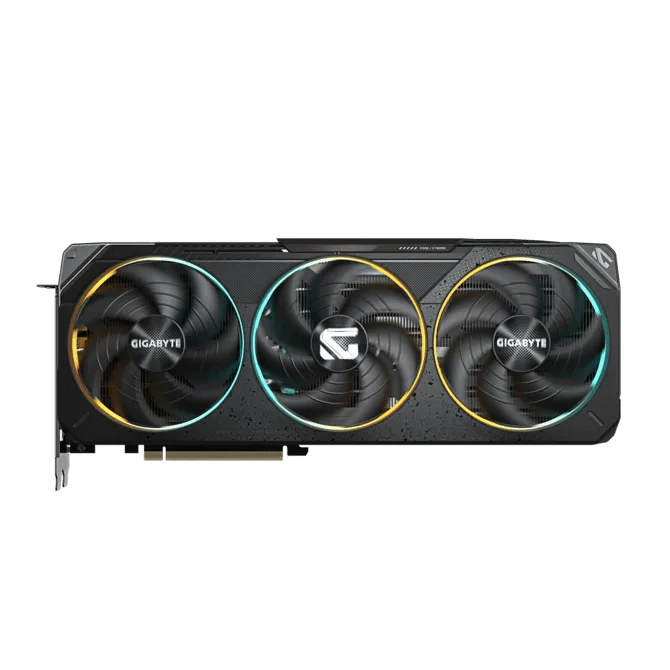

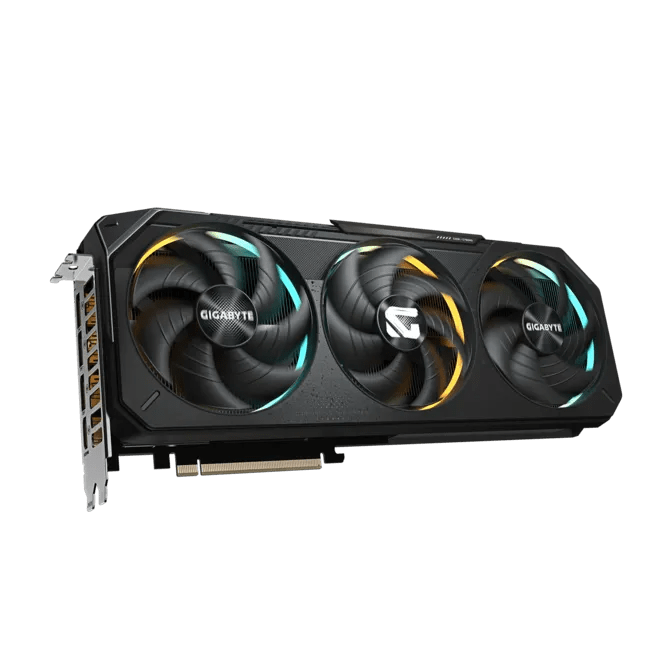

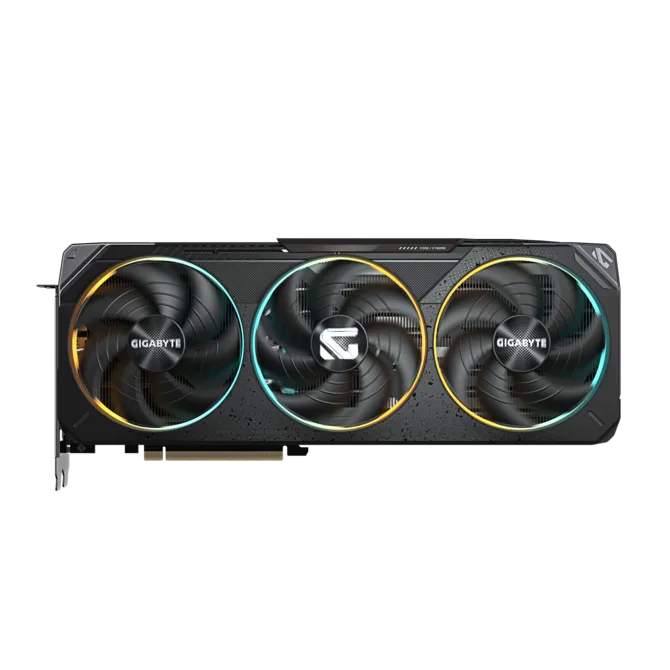

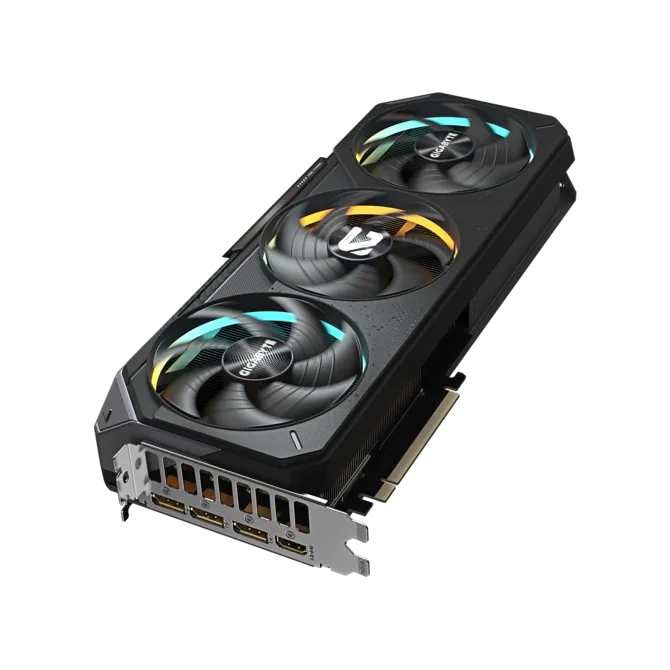

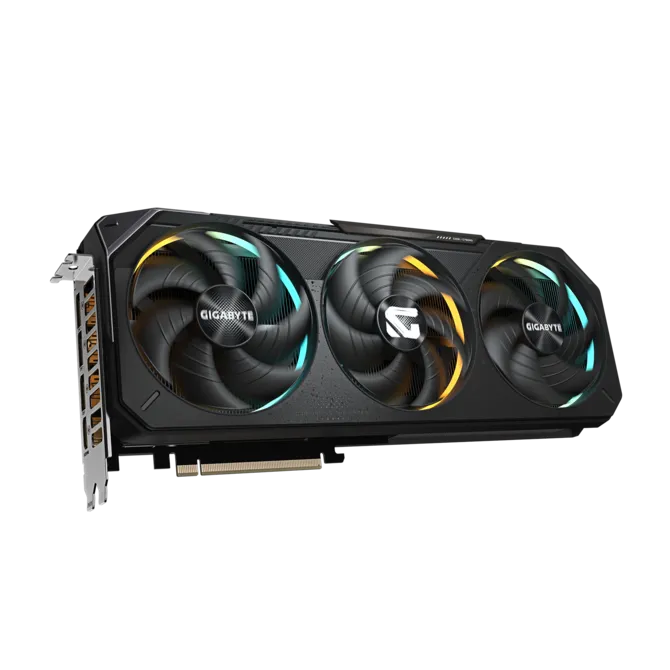

Gigabyte RTX 5070 GAMING OC front view with three fans
TRIPLE FAN

Three Fans, 327 mm Long

Three fans cover the full length of the heatsink. At 327 mm long, 132 mm tall and 56 mm thick it needs a mid or full tower; check your case's GPU length limit.

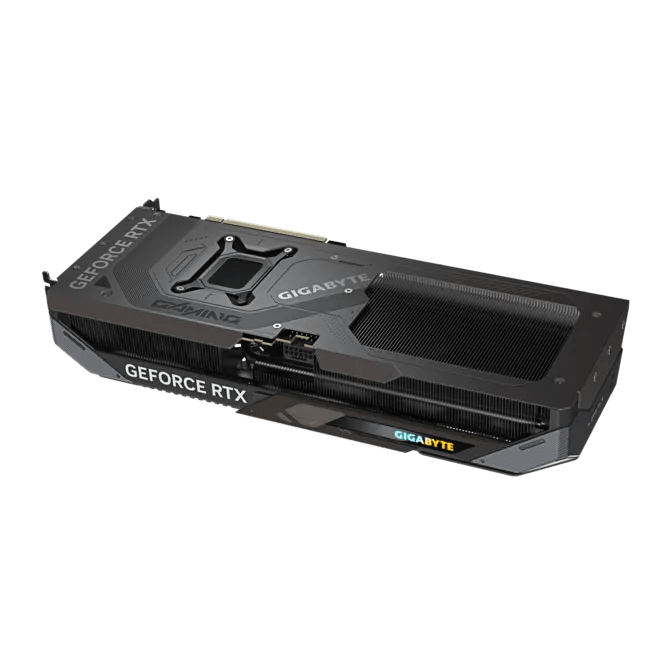

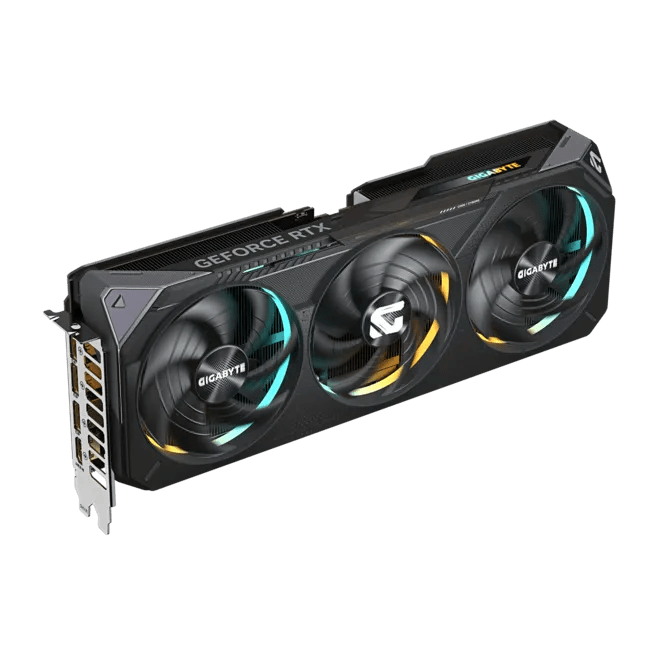

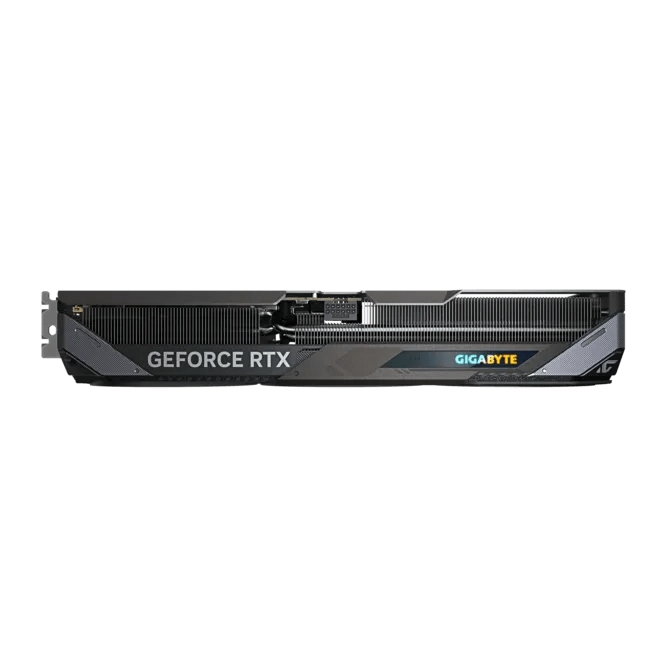

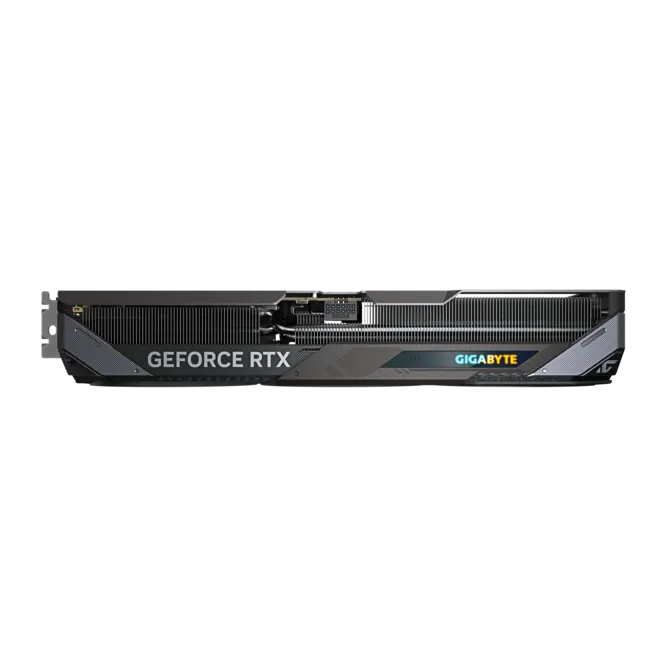

Gigabyte RTX 5070 GAMING OC top edge with GEFORCE RTX lettering
16-PIN

12V-2x6 Power and Lit Edge

The top edge carries the GIGABYTE and GEFORCE RTX lettering and the single 16-pin (12V-2x6) socket; a 12V-2x6 to 2× PCIe 8-pin adapter is in the box.

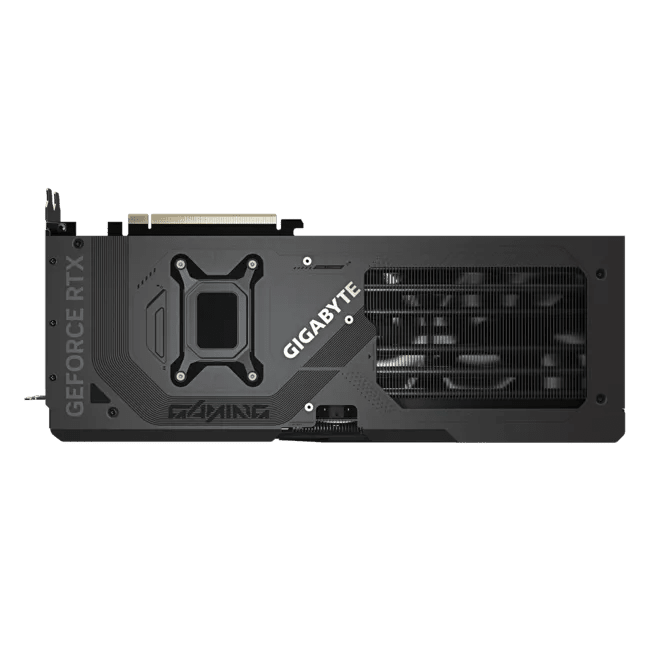

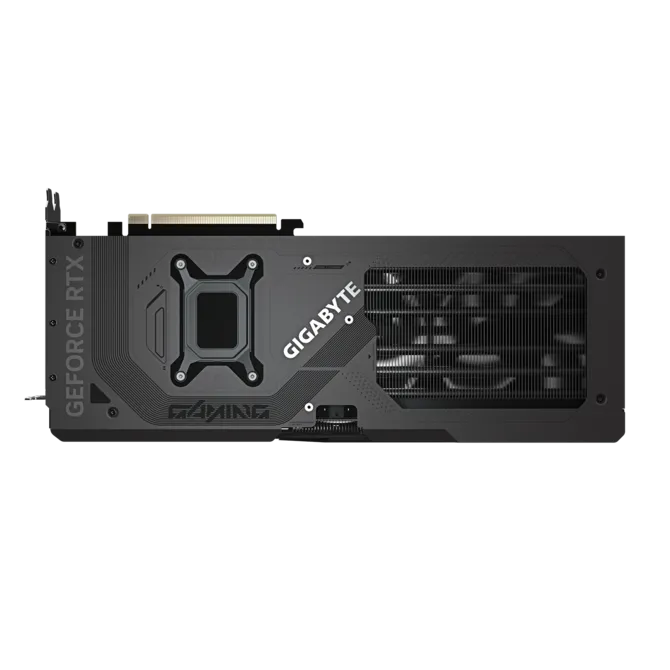

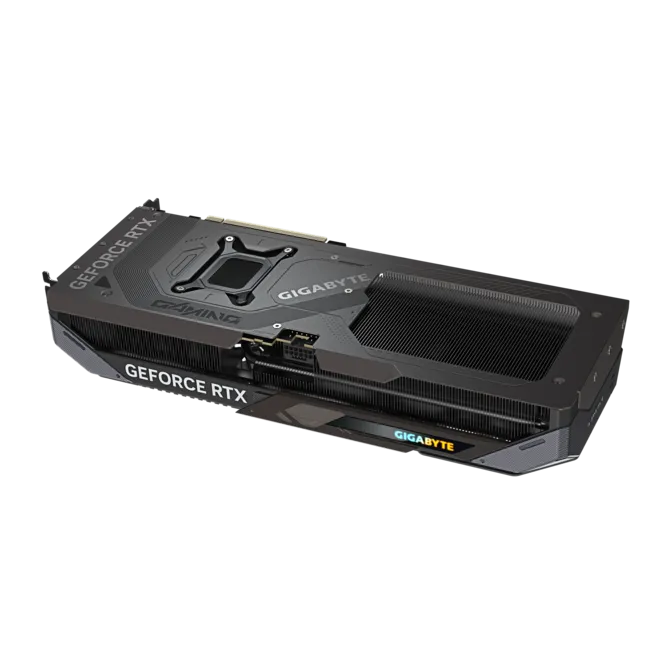

Gigabyte RTX 5070 GAMING OC backplate
BACKPLATE

Backplate with Open End

The backplate carries the GAMING mark, and its open end behind the third fan lets air pass straight through the heatsink.

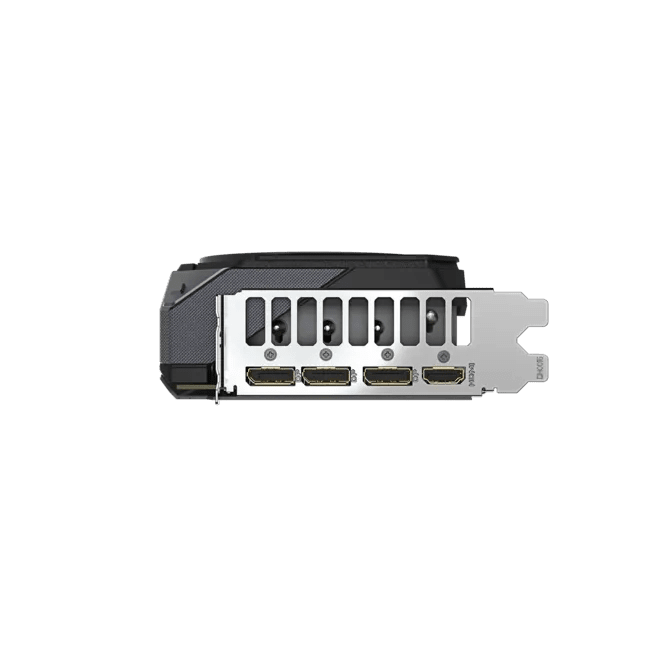

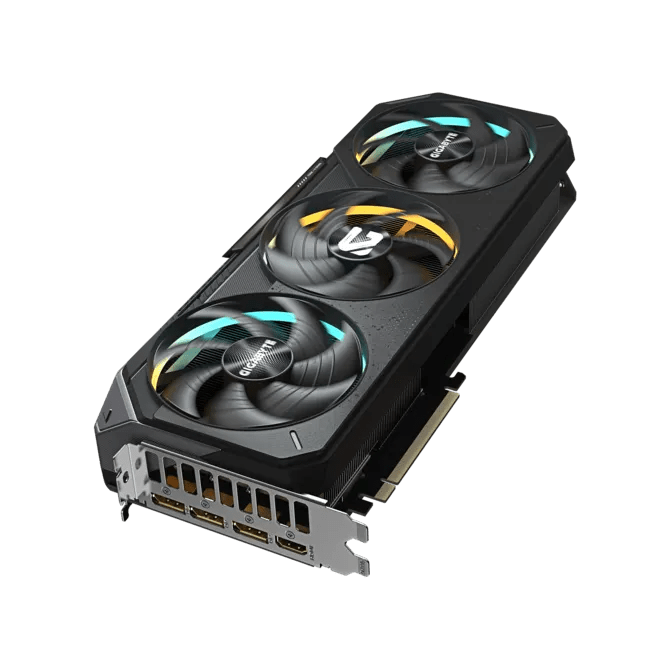

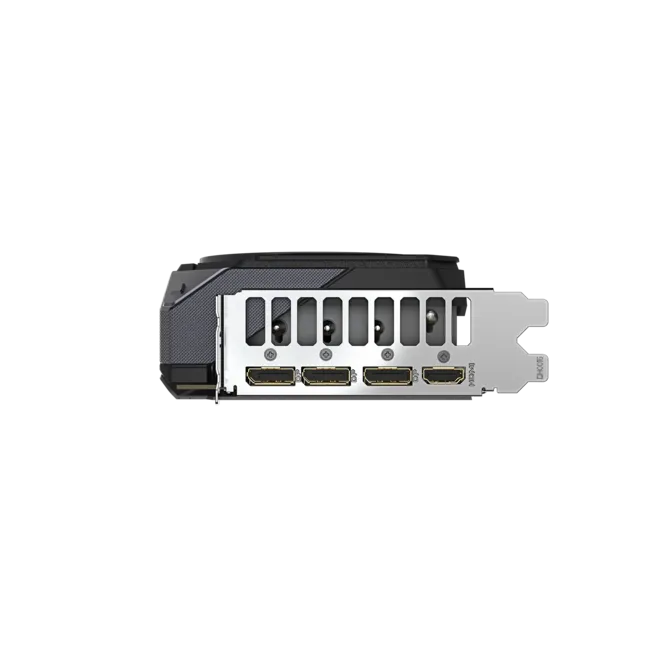

Gigabyte RTX 5070 GAMING OC I/O bracket with three DisplayPort and one HDMI
DP 2.1b · HDMI 2.1b

Four Display Outputs

Three DisplayPort 2.1b and one HDMI 2.1b output drive up to four displays, up to 7680 × 4320.

📊 AI Performance Index (AI TOPS)

AI TOPS measure the Tensor-core throughput behind DLSS and local AI features. Figures from NVIDIA's official specification pages.

Bar length = AI TOPS
Gigabyte GeForce RTX 5070 GAMING OC 12G GDDR7 Graphics Card Black988 AI TOPS
6,144 CUDA cores · 12 GB GDDR7 · 192-bit
10,752 CUDA cores · 16 GB GDDR7
8,960 CUDA cores · 16 GB GDDR7
3,840 CUDA cores · 8 GB GDDR7
Source: nvidia.com GeForce RTX 5080 (1801), RTX 5070 Ti (1406), RTX 5070 (988) and RTX 5060 (614) specificationsThis index compares NVIDIA's AI TOPS ratings, not frame rate. No verified gaming benchmark for this exact card is published here.

Complete Build Pairing

Build around the RTX 5070 GAMING OC with parts available now at AHW Store:

⚡

Power Supplies

Gigabyte recommends a 750 W power supply; a PSU with a native 12V-2x6 cable avoids the adapter.

View PSUs ↗
🧠

Processors

A current eight-core CPU keeps the RTX 5070 fed at high frame rates.

View CPUs ↗
🖥️

Monitors

A 1440p high-refresh monitor makes the most of DLSS 4 Multi Frame Generation.

View Monitors ↗
🏗️

PC Cases

Check that your case takes a 327 mm card before you order.

View PC Cases ↗

🛠️ Building a Complete PC?

Use AHW Store's PC Builder to check compatibility, and get professional assembly and stress-testing before delivery.

Launch PC Builder ➔

Verified Technical Datasheet

From Gigabyte's specification page for the GV-N5070GAMING-OC-12GD and NVIDIA's RTX 5070 specifications.

Model GV-N5070GAMING-OC-12GD
Graphics Engine NVIDIA GeForce RTX 5070 (Blackwell)
AI Performance 988 AI TOPS
CUDA Cores 6,144
Core Clock 2625 MHz (reference card 2512 MHz)
Memory 12 GB GDDR7
Memory Speed / Bus 28 Gbps / 192-bit
Card Bus PCI Express 5.0
Outputs 3 × DisplayPort 2.1b · 1 × HDMI 2.1b
Maximum Displays / Resolution 4 / 7680 × 4320
Power Input 1 × 16-pin (12V-2x6)
Recommended PSU 750 W
Card Size 327 × 132 × 56 mm
PCB Form ATX
API Support DirectX 12 · OpenGL 4.6
In the Box Quick guide · 12V-2x6 to 2× PCIe 8-pin adapter · Versatile VGA holder

Frequently Asked Questions & Store Policies

Hardware guidance for this card and AHW Store purchase policies.

HardwareWhat power supply do I need?▾
Gigabyte recommends a 750 W power supply. The card takes one 16-pin (12V-2x6) cable; the 12V-2x6 to 2× PCIe 8-pin adapter in the box covers PSUs without one.
HardwareWill it fit my case?▾
At 327 mm long, 132 mm tall and 56 mm thick it needs a mid or full tower; check your case's GPU length limit.
HardwareHow does it compare with a reference card?▾
Gigabyte sets its core clock to 2625 MHz; NVIDIA's reference RTX 5070 runs 2512 MHz. CUDA cores and memory are the same.
HardwareDoes it work in a PCIe 4.0 motherboard?▾
Yes. It is a PCIe 5.0 card and runs in PCIe 4.0 and 3.0 x16 slots at that slot's speed.
HardwareHow many monitors can it drive?▾
Up to four, through three DisplayPort 2.1b outputs and one HDMI 2.1b.
