⚡ GIGABYTE NVIDIA BLACKWELL • 16GB GDDR7

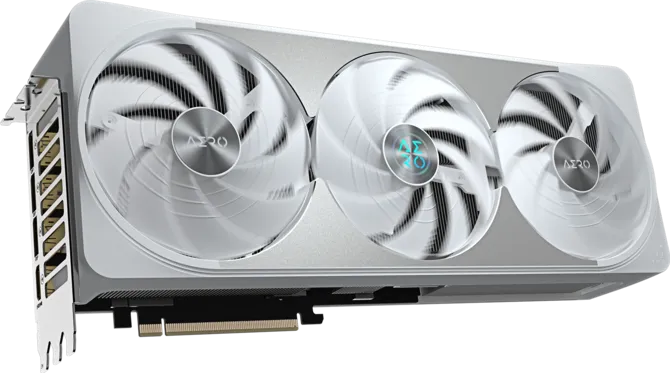

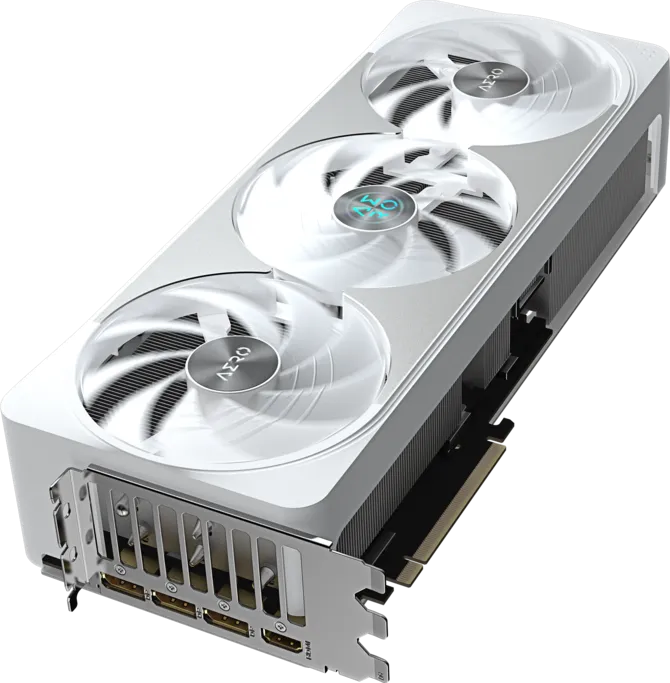

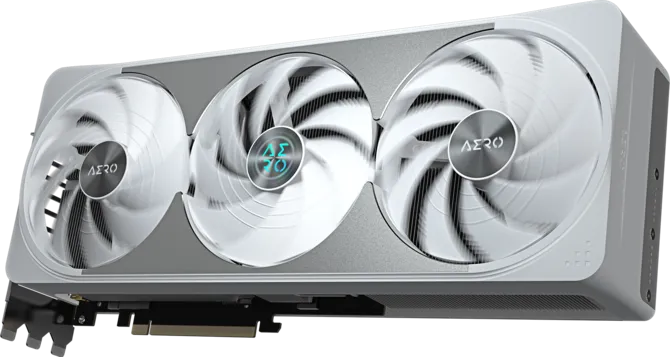

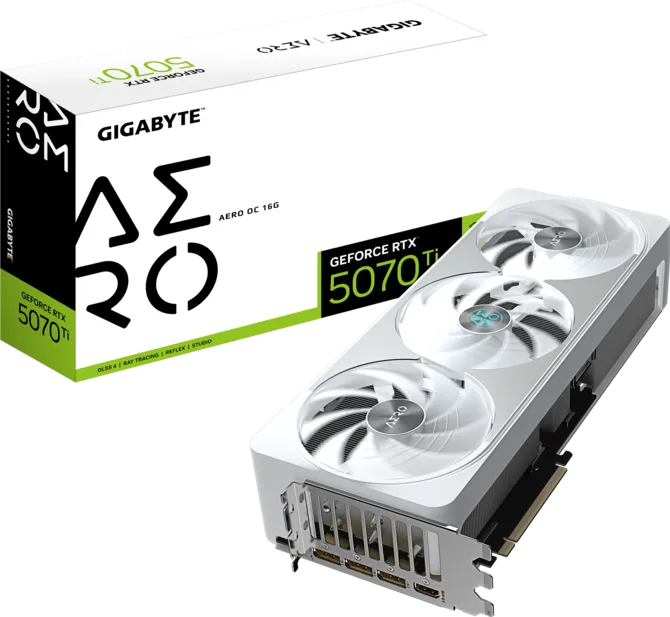

GIGABYTE GeForce RTX 5070 Ti 16G AERO OC White

Engineered for extreme 1440p and 4K high-refresh competitive gameplay and studio workloads. Combines next-gen NVIDIA Blackwell GB203 architecture, 8,960 CUDA cores, and 16GB of blazing-fast 28 Gbps GDDR7 memory.

16GB GDDR7 • 256-Bit • 28 Gbps
8,960 CUDA Cores
Boost Clock: 2512 MHz (OC Mode)
DisplayPort 2.1a & HDMI 2.1a
PCI Express 5.0 Support
Recommended PSU: 750W / 850W

🎮 1440p & 4K Competitive Esports

Crush intensive ray-traced AAA blockbusters with DLSS 4 Multi-Frame Generation, AI neural rendering, and NVIDIA Reflex sub-15ms system response times for esports supremacy.

🎨 3D Rendering & Generative AI Studio

Accelerate Blender Cycles, Unreal Engine 5 viewports, and local LLM tensor inference with 16GB high-bandwidth GDDR7 VRAM and dual 8th Gen NVENC AV1 video encoders.

🛡️ Advanced Thermal & Mechanical Architecture
Fact-checked hardware craftsmanship inspected directly from official GIGABYTE engineering schematics.
Quadrant 1 • Aerodynamics

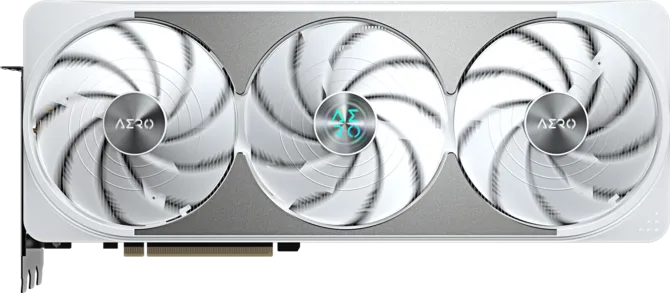

Triple Hawk Aerodynamic Fan System

Triple Hawk Aerodynamic Fan System

Features alternate spinning central fans to eliminate turbulent airflow, precision 3D stripe curved fan blades, and graphene nano-lubricant bearings extending lifespan by 2.1x.

Quadrant 2 • Heat Dissipation

Large Copper Baseplate & Composite Heatpipes

Large Copper Baseplate & Composite Heatpipes

Direct-contact nickel-plated copper plate combines with composite pure copper heatpipes and high-density aluminum heatsink fin arrays to rapidly transfer thermal energy.

Quadrant 3 • Structural Armor

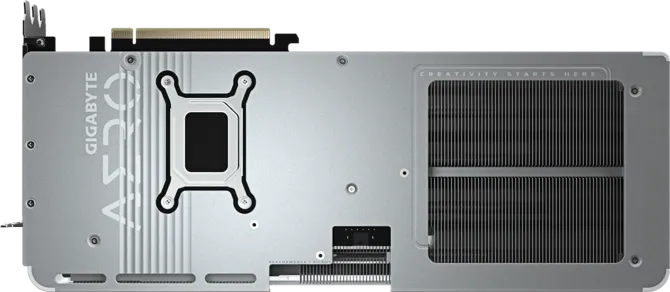

Screen Cooling & Vented Metal Backplate

Screen Cooling & Vented Metal Backplate

Reinforced brushed metal backplate provides total PCB structural rigidity against sagging while featuring an extended flow-through screen cooling window.

Quadrant 4 • Next-Gen I/O

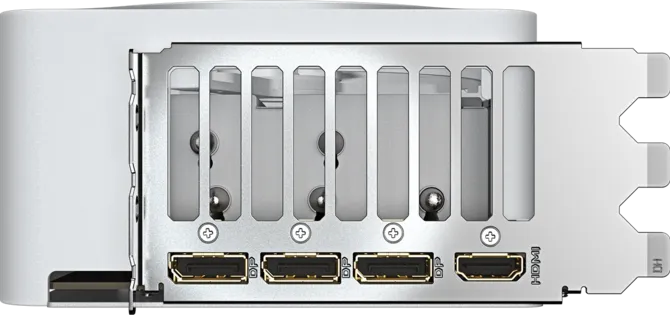

DisplayPort 2.1a & HDMI 2.1a Multi-Monitor Bay

DisplayPort 2.1a & HDMI 2.1a Multi-Monitor Bay

Equipped with 3x DisplayPort 2.1a (UHBR20 high-bandwidth support) and 1x HDMI 2.1a ports supporting up to 4 simultaneous 4K 240Hz or 8K 120Hz HDR gaming monitors.

⚡ Real-World Gaming Benchmark Index

Tested Game: Cyberpunk 2077: Phantom Liberty (1440p QHD • Ultra Ray Tracing Preset • DLSS Quality & Frame Generation ON)

🎮 Cyberpunk 2077: Phantom Liberty (1440p RT Ultra)
🔗 Complete Build Synergy & Recommended Components
Pair your GeForce RTX 5070 Ti with verified hardware available now on AHW Store:
750W-850W ATX 3.0 PSU

Native 12V-2x6 16-pin cable support with 750W-850W Gold efficiency.

View PSUs ↗
🧠
Gaming Processors

Zero-bottleneck pairing with Ryzen 7 9800X3D or Core i7-14700K.

View CPUs ↗
🖥️
High-Refresh Monitors

240Hz+ OLED and Fast IPS 1440p / 4K displays with G-Sync.

View Monitors ↗
🏗️
Chassis & Airflow Cases

High-airflow cases supporting 305 mm GPU clearance & anti-sag support.

View PC Cases ↗

🛠️ Building a Complete Custom Gaming Rig?

Use AHW Store's interactive PC Builder to check real-time part compatibility, bottleneck ratios, and get free professional assembly & thermal stress-testing.

Launch PC Builder ➔
📋 Verified Technical Datasheet
Official manufacturer specifications verified from GIGABYTE datasheets.
Hardware Parameter Technical Specification
Graphics Processing Unit (GPU) NVIDIA GeForce RTX 5070 Ti (Blackwell Architecture)
CUDA Cores 8,960 Cores
Core Clock (Boost / OC Mode) 2512 MHz (Factory Overclocked)
Memory Size & Type 16 GB GDDR7
Memory Clock Speed & Bus 28 Gbps • 256-bit Memory Bus
Total Memory Bandwidth 896 GB/s
Bus Interface Standard PCI Express 5.0 x16
Display Connectivity Outputs 3x DisplayPort 2.1a (UHBR20) • 1x HDMI 2.1a
Maximum Digital Resolution 7680 x 4320 @ 120Hz (Up to 4 Simultaneous Displays)
Card Physical Dimensions Length: 305 mm • Width: 130 mm • Height: 58 mm (2.9 Slot)
Power Connectors 1x 16-Pin 12V-2x6 (12VHPWR ATX 3.0 Compatible)
Recommended System Power Supply 750 Watts (850W Recommended for Overclocked Systems)
DirectX & API Support DirectX 12 Ultimate • OpenGL 4.6 • Vulkan 1.3
❓ Frequently Asked Questions & Store Policies
Comprehensive hardware guidance and official AHW Store purchase policies.
Hardware What power supply and cable are required for the RTX 5070 Ti?
Requires a 750W or 850W Gold certified power supply with a 16-pin 12V-2x6 cable or included 2x 8-pin adapter.
Hardware Will this card fit in standard Mid-Tower PC cases?
Measures 305mm in length and requires 2.9 expansion slots. Fits comfortably in Mid-Tower cases with 320mm+ clearance.
Hardware What advantages does GDDR7 memory offer over GDDR6X?
GDDR7 delivers 896 GB/s of bandwidth on a 256-bit bus, eliminating texture streaming bottlenecks in 4K ray-traced games.
Hardware Does the cooling system support 0dB Zero-RPM silent mode?
Yes, fans stay stationary during low load until temperatures exceed 55°C.
Hardware How does DLSS 4 Frame Generation improve framerates?
Generates intermediate frames using 5th Gen Tensor Cores, up to quadrupling framerates in Cyberpunk 2077 and Black Myth: Wukong.
Store Policy What warranty is included with graphics cards purchased on AHW Store?
All GPUs include official manufacturer warranty coverage in Egypt through authorized local distributors.
Store Policy What payment methods and installment plans are available?
We support Visa/Mastercard, ValU, Sympl, Souhoola, bank installments up to 36 months, and Cash on Delivery.
Store Policy How fast is nationwide delivery in Egypt?
Cairo and Giza orders arrive in 24-48 hours. Other governorates arrive in 2-4 business days.
Store Policy Can AHW build and test my full gaming PC with this GPU?
Yes! Free professional assembly, cable management, and 24-hour thermal testing are included with PC builds.
Store Policy What is the replacement and return policy?
We offer a 14-day replacement and refund policy for factory defects per Egyptian Consumer Protection Agency regulations.
