Gigabyte GeForce RTX 5080 WINDFORCE OC SFF 16G: Factory-Overclocked Blackwell for 4K Gaming
Gigabyte's RTX 5080 WINDFORCE OC SFF (GV-N5080WF3OC-16GD) runs NVIDIA's RTX 5080, with 10,752 CUDA cores and 1801 AI TOPS, at a 2670 MHz core clock against the reference card's 2617 MHz. Its 16 GB of GDDR7 runs at 30 Gbps on a 256-bit bus. The three-fan card measures 304 × 126 × 50 mm, takes one 16-pin (12V-2x6) connector with an adapter in the box, and Gigabyte recommends a 850 W power supply.
🎮 4K Gaming with DLSS 4
Fifth-gen Tensor cores run DLSS 4 with Multi Frame Generation in supported games, fourth-gen RT cores handle ray tracing, and NVIDIA Reflex cuts latency in competitive titles.
🧰 Creators, Streamers & AI
The ninth-gen NVIDIA Encoder speeds up exports and streams, NVIDIA Studio drivers keep creative apps stable, and 1801 AI TOPS accelerate local AI tools and NVIDIA Broadcast effects.
Cooling & Build
Four views of the card, each described from Gigabyte's own photos.

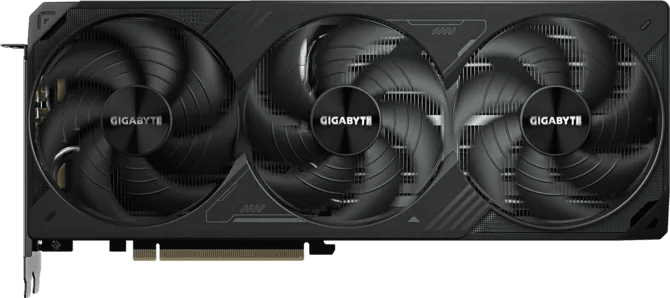

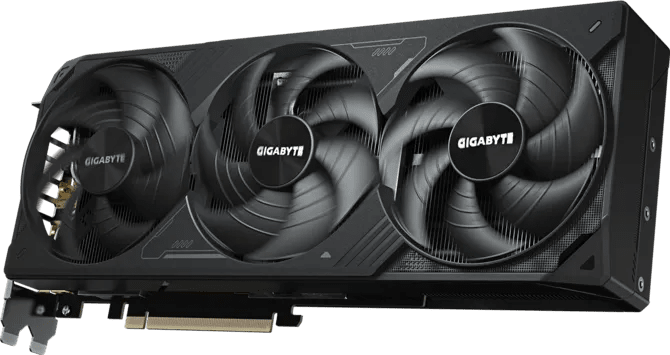

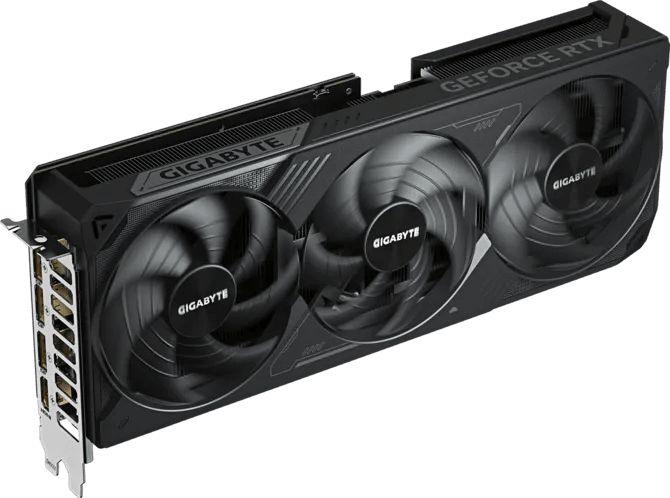

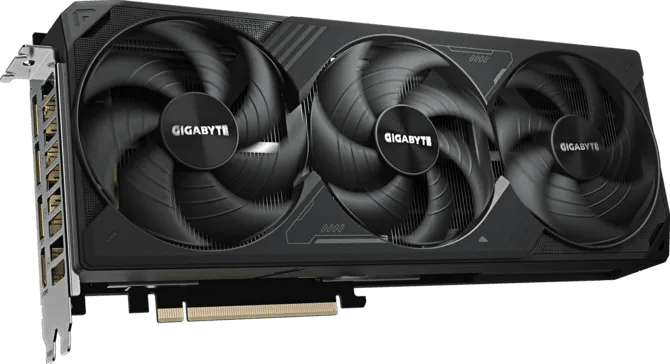

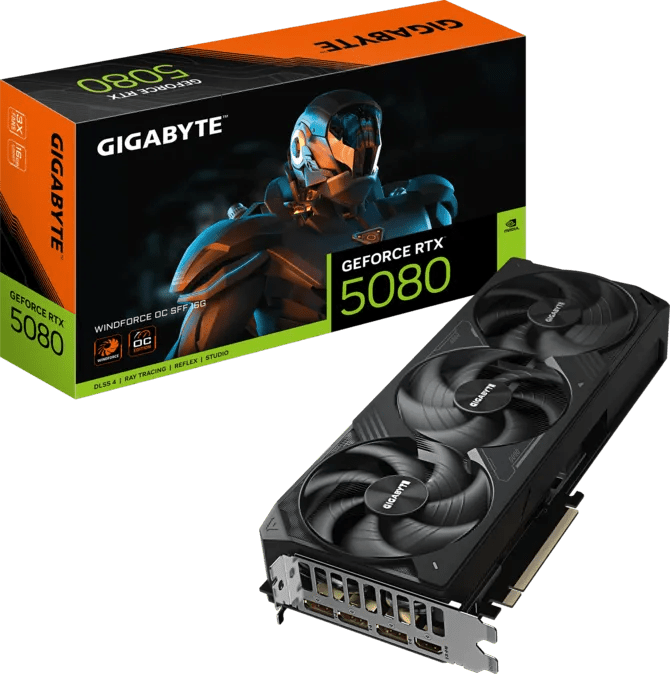

Three Fans, 304 mm Long
Three fans cover the full length of the heatsink. At 304 mm long and 50 mm thick it is built for NVIDIA's SFF-Ready size, so it fits many compact cases; check your case's GPU length.

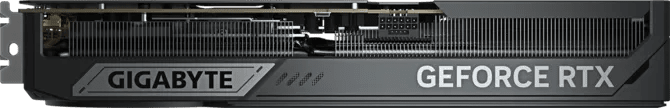

12V-2x6 Power and Lit Edge
The top edge carries the GIGABYTE and GEFORCE RTX lettering and the single 16-pin (12V-2x6) socket; a 12V-2x6 to 3× PCIe 8-pin adapter is in the box.

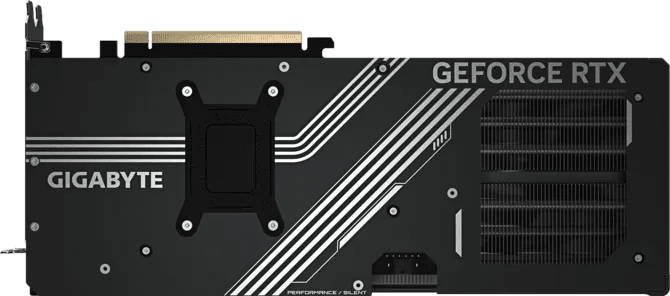

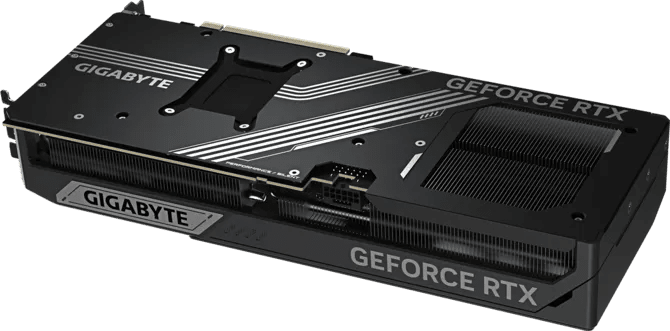

Backplate with Open End
The backplate covers the board with GIGABYTE and GEFORCE RTX graphics, and its open end lets air from the end fan pass through the fins.

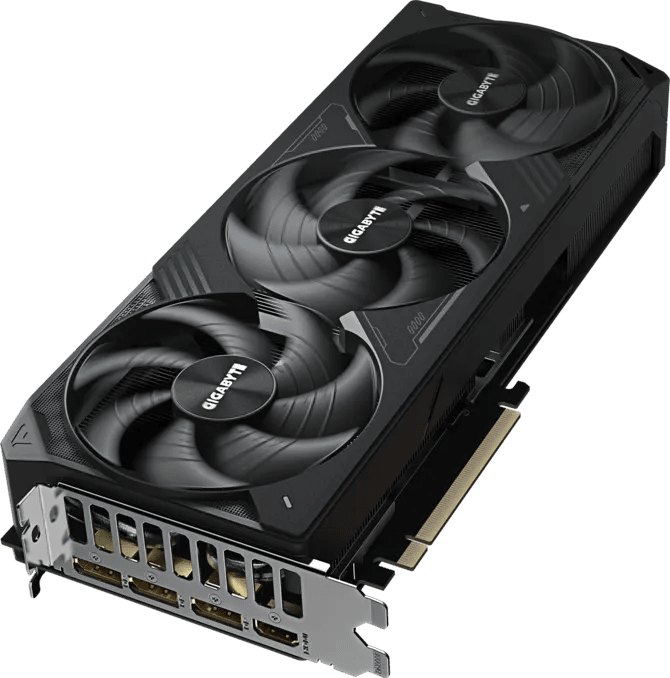

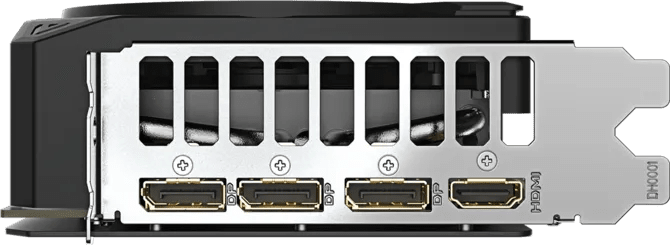

Four Display Outputs
Three DisplayPort 2.1b and one HDMI 2.1b output drive up to four displays, up to 7680 × 4320.
📊 AI Performance Index (AI TOPS)
AI TOPS measure the Tensor-core throughput behind DLSS and local AI features. Figures from NVIDIA's official specification pages.
Bar length = AI TOPSComplete Build Pairing
Build around the RTX 5080 WINDFORCE OC SFF with parts available now at AHW Store:
Power Supplies
Gigabyte recommends a 850 W power supply; a PSU with a native 12V-2x6 cable avoids the adapter.
Processors
A current eight-core CPU keeps the RTX 5080 fed at high frame rates.
Monitors
A 4K high-refresh monitor makes the most of DLSS 4 Multi Frame Generation.
PC Cases
Check that your case takes a 304 mm card before you order.
🛠️ Building a Complete PC?
Use AHW Store's PC Builder to check compatibility, and get professional assembly and stress-testing before delivery.
Verified Technical Datasheet
From Gigabyte's specification page for the GV-N5080WF3OC-16GD and NVIDIA's RTX 5080 specifications.
| Model | GV-N5080WF3OC-16GD |
| Graphics Engine | NVIDIA GeForce RTX 5080 (Blackwell) |
| AI Performance | 1801 AI TOPS |
| CUDA Cores | 10,752 |
| Core Clock | 2670 MHz (reference card 2617 MHz) |
| Memory | 16 GB GDDR7 |
| Memory Speed / Bus | 30 Gbps / 256-bit |
| Card Bus | PCI Express 5.0 |
| Outputs | 3 × DisplayPort 2.1b · 1 × HDMI 2.1b |
| Maximum Displays / Resolution | 4 / 7680 × 4320 |
| Power Input | 1 × 16-pin (12V-2x6) |
| Recommended PSU | 850 W |
| Card Size | 304 × 126 × 50 mm |
| PCB Form | ATX |
| API Support | DirectX 12 · OpenGL 4.6 |
| In the Box | Quick guide · 12V-2x6 to 3× PCIe 8-pin adapter · Versatile VGA holder |
